Smeg KDD60VXE-3 Downdraft

SKU: KDD60VXE-3

Stainless Steel and Black Glass

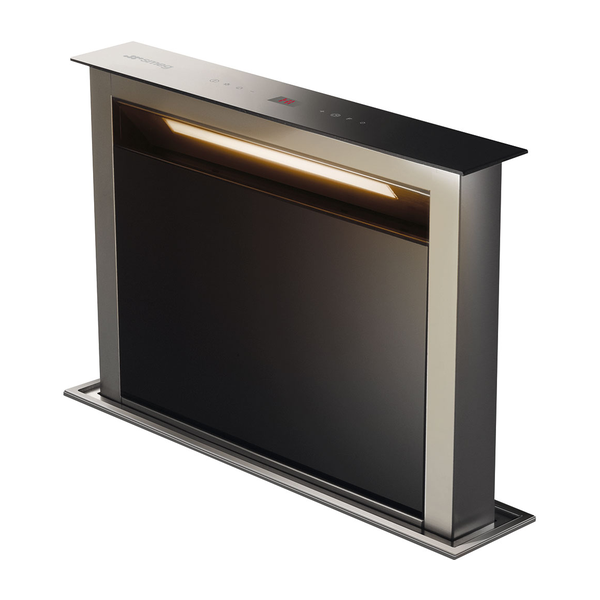

The SMEG KDD60VXE-3 is a 60 cm fully integrated downdraft cooker hood in black brushed stainless steel with universal aesthetics and black glass. It offers ducted out or re-circulation extraction, touch controls and digital display with four speeds including intensive. With perimeter extraction, LED lighting and aluminium anti-grease filters with replacement indicator, it is designed to provide efficient kitchen ventilation and air refresh functions.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Downdraft Cooker Hoods
Design	Fully integrated
Extraction	Ducted out or re-circulation possible
Electronic control	Yes
Perimeter extraction	Yes
Material	Stainless steel – Brushed type of steel
Hood width	60 cm
Aesthetics	Universal
Colour / Finishing	Black, brushed finishing
Glass type	Black
Serigraphy colour	White
Logo	Silk screen

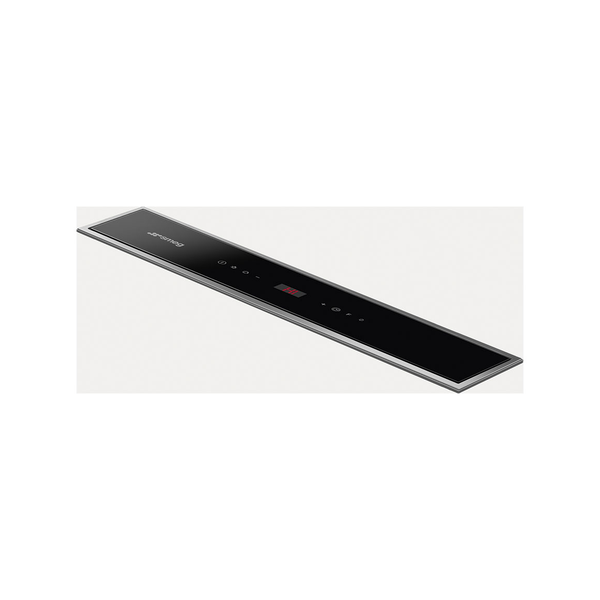

Control setting	Touch control
LED colour	Red
Display	Digital electronic display
Number of speeds	4 with intensive speed
24h air filter function	Yes
Other functions	Delay_function, time-setting options
Remote motor	KITRBDD – Kit optional
Number of lights	1
Light type / power	LED, 6 W (Normal Power of the light system 6 W)
Dimmer mode	Yes
Light colour temperature	2700 K
Free outlet maximum capacity	680 m³/h
Motor power	250 W
Number of filters	2
Filter type	Anti-grease filters – Aluminium
Filter replacement indicator	Yes
Vent outlet	150 mm
Remote control	Optional (RCKF2)
Sliding door	Yes
Tube reduction	Yes
Annual efficiency consumption (AEChood)	64 kWh/year
Energy efficiency class (EEC)	B
Fluid dynamic efficiency (FDE)	28,50
Fluid dynamic efficiency class (FDEC)	A
Lighting efficiency (LE)	33 lux/W
Lighting efficiency class (LEC)	A
Grease filtering efficiency (GFE)	55,1 %
Grease filtering efficiency class (GFEC)	E
Air flow at minimum speed (Qmin)	200 m³/h
Maximum extraction rate	350 m³/h
Intensive extraction rate	650 m³/h
Sound power emission at minimum speed (SPEmin)	46 dBA
Sound power emission at maximum speed (SPEmax)	59 dBA
Sound power emission at boost speed (SPEboost)	70 dBA
Time increase factor (F)	1,0
Energy efficiency index per first cavity	59
Measured air flow rate at best efficiency point (Qbep)	377 m³/h
Measured air pressure at best efficiency point (Qbep)	446 Pa
Measured electric power input at best efficiency point (Wbep)	164 W
Average illumination on cooking surface (Emiddle)	200 lux
Sound power level at highest setting (Lwa)	52 dBA
Extraction rate IEC 61591	Speed 1: 200 m³/h, Speed 2: 280 m³/h, Speed 3: 350 m³/h, Speed 4: 430 m³/h, Intensive speed: 650 m³/h
Noise level IEC 60704–2–13	Speed 1: 46 dBA, Speed 2: 52 dBA, Speed 3: 59 dBA, Speed 4: 62 dBA, Intensive speed: 70 dBA
Nominal power	256 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Plug	(F;E) Schuko
EAN code	8017709346133
