How many cooking zones does the SMEG SIM3964D have?

The hob has a total of six induction cook zones, all with booster functionality, and three flexible MultiZone areas that can be used as Multizone cooking areas.

What are the dimensions and cut-out size for installation?

The hob is 90 cm wide and is designed for built-in installation with a standard cut-out of 490x860 mm, suitable for a 90 cm cabinet.

Does the hob have child safety features?

Yes. The SIM3964D includes a control lock / child safety function and protection against accidental start up to help prevent unintended operation.

What safety protections are included for overheating and spills?

The hob has overheat protection that automatically turns it off if the control unit overheats, and overfill protection that shuts down the hob in the presence of liquid overflow. Residual heat indicators also show which zones remain hot.

What is the nominal power and how can power consumption be limited?

The nominal power is 11100 W with a current of 49 A. An advanced limited power consumption mode allows the maximum power absorption to be set between 2400 W and 11100 W in 100 W steps.

Which accessories are compatible with this hob?

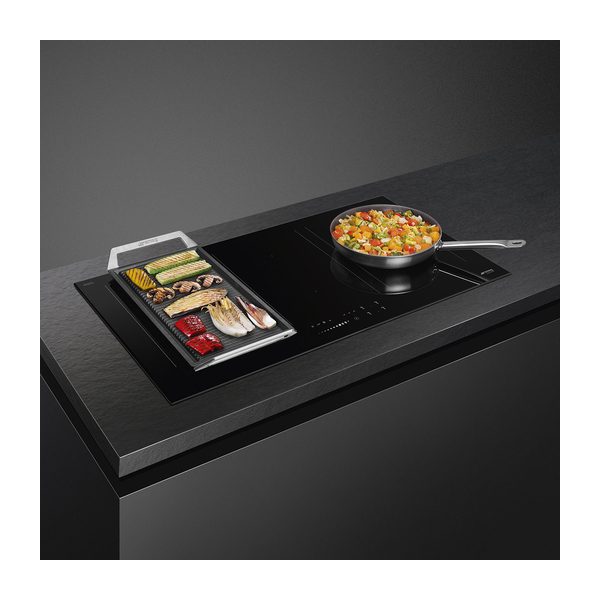

Compatible accessories include the GRILLPLATE universal griddle, SCRP scraper for induction and ceramic hobs and teppanyaki, TPK stainless steel grill plate for teppanyaki dishes, and TPKPLATE universal non-stick plate for fish, eggs and vegetables.

Product Information Sheet

Smeg Eclipse Induction Hob

SKU: SIM3964D

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

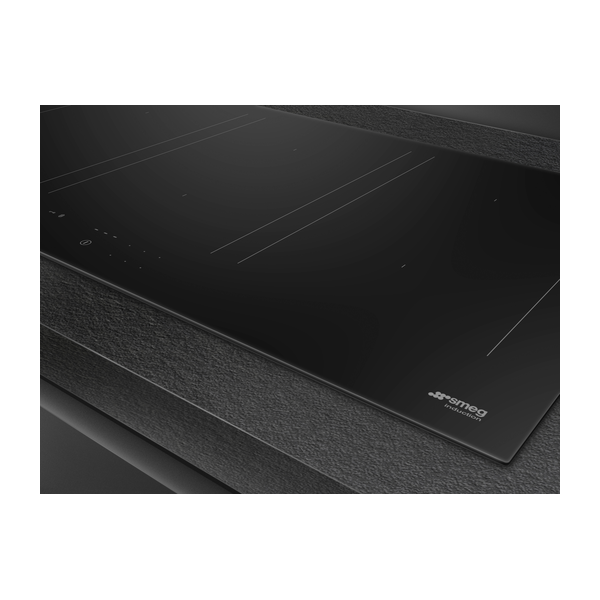

Smeg SIM3964D Eclipse Induction Hob

SKU: SIM3964D · EAN: 8017709301453

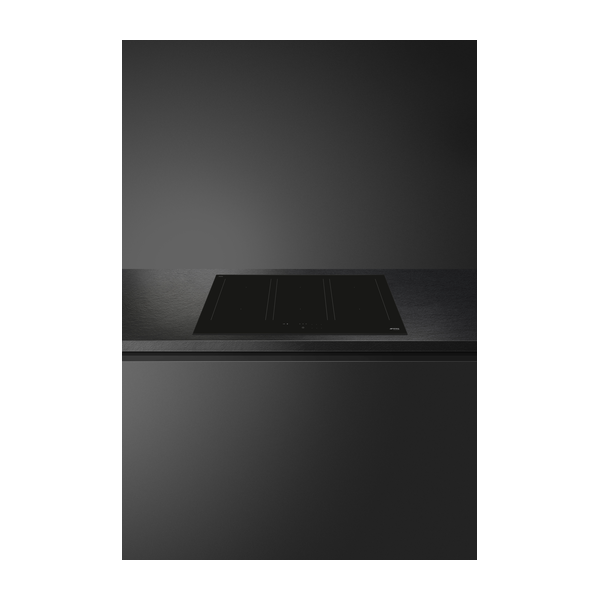

Ultra-low profile / Fully Flush

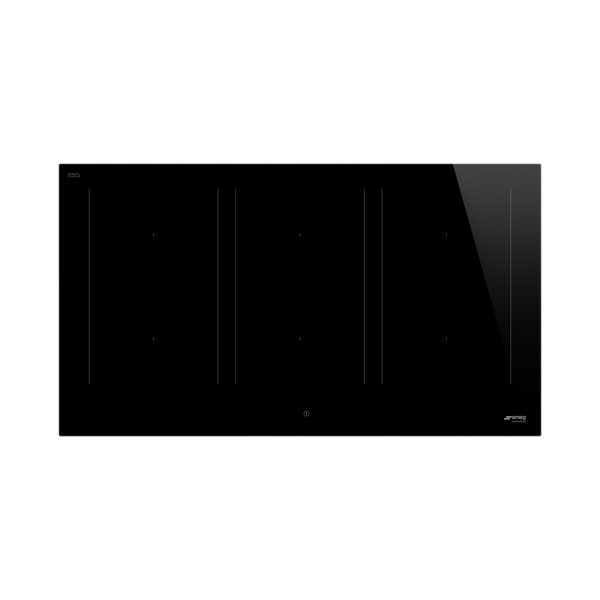

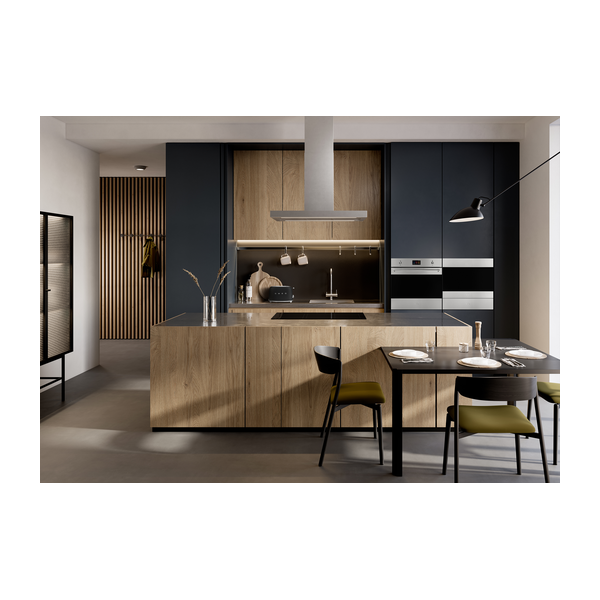

The SMEG SIM3964D is a 90 cm built-in induction hob designed for ultra-low profile or fully flushed installation in modern kitchens. It offers six Multizone induction cook zones with flexible MultiZone areas, EVO Slider touch controls and Auto-Vent 2.0 connection between hob and hood. With nine power levels, booster and double booster options, keep warm and grill functions, it provides versatile, precise cooking control on a sleek black Eclipse ceramic glass surface.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hob

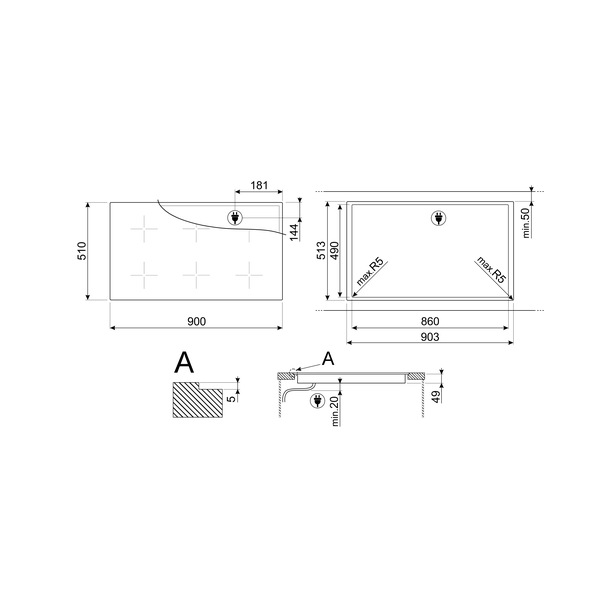

Installation	Built-in, ultra-low profile or fully flushed
Dimensions	90 cm

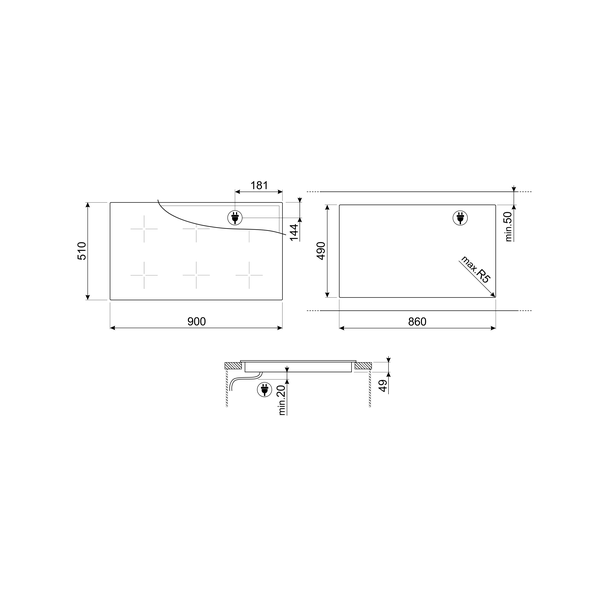

Standard cut-out size	490x860 mm
Power supply	Electric, induction
Aesthetics	Classic
Colour / finishing	Black glass
Material	Glass, Eclipse ceramic, straight edge
Control type	EVO Slider, white slider, front position
No. of induction cook zones	6 (total cook zones 6)
Flexible zones	3 MultiZone flexible zones, Multizone option, Bridge option
Power levels	9
Cook zones with booster	6 zones with booster and double booster
Front left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 24.0x18.0 cm
Rear left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 24.0x18.0 cm
Front centre zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 24.0x18.0 cm
Rear centre zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 24.0x18.0 cm
Front right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 24.0x18.0 cm
Rear right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 24.0x18.0 cm
Multizone left area	Booster 3.70 kW – 38.5x23.0 cm
Multizone centre area	Booster 3.70 kW – 38.5x23.0 cm
Multizone right area	Booster 3.70 kW – 38.5x23.0 cm
Time-setting options	Automatic switch-off, end cooking timer (6 zones), minute minder, residual time indicator
Main on/off switch	Yes

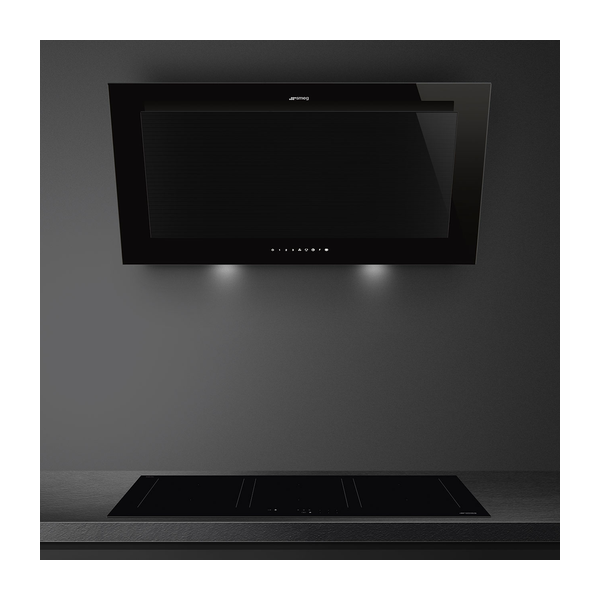

Auto-Vent 2.0	Yes (connection between hob and hood)
Quick Start	Yes
Rapid level selection	Yes
Keep warm function	Yes
Grill function	Yes
Pause option	Yes
Control lock / child safety	Yes
Protection against accidental start	Yes
Overheat protection	Automatic switch-off when overheat
Overflow protection	Automatic switch-off when overflow
Residual heat indicator	Yes
Limited power consumption mode	Yes, advanced; 2400 to 11100 W, step 100 W
Nominal power	11100 W
Current	49 A
Voltage	220–240 V and 380–415 V
Frequency	50/60 Hz
Electric cable type	Three-phase; single and double phase
Power supply cable supplied	Yes, single and double phase
Cable length	120 cm
Terminal box	5 poles
Logo	Silk screen
Serigraphy colour	Grey
Showroom demo option	Yes
