| Model | TR103P |
|---|
| EAN code | 8017709241483 |
|---|

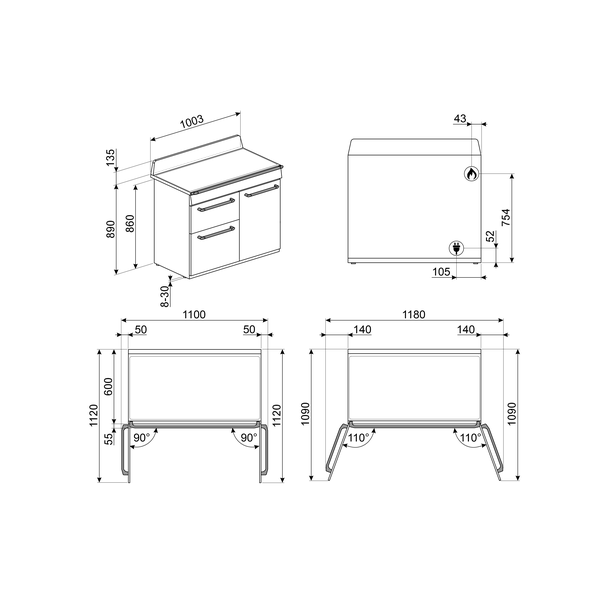

| Cooker size | 100x60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Hob type | Gas |
|---|
| Type of main oven | Thermo–ventilated |
|---|
| Type of second oven | Thermo–ventilated |
|---|
| Cleaning system main oven | Vapor Clean |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | B |
|---|
| Design / Aesthetics | Victoria, gloss finish, cream colour |
|---|
| Command panel finish | Enamelled metal |
|---|
| Logo | Logo assembled 50's, position: Upstand + Command panel |
|---|
| Upstand | Yes |
|---|
| Hob colour | Black enamel |
|---|
| Type of pan stands | Cast Iron |
|---|
| Type of control setting | Control knobs, Smeg Victoria, stainless steel colour |
|---|
| Number of controls | 10 |
|---|
| Serigraphy colour | Black |
|---|
| Display | Electronic 5 buttons |
|---|
| Door | With frame, full glass inner door |
|---|
| Glass type | Black |
|---|
| Handle | Smeg Victoria, brushed stainless steel colour |
|---|
| Plinth | Anthracite |
|---|
| Number of cooking functions (main oven) | 8 traditional cooking functions plus Vapor Clean |
|---|
| Traditional cooking functions (main oven) | Static; Circulaire; Turbo (circulaire + bottom + upper + fan); ECO; Small grill; Large grill; Fan grill (large); Fan assisted base |
|---|
| Cleaning functions (main oven) | Vapor Clean |
|---|
| Cooking functions cavity 2 | 1 traditional function: Circulaire |
|---|
| Number of functions third oven | 1 – Oven light; plus Full grill (stated under Programme / Functions Third Oven) |
|---|

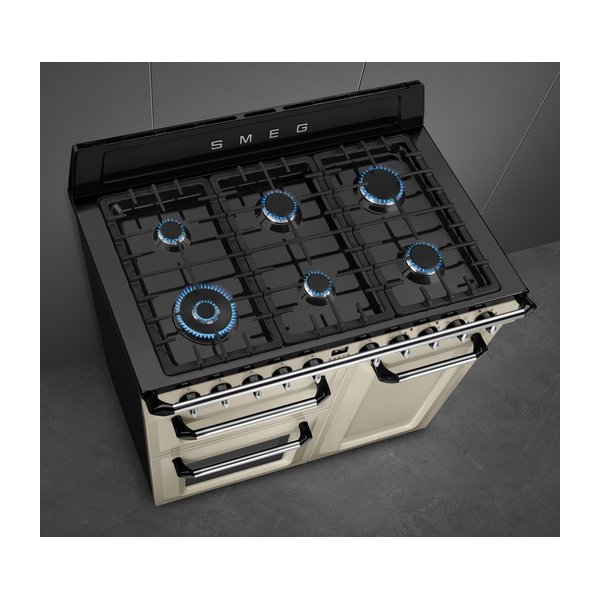

| Hob – total number of cook zones | 6 gas zones |
|---|
| Front left burner | Gas – 2UR (dual) – 4.20 kW |
|---|
| Rear left burner | Gas – AUX – 1.00 kW |
|---|
| Front centre burner | Gas – AUX – 1.00 kW |
|---|
| Rear centre burner | Gas – Semi Rapid – 1.80 kW |
|---|
| Front right burner | Gas – Semi Rapid – 1.80 kW |
|---|
| Rear right burner | Gas – Rapid – 2.90 kW |
|---|
| Type of gas burners | Standard, with ultra rapid burners up to 5 kW (symbol glossary reference to ultra rapid burners) |
|---|
| Automatic electronic ignition | Yes |
|---|
| Gas safety valves | Yes |
|---|
| Burner caps | Matte black enamelled |
|---|
| Main oven net volume | 61 litres |
|---|
| Main oven gross volume | 70 l |
|---|
| Main oven cavity material | Easy clean enamel |
|---|
| Main oven shelf positions | 4, with metal racks |
|---|
| Main oven lights | 1 halogen light, 40 W |
|---|
| Main oven door opening | Side opening, removable door, full glass inner door |
|---|
| Main oven door glasses | 3 total door glasses, 1 thermo–reflective |
|---|
| Main oven safety thermostat | Yes |
|---|
| Main oven cooling system | Tangential |
|---|
| Main oven usable cavity dimensions (HxWxD) | 316x460x412 mm |
|---|
| Main oven temperature control | Electro–mechanical, 50°C to 260°C |
|---|
| Main oven lower heating element power | 1200 W |
|---|
| Main oven upper heating element power | 1000 W |
|---|
| Main oven grill element power | 1700 W |
|---|
| Main oven large grill power | 2700 W |
|---|
| Main oven circular heating element power | 2000 W |
|---|
| Main oven grill type | Electric, tilting grill |
|---|
| Main oven timer | Yes, with start and stop cooking time setting and end of cooking acoustic alarm |
|---|
| Second cavity net volume | 84 litres |
|---|
| Second cavity gross volume | 94 l |
|---|
| Second cavity material | Easy clean enamel |
|---|
| Second cavity shelf positions | 9, with metal racks |
|---|
| Second cavity lights | 1 halogen light, 40 W |
|---|
| Second cavity door opening | Side opening, removable door and removable inner door |
|---|
| Second cavity door glasses | 2 total door glasses, 1 thermo–reflective |
|---|
| Second cavity safety thermostat | Yes |
|---|
| Second cavity cooling system | Tangential |
|---|
| Second cavity usable dimensions (HxWxD) | 605x375x375 mm |
|---|
| Second cavity temperature control | Electro–mechanical, 50°C to 245°C |
|---|
| Second cavity circular heating element | 2 x 1550 W |
|---|
| Third cavity net volume | 36 l |
|---|
| Third cavity gross volume | 41 l |
|---|
| Third cavity material | Easy clean enamel |
|---|
| Third cavity shelf positions | 2, with metal racks |
|---|
| Third cavity lights | 1 halogen light, 40 W |
|---|
| Third cavity door opening | Flap down, removable door and removable inner door |
|---|
| Third cavity door glasses | 3 total door glasses, 1 thermo–reflective |
|---|
| Third cavity safety thermostat | Yes |
|---|
| Third cavity cooling system | Tangential |
|---|
| Third cavity usable dimensions (HxWxD) | 169x440x443 mm |
|---|
| Third cavity temperature control | Electro–mechanical, 50°C to 260°C |
|---|
| Third cavity large grill power | 2700 W, electric, tilting grill |
|---|
| Accessories included for main oven & hob | Cast iron wok support 1; Moka stand in cast iron 1; Chrome shelf with back and side stop 2; 40 mm deep tray 1; Grill mesh 1; Telescopic guide rails, partial extraction 1 |
|---|
| Accessories included for secondary oven | Chrome shelf with back stop 4; Plate rack/warmer 1; 40 mm deep tray 1 |
|---|
| Accessories included for third oven | Not stated in source |
|---|
| Compatible accessories | AIRFRY air fryer rack; AIRFRY2 air fryer tray; BBQ double sided plate; BGTR9 cast iron grill plate; BN620–1 enamelled tray 20 mm; BN640 enamelled tray 40 mm; BNP608T teflon–coated tray; GTP partially extractable telescopic guides; GTT totally extractable telescopic guides; KIT1TR103 splashback 100x75 cm (black); KITH103 height extension kit (950 mm); PALPZ pizza shovel; SFLK1 child lock; SMOLD set of 7 silicone moulds |
|---|
| Max power draw | 8900 W |
|---|
| Current | 39 A |
|---|
| Voltage | 220–240 V; 380–415 V (Voltage 2) |
|---|
| Type of electric cable | Yes, Single phase |
|---|
| Additional connection modalities | Yes, Double and Three Phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|
