Bosch PCR9A5I90 Series 6 Gas Hob

SKU: PCR9A5I90 · EAN: 4242005496082

Brushed steel

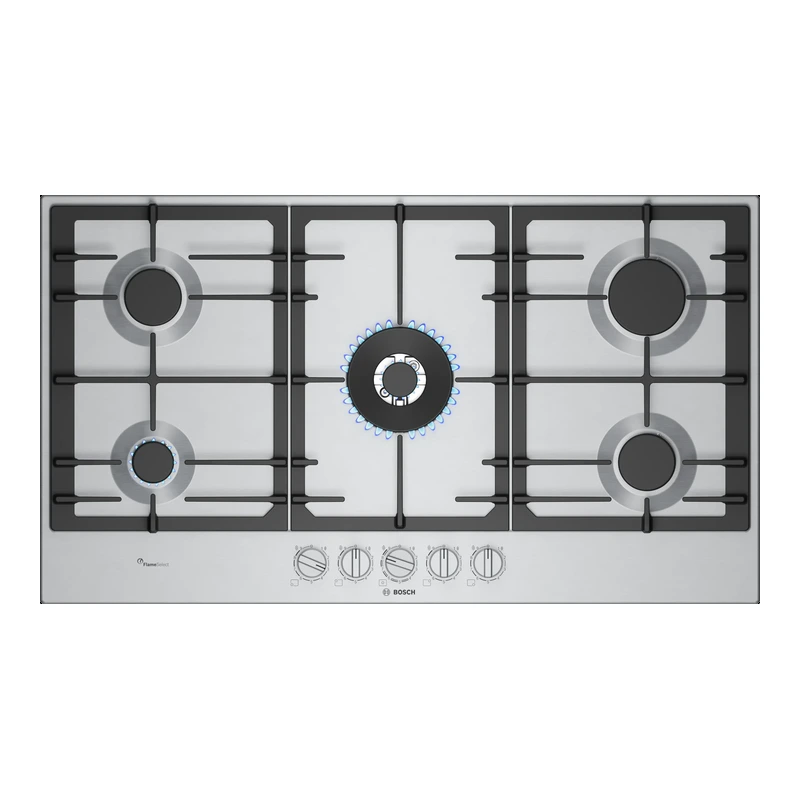

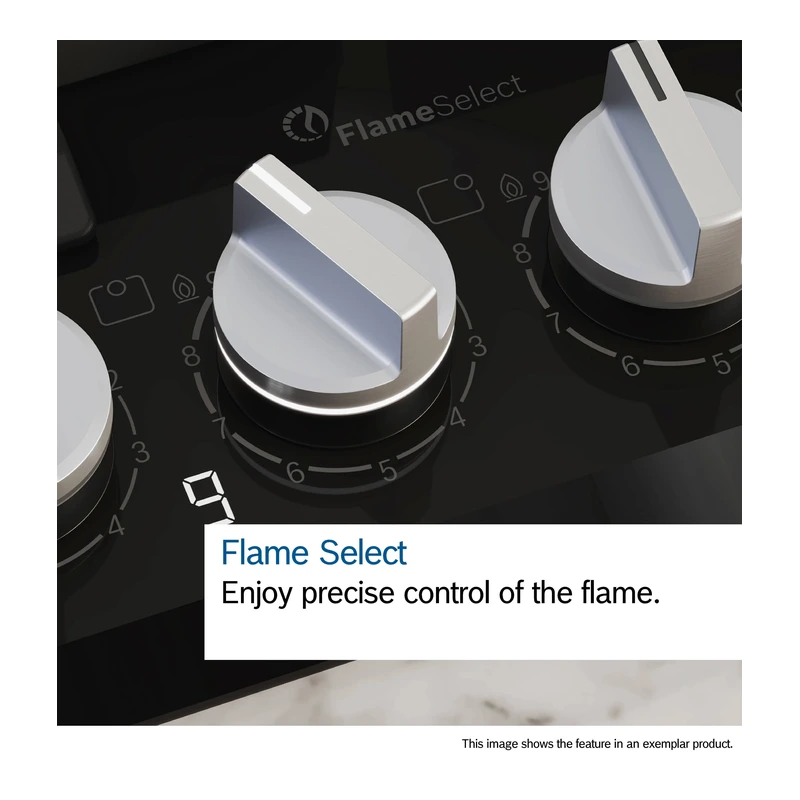

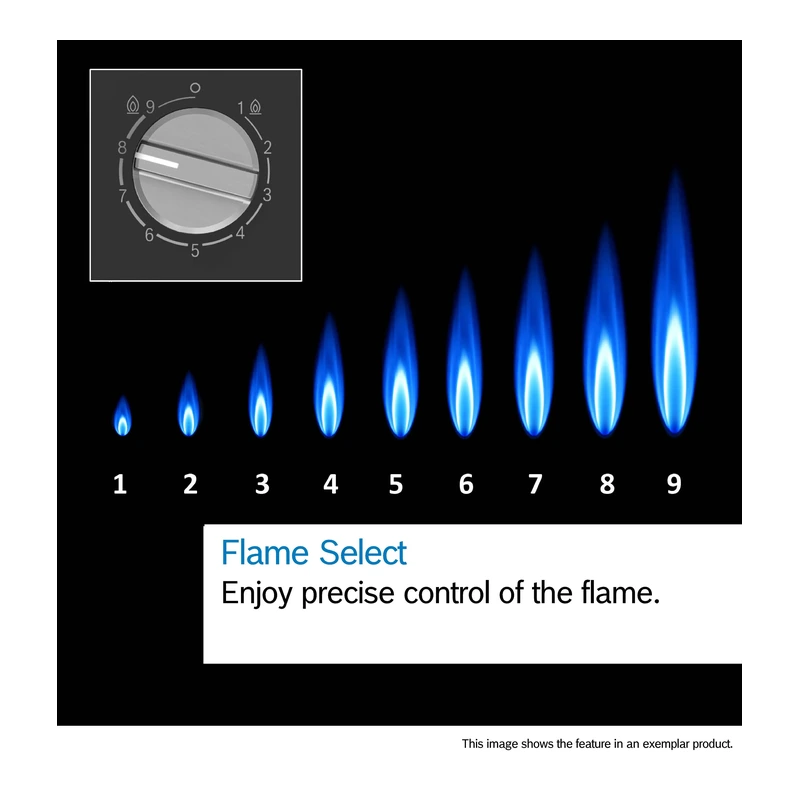

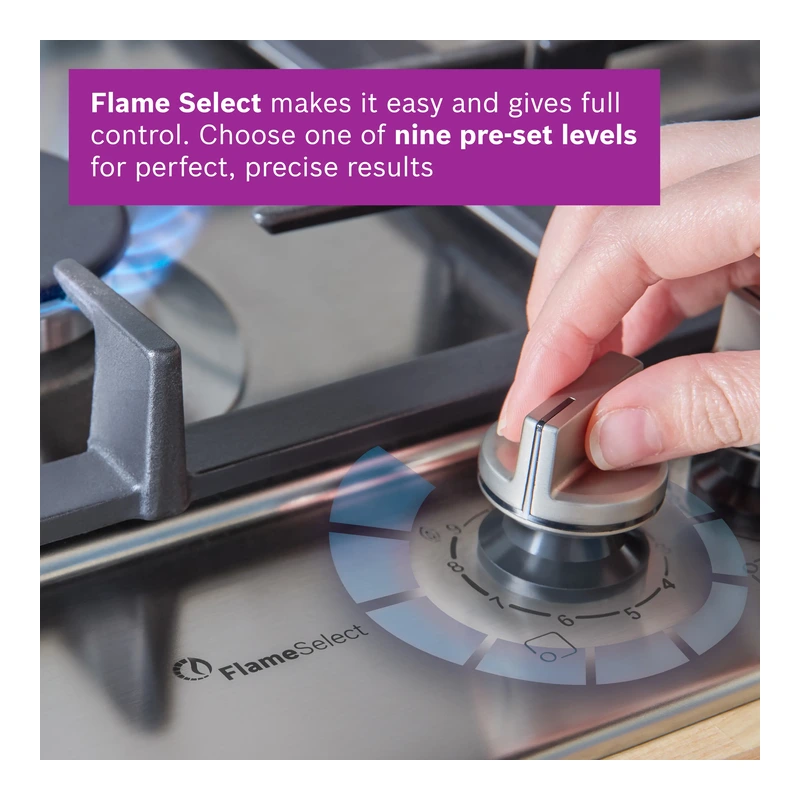

The Series 6 PCR9A5I90 is a 90 cm stainless steel gas hob with integrated front controls and five gas burners, including a dual control wok burner. FlameSelect lets you precisely control and adjust the flame in nine defined levels, while cast iron pan supports and removable full metal dials support effortless use and cleaning. Dishwasher suitable pan supports and detachable dials help keep the hob easy to maintain.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Series	Series 6
Product type	Gas hob w integrated controls
Model	PCR9A5I90
Installation type	Built-in
Heating type	Gas
Number of cooking zones	5
Width of appliance	915 mm
Appliance dimensions (HxWxD)	45x915x520 mm
Dimensions of product (Design section)	51.5 x 915 x 520 mm

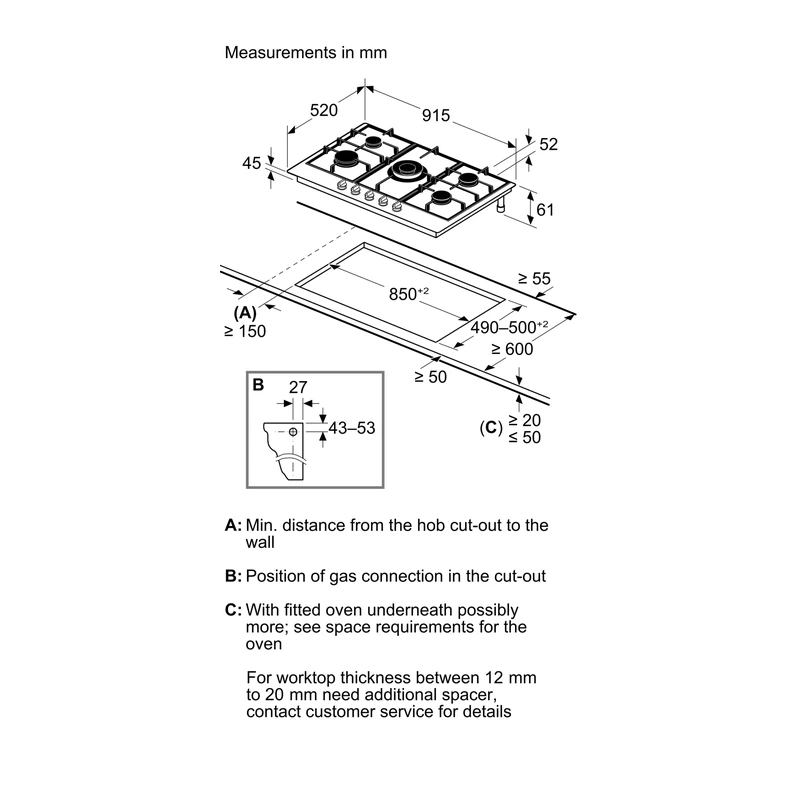

Required niche size (HxWxD)	45 x 850-850 x 490-500 mm / 45 x 850 x (490-500) mm
Dimensions of packed product (HxWxD)	175x1110x660 mm
Net weight	16.3 kg
Gross weight	18.8 kg
Residual heat indicator	Without
Location of control panel	Front
Basic surface material	Stainless steel
Colour of surface	Stainless steel
Length of electrical supply cord	100 cm / 1 m
EAN code	4242005496082
Gas connection rating	12500 W
Connected load	12.5 KW
Fuse protection	3 A
Voltage	220-240 V
Frequency	50; 60 Hz
Min. worktop thickness	20 mm
Burner configuration	5 gas burners including 1 dual control wok burner Left front: economy burner up to 1 kW (depending on gas type) Left rear: standard burner up to 1.75 KW (depending on gas type) Centre front: wok burner up to 5 KW (depending on gas type) Right rear: high-speed burner up to 3 KW (depending on gas type) Right front: standard burner up to 1.75 KW (depending on gas type)

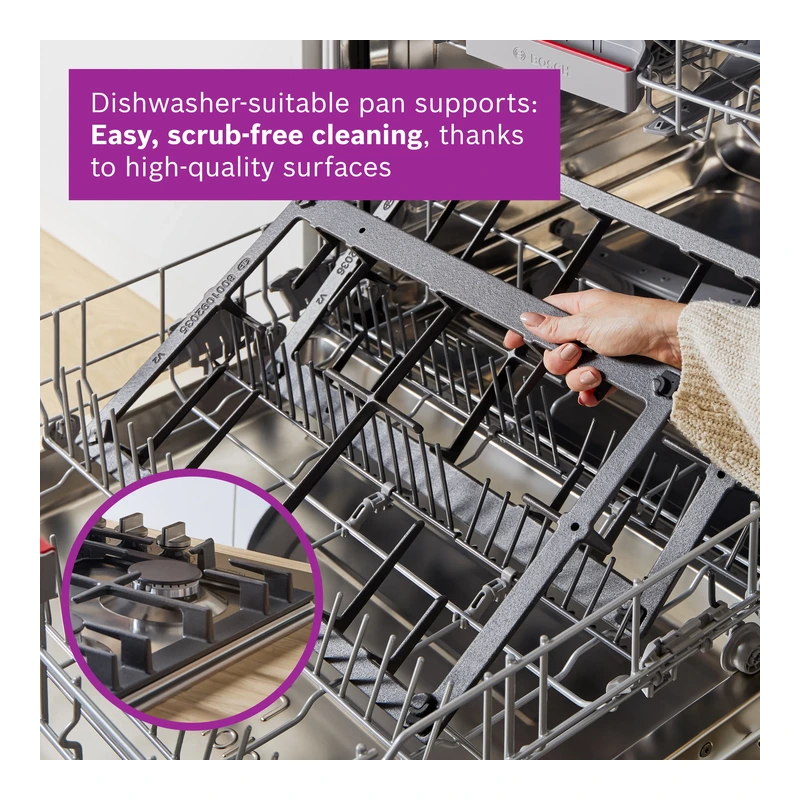

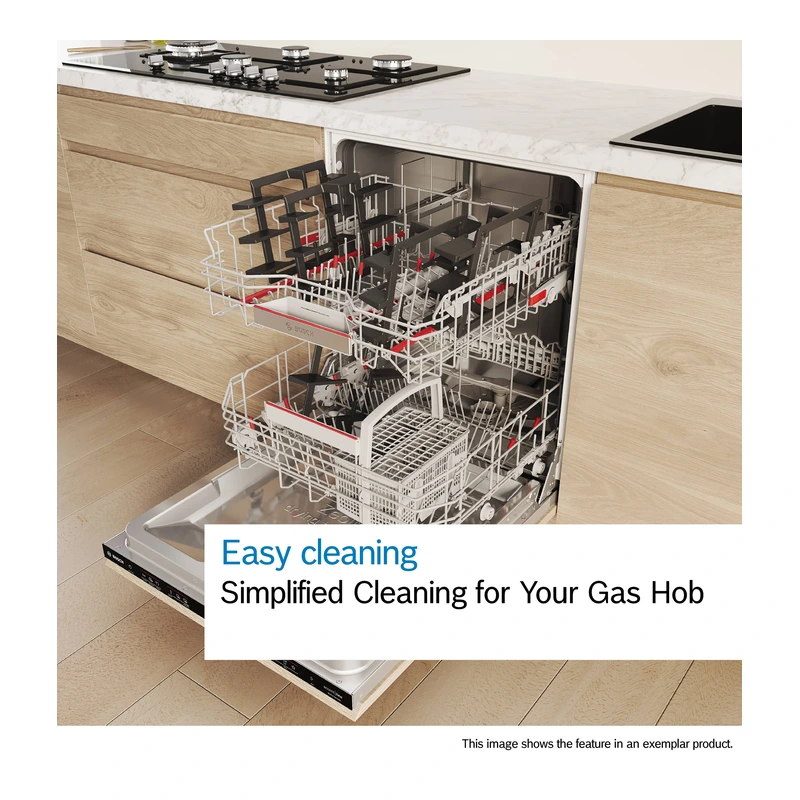

Pan supports	Cast iron pan supports, dishwasher suitable

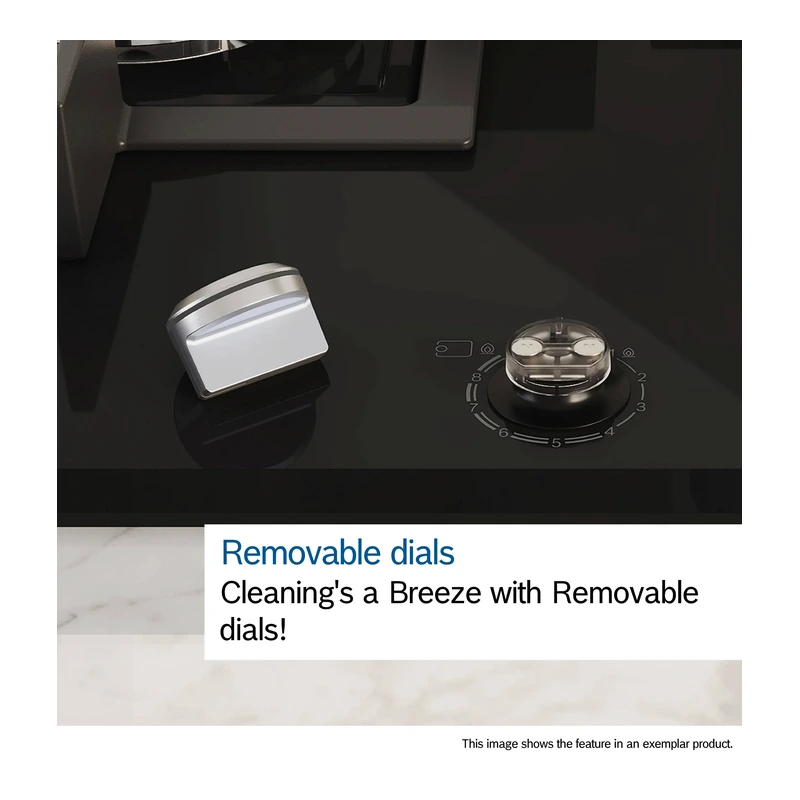

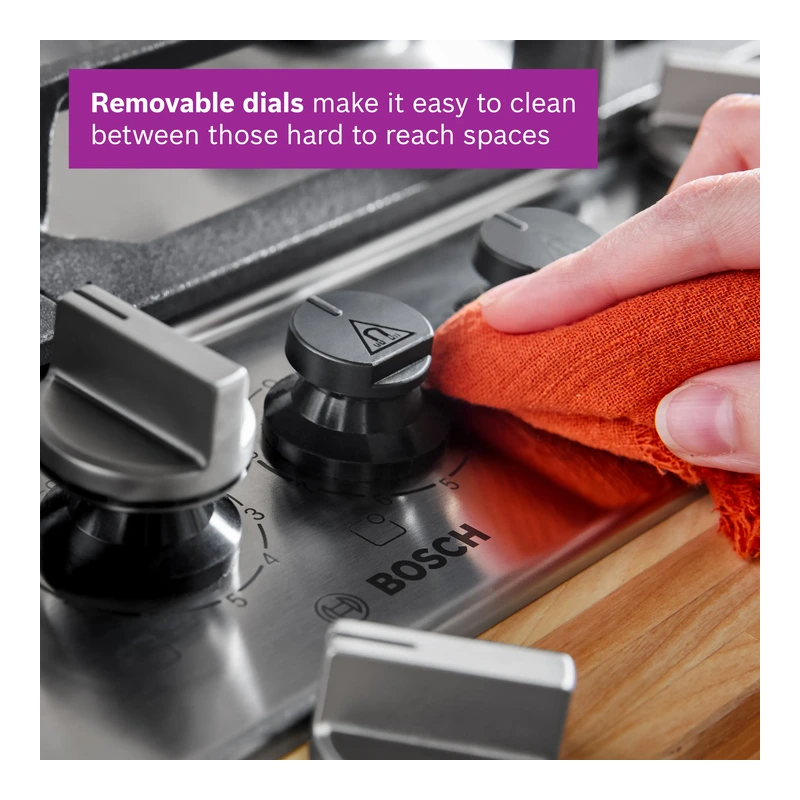

Control dials	Design co-ordinated, full metal, removable, front
Ignition	Ignition via control dials (push and turn)

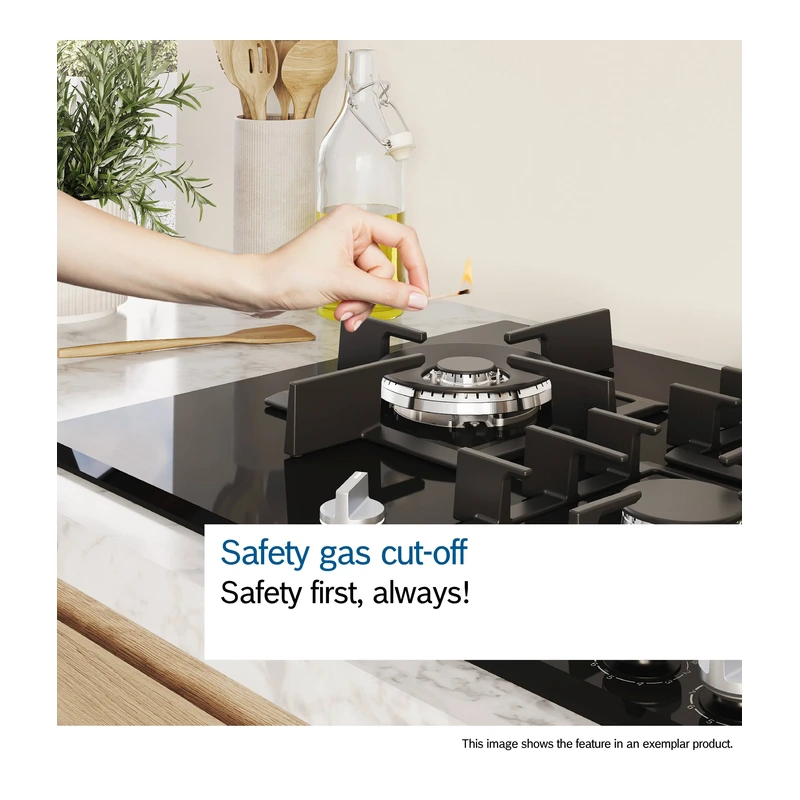

Safety	Flame failure safety device
Gas types usable	Nat gas L/LL G25/20mbar (DE) NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar
Gas presetting	Pre-set for natural gas
LPG nozzles	Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service.
