How many burners does the Series 6 PPM9A6I40 gas hob have?

The hob has 5 gas burners: a left wok burner up to 4 kW, a centre front economy burner up to 1 kW, a centre rear standard burner up to 1.75 kW, a right rear high–speed burner up to 3 kW and a right front standard burner up to 1.75 kW, depending on gas type.

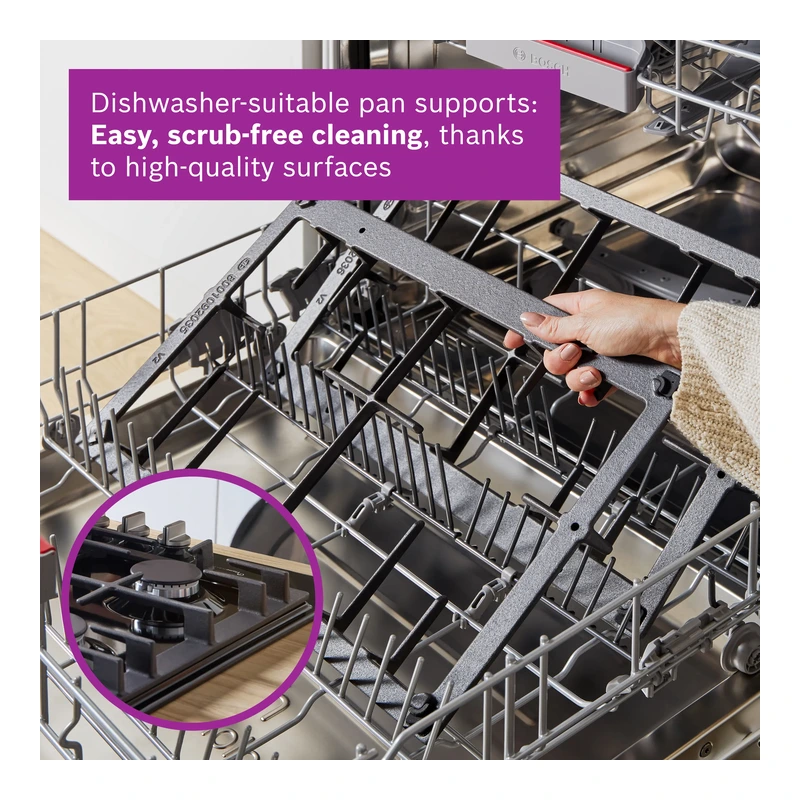

Can the pan supports be cleaned in a dishwasher?

Yes, the cast iron pan supports are dishwasher suitable, which allows easy, scrub–free cleaning.

Is the hob suitable for LPG as well as natural gas?

The hob is pre–set for natural gas and usable with several natural gas types and liquid gas types including G30,31 28–30/37 mbar, G30 37 mbar and liquid gas 50 mbar. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas. Nozzles for other gas types can be ordered via customer service.

What safety features does this gas hob include?

The hob is equipped with a flame failure safety device that prevents unwanted gas flow when the flame goes out.

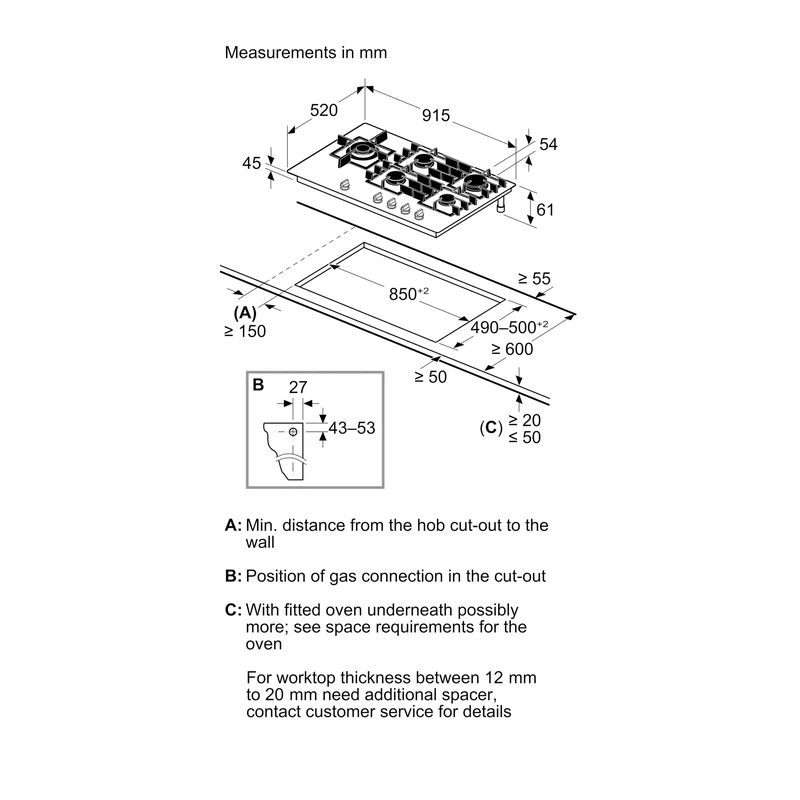

What is the required niche size for installation?

The required niche size for installation is 45 x 850 x (490–500) mm. The minimum worktop thickness is 20 mm, or 30 mm if the hob is installed flush.

Are there any optional accessories available?

Optional accessories include HEZ298105 Simmer plate, HEZ298107 Wok ring, HEZ298114 Small pot support, HEZ32WA00 Wireless food thermometer, and HEZ9SE040 and HEZ9SE060 cookware sets.

Product Information Sheet

Bosch Series 6 Gas Hob

SKU: PPM9A6I40

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch PPM9A6I40 Series 6 Gas Hob

SKU: PPM9A6I40 · EAN: 4242005496242

Tempered Black Glass

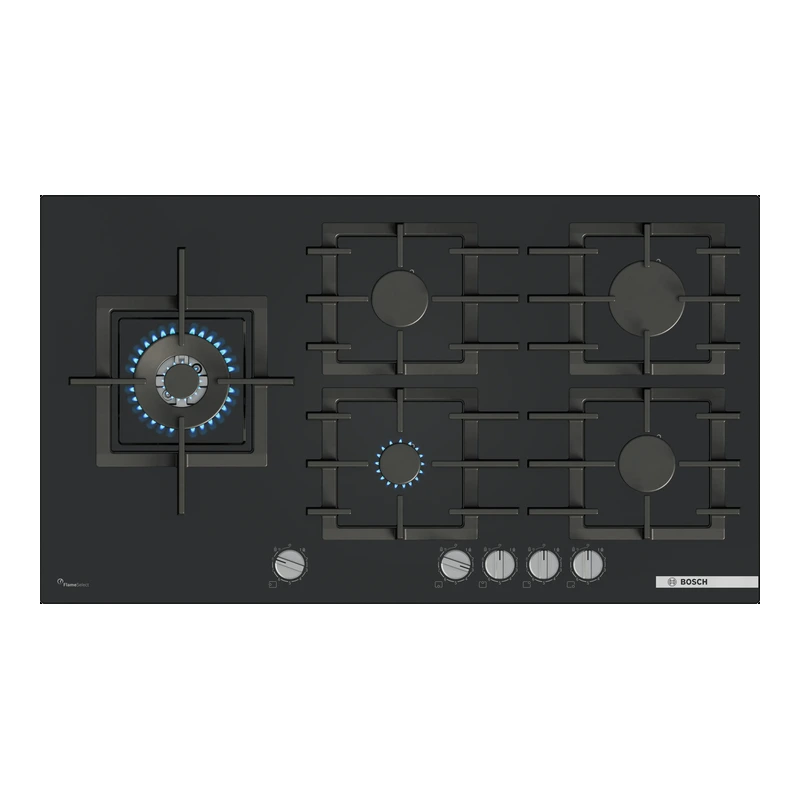

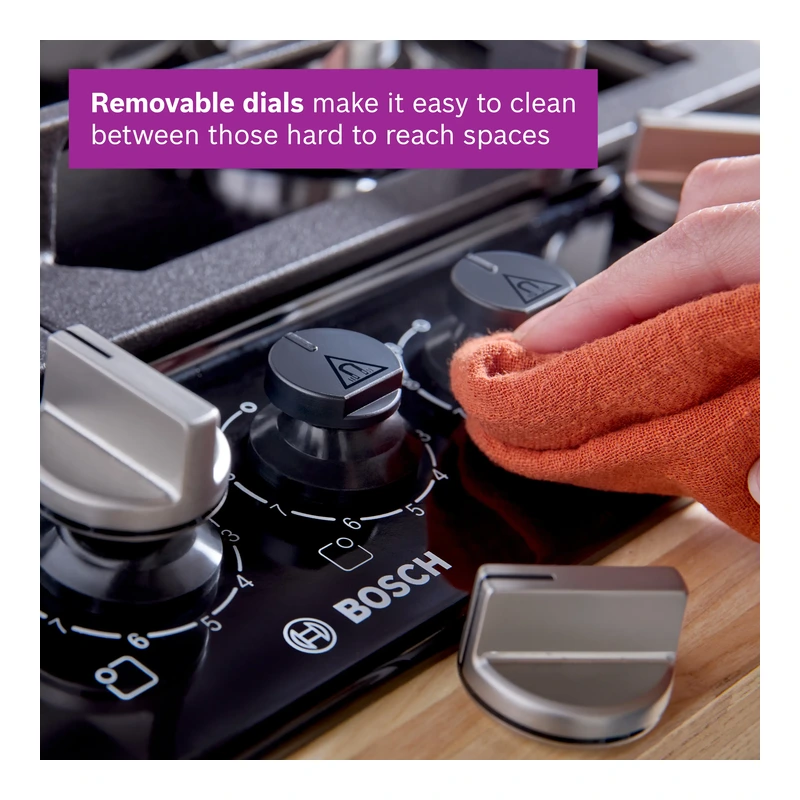

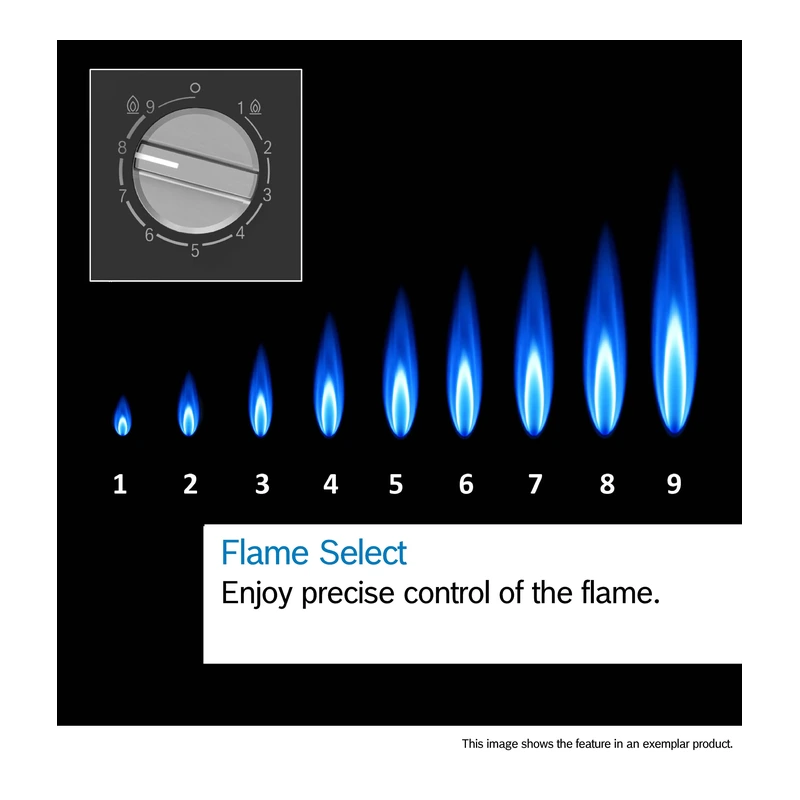

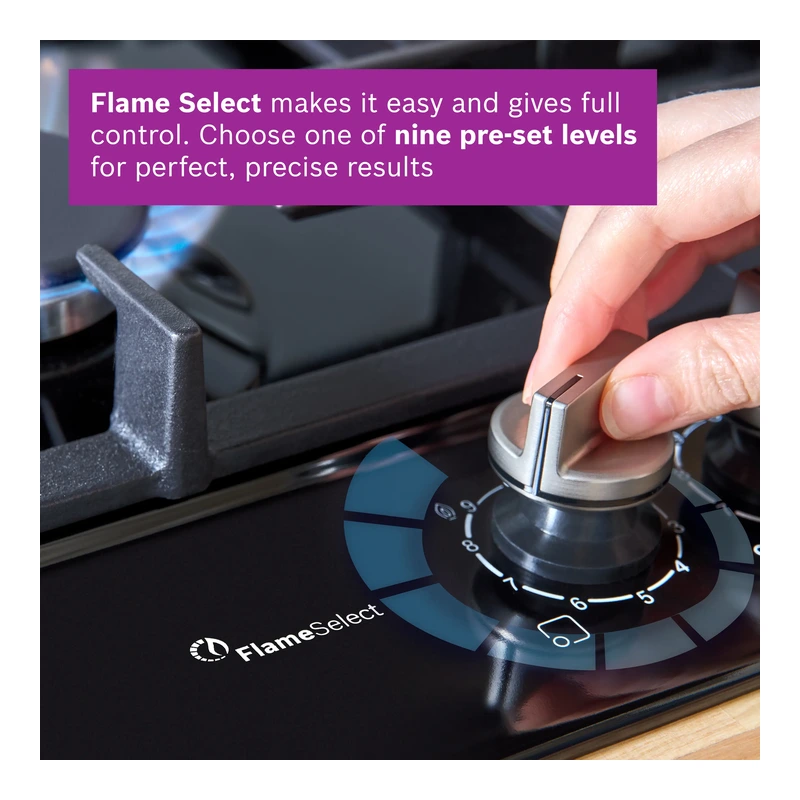

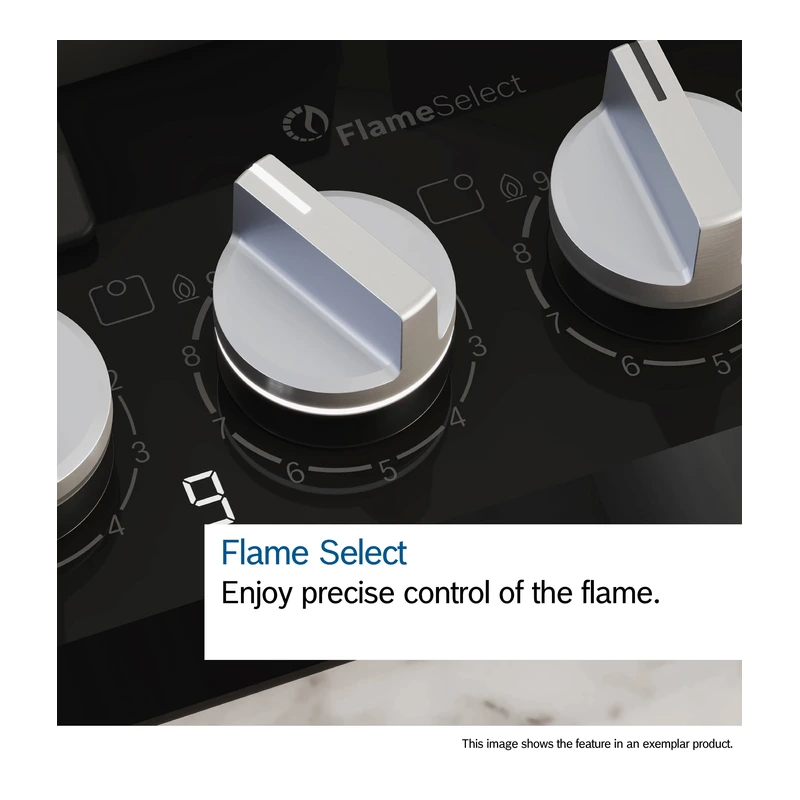

The Series 6 PPM9A6I40 is a 90 cm built–in gas hob with integrated front controls, designed with a black tempered glass surface and cast iron pan supports. It offers FlameSelect technology for precise flame control across nine defined levels and features removable metallic control dials. Dishwasher–suitable cast iron pan supports and detachable dials support easy, scrub–free cleaning, while five gas burners provide cooking flexibility for everyday and intensive use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 6, Gas hob, 90 cm, Tempered glass, Black
Model code	PPM9A6I40
Appliance type	gas hob w integrated controls
Installation	Built-in
Heating type	Gas
Number of cooking zones	5

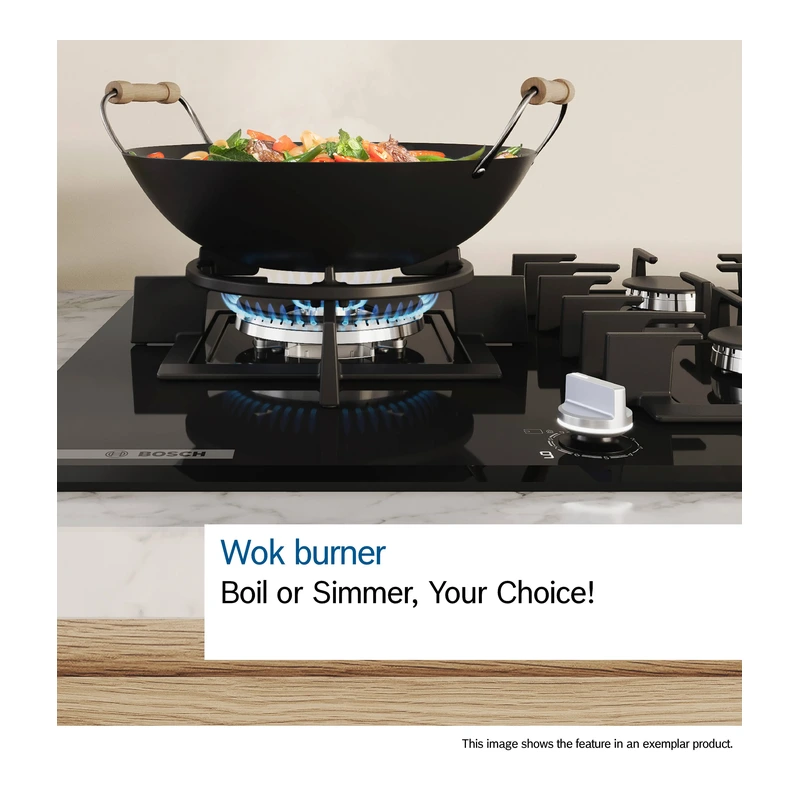

Burner configuration	Left: wok burner up to 4 kW (depending on gas type); Centre front: economy burner up to 1 kW (depending on gas type); Centre rear: standard burner up to 1.75 kW (depending on gas type); Right rear: high–speed burner up to 3 kW (depending on gas type); Right front: standard burner up to 1.75 kW (depending on gas type)
Basic surface material	Tempered glass
Colour of surface	Black
Colour of frame	Black
Design	Tempered glass surface, Black; frameless design: install the hob either flush or slightly raised on the worktop
Pan supports	Cast iron pan supports with rubber feet; dishwasher suitable
Control panel location	Front

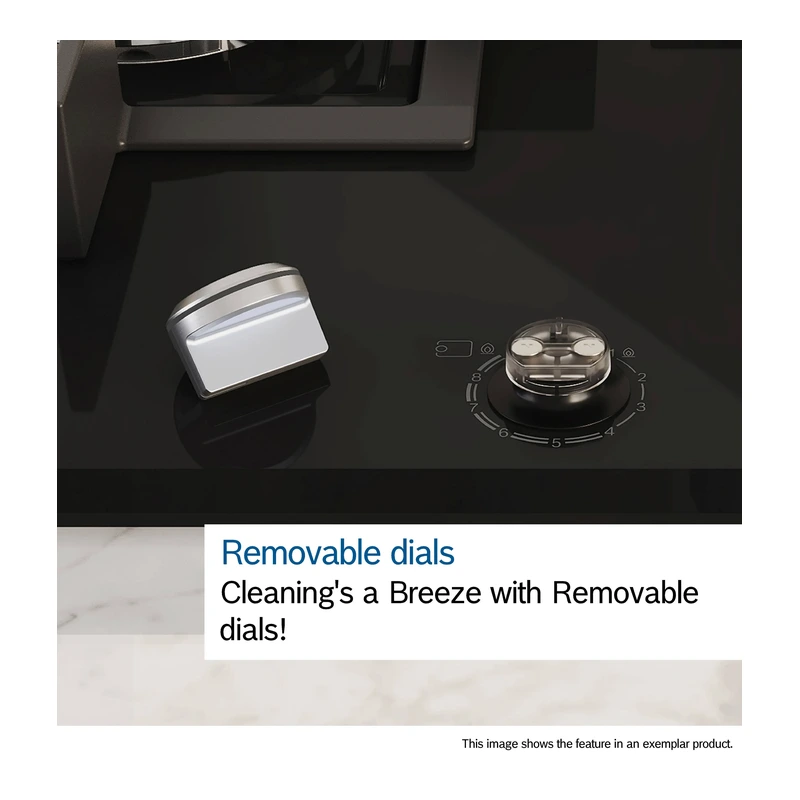

Control dials	Design co-ordinated control dials, front; removable; ignition via control dials
Residual heat indicator	Without
Dimensions (H x W x D)	45 x 915 x 520 mm / Dimensions of the product (HxWxD mm): 54 x 915 x 520
Required niche size (H x W x D)	45 x 850–850 x 490–500 mm / Required niche size for installation (HxWxD mm): 45 x 850 x (490–500)
Width of the appliance	915 mm
Packed product dimensions (H x W x D)	170 x 1120 x 660 mm
Net weight	22.9 kg
Gross weight	26.3 kg
Length of electrical supply cord	100 cm / Power cord: 1 m
Gas connection rating	11500 W
Connected load	11.5 kW
Fuse protection	3 A
Voltage	220–240 V
Frequency	50; 60 Hz
EAN code	4242005496242
Minimum worktop thickness	20 mm; if installed flush, minimum worktop thickness is 30 mm
Gas types (usable for)	Nat gas L/LL G25/20 mbar (DE); NG H/E 20 mbar, E+ 20/25 mbar; Natural gas H 25 mbar (HU); Natural gas L 25 mbar (NL); Liquid gas G30,31 28–30/37 mbar; Liquid gas G30 37 mbar (PL); Liquid gas 50 mbar
Gas preset	Pre-set for natural gas
Nozzle set	Nozzle set for LPG jets included; connection to 28–30/37 mbar bottled gas; nozzles for all other gas types can be ordered via the customer service
Safety device	Flame failure safety device
Optional accessories	HEZ298105 Simmer plate; HEZ298107 Wok ring; HEZ298114 Small pot support; HEZ32WA00 Wireless food thermometer; HEZ9SE040 4 pieces Set; HEZ9SE060 6 pieces Set
