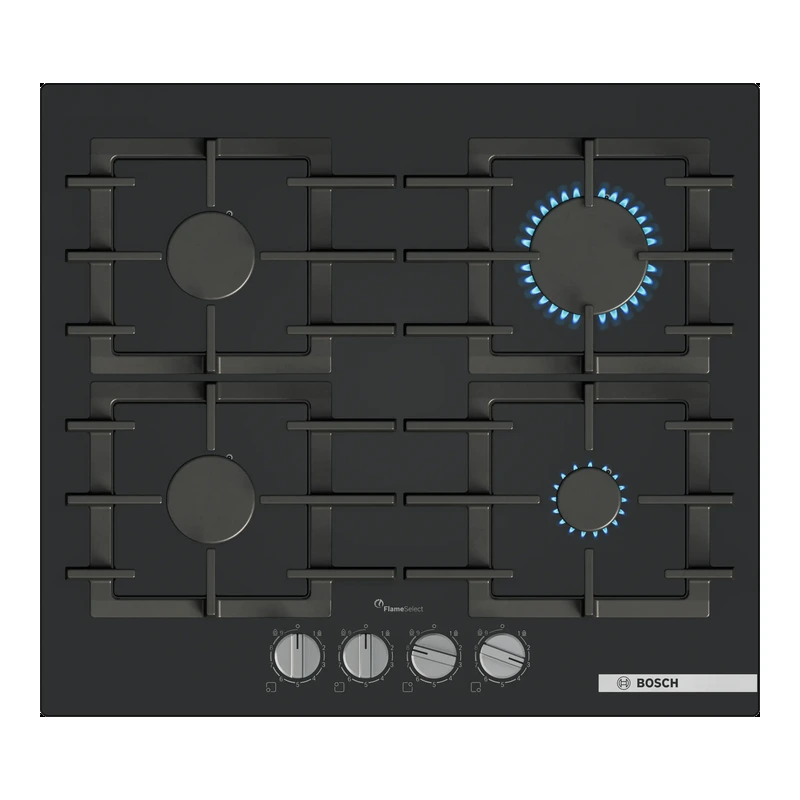

Design

• Tempered glass surface in black.
• Frameless design, allowing installation either flush or slightly raised on the worktop.
• Cast iron pan supports with rubber feet.
• Design co–ordinated front control dials.

Usage convenience

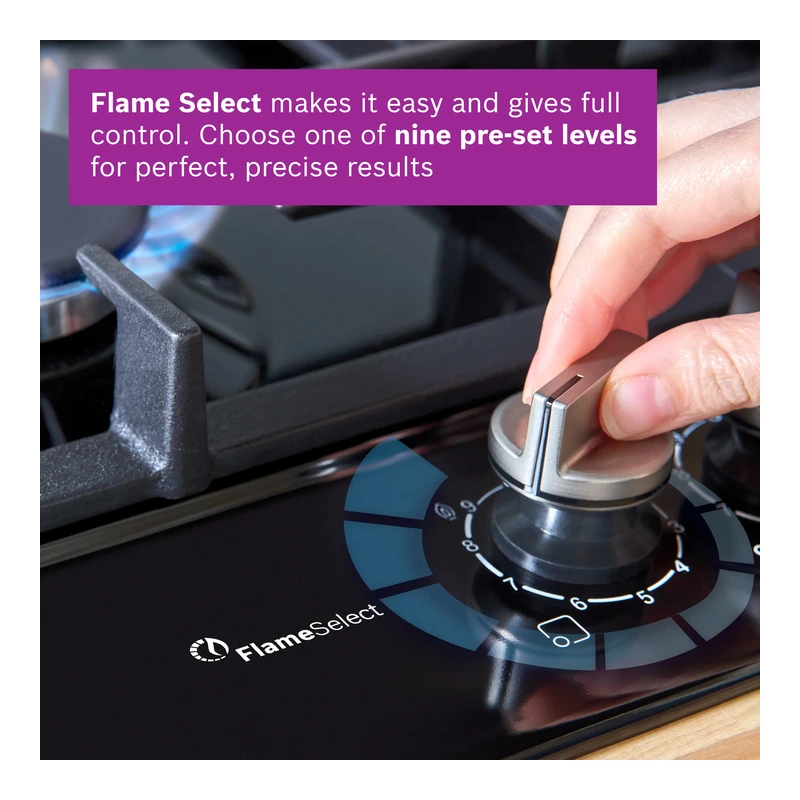

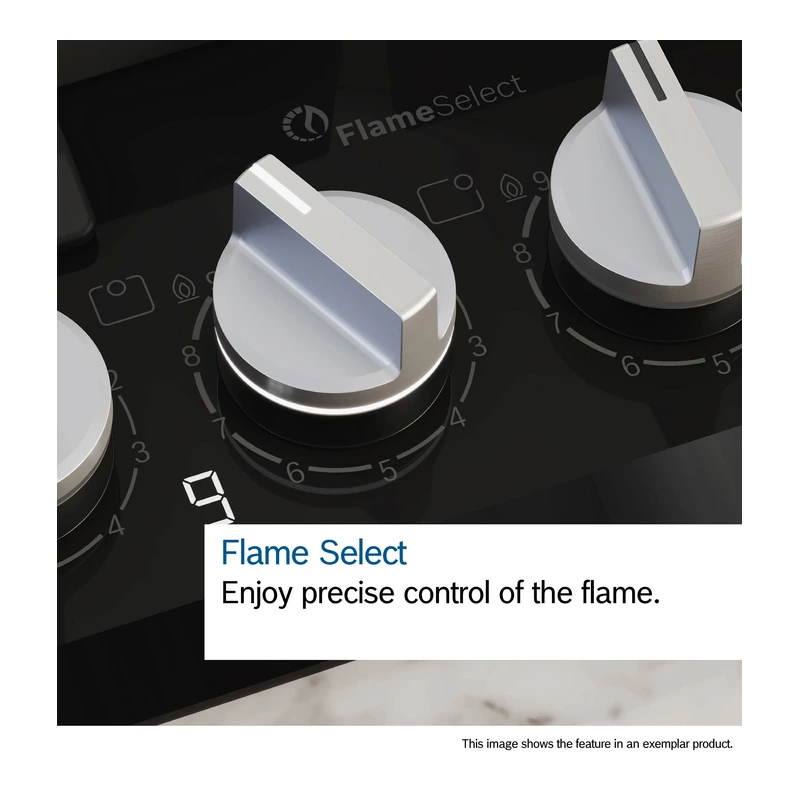

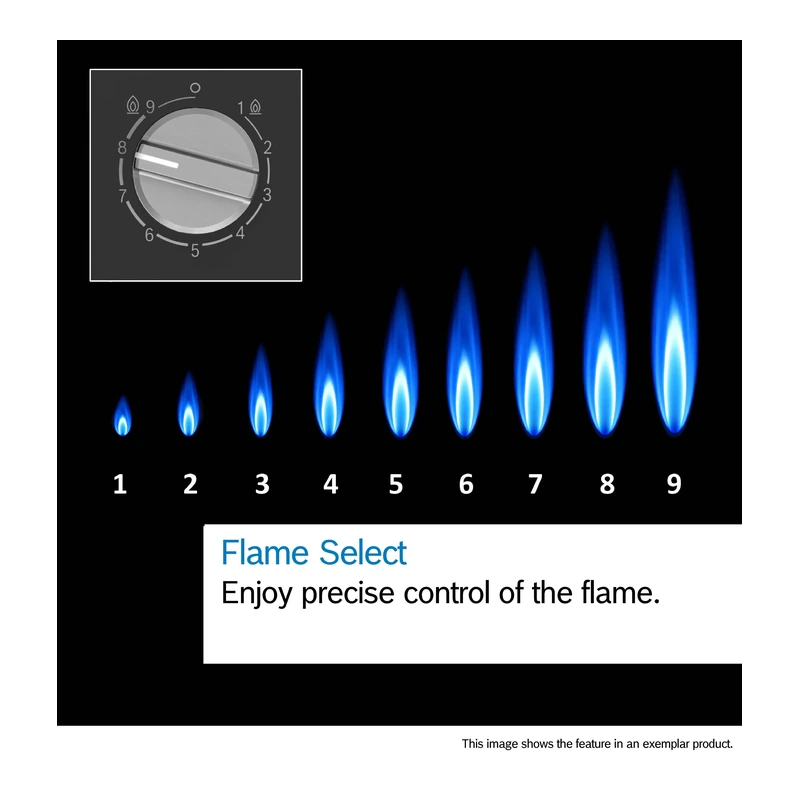

• FlameSelect for precise control and adjustment of the flame in nine defined levels.
• Front–mounted dials with strong grip for effortless turning.
• Ignition via control dials: just push and turn to ignite the flame.

Cleaning

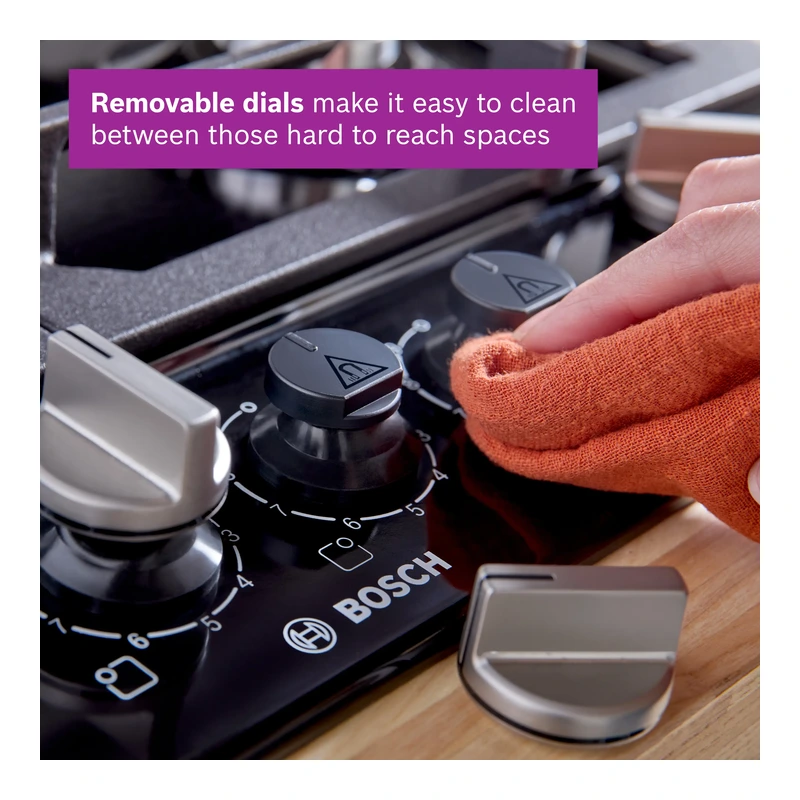

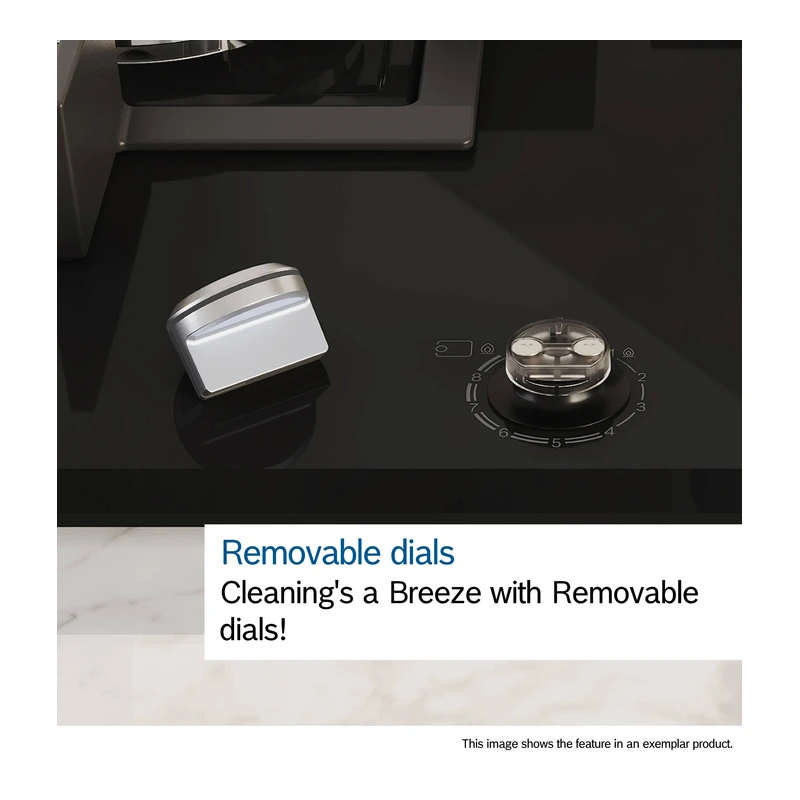

• Removable control dials for easy cleaning between knobs.

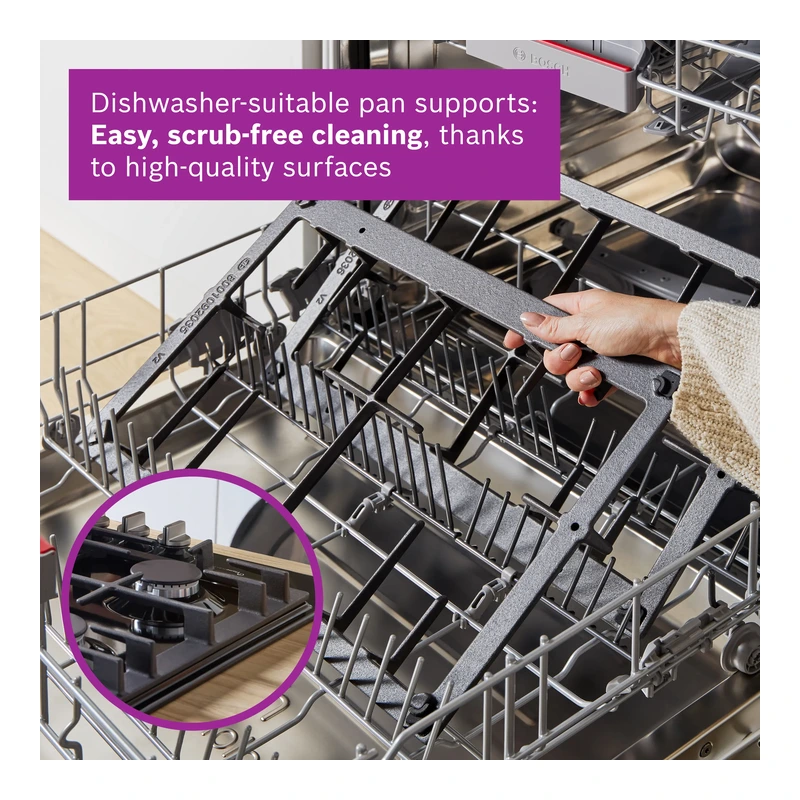

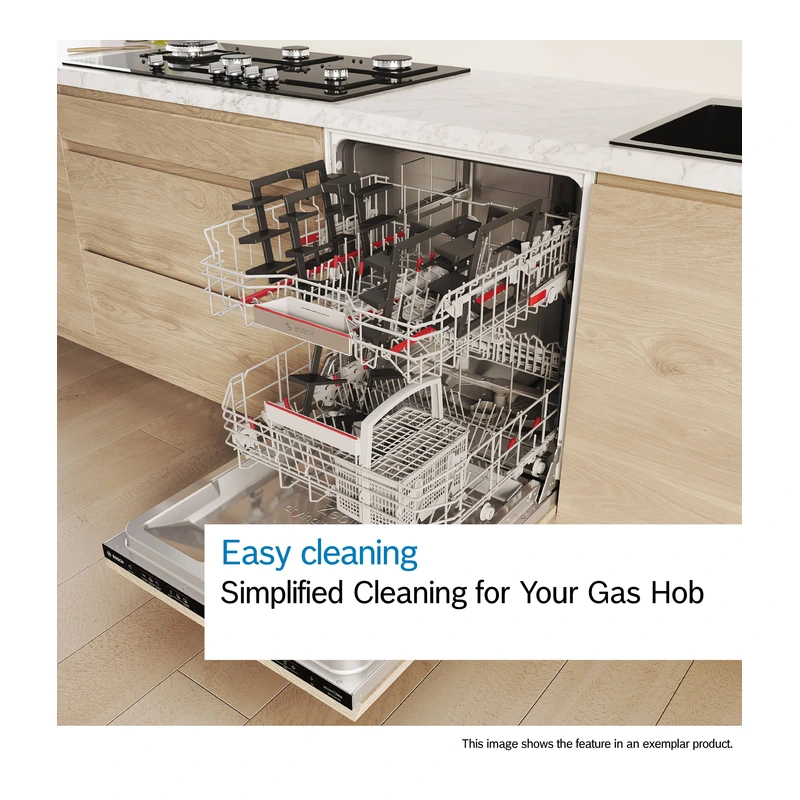

• Dishwasher suitable pan supports for easy cleaning.
• Cast iron pan supports with rubber feet combine light weight and compact form with a continuous, stable surface.

Safety

• Flame failure safety device helps prevent unwanted gas flow when the flame goes out.

Gas types and installation

• Usable for: Nat gas L/LL G25/20 mbar (DE).
• Usable for NG H/E 20 mbar, E+ 20/25 mbar.
• Usable for natural gas H 25 mbar (HU).
• Usable for natural gas L 25 mbar (NL).
• Usable for liquid gas G30,31 28–30/37 mbar.
• Usable for liquid gas G30 37 mbar (PL).
• Usable for liquid gas 50 mbar.
• Pre–set for natural gas.
• Nozzle set for LPG jets included; connection to 28–30/37 mbar bottled gas.
• Nozzles for all other gas types can be ordered via the customer service; nozzle change should be carried out by customer service.

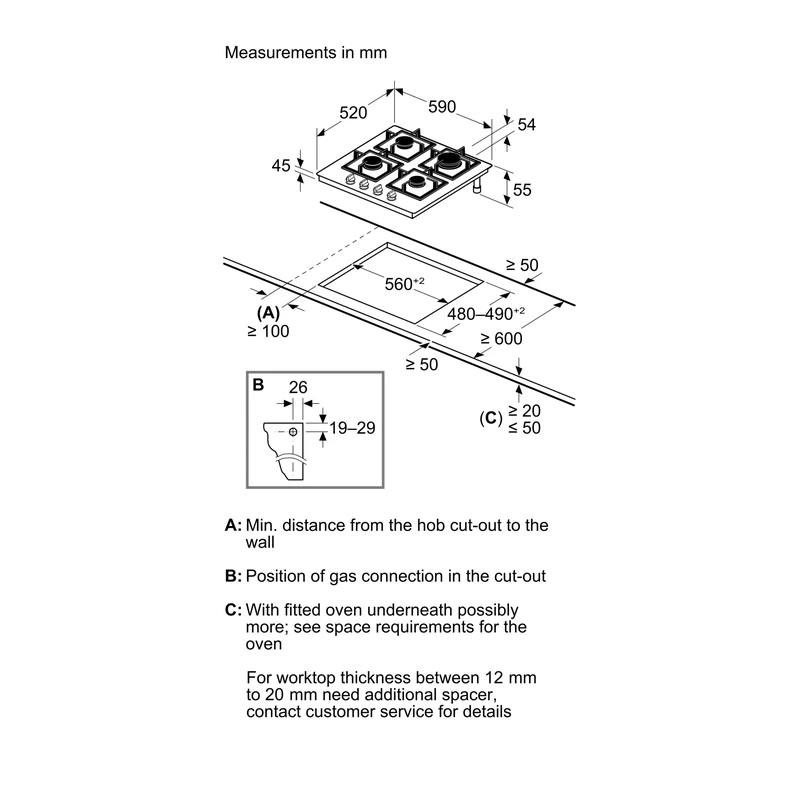

• Dimensions of the product (H x W x D): 54 x 590 x 520 mm.
• Required niche size (H x W x D): 45 x 560 x 480–490 mm.
• Minimum worktop thickness: 20 mm.
• If installed flush, minimum worktop thickness is 30 mm.

Optional accessories

• HEZ298105 Simmer plate
• HEZ298114 Small pot support
• HEZ32WA00 Wireless food thermometer
• HEZ9SE040 4 pieces Set
• HEZ9SE060 6 pieces Set
