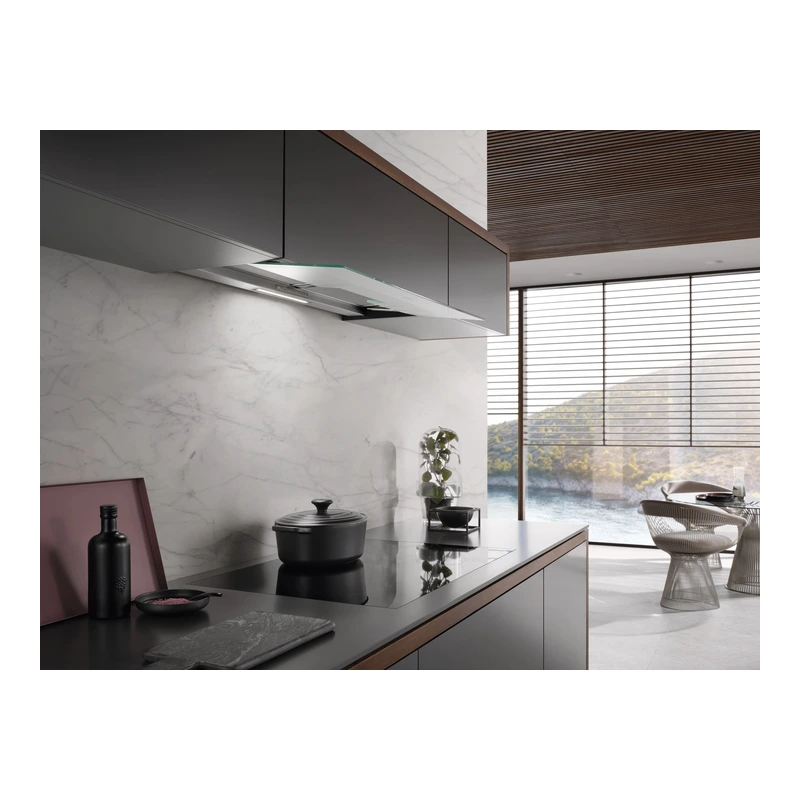

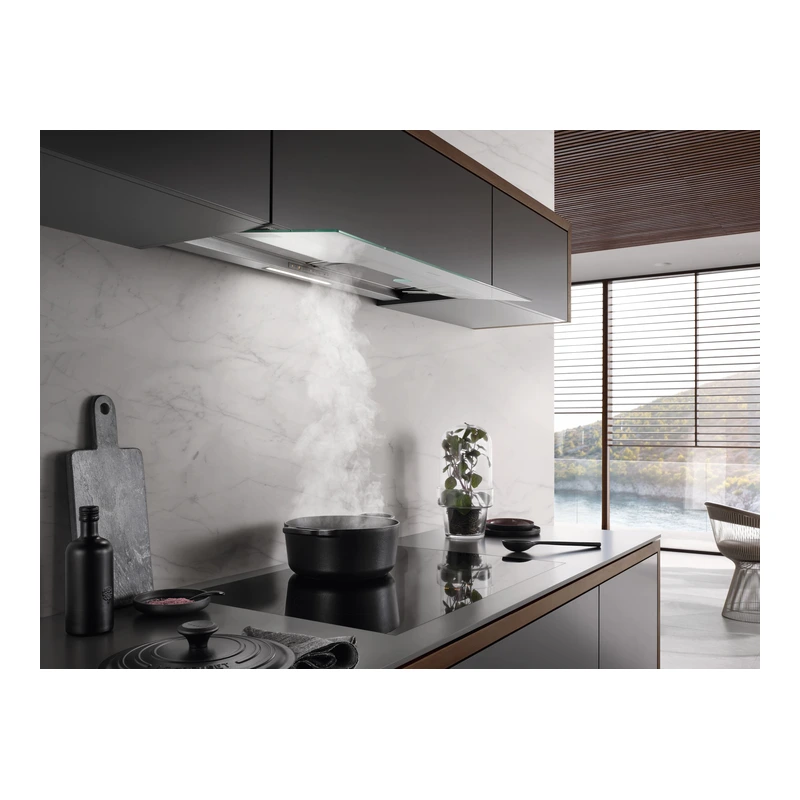

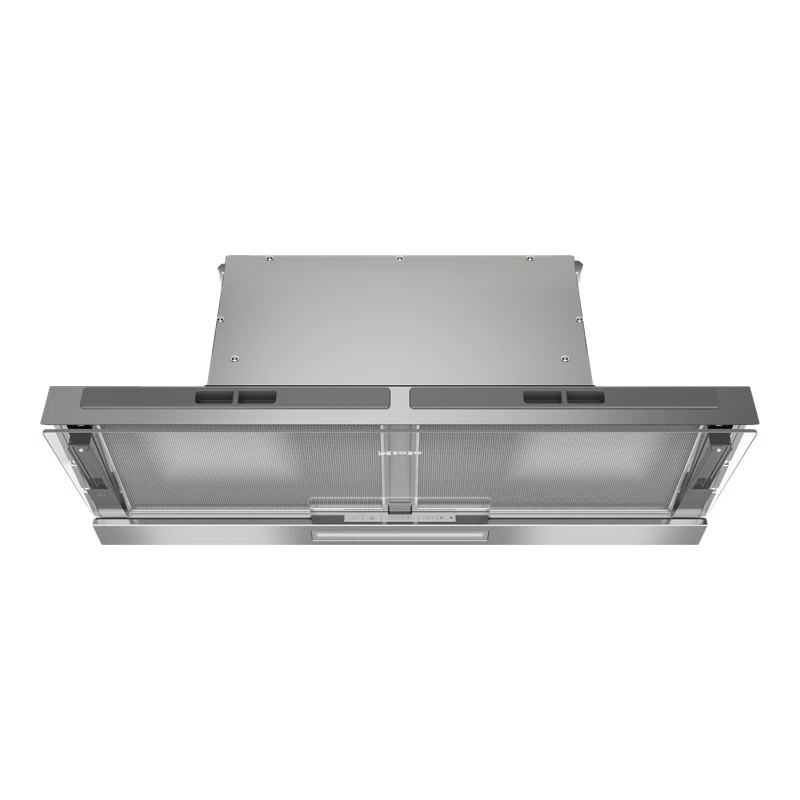

This slimline cooker hood is designed for installation in narrow wall units. The type of air guide can be retrofitted, and a recirculation conversion kit DUU 151 can be ordered separately. It is suitable for combining with Con@ctivity-enabled hobs via the automatic Con@ctivity function.

Extraction ducting connections are provided at the top and rear, with an extraction connection at both top and rear and an exhaust duct diameter of 150 mm. A fitting template is supplied to assist with installation, and a non-return flap is included.

In extraction or recirculation mode (with conversion kit DUU 150 stated in installation drawings), alternative ducting connection to the rear is possible. The wall unit can be fitted with a partition after installation, but the slots for the grease filters and, in recirculation mode, for the odour filters must remain accessible. The height of the wall unit and the cut-out dimensions must take into account any accessories fitted such as a silencer, recirculation hood conversion kit or DSM module.

Cleaning is supported by the Easy-to-clean canopy interior with CleanCover and two dishwasher-safe, 10‑ply stainless steel grease filters. Grease and active charcoal filter saturation indicators help to ensure maintenance is carried out when needed.
