Siemens LD88WMM66B StudioLine Downdraft

SKU: LD88WMM66B · EAN: 4242003881033

Black with clear glass

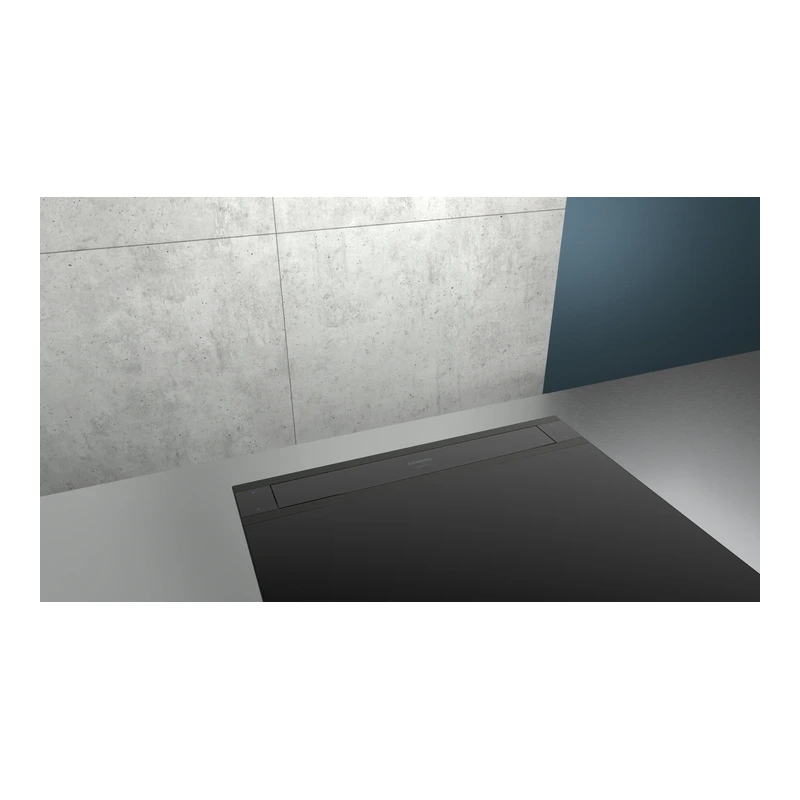

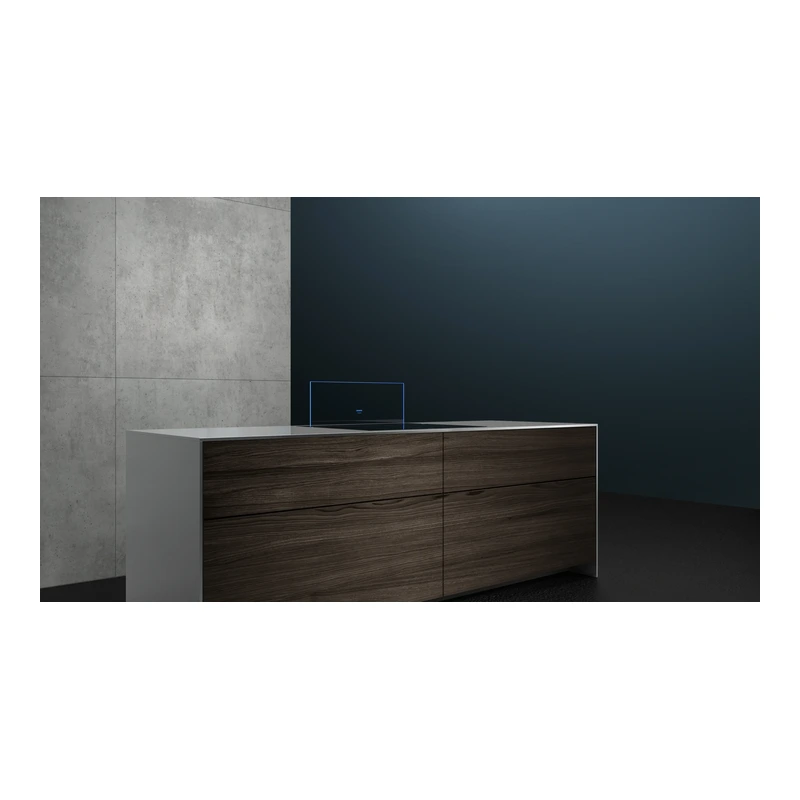

The iQ700 LD88WMM66B is an 80 cm downdraft hood in clear glass and black, designed to integrate seamlessly into kitchen worktops. It rises only when needed and offers excellent extraction performance from all cooking zones, powered by an efficient iQdrive motor and Guided Air technology. With 3 power levels plus intensive, emotionLight Pro lighting, Home Connect features and suitability for both ducted and recirculating operation, it is intended for built-in island or semi-island kitchen solutions.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	iQ700 Downdraft hood, 80 cm, clear glass, Black
Model reference	LD88WMM66B
Typology	Downdraft
Width	80 cm wide
Installation type	Built-in; suitable for island or semi-island solutions
Energy Efficiency Class	A (range A+++ to D)
Average energy consumption*	36.9 kWh/year*
Blower Efficiency Class*	A*
Lighting Efficiency Class*	-*
Grease Filtering Efficiency Class*	B*
Control panel	Electronic, touchControl; standard functions on right-hand interface
Number of speed settings	3-stage + 2 intensive
Maximum output air extraction (normal)	501 m³/h (EN 61591)
Boost position air extraction	775 m³/h (intensive, EN 61591)

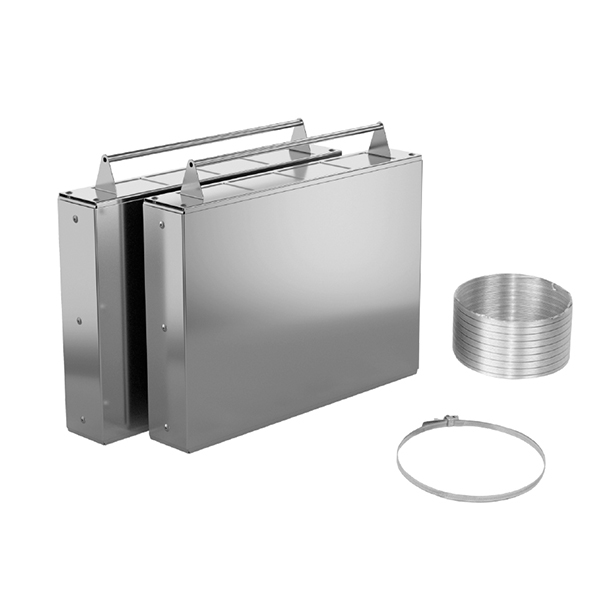

Maximum output recirculating air	416 m³/h (with Clean Air Plus recirculation kit)
Boost position recirculating	525 m³/h (with Clean Air Plus recirculation kit)
Maximum air flow	501 m³/h
Noise level (exhaust air, max. normal)	62 dB(A) re 1 pW (EN 60704-3 / EN 60704-2-13)
Noise level (exhaust air, intensive)	70 dB(A) re 1 pW
Noise level (recirculation, max. normal)	65 dB(A) re 1 pW (with Clean Air Plus kit)
Noise level (recirculation, intensive)	70 dB(A) re 1 pW (with Clean Air Plus kit)

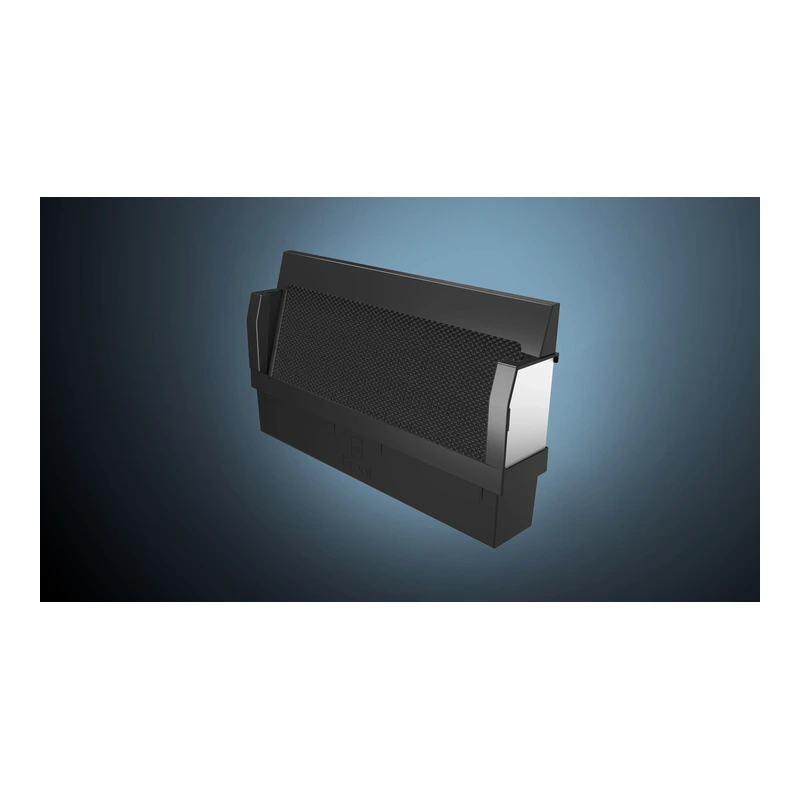

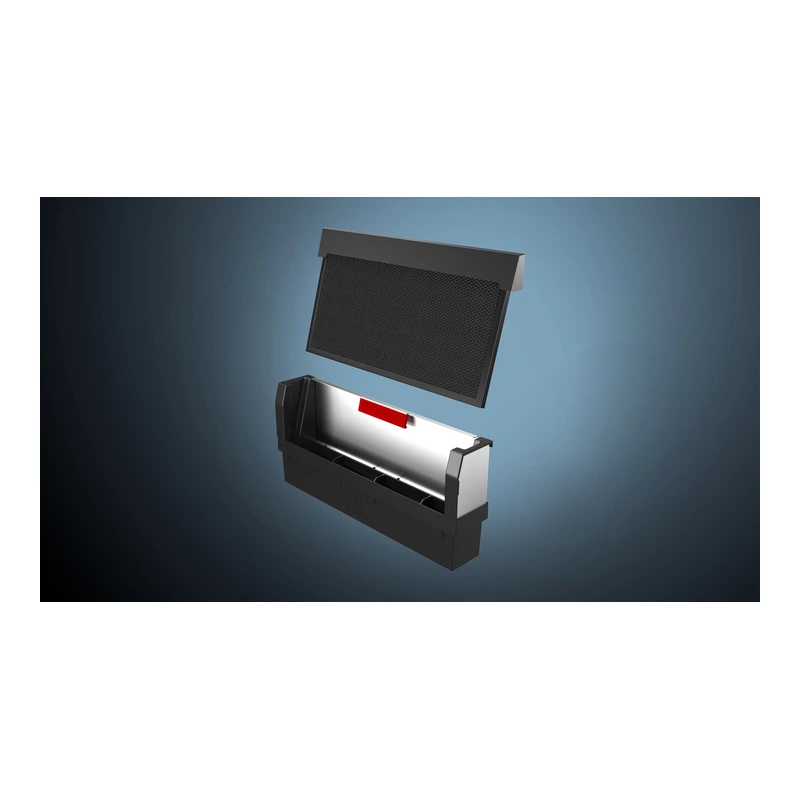

Grease filter material	Washable stainless steel; 2 metal grease filter cassettes
Filter indicators	Grease and charcoal filter saturation indicators
Filter service	Filter service button lifts filters into service position for easy removal

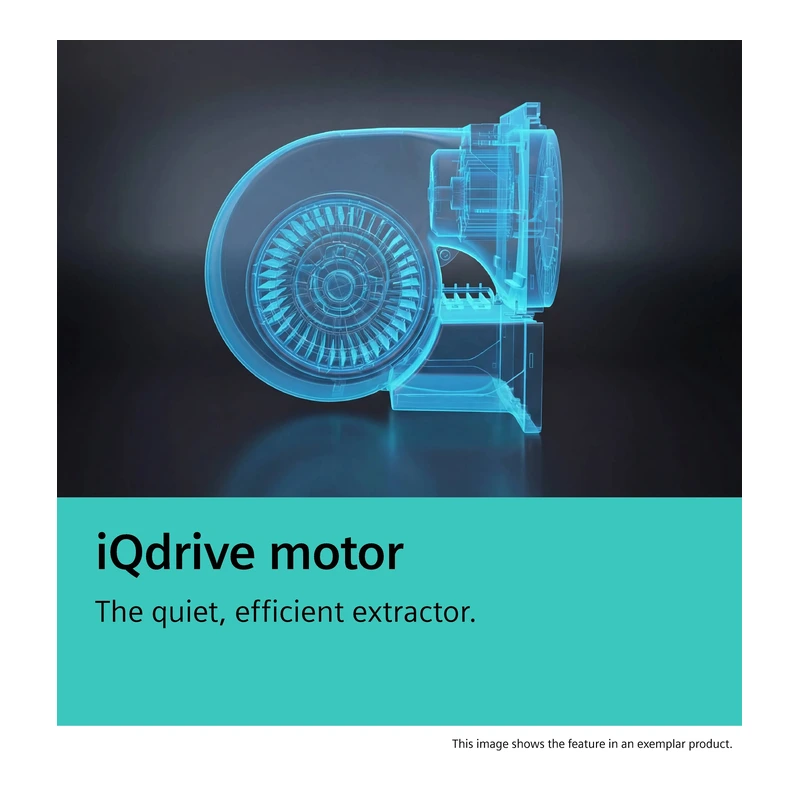

Motor type	iQdrive; efficient BLDC motor

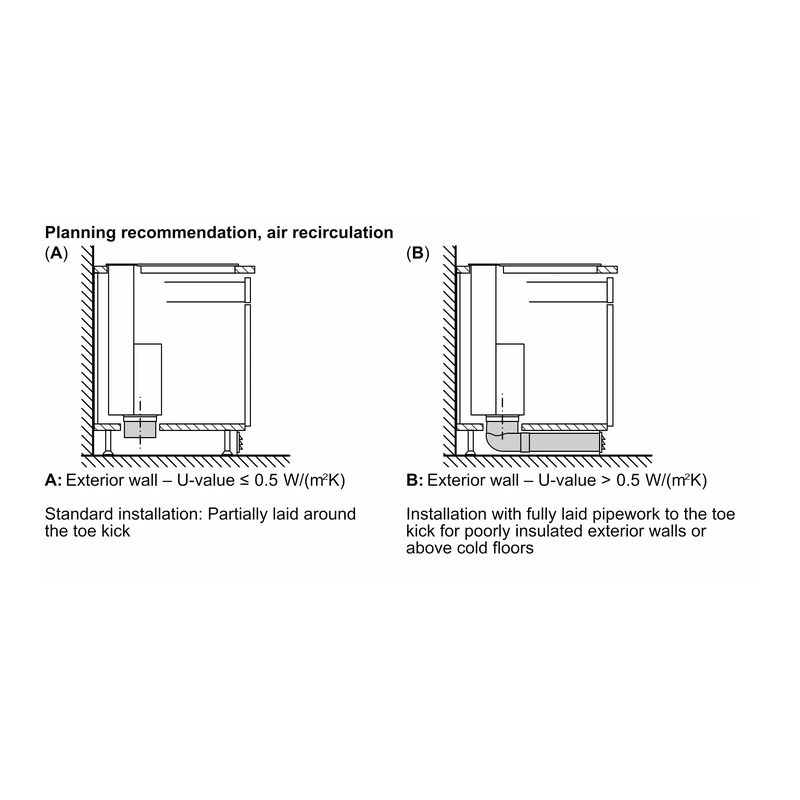

Operation modes	Suitable for ducted and re-circulating operation

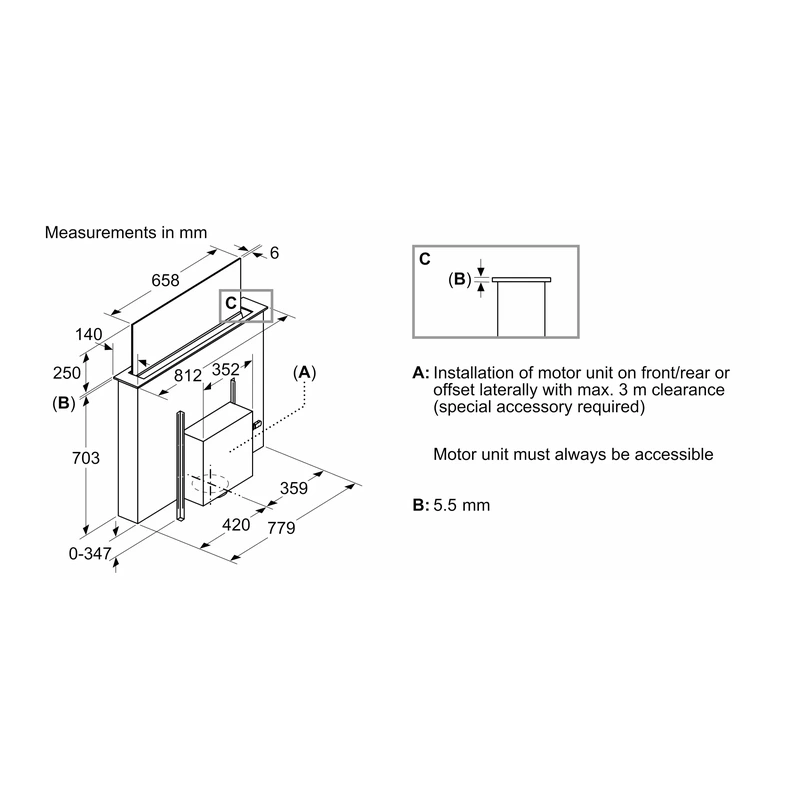

Extension height	250 mm
Appliance dimensions (HxWxD)	709 x 812 x 140 mm

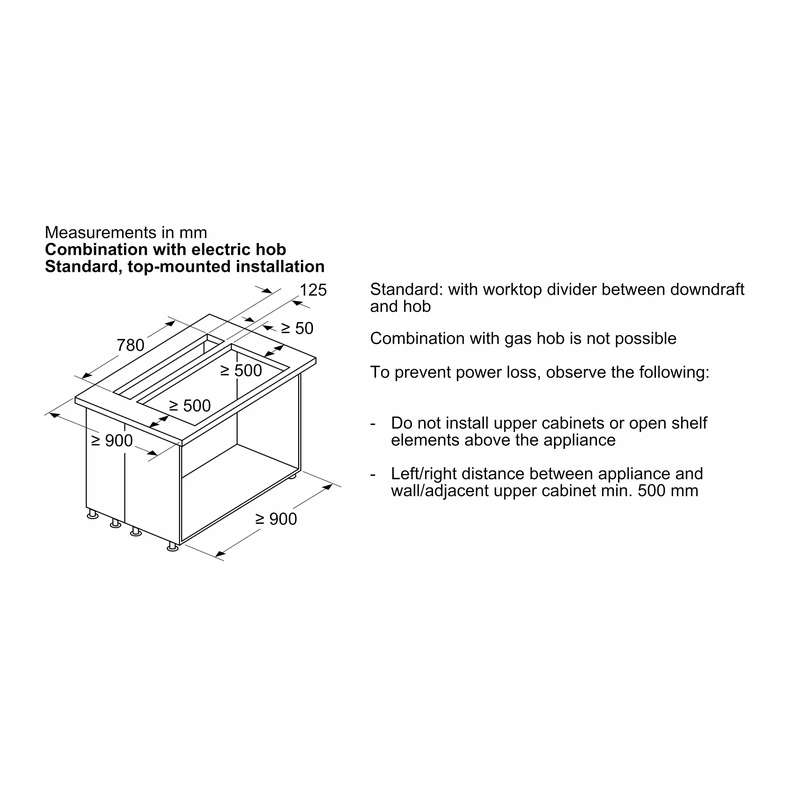

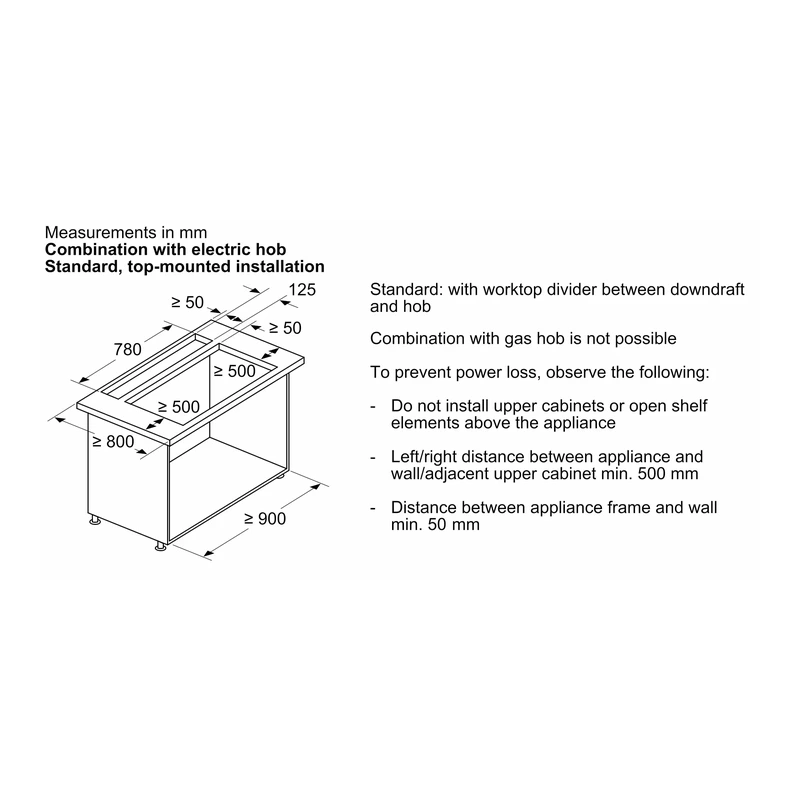

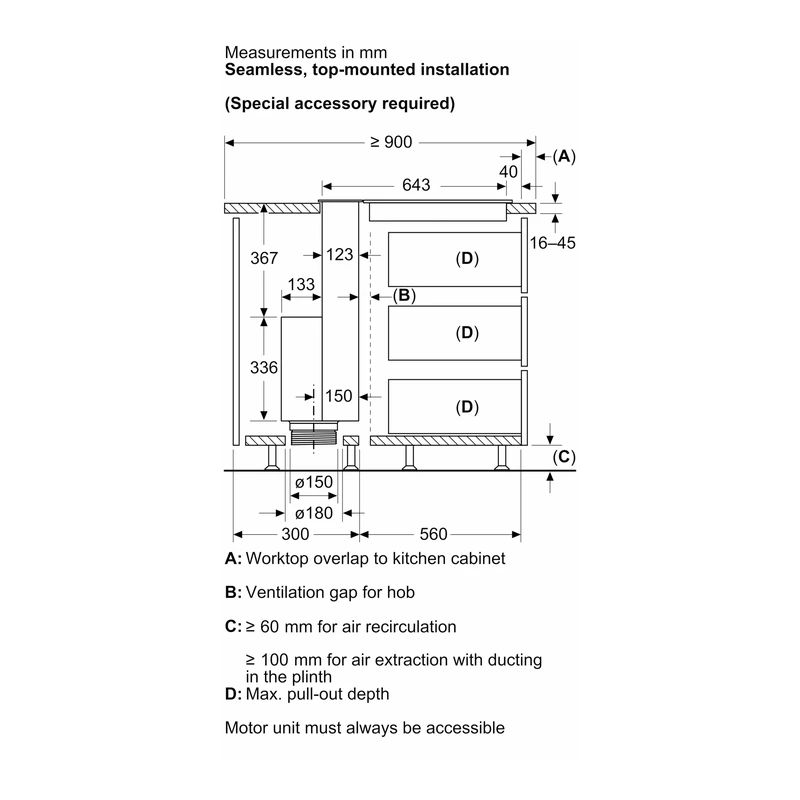

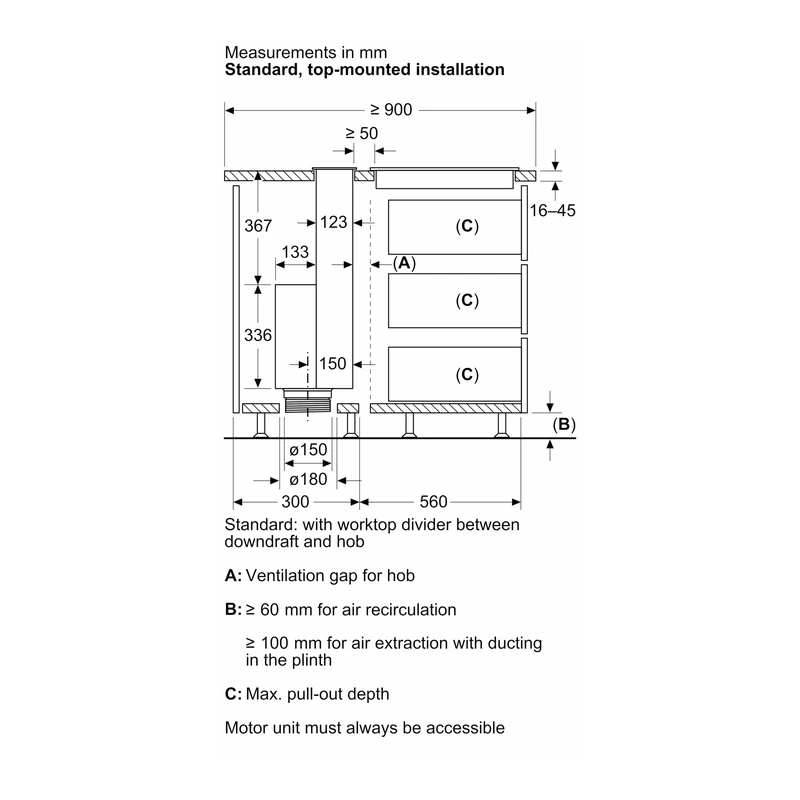

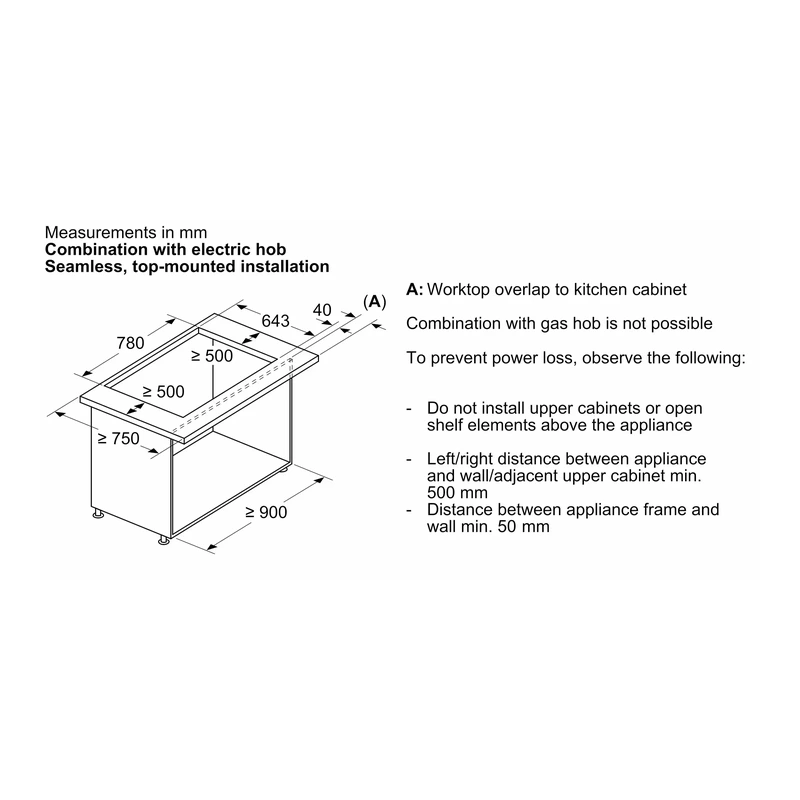

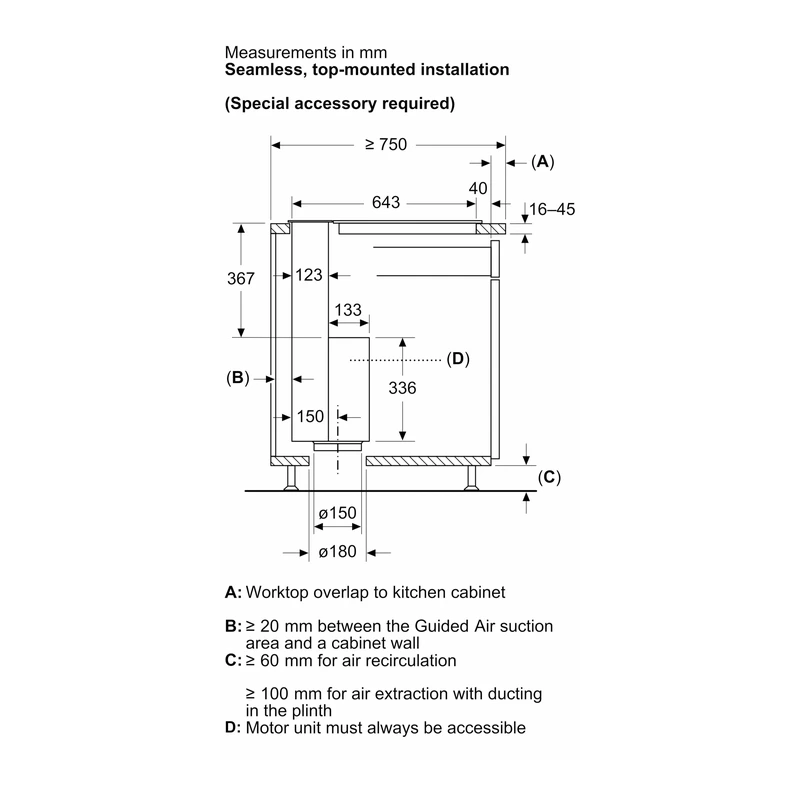

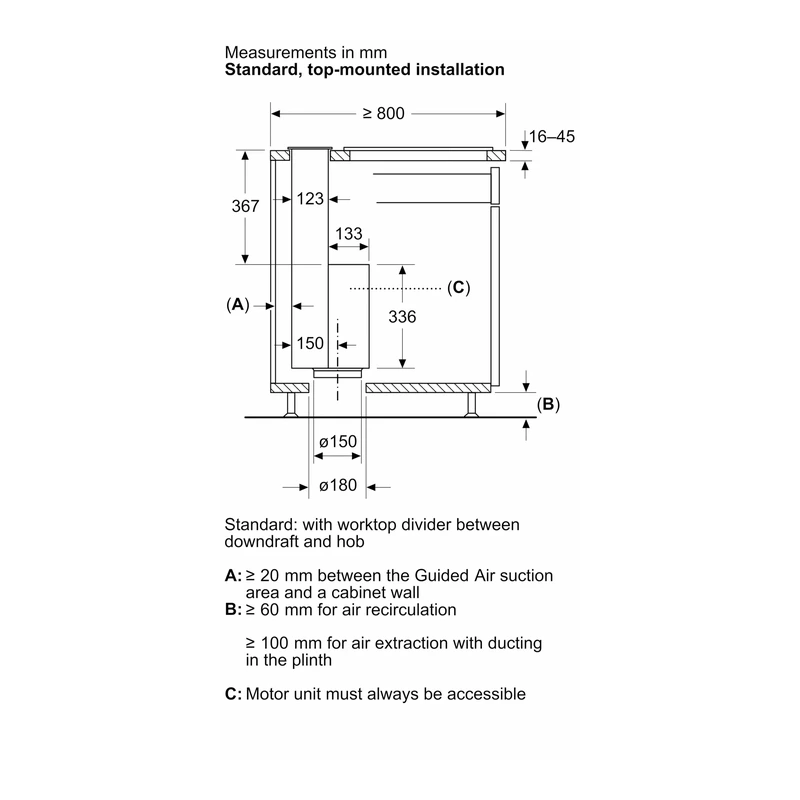

Built-in dimensions (HxWxD)	703 x 781 x 123 mm
Required niche size (HxWxD)	703 mm x 781.0 mm x 123 mm
Height of appliance	709 mm
Weight	38.9 kg
Diameter of air outlet	150 mm
Extractor hose	150 mm
Length of electrical supply cord	130 cm (1.3 m)
Connection rating	300 W
Nominal power	220–240 V
Frequency	50; 60 Hz
Fuse protection	10 A
Plug type	GB plug
EAN code	4242003881033

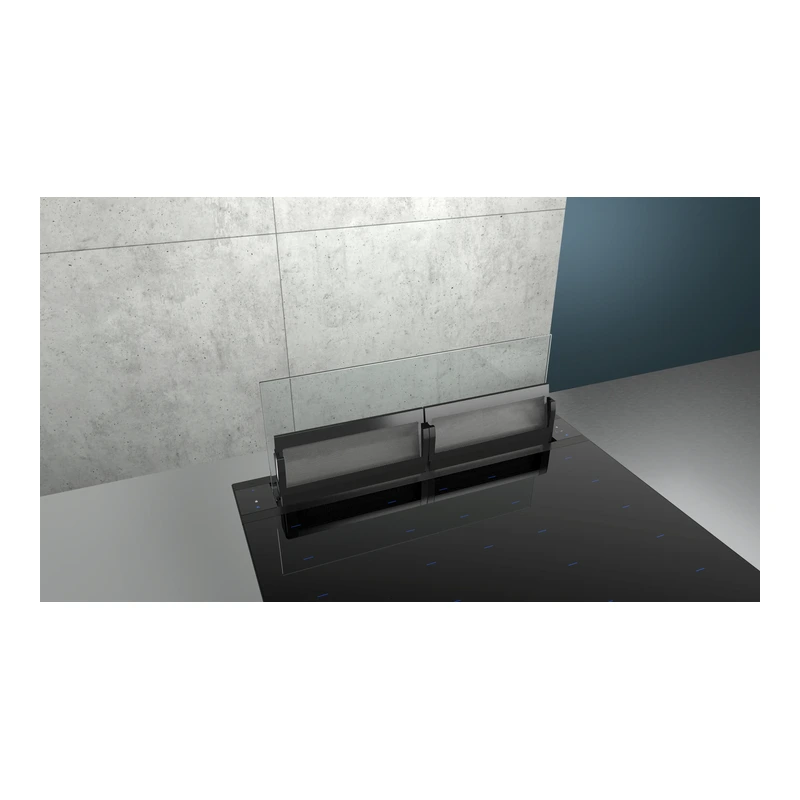

Colour and material	Clear glass, Black; extendable glass panel with edge lighting
Standards / regulation note	Values in accordance with EU-Regulation No 65/2014*

* In accordance with EU-Regulation No 65/2014.
