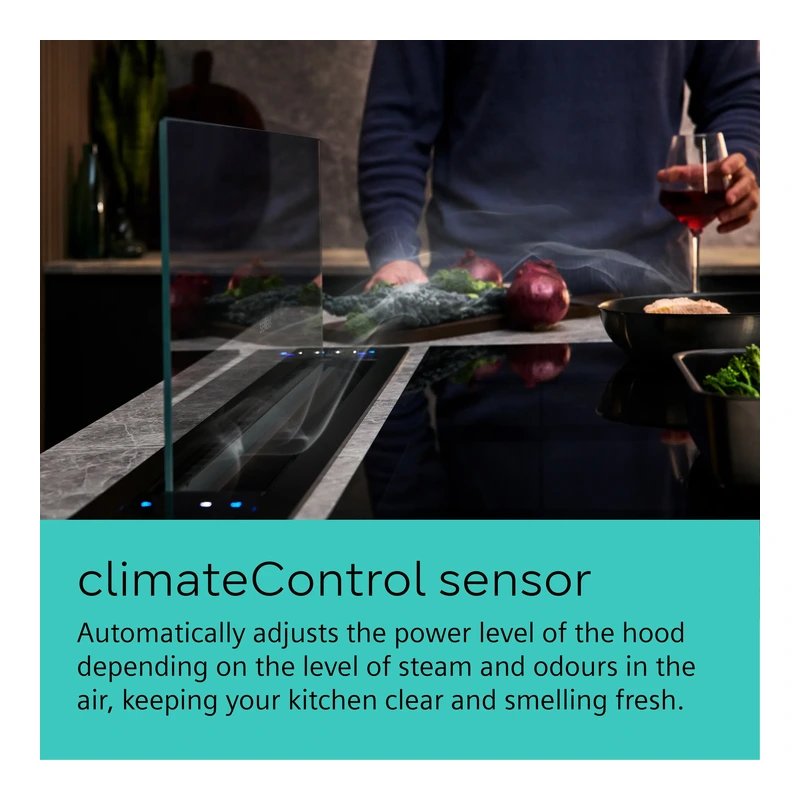

Siemens LD98WMM66 StudioLine Downdraft

SKU: LD98WMM66 · EAN: 4242003877319

Black with Clear Glass

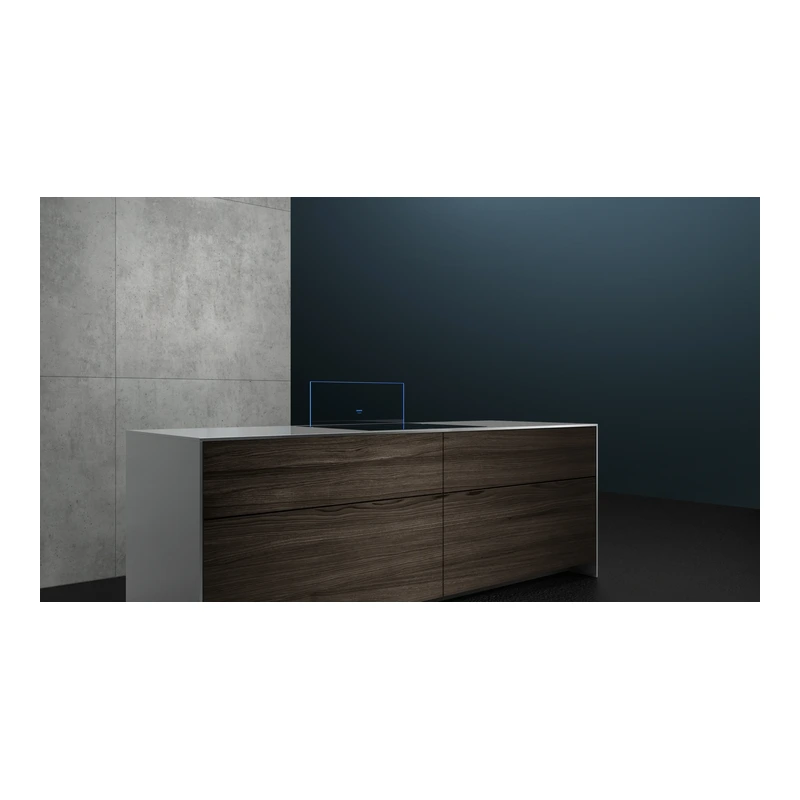

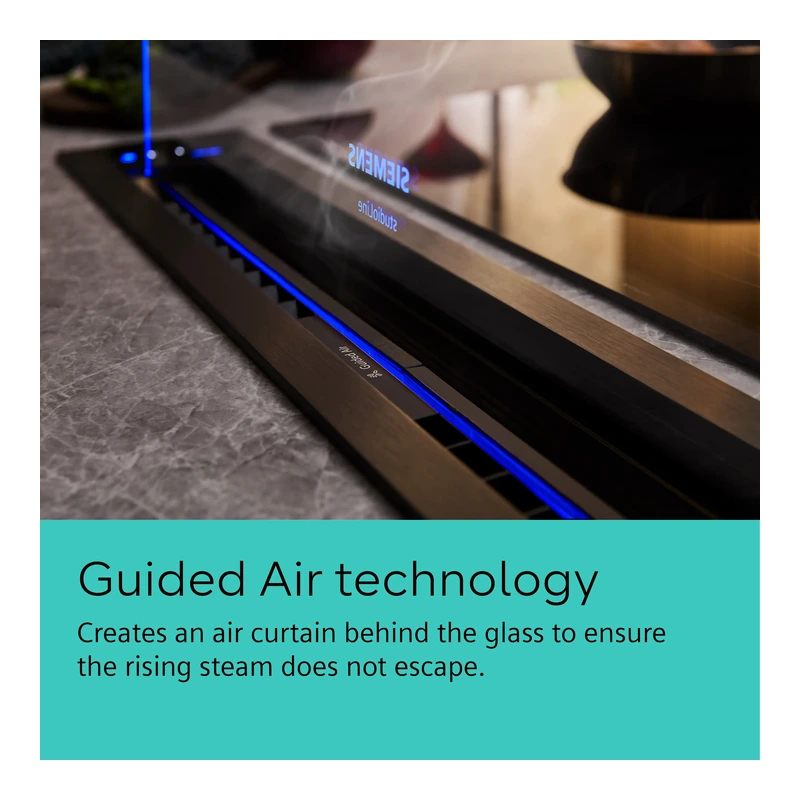

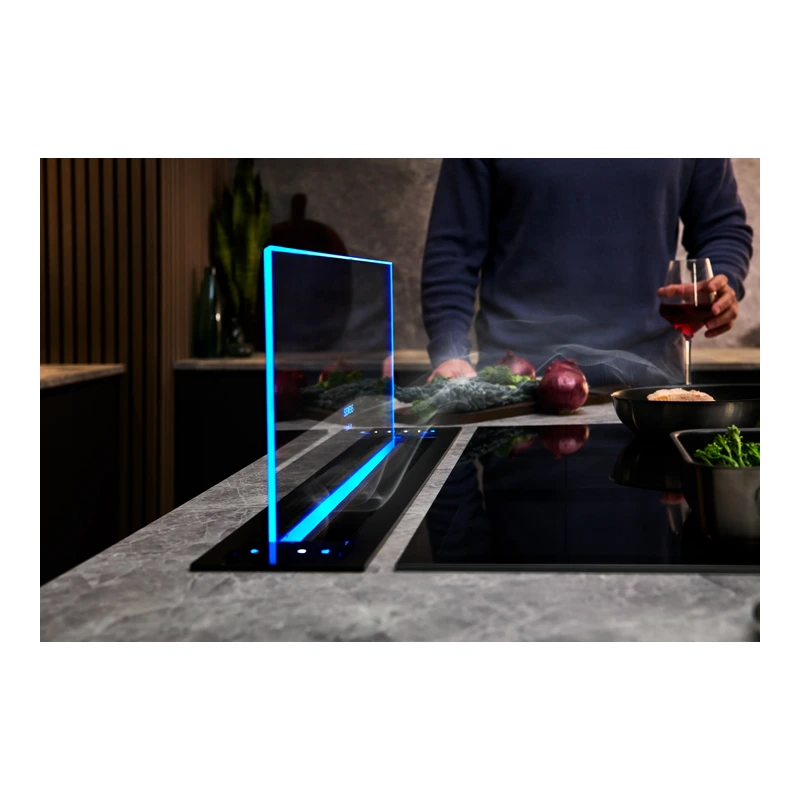

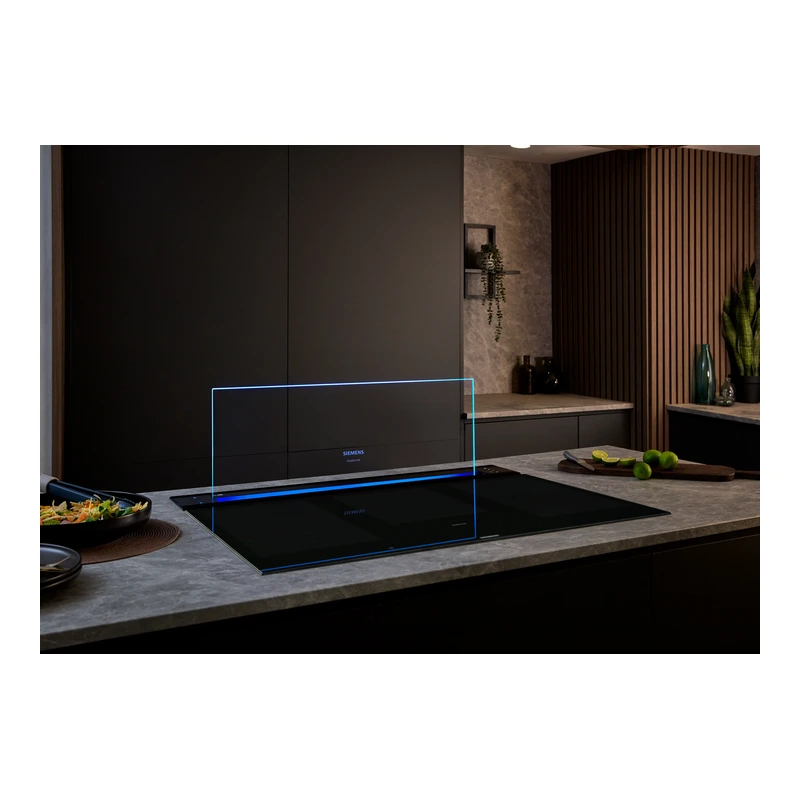

The Siemens iQ700 LD98WMM66 is a 90 cm downdraft hood in clear glass and black, designed to rise from the worktop when needed and disappear when not in use. It offers excellent extraction performance from all cooking zones using iQdrive and Guided Air technology, and is suitable for ducted or recirculating operation with optional accessories. With emotionLight Pro, fully automatic functions and Home Connect, it combines powerful ventilation with sleek, integrated design.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	iQ700 Downdraft hood, 90 cm, clear glass, Black
Model reference	LD98WMM66
Typology	Downdraft

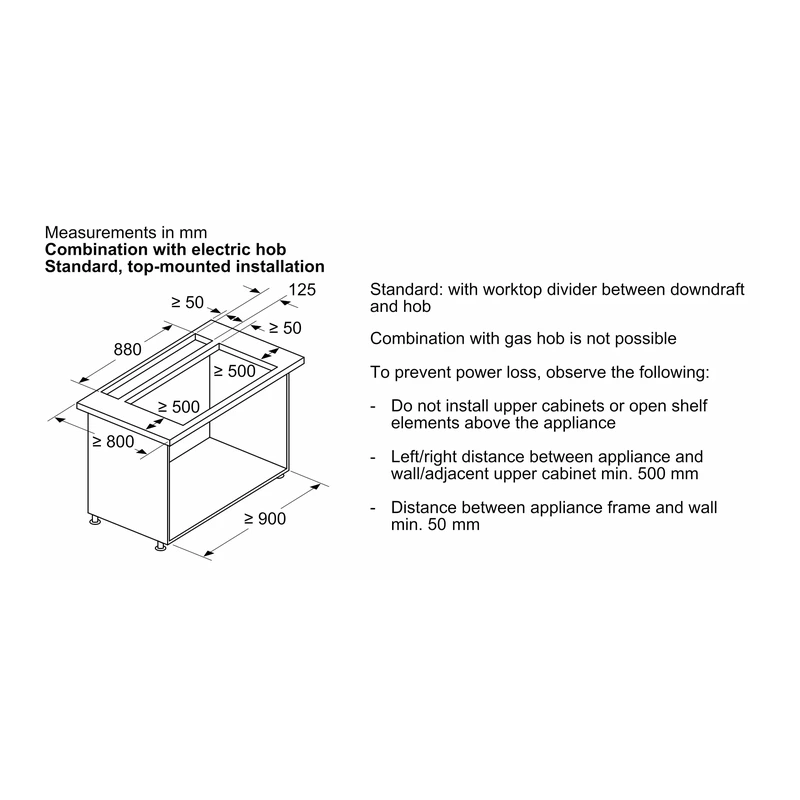

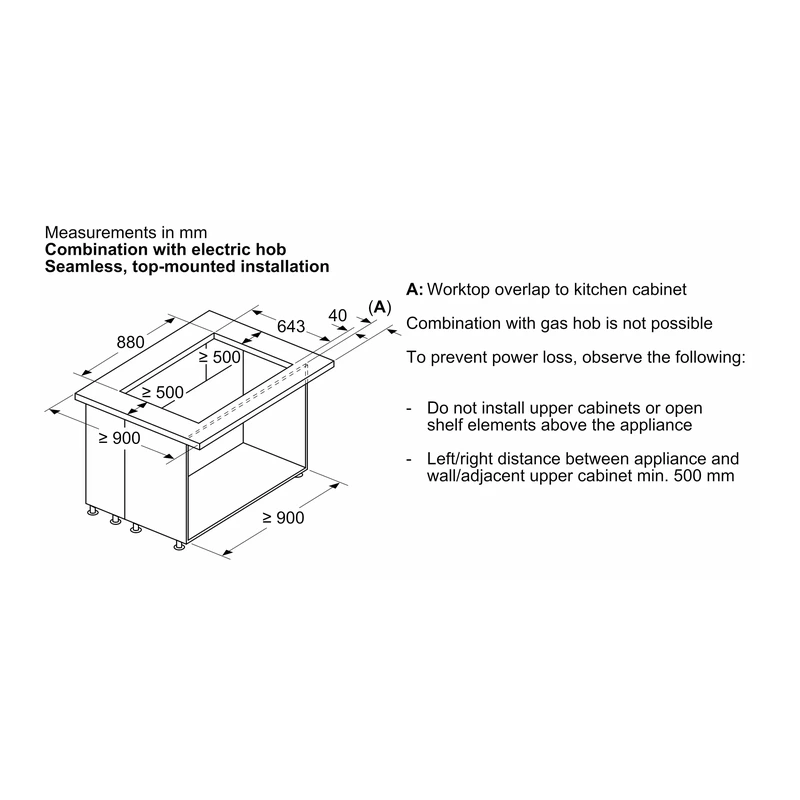

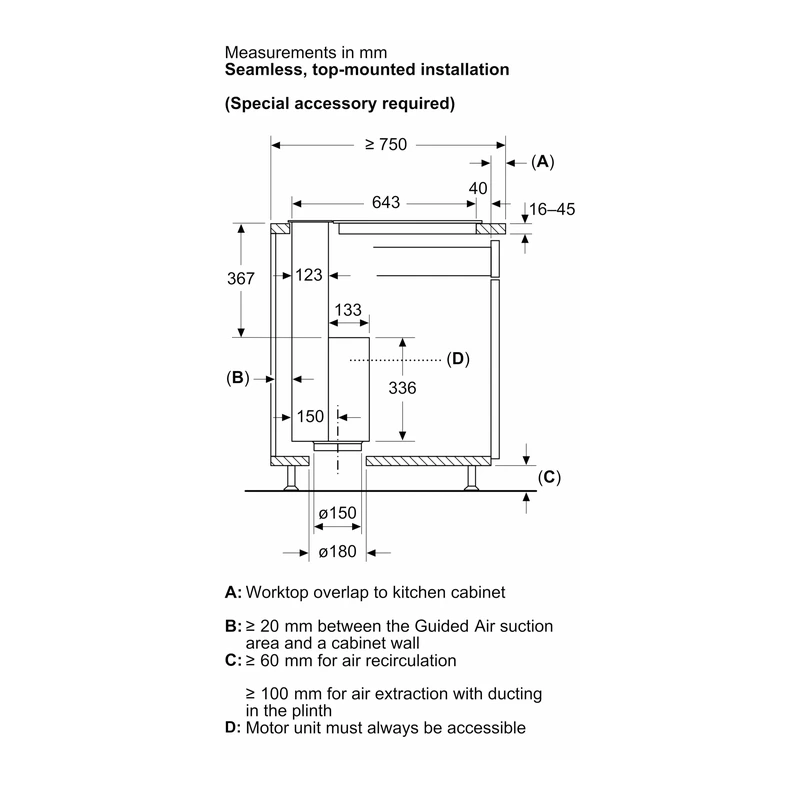

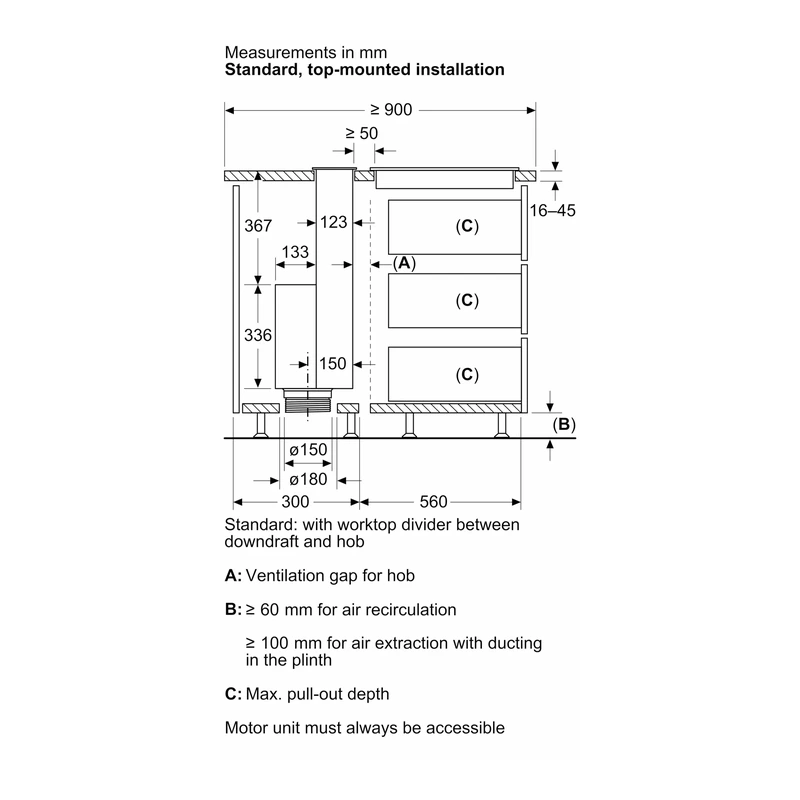

Installation type	Built–in; installation: integrated; suitable for island or semi–island kitchen solution

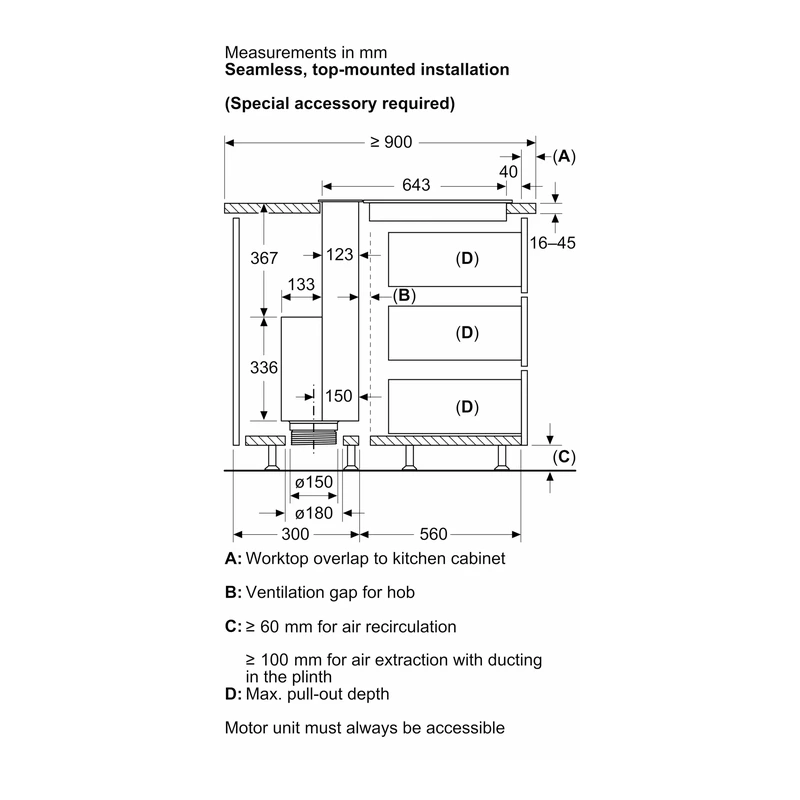

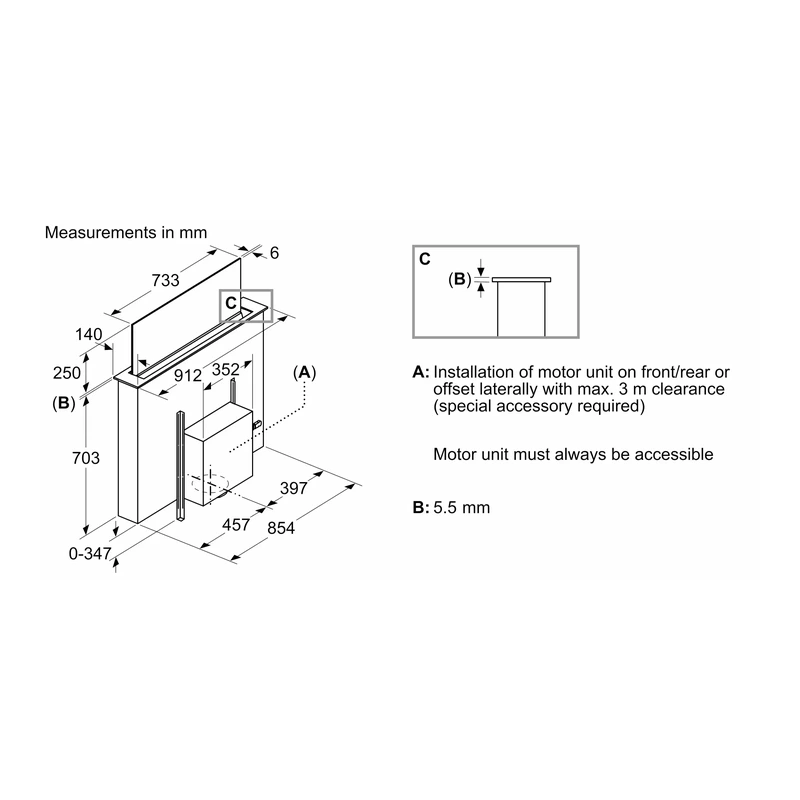

Width	90 cm wide; appliance dimensions (HxWxD): 709 x 912 x 140 mm

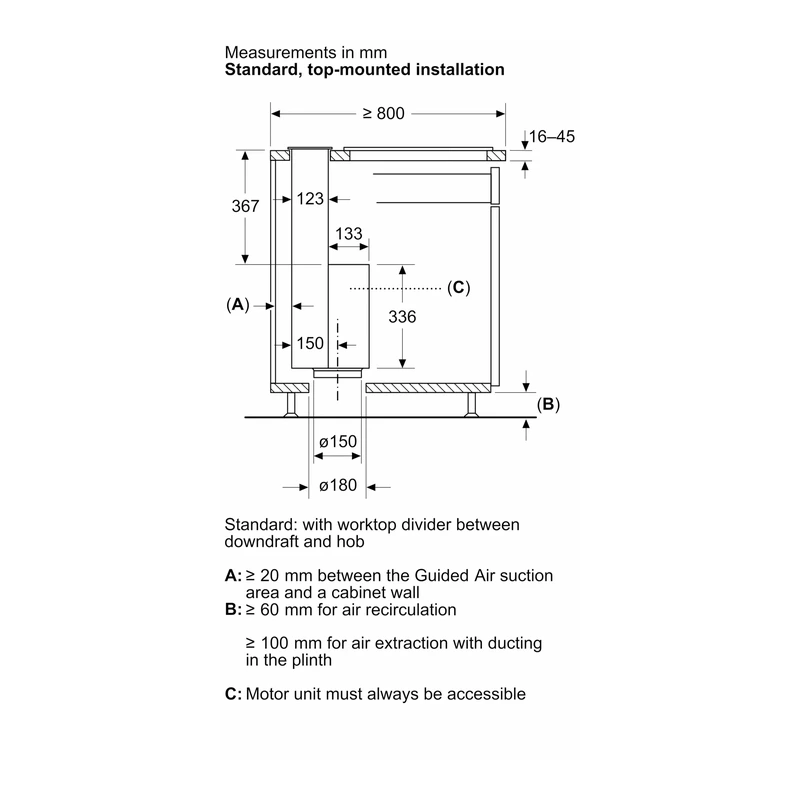

Built–in dimensions (HxWxD)	703 x 854 x 123 mm
Required niche size (HxWxD)	703 mm x 854.0 mm x 123 mm
Extension height	250 mm
Height of the appliance	709 mm
Weight	39.7 kg

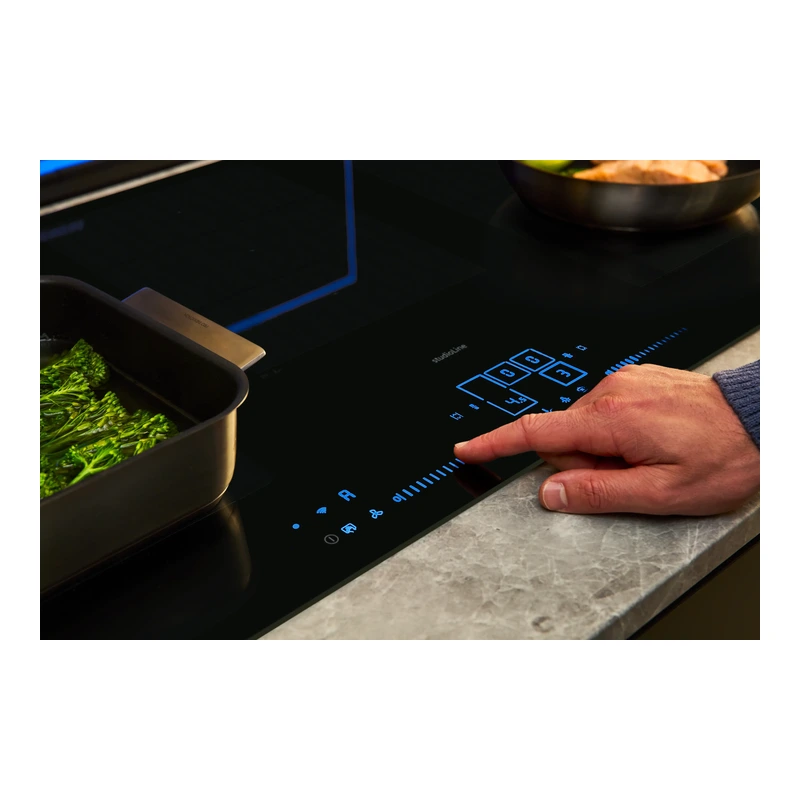

Control panel	Electronic; touchControl; standard functions located on the right–hand user interface
Number of speed settings	3–stage + 2 intensive (3 power levels and 2 intensive settings)
Energy Efficiency Class	A (range A+++ to D)
Average energy consumption*	37.8 kWh/year*
Blower Efficiency Class*	A*
Lighting Efficiency Class*	Not stated in source (shown as '-*')
Grease Filtering Efficiency Class*	C*
Maximum output air extraction	519 m³/h (max. normal use exhaust air according to EN 61591)
Boost position air extraction	833 m³/h (intensive exhaust air according to EN 61591)

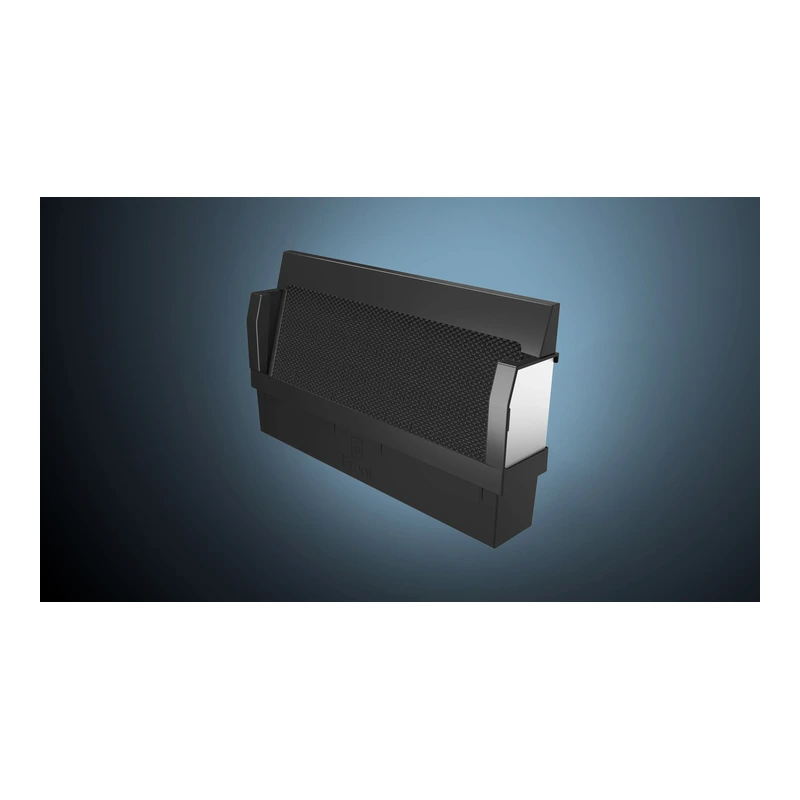

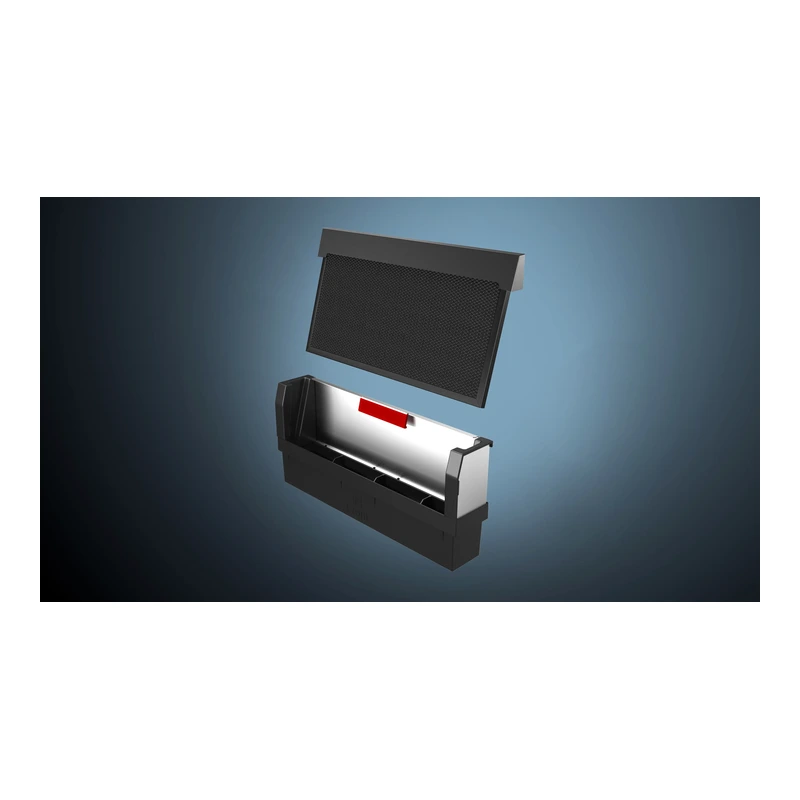

Maximum output recirculating air	456 m³/h (max. normal use with Clean Air Plus recirculation kit)
Boost position output recirculating	596 m³/h (intensive recirculation with Clean Air Plus recirculation kit)
Maximum air flow	519 m³/h
Noise level (exhaust air, max. normal use)	62 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)
Noise level (exhaust air, intensive)	71 dB(A) re 1 pW
Noise level (recirculation, max. normal use)	66 dB(A) re 1 pW (with Clean Air Plus recirculation kit)
Noise level (recirculation, intensive)	71 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

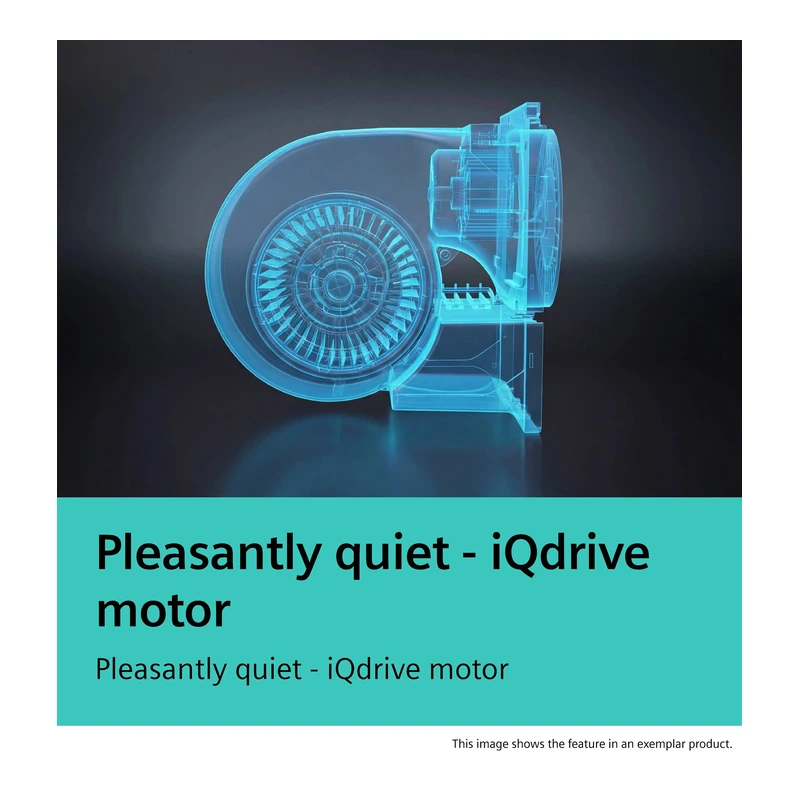

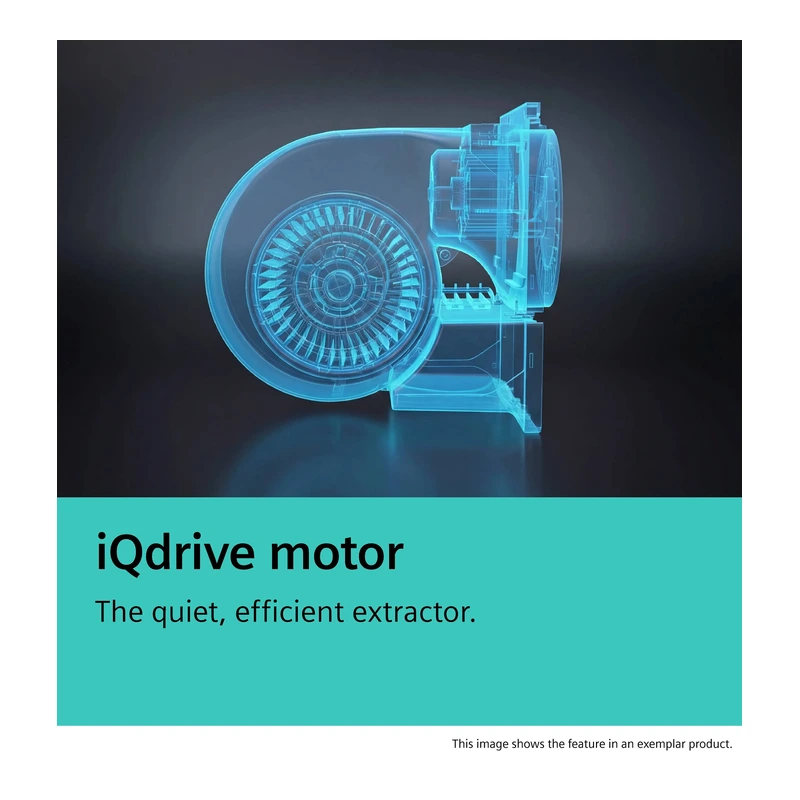

Motor	iQdrive motor; Efficient BLDC motor

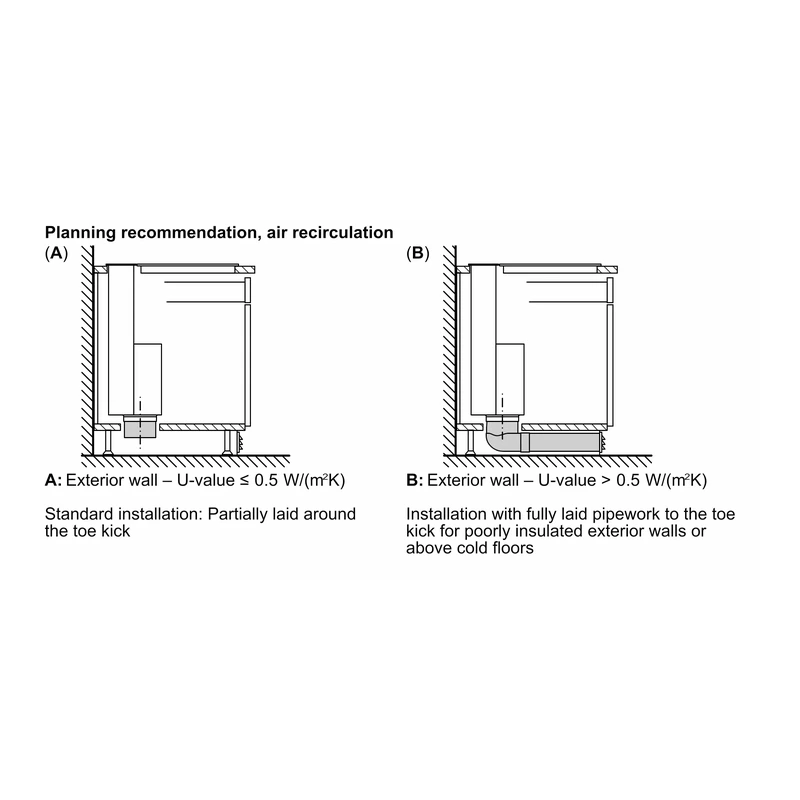

Operation modes	Suitable for ducted and re–circulating operation

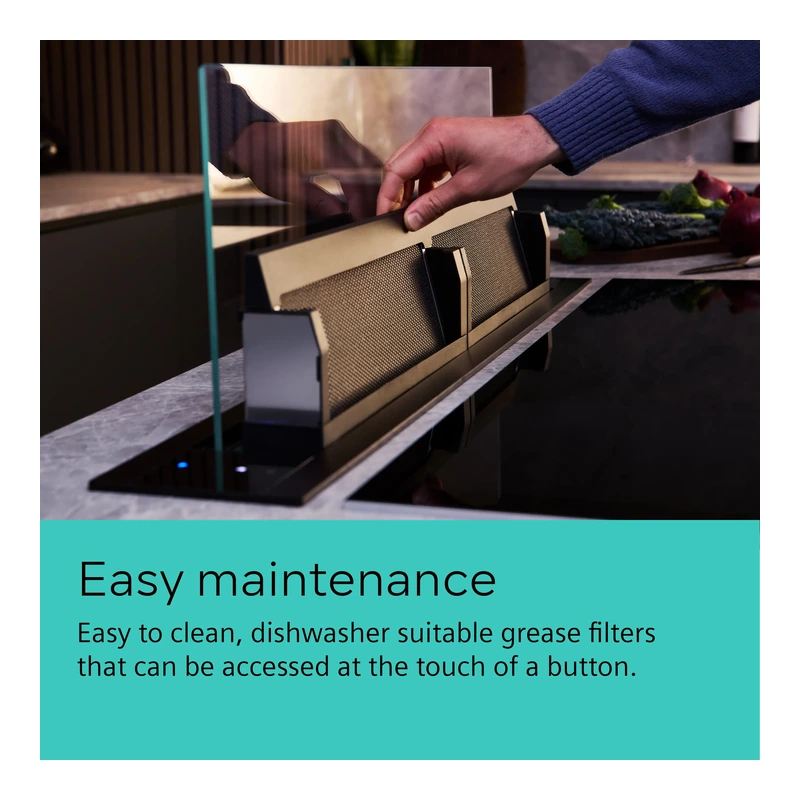

Grease filter material	Washable stainless steel; 2 metal grease filter cassettes
Grease / charcoal filter indicators	Grease and charcoal filter saturation indicators; filter service button
Diameter of air outlet	150 mm; extractor hose 150 mm
Length electrical supply cord	130 cm; electrical cable length 1.3 m
Connection rating	300 W (power rating 300 W)
Nominal power	220–240 V
Frequency	50; 60 Hz
Fuse protection	10 A
Plug type	Gardy plug w/ earthing
EAN code	4242003877319

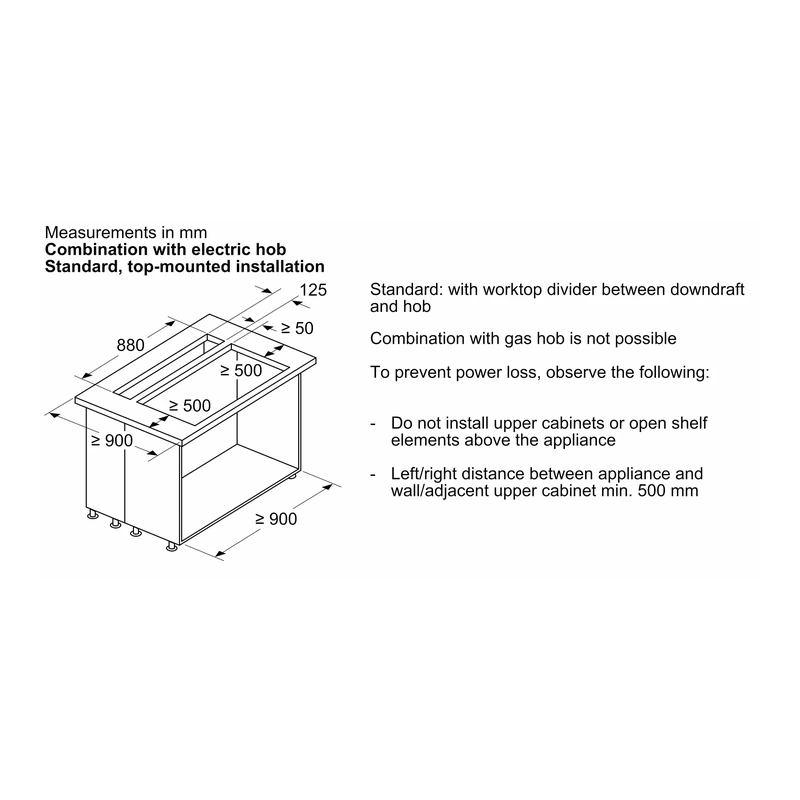

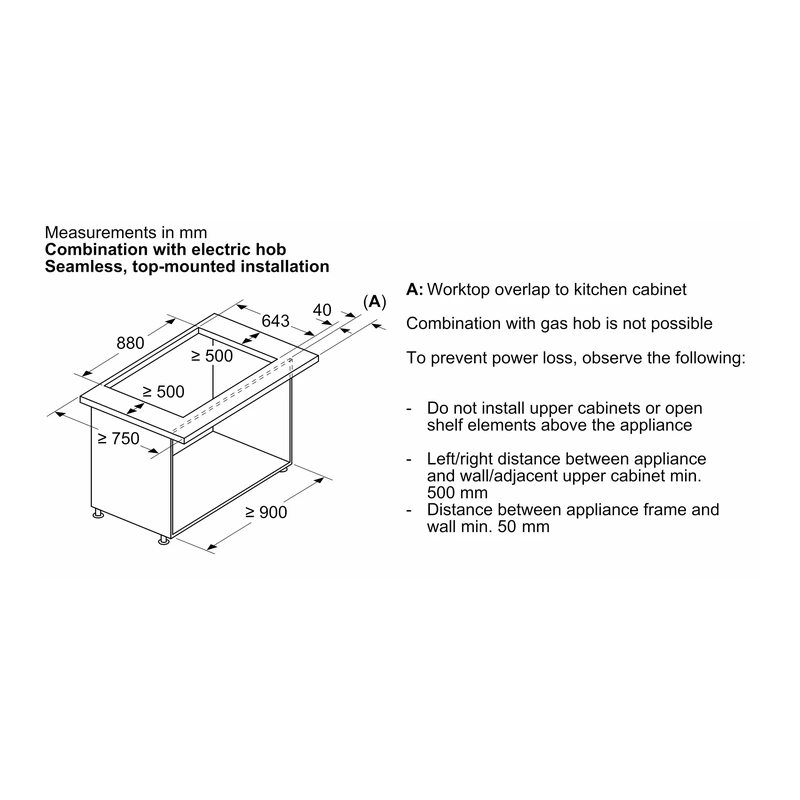

Suitability	Not suitable for combination with gas hobs
Standards / notes	* In accordance with EU–Regulation No 65/2014
