| Model | C92IMX2 |
|---|
| Cooker size | 90x60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Hob type | Induction |
|---|
| Type of main oven | Thermo–ventilated |
|---|
| Type of second oven | Static |
|---|
| Cleaning system – main oven | Vapor Clean |
|---|
| EAN code | 8017709321321 |
|---|
| Energy efficiency class – main cavity | A |
|---|
| Energy efficiency class – second cavity | A |
|---|
| Design | Square design, Symphony series, Classic aesthetics |
|---|
| Colour and finish | Stainless steel, matte finish; hob colour stainless steel |
|---|
| Command panel finish | Enamelled metal |
|---|

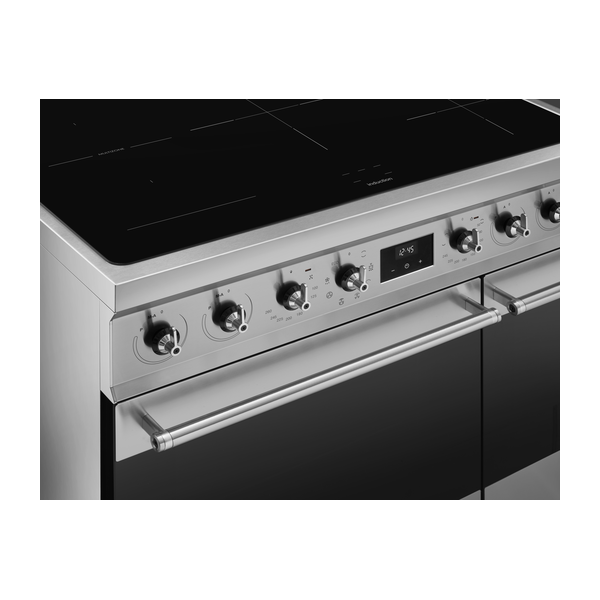

| Controls | Smeg Classic control knobs, stainless steel, 8 controls, touch display, slider red, serigraphy colour silver |
|---|
| Door and handle | Door with 2 horizontal strips, flap down opening, Smeg Classic handle, brushed stainless steel |
|---|
| Storage compartment | Door |
|---|
| Feet | Silver; adjustable height (as described in benefits) |
|---|
| Number of cooking functions – main oven | 8 traditional cooking functions |
|---|
| Traditional functions – main oven | Fan assisted bottom + Vapor Clean, Static, Fan assisted, Circulaire, ECO, Large grill, Fan grill (large), Fan assisted base |
|---|
| Other functions – main oven | Defrost by time |
|---|
| Cleaning functions – main oven | Vapor Clean |
|---|
| Cooking functions – cavity 2 | 3 traditional cooking functions |
|---|
| Traditional functions – cavity 2 | Static, Large grill, Bottom |
|---|

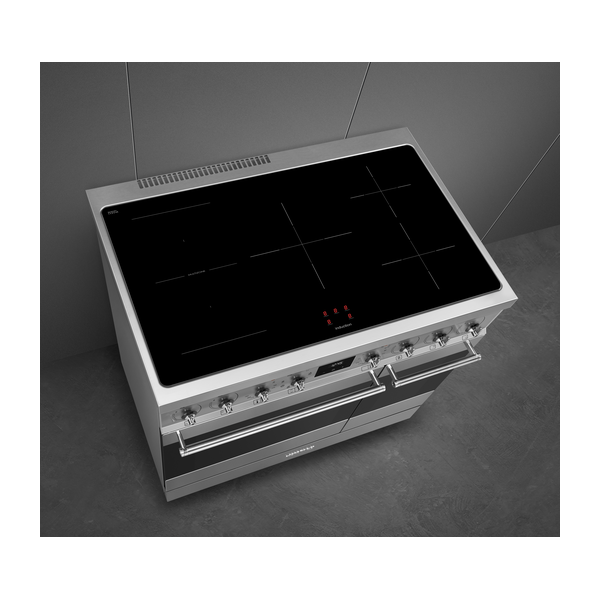

| Total number of cooking zones | 5 induction zones |
|---|
| Number of flexible zones | 1 |
|---|
| Front left zone | Induction – multizone – 2.10 kW – Booster 2.30 kW – 21.0x19.0 cm |
|---|
| Rear left zone | Induction – multizone – 1.60 kW – Booster 1.85 kW – 21.0x19.0 cm |
|---|
| Central zone | Induction – single – 2.30 kW – Booster 3.00 kW – Ø 27.0 cm |
|---|
| Rear right zone | Induction – single – 1.20 kW – Booster 1.40 kW – Ø 18.0 cm |
|---|
| Front right zone | Induction – single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm |
|---|
| Automatic switch off when overheat | Yes |
|---|
| Automatic switch off when overflow | Yes |
|---|
| Automatic pan detection | Yes |
|---|
| Minimum pan diameter indication | Yes |
|---|
| Selected zone indicator | Yes |
|---|
| Residual heat indicator | Yes |
|---|
| Main oven net volume | 70 litres |
|---|
| Main oven gross volume | 79 l |
|---|
| Cavity material – main oven | Easy clean enamel |
|---|
| Shelf positions – main oven | 5, metal racks |
|---|
| Lighting – main oven | 1 halogen light, 40 W; light when oven door is open: Yes |
|---|
| Door glass – main oven | Total no. of door glasses 3; no. of thermo–reflective glasses 2; removable inner door; full glass inner door |
|---|
| Safety thermostat – main oven | Yes |
|---|
| Cooling system – main oven | Tangential |
|---|
| Usable cavity dimensions – main oven (HxWxD) | 360x460x425 mm |
|---|
| Temperature control – main oven | Electro–mechanical |
|---|
| Lower heating element power – main oven | 1200 W |
|---|
| Upper heating element power – main oven | 1000 W |
|---|
| Grill element power – main oven | 1700 W |
|---|
| Large grill power – main oven | 2700 W |
|---|
| Circular heating element power – main oven | 2000 W |
|---|
| Grill type – main oven | Electric |
|---|
| Timer and controls – main oven | Timer, cooking time setting Start and Stop, end of cooking acoustic alarm |
|---|
| Temperature range – main oven | Minimum temperature 50 °C; maximum temperature 260 °C |
|---|
| Net volume – second cavity | 35 litres |
|---|
| Gross volume – second cavity | 36 l |
|---|
| Cavity material – second oven | Easy clean enamel |
|---|
| Shelf positions – second oven | 4, metal racks |
|---|
| Lighting – second oven | 1 incandescent light, 25 W |
|---|
| Door glass – second oven | No. total door glasses 3; no. thermo–reflective door glasses 2; removable door; removable inner door; full glass inner door |
|---|
| Safety thermostat – second oven | Yes |
|---|
| Cooling system – second oven | Tangential |
|---|
| Usable cavity dimensions – second oven (HxWxD) | 311x206x418 mm |
|---|
| Temperature control – second oven | Electro–mechanical |
|---|
| Lower heating element power – second oven | 700 W |
|---|
| Upper heating element power – second oven | 600 W |
|---|
| Grill element power – second oven | 1300 W |
|---|
| Large grill power – second oven | 1900 W |
|---|
| Grill type – second oven | Electric |
|---|
| Minimum & maximum temperature – second oven | Minimum temperature 50 °C; maximum temperature 245 °C |
|---|
| Options – main oven | Not stated in source |
|---|
| Options – auxiliary oven | Minimum temperature 50 °C (as listed) |
|---|
| Accessories included – main oven & hob | Chrome shelf with back and side stop (2); 40 mm deep tray (1); grill mesh (1); telescopic guide rails, partial extraction (1) |
|---|
| Accessories included – secondary oven | Chrome shelf with back and side stop (1); wide baking tray (1); grill mesh (1) |
|---|
| Max power draw | 11000 W |
|---|
| Current | 33 A |
|---|
| Voltage | 220–240 V |
|---|
| Voltage 2 | 380–415 V |
|---|
| Type of electric cable | Yes, single phase |
|---|
| Additional connection modalities | Yes, double and three phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|

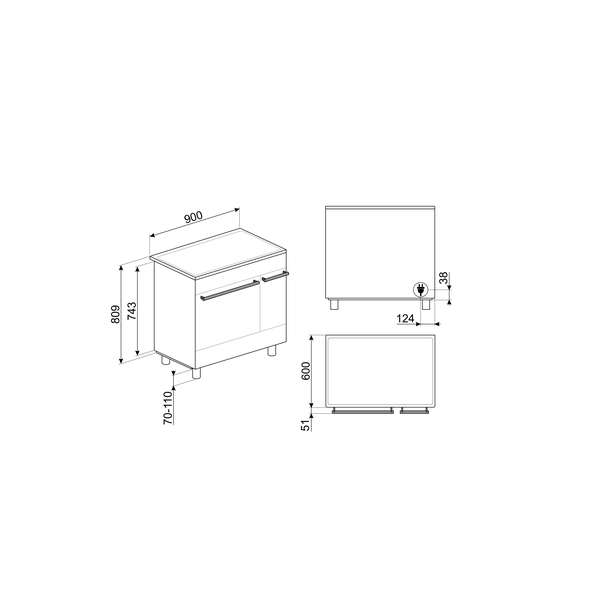

| Overall external dimensions | Not stated in source |
|---|
