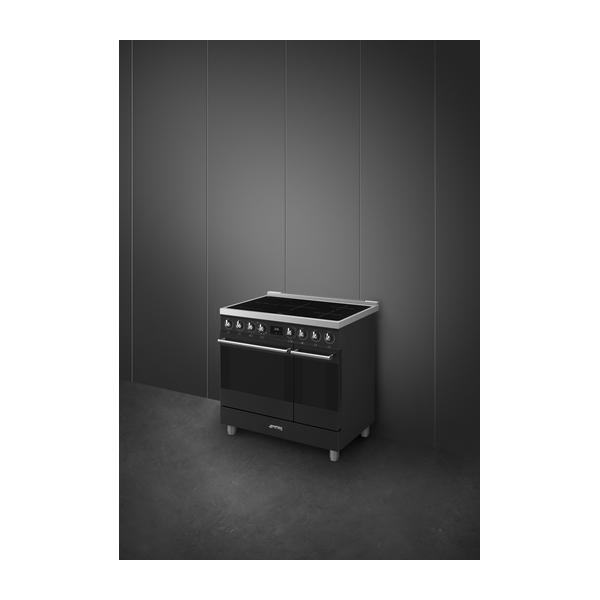

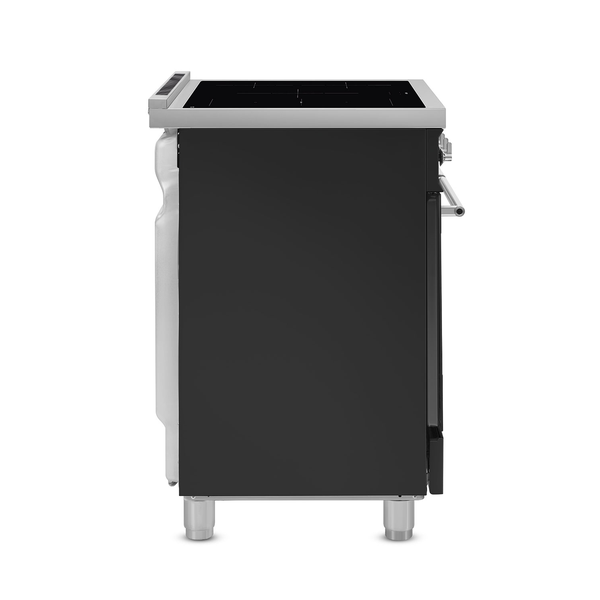

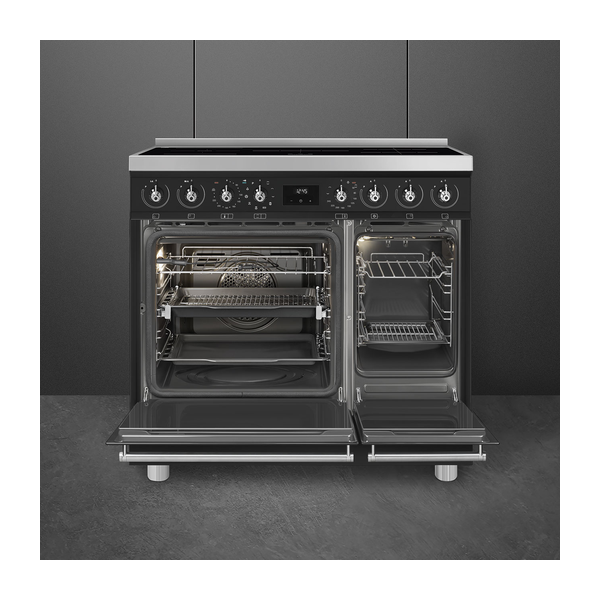

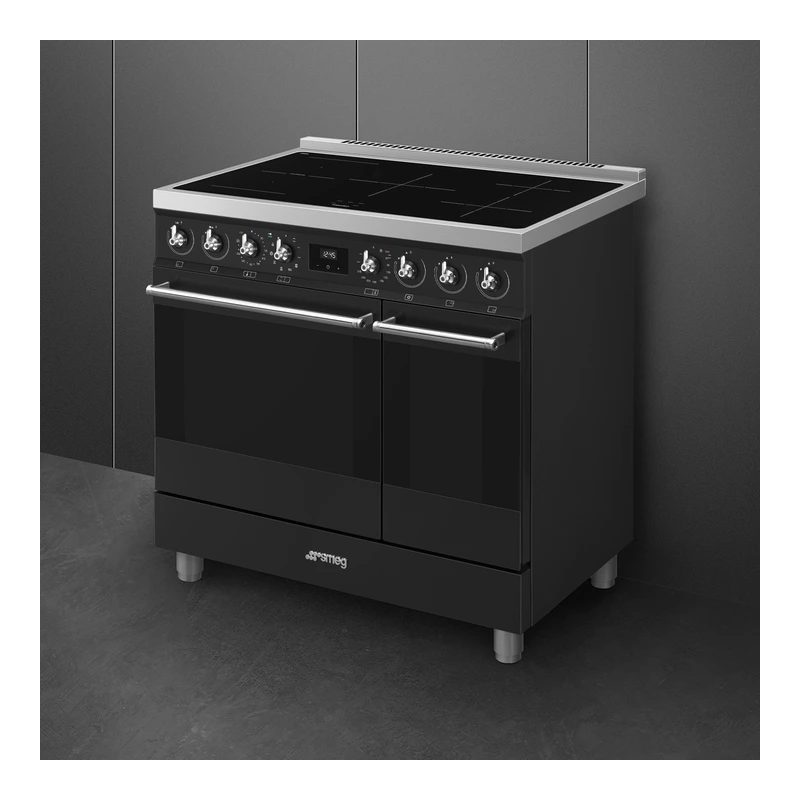

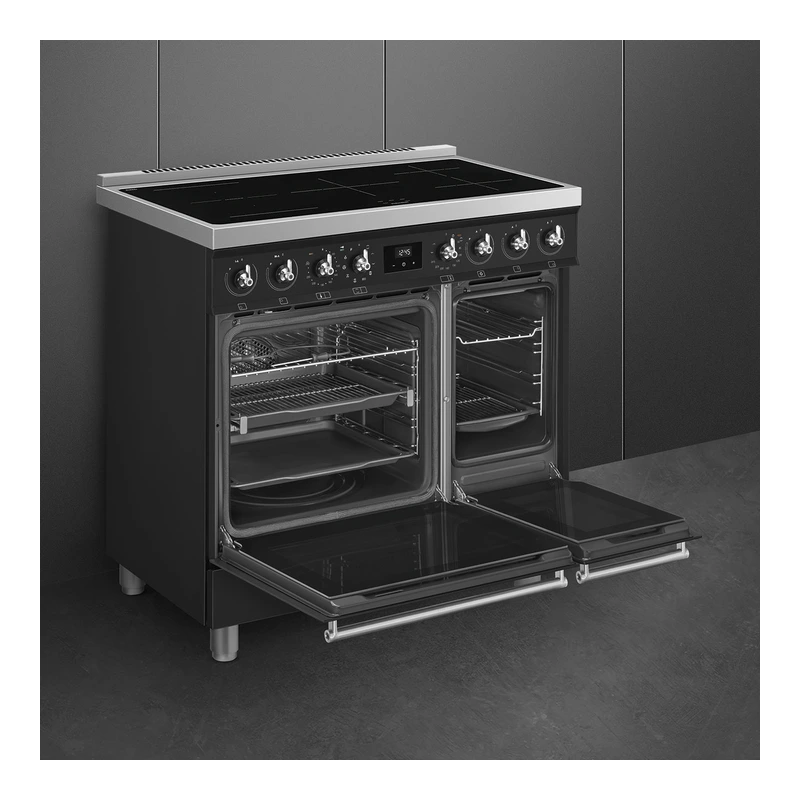

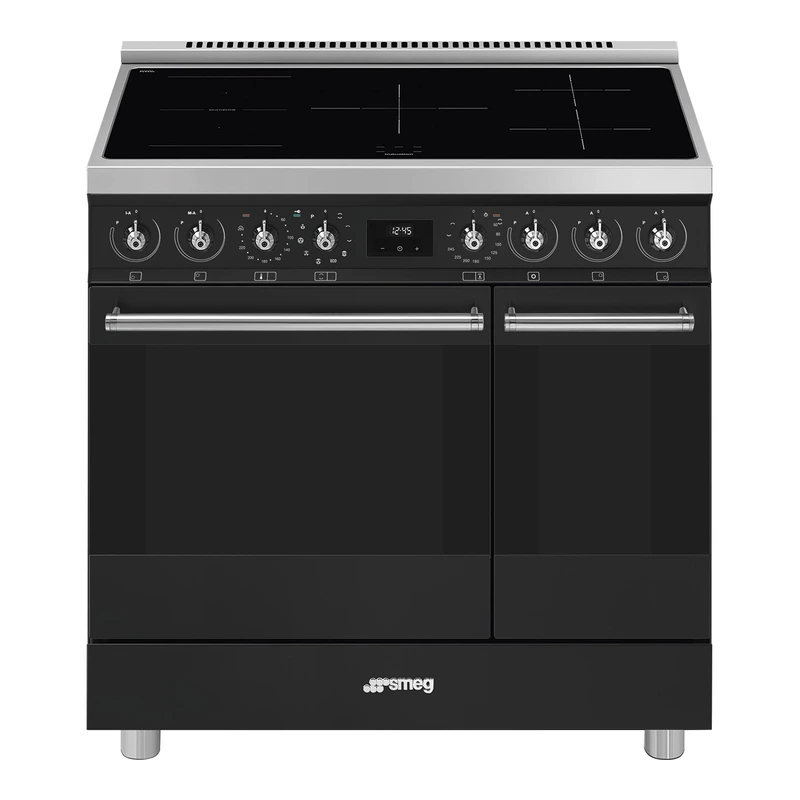

| Model | C92IPMB2 |
|---|
| Series | Symphony |
|---|

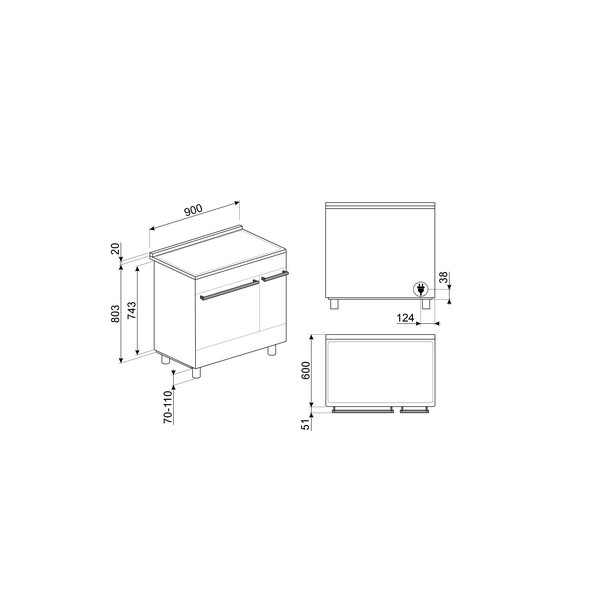

| Cooker size | 90x60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|

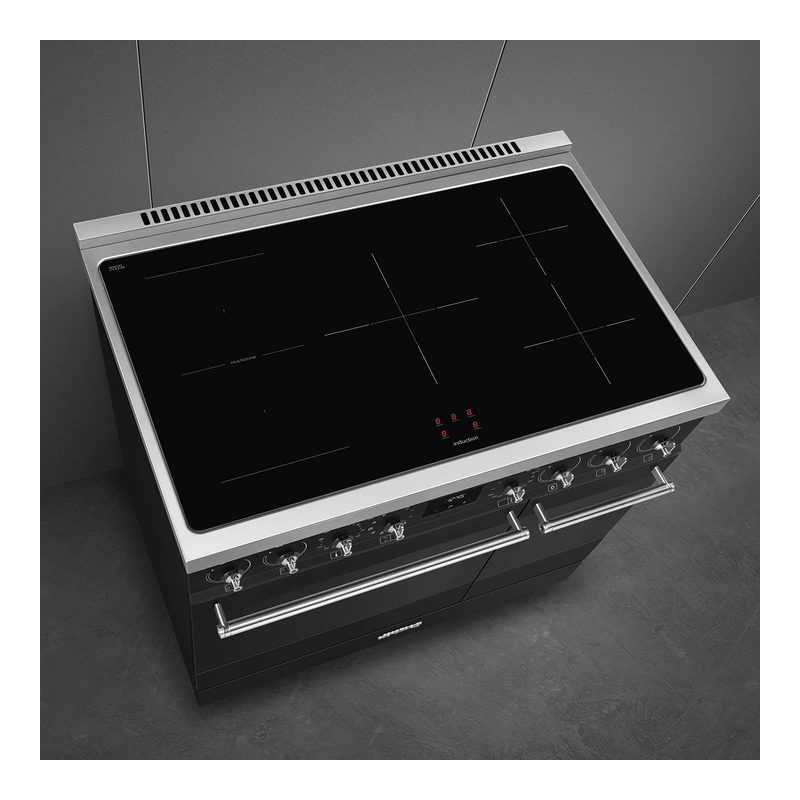

| Hob type | Induction |
|---|
| Type of main oven | Thermo-ventilated |
|---|
| Type of second oven | Static |
|---|
| Cleaning system main oven | Pyrolytic |
|---|
| EAN code | 8017709329730 |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | A |
|---|
| Design | Square design |
|---|
| Aesthetics | Classic |
|---|
| Colour | Matte Black |
|---|
| Finishing | Matte |
|---|
| Command panel finish | Enamelled metal |
|---|
| Logo | Assembled st/steel, position: Facia below the oven |
|---|
| Upstand | Yes |
|---|
| Hob colour | Stainless steel |
|---|
| Type of control setting | Control knobs |
|---|
| Control knobs | Smeg Classic, stainless steel, Slider red, Serigraphy colour silver, No. of controls 8 |
|---|
| Display | Touch |
|---|
| Door design | With 2 horizontal strips, dark grey glass |
|---|
| Handle | Smeg Classic, brushed stainless steel |
|---|
| Storage compartment | Door |
|---|
| Feet | Silver |
|---|
| No. of cooking functions (main oven) | 9 |
|---|
| Main oven net volume | 70 litres |
|---|
| Main oven gross volume | 79 l |
|---|
| Main cavity material | Easy clean enamel |
|---|

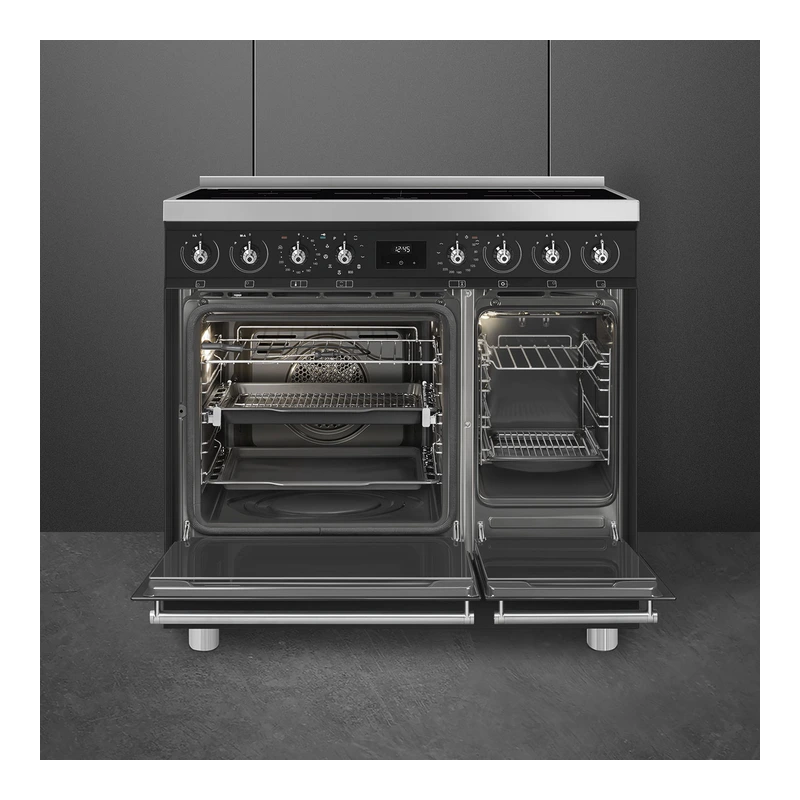

| Main oven shelf positions | 5, metal racks, Roof Liner: Yes |
|---|
| Main oven light | 1 x 40 W halogen, light when door is open: Yes |
|---|

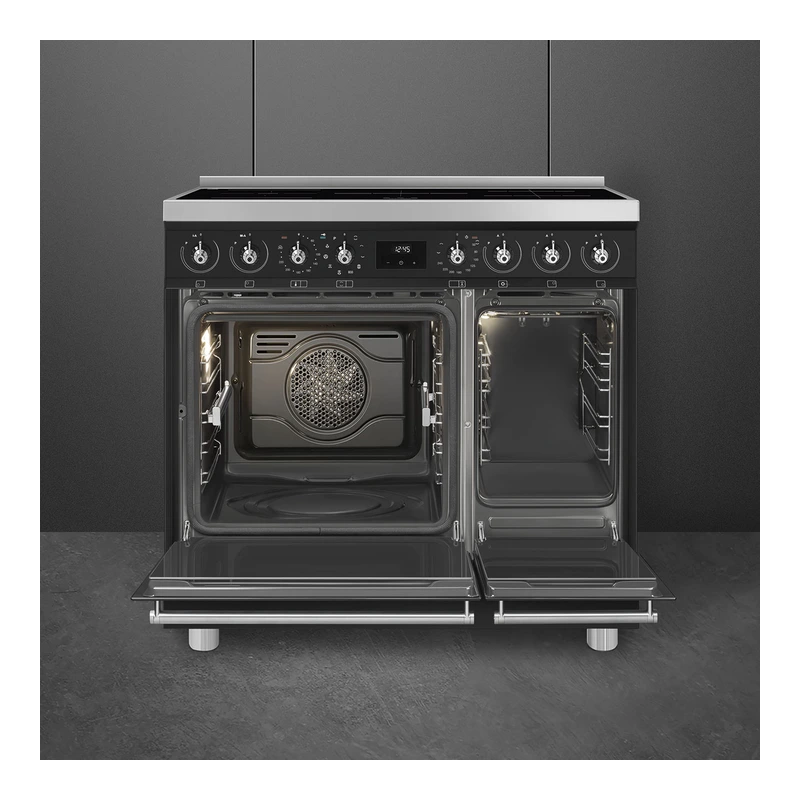

| Main oven door | Flap down, removable door and inner door, full glass inner door |
|---|
| Main door glasses | 4 total, 3 thermo-reflective |
|---|
| Main oven safety | Safety Thermostat, Heating suspended when door is opened, Tangential cooling system, Door Lock during Pyrolisis |
|---|
| Main oven usable cavity dimensions (HxWxD) | 360X460X425 mm |
|---|
| Main oven temperature control | Electro-mechanical |
|---|
| Main oven elements power | Lower 1200 W; Upper 1000 W; Grill 1700 W; Large grill 2700 W; Circular heating element 2000 W |
|---|
| Grill type (main) | Electric |
|---|
| Timer and controls (main) | Timer, Cooking time setting Start and Stop, End of cooking acoustic alarm |
|---|
| Main oven temperature range | Minimum Temperature 50 °C; Maximum temperature 260 °C |
|---|
| Second oven net volume | 35 litres |
|---|
| Second oven gross volume | 36 l |
|---|
| Second cavity material | Easy clean enamel |
|---|
| Second oven shelf positions | 4, metal racks |
|---|
| Second oven light | 1 x 25 W incandescent |
|---|
| Second oven door | Flap down, removable door and inner door, full glass inner door |
|---|
| Second door glasses | 3 total, 1 thermo-reflective |
|---|
| Second oven safety | Safety Thermostat, Tangential cooling system |
|---|
| Second oven usable cavity dimensions (HxWxD) | 311x206x418 mm |
|---|
| Second oven temperature control | Electro-mechanical |
|---|
| Second oven elements power | Lower 700 W; Upper 600 W; Grill 1300 W; Large grill 1900 W |
|---|
| Grill type (second) | Electric |
|---|
| Second oven temperature range | Minimum Temperature 50 °C; Maximum temperature 245 °C |
|---|

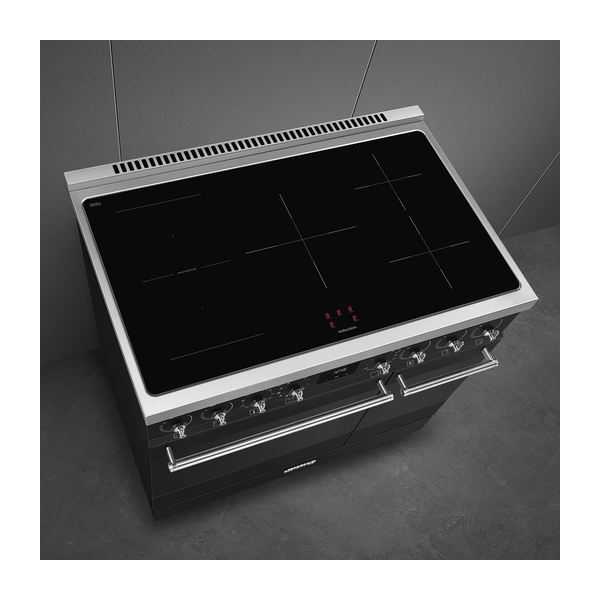

| Total number of cook zones | 5, with Booster; Number of Flexible zones: 1 |
|---|
| Front left zone | Induction – multizone – 2.10 kW – Booster 2.30 kW – 21.0x19.0 cm |
|---|
| Rear left zone | Induction – multizone – 1.60 kW – Booster 1.85 kW – 21.0x19.0 cm |
|---|
| Central zone | Induction – single – 2.30 kW – Booster 3.00 kW – Ø 27.0 cm |
|---|
| Rear right zone | Induction – single – 1.20 kW – Booster 1.40 kW – Ø 18.0 cm |
|---|
| Front right zone | Induction – single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm |
|---|
| Hob safety and indicators | Automatic switch off when overheat; Automatic switch off when overflow; Automatic pan detection; Minimum pan diameter indication; Selected zone indicator; Residual heat indicator |
|---|
| Max Power Draw | 12000 W |
|---|
| Current | 36 A |
|---|
| Voltage | 220-240 V; Voltage 2 (V) 380-415 V |
|---|
| Type of electric cable | Yes, Single phase |
|---|
| Additional connection modalities | Yes, Double and Three Phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|
| Accessories included (main oven & hob) | Chrome shelf with back and side stop (1); 20mm deep tray (1); 40mm deep tray (1); Grill mesh (1); Telescopic Guide rails, total Extraction (1); Meat Probe (1); Child Lock (1) |
|---|
| Accessories included (second oven) | Chrome shelf with back and side stop (1); Wide baking tray (1); Grill mesh (1); Child lock (1) |
|---|
