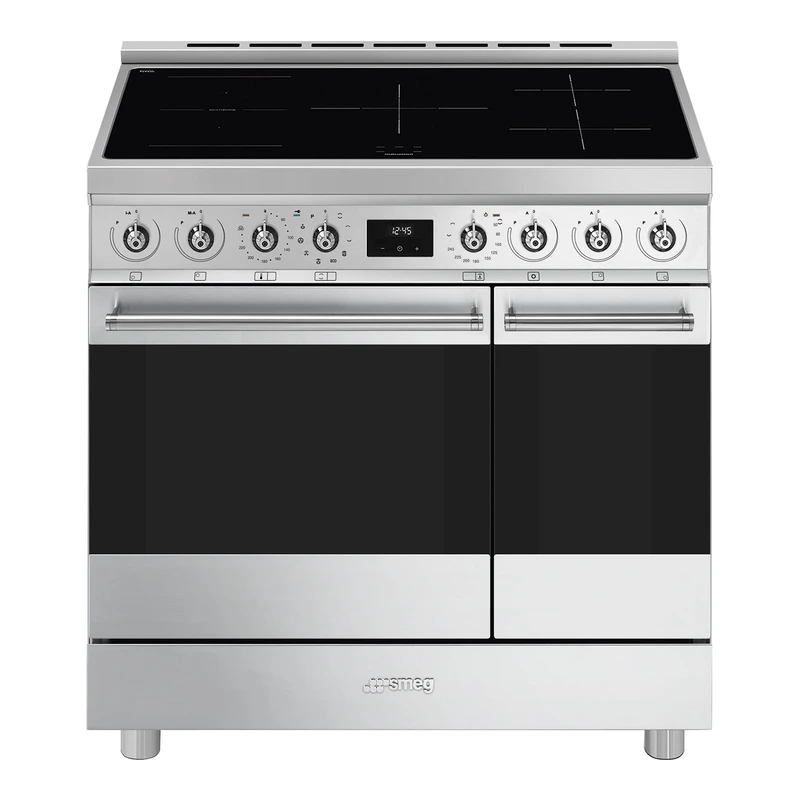

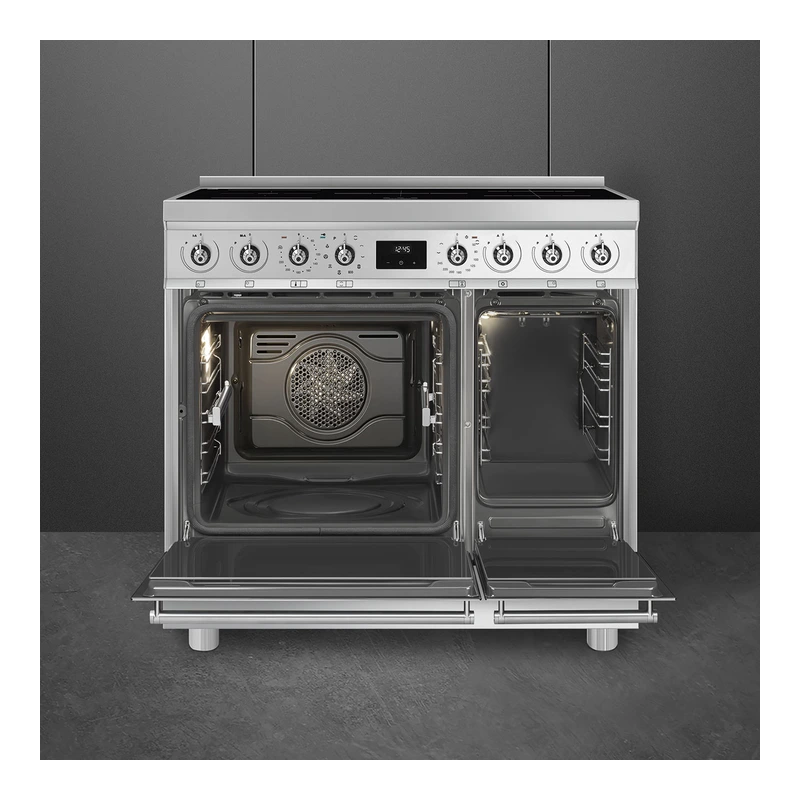

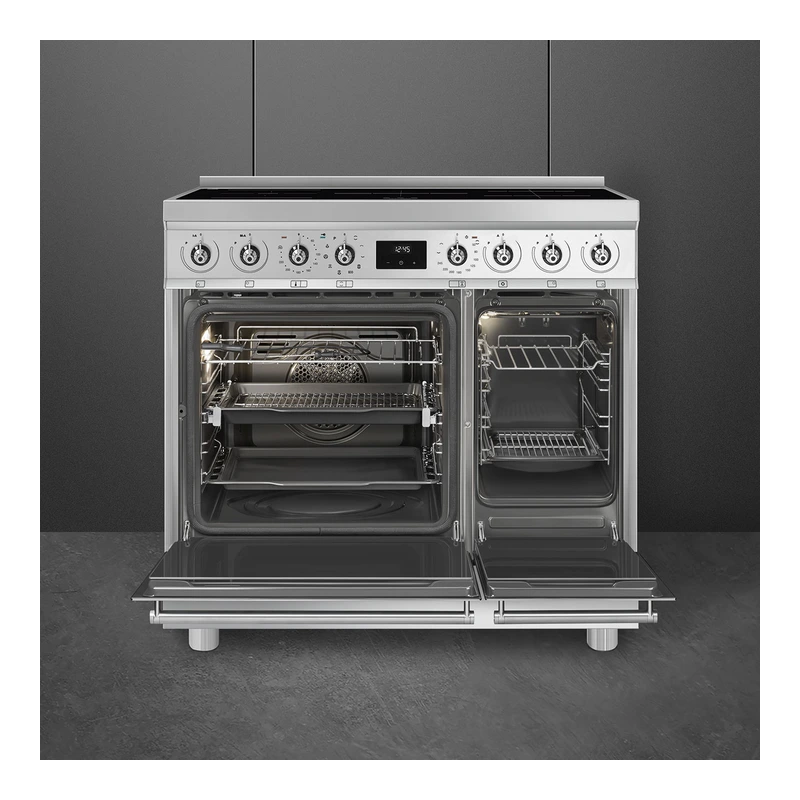

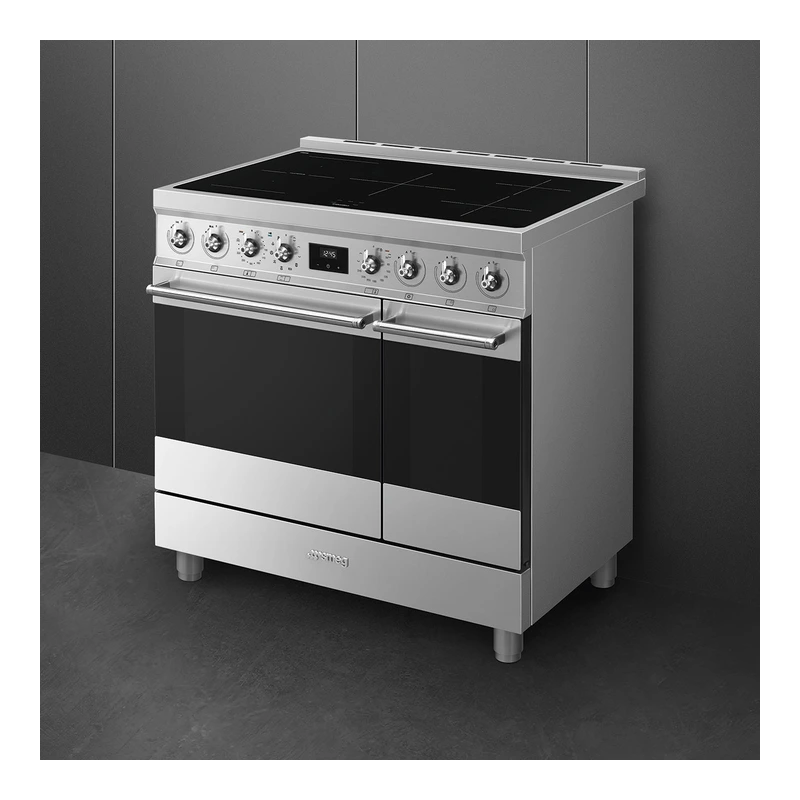

| Model | C92IPX2 |
|---|
| Series / Aesthetics | Symphony – Classic aesthetics, square design |
|---|

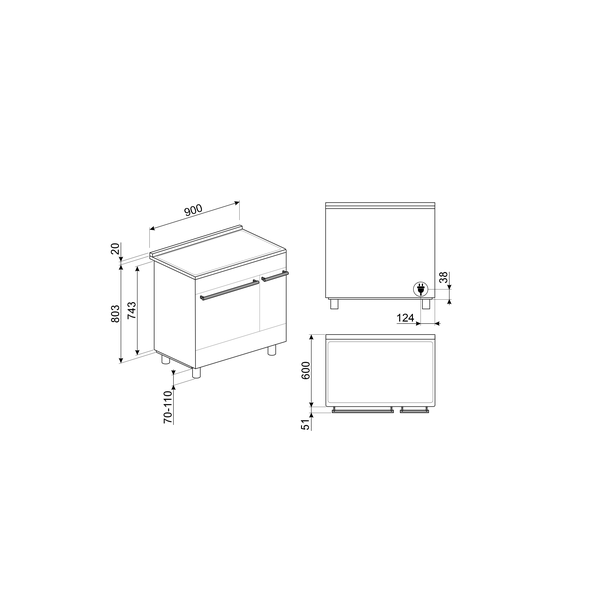

| Cooker size | 90x60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|

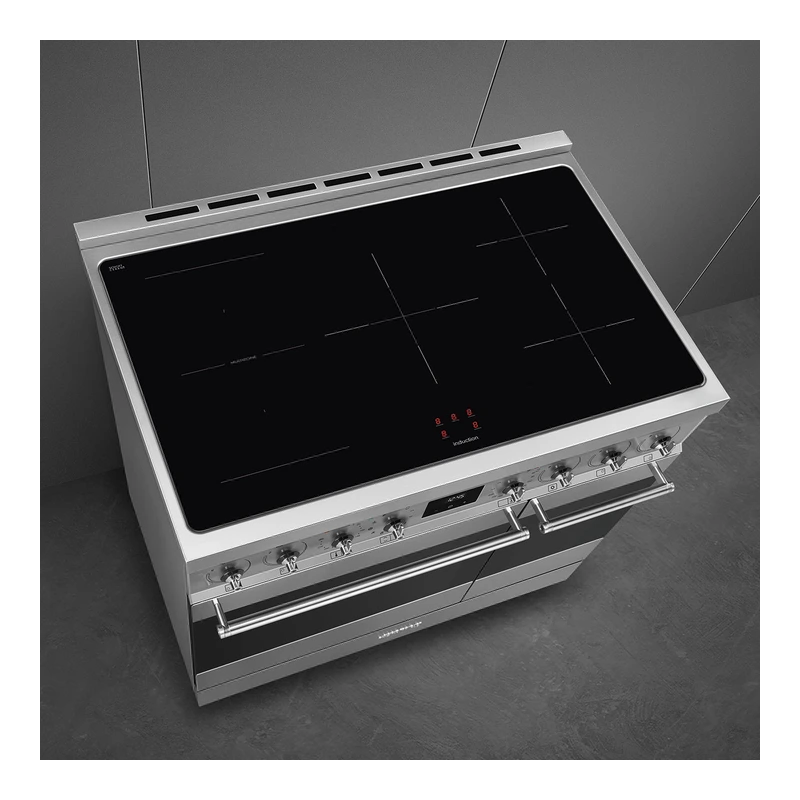

| Hob type | Induction |
|---|
| Type of main oven | Thermo-ventilated |
|---|
| Type of second oven | Static |
|---|
| Cleaning system main oven | Pyrolytic |
|---|
| EAN code | 8017709329716 |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | A |
|---|
| Colour / Finish | Stainless steel, brushed finishing |
|---|
| Command panel finish | Enamelled metal |
|---|
| Logo | Assembled stainless steel, on facia below the oven |
|---|
| Upstand | Yes |
|---|
| Hob colour | Stainless steel |
|---|
| Type of control setting | Control knobs, Smeg Classic, slider red, controls colour stainless steel, 8 controls, serigraphy colour black, display touch |
|---|
| Door design | Door with 2 horizontal strips, dark grey glass |
|---|
| Handle | Smeg Classic, brushed stainless steel |
|---|
| Storage compartment | Door |
|---|
| Feet | Silver |
|---|
| Total number of cook zones | 5 |
|---|
| Number of zones with Booster | 5 |
|---|
| Number of flexible zones | 1 |
|---|
| Front left zone | Induction – multizone – 2.10 kW – Booster 2.30 kW – 21.0x19.0 cm |
|---|
| Rear left zone | Induction – multizone – 1.60 kW – Booster 1.85 kW – 21.0x19.0 cm |
|---|
| Central zone | Induction – single – 2.30 kW – Booster 3.00 kW – Ø 27.0 cm |
|---|
| Rear right zone | Induction – single – 1.20 kW – Booster 1.40 kW – Ø 18.0 cm |
|---|
| Front right zone | Induction – single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm |
|---|
| Hob safety features | Automatic switch off when overheat; automatic switch off when overflow; automatic pan detection; minimum pan diameter indication; selected zone indicator; residual heat indicator |
|---|
| Main oven – number of cooking functions | 9 traditional functions |
|---|
| Main oven – net volume | 70 litres |
|---|
| Main oven – gross volume | 79 l |
|---|
| Main oven cavity material | Easy clean enamel, with roof liner |
|---|
| Main oven shelf positions | 5, metal racks |
|---|
| Main oven light | 1 x 40 W halogen, light when door is open |
|---|
| Main oven door | Flap down, removable door, full glass inner door, removable inner door, 4 total door glasses, 3 thermo-reflective glasses |
|---|
| Main oven safety | Safety thermostat; heating suspended when door is opened; tangential cooling system; door lock during pyrolysis |
|---|
| Main oven usable cavity dimensions (HxWxD) | 360x460x425 mm |
|---|
| Main oven temperature control | Electro-mechanical |
|---|
| Main oven heating elements power | Lower: 1200 W; Upper: 1000 W; Grill: 1700 W; Large grill: 2700 W; Circular element: 2000 W; grill type: Electric |
|---|
| Main oven options | Timer; Start and Stop cooking time setting; end of cooking acoustic alarm; minimum temperature 50 °C; maximum temperature 260 °C |
|---|
| Second oven – net volume | 35 litres |
|---|
| Second oven – gross volume | 36 l |
|---|
| Second oven cavity material | Easy clean enamel |
|---|
| Second oven shelf positions | 4, metal racks |
|---|
| Second oven light | 1 x 25 W incandescent |
|---|
| Second oven door | Flap down, removable door, full glass inner door, removable inner door, 3 total door glasses, 1 thermo-reflective glass |
|---|
| Second oven safety | Safety thermostat; tangential cooling system |
|---|
| Second oven usable cavity dimensions (HxWxD) | 311x206x418 mm |
|---|
| Second oven temperature control | Electro-mechanical, 50 °C minimum, 245 °C maximum |
|---|
| Second oven heating elements power | Lower: 700 W; Upper: 600 W; Grill: 1300 W; Large grill: 1900 W; grill type: Electric |
|---|
| Accessories included – Main oven & hob | Chrome shelf with back and side stop (1); 20 mm deep tray (1); 40 mm deep tray (1); grill mesh (1); telescopic guide rails, total extraction (1); meat probe (1); child lock (1) |
|---|
| Accessories included – Secondary oven | Chrome shelf with back and side stop (1); wide baking tray (1); grill mesh (1); child lock (1) |
|---|
| Max power draw | 12000 W |
|---|
| Current | 36 A |
|---|
| Voltage | 220–240 V; Voltage 2: 380–415 V |
|---|
| Type of electric cable | Yes, single phase |
|---|
| Additional connection modalities | Yes, double and three phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|
