How many cooking zones does the Smeg PM6743R hob have?

The hob has a total of 4 cooking zones: 2 gas cook zones and 2 induction cook zones. The induction area includes 1 flexible MultiZone.

What are the power ratings of the individual cooking zones?

The front left gas zone is AUX with 1.10 kW, and the rear left gas zone is ultra rapid (UR) with 3.30 kW. The rear right and front right induction Multizone areas each provide 2.10 kW with a Booster up to 3.60 kW.

Does this hob offer a flexible cooking area?

Yes. It features 1 flexible MultiZone with automatic merge of zones, allowing several pans of different sizes to be used together over a combined area of 38.5 x 23.0 cm.

What safety features are included?

Safety features include gas safety valves, automatic ignition, overheat protection, overfill protection, automatic switch-off when overheat or overflow, residual heat indication, protection against accidental start up and a control lock / child safety function.

Is there a function to keep food warm?

Yes. The keep warm function keeps cooked food heated by operating the heating zone at minimum capacity for 120 minutes, then turning off automatically.

Which gases is the hob compatible with?

The hob is suitable for G20/G25 natural gas and is supplied with additional nozzles for G30 GPL liquid gas. It includes cylindrical and conical gas connections.

Product Information Sheet

Smeg Dolce Stil Novo Gas Hob

SKU: PM6743R

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

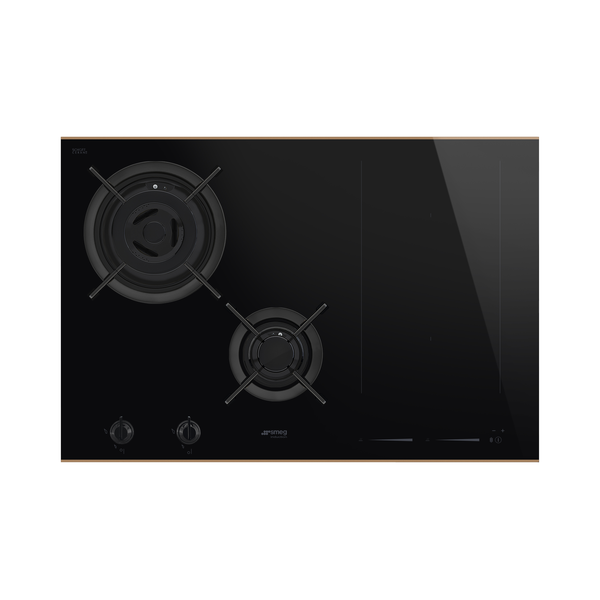

Smeg PM6743R Dolce Stil Novo Gas Hob

SKU: PM6743R · EAN: 8017709313562

Black & Copper Trim

The Smeg PM6743R is a built-in, ultra-low profile mixed fuel hob combining two gas and two induction cook zones in a 70/75 cm format. Finished in black Eclipse ceramic glass with copper detailing, it belongs to the Dolce Stil Novo aesthetics. Cast iron pan stands, brass Contemporary burners and Multi Slider and knob controls provide flexible, precise cooking, while MultiZone induction, booster options and extensive safety systems support versatile everyday use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Model	PM6743R
Product family	Hob
Installation	Built-in ultra-low profile
Dimensions	70/75 cm

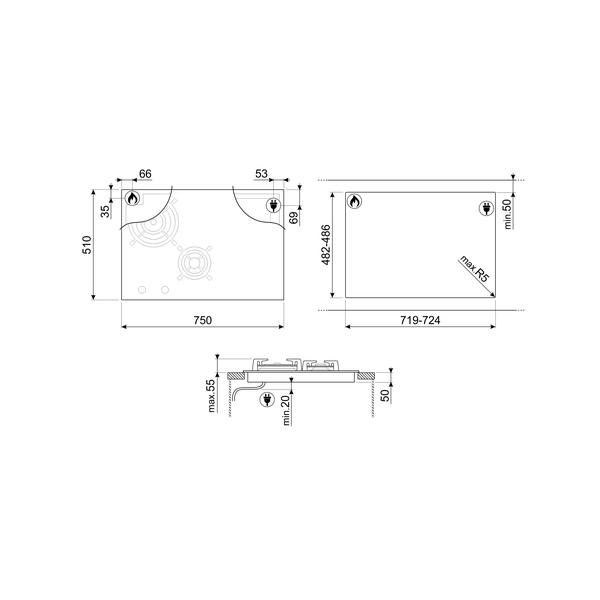

Standard cut-out size	482–486 x 719–724 mm
Power supply type	Mixed
Total number of cook zones	4 (2 gas, 2 induction)
Number of gas cook zones	2
Number of induction cook zones	2
Number of cooking zones with booster	2
Number of flexible zones	1 MultiZone flexible area
Flexible zone type	MultiZone with automatic merge of zones
Front left zone	Gas – AUX – 1.10 kW
Rear left zone	Gas – UR – 3.30 kW
Rear right zone	Induction – Multizone – 2.10 kW (Booster 3.60 kW) – 18.0 x 23.0 cm
Front right zone	Induction – Multizone – 2.10 kW (Booster 3.60 kW) – 18.0 x 23.0 cm
Combined MultiZone area	38.5 x 23.0 cm
Power levels	9
Nominal power	3700 W
Gas connection rating	4400 W
Limited Power Consumption Mode	2100 to 3700 W – step 100 W (advance)
Current	16 A
Voltage	220–240 V
Frequency	50/60 Hz
Type of electric cable	Single phase
Power supply cable length	120 cm
Aesthetics series	Dolce Stil Novo – New series
Colour	Black with copper finishing
Material	Glass on steel – Eclipse ceramic glass
Glass edge	Straight edge, ultra-low profile
Pan stands	Cast iron
Burner material	Brass
Type of control setting	Multi Slider and knobs – slider present
Number of controls	2
Control knobs position	Front
Controls colour	Black
Logo	Silk screen, serigraphy colour grey
Gas type	G20/G25 natural gas
Other gas nozzles included	G30 GPL liquid gas
Gas connection	Cylindrical, with additional conical connection provided
EAN code	8017709313562
