How many cooking zones does this hob have?

The hob has a total of 6 induction cook zones. All 6 zones are equipped with booster and double booster functions, and they are arranged into 3 Multizone flexible areas.

What are the dimensions and cut-out size?

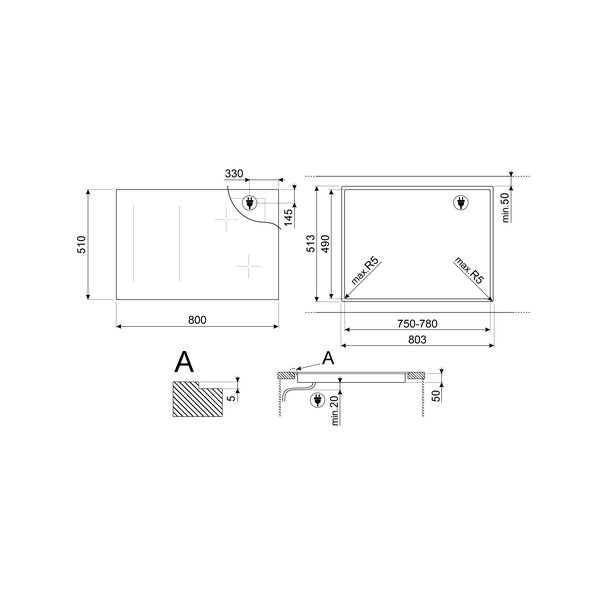

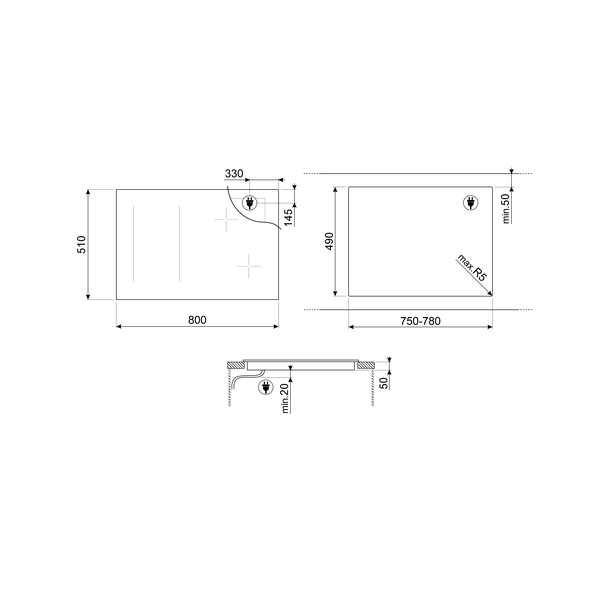

The hob is 80 cm wide and is designed for a standard cut-out of 490x750–780 mm. It offers an ultra-low profile or fully flushed built-in installation, with a perfect fit in an 80 cm cabinet.

What safety features are included?

Safety features include Control Lock / Child Safety, protection against accidental start up, automatic switch-off in case of overheating or overflow, residual heat indicators, automatic pan detection with a minimum 9 cm pot diameter, and permanent automatic pot detection with indication of the relative control.

Can I limit the power consumption of the hob?

Yes. The hob has an advanced Limited Power Consumption Mode that allows you to set the maximum power absorption between 2400 W and 11100 W, in 100 W steps.

What type of cookware is suitable?

The hob uses induction technology, generating heat directly in the bottom of the pan through electromagnetic induction. It is compatible with suitable induction cookware, and accessories such as GRILLPLATE and TPKPLATE are specifically described as universal for induction, gas, ceramic and electric hobs.

Does the hob have a keep warm function?

Yes. The keep warm automatic function maintains cooked food heated by operating the heating zone at minimum capacity for 120 minutes, after which the zone turns off automatically.

Product Information Sheet

Smeg Linea Induction Hob

SKU: SIM1864DG

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

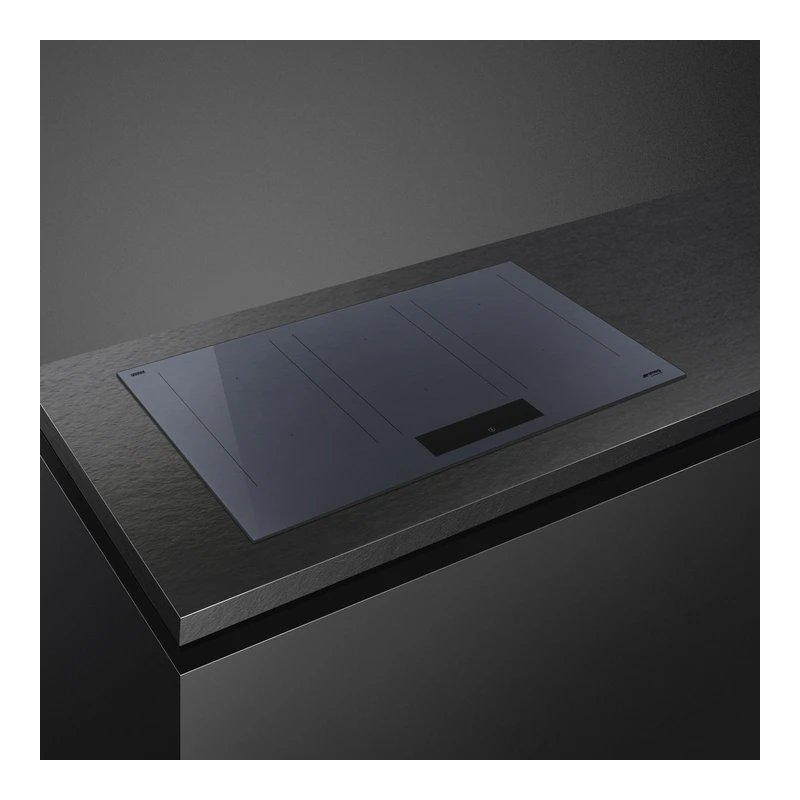

Smeg SIM1864DG Linea Induction Hob

SKU: SIM1864DG · EAN: 8017709328023

Neptune Grey Ultra-low profile or Fully Flushed

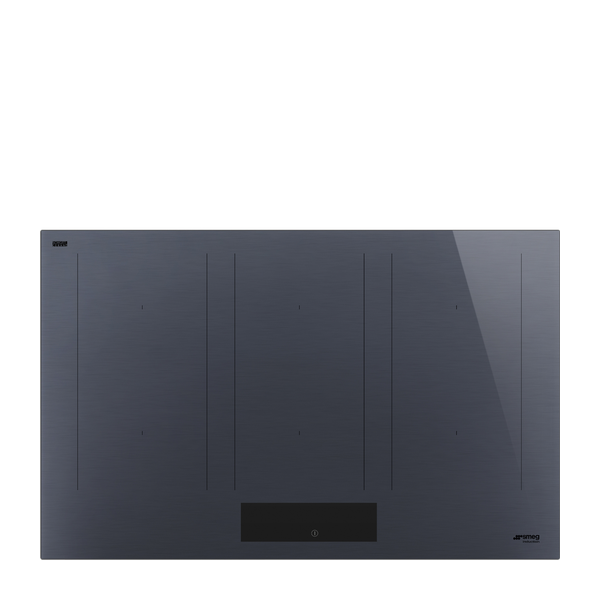

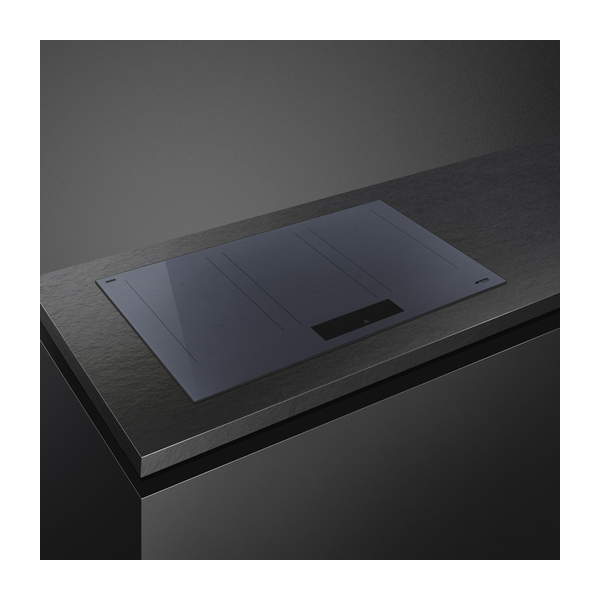

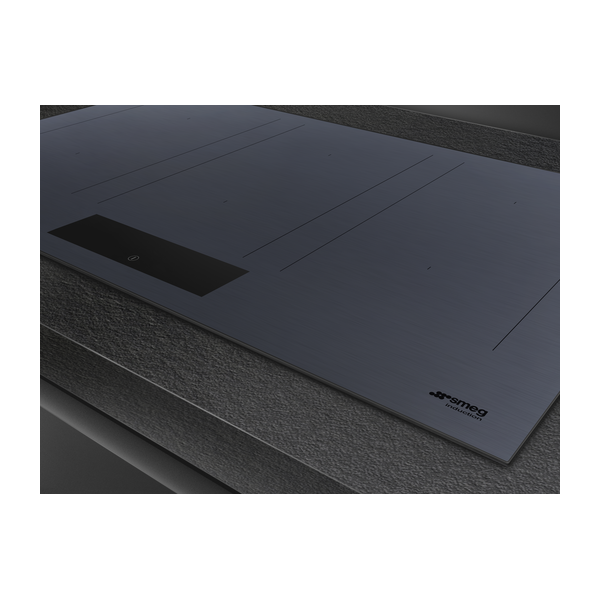

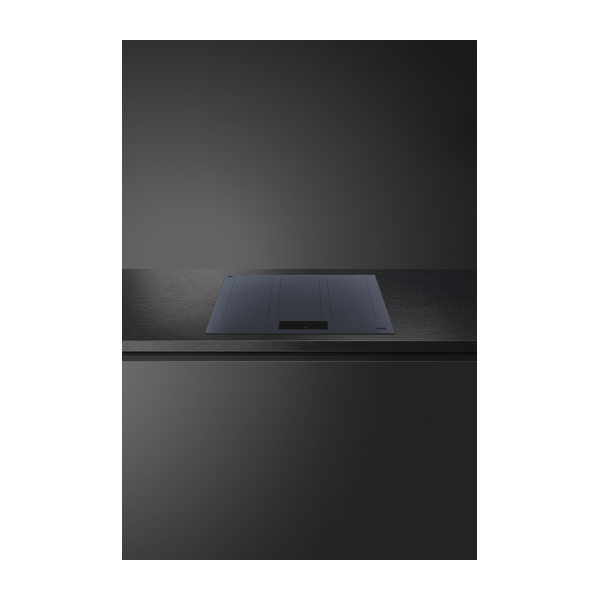

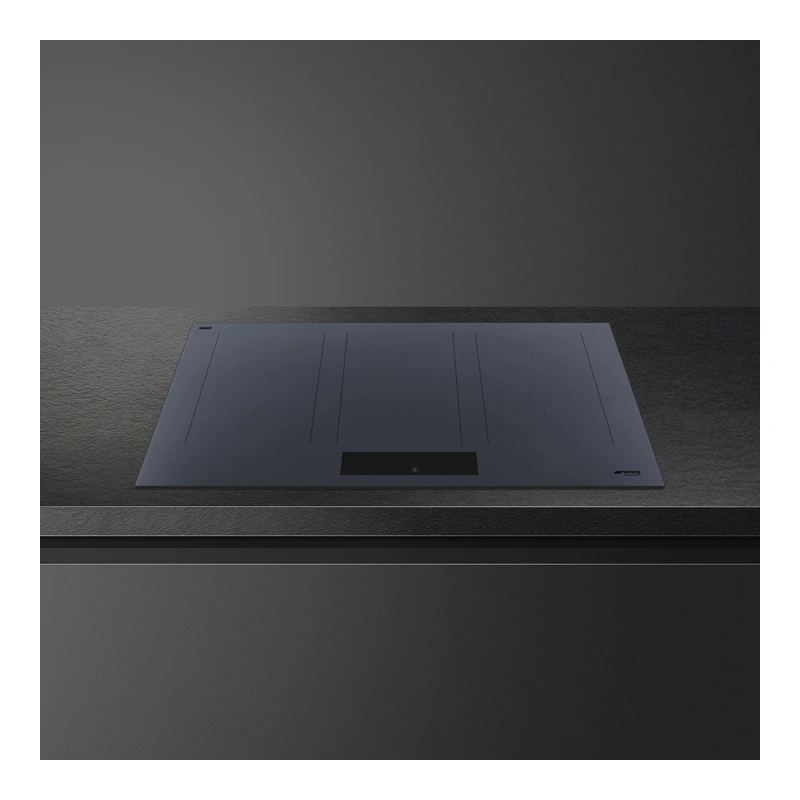

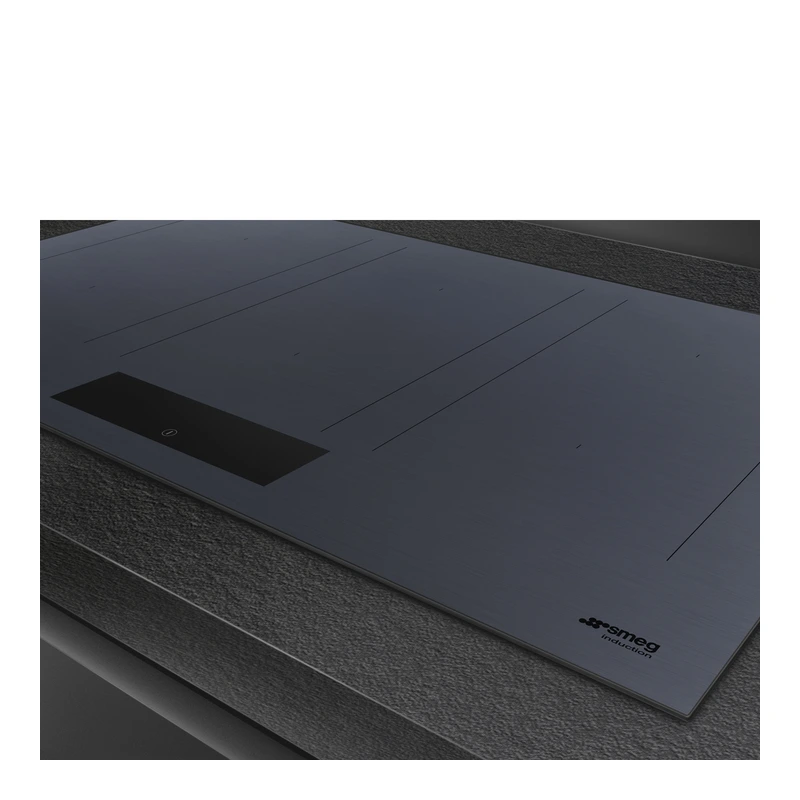

This built-in 80 cm induction hob in Neptune Grey glass belongs to the Linea family and offers an ultra-low profile or fully flushed installation. It features six induction cook zones with three Multizone flexible areas, all controlled via a white EVO Slider at the front. With keep warm and grill functions, Auto-Vent 2.0, power boost options and multiple safety systems, it is designed for flexible, precise and protected everyday cooking.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hob
Installation	Built-in, ultra-low profile or fully flushed
Dimensions	80 cm
Standard cut-out	490x750–780 mm
Power supply	Electric, induction type
Model code	SIM1864DG
EAN code	8017709328023
Aesthetic line	Linea
Colour	Neptune Grey
Material / glass type	Eclipse ceramic glass, straight edge, double ceramization
Serigraphy colour	Black
Logo	Silk screen
Control type	EVO Slider with white slider
Control position	Front
Total number of cook zones	6 induction cook zones
Number of flexible zones	3 Multizone flexible areas
Flexible zone type	MultiZone
Number of zones with booster	6
Power levels	9
Main on/off switch	Yes
Auto-Vent 2.0	Yes
Multizone option	Yes
Front left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Rear left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Front centre zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Rear centre zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Front right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Rear right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Flexible area dimensions	38.5x23.0 cm, 38.5x23.0 cm, 38.5x23.0 cm
Nominal power	11100 W
Current	49 A
Voltage	220–240 V; 380–415 V (Voltage 2)
Frequency	50/60 Hz
Electric cable type	Single and double phase; three-phase; supplied as single and double phase
Power supply cable length	120 cm
Terminal box	5 poles
Limited Power Consumption Mode	Yes advance; 2400 to 11100 W (step 100 W)
