How many cooking zones does the SIM1964DG have?

The hob has a total of 6 induction cook zones, all with booster and double booster options, and includes 3 flexible MultiZone areas.

What is the standard cut–out size for installation?

The standard cut–out required is 490x860 mm, and the hob is designed to fit perfectly in a 90 cm cabinet.

Does the hob have child safety features?

Yes. It includes a control lock / child safety function and protection against accidental start up to help prevent unintended use.

What power supply options are supported?

The hob supports 220–240 V and 380–415 V supplies, with three–phase, single and double phase cable options. A single and double phase cable is supplied.

Is there a function to limit energy consumption?

Yes. An advanced limited power consumption mode allows the maximum power absorption to be set between 2400 W and 11100 W in 100 W steps.

What is the minimum pan size recognised by the hob?

Automatic pan detection works with a minimum pot diameter of 9 cm.

Product Information Sheet

Smeg Linea Induction Hob

SKU: SIM1964DG

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 14 June 2026

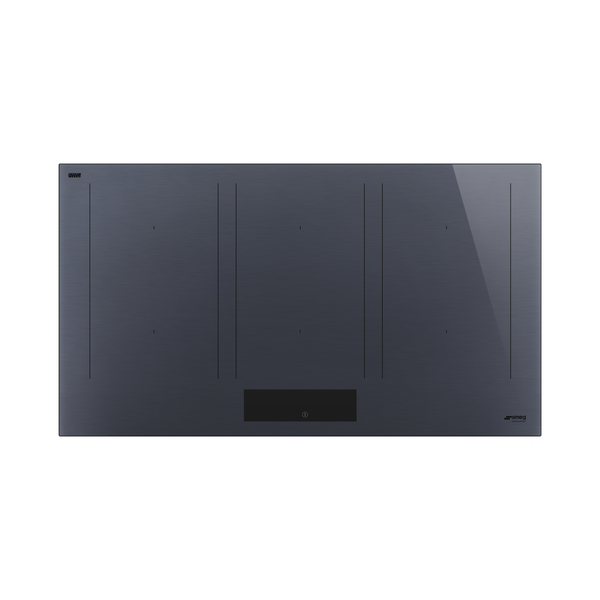

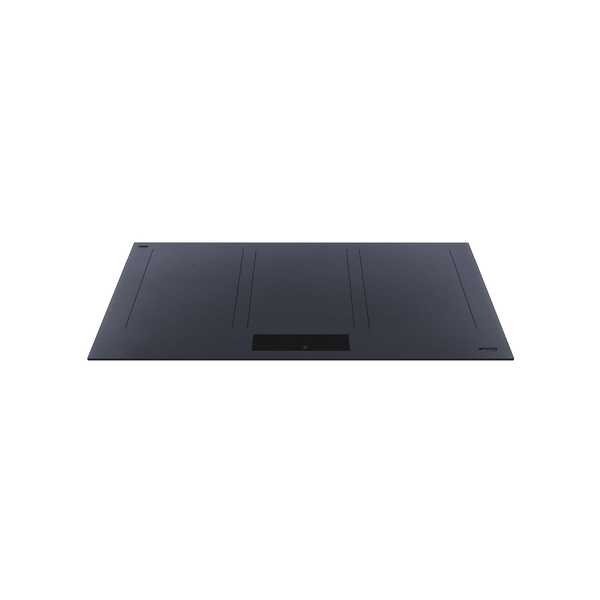

Smeg SIM1964DG Linea Induction Hob

SKU: SIM1964DG · EAN: 8017709328023

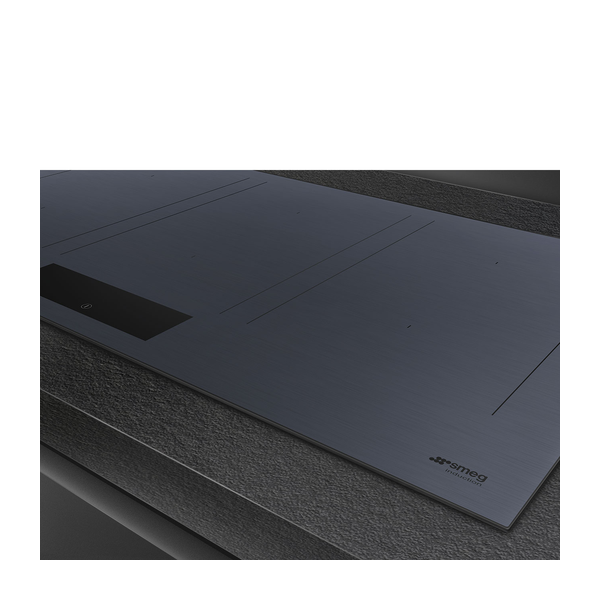

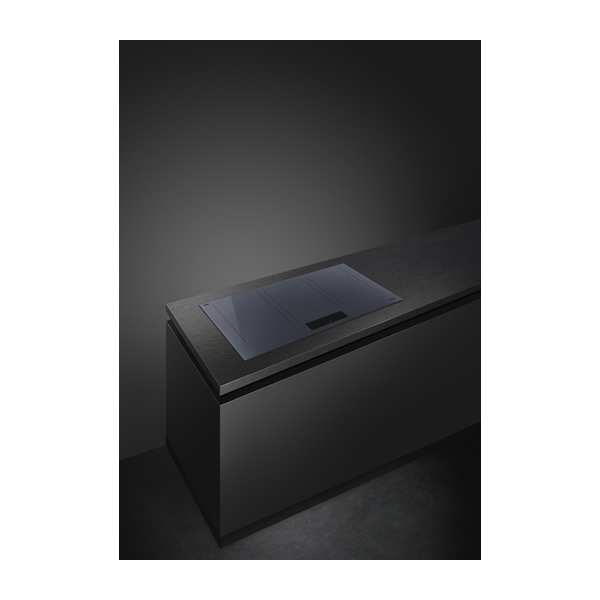

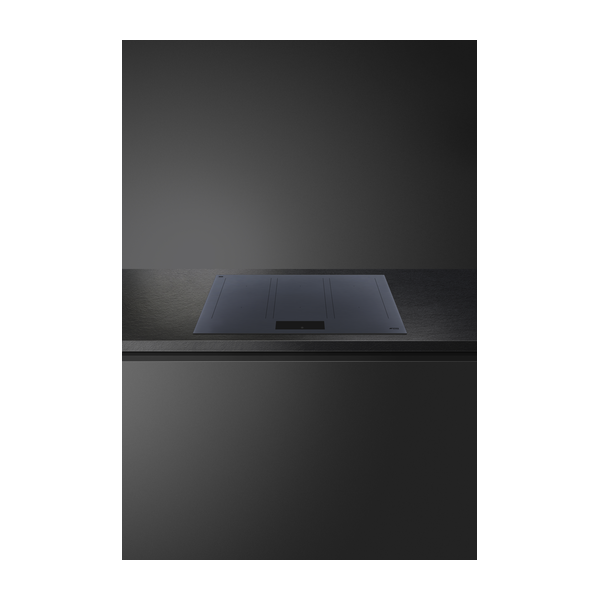

Neptune Grey Ultra-low profile or Fully Flushed

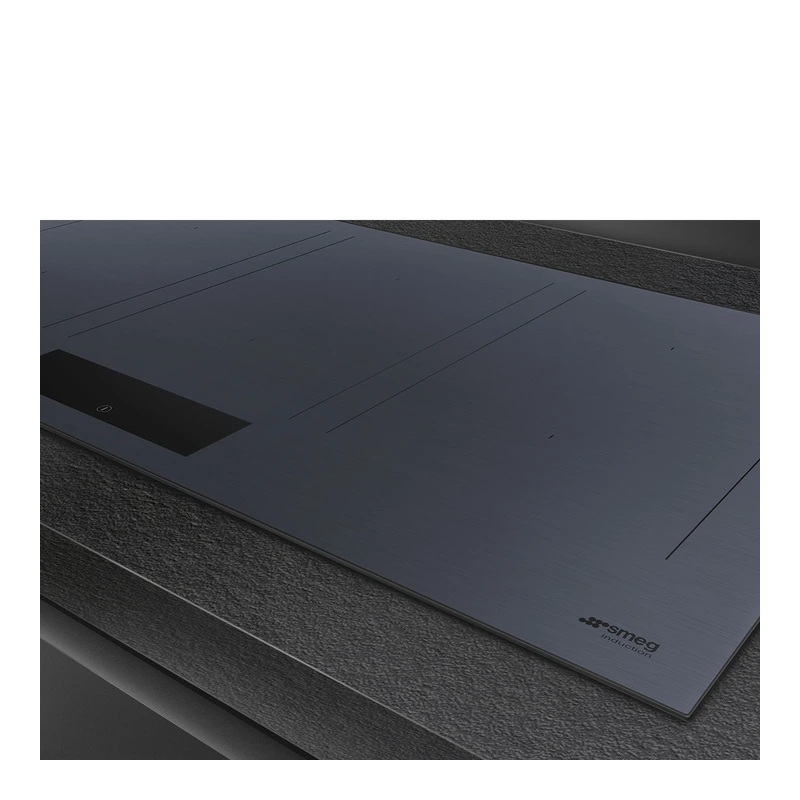

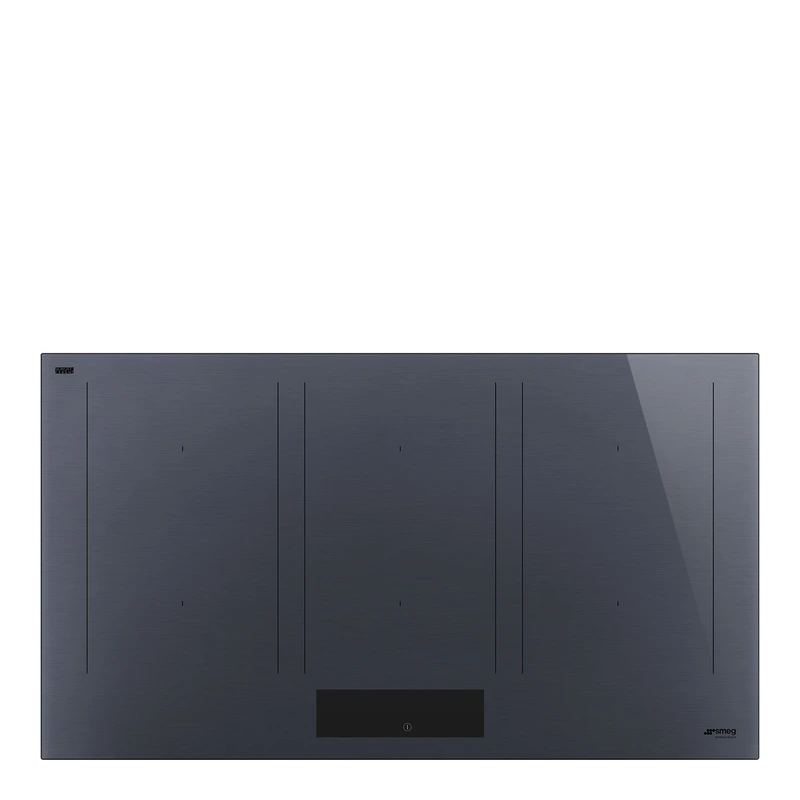

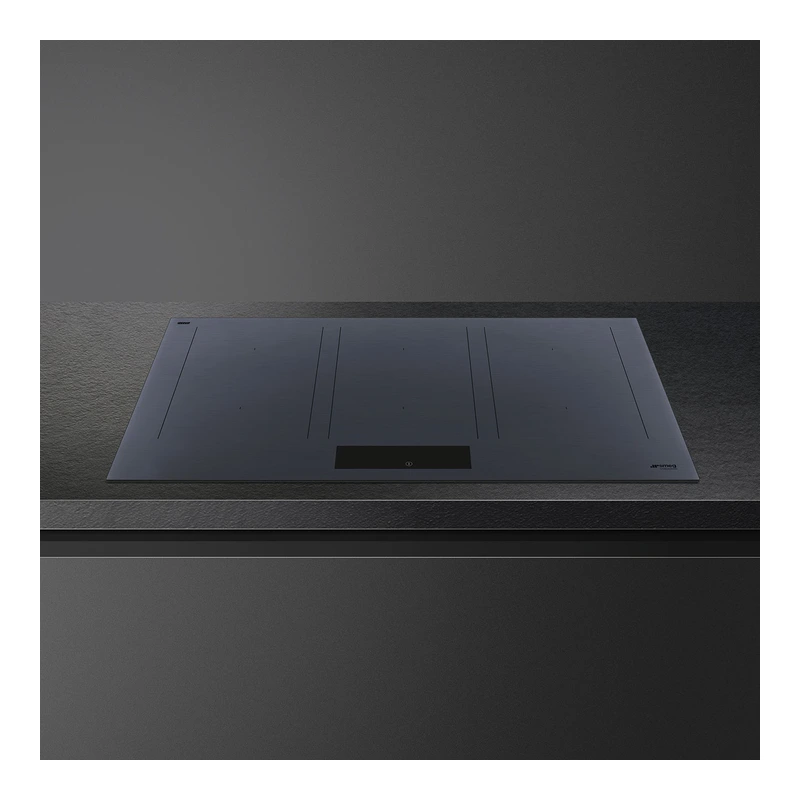

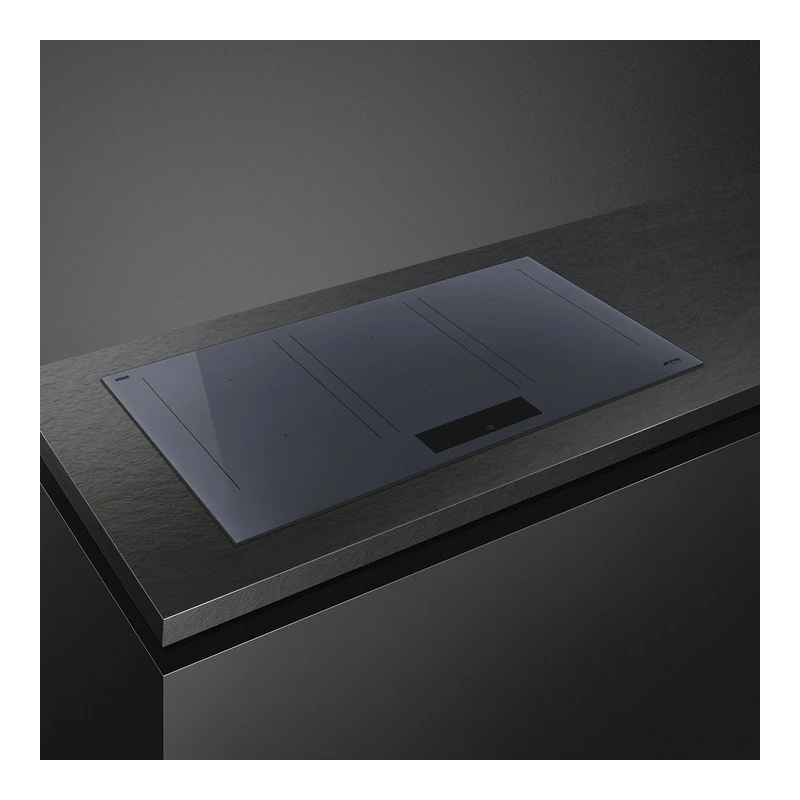

The SIM1964DG is a 90 cm built-in induction hob with an ultra–low profile or fully flushed installation. Finished in Neptune Grey Eclipse ceramic glass, it belongs to the Linea aesthetic family and offers six induction cook zones, including three MultiZone flexible areas. EVO Slider touch controls, nine power levels and booster options provide precise operation, while advanced safety features such as child lock, overflow and overheat protection support confident everyday cooking.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hob
Installation	Built–in, ultra–low profile or fully flushed
Dimensions	90 cm

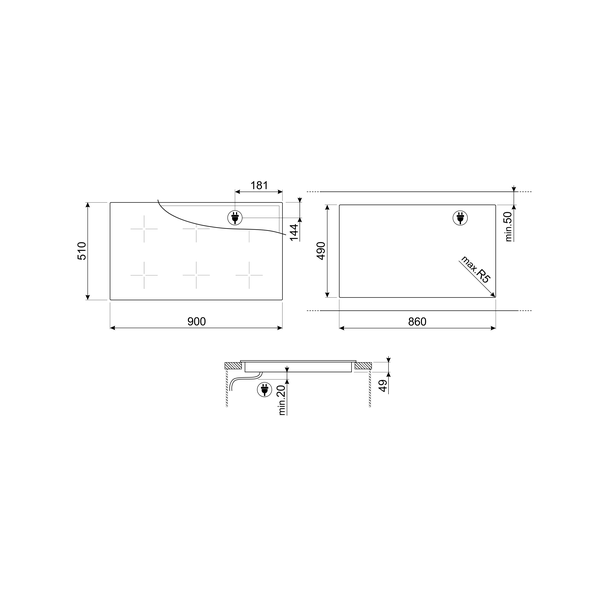

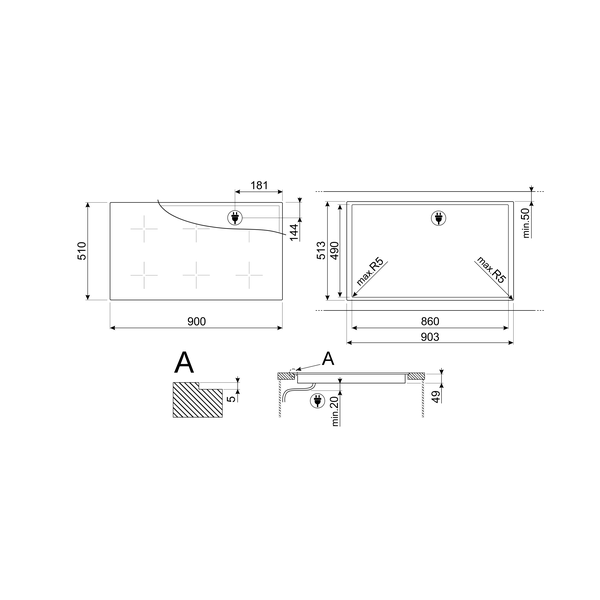

Standard cut–out size	490x860 mm
Power supply	Electric
Type	Induction
EAN code	8017709328030
Aesthetic line	Linea
Colour	Neptune Grey
Finishing	Glass
Material	Glass
Glass type	Eclipse ceramic
Glass edge	Straight edge
Double ceramization	Yes
Type of control setting	EVO Slider
Slider	Yes, white slider
Control position	Front
Logo	Silk screen
Serigraphy colour	Black
Total number of cook zones	6
Number of induction cook zones	6
Number of zones with booster	6
Number of flexible zones	3
Flexible zone type	MultiZone
Multizone option	Yes
Power levels	9
Main on/off switch	Yes
Auto–Vent 2.0	Yes
Time–setting options	Automatic switch–off
End cooking timer	6
Minute minder	1
End of cooking acoustic alarm	Yes
Residual time indicator	Yes
Keep warm automatic function	Yes
Grill function	Yes
Pause option	Yes
Limited power consumption mode	Yes advance
Limited power consumption mode in W	2400 a 11100 – step 100 W
Show room demo option	Yes
Control lock / child safety	Yes
Bridge option	Yes
Quick start	Yes
Rapid level selection	Yes
Automatic setting according to pan dimension	Yes
Automatic pan detection	Yes, min 9 cm
Permanent automatic pot detection	Yes, with indication of the relative control
Automatic switch off when overheat	Yes
Automatic switch off when overflow	Yes
Residual heat indicator	Yes
Protection against accidental start up	Yes
Front left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Rear left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Front centre zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Rear centre zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Front right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Rear right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Flexible zone combined dimensions	38.5x23.0 cm (three areas)
Nominal power	11100 W
Current	49 A
Voltage	220–240 V
Voltage 2	380–415 V
Type of electric cable	Three–phase; Single and Double phase
Electric cable supplied	Yes, Single and Double phase
Frequency	50/60 Hz
Power supply cable length	120 cm
Terminal box	5 poles
