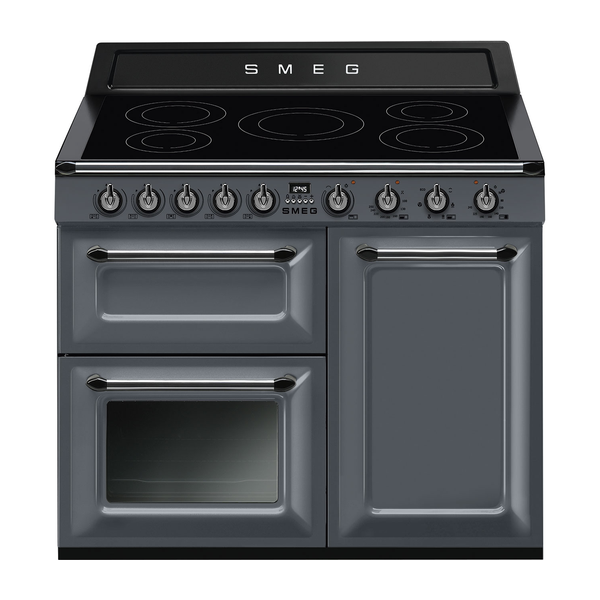

| Model | TR103IGR2 |
|---|

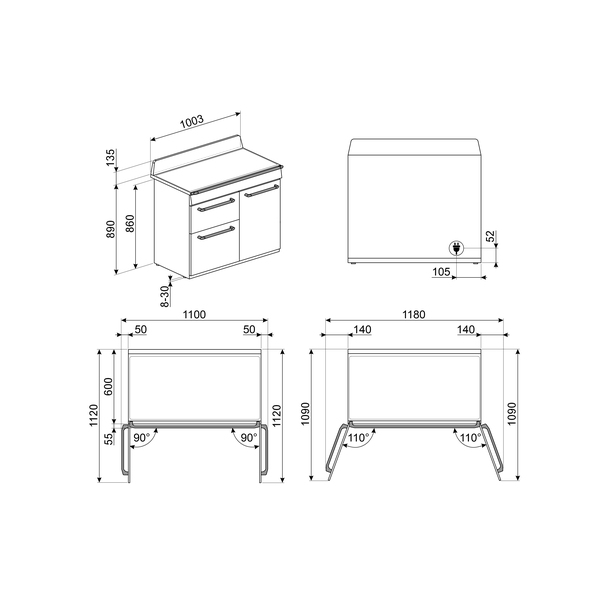

| Cooker size | 100x60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Hob type | Induction |
|---|
| Type of main oven | Thermo–ventilated |
|---|
| Type of second oven | Thermo–ventilated |
|---|
| Cleaning system main oven | Vapor Clean |
|---|
| EAN code | 8017709312428 |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | B |
|---|
| Design / Aesthetics | Victoria |
|---|
| Command panel finish | Enamelled metal |
|---|
| Colour | Slate Grey, gloss finishing, black enamel hob |
|---|
| Logo | Logo assembled 50's, position: upstand + command panel |
|---|
| Upstand | Yes |
|---|
| Type of control setting | Control knobs – Smeg Victoria, 9 controls, stainless steel colour, black serigraphy |
|---|
| Display | Electronic 5 buttons |
|---|
| Door | With frame, black glass |
|---|
| Handle | Smeg Victoria, brushed stainless steel colour |
|---|
| Plinth | Anthracite |
|---|
| Total number of cook zones | 5 (induction, single zones) |
|---|
| Front left zone | Induction single – 1.30 kW – Booster 1.40 kW – Ø 21.0 cm |
|---|
| Rear left zone | Induction single – 2.30 kW – Booster 3.00 kW – Ø 18.0 cm |
|---|
| Central zone | Induction single – 2.30 kW – Booster 3.00 kW – Ø 27.0 cm |
|---|
| Rear right zone | Induction single – 1.30 kW – Booster 1.40 kW – Ø 18.0 cm |
|---|
| Front right zone | Induction single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm |
|---|
| Main oven – number of cooking functions | 5 traditional functions: Static, Fan assisted, Circulaire, ECO, Fan assisted base |
|---|
| Other functions (main oven) | Defrost by time, Vapor Clean |
|---|
| Main oven net volume | 61 litres |
|---|
| Main oven gross volume | 70 l |
|---|
| Main oven cavity material | Easy clean enamel |
|---|
| Main oven shelf positions | 4, metal racks |
|---|
| Main oven lighting | 1 halogen light, 40 W |
|---|
| Main oven door | Side opening, removable door, full glass inner door, 3 total door glasses, 1 thermo–reflective glass |
|---|
| Main oven fans | 2 fans, tangential cooling system |
|---|
| Main oven usable cavity dimensions (HxWxD) | 316x460x412 mm |
|---|
| Main oven temperature control | Electro–mechanical, 50°C to 250°C |
|---|
| Main oven heating elements | Lower 1200 W; Upper 1000 W; Grill 1700 W; Large grill 2700 W; Circular heating element 2000 W; Grill type electric; Tilting grill |
|---|
| Main oven options | Timer, end of cooking acoustic alarm, cooking time setting (start and stop) |
|---|
| Second oven – cooking functions | 1 traditional function: Circulaire |
|---|
| Second oven net volume | 84 litres |
|---|
| Second oven gross volume | 94 l |
|---|
| Second oven cavity material | Easy clean enamel |
|---|
| Second oven shelf positions | 9, metal racks |
|---|
| Second oven lighting | 1 halogen light, 40 W |
|---|
| Second oven door | Side opening, removable door and inner door, full glass inner door, 2 total door glasses, 1 thermo–reflective glass |
|---|
| Second oven safety and cooling | Safety thermostat, tangential cooling system |
|---|
| Second oven usable cavity dimensions (HxWxD) | 605x375x375 mm |
|---|
| Second oven temperature control | Electro–mechanical, 50°C to 245°C |
|---|
| Second oven circular heating element | 2 x 1550 W |
|---|
| Third oven – number of functions | 1 function: Oven light; full grill (grill type electric, tilting grill, large grill 2700 W) |
|---|
| Third oven net volume | 36 l |
|---|
| Third oven gross volume | 41 l |
|---|
| Third oven cavity material | Easy clean enamel |
|---|
| Third oven shelf positions | 2, metal racks |
|---|
| Third oven lighting | 1 halogen light, 40 W |
|---|
| Third oven door | Flap down, removable door and inner door, full glass inner door, 3 total door glasses, 1 thermo–reflective glass |
|---|
| Third oven safety and cooling | Safety thermostat, tangential cooling system |
|---|
| Third oven usable cavity dimensions (HxWxD) | 169x440x443 mm |
|---|
| Third oven temperature control | Electro–mechanical, 50°C to 260°C |
|---|
| Accessories included (main oven & hob) | 2 chrome shelves with back and side stop; 1 grill mesh; 1 telescopic guide rails, partial extraction; 1 40 mm deep tray |
|---|
| Accessories included (second oven) | 4 chrome shelves with back stop; 1 plate rack/warmer |
|---|
| Accessories included (third oven) | 1 chrome shelf with back and side stop; 1 40 mm deep tray |
|---|
| Max power draw | 15400 W |
|---|
| Current | 43 A |
|---|
| Voltage | 220–240 V; Voltage 2: 380–415 V |
|---|
| Power supply cable | Yes, single phase; cable length 150 cm; additional connection modalities: double and three phase; terminal block 5 poles |
|---|
| Frequency | 50/60 Hz |
|---|
