| Model | TR4110IP2 |
|---|
| Cooker size | 110x60 cm |
|---|
| Design / Aesthetics | Victoria, gloss cream, enamelled metal command panel, black enamel hob, black glass doors |
|---|
| Colour | Cream |
|---|
| Aesthetics details | Smeg Victoria control knobs and handle, brushed stainless steel handle, stainless steel controls, anthracite plinth, logo assembled 50's on upstand, serigraphy colour black, finishing gloss, upstand Yes, hob colour black enamel |
|---|

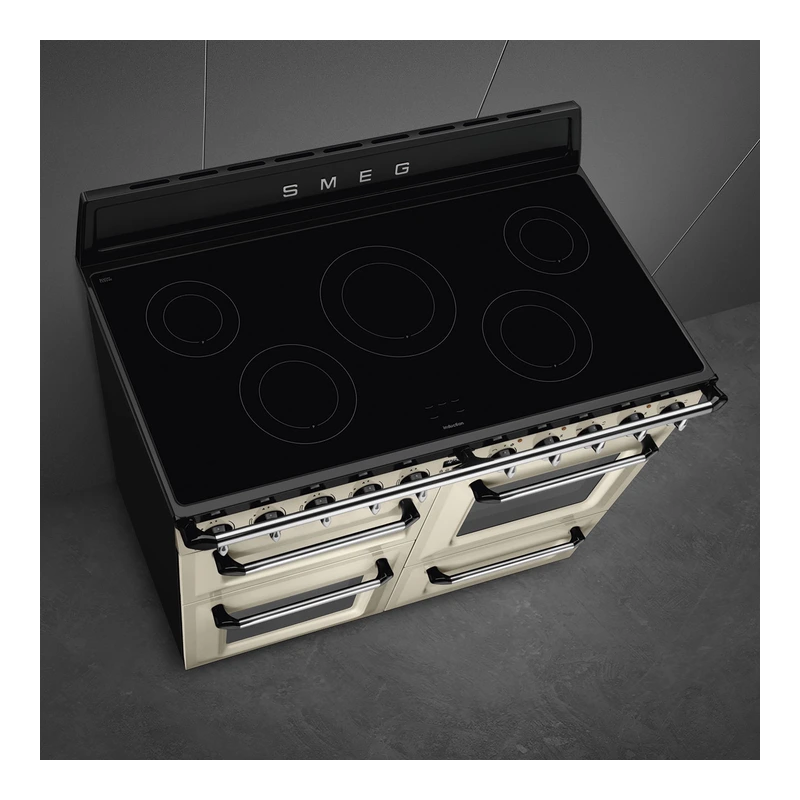

| Hob type | Induction |
|---|
| Total number of cook zones | 5 |
|---|
| Front left zone | Induction – single – 2.3 kW – Booster 3 kW – Ø 21.0 cm |
|---|
| Rear left zone | Induction – single – 1.3 kW – Booster 1.4 kW – Ø 18.0 cm |
|---|
| Central zone | Induction – single – 2.3 kW – Booster 3 kW – Ø 27.0 cm |
|---|
| Rear right zone | Induction – single – 1.3 kW – Booster 1.4 kW – Ø 18.0 cm |
|---|
| Front right zone | Induction – single – 2.3 kW – Booster 3 kW – Ø 21.0 cm |
|---|
| Hob safety | Automatic switch off when overheat, automatic pan detection, minimum pan diameter indication, selected zone indicator, overheat protection (safety system that automatically turns off the hob in case of overheating of the control unit) |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Type of main oven | Thermo-ventilated |
|---|
| Type of second oven | Fan assisted |
|---|
| Third oven | Full grill with oven light |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | A |
|---|
| Main oven net volume | 61 litres |
|---|
| Main oven gross volume | 70 l |
|---|
| Second cavity net volume | 61 litres |
|---|
| Second cavity gross volume | 70 l |
|---|
| Third cavity net volume | 36 l |
|---|
| Third cavity gross volume | 41 l |
|---|
| Cavity material | Easy clean enamel (all three cavities) |
|---|
| Cleaning system main oven | Vapor Clean |
|---|
| Cleaning functions cavity 2 | Vapor Clean |
|---|
| Cleaning functions cavity 3 | Not stated in source |
|---|
| Main oven shelf positions | 4, metal racks |
|---|
| Second oven shelf positions | 4, metal racks |
|---|
| Third oven shelf positions | 2, metal racks |
|---|
| Main oven lights | 1 x 40 W halogen |
|---|
| Second oven lights | 1 x 40 W halogen |
|---|
| Third oven lights | 1 x 25 W incandescent |
|---|
| Main oven door | Side opening, door with frame, full glass inner door, removable door, removable inner door, total 3 glasses, 1 thermo-reflective glass |
|---|
| Second oven door | Side opening, full glass inner door, removable door, removable inner door, 3 total glasses, 1 thermo-reflective glass |
|---|
| Third oven door | Flap down, full glass inner door, removable door, 3 total glasses, 1 thermo-reflective glass |
|---|
| Cooling system | Tangential (all three cavities) |
|---|
| Main oven usable cavity dimensions (HxWxD) | 316x460x412 mm |
|---|
| Second oven usable cavity dimensions (HxWxD) | 316x444x425 mm |
|---|
| Third oven usable cavity dimensions (HxWxD) | 169x440x443 mm |
|---|
| Temperature control | Electro-mechanical (all three cavities) |
|---|
| Main oven heating elements | Lower 1200 W; upper 1000 W; grill 1700 W; large grill 2700 W; circular heating element 2700 W; grill type electric |
|---|
| Second oven heating elements | Lower 1200 W; upper 1000 W; grill 1700 W; large grill 2700 W; grill type electric; tilting grill Yes |
|---|
| Third oven heating elements | Large grill 2700 W; grill type electric; tilting grill Yes |
|---|
| Minimum oven temperature | 50 °C (all three cavities) |
|---|
| Maximum oven temperature | 260 °C (all three cavities) |
|---|
| Fans | Main oven 1 fan; second oven 1 fan; third oven Not stated in source |
|---|
| Safety thermostat | Yes (all three cavities) |
|---|
| No. of cooking functions (main oven) | 5 traditional cooking functions plus defrost by time and Vapor Clean |
|---|
| Traditional cooking functions (main oven) | Static; Fan assisted; Circulaire; ECO; Fan assisted base |
|---|
| Other functions (main oven) | Defrost by time; Vapor Clean |
|---|
| Cooking functions cavity 2 | 6 functions: Static; Fan assisted; ECO; Large grill; Fan grill (large); Fan-assisted bottom plus Vapor Clean |
|---|
| Third oven functions | 1 function: Full grill; oven light |
|---|
| Main oven options | Timer; cooking time setting Start and Stop; end of cooking acoustic alarm |
|---|
| Second oven options | Minimum temperature 50 °C; maximum temperature 260 °C |
|---|
| Third oven options | Minimum temperature 50 °C; maximum temperature 260 °C |
|---|

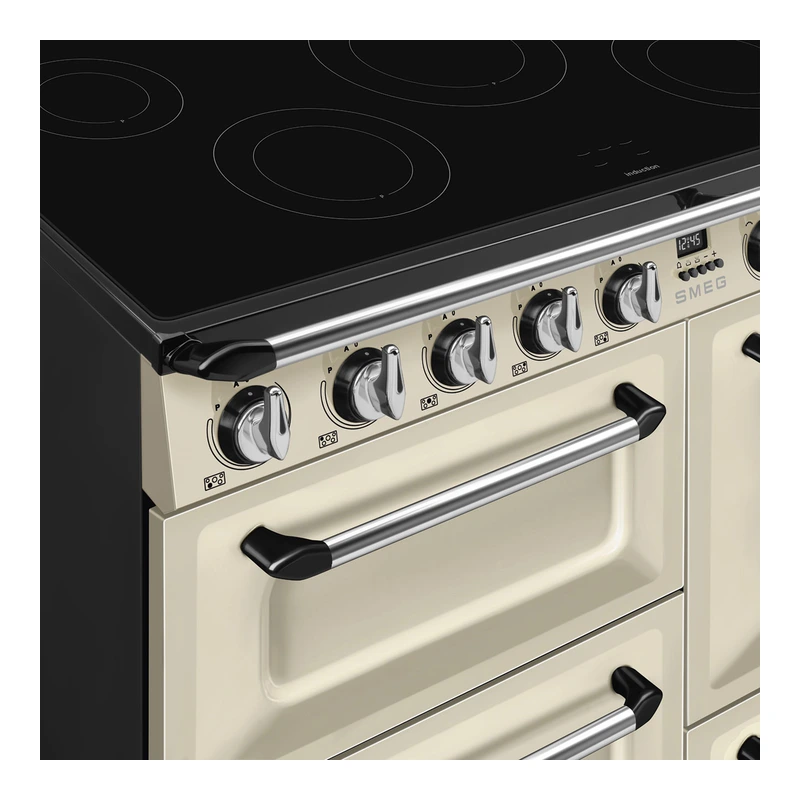

| Controls | Type of control setting: control knobs; Smeg Victoria control knobs; controls colour stainless steel; no. of controls 10; display: electronic 5 buttons; buttons control timer |
|---|
| Storage compartment | Drawer storage compartment |
|---|
| Accessories included for main oven & hob | 2 x chrome shelf with back and side stop; 1 x 40 mm deep tray; 1 x grill mesh; 1 x partially extractable telescopic guide rails (1 level) – partial extraction |
|---|
| Accessories included for secondary oven | 2 x chrome shelf with back and side stop; 1 x 40 mm deep tray; 1 x grill mesh; 1 x partially extractable telescopic guide rails (1 level) – partial extraction |
|---|
| Accessories included for third oven | 1 x chrome shelf with back and side stop; 1 x 40 mm deep tray |
|---|
| EAN code | 8017709312442 |
|---|
| Max power draw | 16500 W |
|---|
| Current | 46 A |
|---|
| Voltage | 220–240 V; 380–415 V (Voltage 2) |
|---|
| Power supply cable | Yes, single phase; length 150 cm |
|---|
| Additional connection modalities | Yes, double and three phase |
|---|
| Frequency | 50 Hz |
|---|
| Terminal block | 5 poles |
|---|
