What is the total capacity of the ICNSd 5603 fridge–freezer?

The total volume is 284 l, with 214.9 l for the fridge compartment and 70 l for the freezer compartment.

What aperture size is required for installation?

The required aperture dimensions are a height of 194–195 cm, width of 56–57 cm and a minimum depth of 55 cm.

Does the fridge–freezer have alarms for safety?

Yes, it features a visual and acoustic door alarm as well as a visual and acoustic alarm in case of malfunction.

What is the freezing capacity and temperature rise time?

The freezing capacity is 6 kg in 24 hours, and the temperature rise time is 9 hours.

Is there connectivity available for this model?

An interface for a SmartDeviceBox is provided, and the SmartDeviceBox is available as an optional accessory.

Product Information Sheet

Liebherr Pure XL Fridge Freezer

SKU: ICNSD5603

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 September 2026

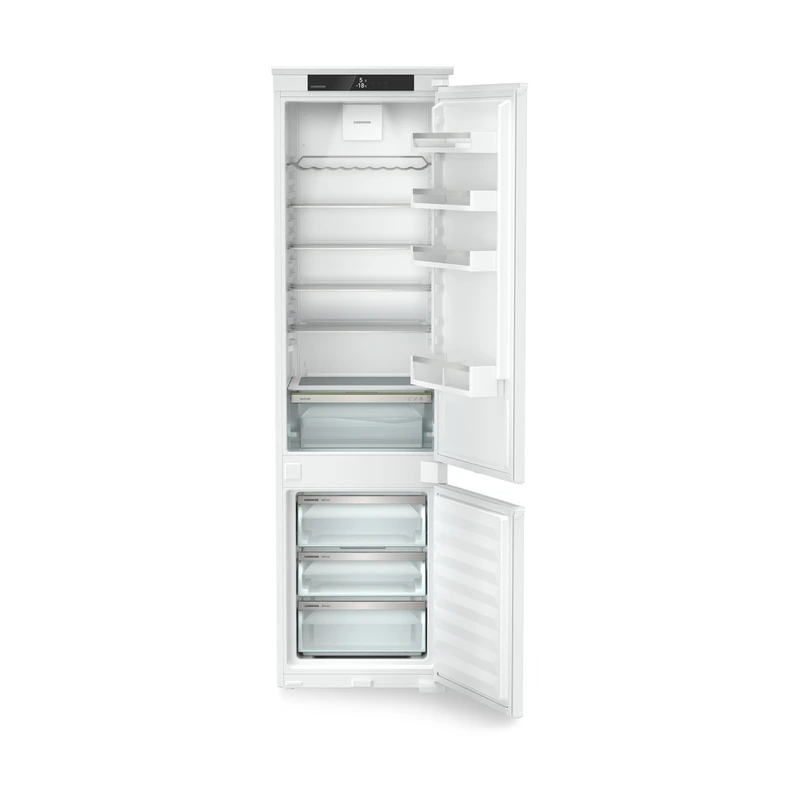

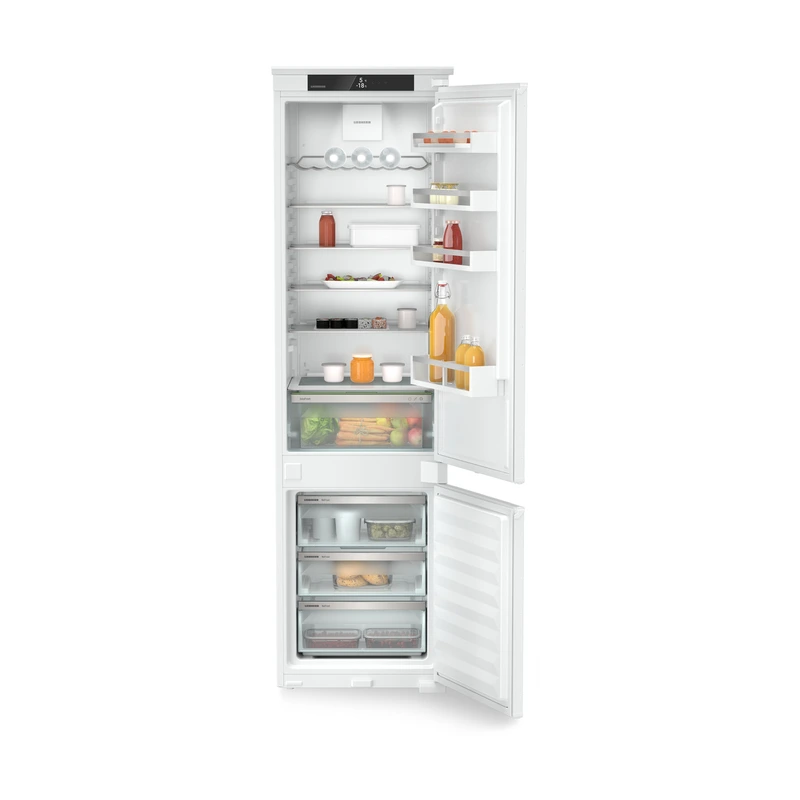

Liebherr ICNSD5603 Pure XL Fridge Freezer

SKU: ICNSD5603 · EAN: 4016803137399

Built in Integrated

The ICNSd 5603 is a built–in, integrated fridge–freezer with sliding door design, combining EasyFresh and NoFrost technologies. It offers a total volume of 284 l, with separate digital temperature displays for the fridge and freezer compartments. PowerCooling with a FreshAir activated charcoal filter helps maintain a consistent internal climate, while low noise output of 33 dB(A) supports quiet operation in suitable kitchen environments.

10 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	ICNSd 5603 Integrated fridge–freezer with EasyFresh and NoFrost – Pure
Type	Sliding door / Built-in appliance for integrated use
Energy efficiency class	Not stated in source
Energy consumption (365 days / 24 h)	180 / 0.493 kWh
Total volume	284 l ¹
Fridge volume	214.9 l
Freezer volume	70 l
Noise output	33 dB(A)
Climate rating	SN–T (+10 °C to +43 °C)

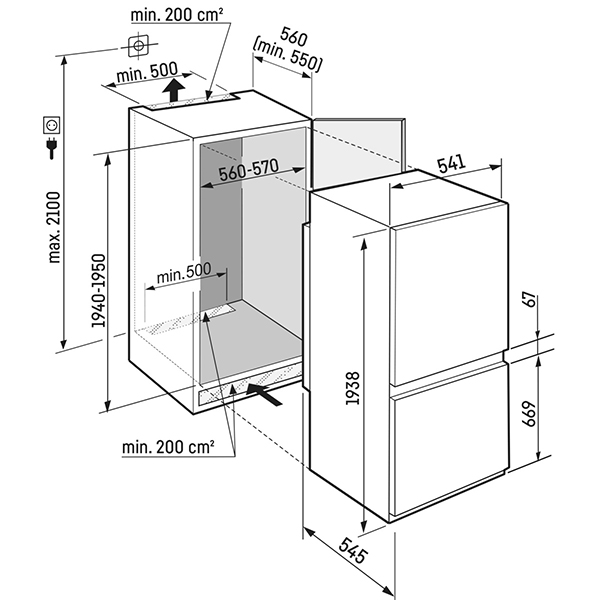

Aperture height	194–195 cm
Aperture width	56–57 cm
Aperture depth	min. 55 cm
Control type	LC monochrome display, touch electronic
Temperature display	Digital temperature display for fridge and freezer compartments
Interface	SmartDeviceBox: optional accessory
Door alarm	Visual and acoustic
Malfunction alarm	Visual and acoustic
Cooling system	PowerCooling with FreshAir activated charcoal filter (forced air system)
Door interior	Plastic door shelves with bottle holder, egg tray
Interior lighting (fridge)	LED ceiling lighting
Fruit and vegetable storage	1 EasyFresh safe on running rails
Freezer star coding	****
Number of freezer drawers	3 drawers, VarioSpace
Freezing capacity (24 h)	6 kg
Temperature rise time	9 h
Door hinges	Reversible door hinging, right
Door seal	Replaceable door seal
EAN	4016803137399
Regulatory note	¹ In accordance with Regulation EU 2019/2016 the total volume is indicated to the nearest integer (rounded off) and the volumes of the frozen and refrigeration compartments to one place after the decimal point.
Timestamp	21.10.2024
