Miele DA2578 Canopy Hood

SKU: DA2578 · EAN: 4002515978276

Stainless Steel - 10851350

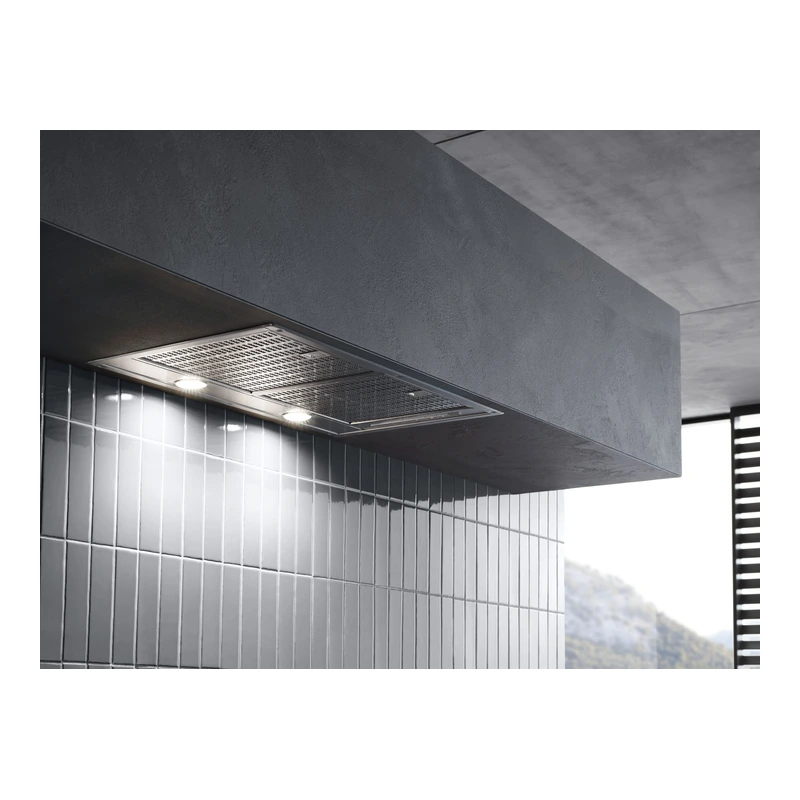

The Miele DA 2578 is an integrated extractor unit in a 702 mm stainless steel finish, designed for customised kitchen layouts. It offers three power levels plus a Booster level, delivering up to 600 m³/h air throughput. With energy–efficient LED lighting, 10–ply stainless steel grease filters and CleanCover for an easy–to–clean canopy interior, it combines convenient light–touch controls with features such as Con@ctivity and Miele@home connectivity.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	DA 2578 Extractor unit
Material number	10851350
EAN	4002515978276
Old material number	28257855GB
Construction type	Integrated extractor
Colour	Stainless steel

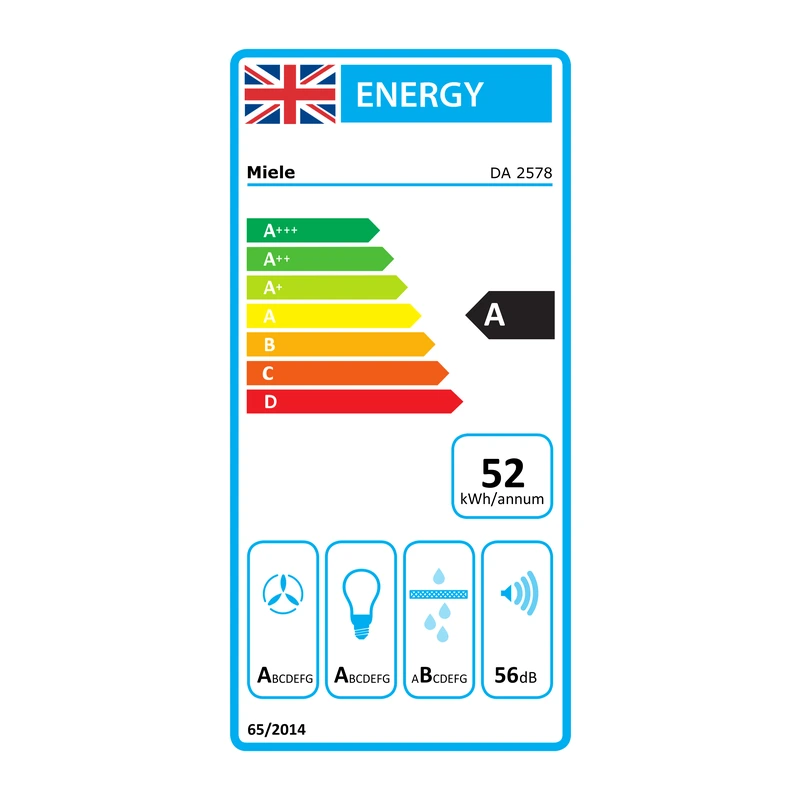

Energy efficiency class (A+++ – D)	A
Annual energy consumption	51.7 kWh/year
Fluid dynamic efficiency class	A
Lighting efficiency class	A
Grease filtering efficiency class	B
Canopy width	702 mm
Canopy height	50 mm
Canopy depth	402 mm
Net weight	11.6 kg
Length of supply lead	1.5 m
Standard plug fitted	Yes
Minimum height above electric hobs	450 mm
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW)	650 mm
Extraction ducting connection (top)	Yes
Extraction ducting connection (rear)	Yes
Diameter of exhaust duct	150 mm
Total rated load	0.22 kW
Voltage	230 V
Frequency	50 Hz
Fuse rating	10 A
Number of phases	1
Air throughput Level 1 (exhaust air)	250 m³/h (according to EN 61591)
Air throughput Level 2 (exhaust air)	300 m³/h (according to EN 61591)
Air throughput Level 3 (exhaust air)	360 m³/h (according to EN 61591)
Air throughput Booster level 1 (exhaust air)	600 m³/h (according to EN 61591)
Sound power Level 1 (exhaust air)	47.0 dB(A) re 1 pW (according to EN 60704–3)
Sound power Level 2 (exhaust air)	51.0 dB(A) re 1 pW (according to EN 60704–3)
Sound power Level 3 (exhaust air)	56.0 dB(A) re 1 pW (according to EN 60704–3)
Sound power Booster level 1 (exhaust air)	67.0 dB(A) re 1 pW (according to EN 60704–3)
Sound pressure Level 1 (exhaust air)	32.0 dB(A) re 20 µPa (according to EN 60704–2–13)
Sound pressure Level 2 (exhaust air)	37.0 dB(A) re 20 µPa (according to EN 60704–2–13)
Sound pressure Level 3 (exhaust air)	41.0 dB(A) re 20 µPa (according to EN 60704–2–13)
Sound pressure Booster level 1 (exhaust air)	52.0 dB(A) re 20 µPa (according to EN 60704–2–13)
Air throughput Level 1 (recirculation)	200 m³/h (according to EN 61591)
Air throughput Level 2 (recirculation)	250 m³/h (according to EN 61591)
Air throughput Level 3 (recirculation)	320 m³/h (according to EN 61591)
Air throughput Booster level 1 (recirculation)	530 m³/h (according to EN 61591)
Sound power Level 1 (recirculation)	55.0 dB(A) re 1 pW (according to EN 60704–3)
Sound power Level 2 (recirculation)	59.0 dB(A) re 1 pW (according to EN 60704–3)
Sound power Level 3 (recirculation)	63.0 dB(A) re 1 pW (according to EN 60704–3)
Sound power Booster level 1 (recirculation)	72.0 dB(A) re 1 pW (according to EN 60704–3)
Sound pressure Level 1 (recirculation)	39.0 dB(A) re 20 µPa (according to EN 60704–2–13)
Sound pressure Level 2 (recirculation)	44.0 dB(A) re 20 µPa (according to EN 60704–2–13)
Sound pressure Level 3 (recirculation)	48.0 dB(A) re 20 µPa (according to EN 60704–2–13)
Sound pressure Booster level 1 (recirculation)	57.0 dB(A) re 20 µPa (according to EN 60704–2–13)
Controls	Light–touch switches with LEDs; electronic controls
Power levels (without Booster)	3
Booster levels	1
Run–on time	5/15 min.
Miele@home	Yes
Miele@mobile app	Yes
Con@ctivity automatic function	Yes
Number of stainless steel grease filters	2 (10–ply, dishwasher–safe)
Grease filter saturation indicator	Yes
Active charcoal filter saturation indicator	Yes
Easy–to–clean canopy interior	CleanCover
Lighting	2 × 3 W LED
Light intensity	300 lx
Colour temperature	3000 Kelvin
Motor type	AC motor
Fan	Dual–action blower
Type of air guide	Can be retrofitted
Recirculation conversion kit (order separately)	DUU 151
Active charcoal filter (order separately)	DKF 15–P
Accessories included	Non–return flap
Safety switch–off	Yes
Combination recommendation	Combination with WiFi–enabled Miele hob recommended
