| Product name/family |
Cooking zone ceramic |
| Model |
V56NBS1L0 (N 50 induction hob with integrated ventilation system, 60 cm, surface mount without frame) |
| Built-in / Free-standing |
Built-in |
| Energy input |
Electric |

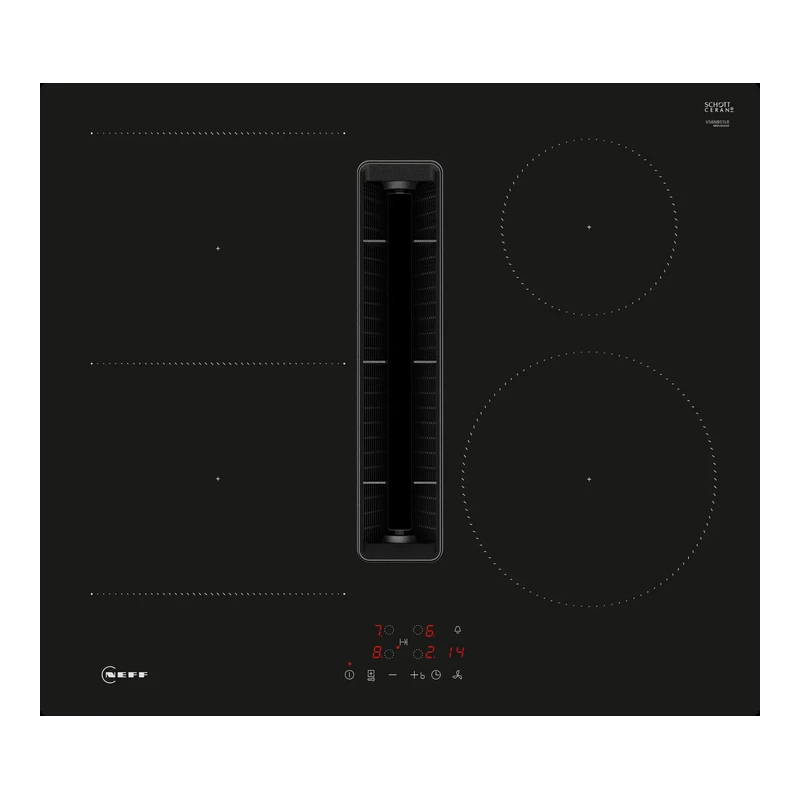

| Number of cooking zones |
4 |

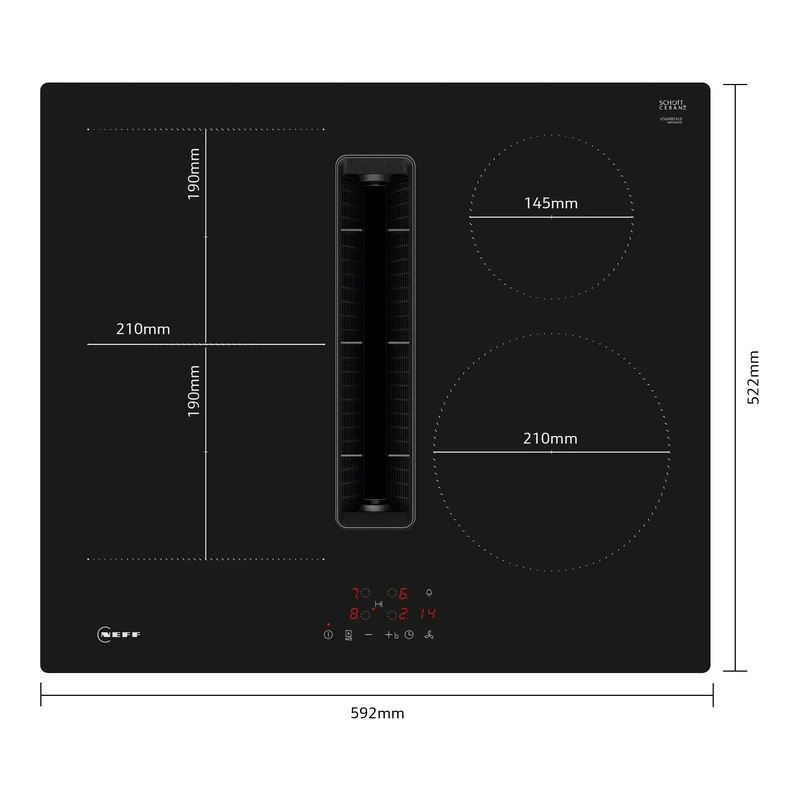

| Cooking zone front left |
190 mm, 210 mm, 2.2 kW (max. power 3.7 kW) |
| Cooking zone rear left |
190 mm, 210 mm, 2.2 kW (max. power 3.7 kW) |
| Cooking zone rear right |
145 mm, 1.4 kW (max. power 2.2 kW) |
| Cooking zone front right |
210 mm, 2.2 kW (max. power 3.7 kW) |
| Heating with booster |
All |
| Power of 2nd heating element |
3600.0 W |
| Power of 5th heating element |
1400.0 W |

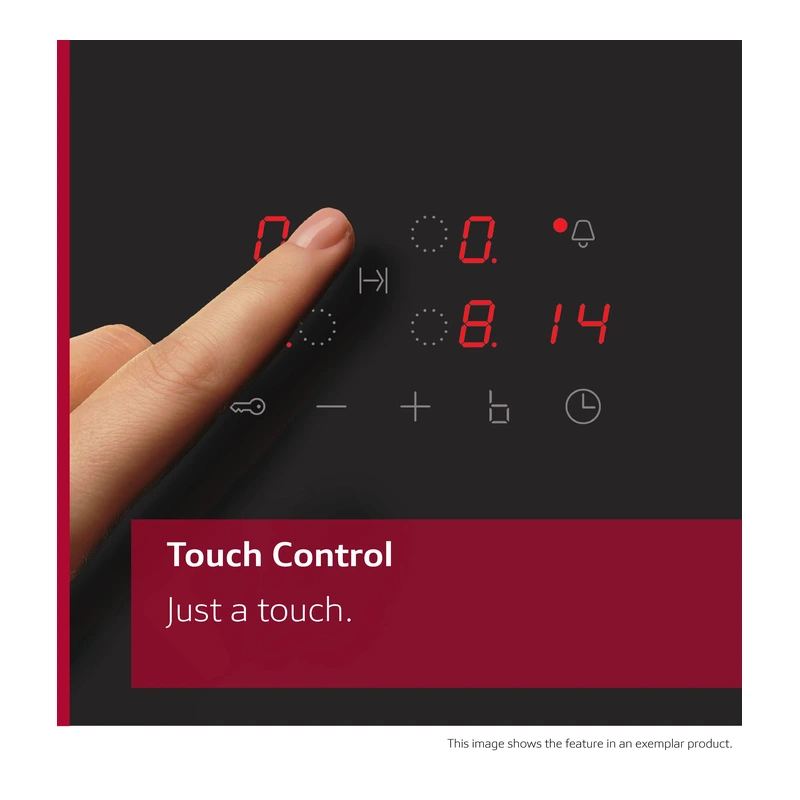

| Control type |
Touch control with imprinted +/- buttons |
| Power levels |
Variable 17-stage power settings for each zone (9 main levels and 8 intermediate levels) |
| Switch-off timer |
Yes – switches off cooking zone at end of set time |
| Count-down timer |
Yes – alarm at end of set time |

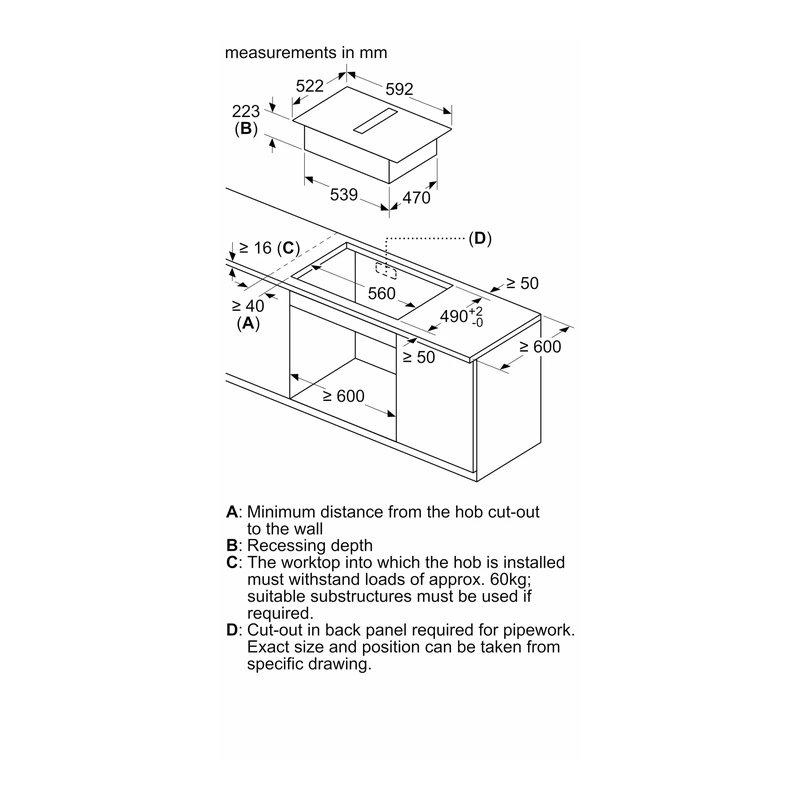

| Dimensions (H × W × D) |
223 x 592 x 522 mm |

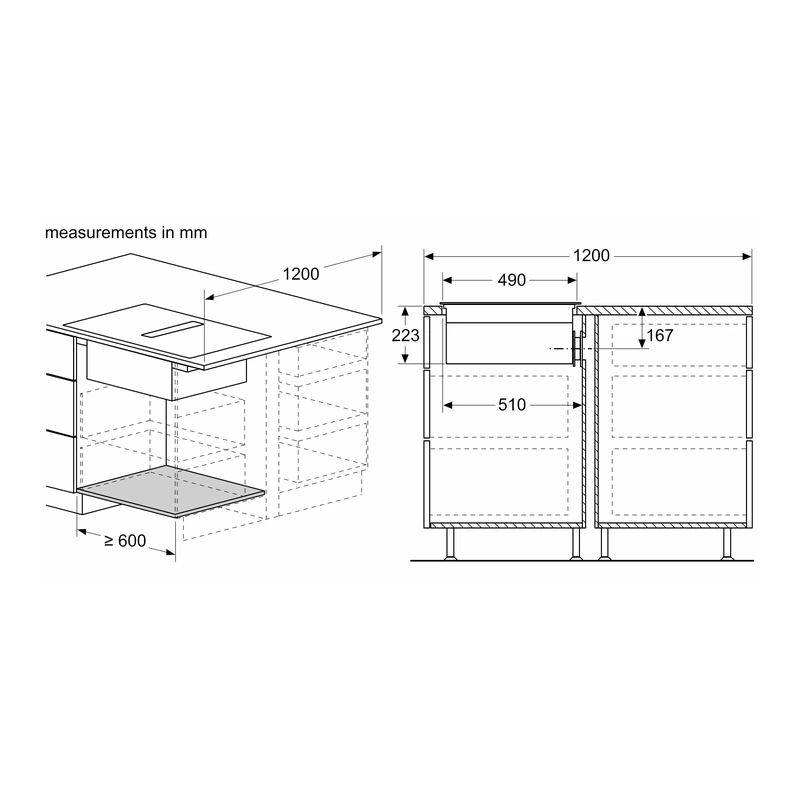

| Required niche size (H × W × D) |
223 x 560–560 x 490–490 mm |
| Minimum worktop thickness |
16 mm |
| Width of appliance |
592 mm |
| Dimensions of packed product (H × W × D) |
430 x 690 x 660 mm |
| Net weight / Gross weight |
23.0 kg / 27.1 kg |
| Overall appliance weight |
26 kg |
| Location of control panel |
Front |
| Basic surface material |
Ceramic |
| Surface colour |
Black |
| Frameless |
Yes – surface mount without frame |
| Residual heat indicator |
Separate, 2-stage residual heat indicators |
| Control panel lock |
Yes |
| Main switch |
Yes – switch off all cooking zones at the touch of a button |
| Safety cut-out facility |
Yes – heating stops after preset time if not used |
| Length of electrical supply cord |
110 cm |
| Connected load |
7.4 kW |
| Power output and current management |
4.6 kW power output (20 A); current management options for 16 A, 13 A or 10 A connection |
| Voltage |
220–240/380–415 V |
| Frequency |
50–60 Hz |
| Sealed burners |
No |
| Number of fan speed settings |
3 stages + intensive setting |
| Maximum output air extraction |
500 m³/h |
| Boost position air extraction |
622 m³/h |
| Maximum output recirculating air |
441 m³/h |
| Boost position output recirculating |
595.0 m³/h |
| Noise level (general) |
69 dB(A) re 1 pW |
| Noise levels – ducted extraction (EN 60704-3) |
Min. normal 61 dB re 1 pW, max. normal 69 dB re 1 pW, Boost/Intensive 74 dB re 1 pW |
| Noise levels – recirculated extraction (EN 60704-3) |
Min. normal 55 dB re 1 pW, max. normal 66 dB re 1 pW, Boost/Intensive 72 dB re 1 pW |
| Odour filter (general field) |
No (however Clean Air Plus odour filter is included as an accessory) |
| Clean filter reminders |
Yes |
| Grease filter efficiency |
94 % (according to EN 61591) |
| Energy Efficiency Class (ventilation) |
B (at a range of energy efficiency classes from A+++ to D) |
| Fluid Dynamic Efficiency class |
A |
| Average energy consumption |
57 |
| Grease filtration efficiency class |
B |

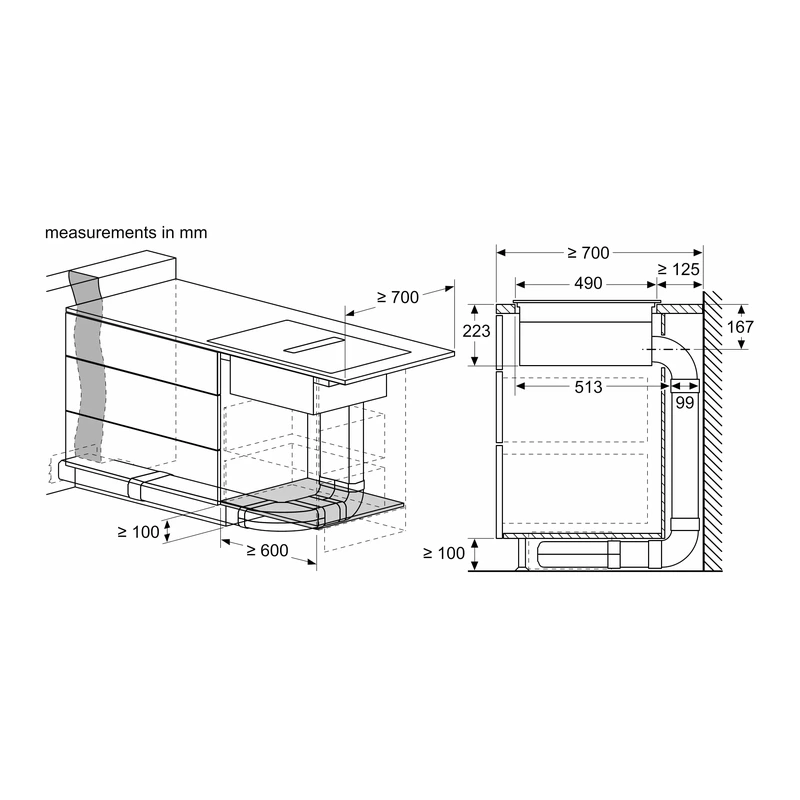

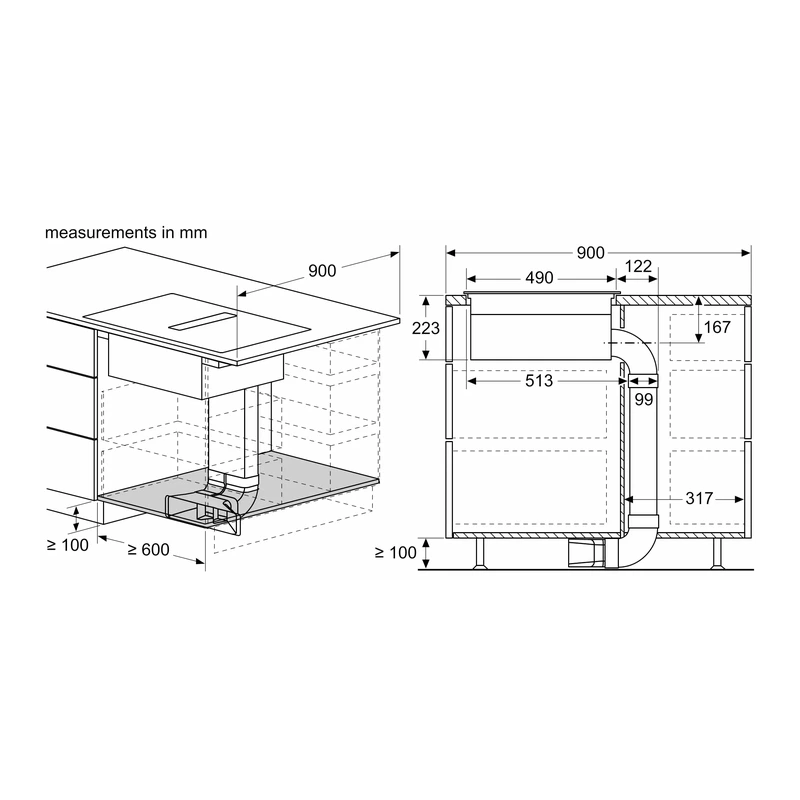

| Suitable cabinet size |
Suitable for installation into a 60 cm base cabinet |

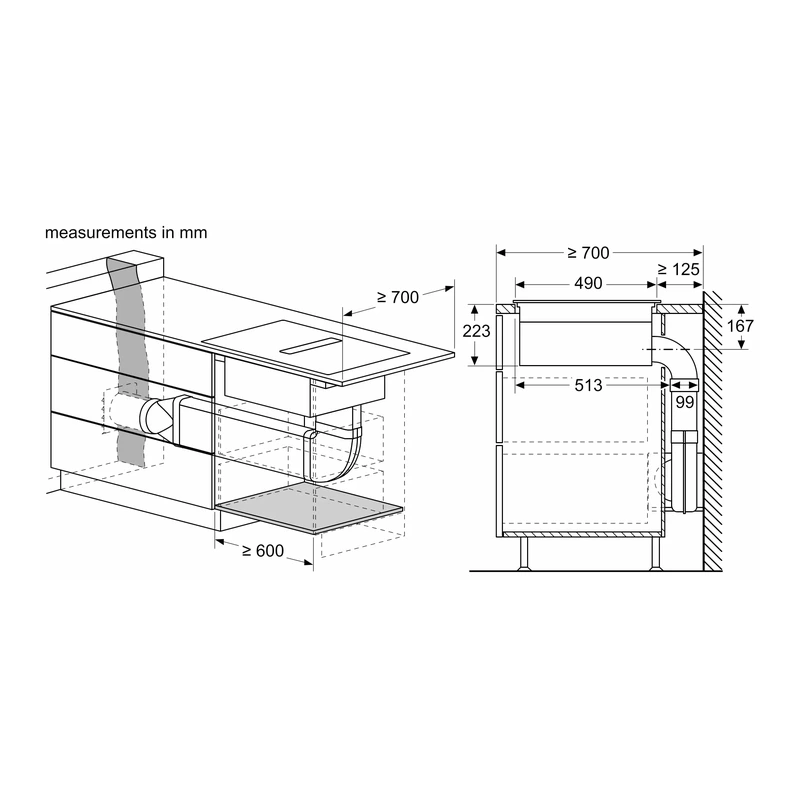

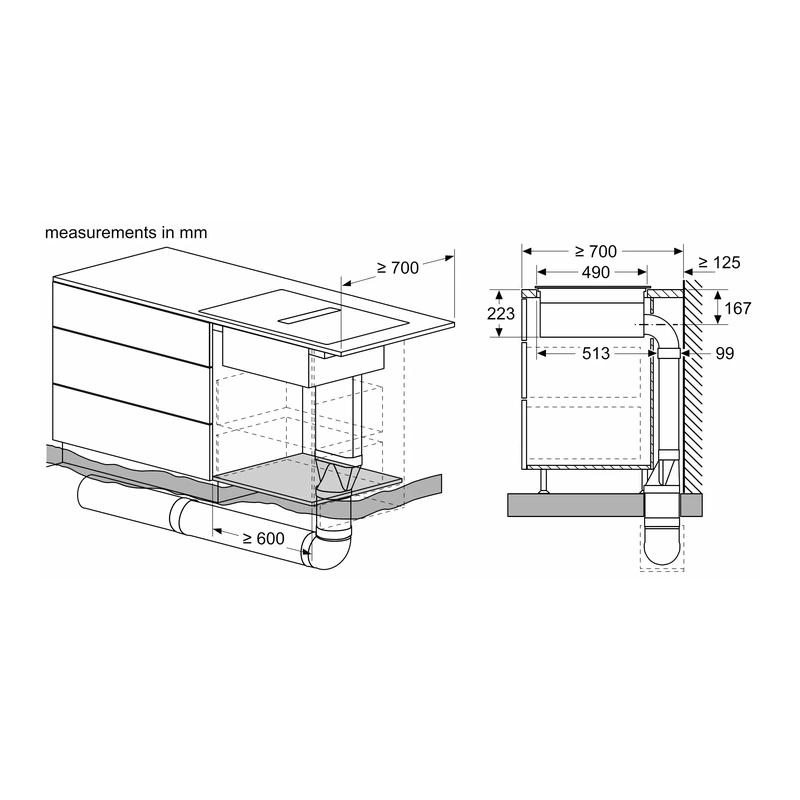

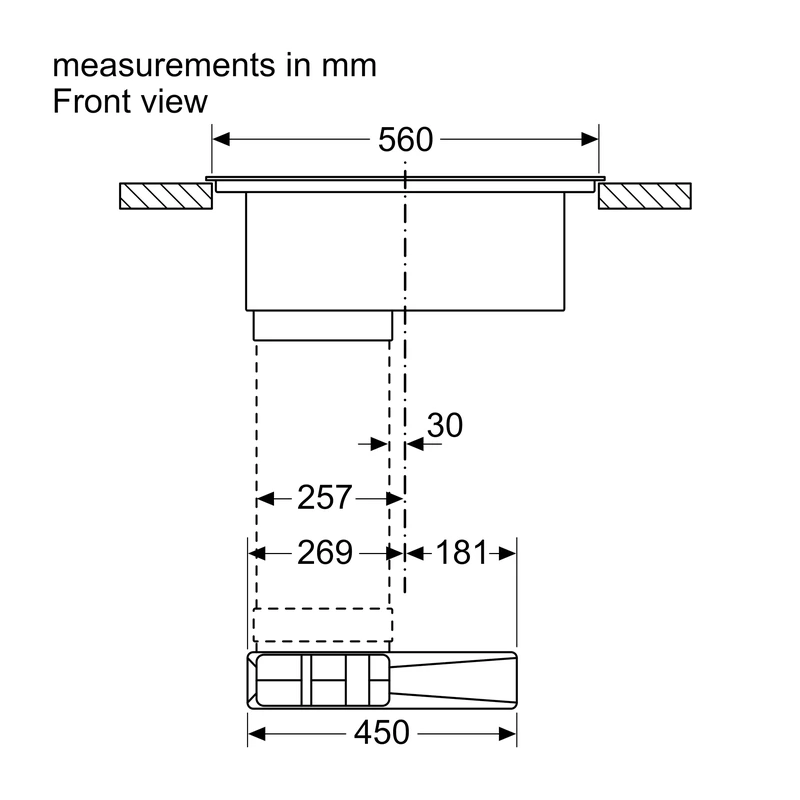

| Installation options |
Suitable for ducted or recirculated extraction installations in 4 options (unducted, partly and fully ducted recirculation or ducted extraction) |
| Max. immersion depth |
223 mm below worktop surface |
| Return-flow aperture requirement |
For partly ducted and unducted recirculation: return-flow aperture of ≥400 cm² in plinth area |

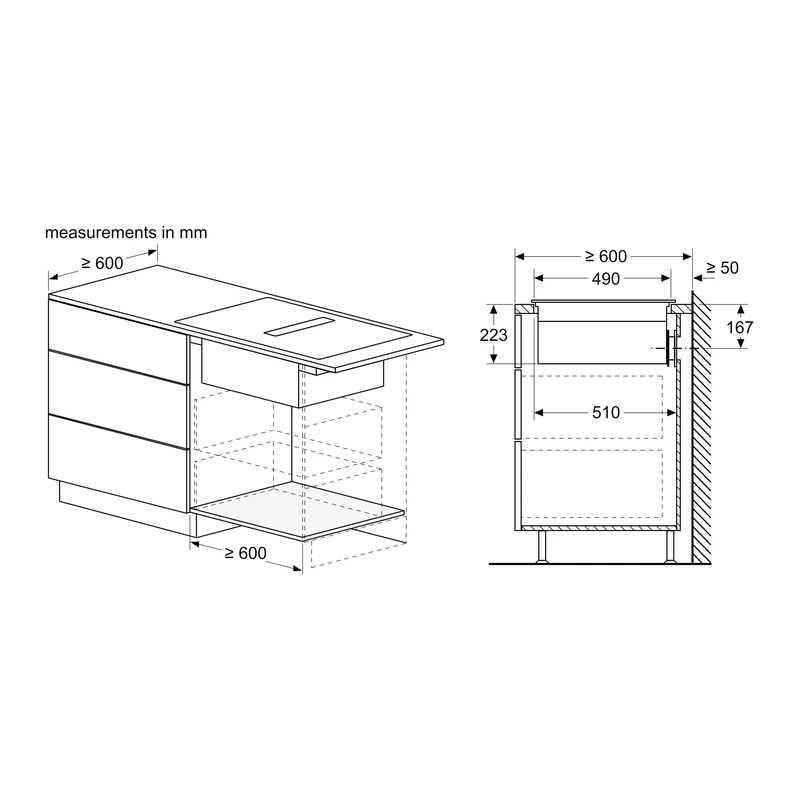

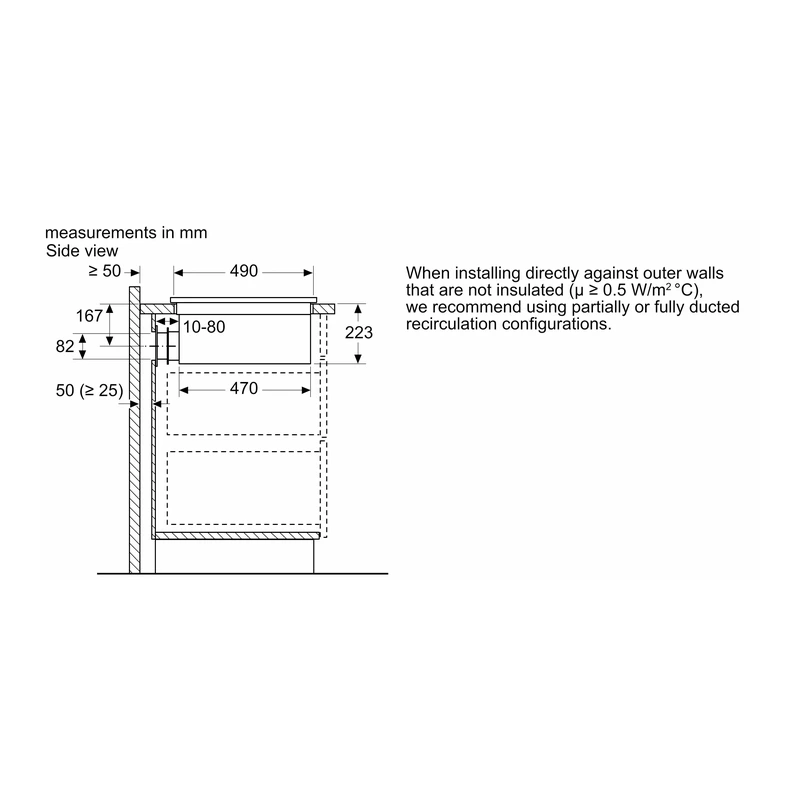

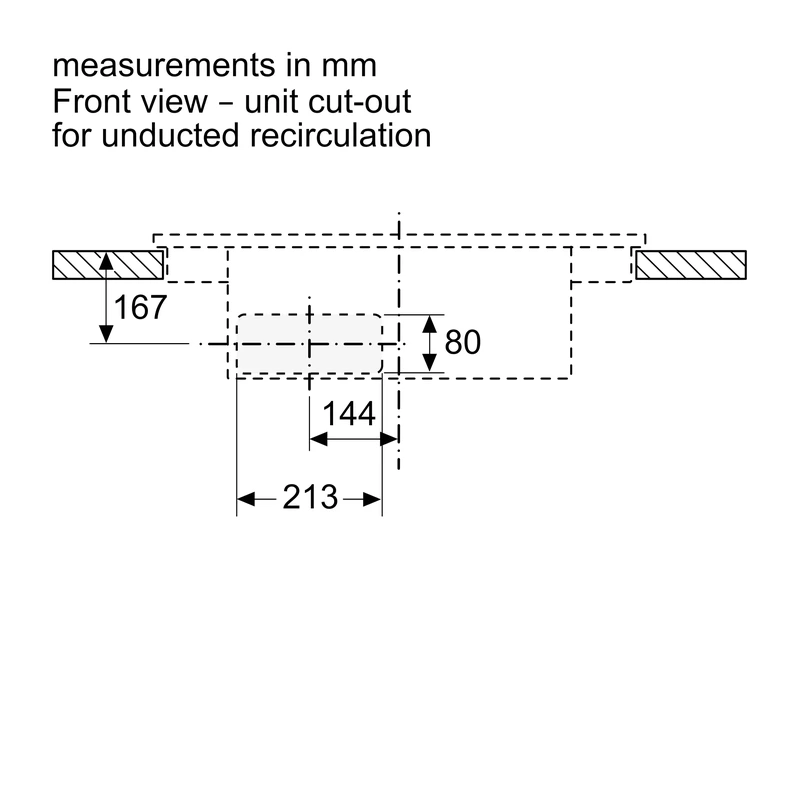

| Unducted recirculation aperture |
Vertical aperture of min. 25 mm behind back panel (50 mm suggested for ideal performance) |

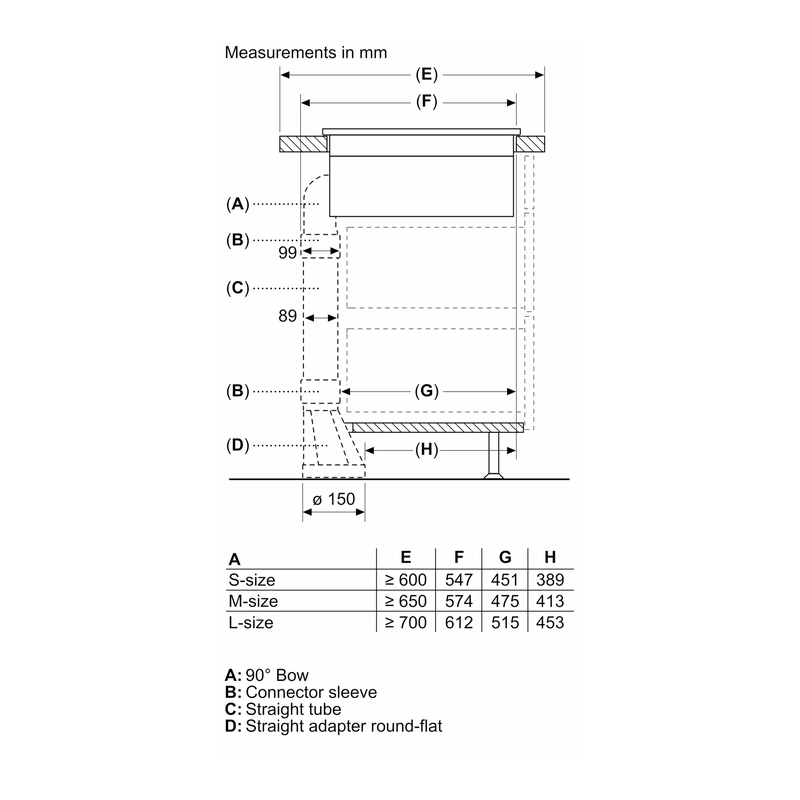

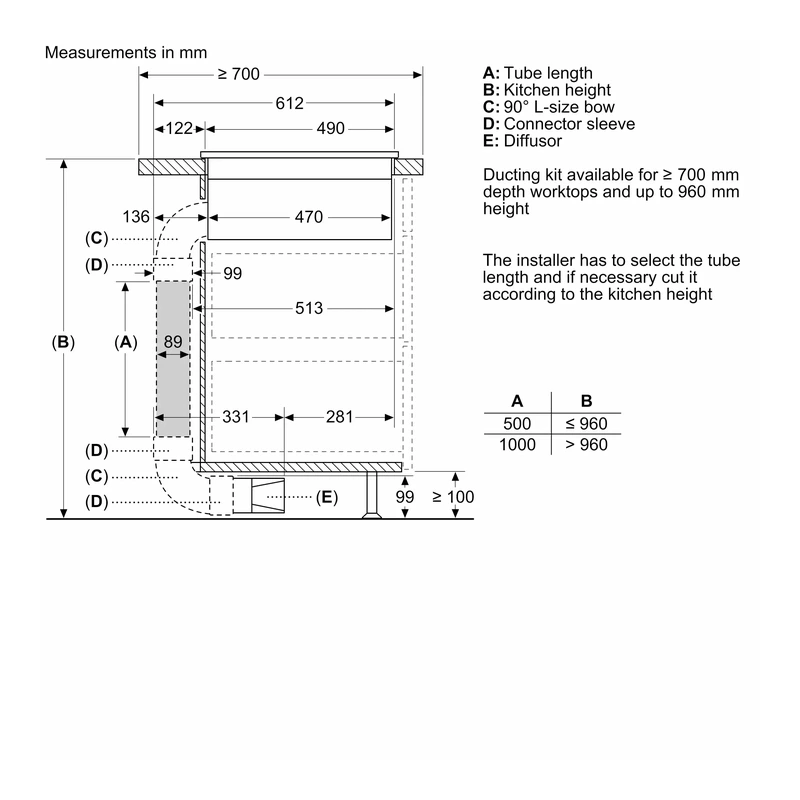

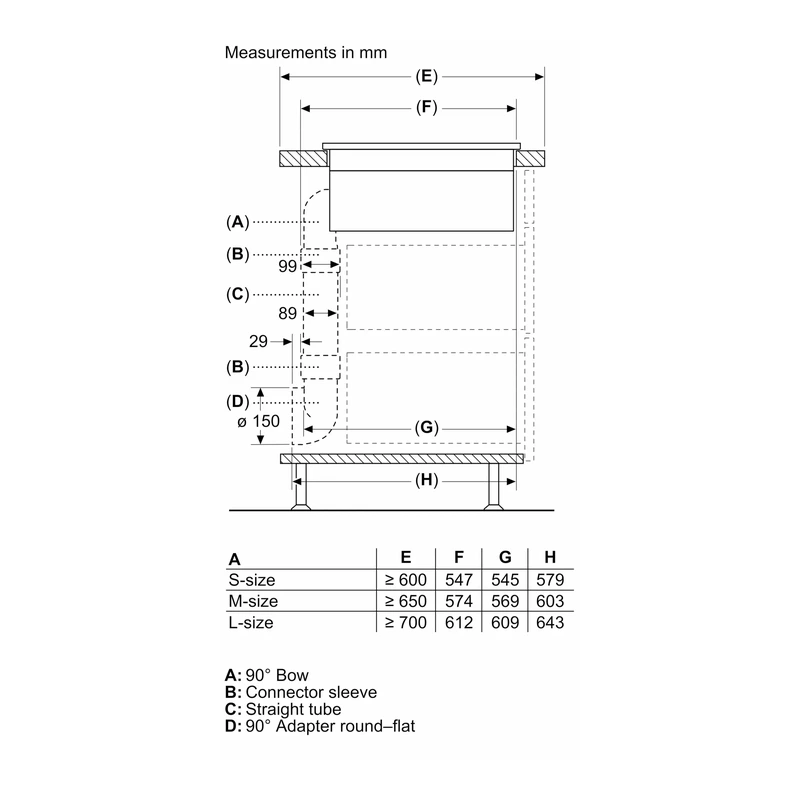

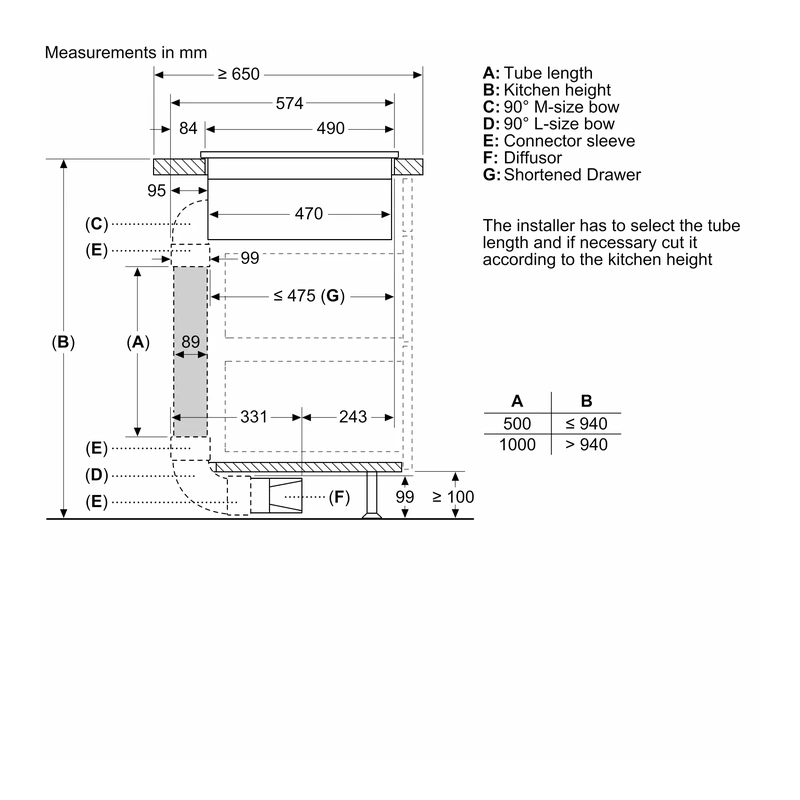

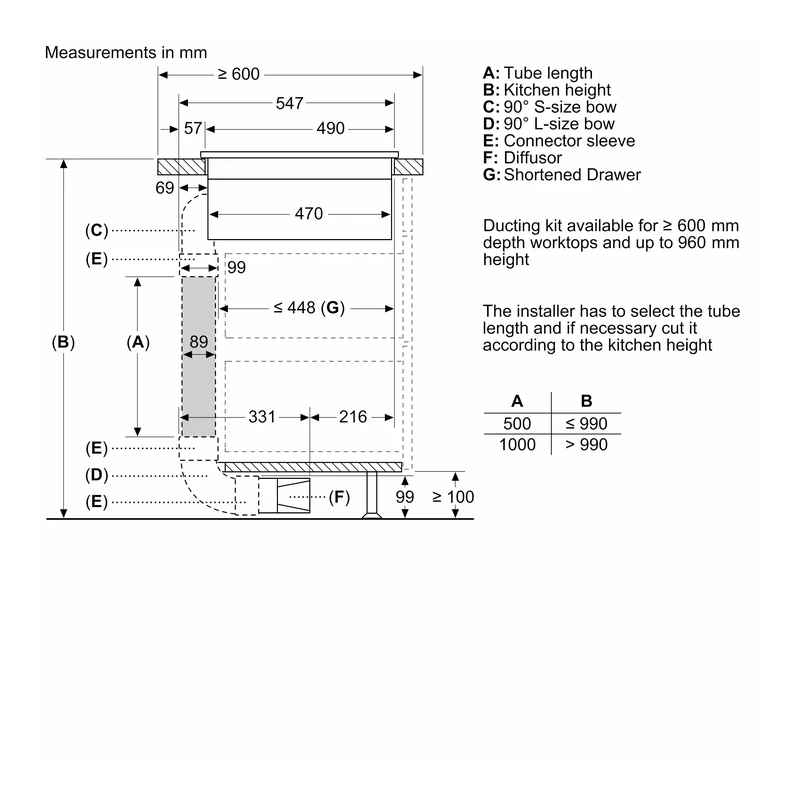

| Maximum duct length |
Up to 8 m with three 90° bows (with pressuredrop resistant blower) |

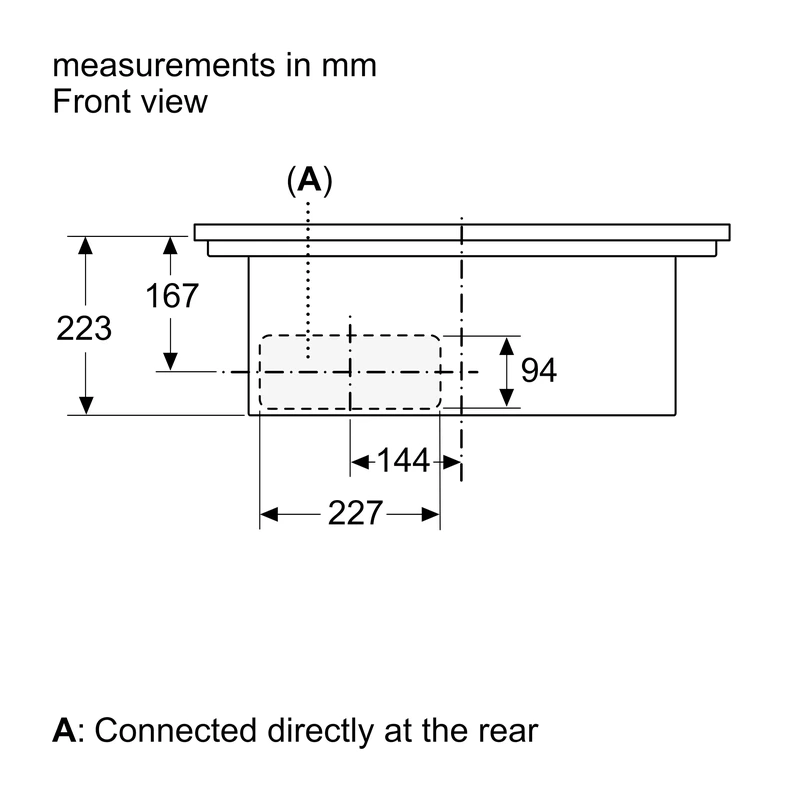

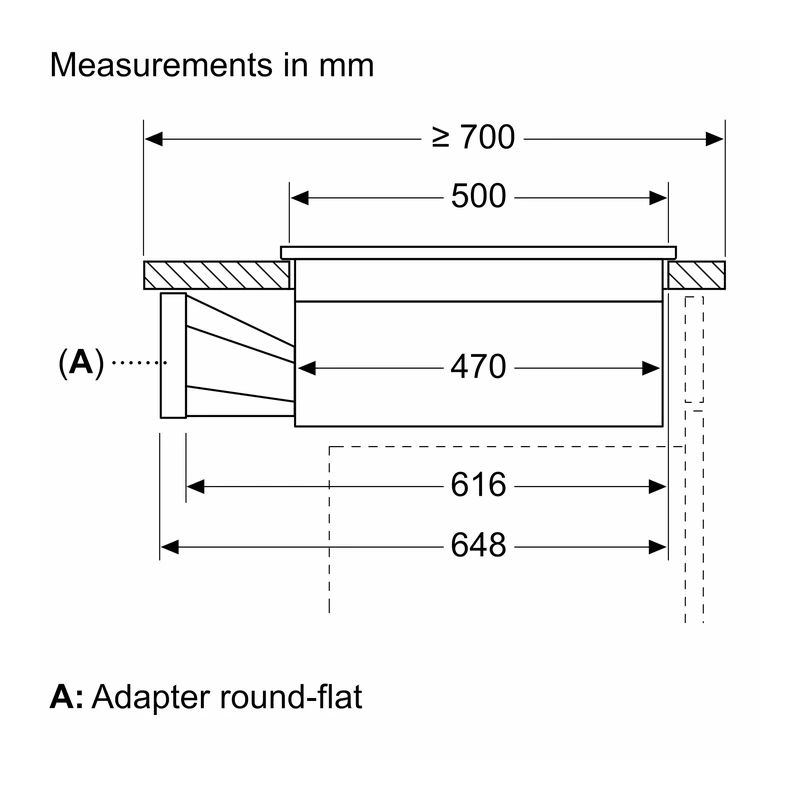

| Air outlet connection |
Air outlet on backside can be accessed with a male flat duct element (DN 150) |
| Flammability compliance |
Product and accessories comply with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94) |
| Grease filters |
Integrated large-scale high-performance stainless-steel grease filters with 12 filtration layers and black top layer |
| Liquid collector capacity (upper) |
200 ml |
| Liquid safety collector capacity |
700 ml, overall capturing capacity 900 ml |
| Blower system |
Watertight blower system with enclosed, non-visible blower |
| Clean Air Plus filter lifetime |
360 hours of cooking (non-regenerative) |
| Clean Air filter features |
High odour reduction, anti-pollen functionality, low-noise, easy to access and remove from above |
| Acoustic filters (ducted extraction) |
2 x 2 sets of directly integrated low-noise acoustic filters |
| Included accessories |
1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter |
| Optional accessories |
Z1365WX0 Wireless food thermometer; Z811DU0 Acoustics Filter; Z821PD1 Plinth Diffusor; Z821VR1 Clean Air Plus odor filter (replacement); Z861KE1 Exhaust kit; Z861KR0 Recirculation kit 2 L-bow (70 cm); Z861KR1 Recirculation kit S and L-bow (60 cm); Z861KR2 Recirculation kit 1 x L-bow; Z861SB1 90° flat duct bend horizontal; Z861SB2 90° flat duct L vertical; Z861SB3 90° flat duct M vertical; Z861SB4 90° flat duct S vertical; Z861SI0 Adapter round-flat; Z861SI1 90° Adapter round-flat; Z861SM1 Straight tube 500 mm; Z861SM2 Straight tube 1000 mm; Z861SS1 Connector sleeve (female); Z861SS2 Flex sleeve (female); Z9404SE0 4 pieces Set; Z9406SE0 6 pieces Set; Z9410ES0 Espresso maker 4 cups; Z9428FE0 Iron pan Ø 18 / 28 cm; Z943SE0 Set of 2 pots and 1 pan
|
