| Product name / family |
Cooking zone ceramic |
| Model designation |

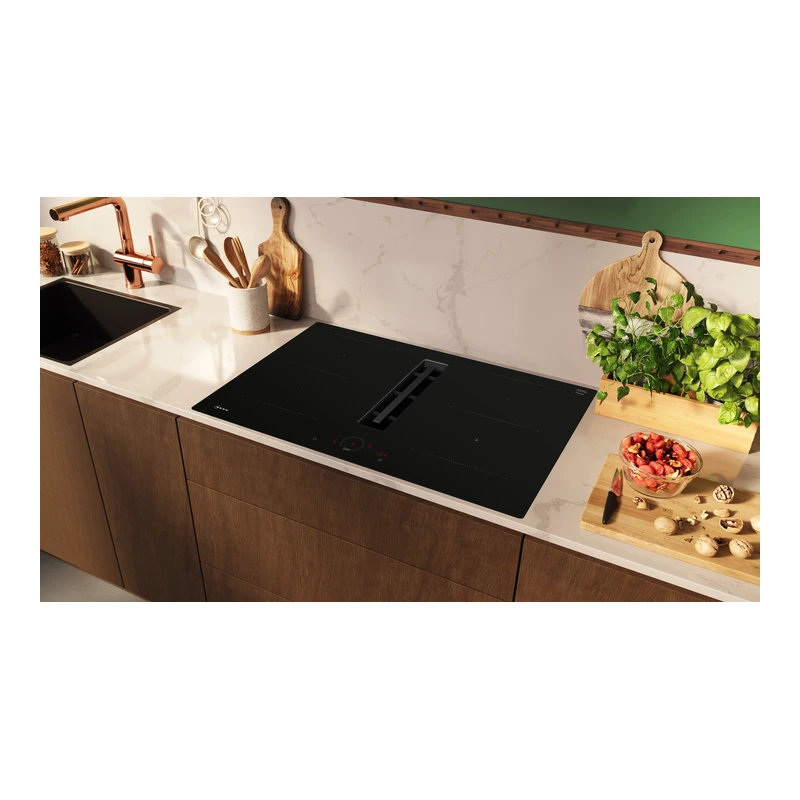

V58NHQ4L0 (N 70, induction hob with integrated ventilation, 80 cm, surface mount without frame) |
| Installation type |
Built-in; surface mount without frame |
| Energy input |
Electric, induction with booster on all zones |
| Number of cooking zones |
4 |

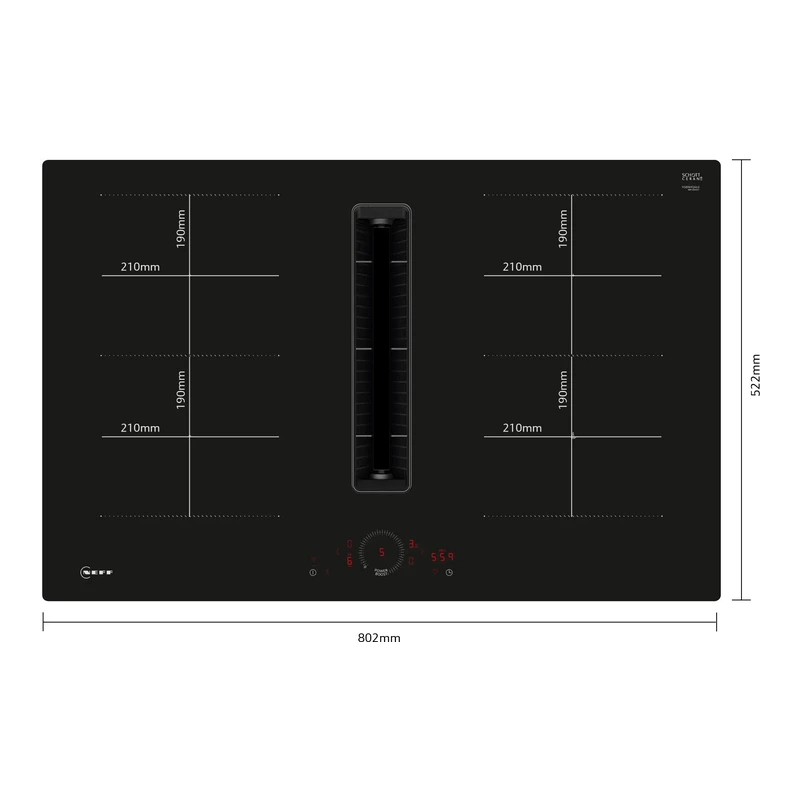

| Cooking zone sizes & power |
Front left: 190 mm / 210 mm, 2.5 kW (max. 3.7 kW)
Rear left: 190 mm / 210 mm, 2.5 kW (max. 3.7 kW)
Rear right: 190 mm / 210 mm, 2.5 kW (max. 3.7 kW)
Front right: 190 mm / 210 mm, 2.5 kW (max. 3.7 kW)
|
| Power levels |
17-stage (9 main levels and 8 intermediate levels) per zone |
| Connected load |
7.4 kW; 4.6 kW power output (20 A) with current management options for 16 A, 13 A or 10 A connection |
| Voltage / frequency |
220–240 / 380–415 V; 50–60 Hz |

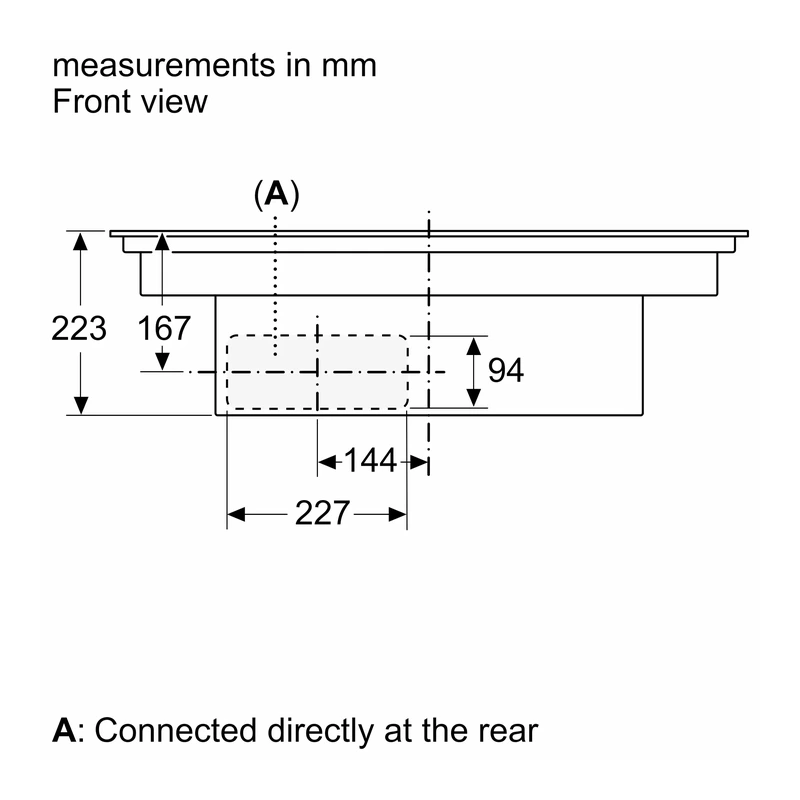

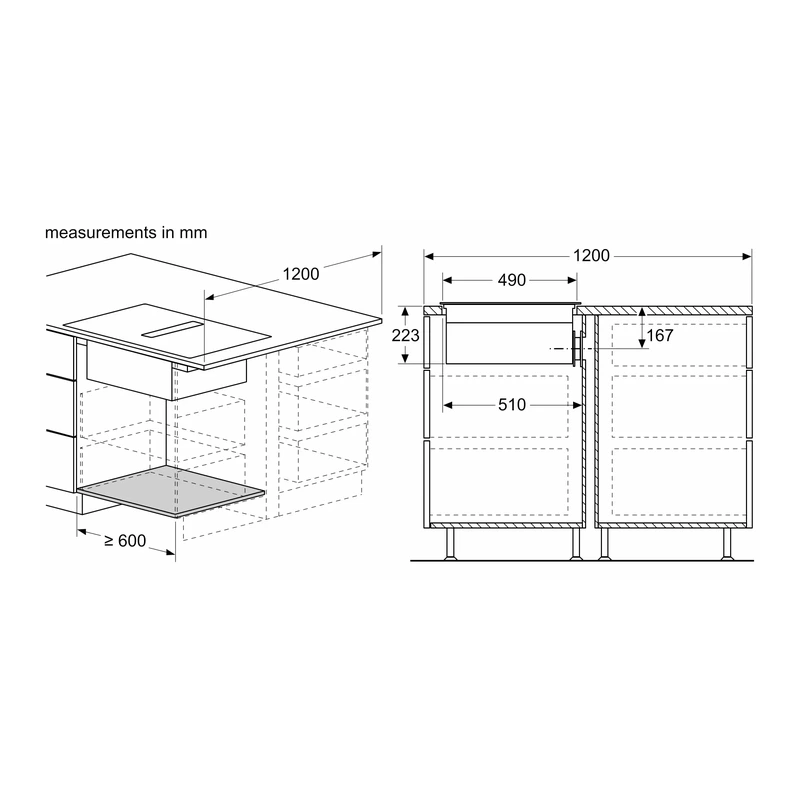

| Dimensions (H × W × D) |
223 × 802 × 522 mm |

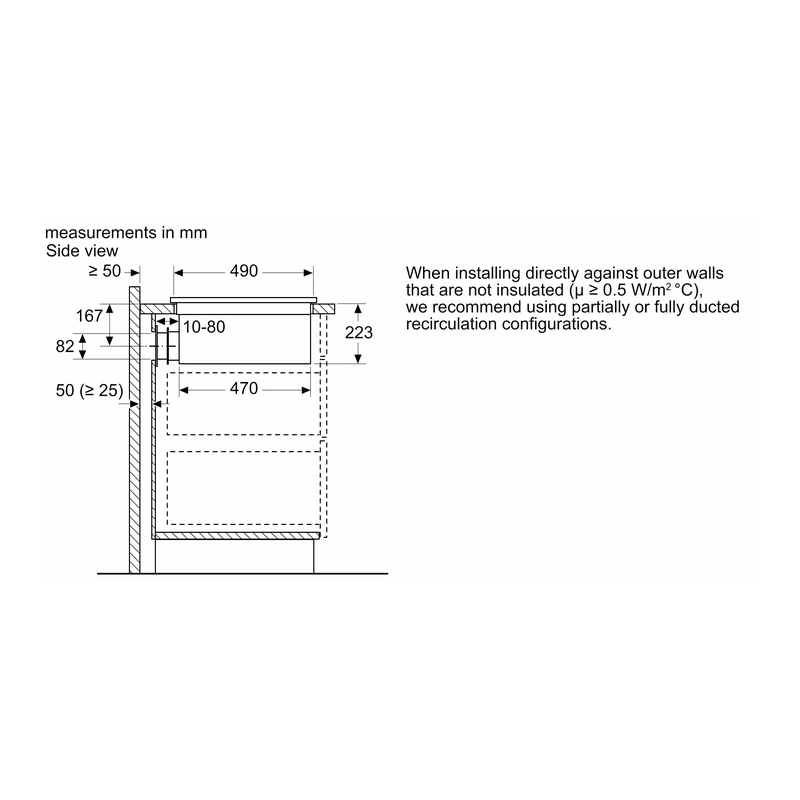

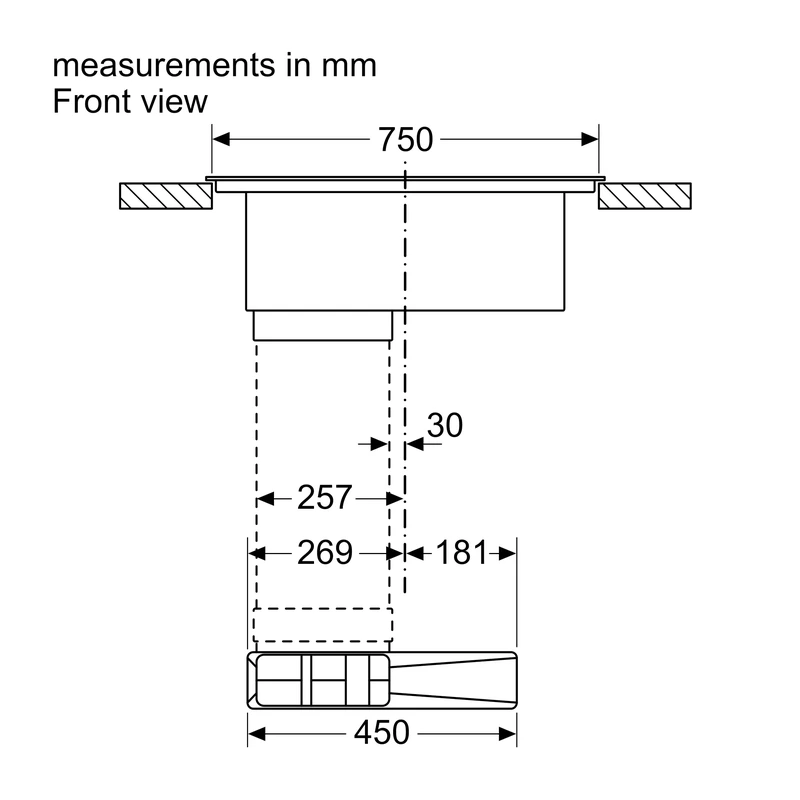

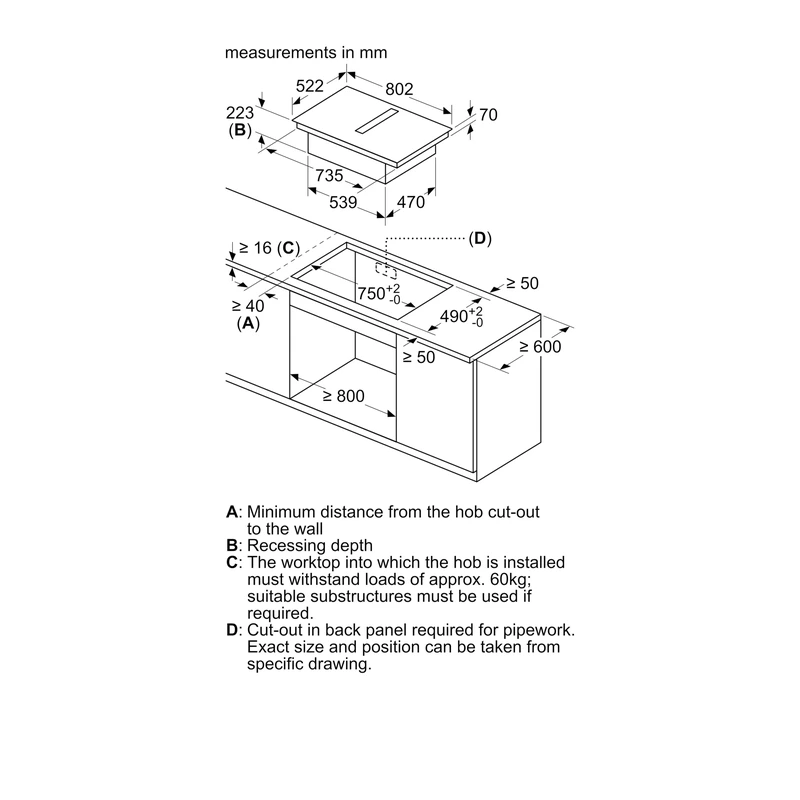

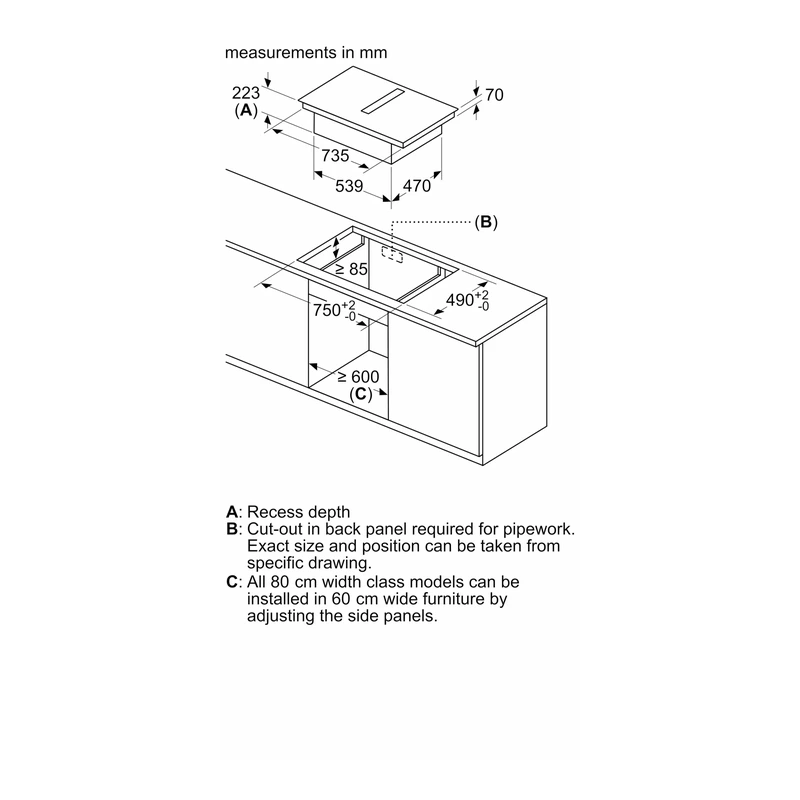

| Required niche size (H × W × D) |
223 × 750–750 × 490–490 mm |
| Appliance width |
802 mm (80 cm hob) |
| Min. worktop thickness |
16 mm |

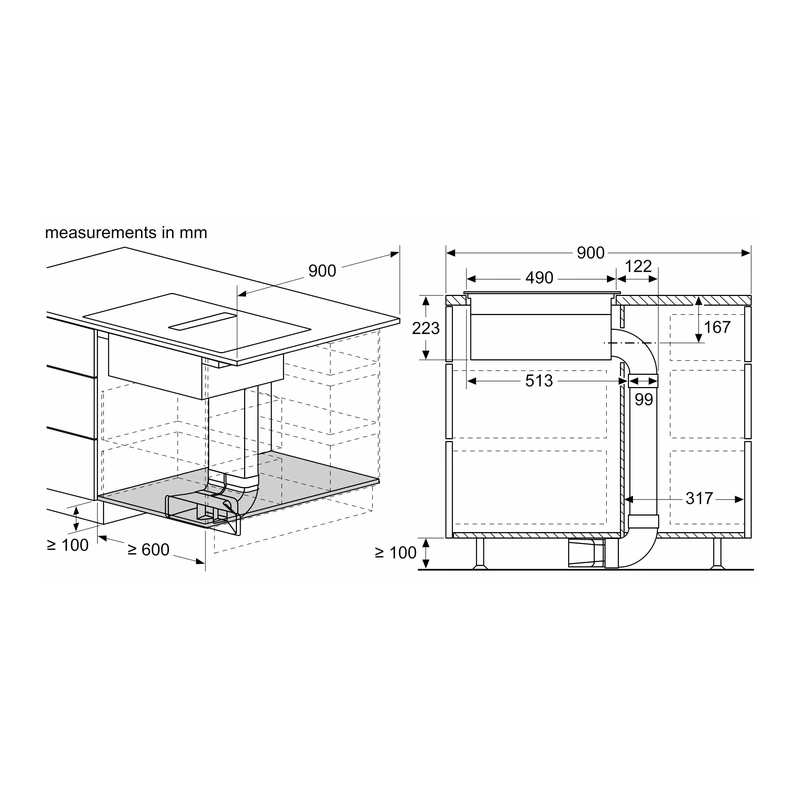

| Maximum immersion depth |
223 mm below worktop surface |
| Packed product dimensions (H × W × D) |
431 × 950 × 670 mm |
| Net / gross weight |
Net 26.5 kg; Gross 31.2 kg (overall appliance weight 26 kg in planning notes) |
| Basic surface material |
Ceramic |
| Surface colour |
Black |
| Control panel location |
Front |
| Residual heat indicator |
Separate; 2-stage residual heat indicators |
| Power cord |
Length 1.1 m; cable included in packaging |
| Length of electrical supply cord |
110 cm |
| Number of fan speed settings |
9-stage + 2 intensive |
| Maximum output air extraction (ducted) |
500 m³/h (max normal setting); Boost/Intensive 622 m³/h |
| Minimum output air extraction (ducted) |
154 m³/h (normal setting, according to EN 61591) |
| Maximum output recirculating air |
487 m³/h (max normal setting); Boost/Intensive 595 m³/h |
| Minimum output recirculating air |
117 m³/h (normal setting, according to EN 61591) |
| Noise level (ducted) |
Min normal 42 dB(A) re 1 pW; max normal 69 dB(A) re 1 pW; Boost 74 dB(A) re 1 pW |
| Noise level (recirculating) |
Min normal 41 dB(A) re 1 pW; max normal 68 dB(A) re 1 pW; Boost 72 dB(A) re 1 pW |
| Grease filtration efficiency |
94 % (stainless-steel filters, according to EN 61591) |
| Energy Efficiency Class (ventilation) |
B (range A+++ to D) |
| Fluid Dynamic Efficiency |
A |
| Average energy consumption (ventilation) |
57 (unit not stated in source) |
| Grease filtration efficiency class |
B |
| Odour filter (general) |
No (in basic technical data); Clean Air Plus odour filters used in recirculation configuration |
| Clean filter reminders |
Yes |

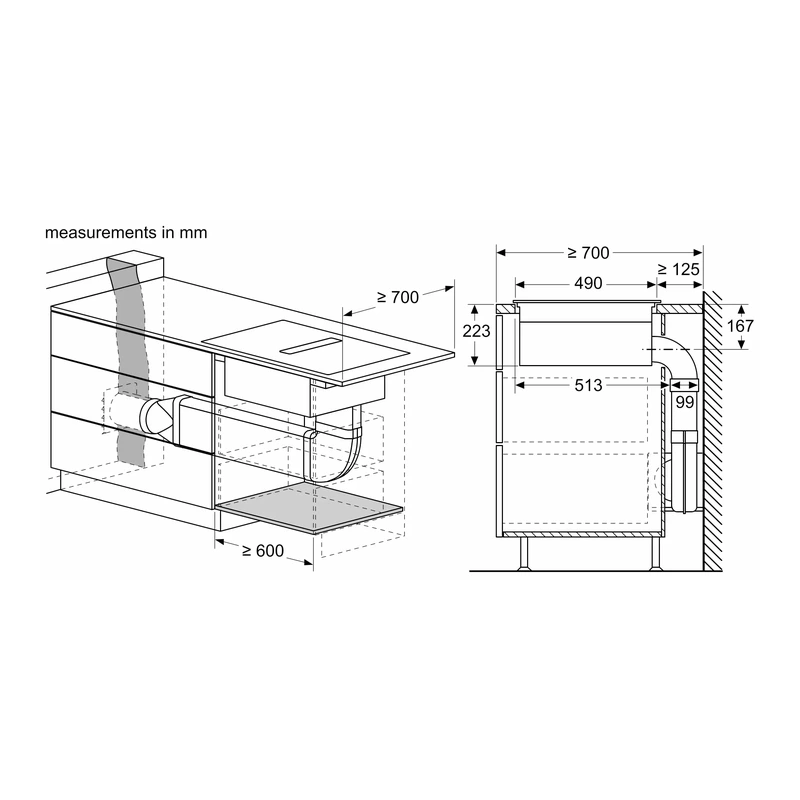

| Worktop / base cabinet suitability |

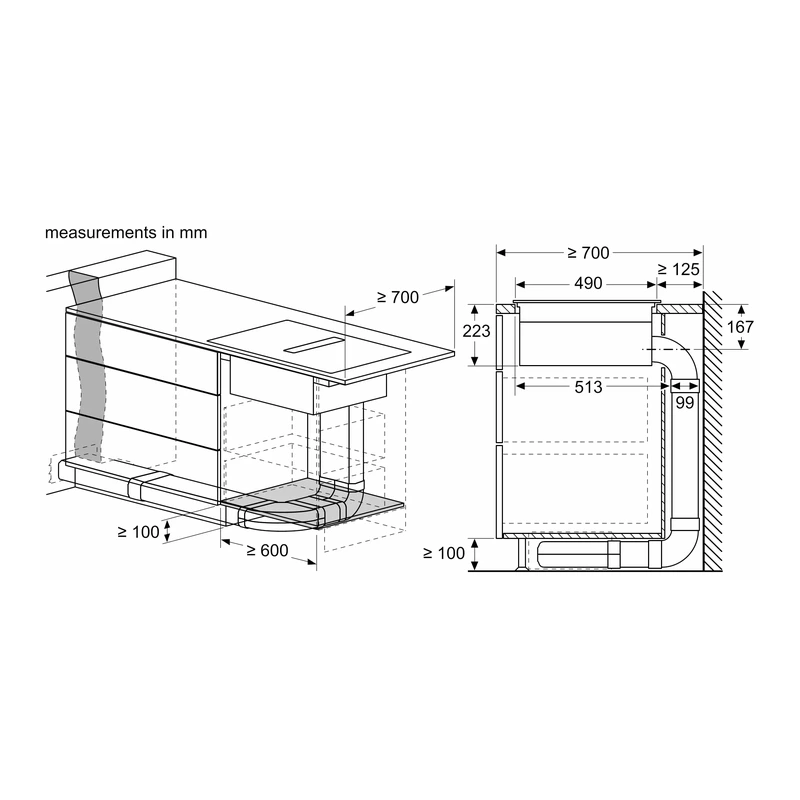

Suitable for installation into a 60 cm base cabinet; planning possible for all worktop depths ≥60 cm |
| Safety standards (materials) |
Complies with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94) |
| Included accessories |

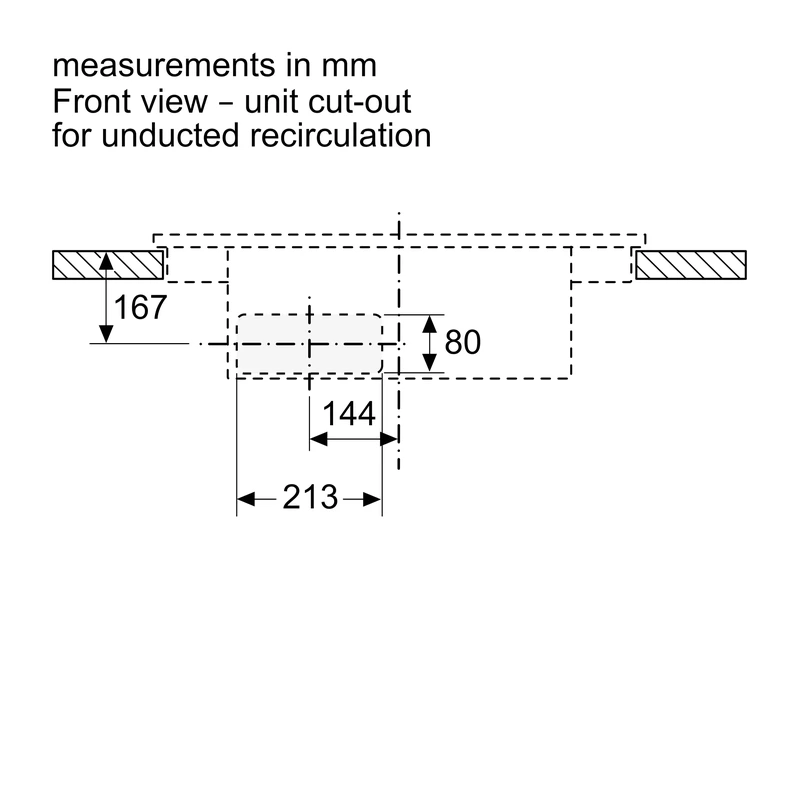

1 × Slider for unducted recirculation; 1 × Clean Air Plus odour filter |
| Optional accessories (selection) |

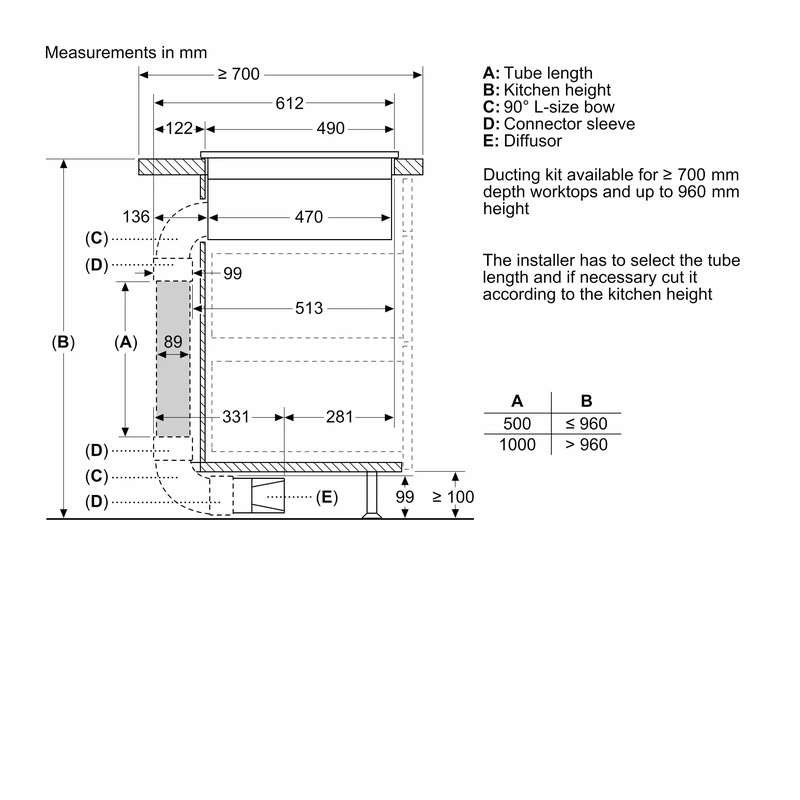

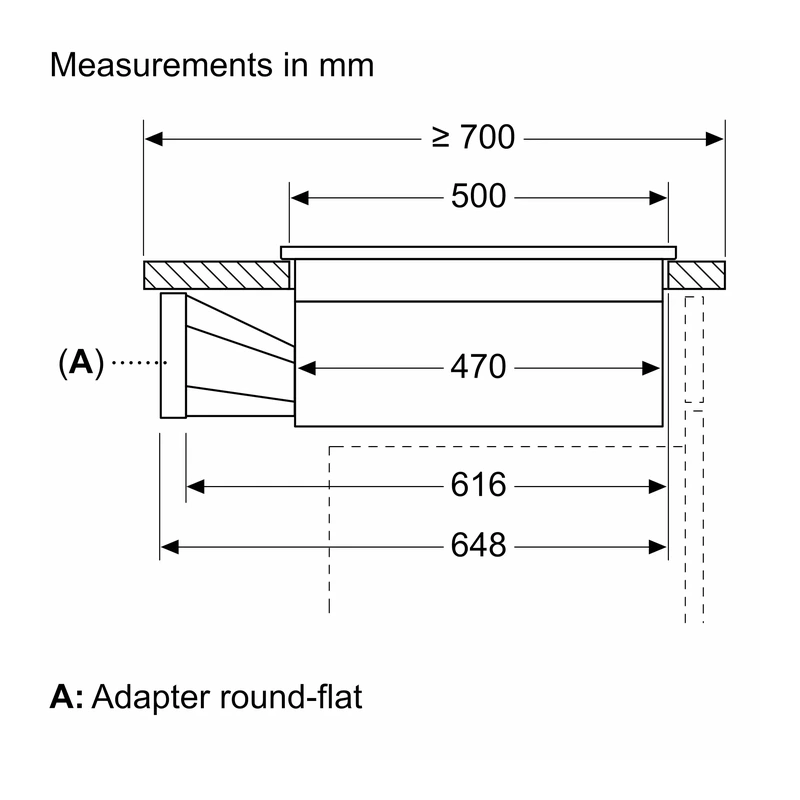

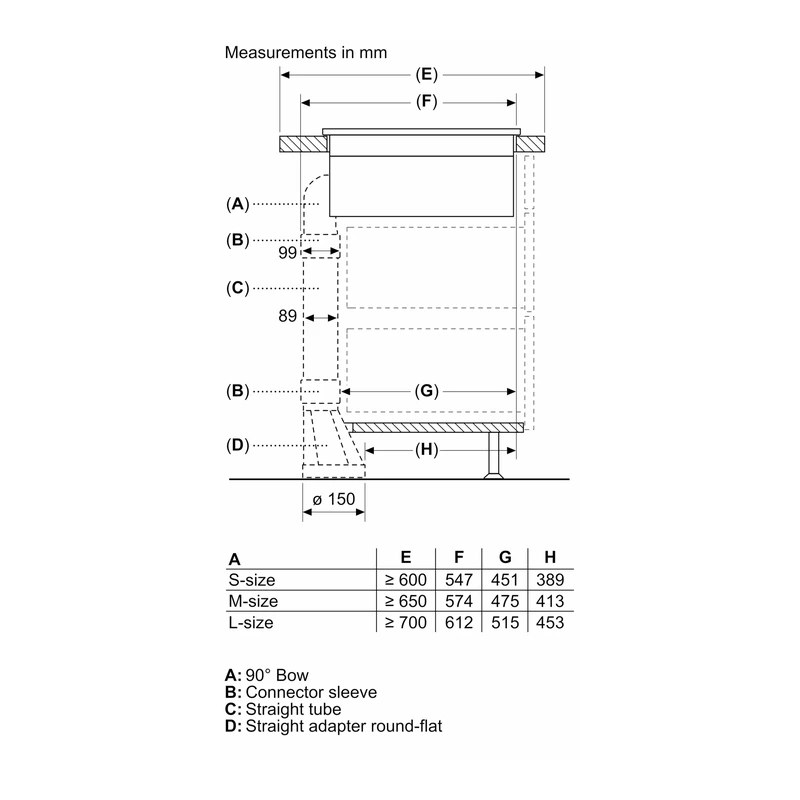

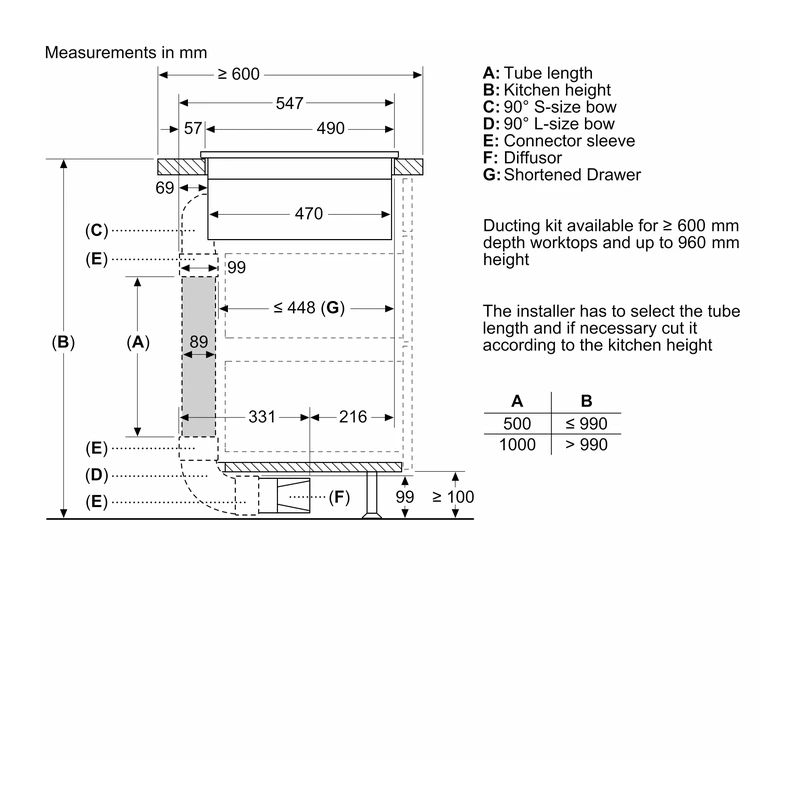

Z1365WX0 Wireless food thermometer; Z811DU0 Acoustics Filter; Z821PD1 Plinth Diffusor; Z821VR1 Clean Air Plus odour filter (replacement); Z861KE1 Exhaust kit; Z861KR0 / Z861KR1 / Z861KR2 Recirculation kits; Z861SB1–Z861SB4 duct bends; Z861SI0 / Z861SI1 adapters; Z861SM1 / Z861SM2 straight tubes; Z861SS1 / Z861SS2 sleeves; Z9404SE0, Z9406SE0 sets; Z9410ES0 espresso maker; Z9424CF0, Z9428CF0, Z9428FE0 pans; Z943SE0 set of 2 pots and 1 pan.
|
| Sealed burners |
No |
| Heating with booster |
All zones |
| Power of 2nd heating element |
3600.0 W (as stated) |
