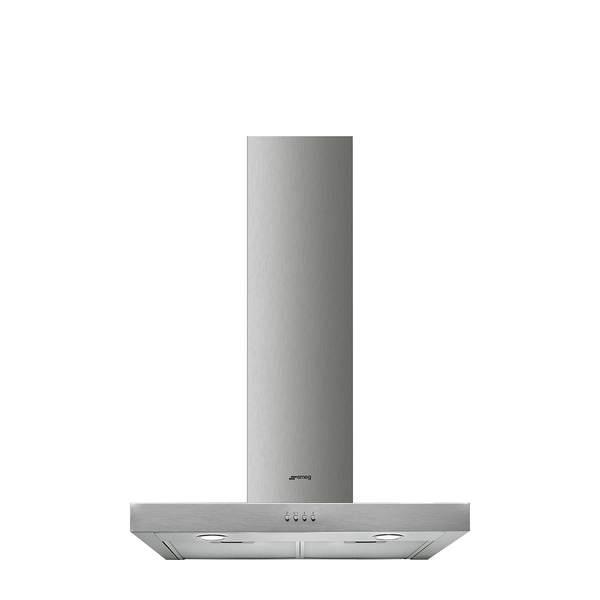

Smeg KATE600EX Chimney Hood

SKU: KATE600EX · EAN: 8017709235130

Stainless Steel

The SMEG KATE600EX is a 60 cm stainless steel T flat chimney cooker hood from the Universal aesthetics family. Designed for use with ducted extraction or re–circulation, it offers three button–controlled speeds and efficient LED lighting at 3500 K to illuminate the cooking area. With aluminium anti–grease filters, a non return valve and an energy efficiency class C rating, it provides effective kitchen ventilation and grease removal.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	T flat
Model	KATE600EX
Extraction	Ducted out or re–circulation possible
Material	Stainless steel
Type of steel	Brushed
EAN code	8017709235130
Hood width	60 cm
Aesthetics	Universal
Colour	Stainless steel
Finishing	Brushed
Serigraphy colour	Black
Logo	Silk screen
Control setting	Buttons
Number of speeds	3
Number of lights	2
Light type	LED
Light power	2.5 W
Light colour temperature	3500 K
Free outlet maximum capacity	612 m³/h
Motor power	175 W
Number of filters	2
Anti–grease filters	Aluminium
Vent outlet	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Non return valve	Yes
Tube reduction	Yes
Extraction rate IEC 61591 – Speed 1	241 m³/h
Noise level IEC 60704–2–13 – Speed 1	46 dBA
Extraction rate IEC 61591 – Speed 2	370 m³/h
Noise level IEC 60704–2–13 – Speed 2	56 dBA
Extraction rate IEC 61591 – Speed 3	590 m³/h
Noise level IEC 60704–2–13 – Speed 3	67 dBA
Annual efficiency consumption (AEChood)	77 kWh/year
Energy efficiency class (EEC)	C
Fluid Dynamic Efficiency (FDE)	20.2
Fluid Dynamic Efficiency class (FDEC)	C
Lighting Efficiency (LE)	76.1 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	76 %
Grease Filtering Efficiency Class (GFEC)	C
Air flow at minimum speed (Qmin)	240 m³/h
Maximum extraction rate	581 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	47 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	68 dBA
Time increase factor (F)	1.3
Measured air flow rate at best efficiency point (Qbep)	336 m³/h
Measured air pressure at best efficiency point (Qbep)	334 Pa
Measured electric power input at best efficiency point (Wbep)	155 W
Normal power of the light system (Wl)	5 W
Average illumination of the light on the cooking surface (Emiddle)	381 lux
Sound power level at highest setting (Lwa)	68 dBA
Nominal power	180 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
