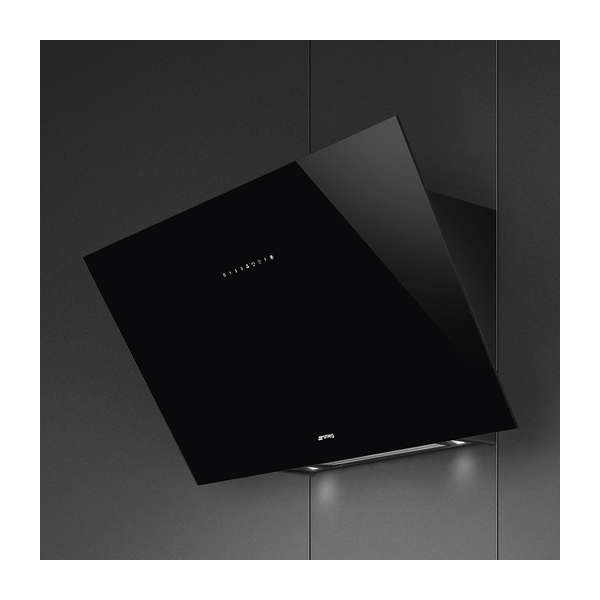

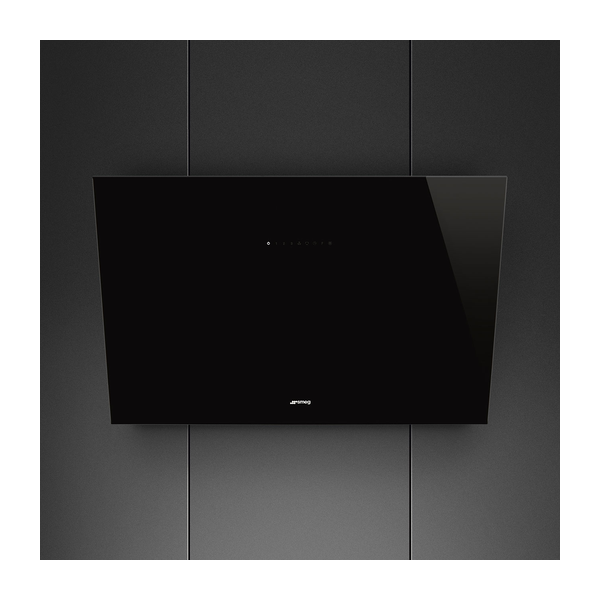

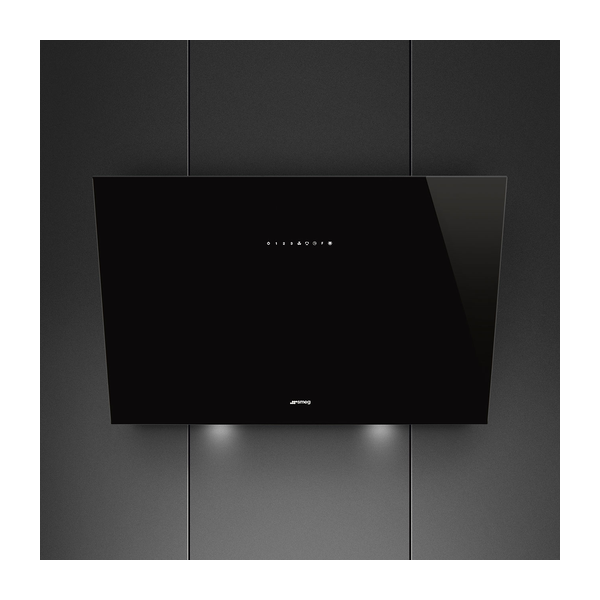

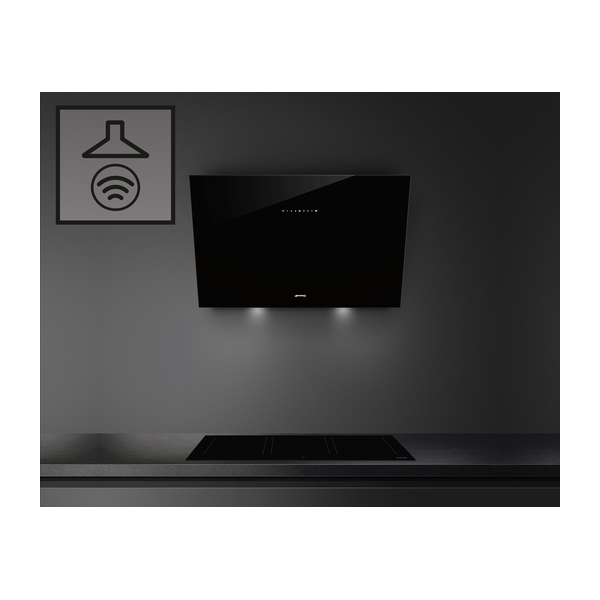

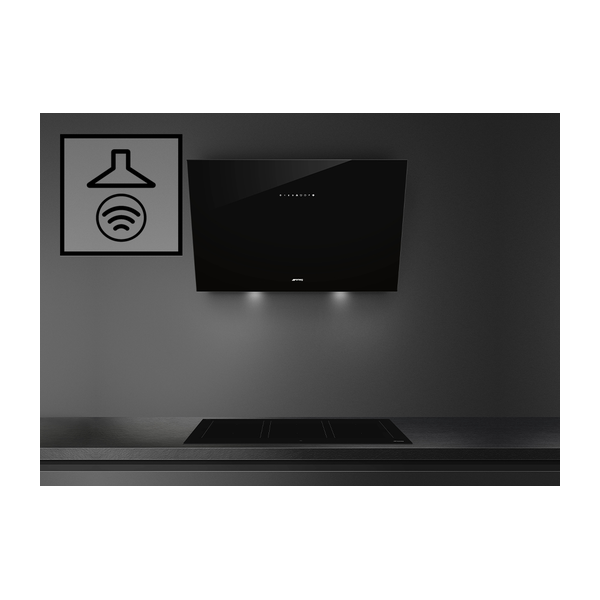

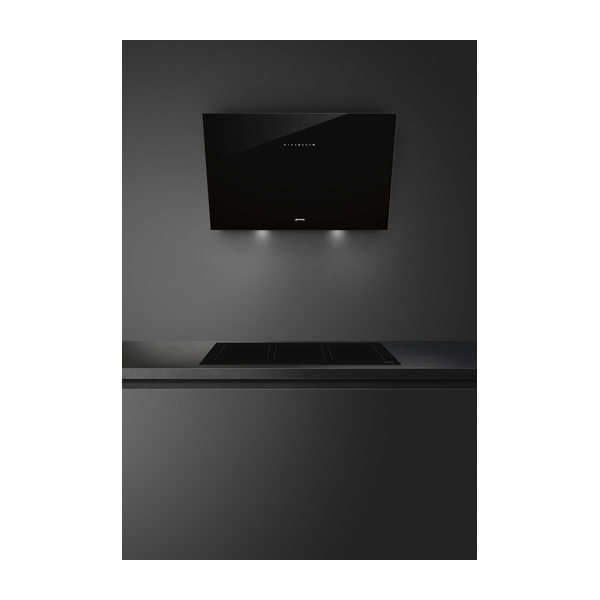

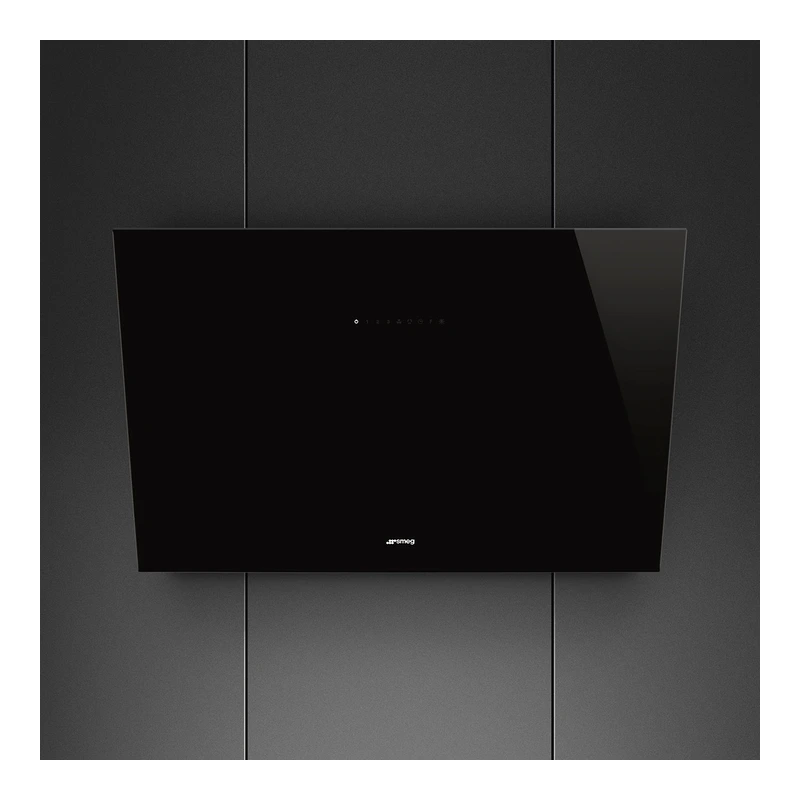

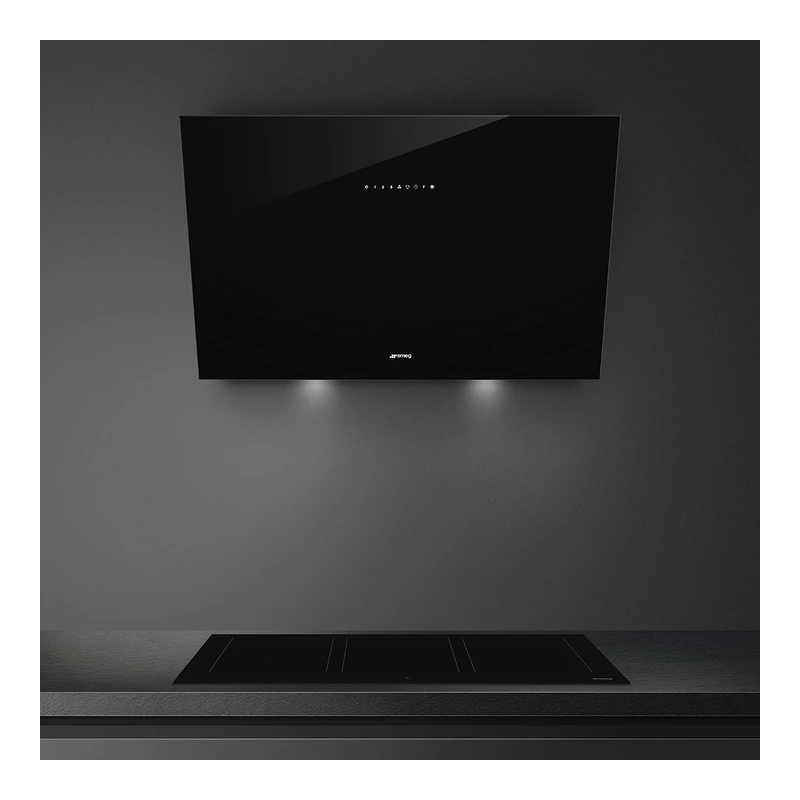

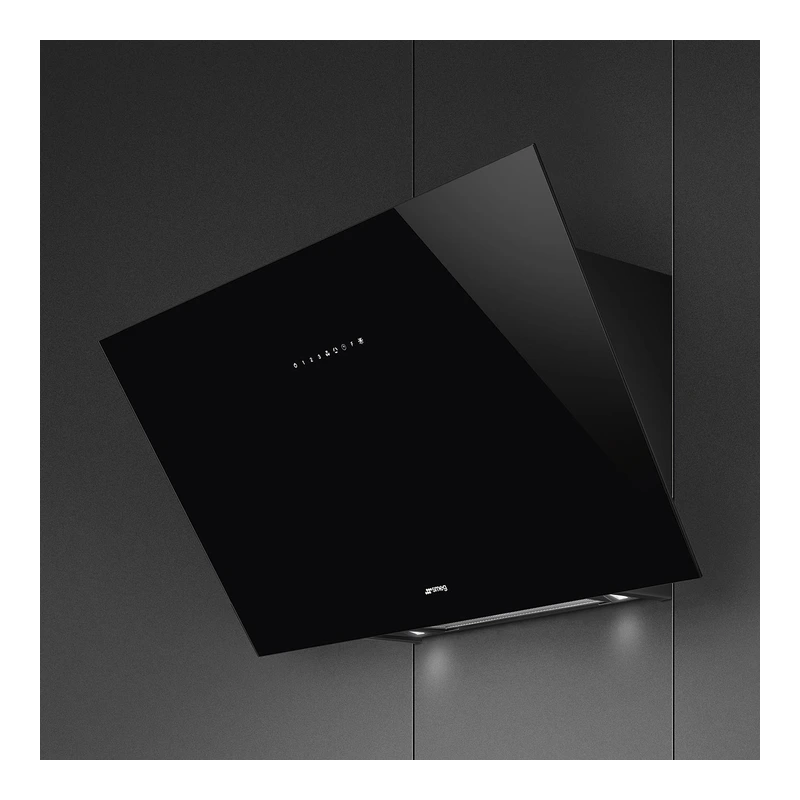

Smeg KV394N Angled Chimney Hood

SKU: KV394N · EAN: 8017709305758

Black Glass

The SMEG KV394N is a 90 cm black angled chimney cooker hood designed for ducted or recirculating extraction. With perimeter extraction, three speeds plus an intensive setting and LED lighting, it provides efficient ventilation and illumination over the hob. Touch control with back–lit white display, aluminium anti–grease filters and included charcoal filters support flexible installation and filtration. The hood offers energy efficiency class A performance and universal black glass aesthetics.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Angled
Model	KV394N
EAN code	8017709305758

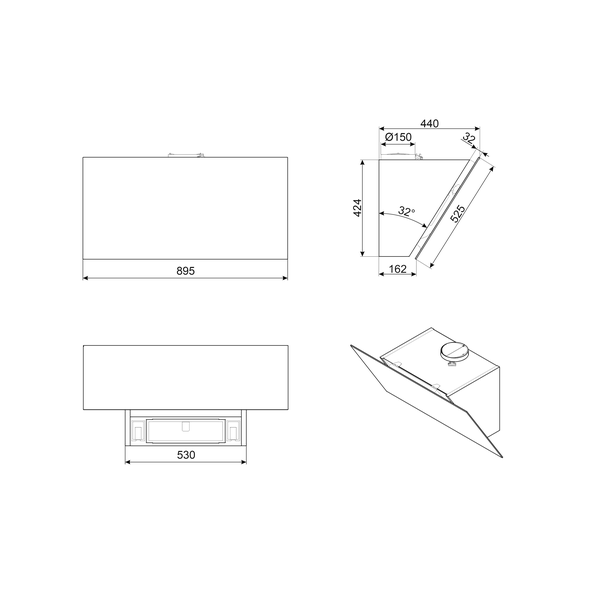

Hood width	90 cm
Aesthetics	Universal
Colour	Black
Finishing	Glass
Glass type	Black
Serigraphy colour	Grey
Logo	Silk screen
Extraction	Ducted out or re–circulation possible
Electronic control	Yes
Control setting	Touch control back–lighted White
Perimeter extraction	Yes
No. of speeds	3 plus intensive speed
24 h air filter function	Yes
Time–setting options	Yes
Auto–Vent 2.0	Yes
No. of lights	2
Light type	LED
Light power	1.1 W
Light colour temperature	4000 K
Dimmer mode	Yes
Free outlet maximum capacity	730 m³/h

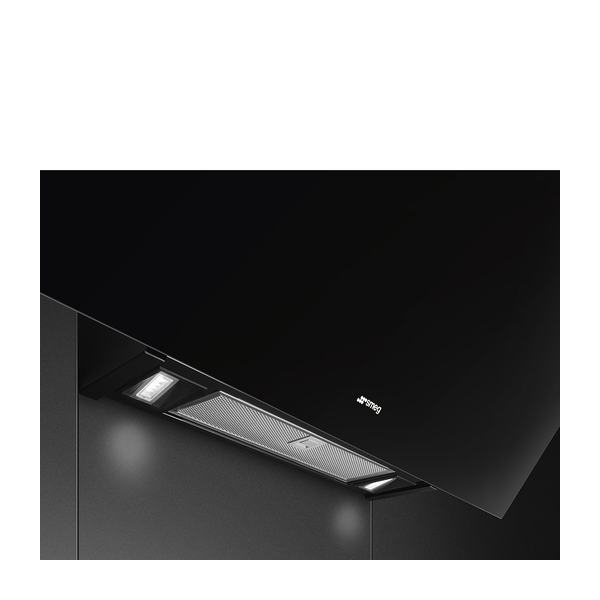

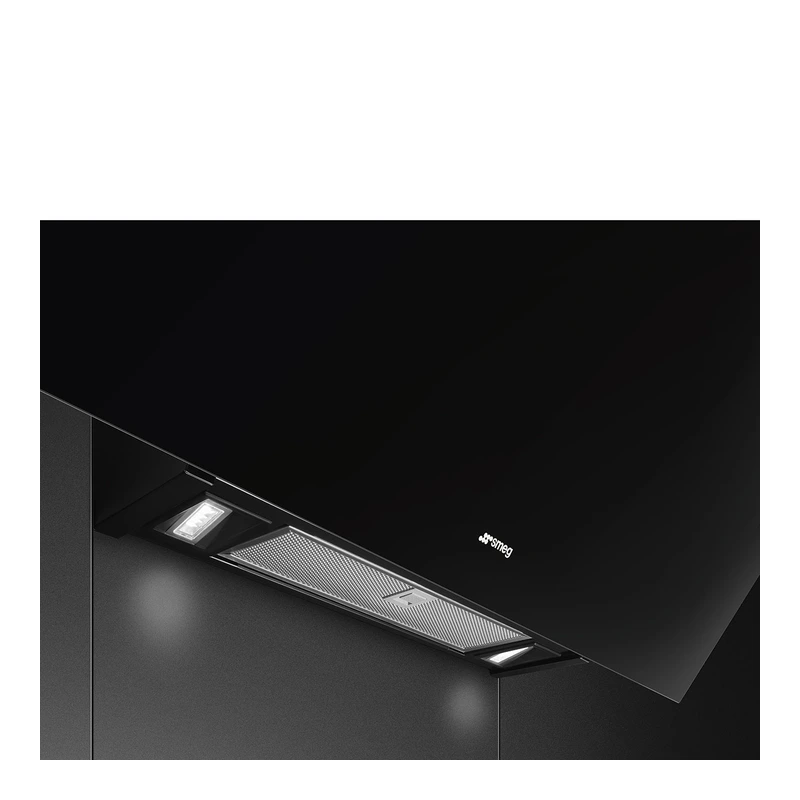

Anti–grease filters	Aluminium
No. of filters	2
Charcoal filters included	Yes
Filter replacement indicator	Yes
Vent outlet	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	450 mm
Motor power	230 W
Non return valve	Yes
Annual efficiency consumption (AEChood)	53 kWh/year
Energy efficiency class (EEC)	A
Fluid dynamic efficiency (FDE)	31.4
Fluid dynamic efficiency class (FDEC)	A
Lighting efficiency (LE)	118.5 lux/W
Lighting efficiency class (LEC)	A
Grease filtering efficiency (GFE)	73.8 %
Grease filtering efficiency class (GFEC)	D
Air flow at minimum speed (Qmin)	285 m³/h
Maximum extraction rate	493 m³/h
Intensive extraction rate	729 m³/h
Airborne acoustical sound power at minimum speed (SPEmin)	47 dBA
Airborne acoustical sound power at maximum speed (SPEmax)	61 dBA
Airborne acoustical sound power at boost speed (SPEboost)	69 dBA
Time increase factor (F)	0.9
Energy efficiency index per first cavity	51.6
Measured air flow rate at best efficiency point (Qbep)	397 m³/h
Measured air pressure at best efficiency point (Qbep)	443 Pa
Measured electric power input at best efficiency point (Wbep)	155 W
Normal power of the light system (Wl)	2 W
Average illumination on cooking surface (Emiddle)	237 lux
Sound power level at highest setting (Lwa)	61 dBA
Nominal power	232 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Extraction rate IEC 61591 – Speed 1	285 m³/h – 47 dBA
Extraction rate IEC 61591 – Speed 2	374 m³/h – 54 dBA
Extraction rate IEC 61591 – Speed 3	493 m³/h – 60 dBA
Extraction rate IEC 61591 – Intensive speed	729 m³/h – 69 dBA
