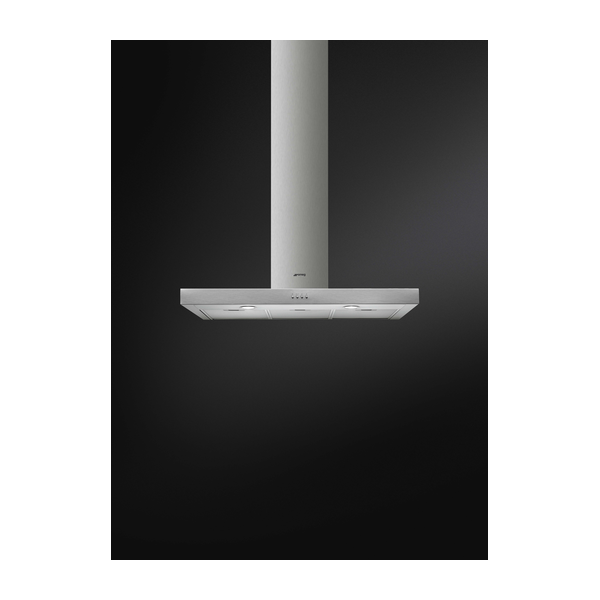

Smeg KATE900EX Chimney Hood

SKU: KATE900EX · EAN: 8017709235147

Stainless Steel

The KATE900EX is a 90 cm stainless steel chimney cooker hood with a T flat design and Universal aesthetics. It offers ducted out or re‑circulation extraction, operated via button controls with three speeds. Featuring LED lighting at 3500 K and aluminium anti‑grease filters, it combines brushed stainless steel finish with practical performance. It is suitable for installation above gas or electric hobs within the stated minimum distances.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	T flat
Aesthetics	Universal
Colour	Stainless steel
Finishing	Brushed
Material / Type of steel	Stainless steel, brushed
Hood width	90 cm
Extraction	Ducted out or re‑circulation possible
Serigraphy colour	Black
Logo	Silk screen
Control setting	Buttons
Number of speeds	3
Number of lights	2
Light type	LED
Light power	2.5 W (each), 5 W total (Normal Power of the light system Wl)
Light colour temperature	3500 K
Free outlet maximum capacity	612 m³/h
Maximum extraction rate	581 m³/h
Air flow at minimum speed (Qmin)	240 m³/h
Extraction rate IEC 61591 – Speed 1	241 m³/h
Extraction rate IEC 61591 – Speed 2	370 m³/h
Extraction rate IEC 61591 – Speed 3	590 m³/h
Noise level IEC 60704-2-13 – Speed 1	46 dBA
Noise level IEC 60704-2-13 – Speed 2	56 dBA
Noise level IEC 60704-2-13 – Speed 3	67 dBA
Sound power level at highest setting (Lwa)	68 dBA
Airborne acoustical A‑weighted sound power emission at minimum speed (SPEmin)	47 dBA
Airborne acoustical A‑weighted sound power emission at maximum speed (SPEmax)	68 dBA
Motor power	175 W
Nominal power	180 W
Number of filters	3
Filter type	Aluminium anti‑grease filters
Vent outlet	150 mm
Non return valve	Yes
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Annual Efficiency Consumption (AEChood)	77 kWh/year
Energy efficiency class (EEC)	C
Fluid Dynamic Efficiency (FDE)	20.2
Fluid Dynamic Efficiency Class (FDEC)	C
Lighting Efficiency (LE)	76.1 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	76 %
Grease Filtering Efficiency Class (GFEC)	C
Time increase factor (F)	1.3
Measured air flow rate at best efficiency point (Qbep)	336 m³/h
Measured air pressure at best efficiency point (Qbep)	334 Pa
Measured electric power input at best efficiency point (Wbep)	155 W
Average illumination on cooking surface (Emiddle)	381 lux
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
EAN code	8017709235147
