| Model | PM6954R |
|---|
| Product family | Hob |
|---|
| Built-in type | Traditional |
|---|
| Dimensions | 90 cm |
|---|
| Power supply | Mixed |
|---|
| EAN code | 8017709313579 |
|---|
| Aesthetics series | Dolce Stil Novo – Series New |
|---|
| Colour / finish | Black, glass finishing |
|---|
| Material | Glass, Eclipse ceramic glass type, straight edge, glass on steel |
|---|
| Pan stands | Cast iron heavy duty pan stands |
|---|
| Burners | Smeg Contemporary burners, brass material |
|---|
| Control type | Multi Slider with slider, premium individual slider control for each zone |
|---|
| Control position / colour | Front, 1 control, black controls |
|---|
| Logo / serigraphy | Logo silk screen, serigraphy colour grey |
|---|
| Total number of cook zones | 5 (1 gas cook zone, 4 induction cook zones) |
|---|
| No. of cooking zones with booster | 4 |
|---|
| No. of Flexible zones | 2, MultiZone flexible zone type |
|---|
| Power levels | 9 |
|---|
| Time-setting options | Automatic switch-off |
|---|

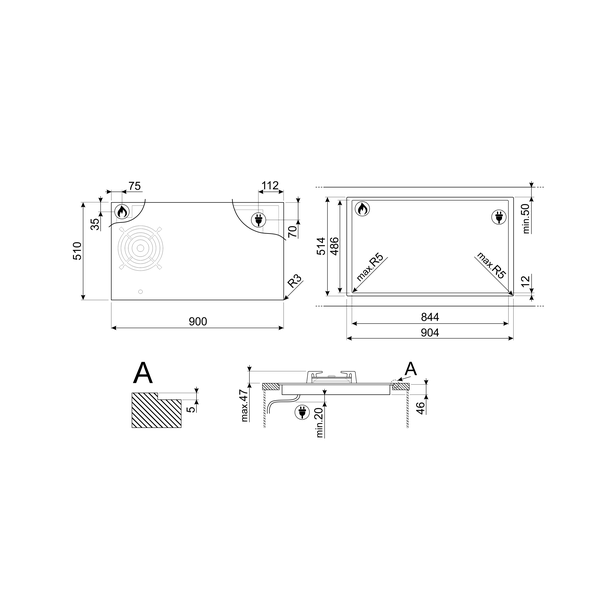

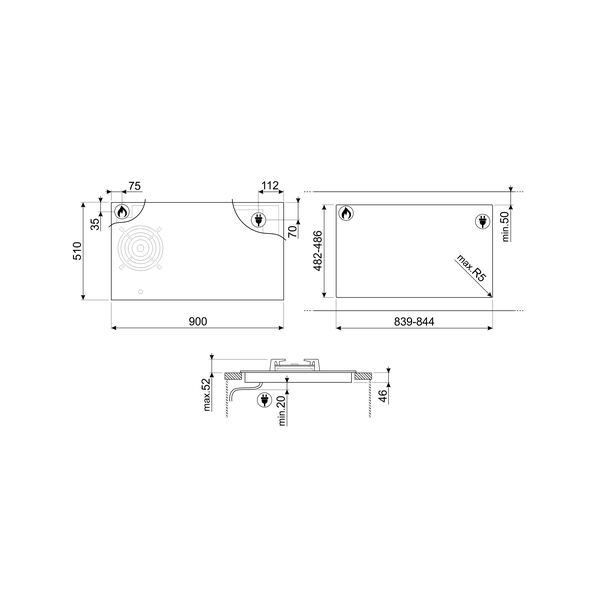

| Standard cut-out | 482–486 x 844–848 mm (small cut-out for easy installation) |
|---|
| Main on/off switch | Yes |
|---|
| Auto-Vent 2.0 | Yes (connection between hob and hood) |
|---|
| Multizone option | Yes – Auto Multizone and Multizone feature for several pans, large or small |
|---|
| Double Booster | Yes on induction zones |
|---|
| Keep warm function | Yes, automatic keep warm function |
|---|
| Grill function | Yes |
|---|
| End cooking timer | 4 |
|---|
| Minute minder | 1 |
|---|
| End of cooking acoustic alarm | Yes |
|---|
| Residual time indicator | Yes |
|---|
| Limited Power Consumption Mode | Yes advance, 2400 to 7400 W, step 100 W |
|---|
| Show Room Demo option | Yes |
|---|
| Control Lock / Child Safety | Yes (child lock device to lock the programme/cycle) |
|---|
| Bridge option | Yes |
|---|
| Quick start | Yes – Quick Start function |
|---|
| Rapid level selection | Yes, quick selection for one-touch high level then automatic reduction |
|---|
| Automatic setting according to pan dimension | Yes |
|---|
| Automatic pan detection | Yes, with permanent automatic pot detection and indication of the relative control |
|---|
| Gas safety valves | Yes |
|---|
| Automatic ignition | Yes (gas) |
|---|
| Overheat protection | Yes, automatic switch off when overheat of the control unit |
|---|
| Overfill protection | Yes, automatic switch off when overflow / presence of liquids |
|---|
| Residual heat indicator | Yes, indication of residual heat until temperature drops below 60°C |
|---|
| Protection against accidental start up | Yes |
|---|
| Time elapsed display | Yes, shows how long the cooking zone has been in use |
|---|
| Reinforced base | Yes, steel layer fixed to underside of glass surface on gas on glass hobs |
|---|
| Darkness becomes light | Yes (feature named in glossary) |
|---|
| Centre left zone | Gas – UR – 6.00 kW – Booster 2.5 kW – Double booster 3 kW |
|---|
| Rear centre zone | Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 24.0 x 18.0 cm |
|---|
| Front centre zone | Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 24.0 x 18.0 cm |
|---|
| Rear right zone | Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 24.0 x 18.0 cm |
|---|
| Front right zone | Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 24.0 x 18.0 cm |
|---|
| Multizone left | Booster 3.7 kW |
|---|
| Multizone centre | Booster 3.7 kW – 38.5 x 23.0 cm |
|---|
| Multizone right | Booster 3.7 kW – 38.5 x 23.0 cm |
|---|
| Accessories included | Cast iron wok support – 1 |
|---|
| Nominal power | 7400 W |
|---|
| Current | 33 A |
|---|
| Voltage 1 | 220–240 V |
|---|
| Voltage 2 | 380–415 V |
|---|
| Type of electric cable | Single and double phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Power supply cable length | 120 cm |
|---|
| Gas type | G20 natural gas |
|---|
| Gas connection type | Cylindrical, other gas connections provided: conical |
|---|
| Other gas nozzles included | G30 GPL liquid gas |
|---|
| Gas connection rating | 6000 W |
|---|
| Compatible accessories | GRILLPLATE – Universal griddle for induction, gas, ceramic and electric hobs, non-stick, 410 x 240 mm; TPKPLATE – Universal plate for induction, gas, ceramic and electric hobs, non-stick, 410 x 240 mm; LGCN – Connecting strip built-in hobs, stainless steel, 475/495 mm |
|---|
