How many place settings does the SBH4HVX14G hold?

The dishwasher has a capacity of 14 place settings.

What are the main wash programmes available?

The appliance offers Eco 50 °C, Auto 45–65 °C, Intensive 70 °C, Express 65 °C, Silence 50 °C and a Favourite programme, with Pre–Rinse as the default Favourite.

Can I control the dishwasher remotely?

Yes. The SBH4HVX14G is Home Connect ready on WLAN and includes a Remote Start special option, enabling smart remote control and access to add–on functions such as Hygiene+ and Silence on Demand.

What is the noise level during operation?

The noise level is 46 dB(A) re 1 pW in standard operation, and 45 dB(A) re 1 pW in the Silence programme.

How efficient is this dishwasher in terms of energy and water use?

The dishwasher has an Energy Efficiency Class C rating. In the Eco 50 °C programme it uses 75 kWh per 100 cycles and 9 litres of water per cycle.

What installation space is required?

The required niche size for installation is 865–925 mm in height, 600 mm in width and 550 mm in depth. The depth with the door open at 90° is 1200 mm.

Product Information Sheet

Bosch Series 4 Dishwasher

SKU: SBH4HVX14G

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch SBH4HVX14G Series 4 Dishwasher

SKU: SBH4HVX14G · EAN: 4242005535361

Fully Integrated Vario Hinge

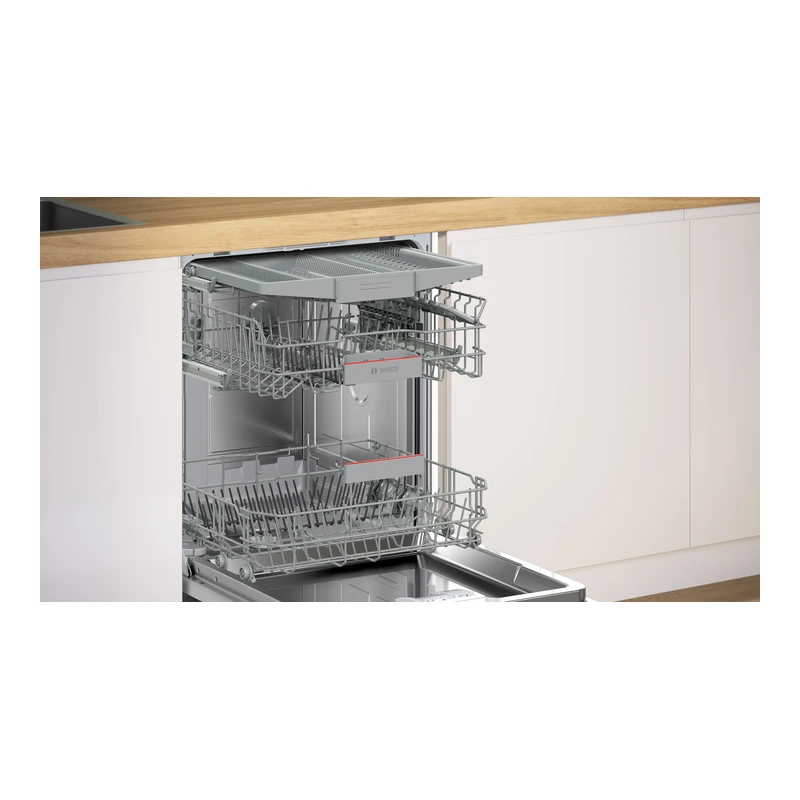

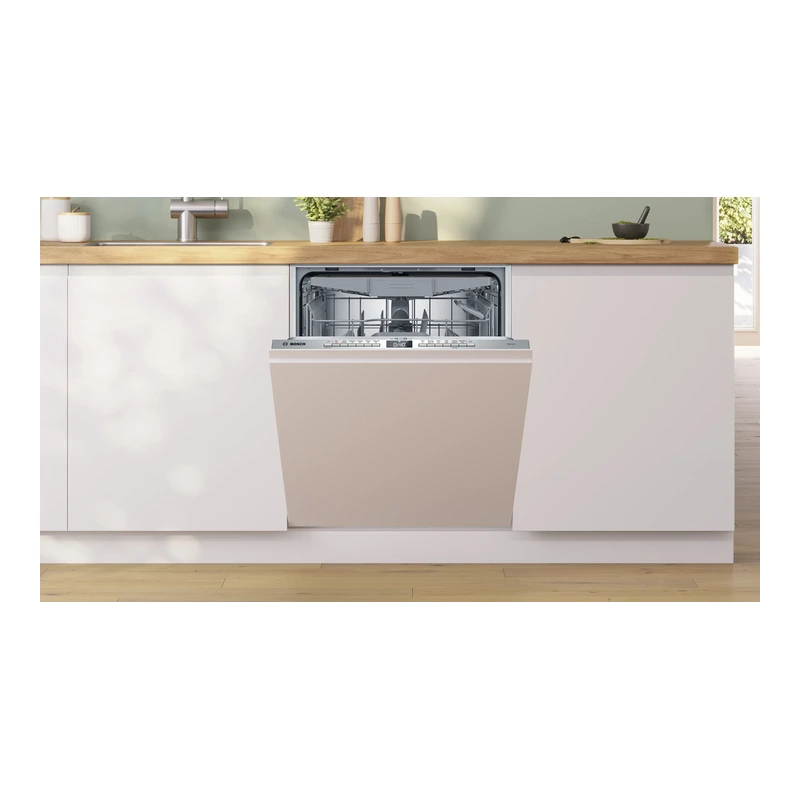

The Bosch Series 4 SBH4HVX14G is a fully–integrated 60 cm dishwasher with VarioHinge, designed for installations with low plinth heights and high built–in situations. It offers capacity for 14 place settings and flexible loading with Vario Flex baskets, VarioDrawer and Rackmatic. Home Connect and SpeedPerfect+ provide smart remote control and reduced washing time, while the EcoSilence drive and Silence programmes help keep noise levels low.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name / code	Series 4, Fully–integrated dishwasher, 60 cm, Variable hinge – SBH4HVX14G
Installation type	Built–in, integrated
Energy Efficiency Class	C (scale A to G)
Energy consumption (Eco 50 °C)	75 kWh per 100 cycles
Water consumption (Eco 50 °C)	9.0 litres per cycle
Capacity	14 place settings
Programme duration (Eco 50 °C)	4:55 h
Noise level	46 dB(A) re 1 pW
Noise Efficiency Class	C
Noise level (Silence programme)	45 dB(A) re 1 pW
Programmes	Eco 50 °C; Auto 45–65 °C; Intensive 70 °C; Express 65 °C; Silence 50 °C; Favourite (default Pre–Rinse)

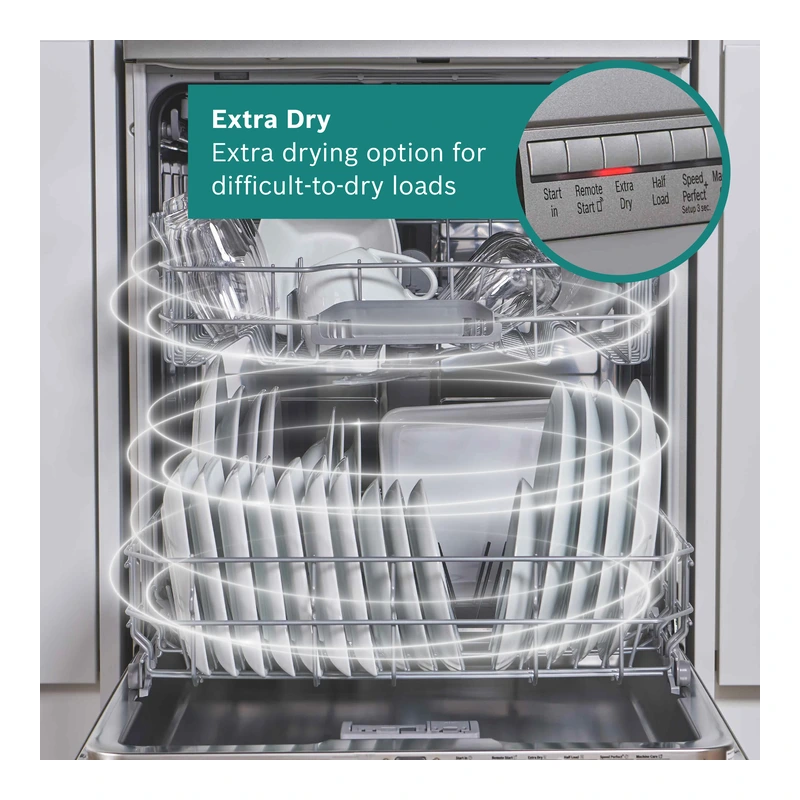

Special options	Remote Start; Extra Dry; Half Load; SpeedPerfect+
Additional functions via app	Hygiene+; Silence on Demand

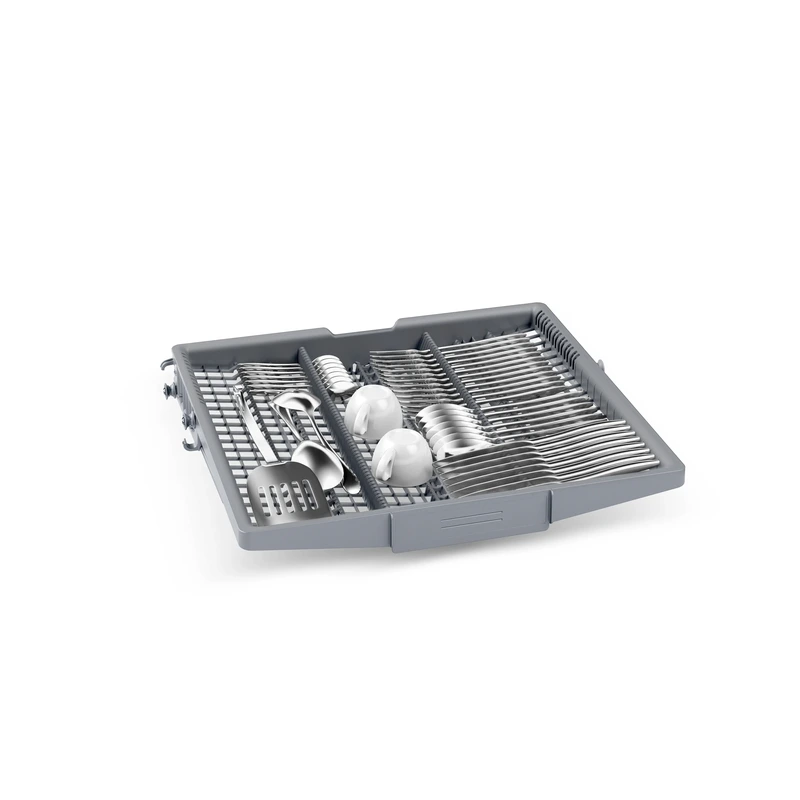

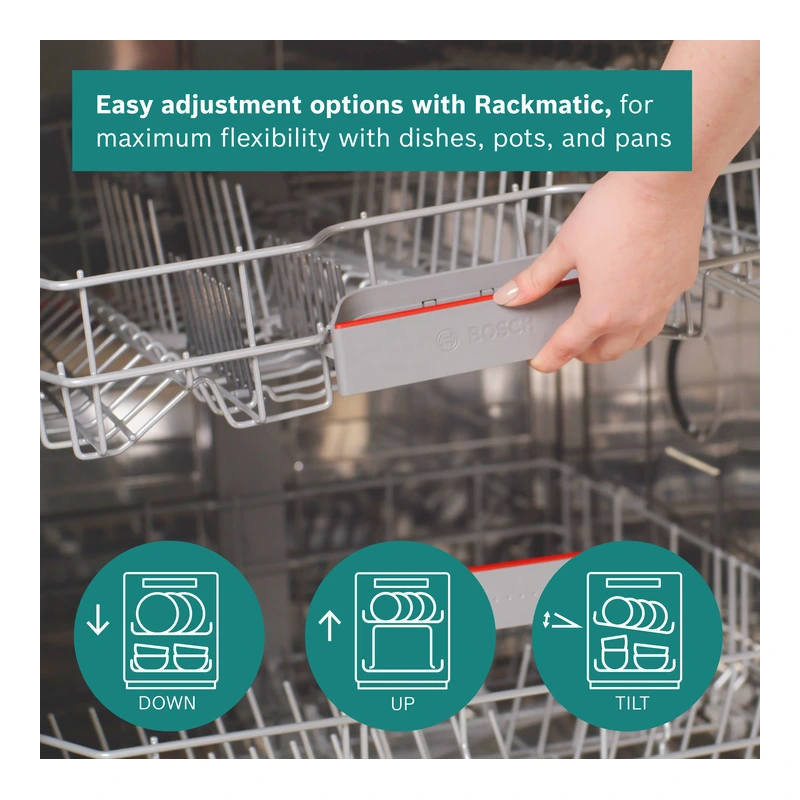

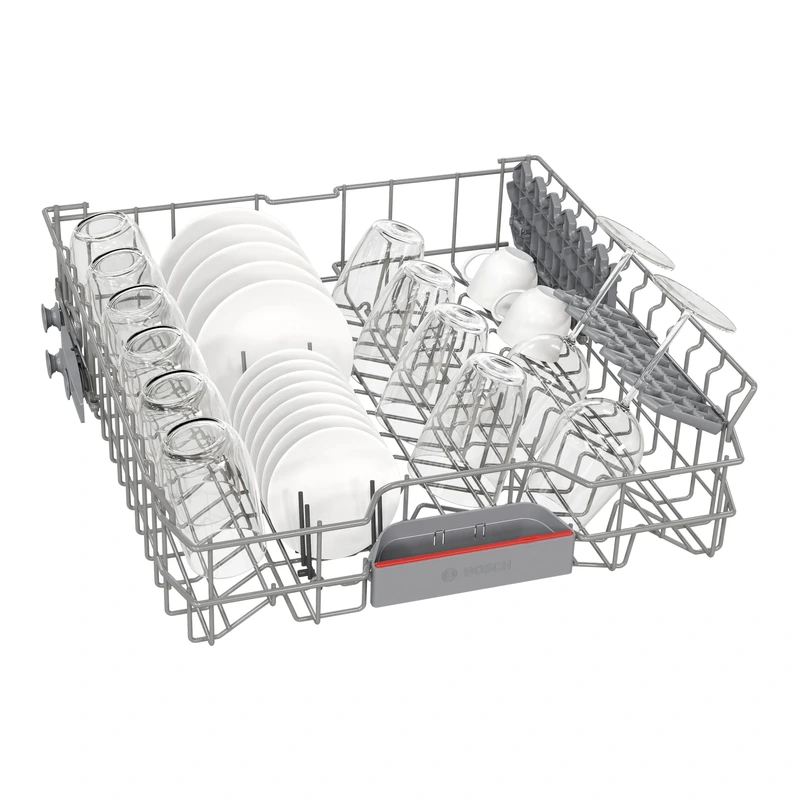

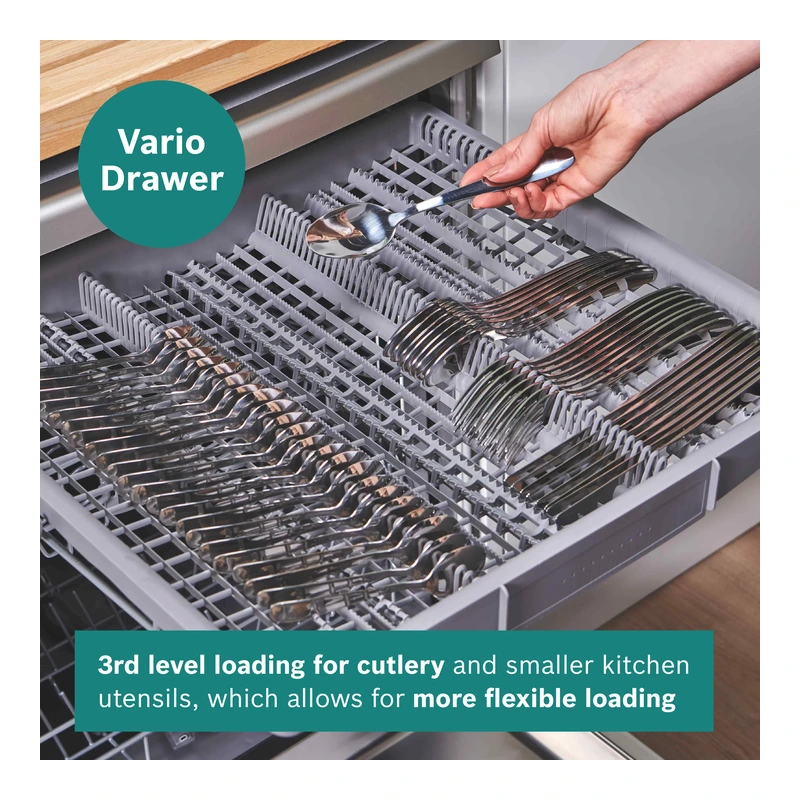

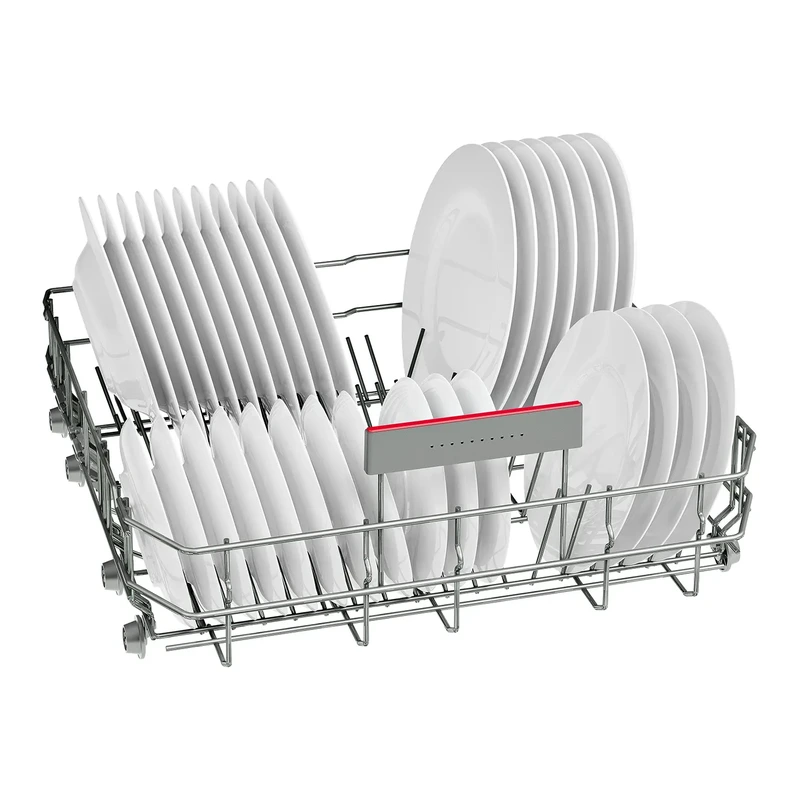

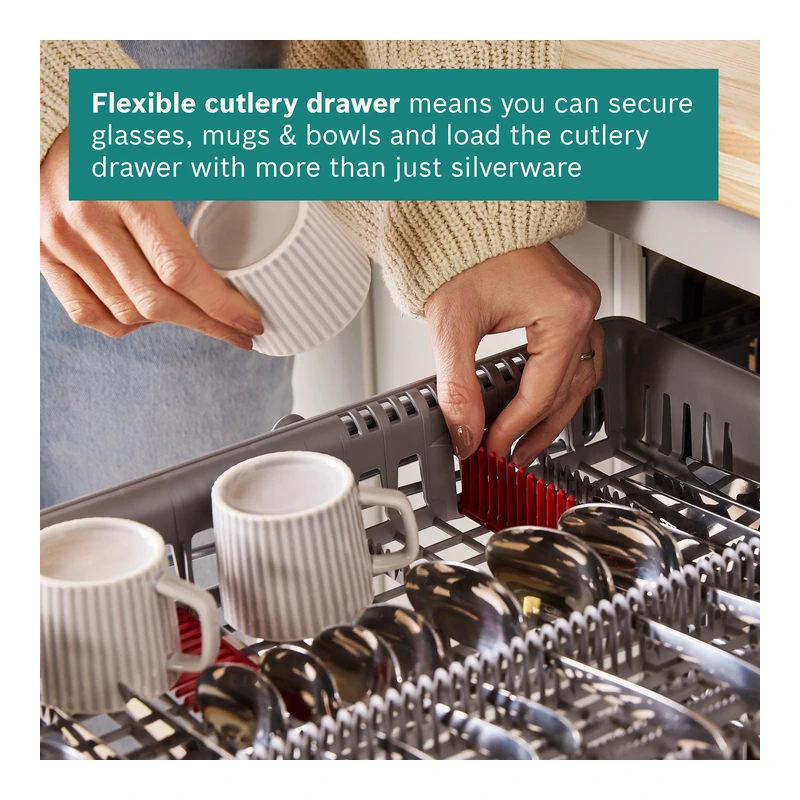

Basket system	Vario Flex baskets; VarioDrawer; 3 stage Rackmatic height–adjustable top basket; low friction wheels on bottom basket; Rack Stopper; 2 foldable plate racks in top basket; 4 foldable plate racks in bottom basket; upper rack cup shelf

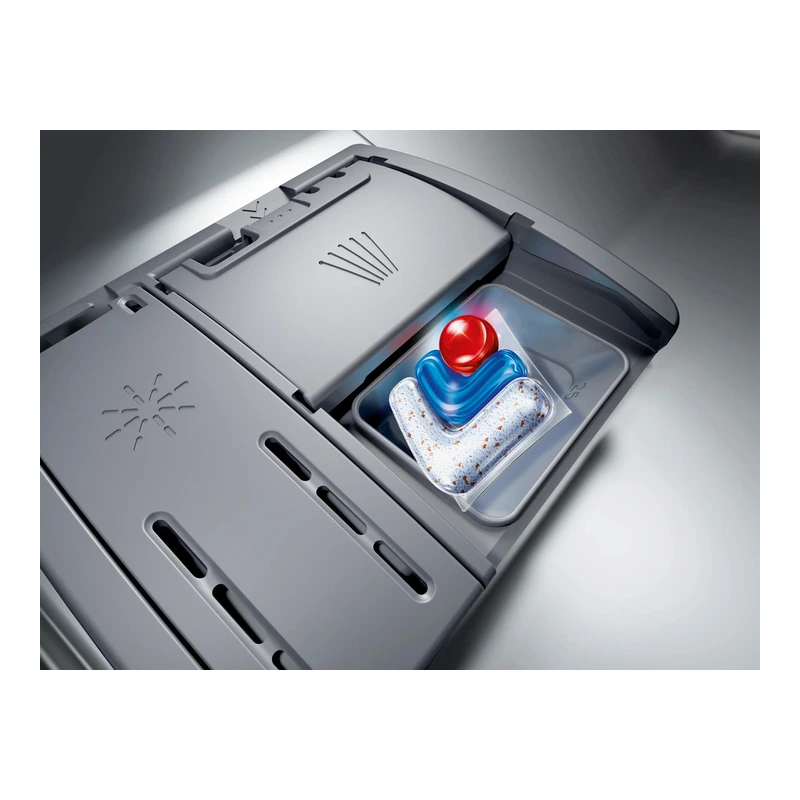

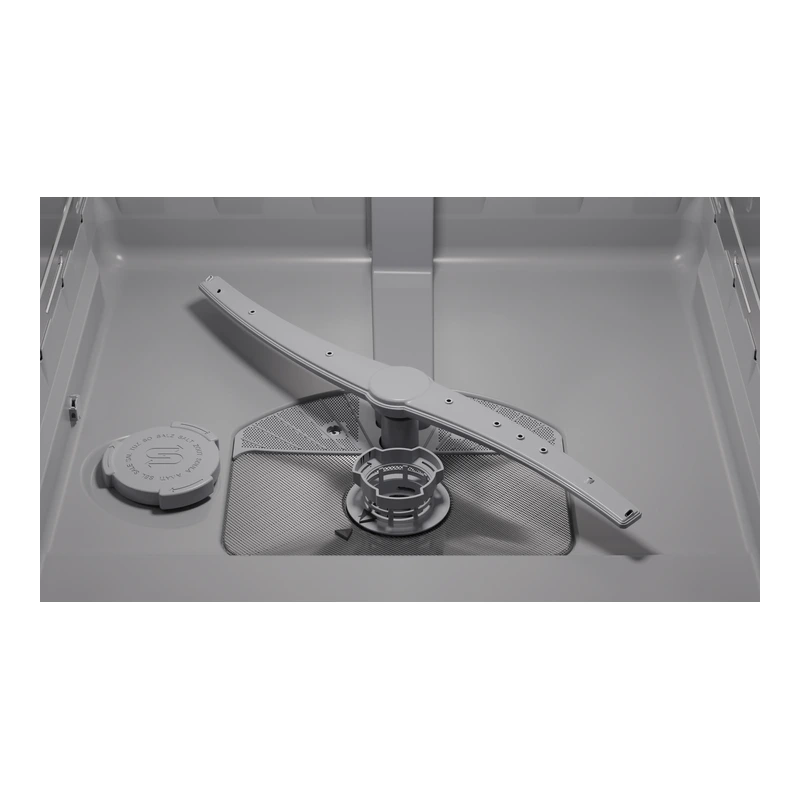

Innovations & technology	Heat exchanger; AquaSensor III; DosageAssist detergent dispenser; EcoSilence BLDC drive; self–cleaning filter system with 3 piece corrugated filter; stainless steel/Polinox interior

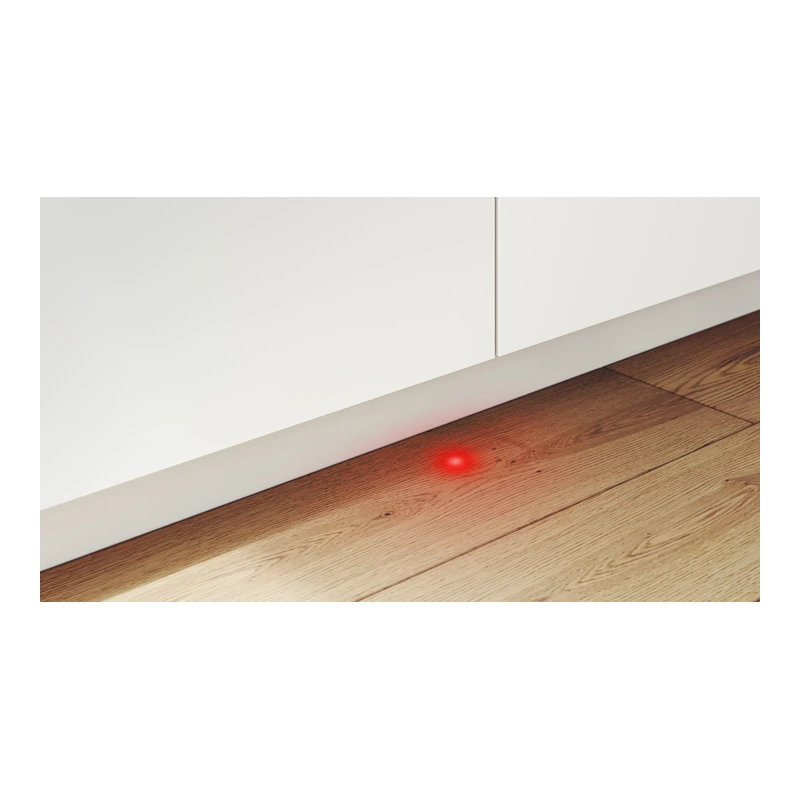

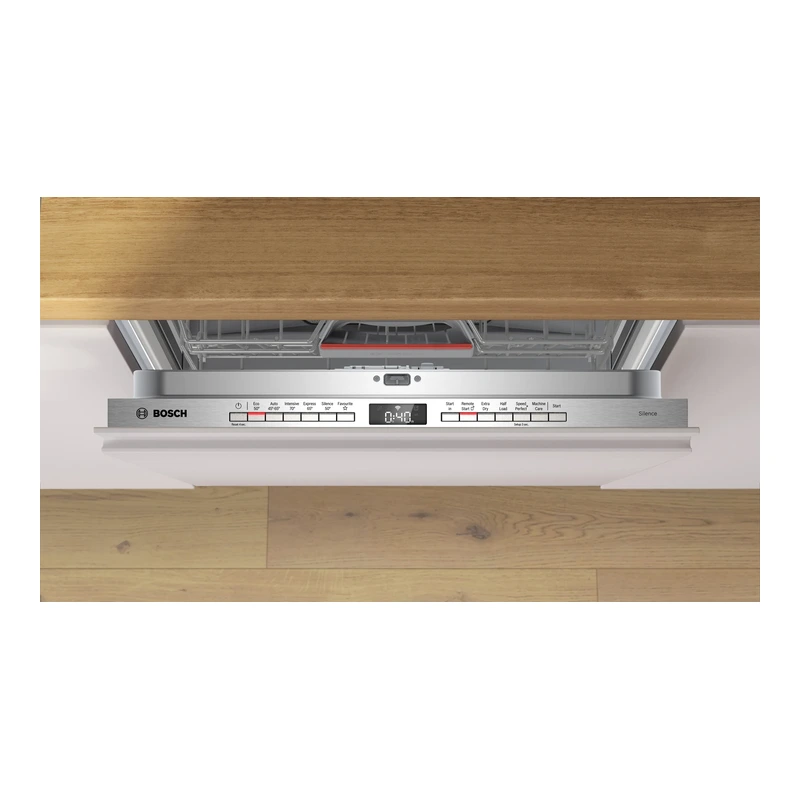

Design features	Home Connect ready on WLAN; push button top edge controls; InfoLight (red); acoustic end of cycle indicator; time remaining indicator (min); water inlet indicator; time delay 3, 6 or 24 hours; English GB display
Flexible design elements	AquaStop; VarioHinge 50 mm; AquaMix glass protection system; steam protection for worktop
Dimensions (H x W x D)	86.5 x 59.8 x 55 cm

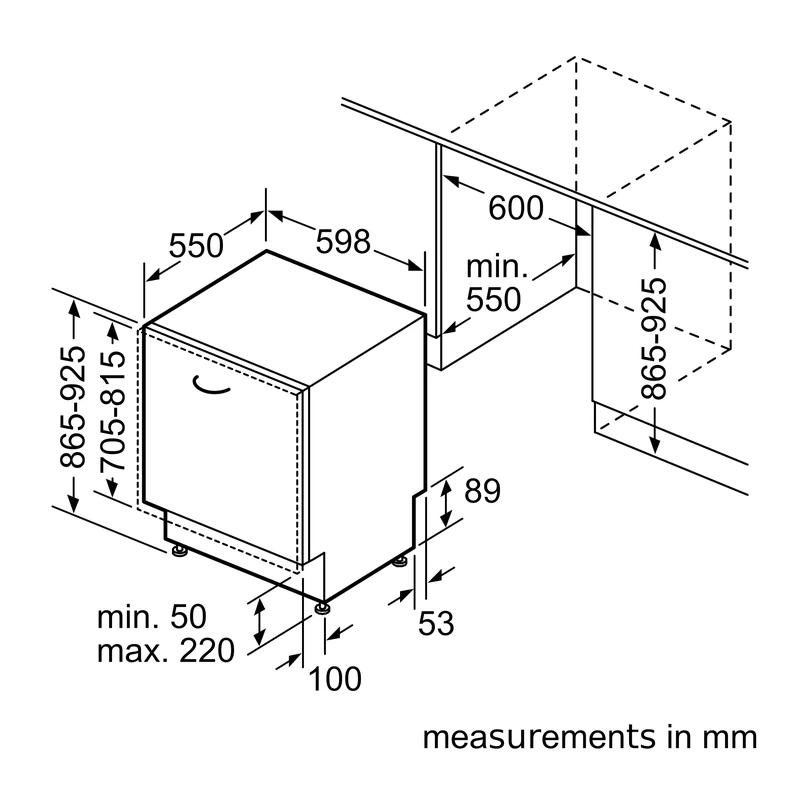

Required niche size (H x W x D)	865–925 x 600 x 550 mm
Depth with door open 90°	1200 mm
Adjustable feet	Yes – all from front; maximum adjustability 60 mm
Adjustable plinth	Both horizontal and vertical
Net / gross weight	35.3 kg / 37.1 kg
Connection rating	2400 W
Fuse protection	10 A
Voltage / frequency	220–240 V; 50; 60 Hz

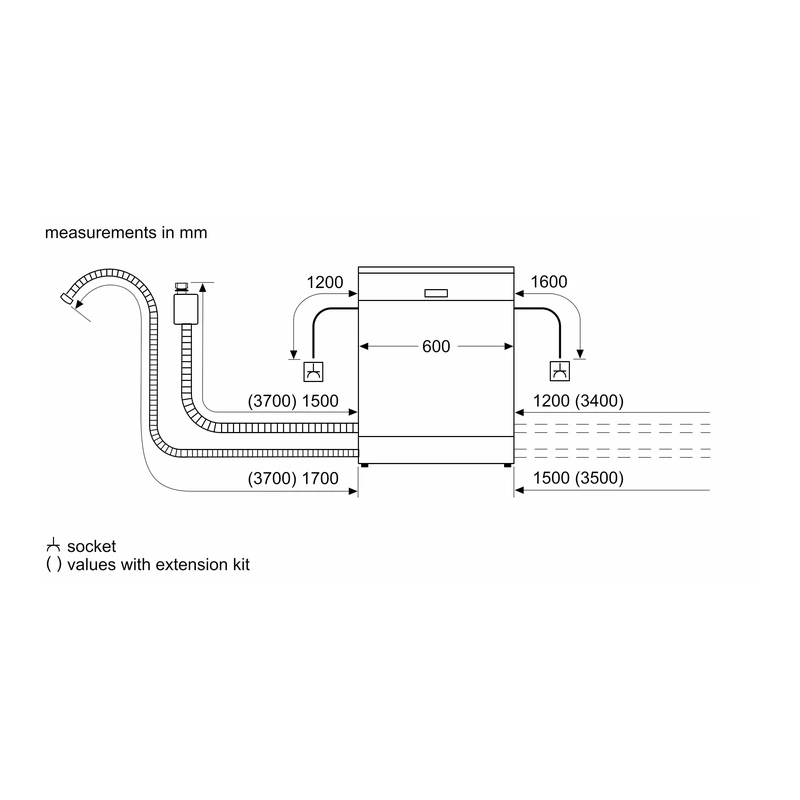

Electrical supply cord length	175 cm
Inlet hose length	165 cm
Outlet hose length	190 cm
Plug type	GB plug
EAN code	4242005535361
Optional accessories	SGZ0CL01 door lock mechanical, straight; SGZ1010 inlet and outlet hose extension; SGZ8BI00 connection rail for divided furniture; SMZ5100 Vario–cutlery basket; SMZ5300 GlassSecure Tray
