Bosch SMH4HVX14G Series 4 Dishwasher

SKU: SMH4HVX14G · EAN: 4242005566174

Fully Integrated Vario Hinge

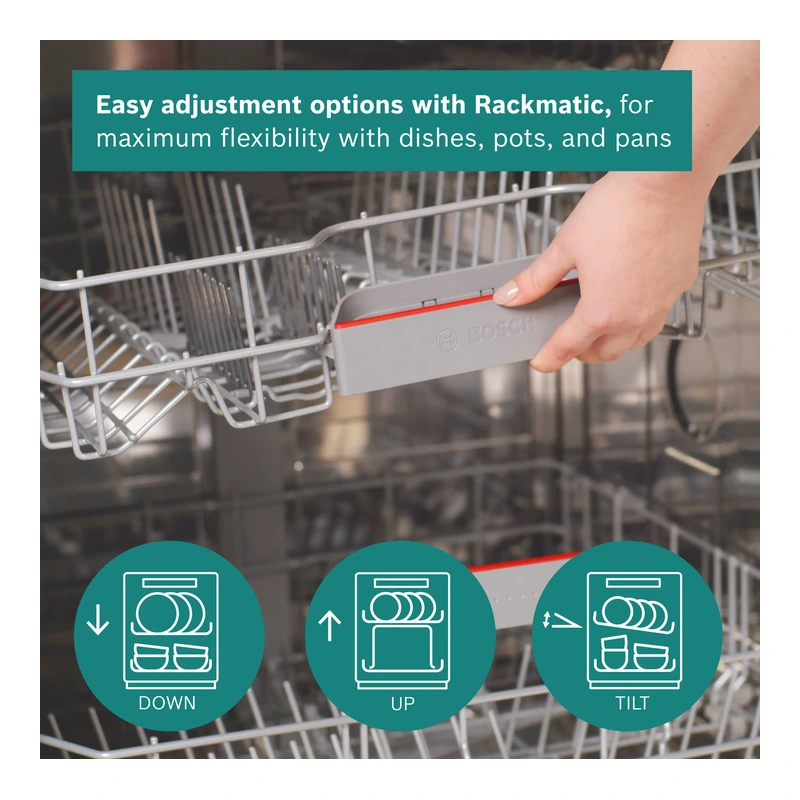

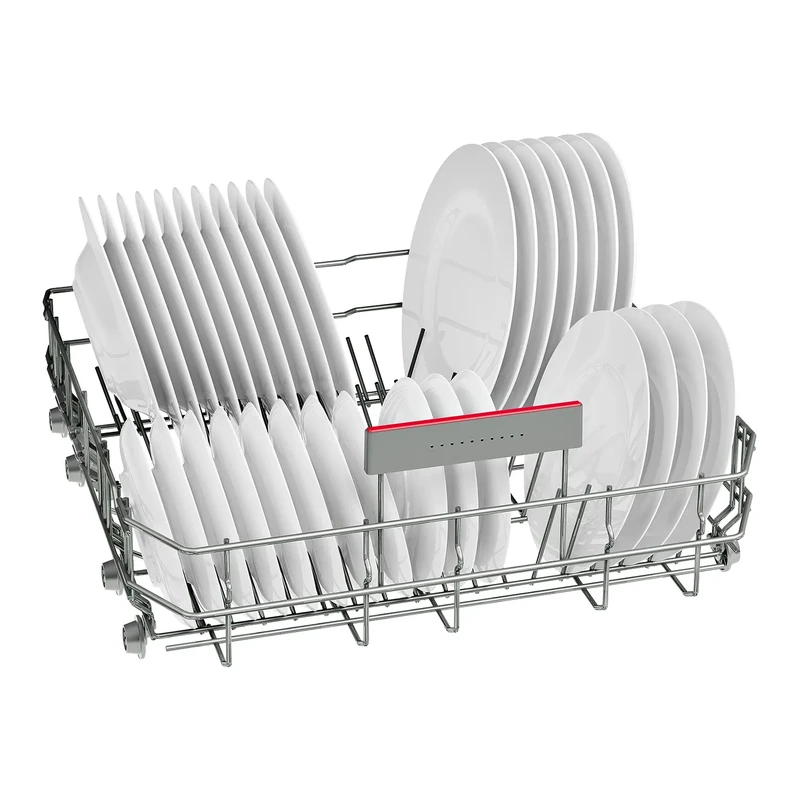

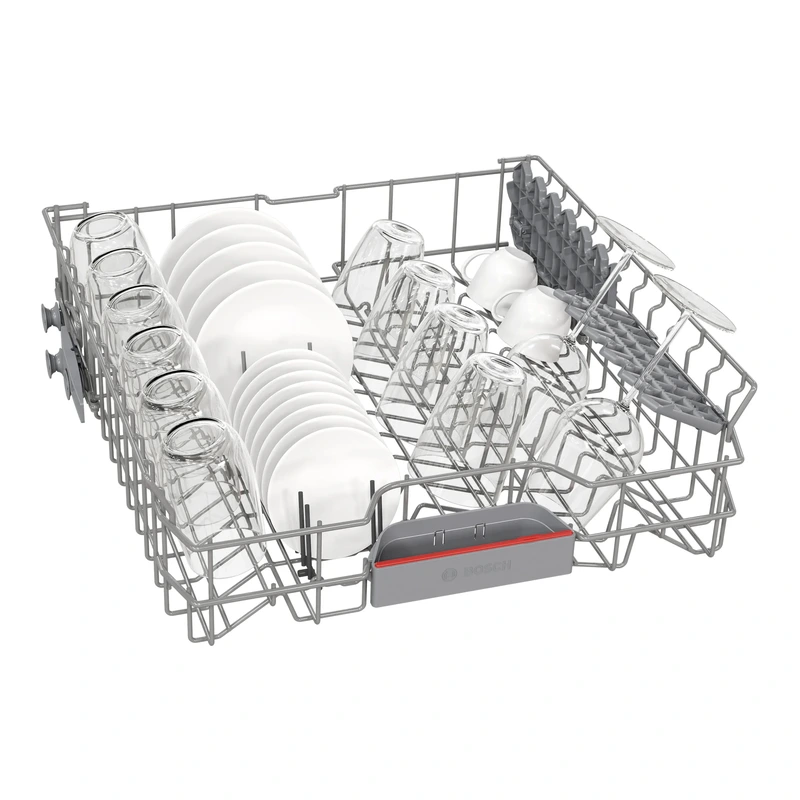

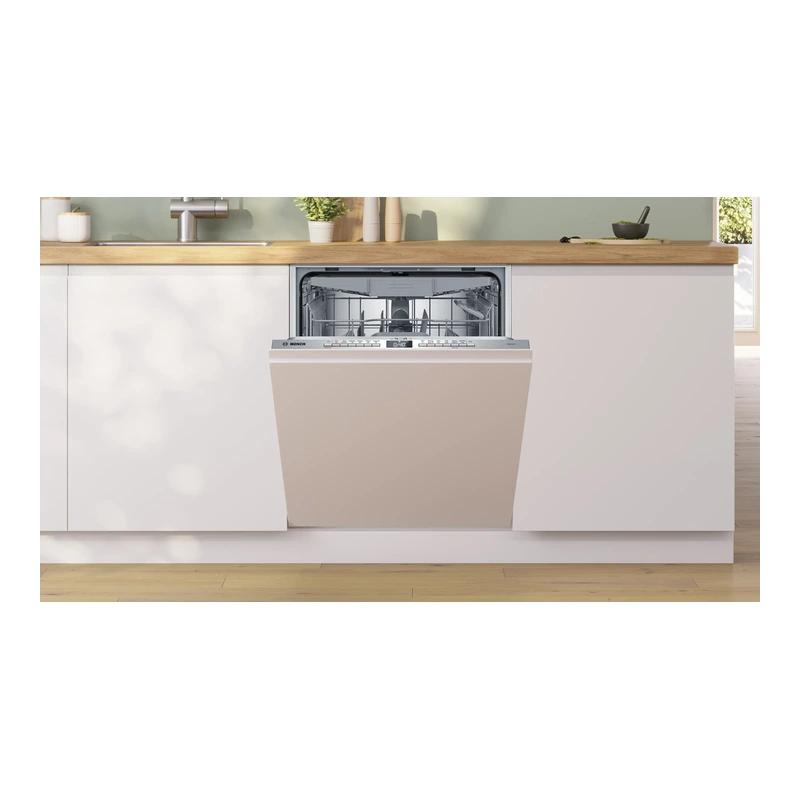

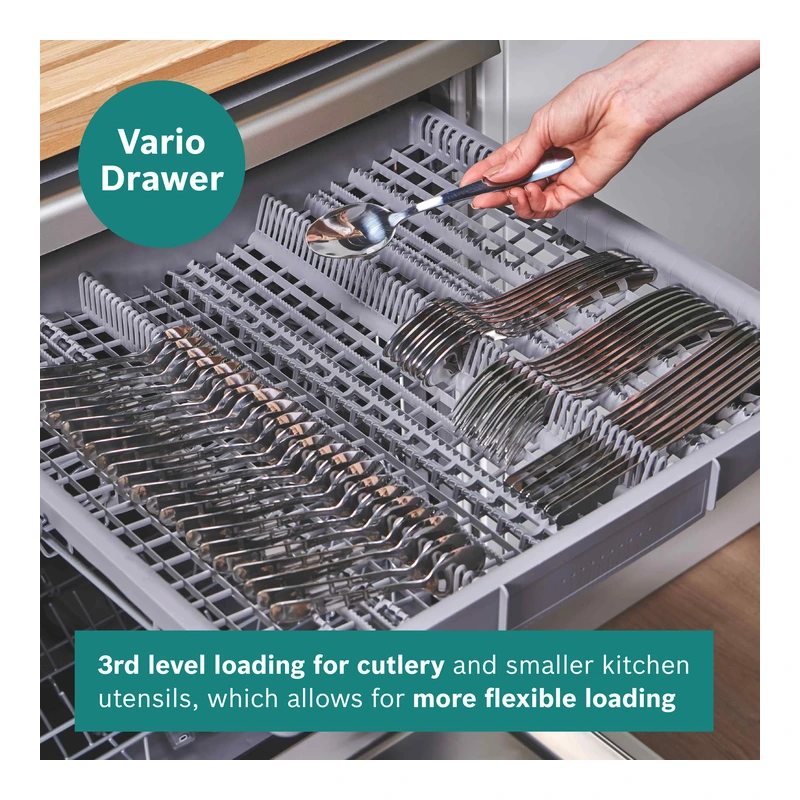

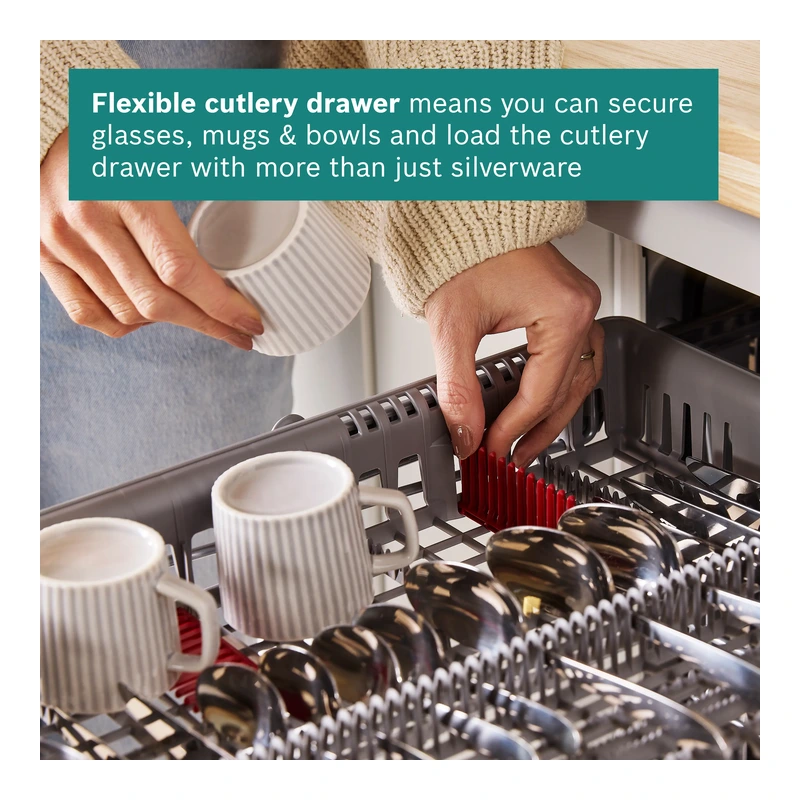

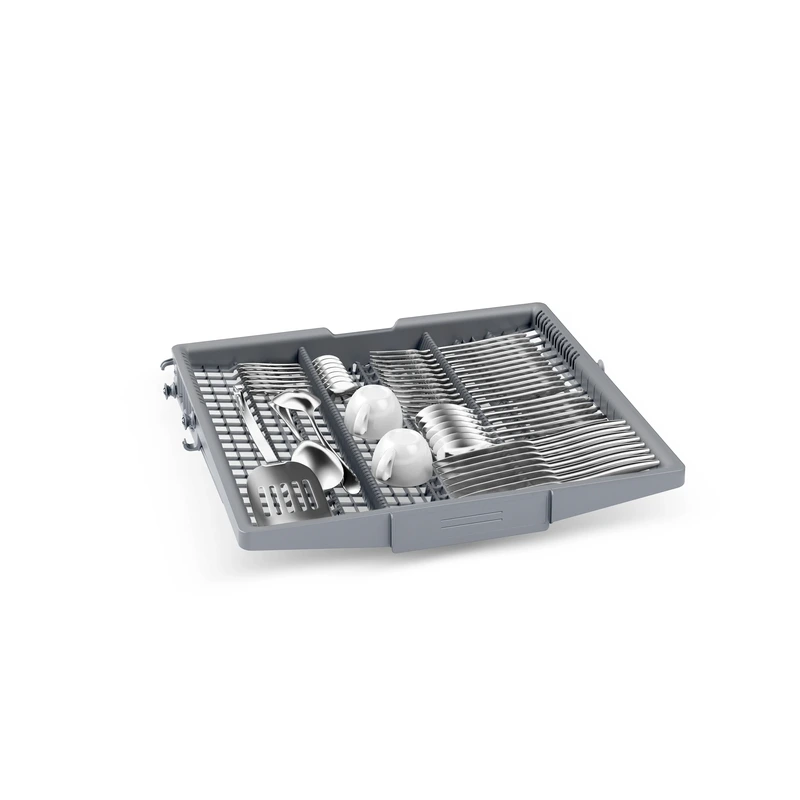

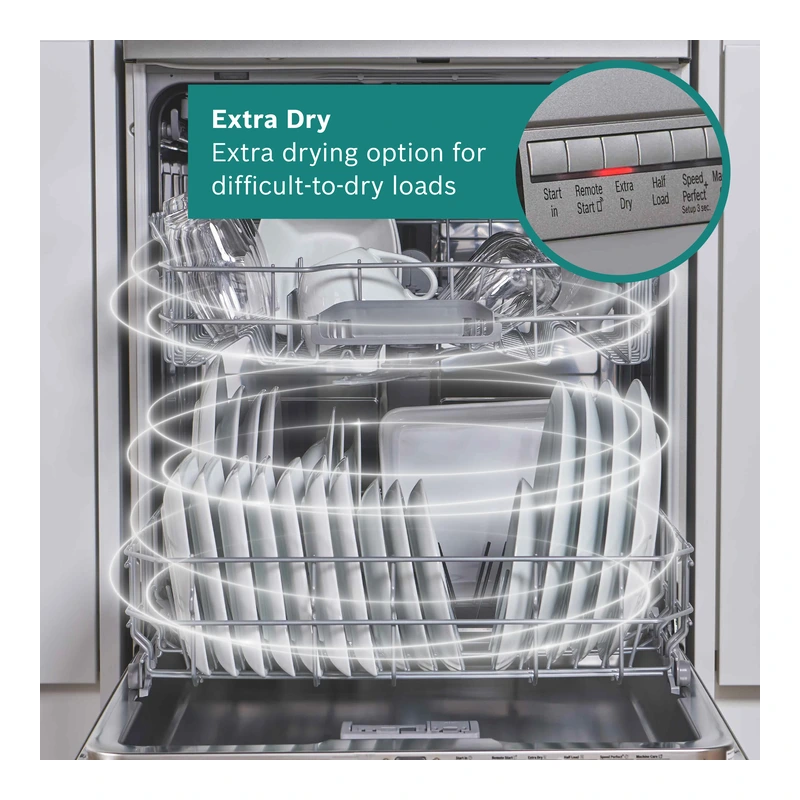

The Bosch SMH4HVX14G is a 60 cm Series 4 fully–integrated dishwasher with VarioHinge, designed for installations with low plinth heights and high built–in situations. It offers capacity for 14 place settings, flexible VarioFlex baskets and a VarioDrawer for cutlery on the 3rd level. With Home Connect app control, multiple programmes, Extra Dry and SpeedPerfect+ options, it supports convenient, efficient dishwashing and smart remote operation.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name / model	SMH4HVX14G Series 4 fully–integrated dishwasher, 60 cm, Variable hinge
Installation typology	Integrated, built–in
Energy Efficiency Class	C (scale A to G)
Energy consumption (Eco)	75 kWh per 100 cycles (programme Eco 50 °C)
Water consumption (Eco)	9.0 litres per cycle (programme Eco 50 °C)
Programme duration (Eco)	4:55 h (programme Eco 50 °C)
Capacity	14 place settings
Noise level	46 dB(A) re 1 pW; Noise Efficiency Class C
Noise level (silence programme)	45 dB(A) re 1 pW

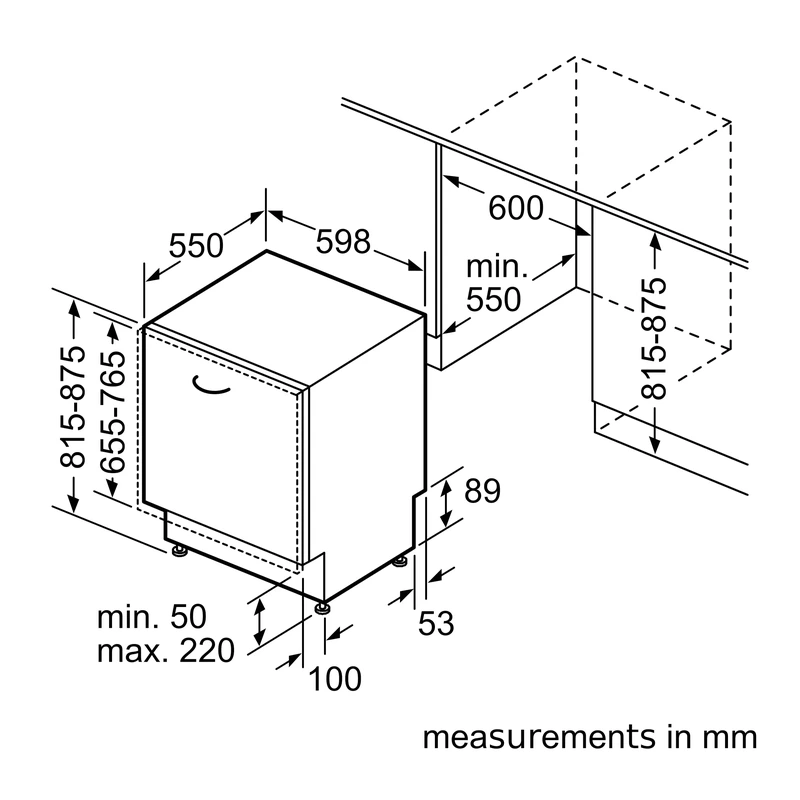

Dimensions (HxWxD)	81.5 x 59.8 x 55 cm
Required niche size (HxWxD)	815–875 x 600 x 550 mm
Depth with door open 90°	1150 mm
Adjustable feet	Yes – all from front; maximum adjustability 60 mm
Adjustable plinth	Both horizontal and vertical
Net / gross weight	34.4 kg / 36.2 kg
Connection rating	2400 W
Fuse protection	10 A
Voltage / frequency	220–240 V; 50; 60 Hz

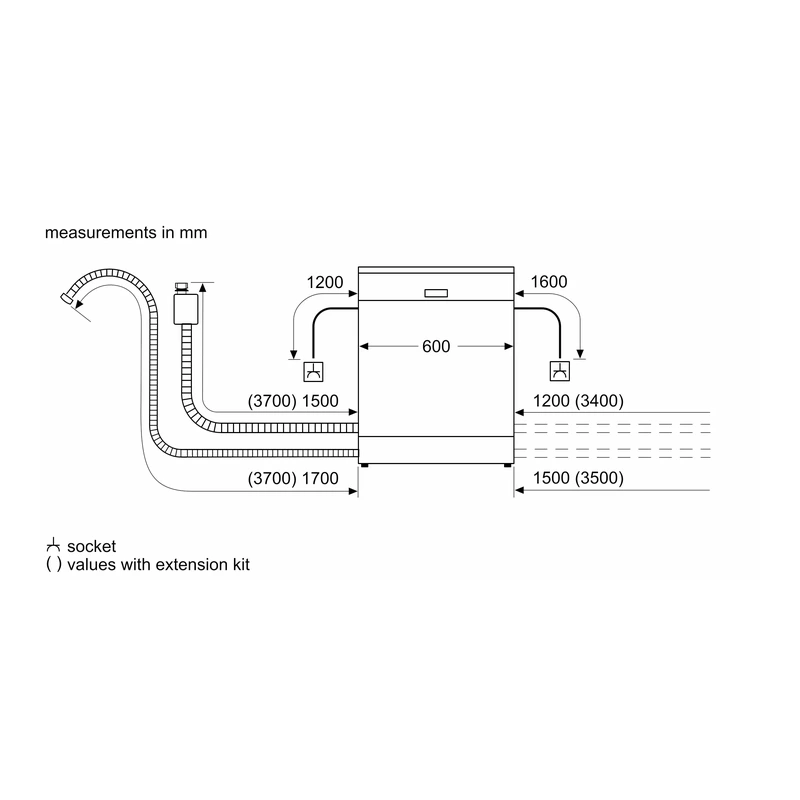

Electrical supply cord length	175 cm
Inlet / outlet hose length	Inlet hose 165 cm; outlet hose 190 cm
Plug type	GB plug
Interior material	Stainless steel/Polinox interior

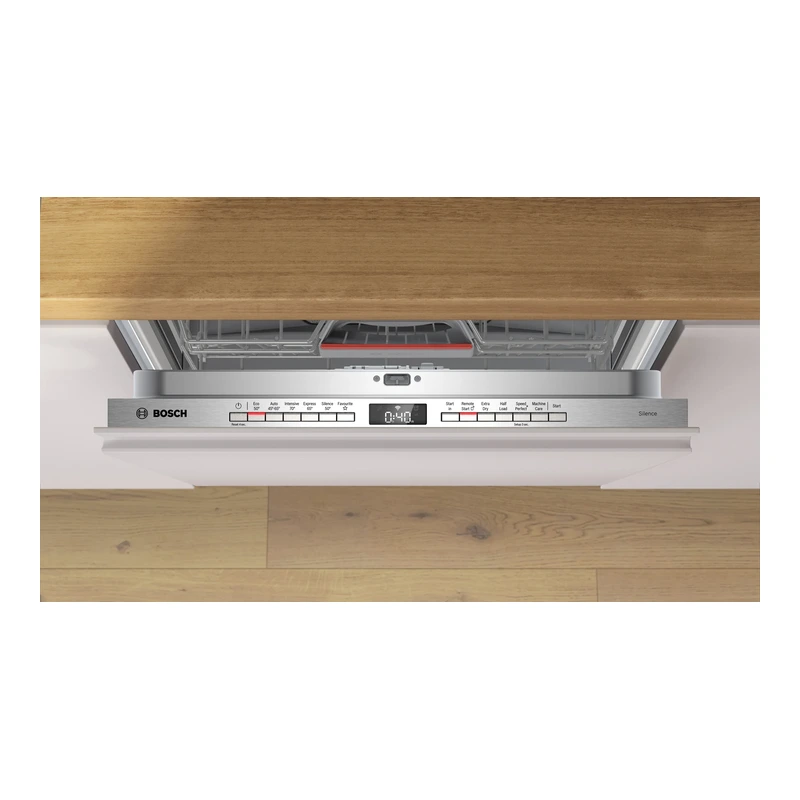

Control type	Push button top edge controls; English GB
Wi–Fi / connectivity	Home Connect ready on WLAN
EAN code	4242005566174
