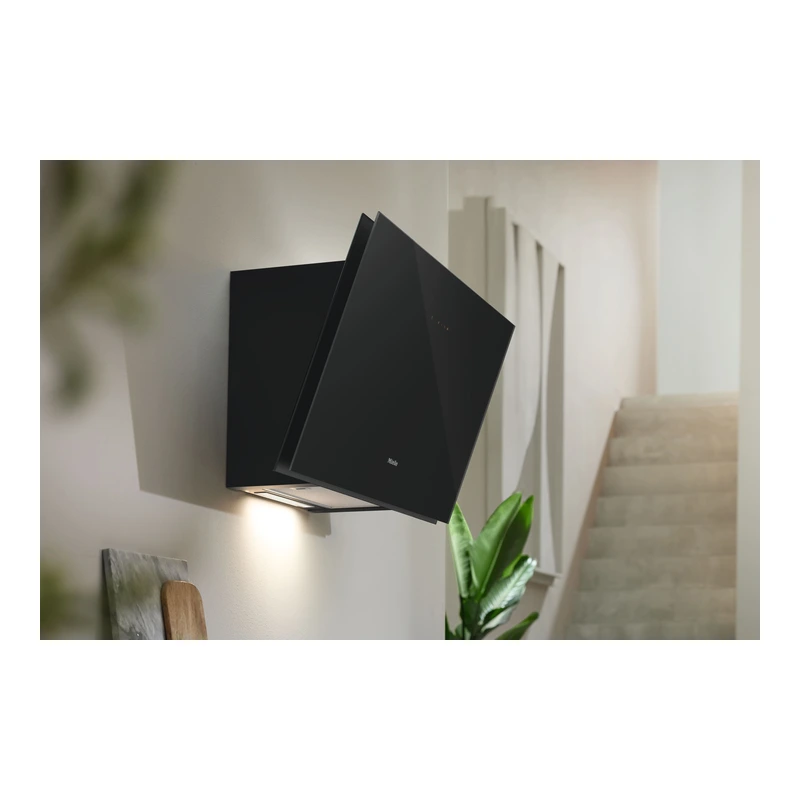

| Product name | DAH 2960 Escala wall mounted cooker hood |
|---|
| Colour | Obsidian black |
|---|
| Material number | 12545640 |
|---|
| EAN | 4002516801504 |
|---|
| Old material number | 28H2960BGB |
|---|
| Construction type | Wall mounted cooker hood |
|---|
| Operating modes | Suitable for extraction or recirculation; type of air guide can be retrofitted; active charcoal filter DKF 29 (order separately) |
|---|
| Canopy width | 898 mm |
|---|
| Canopy height | 443 mm |
|---|
| Canopy depth | 388 mm |
|---|
| Overall hood height (extraction mode and external) | 830–1210 mm |
|---|
| Overall height for vented and external in. (mm) | 830 mm |
|---|
| Overall height for extraction mode and external mode cooker hoods | 1210 mm |
|---|
| Overall height for recirculation mode cooker hoods | 443 mm (also stated as overall height for recirculation in in. (mm) 443) |
|---|
| Net weight | 18.0 kg |
|---|

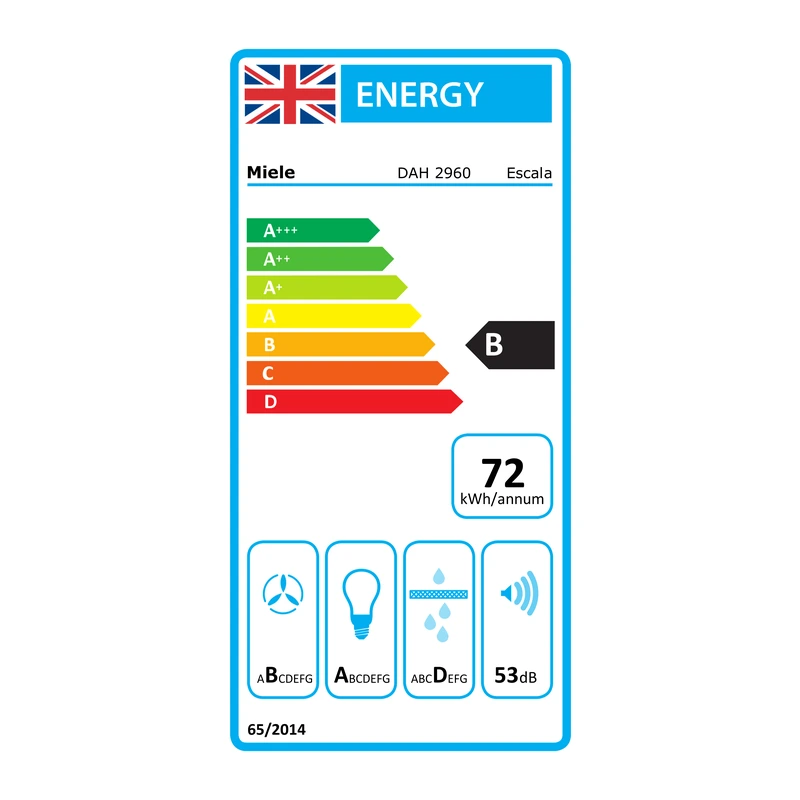

| Energy efficiency class (A+++ – D) | B |
|---|
| Annual energy consumption | 72.3 kWh/year |
|---|
| Fluid dynamic efficiency class | B |
|---|
| Lighting efficiency class | A |
|---|
| Grease filtering efficiency class | D |
|---|
| Motor type | AC motor |
|---|
| Fan | Dual-action blower |
|---|
| Controls | Electronic controls; touch-on-glass controls; ComfortControl; ON/OFF switch |
|---|

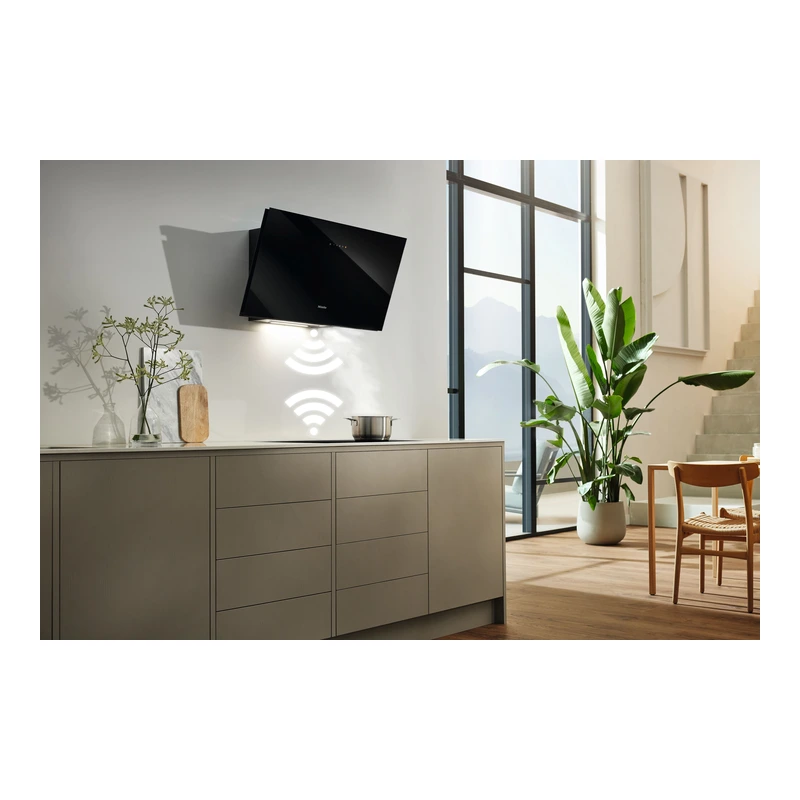

| Automatic function | Con@ctivity |
|---|
| Miele@home | Yes |
|---|
| Power levels | 3 power levels (number without Booster level) plus 1 Booster level |
|---|
| Filter system | 2 dishwasher-safe stainless steel grease filters (10‑ply) |
|---|
| Lighting | 1 x 3.2 W; light intensity 300 lx; colour temperature 3500 Kelvin |
|---|
| Air throughput (exhaust – Level 1) | 215 m³/h (according to EN 61591) |
|---|
| Air throughput (exhaust – Level 2) | 315 m³/h (according to EN 61591) |
|---|
| Air throughput (exhaust – Level 3) | 415 m³/h (according to EN 61591) |
|---|
| Air throughput (exhaust – Booster level 1) | 675 m³/h (according to EN 61591) |
|---|
| Sound power (exhaust – Level 1) | 41.0 dB(A) re 1 pW (EN 60704-3) |
|---|
| Sound power (exhaust – Level 2) | 47.0 dB(A) re 1 pW (EN 60704-3) |
|---|
| Sound power (exhaust – Level 3) | 53.0 dB(A) re 1 pW (EN 60704-3) |
|---|
| Sound power (exhaust – Booster level 1) | 65.0 dB(A) re 1 pW (EN 60704-3) |
|---|
| Sound pressure (exhaust – Level 1) | 27.0 dB(A) re 20 µPa (EN 60704-2-13) |
|---|
| Sound pressure (exhaust – Level 2) | 33.0 dB(A) re 20 µPa (EN 60704-2-13) |
|---|
| Sound pressure (exhaust – Level 3) | 39.0 dB(A) re 20 µPa (EN 60704-2-13) |
|---|
| Sound pressure (exhaust – Booster level 1) | 51.0 dB(A) re 20 µPa (EN 60704-2-13) |
|---|
| Air throughput (recirculation – Level 1) | 190 m³/h (according to EN 61591) |
|---|
| Air throughput (recirculation – Level 2) | 280 m³/h (according to EN 61591) |
|---|
| Air throughput (recirculation – Level 3) | 380 m³/h (according to EN 61591) |
|---|
| Air throughput (recirculation – Booster level 1) | 575 m³/h (according to EN 61591) |
|---|
| Sound power (recirculation – Level 1) | 47.0 dB(A) re 1 pW (EN 60704-3) |
|---|
| Sound power (recirculation – Level 2) | 54.0 dB(A) re 1 pW (EN 60704-3) |
|---|
| Sound power (recirculation – Level 3) | 60.0 dB(A) re 1 pW (EN 60704-3) |
|---|
| Sound power (recirculation – Booster level 1) | 71.0 dB(A) re 1 pW (EN 60704-3) |
|---|
| Sound pressure (recirculation – Level 1) | 33.0 dB(A) re 20 µPa (EN 60704-2-13) |
|---|
| Sound pressure (recirculation – Level 2) | 40.0 dB(A) re 20 µPa (EN 60704-2-13) |
|---|
| Sound pressure (recirculation – Level 3) | 46.0 dB(A) re 20 µPa (EN 60704-2-13) |
|---|
| Sound pressure (recirculation – Booster level 1) | 57.0 dB(A) re 20 µPa (EN 60704-2-13) |
|---|
| Safety features | Safety switch-off; single-ply safety glass (ESG) |
|---|
| Minimum height above electric hobs | 450 mm |
|---|
| Minimum safety distance above gas hobs | 650 mm (max. 12.6 kW total power, burner ≤ 4.5 kW) |
|---|
| Number of phases | 1 |
|---|
| Total rated load | 0.20 kW |
|---|
| Voltage | 230 V |
|---|
| Fuse rating | 10 A |
|---|
| Frequency | 50 Hz |
|---|
| Length of supply lead | 1.3 m |
|---|
| Power connection | Standard plug fitted |
|---|
| Extraction ducting connection | At top; at rear |
|---|
| Diameter of exhaust duct | 150 mm |
|---|
| Accessories included | Non-return flap |
|---|
| Cleaning feature | Easy-to-clean canopy interior – CleanCover |
|---|
