What type of cooker hood is the DAH 4970 Sienna?

The DAH 4970 Sienna is a wall mounted cooker hood with edge extraction and a design panel in a special concrete look surface.

How many power levels does this cooker hood have?

It has three standard power levels plus two Booster levels, all controlled via electronic touch-on-glass SmartControl.

Can it be used in recirculation mode?

Yes. It can operate in recirculation mode with an air outlet for recirculated air. For this mode, the active charcoal filter DKF 29 is required and must be ordered separately.

What is the energy efficiency class?

The cooker hood has an energy efficiency class of A++ with an annual energy consumption of 28.2 kWh/year.

How loud is the hood during operation?

In extraction mode at Level 3, the sound power level is 50.0 dB(A) re 1 pW according to EN 60704-3. At Level 1 it is 38.0 dB(A), and Booster levels reach 61.0 dB(A) and 68.0 dB(A).

What are the minimum installation heights above hobs?

The minimum height above electric hobs is 450 mm. Above gas hobs, the minimum distance is 650 mm for a maximum total power of 12.6 kW and burner output of ≤ 4.5 kW.

Product Information Sheet

Miele DAH4970 Sienna Angled Chimney Hood

SKU: DAH4970SIENNACO

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Miele DAH4970 Sienna Angled Chimney Hood

SKU: DAH4970SIENNACO · EAN: 4002516802914

Sienna Concrete

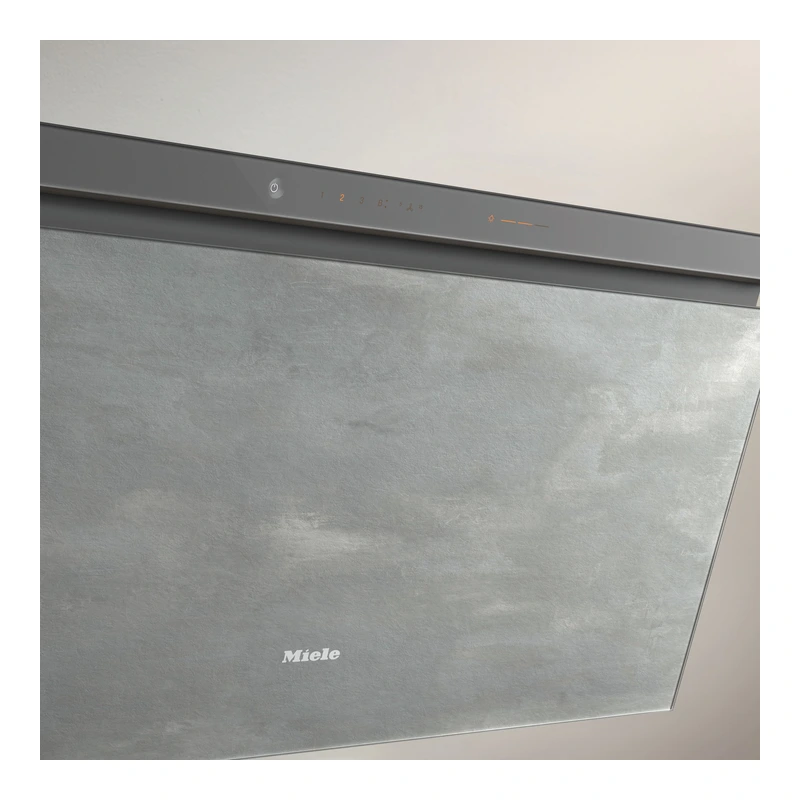

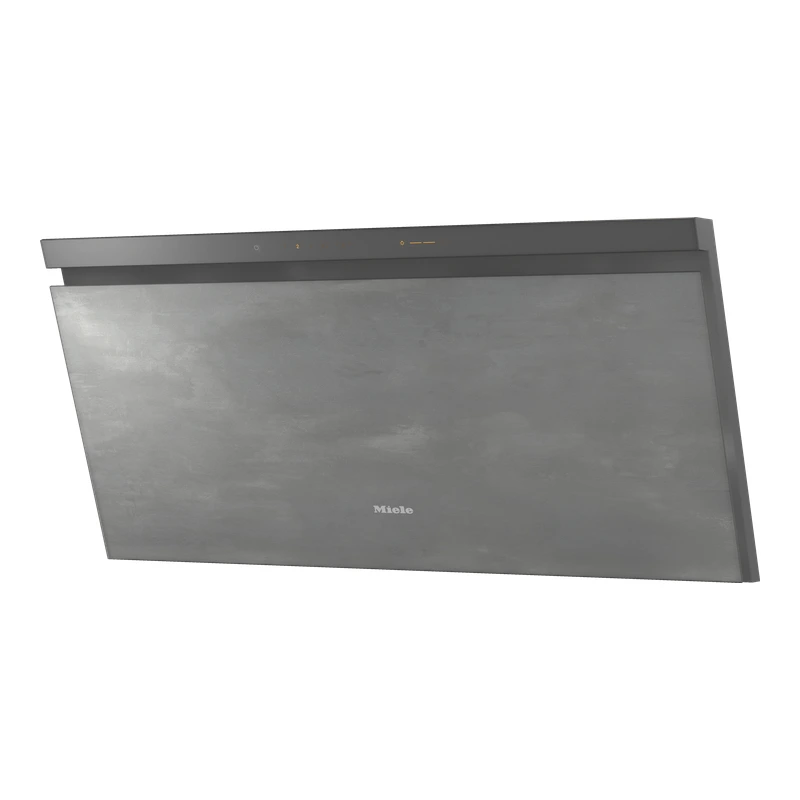

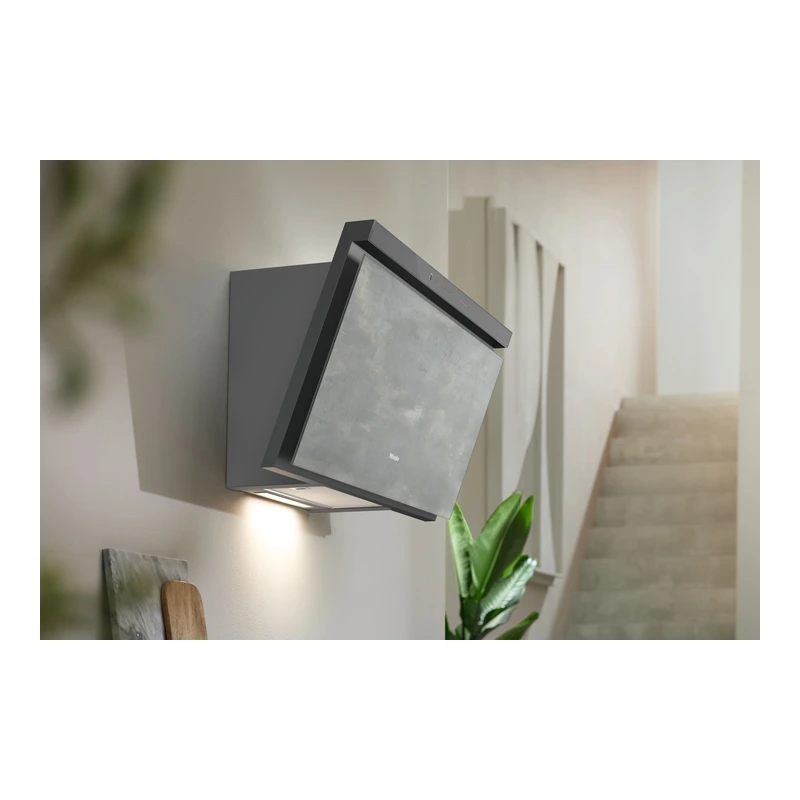

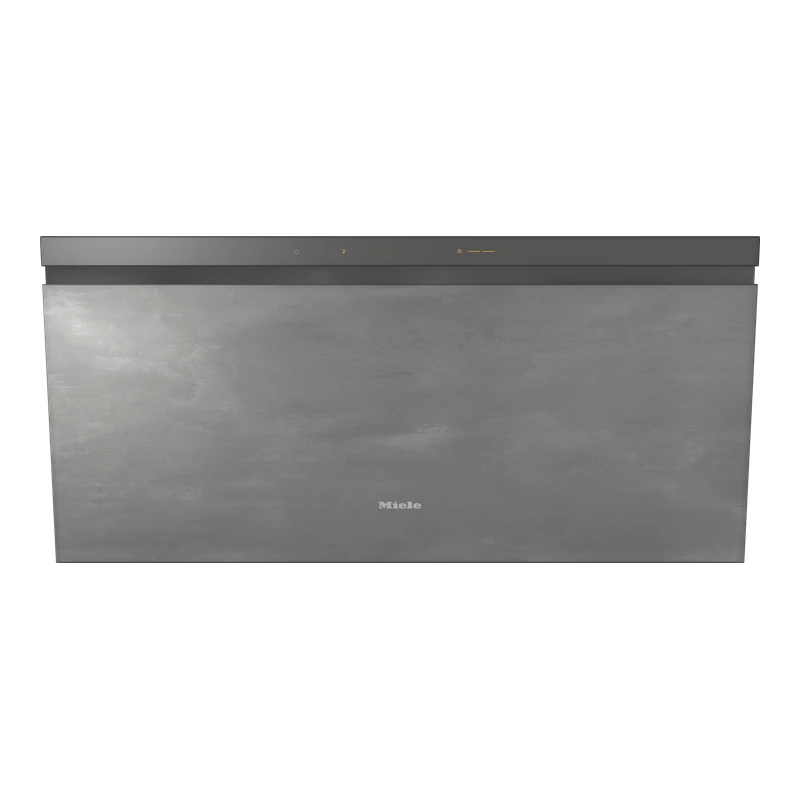

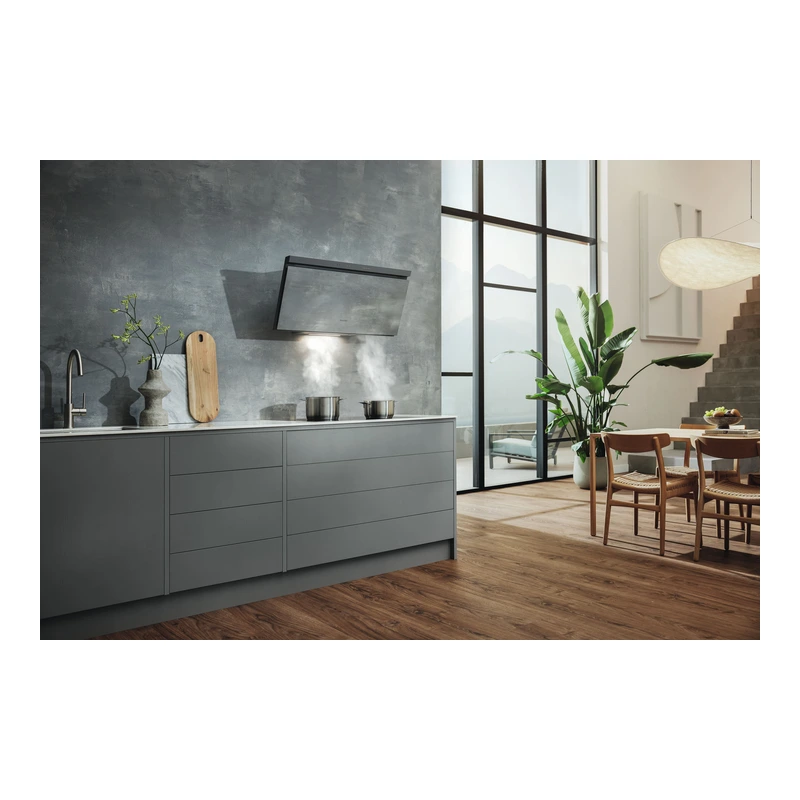

The DAH 4970 Sienna is a wall mounted cooker hood with a distinctive concrete look design panel and edge extraction. It is designed for quiet operation with an ECO motor and Silence package, offering three power levels plus two Booster levels. User convenience features include SmartControl touch-on-glass controls, Con@ctivity and Miele@home connectivity. Efficient stainless steel grease filters, easy-to-clean canopy interior and flexible extraction or recirculation options support modern kitchen use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	DAH 4970 Sienna
Product type	Wall mounted cooker hood
Material number	12545670
EAN number	4002516802914
Old material number	28H4970CGB
Colour	Concrete look
Edge extraction	Yes
Type of air guide	Can be retrofitted
Active charcoal filter	DKF 29 (order separately)
Miele@home	Yes
Automatic function	Con@ctivity
Electronic controls	Yes
Control type	Touch-on-glass SmartControl
ON/OFF switch	Yes
Power levels (without Booster)	3
Booster levels	2
Run-on time	5/15 min.
Grease filter saturation indicator	Yes
Active charcoal filter saturation indicator	Yes
Silence package	Yes

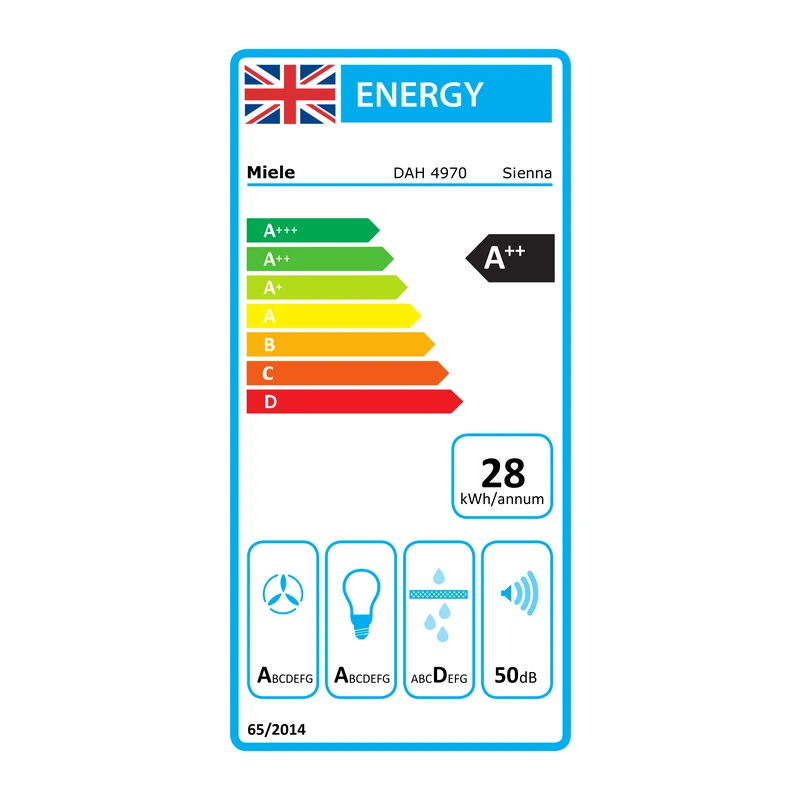

Energy efficiency class (A+++ – D)	A++
ECO motor / DC motor	ECO motor, ECO motor (DC motor)
PowerManagement system	Yes
Annual energy consumption	28.2 kWh/year
Fluid dynamic efficiency class	A
Lighting efficiency class	A
Grease filtering efficiency class	D
Easy-to-clean canopy interior (CleanCover)	Yes
Number of stainless steel grease filters	2 (dishwasher-safe, 10-ply)
Lighting	1 × 3.2 W
Light intensity	260 lx
Colour temperature	3500 Kelvin
Dimmer function	Yes
Fan type	Dual-action blower
Extraction air throughput Level 1	215 m³/h (EN 61591)
Extraction air throughput Level 2	315 m³/h (EN 61591)
Extraction air throughput Level 3	415 m³/h (EN 61591)
Extraction Booster level 1	660 m³/h (EN 61591)
Extraction Booster level 2	875 m³/h (EN 61591)
Extraction sound power Level 1	38.0 dB(A) re 1 pW (EN 60704-3)
Extraction sound power Level 2	45.0 dB(A) re 1 pW (EN 60704-3)
Extraction sound power Level 3	50.0 dB(A) re 1 pW (EN 60704-3)
Extraction sound power Booster 1	61.0 dB(A) re 1 pW (EN 60704-3)
Extraction sound power Booster 2	68.0 dB(A) re 1 pW (EN 60704-3)
Extraction sound pressure Level 1	24.0 dB(A) re 20 µPa (EN 60704-2-13)
Extraction sound pressure Level 2	31.0 dB(A) re 20 µPa (EN 60704-2-13)
Extraction sound pressure Level 3	36.0 dB(A) re 20 µPa (EN 60704-2-13)
Extraction sound pressure Booster 1	47.0 dB(A) re 20 µPa (EN 60704-2-13)
Extraction sound pressure Booster 2	54.0 dB(A) re 20 µPa (EN 60704-2-13)
Recirculation air throughput Level 1	175 m³/h (EN 61591)
Recirculation air throughput Level 2	275 m³/h (EN 61591)
Recirculation air throughput Level 3	430 m³/h (EN 61591)
Recirculation Booster level 1	625 m³/h (EN 61591)
Recirculation Booster level 2	720 m³/h (EN 61591)
Recirculation sound power Level 1	46.0 dB(A) re 1 pW (EN 60704-3)
Recirculation sound power Level 2	53.0 dB(A) re 1 pW (EN 60704-3)
Recirculation sound power Level 3	64.0 dB(A) re 1 pW (EN 60704-3)
Recirculation sound power Booster 1	73.0 dB(A) re 1 pW (EN 60704-3)
Recirculation sound power Booster 2	76.0 dB(A) re 1 pW (EN 60704-3)
Recirculation sound pressure Level 1	32.0 dB(A) re 20 µPa (EN 60704-2-13)
Recirculation sound pressure Level 2	39.0 dB(A) re 20 µPa (EN 60704-2-13)
Recirculation sound pressure Level 3	50.0 dB(A) re 20 µPa (EN 60704-2-13)
Recirculation sound pressure Booster 1	59.0 dB(A) re 20 µPa (EN 60704-2-13)
Recirculation sound pressure Booster 2	62.0 dB(A) re 20 µPa (EN 60704-2-13)
Safety switch-off	Yes
Single-ply safety glass (ESG)	Yes
Canopy width	898 mm
Overall hood height for extraction mode and external	830–1210 mm
Overall height for recirculation mode cooker hoods	420 mm
Overall height for vented and external (in.)	830 (mm)
Overall height for extraction and external mode	1210 mm
Canopy height	420 mm
Overall height for recirculation (in.)	420 (mm)
Canopy depth	381 mm
Net weight	18.0 kg
Length of supply lead	1.3 m
Standard plug fitted	Yes
Number of phases	1
Total rated load	0.22 kW
Voltage	230 V
Fuse rating	10 A
Frequency	50 Hz
Minimum height above electric hobs	450 mm
Minimum distance above gas hobs	650 mm (max. 12.6 kW total power, burner ≤ 4.5 kW)
Extraction ducting connection at top	Yes
Extraction ducting connection at rear	Yes
Diameter of exhaust duct	150 mm
Accessories included	Non-return flap

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Miele dealer, with full manufacturer warranty. Established 1967.

Enquire About This Product

Our specialists are on hand to answer any questions about the Miele DAH4970 Sienna Angled Chimney Hood. Get in touch and we'll respond within one working day.

+44 (0)208 455 3925 [email protected]

Full Name *

Email *

Phone *

Message *

I agree to Woodalls using my details to respond to my enquiry. I have read the Privacy Policy.

Your Enquiry List

Miele DAH4970 Sienna Angled Chimney Hood

Miele DAH4970 Sienna Angled Chimney Hood

Delivery & Returns

Related Products

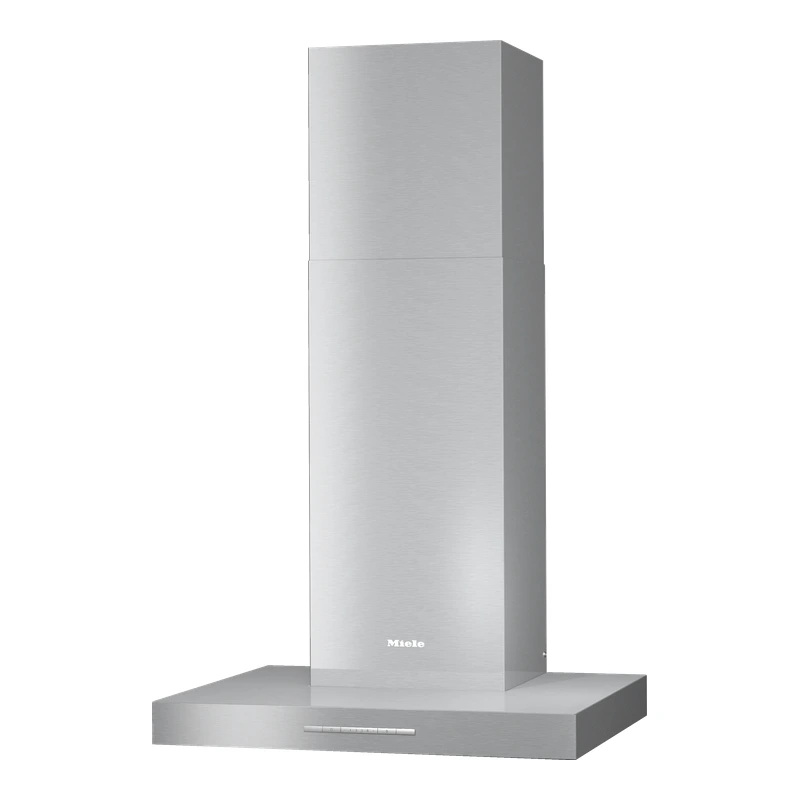

Miele DAPUR68W Chimney Hood

Miele DAPUR98W Chimney Hood

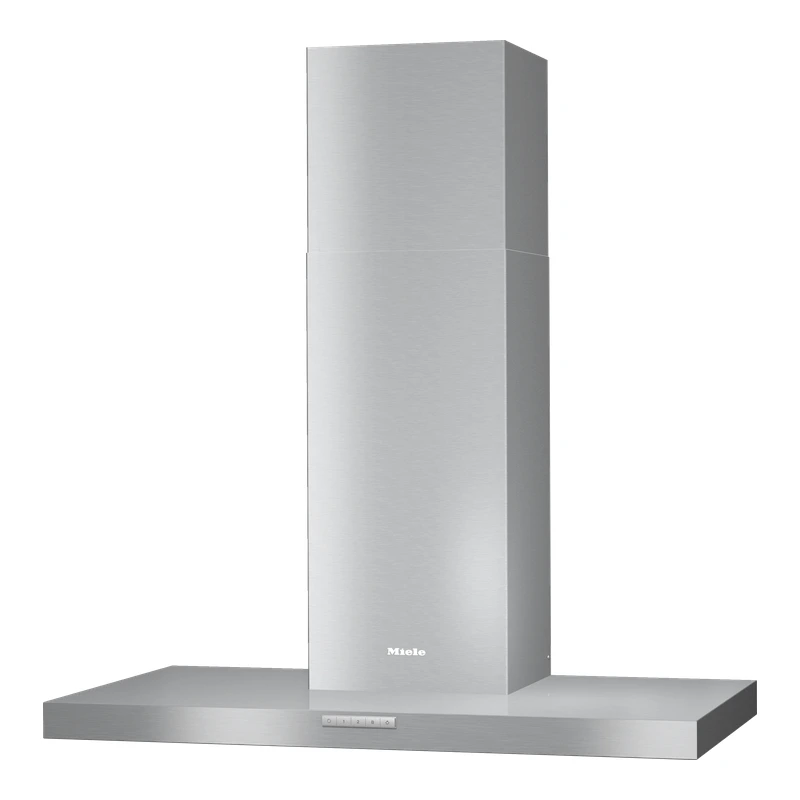

Miele DAW1920 Chimney Hood

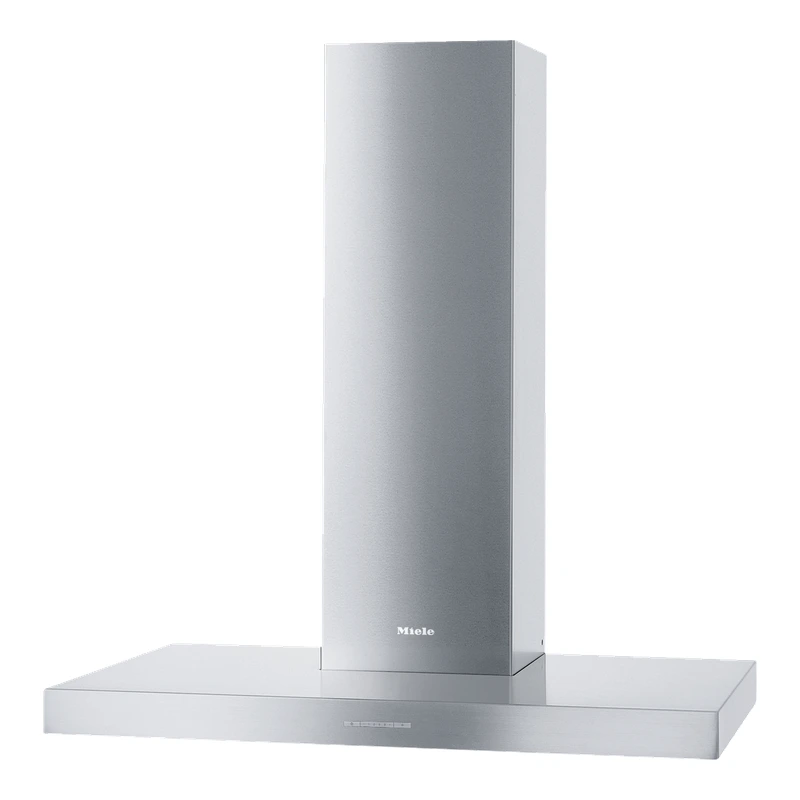

Miele PUR98W Chimney Hood

Miele DA6698WOBBL Chimney Hood

Miele DA3967 Chimney Hood

Miele DA9092W Chimney Hood

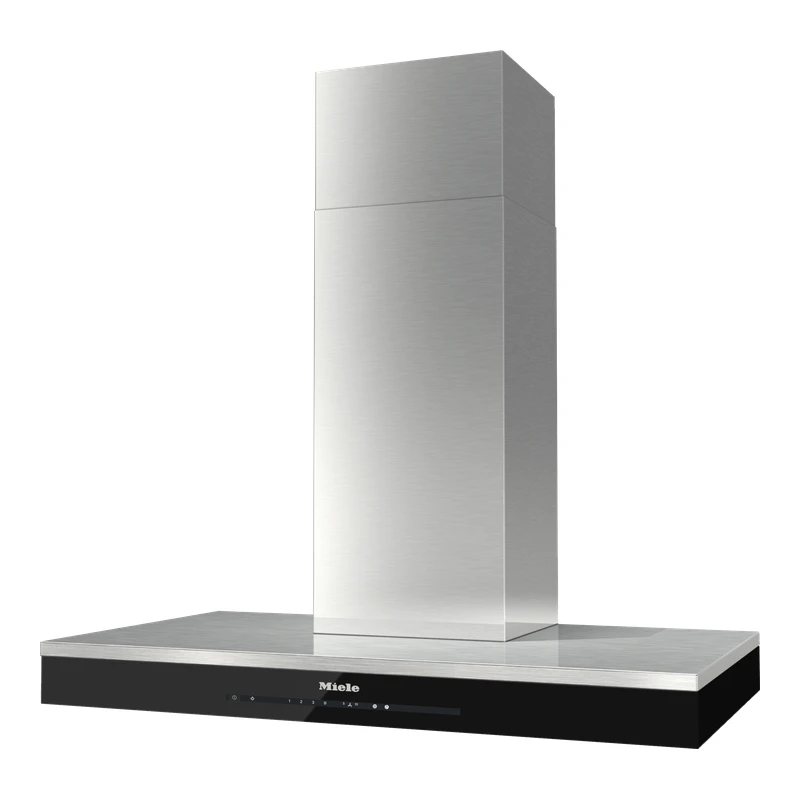

Miele DA6698WCLST Chimney Hood
