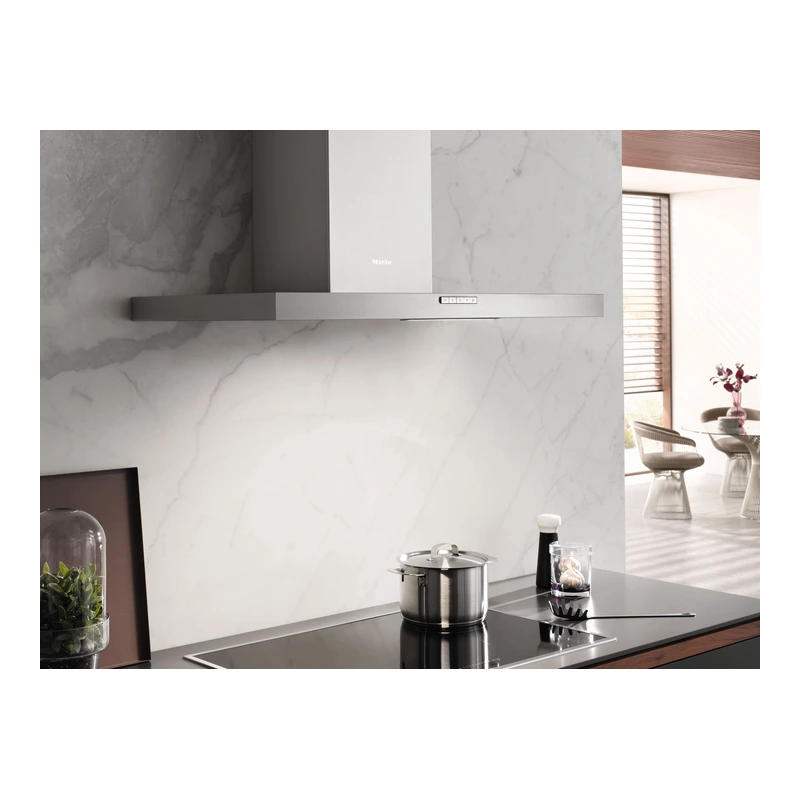

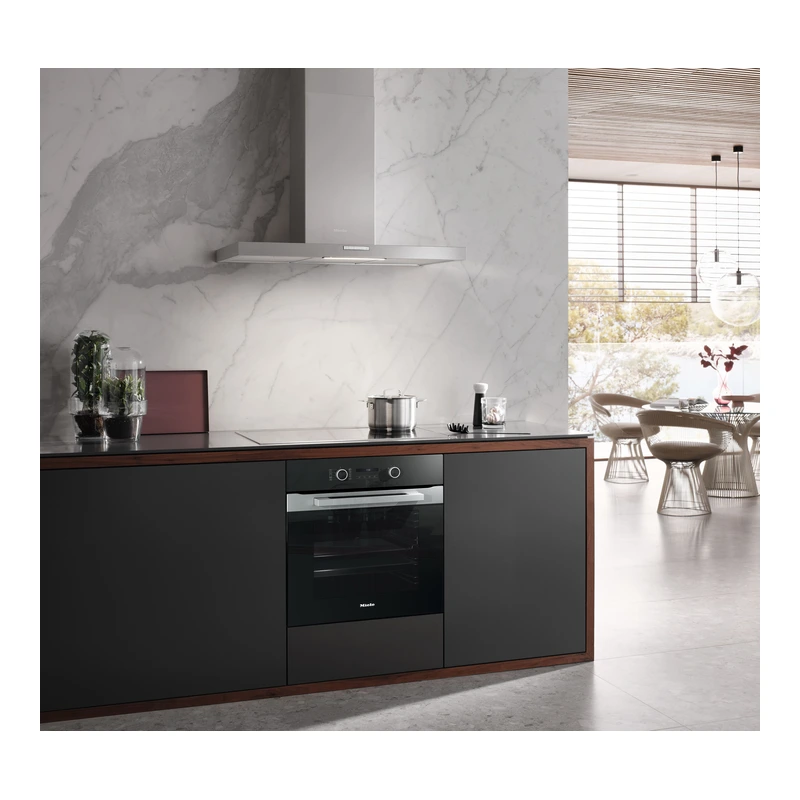

Miele DAW1920 Chimney Hood

SKU: DAW1920 · EAN: 4002516657057

Stainless Steel (Not Gas Compatible)

The Miele DAW 1920 Active is a wall mounted cooker hood with EasySwitch pushbuttons for convenient operation. Featuring a timeless stainless steel canopy 898 mm wide, it delivers powerful extraction up to 645 m³/h in Booster level. With LED strip lighting for uniform illumination, a 10‑ply aluminium metal grease filter and suitability for both extraction and recirculation modes, it combines efficient performance with flexible installation options for modern kitchens.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	DAW 1920 Active wall mounted cooker hood
Construction type	Wall mounted cooker hood
Colour	Stainless steel
Canopy width	898 mm
Canopy depth	500 mm
Canopy height	50 mm
Overall hood height for extraction mode and external	673–993 mm
Overall height for recirculation mode cooker hoods	803–1123 mm
Net weight	15.0 kg
Operating modes	Suitable for extraction or recirculation; type of air guide can be retrofitted
Active charcoal filter (order separately)	DKFS 36–P
Controls	Electronic controls with EasySwitch pushbuttons
Booster levels	1
Energy efficiency class (A+++ – D)	A
Annual energy consumption	49.8 kWh/year
Motor type	AC motor
Fluid dynamic efficiency class	A
Lighting efficiency class	A
Grease filtering efficiency class	B
Filter system	10–ply aluminium metal grease filter
Number of dishwasher–safe metal grease filters	3
Lighting	1 × 3.2 W LED strip, 350 lx, 3500 Kelvin
Fan	Dual–action blower
Air throughput Level 1 (extraction)	255 m³/h (according to EN 61591)
Air throughput Level 2 (extraction)	400 m³/h (according to EN 61591)
Air throughput Booster level 1 (extraction)	645 m³/h (according to EN 61591)
Air throughput Level 1 (recirculation)	235 m³/h (according to EN 61591)
Air throughput Level 2 (recirculation)	390 m³/h (according to EN 61591)
Air throughput Booster level 1 (recirculation)	620 m³/h (according to EN 61591)
Sound power Level 1 (extraction)	53.0 dB(A) re 1 pW (EN 60704–3)
Sound power Level 2 (extraction)	62.0 dB(A) re 1 pW (EN 60704–3)
Sound power Booster level 1 (extraction)	71.0 dB(A) re 1 pW (EN 60704–3)
Sound power Level 1 (recirculation)	54.0 dB(A) re 1 pW (EN 60704–3)
Sound power Level 2 (recirculation)	64.0 dB(A) re 1 pW (EN 60704–3)
Sound power Booster level 1 (recirculation)	74.0 dB(A) re 1 pW (EN 60704–3)
Sound pressure Level 1 (extraction)	39.0 dB(A) re 20 µPa (EN 60704–2–13)
Sound pressure Level 2 (extraction)	48.0 dB(A) re 20 µPa (EN 60704–2–13)
Sound pressure Booster level 1 (extraction)	57.0 dB(A) re 20 µPa (EN 60704–2–13)
Sound pressure Level 1 (recirculation)	40.0 dB(A) re 20 µPa (EN 60704–2–13)
Sound pressure Level 2 (recirculation)	50.0 dB(A) re 20 µPa (EN 60704–2–13)
Sound pressure Booster level 1 (recirculation)	60.0 dB(A) re 20 µPa (EN 60704–2–13)
Minimum height above electric hobs	450 mm
Length of supply lead	1.4 m
Standard plug fitted	Yes (standard plug fitted)
Number of phases	1
Total rated load	0.24 kW
Voltage	230 V
Fuse rating	10 A
Frequency	50 Hz
Extraction ducting connection at top	Yes
Extraction ducting connection at rear	Yes
Diameter of exhaust duct	150 mm
Telescopic chimney	Yes
Accessories included	Non–return flap
