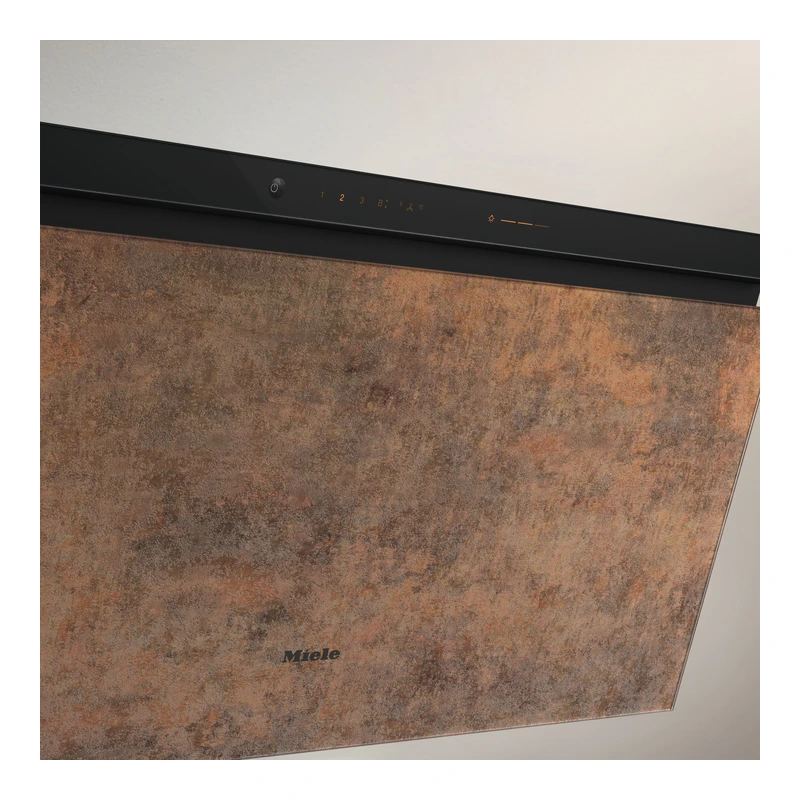

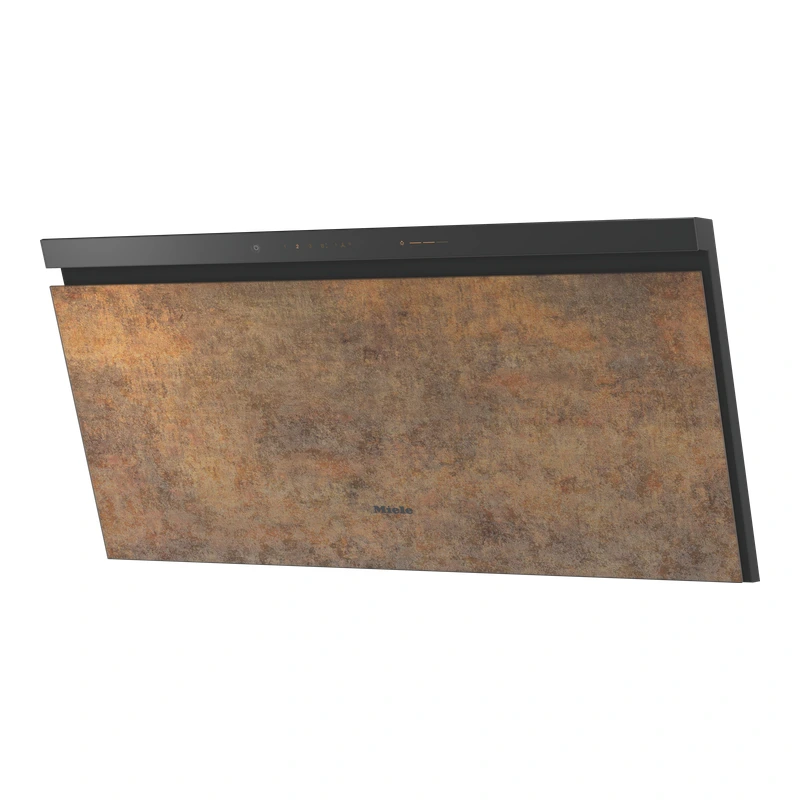

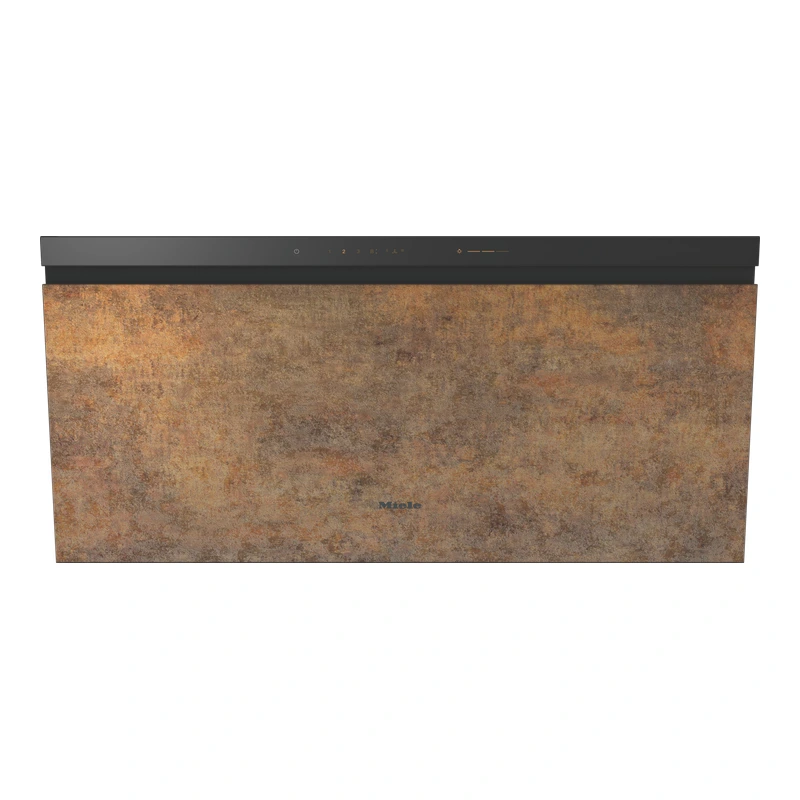

| Product name | DAH 4970 Sienna |
|---|
| Product type | Wall mounted cooker hood |
|---|
| Material number | 12545680 |
|---|
| EAN number | 4002516802921 |
|---|
| Old material number | 28H4970PGB |
|---|
| Colour | Bronze patina |
|---|
| Construction type | Wall mounted cooker hood |
|---|
| Operating modes | Type of air guide can be retrofitted; extraction or recirculation with active charcoal filter DKF 29 (order separately) |
|---|
| Edge extraction | Yes (edge extraction •) |
|---|
| Controls | Electronic SmartControl with touch–on–glass controls and ON/OFF switch |
|---|
| Automatic function | Con@ctivity |
|---|
| Connectivity | Miele@home • |
|---|
| Power levels | 3 power levels plus 2 Booster levels |
|---|
| Run–on time | 5/15 minutes |
|---|
| Filter indicators | Grease filter saturation indicator; active charcoal filter saturation indicator |
|---|
| Silence package | Yes (Silence package •) |
|---|

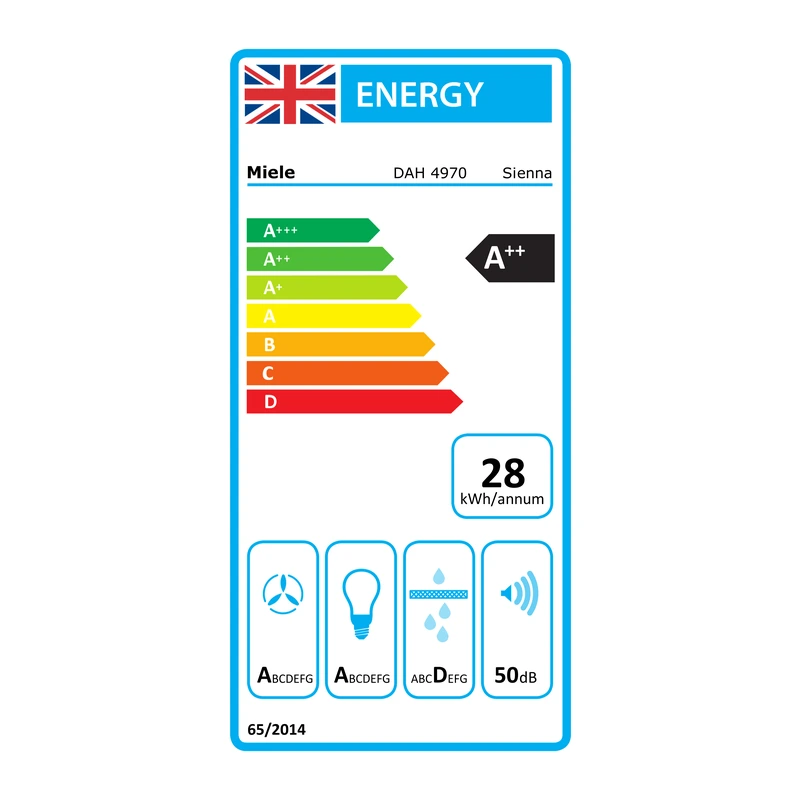

| Energy efficiency class | A++ (A+++ – D scale) |
|---|
| Annual energy consumption | 28.2 kWh/year |
|---|
| Fluid dynamic efficiency class | A |
|---|
| Lighting efficiency class | A |
|---|
| Grease filtering efficiency class | D |
|---|
| ECO motor | ECO motor (DC motor) • |
|---|
| PowerManagement system | Yes (PowerManagement system •) |
|---|
| Filter system | 2 dishwasher–safe, 10–ply stainless steel grease filters |
|---|
| Easy–to–clean interior | CleanCover canopy interior |
|---|
| Lighting | 1 x 3.2 W, 260 lx, 3500 Kelvin, dimmer function • |
|---|
| Fan | Dual–action blower • |
|---|
| Extraction air throughput (Level 1) | 215 m³/h according to EN 61591 |
|---|
| Extraction air throughput (Level 2) | 315 m³/h according to EN 61591 |
|---|
| Extraction air throughput (Level 3) | 415 m³/h according to EN 61591 |
|---|
| Extraction air throughput (Booster 1) | 660 m³/h according to EN 61591 |
|---|
| Extraction air throughput (Booster 2) | 875 m³/h according to EN 61591 |
|---|
| Extraction sound power (Level 1) | 38.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Extraction sound power (Level 2) | 45.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Extraction sound power (Level 3) | 50.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Extraction sound power (Booster 1) | 61.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Extraction sound power (Booster 2) | 68.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Extraction sound pressure (Level 1) | 24.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Extraction sound pressure (Level 2) | 31.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Extraction sound pressure (Level 3) | 36.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Extraction sound pressure (Booster 1) | 47.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Extraction sound pressure (Booster 2) | 54.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Recirculation air throughput (Level 1) | 175 m³/h according to EN 61591 |
|---|
| Recirculation air throughput (Level 2) | 275 m³/h according to EN 61591 |
|---|
| Recirculation air throughput (Level 3) | 430 m³/h according to EN 61591 |
|---|
| Recirculation air throughput (Booster 1) | 625 m³/h according to EN 61591 |
|---|
| Recirculation air throughput (Booster 2) | 720 m³/h according to EN 61591 |
|---|
| Recirculation sound power (Level 1) | 46.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Recirculation sound power (Level 2) | 53.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Recirculation sound power (Level 3) | 64.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Recirculation sound power (Booster 1) | 73.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Recirculation sound power (Booster 2) | 76.0 dB(A) re 1 pW according to EN 60704–3 |
|---|
| Recirculation sound pressure (Level 1) | 32.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Recirculation sound pressure (Level 2) | 39.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Recirculation sound pressure (Level 3) | 50.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Recirculation sound pressure (Booster 1) | 59.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Recirculation sound pressure (Booster 2) | 62.0 dB(A) re 20 µPa according to EN 60704–2–13 |
|---|
| Safety switch–off | Yes (safety switch–off •) |
|---|
| Safety glass | Single–ply safety glass (ESG) |
|---|
| Canopy width | 898 mm |
|---|
| Canopy height | 420 mm |
|---|
| Canopy depth | 381 mm |
|---|
| Overall hood height (extraction / external) | 830–1210 mm |
|---|
| Overall height for recirculation | 420 mm |
|---|
| Net weight | 18.0 kg |
|---|
| Length of supply lead | 1.3 m |
|---|
| Standard plug fitted | Yes (standard plug fitted •) |
|---|
| Minimum height above electric hobs | 450 mm |
|---|
| Minimum distance above gas hobs | 650 mm (max. 12.6 kW total power, burner ≤ 4.5 kW) |
|---|
| Number of phases | 1 |
|---|
| Total rated load | 0.22 kW |
|---|
| Voltage | 230 V |
|---|
| Fuse rating | 10 A |
|---|
| Frequency | 50 Hz |
|---|
| Extraction ducting connection (top) | Yes (extraction ducting connection at top •) |
|---|
| Extraction ducting connection (rear) | Yes (extraction ducting connection at rear •) |
|---|
| Diameter of exhaust duct | 150 mm |
|---|
| Accessories included | Non–return flap |
|---|
