How many cooking zones does the ED611BS16E hob have?

The hob has four induction cooking zones arranged on a 60 cm ceramic surface. Two left-hand zones can be combined using combiZone to form one larger cooking area.

Can this hob be used with both ducted and recirculation extraction?

Yes. The integrated downdraft ventilation is suitable for ducted or recirculated extraction, including unducted, partly ducted and fully ducted recirculation options. Accessories for different configurations are available.

What is the maximum extraction rate of the integrated ventilation system?

In ducted extraction, the system reaches up to 622 m³/h on Boost and 500 m³/h on the maximum normal setting. In recirculation, it provides up to 595 m³/h on Boost and 441 m³/h on the maximum normal setting.

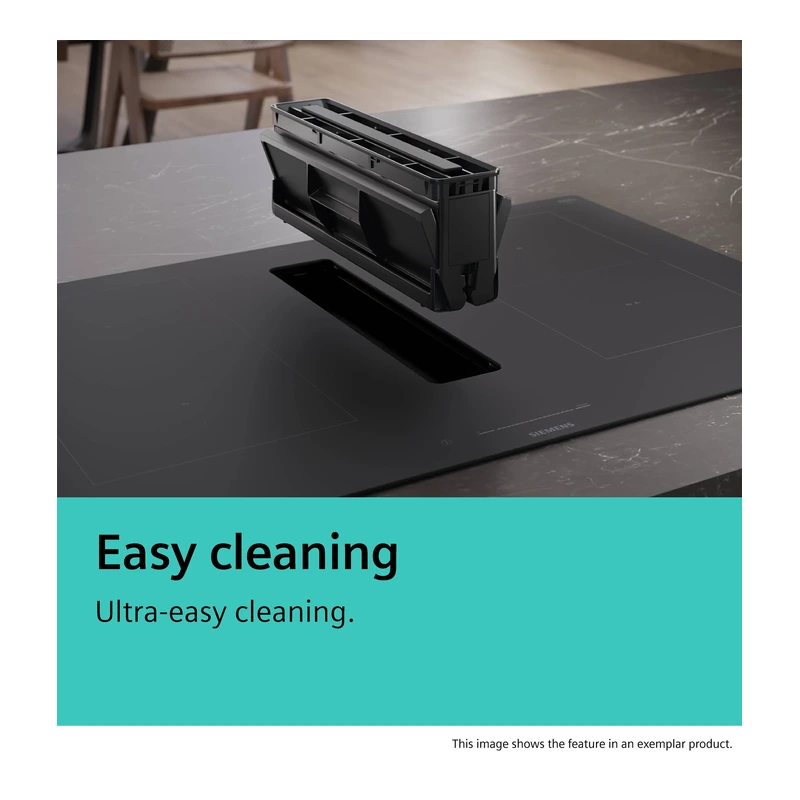

Are the grease filters and liquid collectors dishwasher safe?

Yes. The stainless-steel grease filters and all parts of the grease filter and liquid collector unit are fully dishwasher safe and heat resistant for easy cleaning.

What safety features are included on this induction hob?

Safety features include 2 stage residual heat indicators, a control panel lock, a main on/off switch for all cooking zones, and automatic safety switch-off after a preset time if the hob is not used.

Which accessories are supplied and which are optional?

The hob is supplied with a Slider for unducted recirculation and a Clean Air Plus odour filter, plus installation accessories for unducted recirculation. A wide range of optional ducting kits, recirculation kits, acoustic filters, cookware and a wireless roastingSensor are available separately.

Product Information Sheet

Siemens iQ300 Venting Induction Hob

SKU: ED611BS16E

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 29 July 2026

Siemens ED611BS16E iQ300 Venting Induction Hob

SKU: ED611BS16E · EAN: 4242003945872

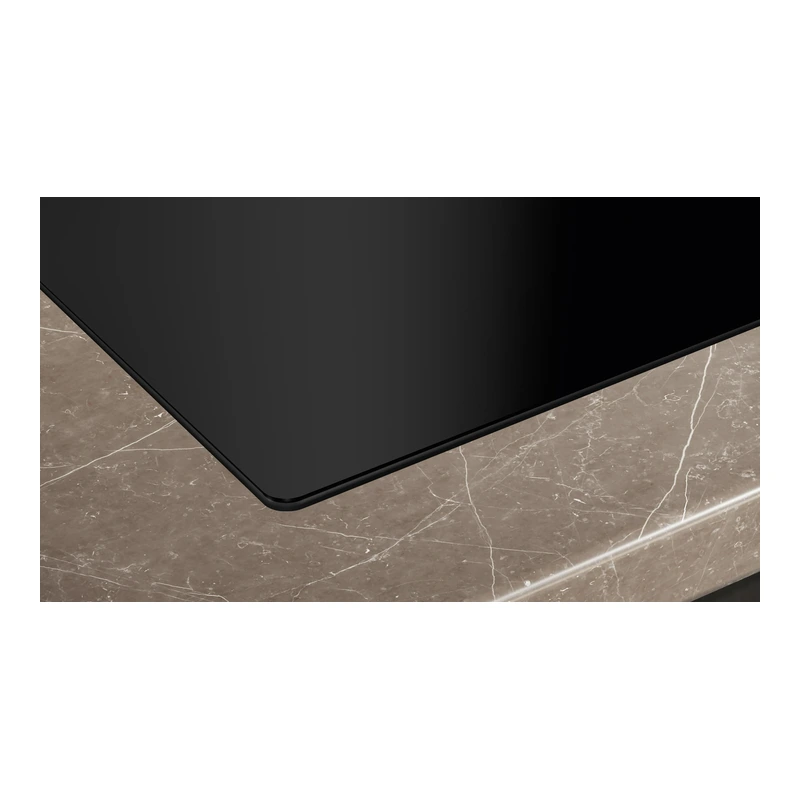

Frameless

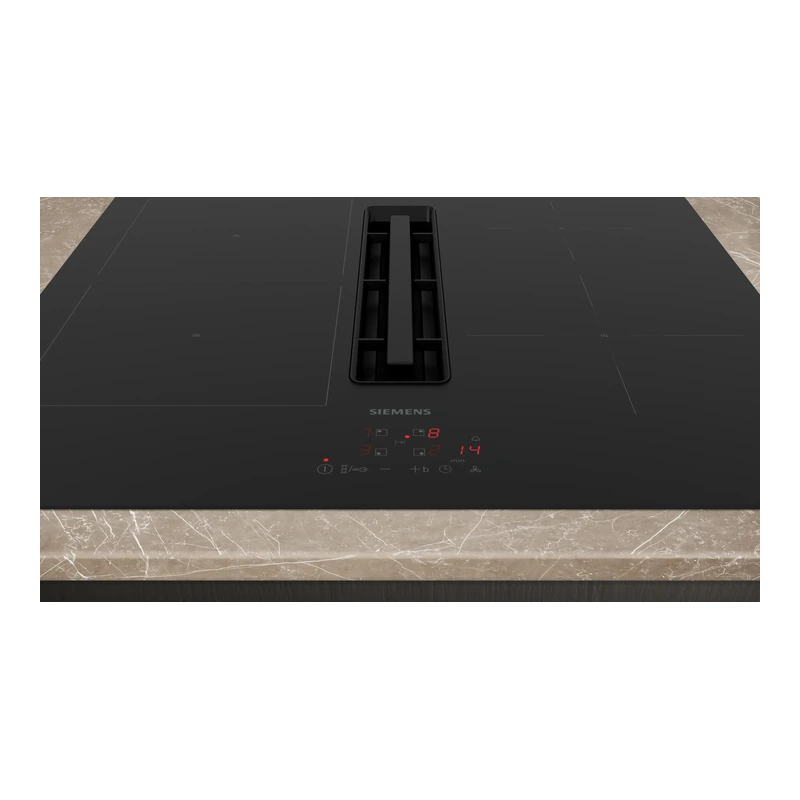

The Siemens iQ300 ED611BS16E is a 60 cm induction hob with a fully integrated downdraft ventilation system, designed for installation into a 60 cm base cabinet. It provides four induction cooking zones, including combiZone for larger cookware, with touchControl and 17 power levels for precise heat control. The inductionAir Plus extractor offers high-performance, low-noise extraction with easy-to-clean filters and flexible options for ducted or recirculation installation.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Cooking zone ceramic
Model	ED611BS16E
Installation type	Built-in, surface mount without frame
Width of appliance	592 mm
Dimensions (H x W x D)	223 x 592 x 522 mm

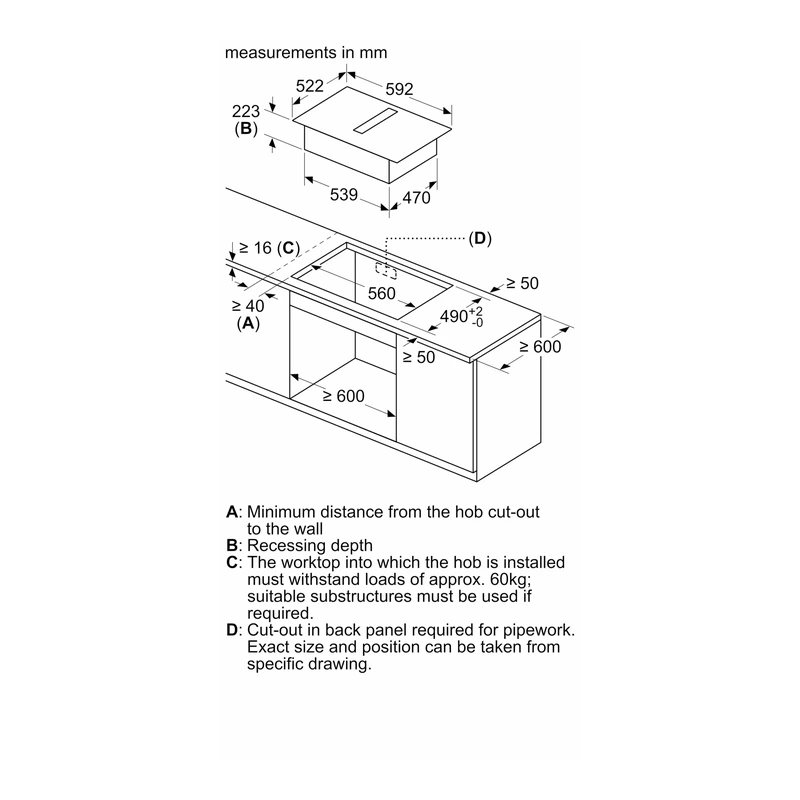

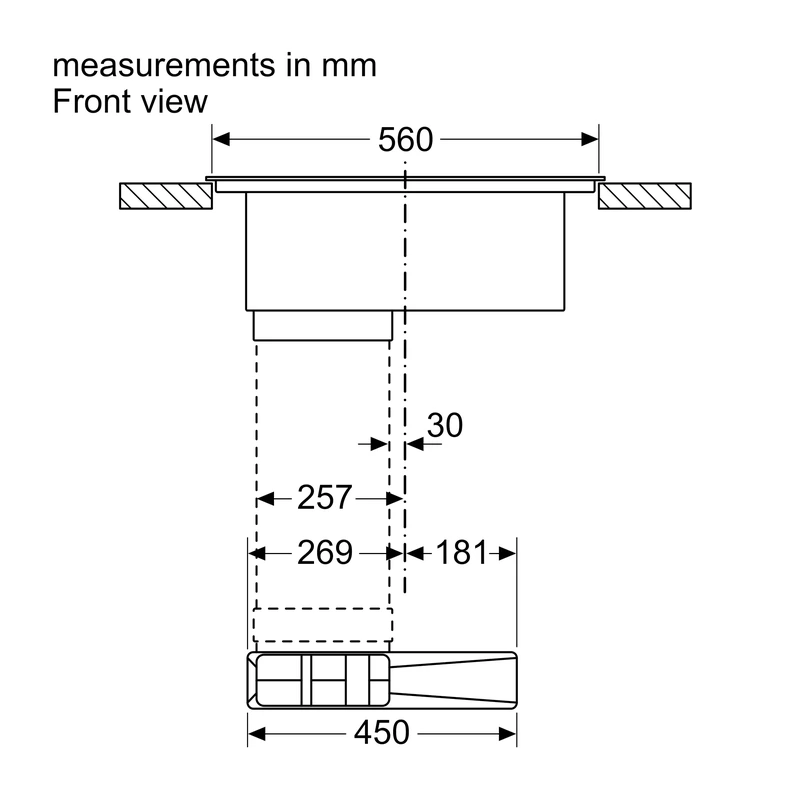

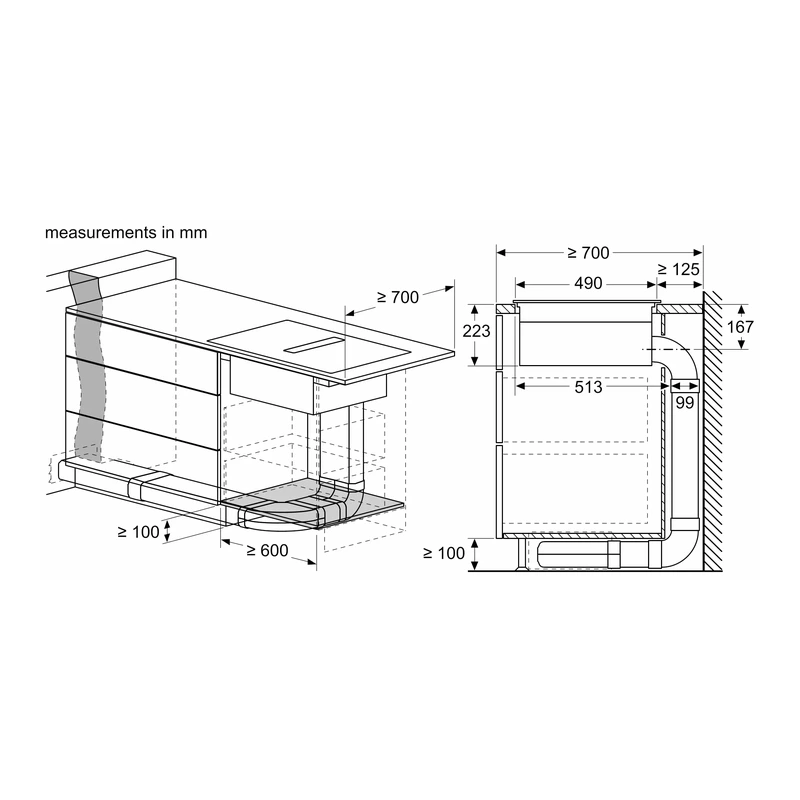

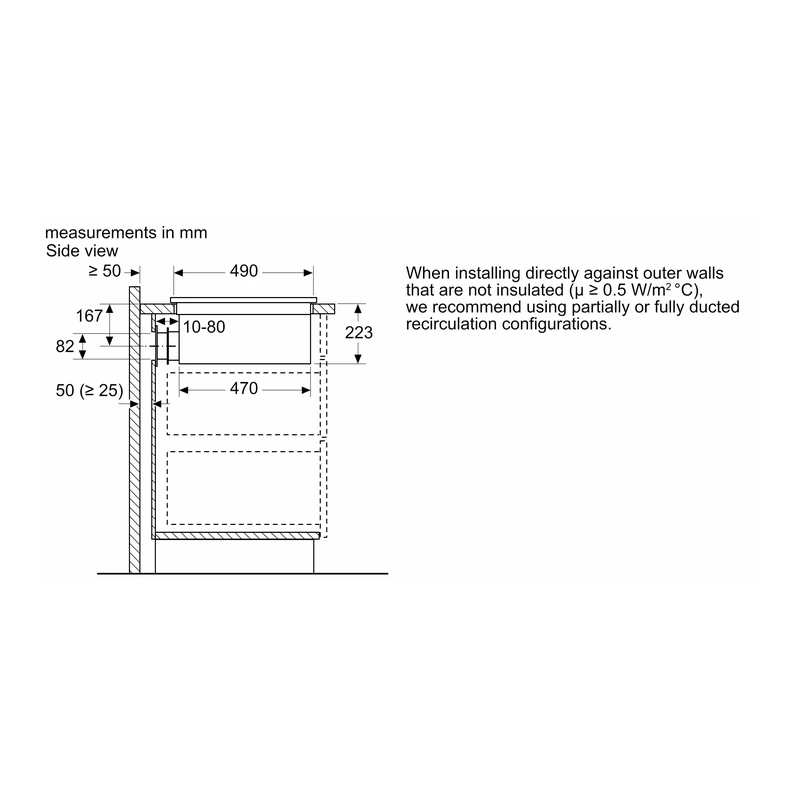

Required niche size (H x W x D)	223 x 560–560 x 490–490 mm
Min. worktop thickness	16 mm

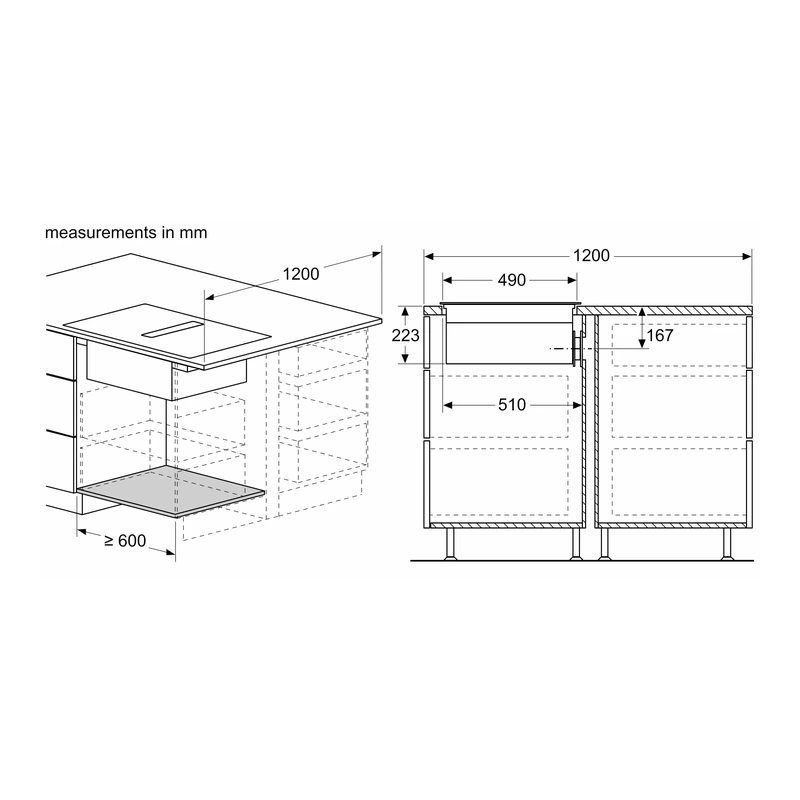

Suitable cabinet size	Suitable for installation into a 60 cm base cabinet
Packed dimensions (H x W x D)	430 x 690 x 660 mm
Weight (net)	23.4 kg
Overall appliance weight (planning note)	26 kg
Gross weight	27.5 kg

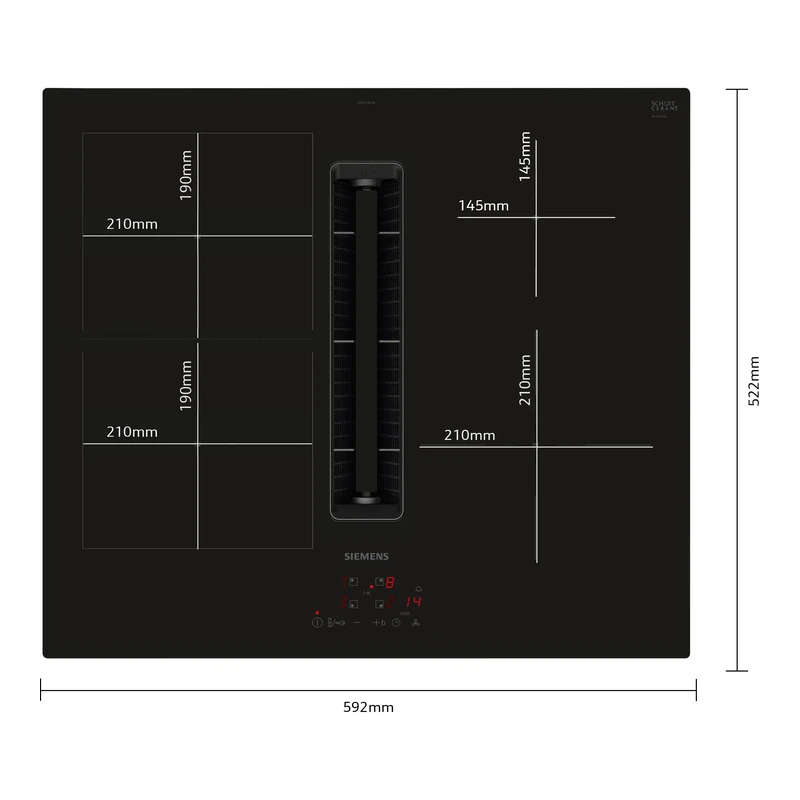

Number of cooking zones	4
Front left zone	190 mm, 210 mm, 2.2 kW (max. power 3.7 kW)
Rear left zone	190 mm, 210 mm, 2.2 kW (max. power 3.7 kW)
Rear right zone	145 mm, 1.4 kW (max. power 2.2 kW)
Front right zone	210 mm, 2.2 kW (max. power 3.7 kW)
Heating with booster	All zones
Power of 2nd heating element	3600.0 W
Power of 5th heating element	1400.0 W
Control type	touchControl with imprinted +/- touch buttons, front control panel
Number of power levels	17 power levels (9 main levels and 8 intermediate levels)
Surface material	Ceramic
Surface colour	Black
Residual heat indicator	Separate, 2 stage indicators
Sealed burners	No
Source of energy	Electric induction
Nominal power (electrical)	220–240/380–415 V, 50–60 Hz
Connected load	7.4 kW
Connection current management	20, 16, 13, 10 Amps options
Length of power cord	1.1 m (cable included in packaging)
Ventilation fan speeds	3 stages + intensive (Boost) setting
Max. output air extraction (ducted)	500 m³/h (max. normal); 622 m³/h (Boost)
Min. output air extraction (ducted)	330 m³/h (min. normal)
Max. output recirculating air	441 m³/h (max. normal); 595 m³/h (Boost)
Min. output recirculating air	252 m³/h (min. normal)
Noise level (ducted)	61 dB re 1 pW (min. normal); 69 dB re 1 pW (max. normal); 74 dB re 1 pW (Boost)
Noise level (recirculation)	55 dB re 1 pW (min. normal); 66 dB re 1 pW (max. normal); 72 dB re 1 pW (Boost)
Overall noise level	69 dB(A) re 1pW (specified)
Odour filter (extractor)	No (for general spec); Clean Air Plus odour filters integrated for recirculation configuration
Clean filter reminders	Yes
Grease filtration efficiency	94 % (according to EN 61591)
Energy efficiency class (ventilation)	B (range A+++ to D)
Fluid Dynamic Efficiency class	A
Average energy consumption (extractor)	57 (unit not stated in source)
Grease filtration efficiency class	B
Liquid collector capacity (upper)	200 ml
Liquid safety collector capacity	700 ml
Total liquid capturing capacity	900 ml (200 ml + 700 ml)
Filter lifetime (Clean Air Plus)	360 hours of cooking (non-regenerative)

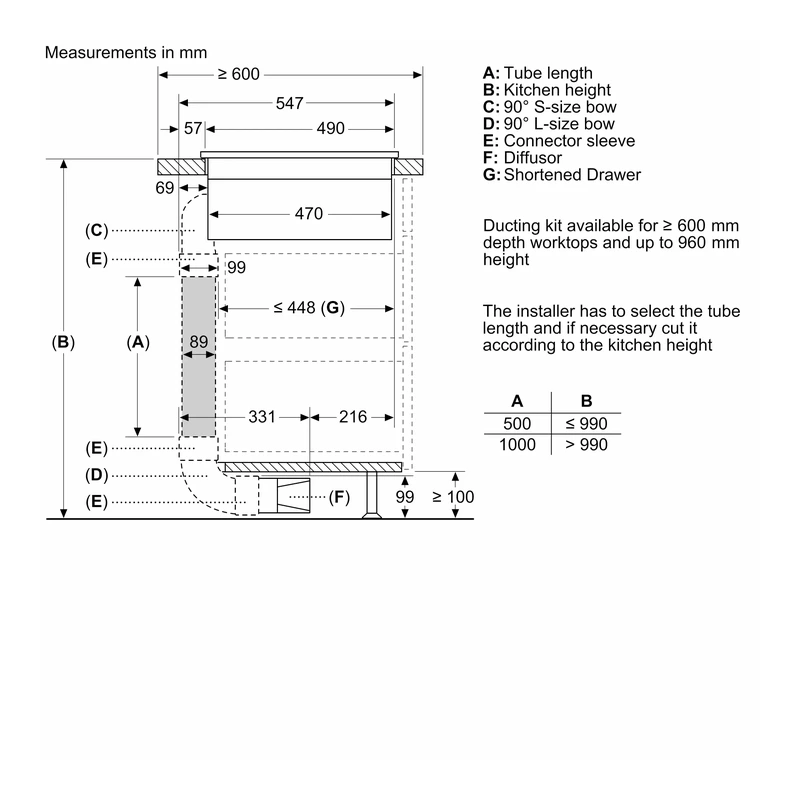

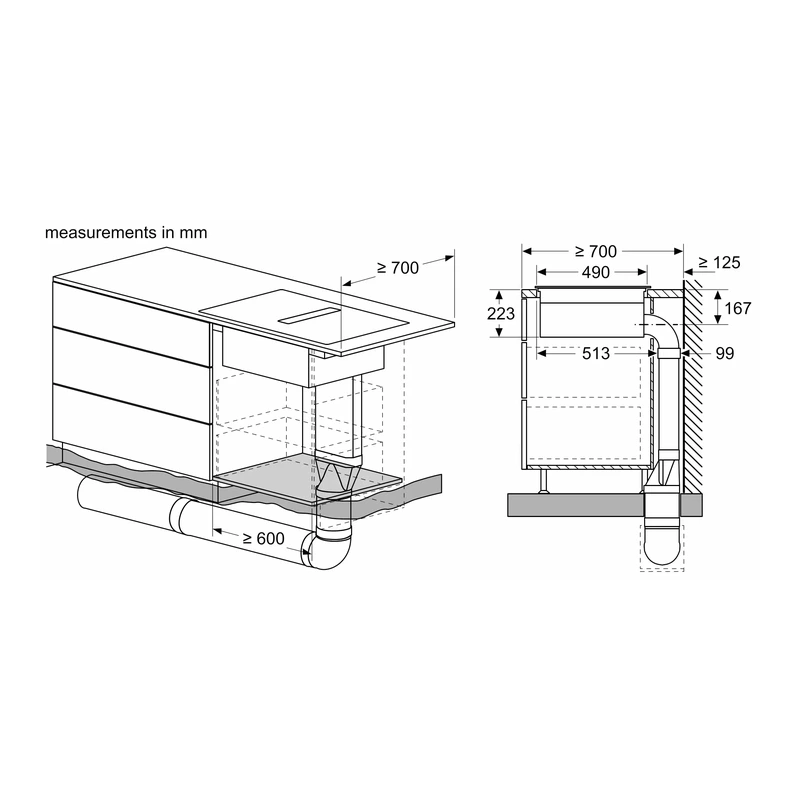

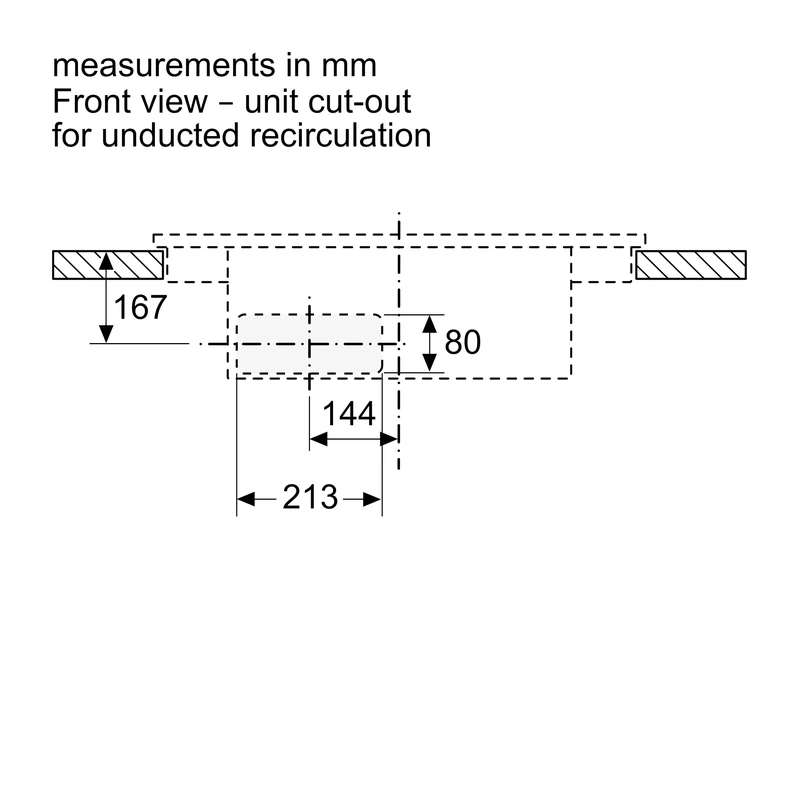

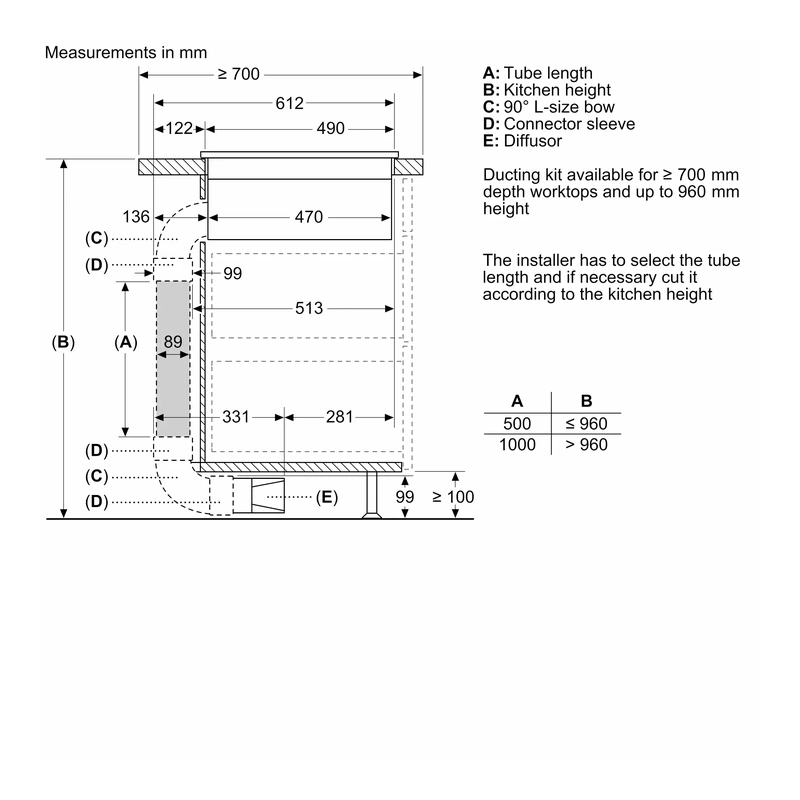

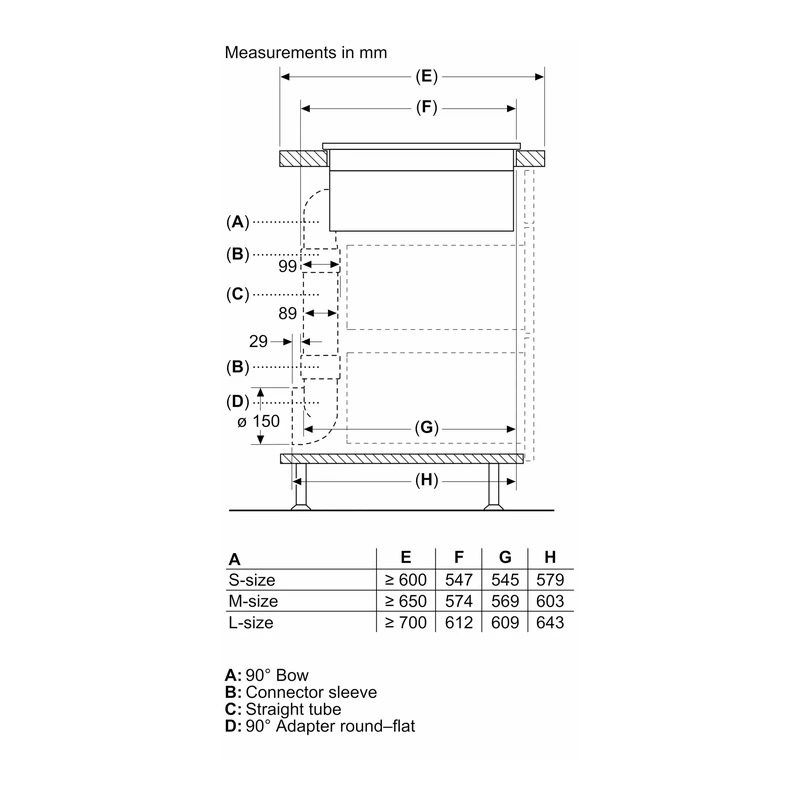

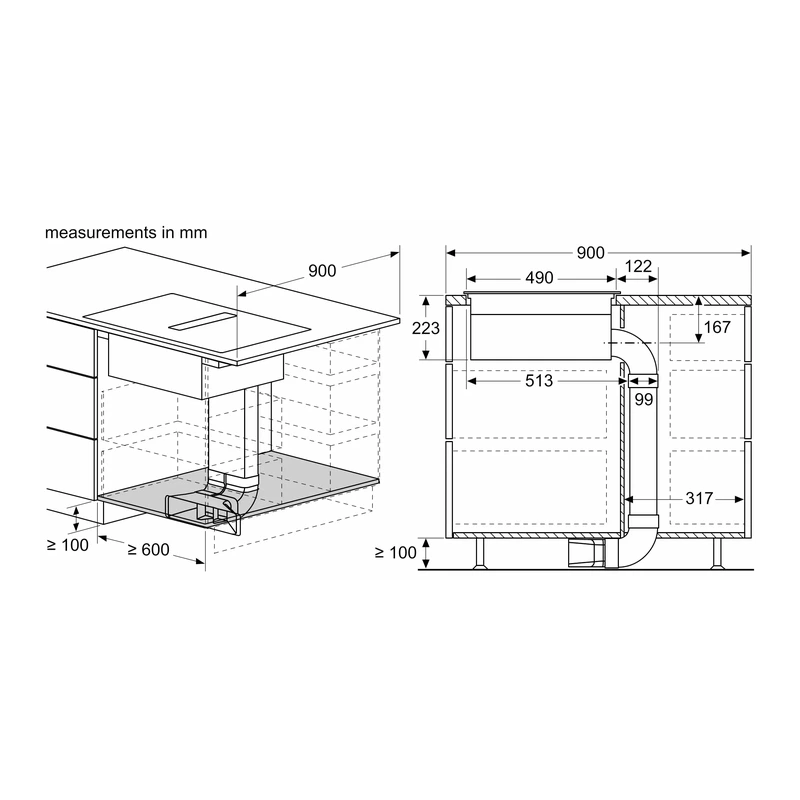

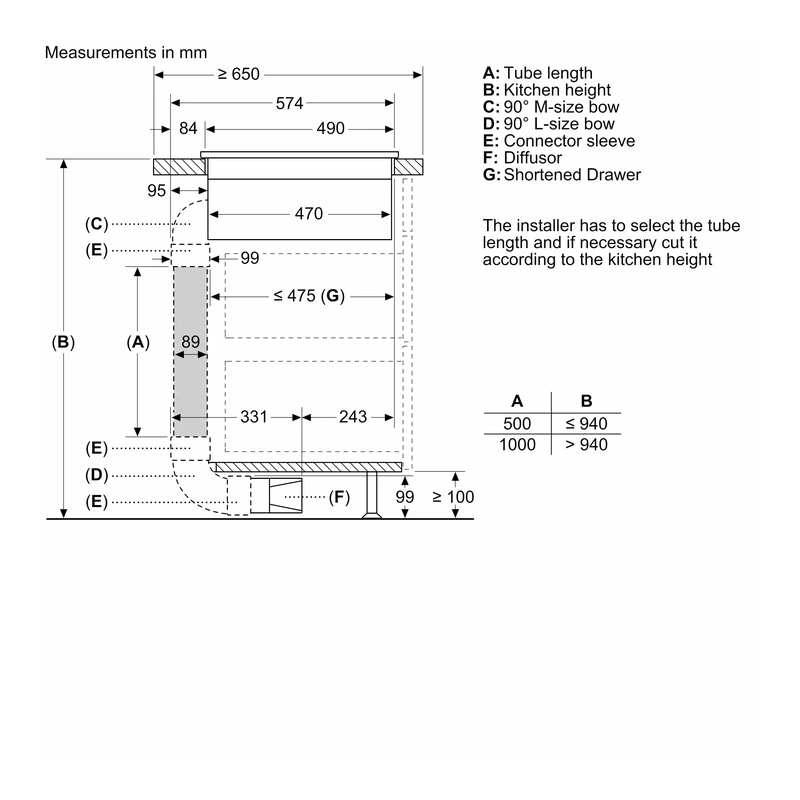

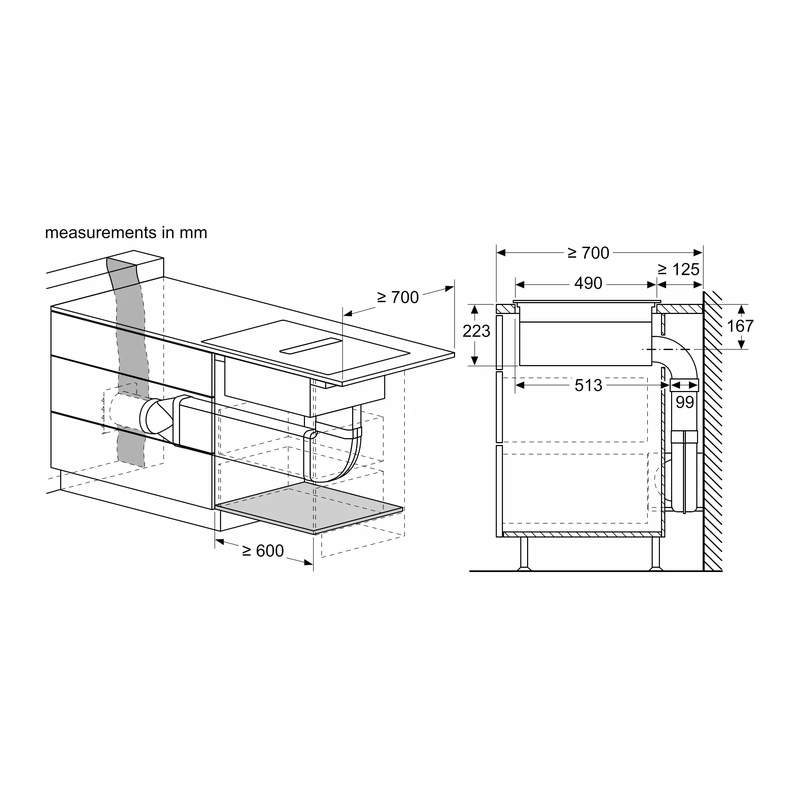

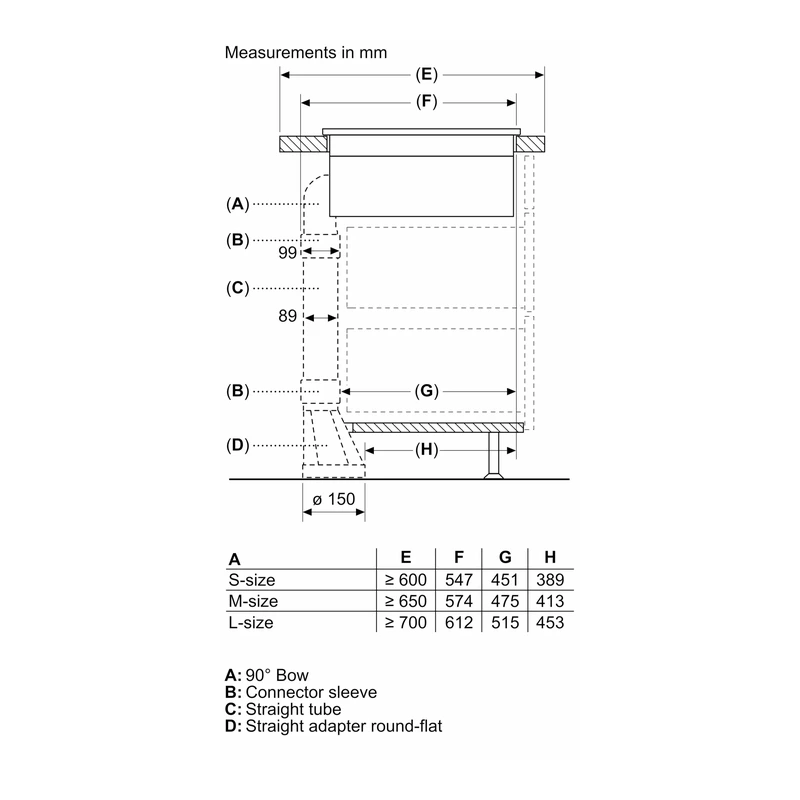

Ventilation configuration options	Ducted extraction or recirculation (unducted, partly and fully ducted recirculation)
Compliance	Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94)
