Siemens ED711HQ26E iQ500 Venting Hob

SKU: ED711HQ26E · EAN: 4242003945919

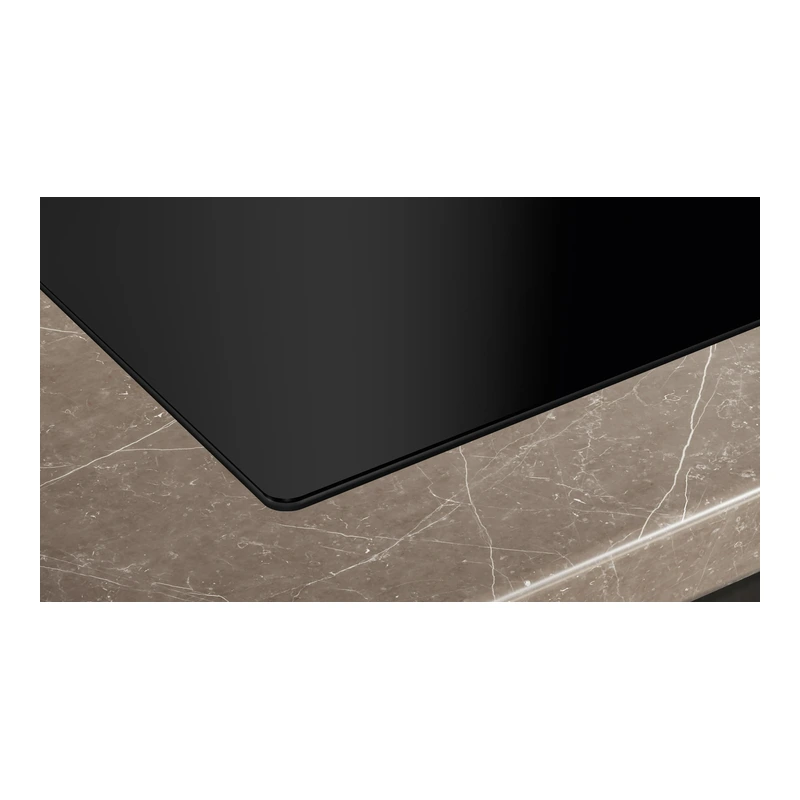

Frameless

The iQ500 ED711HQ26E is a 70 cm built-in induction hob with a fully integrated downdraft ventilation system, designed for installation in a 60 cm base cabinet. It offers four cooking zones with two combiZones for larger cookware, precise 17-level power control and convenient functions like powerBoost, quickStart and reStart. The integrated extractor delivers high-performance, low-noise extraction with easy-to-clean grease filters and supports both ducted and recirculation configurations.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name/family	Cooking zone ceramic
Model	ED711HQ26E, iQ500 induction hob with integrated ventilation system
Installation type	Built-in, surface mount without frame
Width of appliance	710 mm

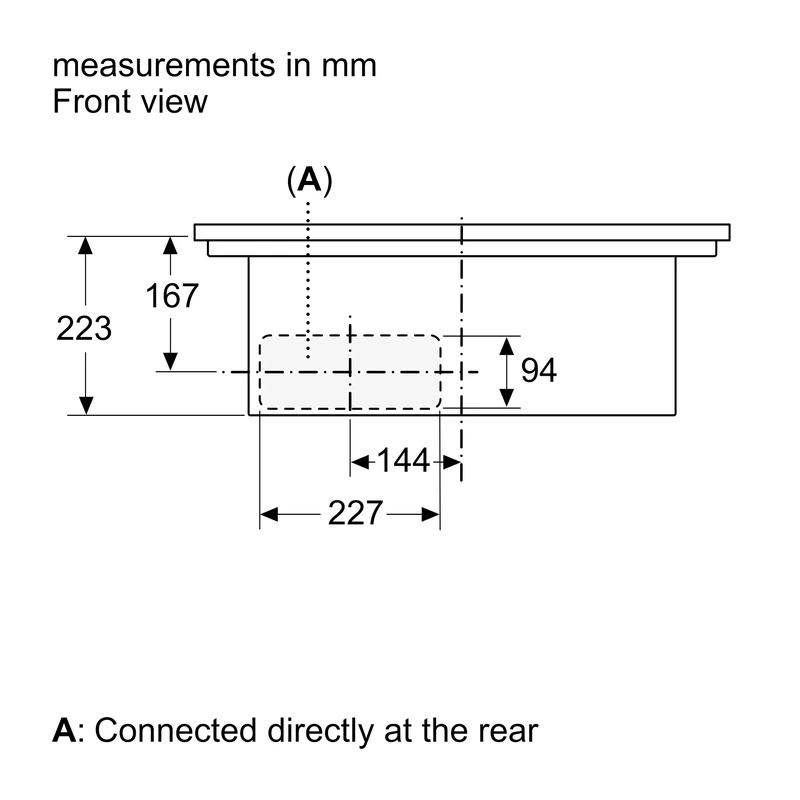

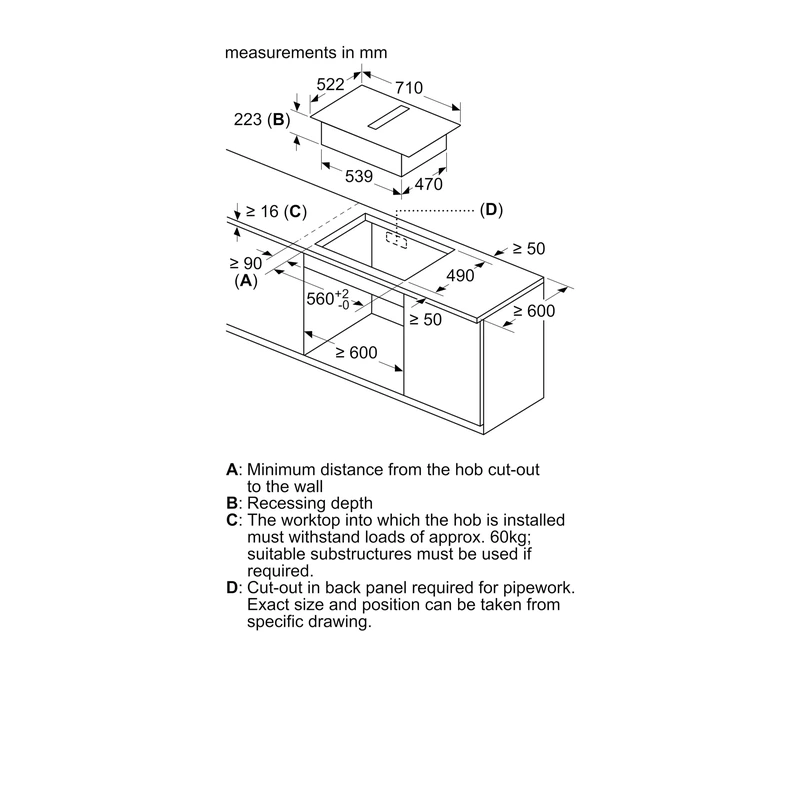

Product dimensions (HxWxD)	223 x 710 x 522 mm

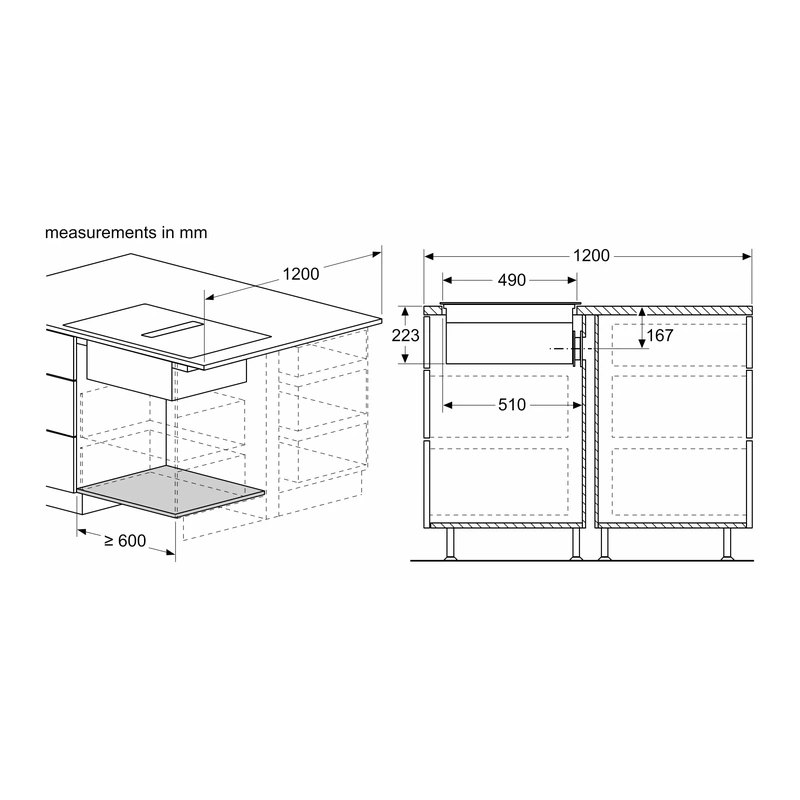

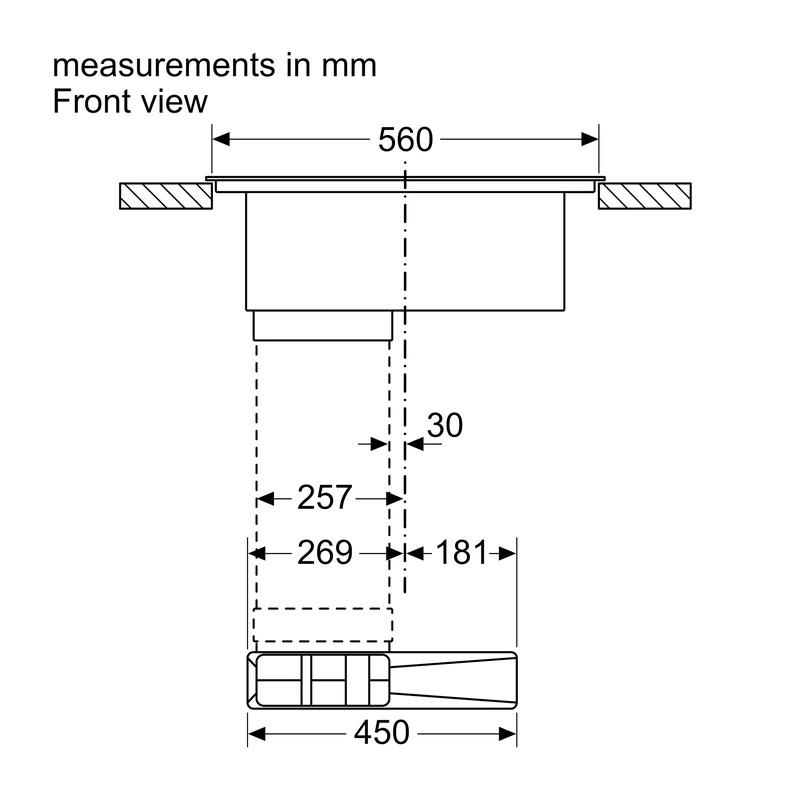

Required niche size (HxWxD)	223 x 560–560 x 490–490 mm
Minimum worktop thickness	16 mm

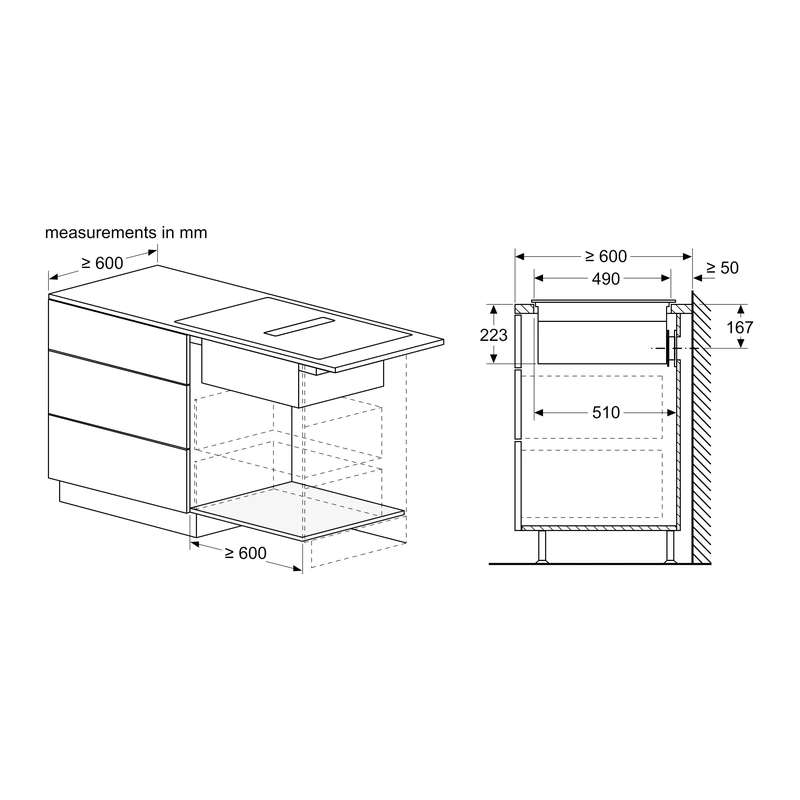

Base cabinet suitability	Suitable for installation into a 60 cm base cabinet
Weight (net / gross)	24.9 kg / 29.6 kg (overall appliance weight stated as 26 kg for planning)
Source of energy	Electric induction
Number of cooking zones	4 (2 combi zones)
Cooking zones (dimensions & power)	Front left: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW) Rear left: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW) Rear right: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW) Front right: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW)
Heating with booster	All cooking zones with booster (power boost setting)
Power levels	17 power levels (9 main + 8 intermediate)

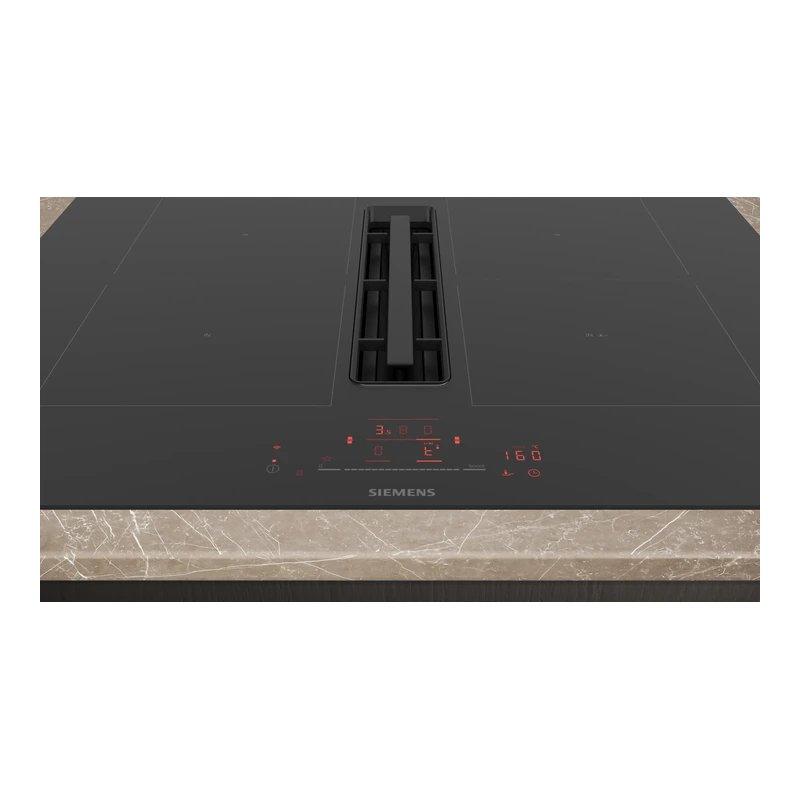

Control type	Multitouch+ touchSlider, front control panel
Surface material / colour	Ceramic, black, frameless design
Residual heat indicator	Separate, 2-stage residual heat indicators
Safety features	Control panel lock, main on/off switch, automatic safety switch-off, 2-stage residual heat indicators, Pause function

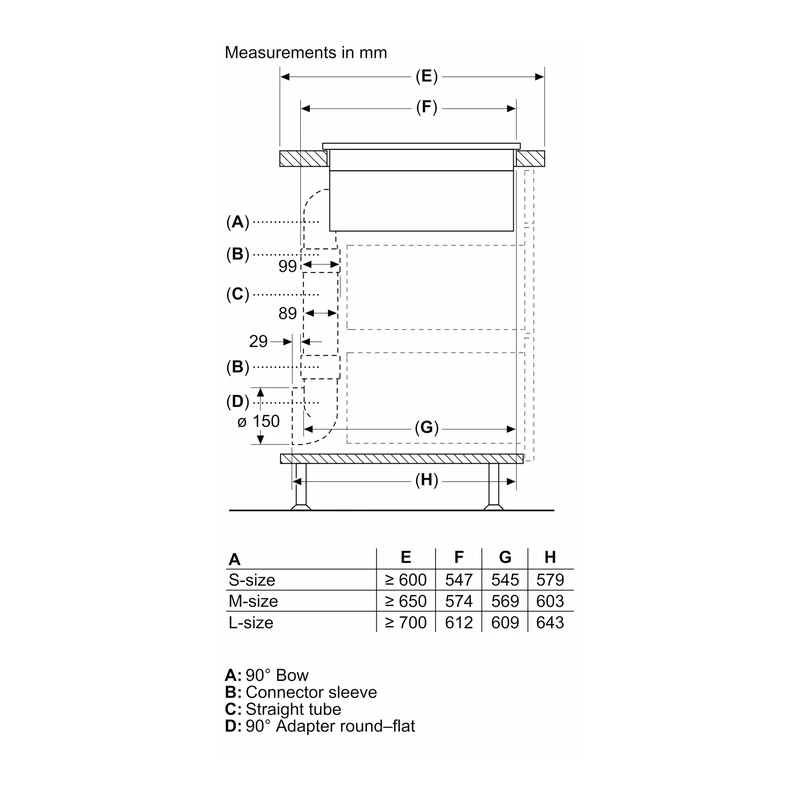

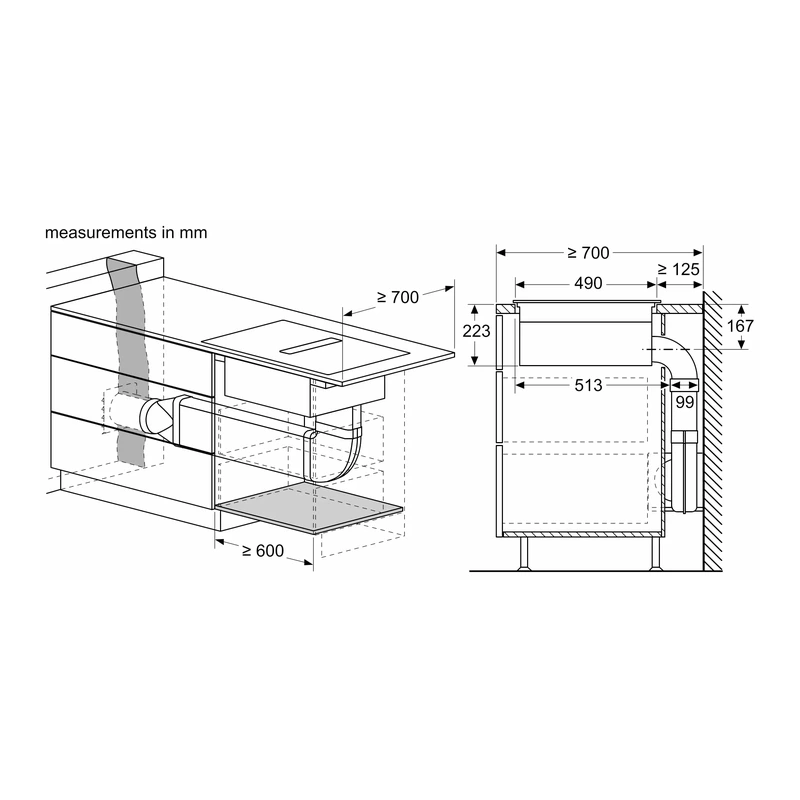

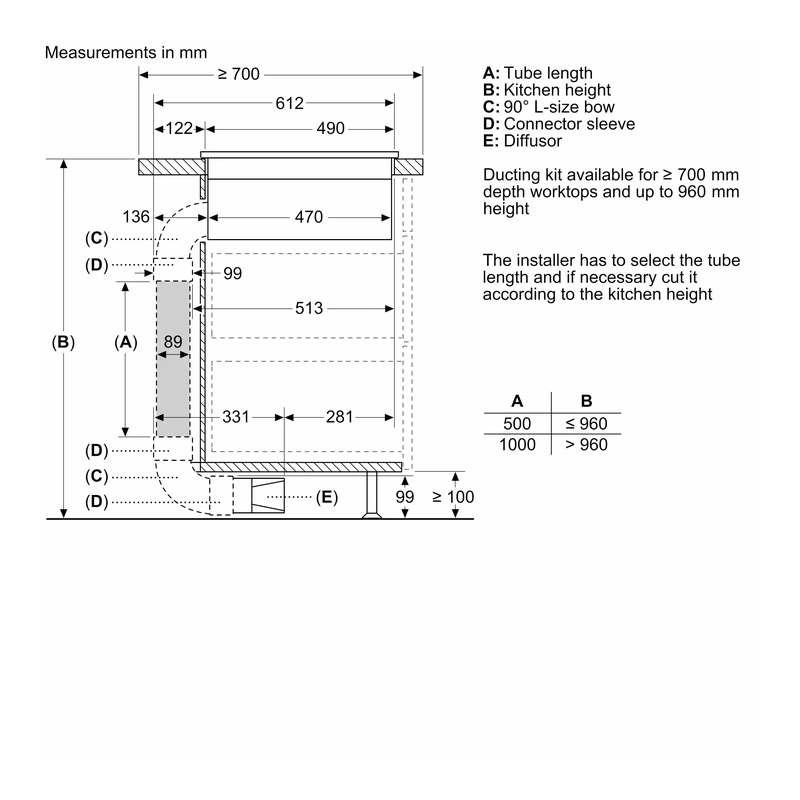

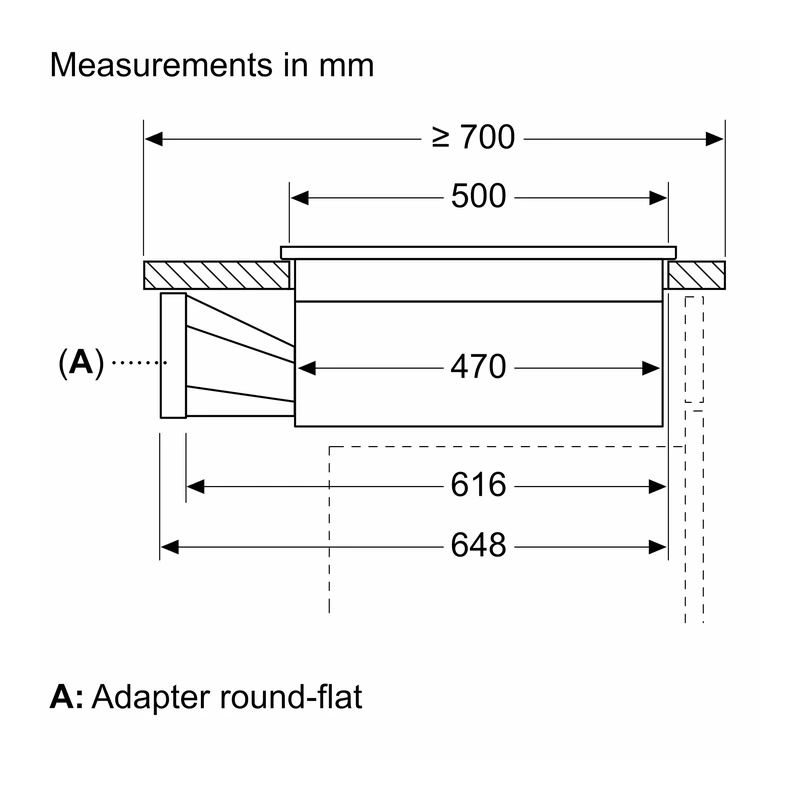

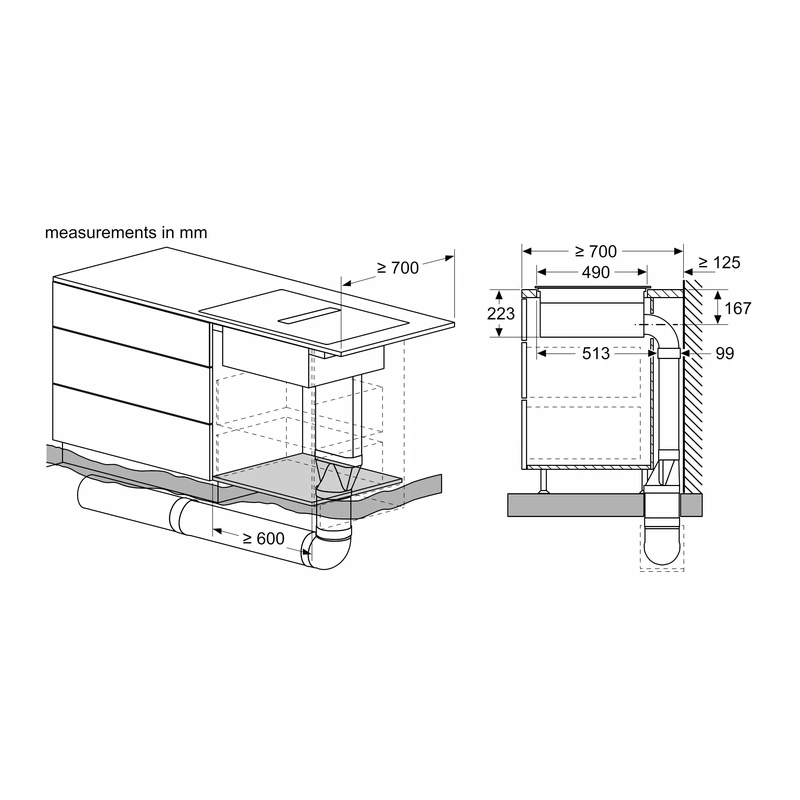

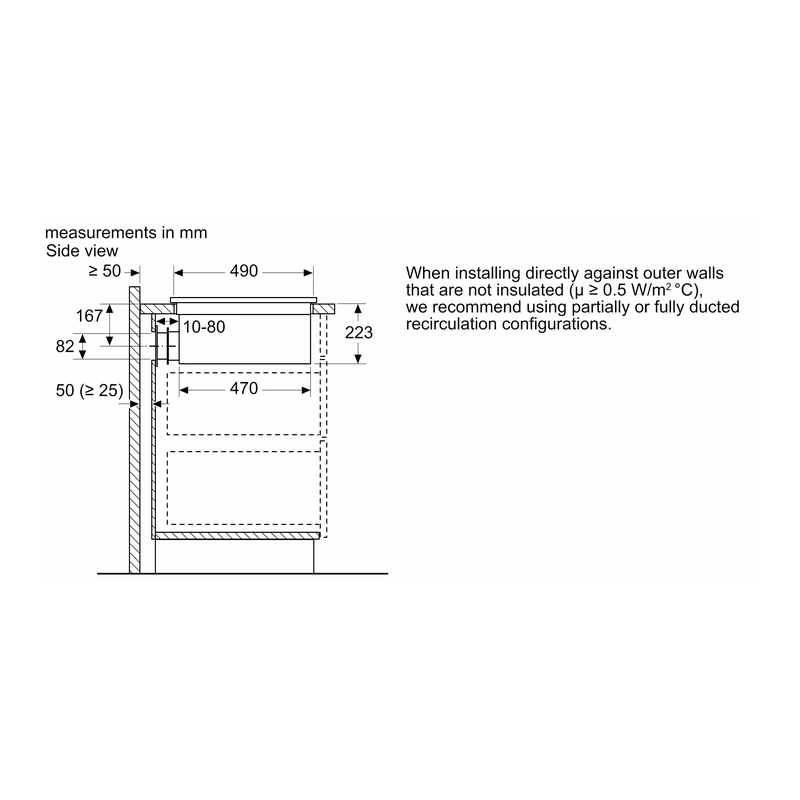

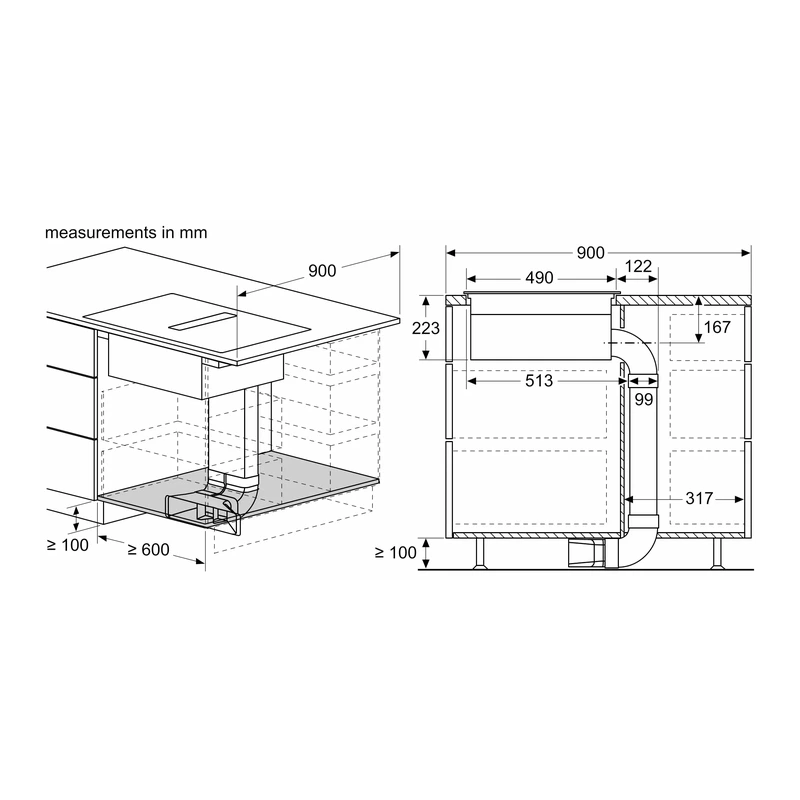

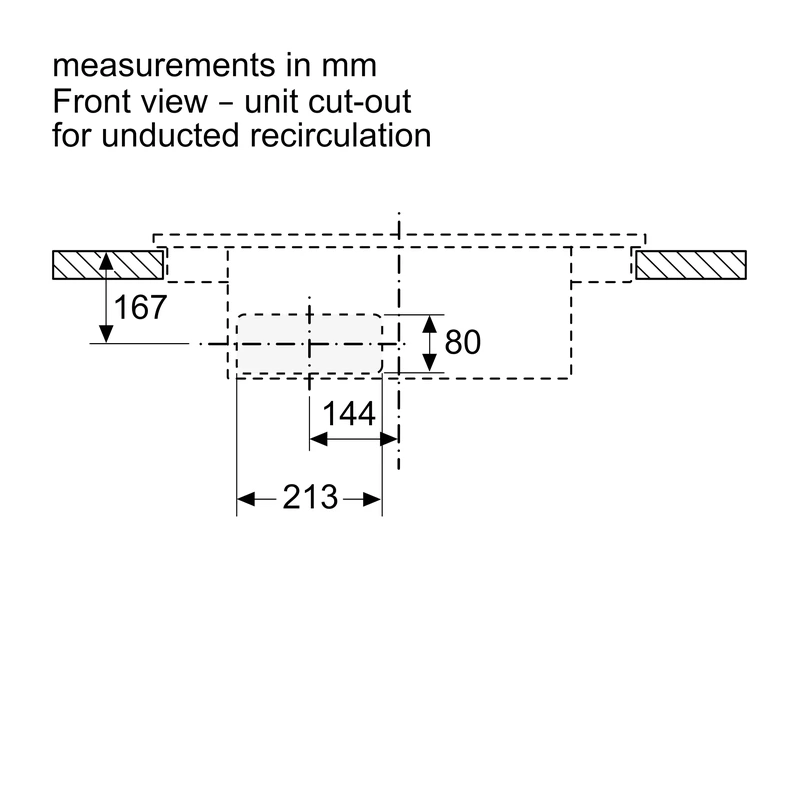

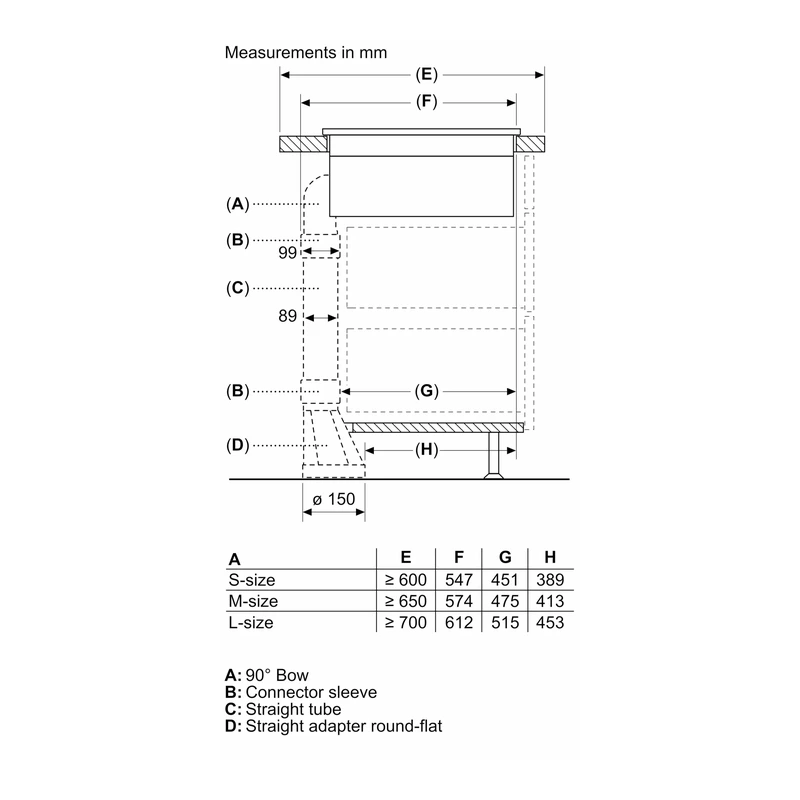

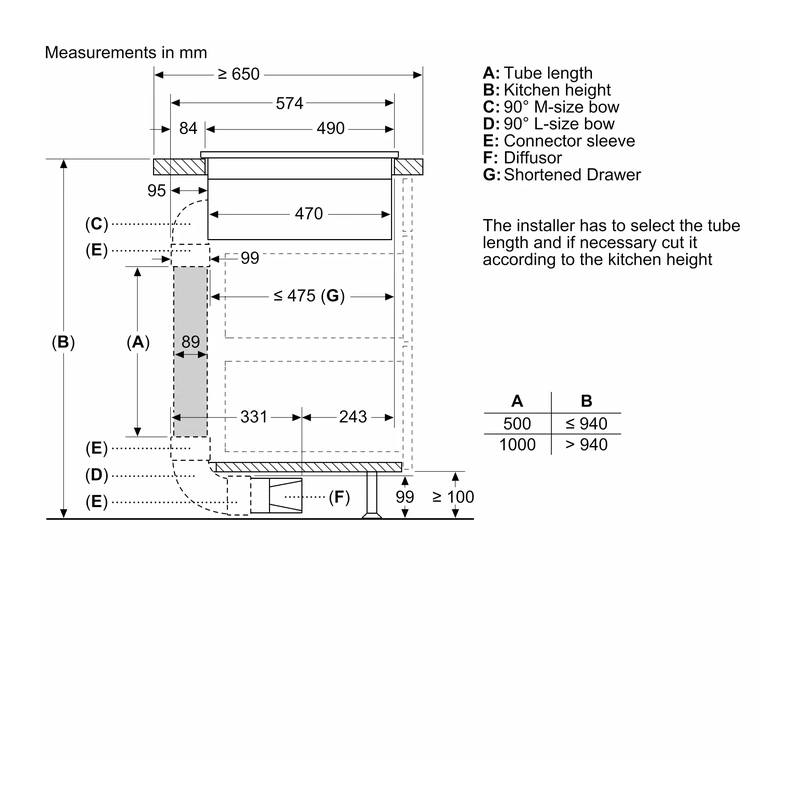

Ventilation configuration	Suitable for ducted or recirculated extraction (unducted, partly and fully ducted recirculation or ducted extraction)
Max. air extraction (ducted)	500 m³/h (normal max), 622 m³/h (Boost/Intensive)
Max. recirculating air output	487 m³/h (normal max), 595 m³/h (Boost/Intensive)
Noise level (ducted)	Min. 42 dB re 1 pW, max. normal 69 dB re 1 pW, Boost/Intensive 74 dB re 1 pW
Noise level (recirculation)	Min. 41 dB re 1 pW, max. normal 68 dB re 1 pW, Boost/Intensive 72 dB re 1 pW
Grease filtration efficiency	94 % (grease filtration efficiency class B)
Energy efficiency class (ventilation)	Energy Efficiency Class B (A+++ to D scale)
Fluid dynamic efficiency	Class A
Average energy consumption	57 (unit not stated in source)
Number of speed settings	9-stage + 2 intensive
Odour filter (base)	Odour filter: No (cleanAir Plus odour filters included for recirculation configuration)
Clean filter reminders	Yes
Nominal power / voltage	220–240/380–415 V, 50–60 Hz
Connected load	7.4 kW
Connection current management	20, 16, 13, 10 A options (limit maximum power depending on fuse protection)
Electrical supply cord	Length 110 cm (1.1 m), cable included in packaging

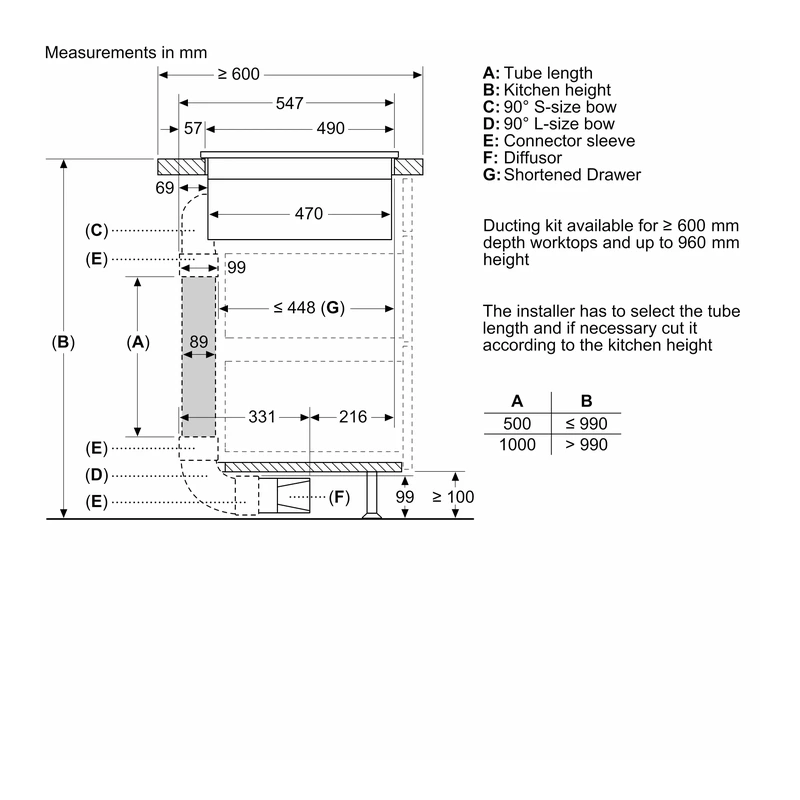

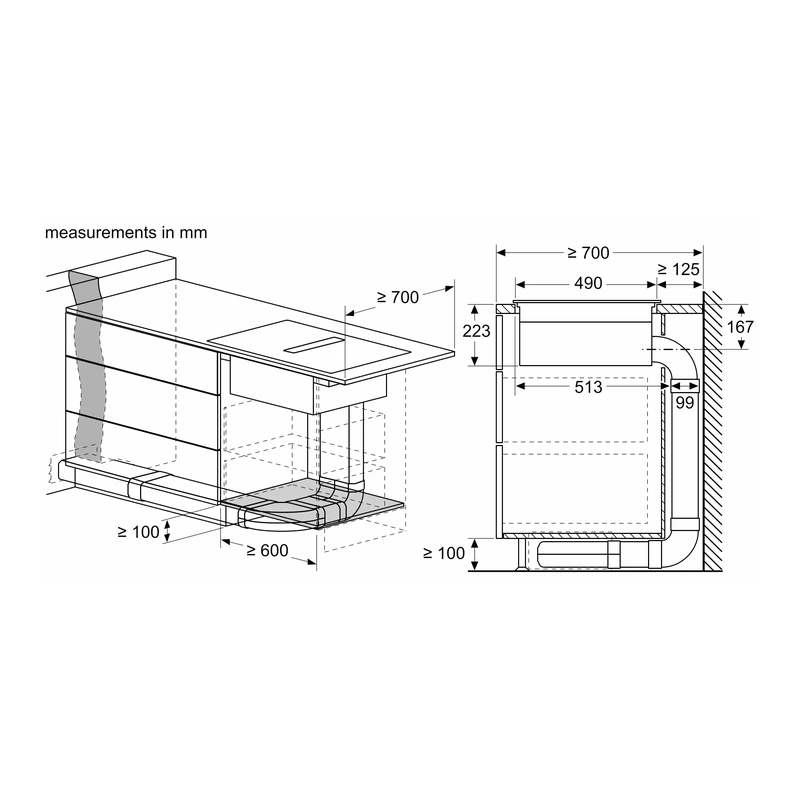

Blower technology	High-performance, low-noise BLDC blower, pressuredrop resistant up to 8 m ducting with three 90° bends
Liquid collection capacity	Upper collector 200 ml + liquid safety collector 700 ml, overall 900 ml; watertight blower system
Home Connect	Remote monitoring, dish assistant, functions via MyButton; updateable appliance via connected account
Compliance	Complies with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94)
Packed product dimensions (HxWxD)	430 x 950 x 660 mm
