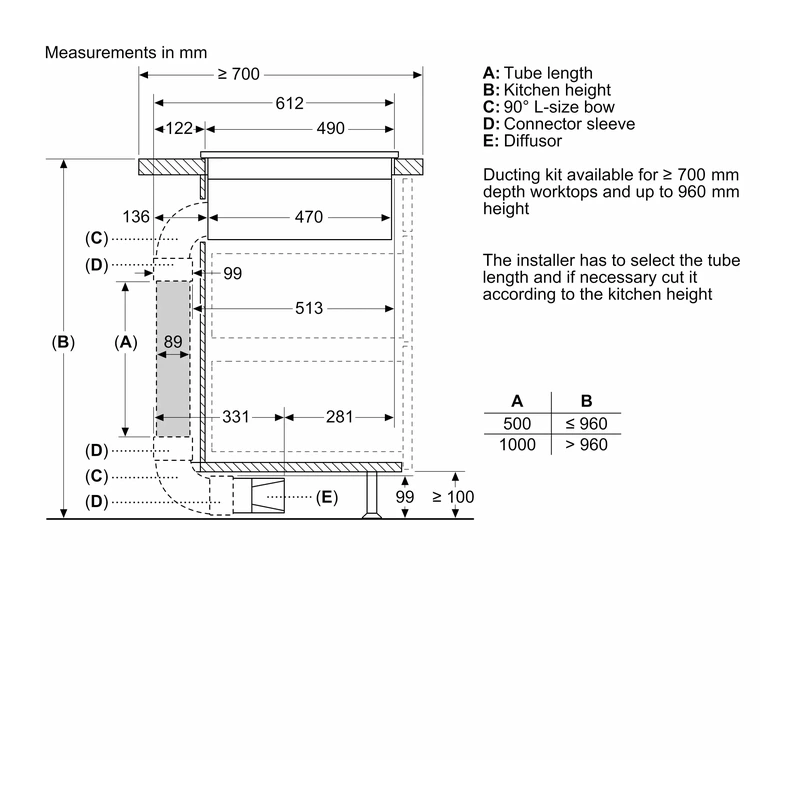

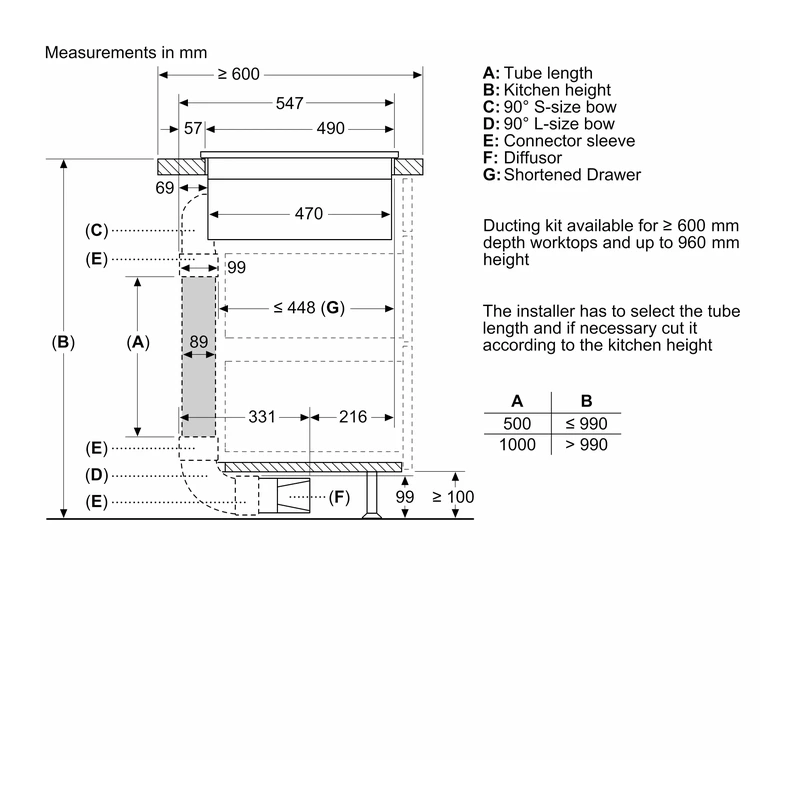

Can this hob be installed with both ducted and recirculated extraction?

Yes. The induction cooktop has a fully integrated downdraft extractor and is suitable for ducted or recirculated extraction configurations. It supports unducted, partly and fully ducted recirculation, as well as ducted extraction, with appropriate accessories.

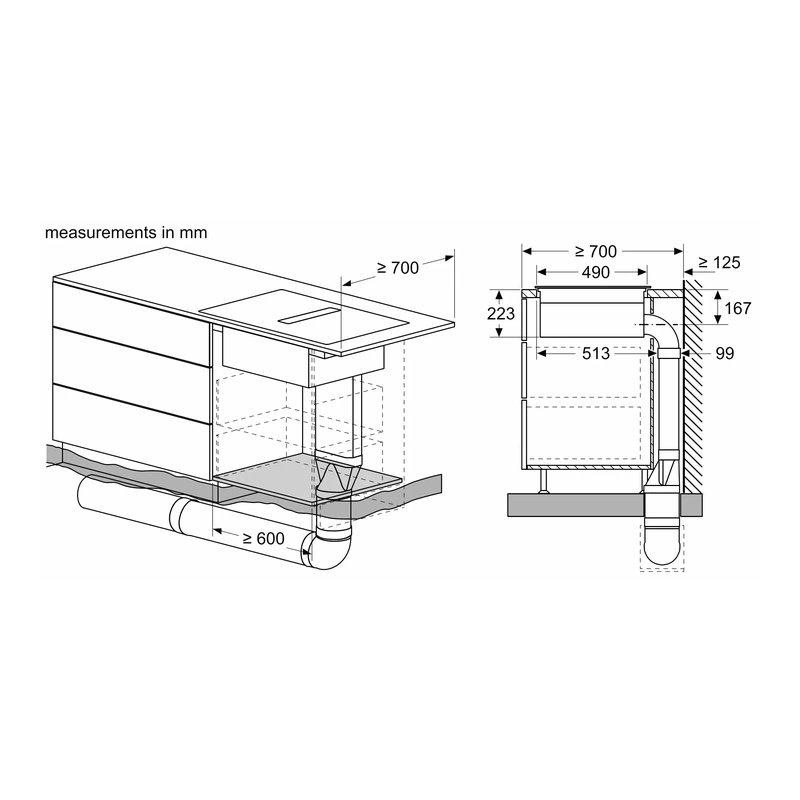

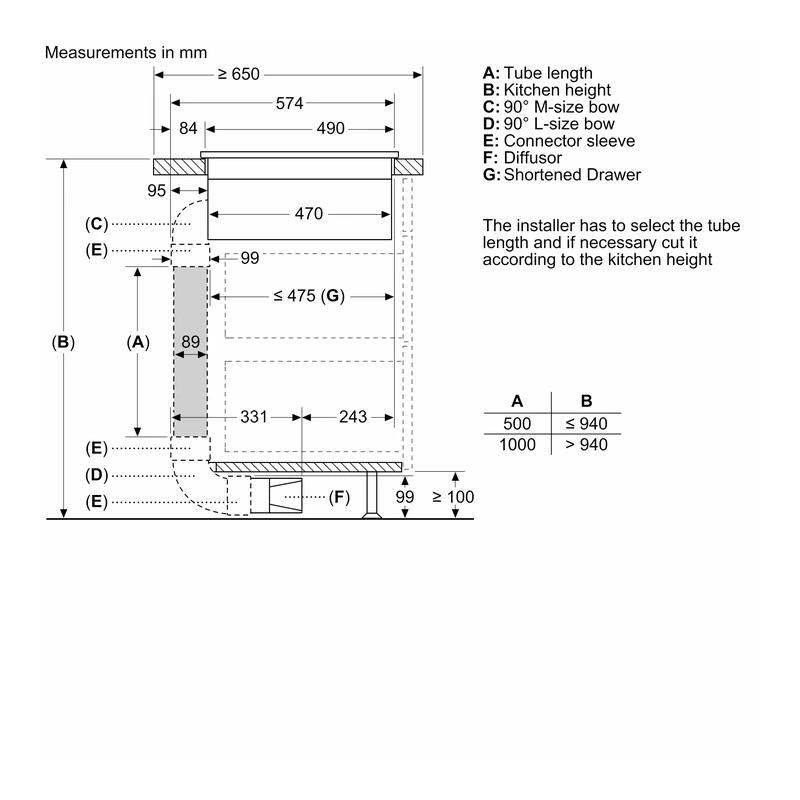

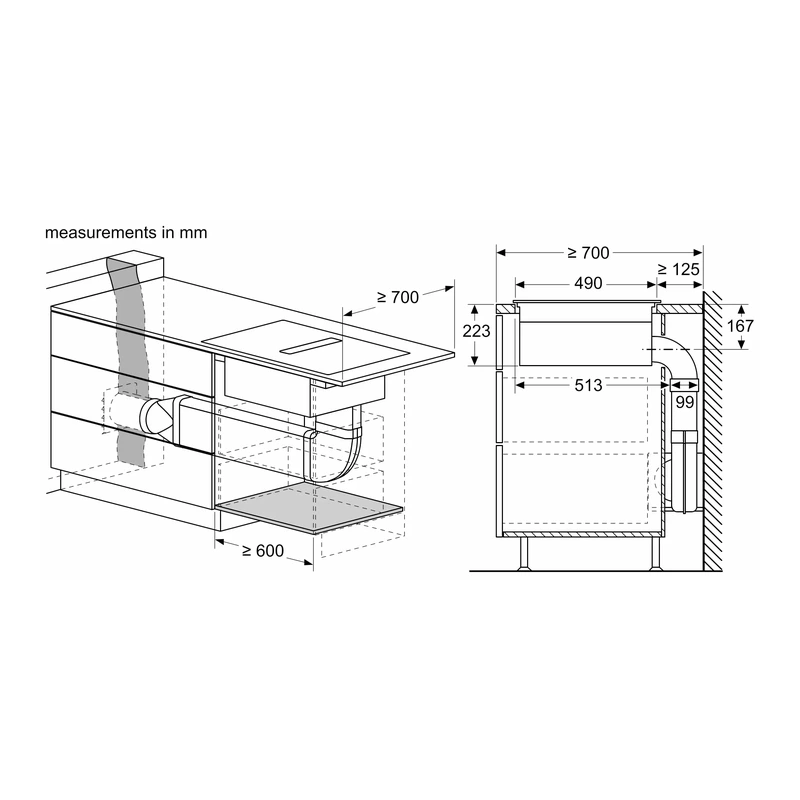

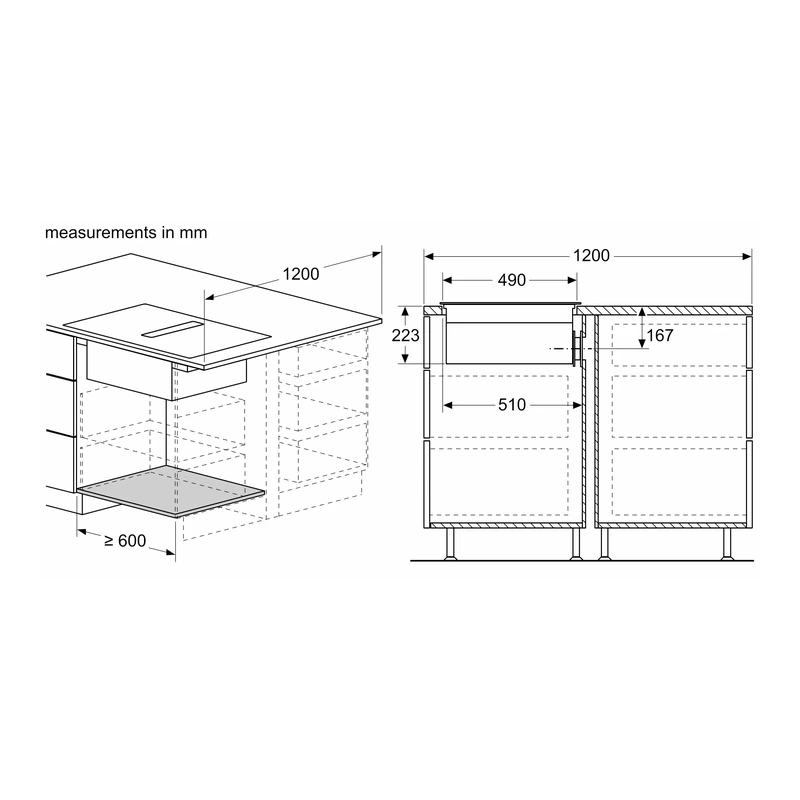

What cabinet size and worktop depth are required?

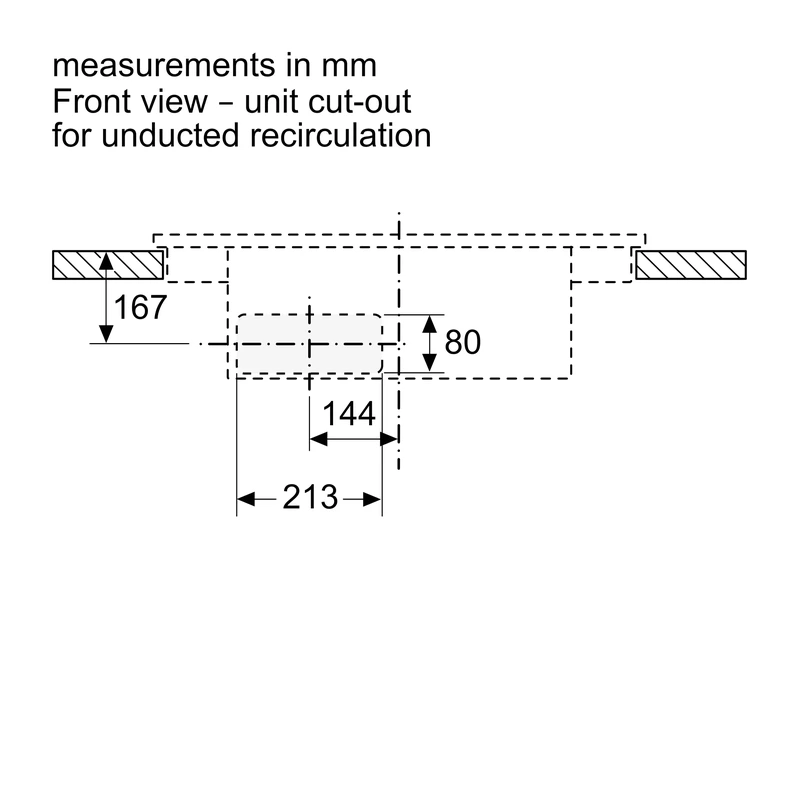

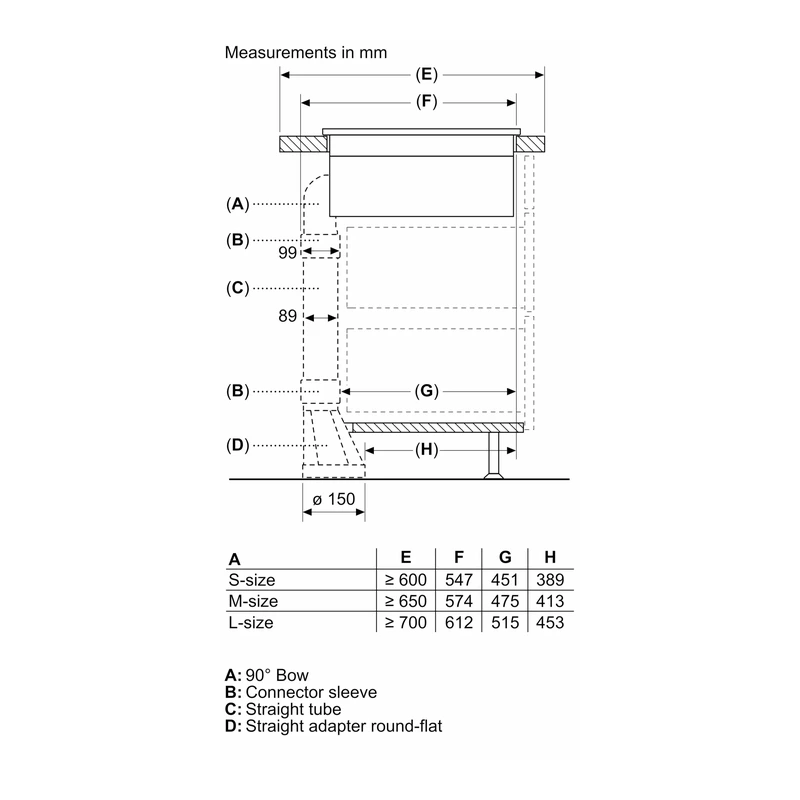

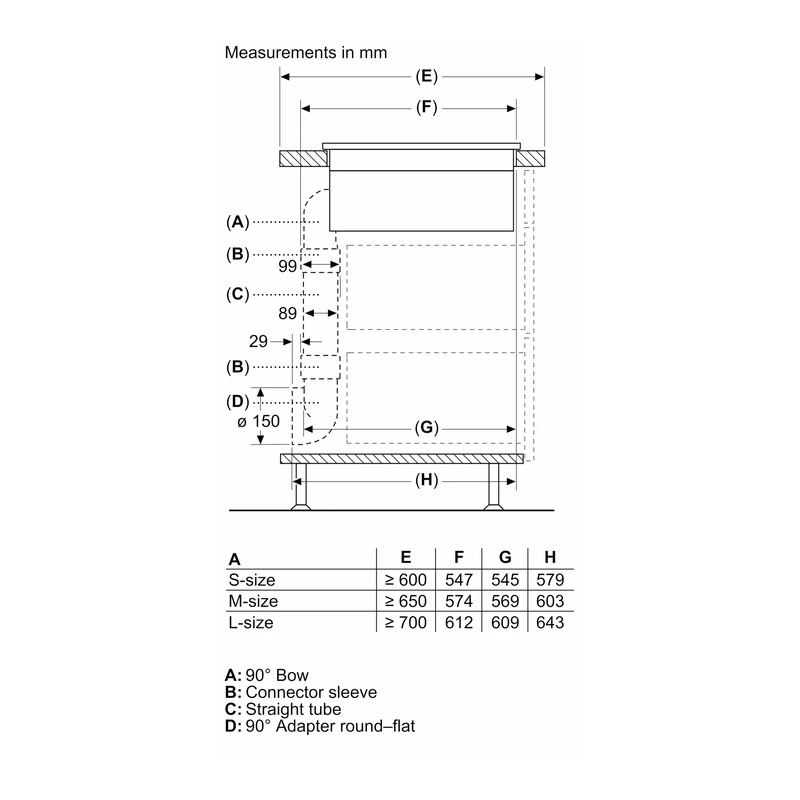

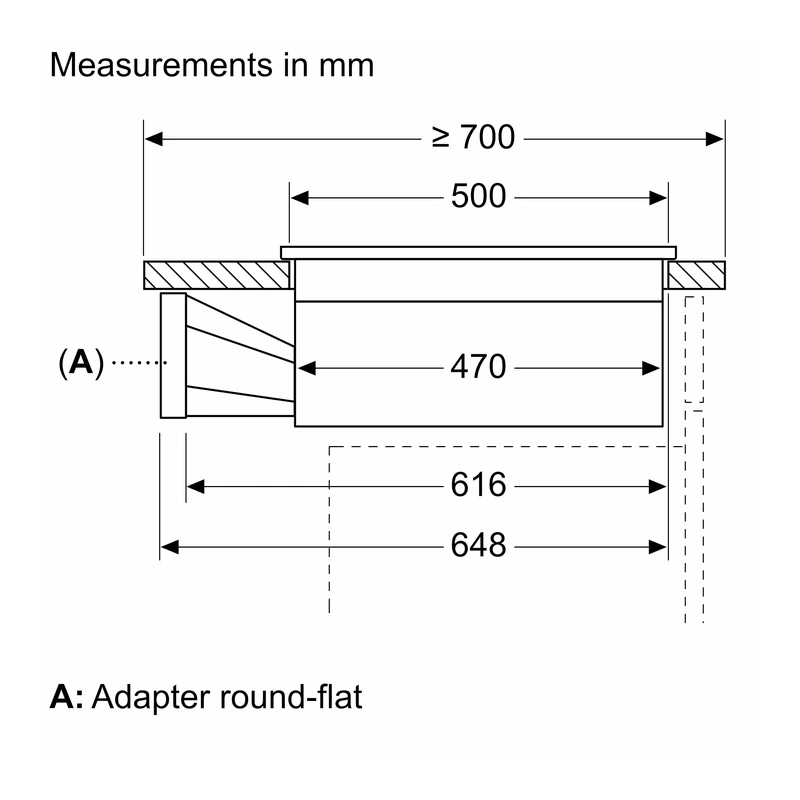

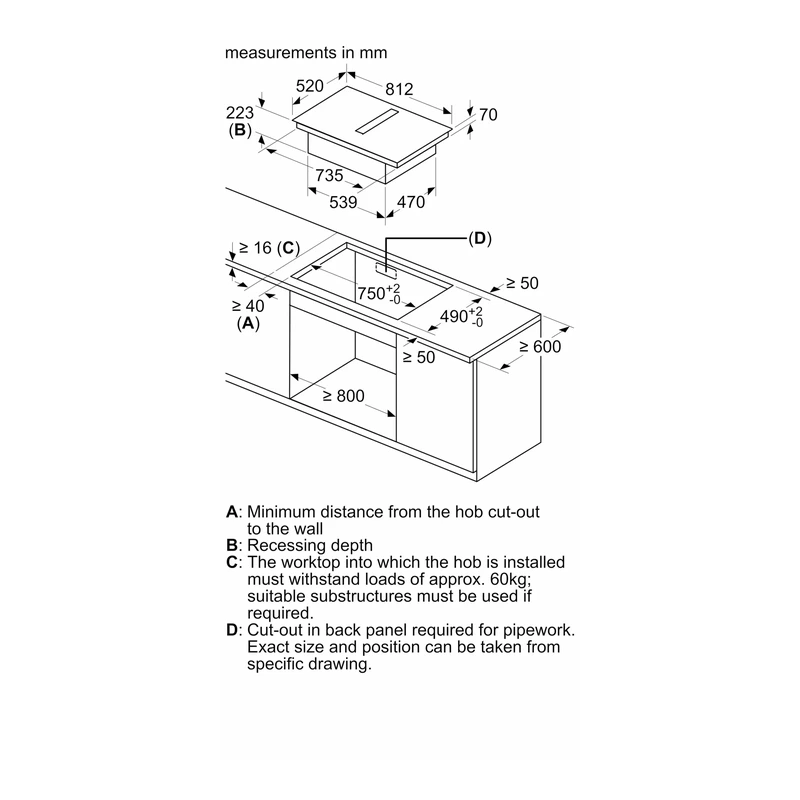

The hob is suitable for installation into a 60 cm base cabinet. The required niche size is 223 × 750 × 490 mm (H × W × D). The included accessories for unducted recirculation allow planning in worktops with depths of at least 60 cm, and additional kits are available for worktops of 70 cm depth.

How does the automatic ventilation control work?

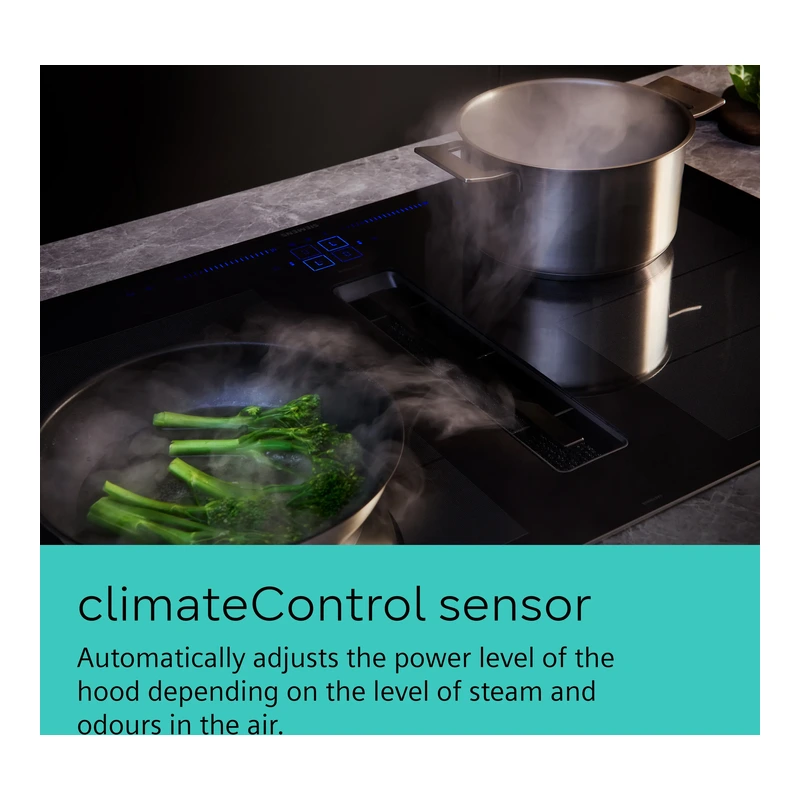

When a cooking zone is used, the ventilation switches on automatically. Sensors and cooktop data are used to adjust the fan power via an algorithm. You can choose between low-noise oriented, balanced or performance-oriented modes. After cooking, the system can run at ultra low-noise level for a delayed shut-off period to remove residual odours.

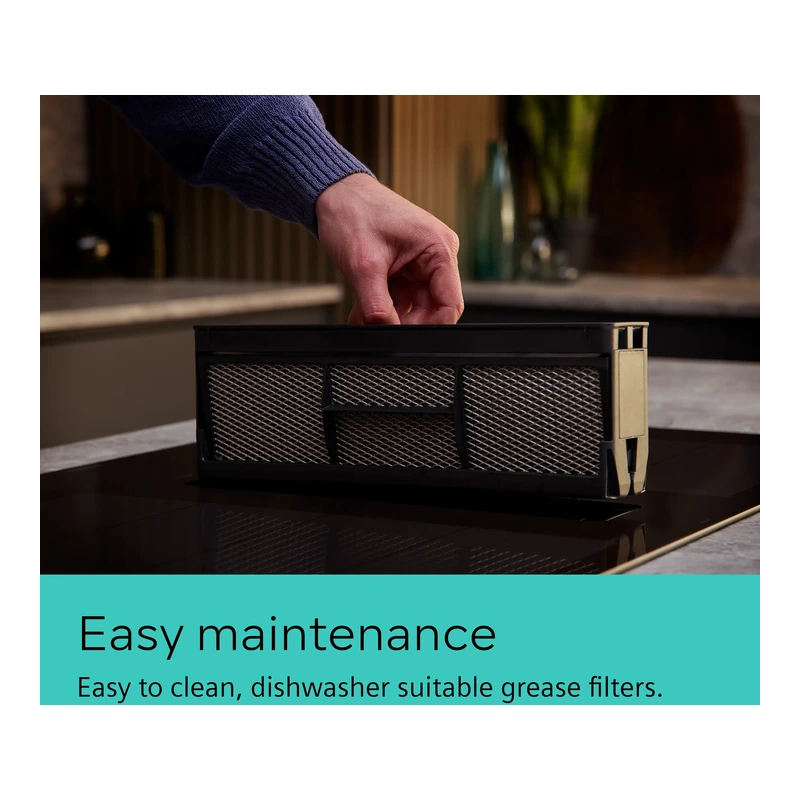

Are the filters and liquid collectors dishwasher safe?

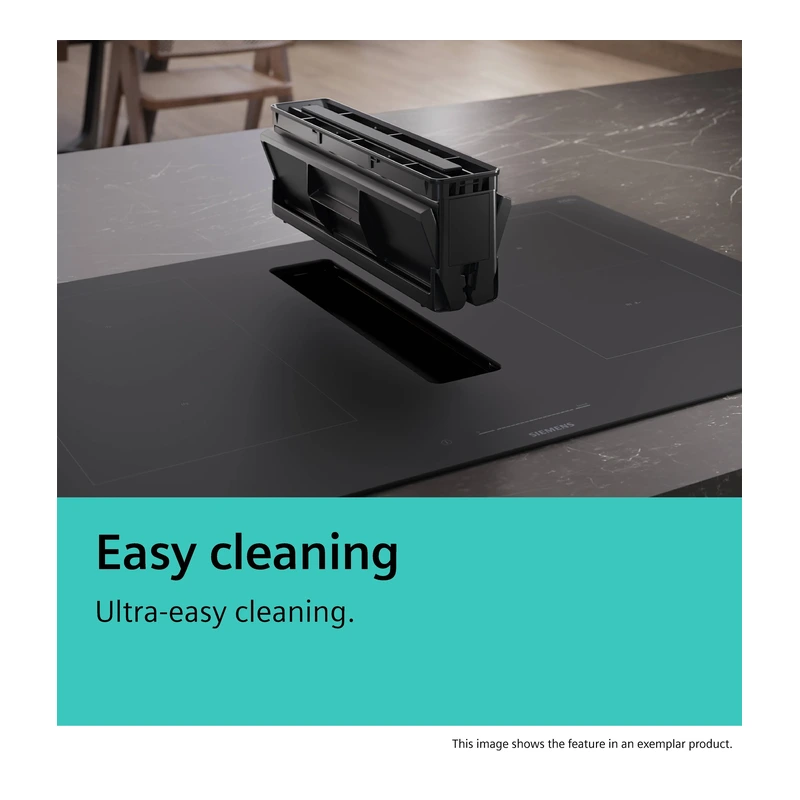

Yes. The stainless-steel grease filters, the upper liquid collector (200 ml) and the lower liquid safety collector (700 ml) are fully dishwasher safe and heat resistant. They are designed for easy removal and cleaning.

What smart features are available with Home Connect?

With Home Connect, you can remotely monitor the hob, check whether it is switched off, and access recipes or additional functions via the app. The dish assistant helps you find suitable temperature settings for dishes, and the app provides notifications such as cleanAir filter saturation and convenient re-order options.

What safety features does this hob offer?

Safety functions include 2-stage residual heat indicators, control panel lock, control panel pause (blocking all touch buttons for 30 seconds), a main on/off switch and automatic safety switch-off if heating is not used for a preset time. The product and accessories also comply with specified flammability and needle flame tests.

Product Information Sheet

Siemens StudioLine Venting Hob

SKU: EX870NX68E

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Siemens EX870NX68E StudioLine Venting Hob

SKU: EX870NX68E · EAN: 4242003968772

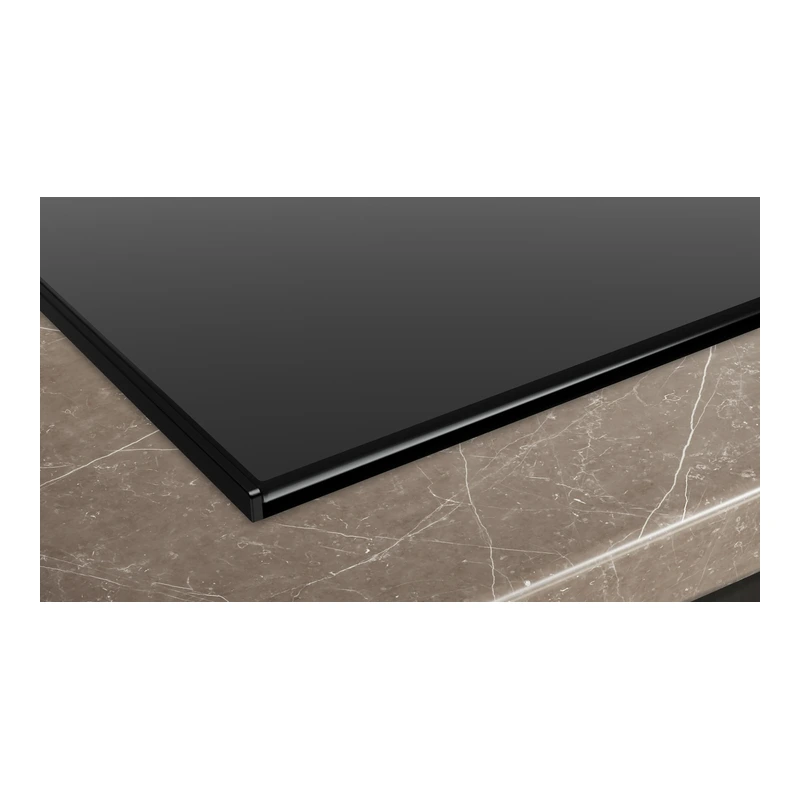

Diamond Protect glass with blackSteel trim

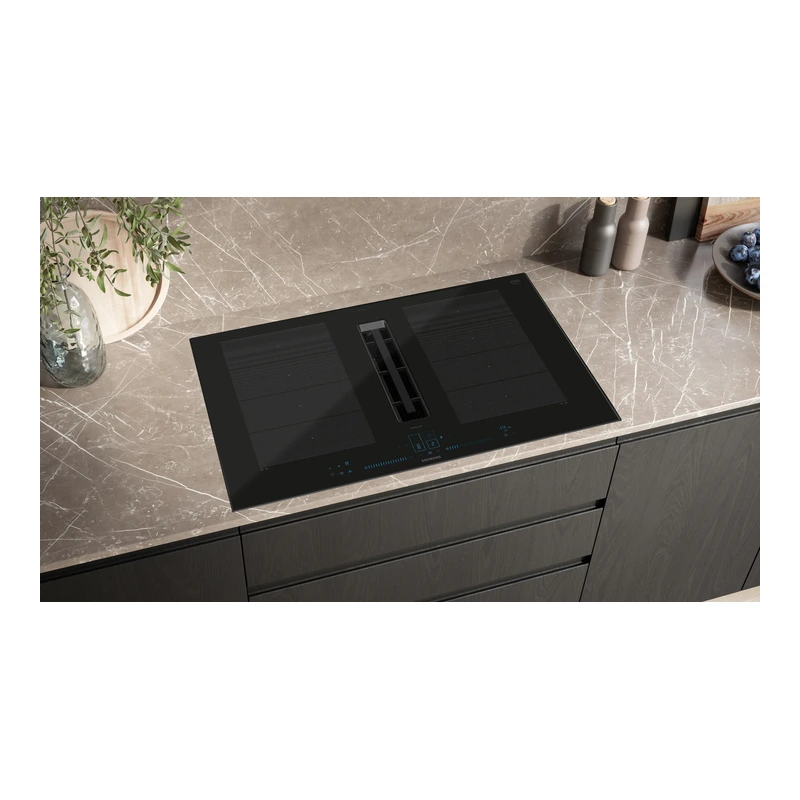

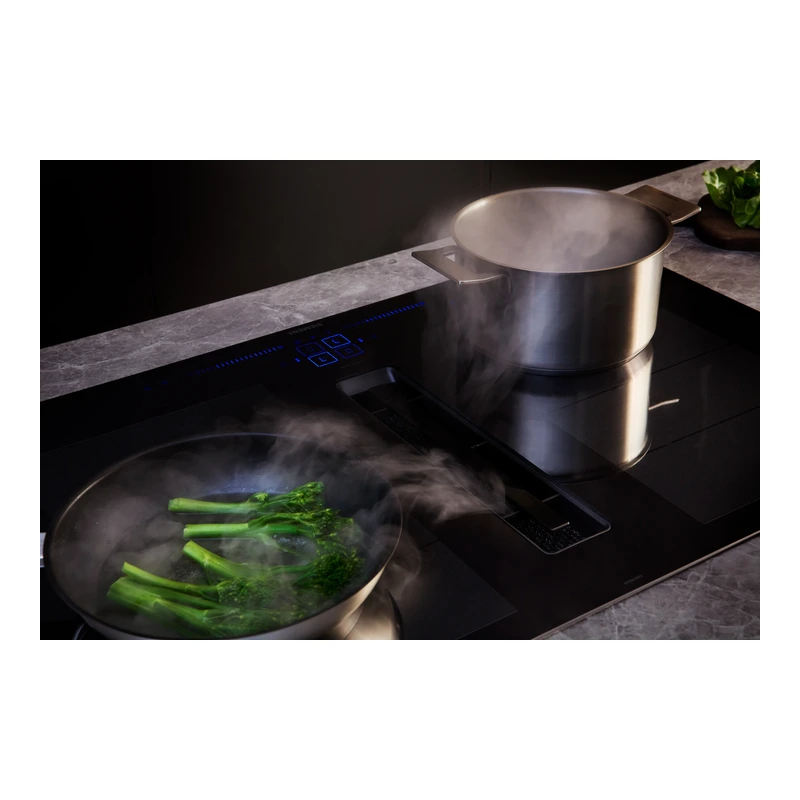

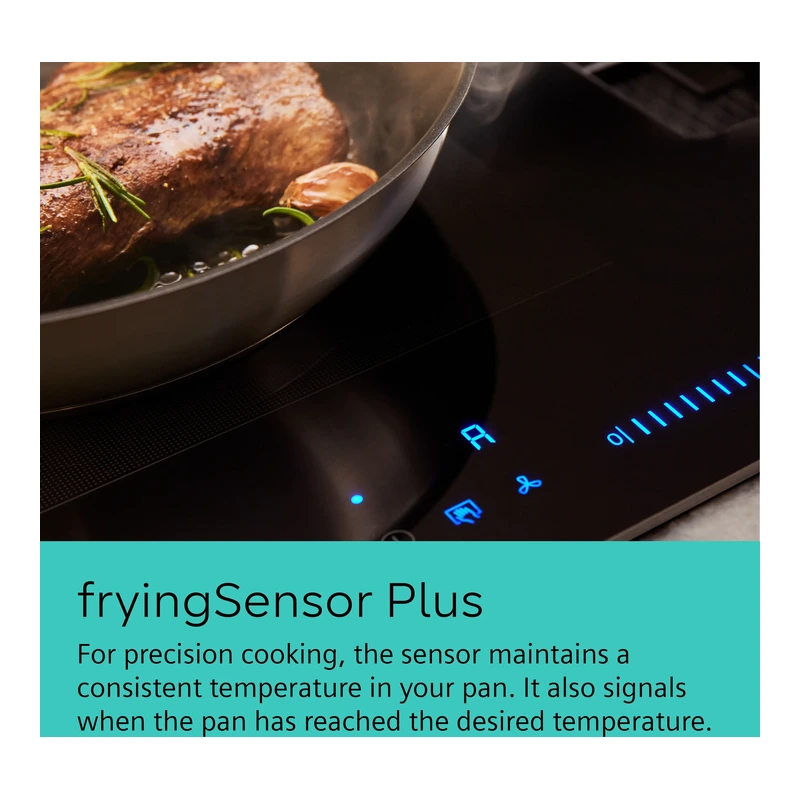

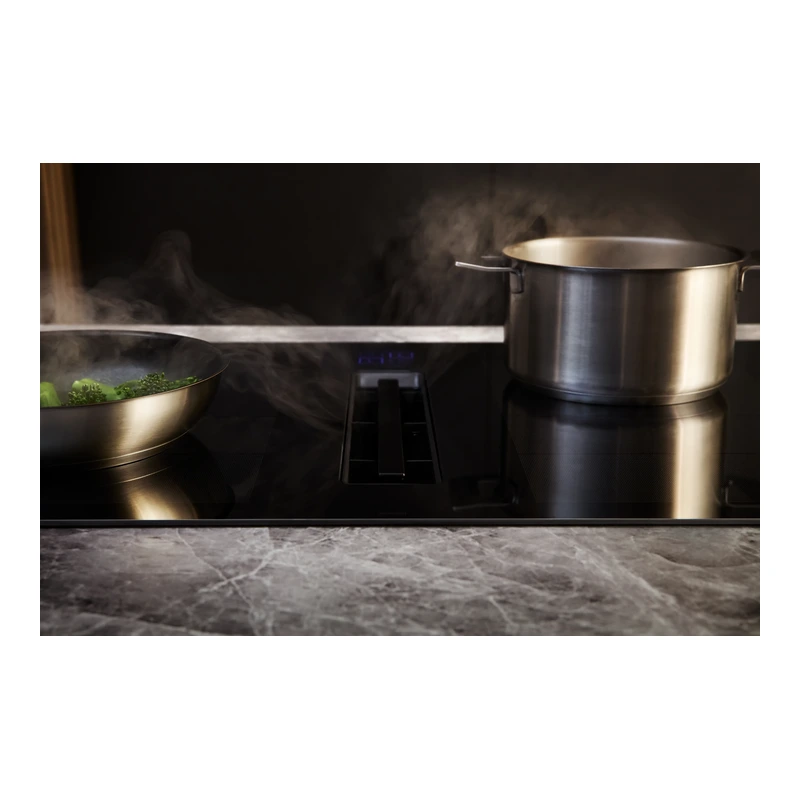

The iQ700 EX870NX68E is an 80 cm built-in induction hob with a fully integrated, high-performance downdraft ventilation system. Designed for flexible cooking, it offers two flexInduction zones for versatile cookware placement, precise dual lightSlider control and 17 power levels. Sensor-based ventilation automatically adjusts extraction, while features such as fryingSensor Plus, powerMove Plus and flexMotion support controlled, efficient cooking. Suitable for ducted or recirculated installation in 60 cm base cabinets.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product series	iQ700
Model	EX870NX68E
Product type	Induction hob with integrated ventilation system, surface mount with frame
Installation type	Built-in, suitable for installation into a 60 cm base cabinet
Source of energy	Electric

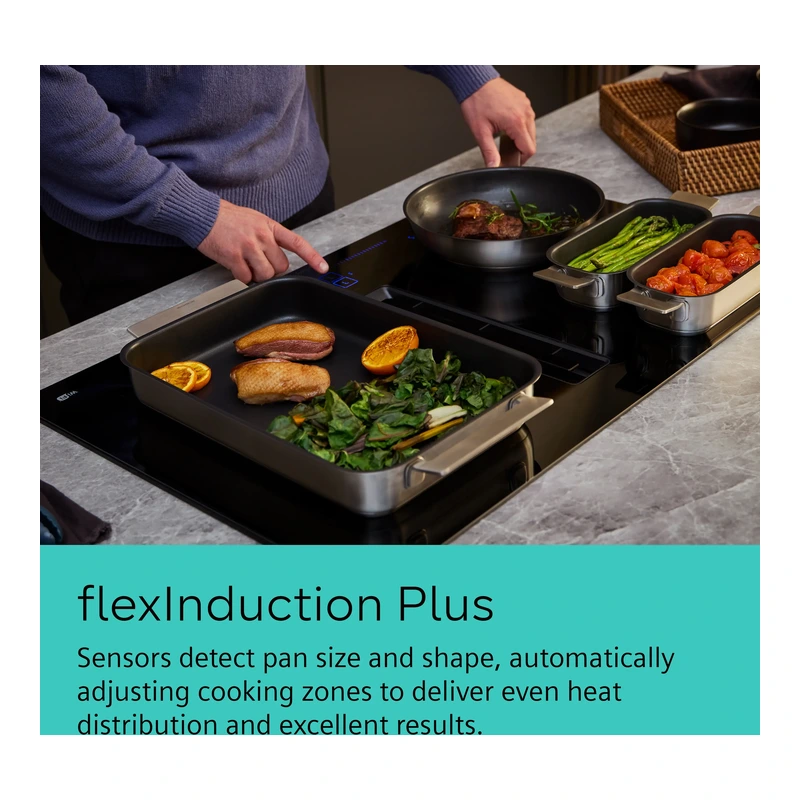

Number of cooking zones	4 (2 flexInduction zones)

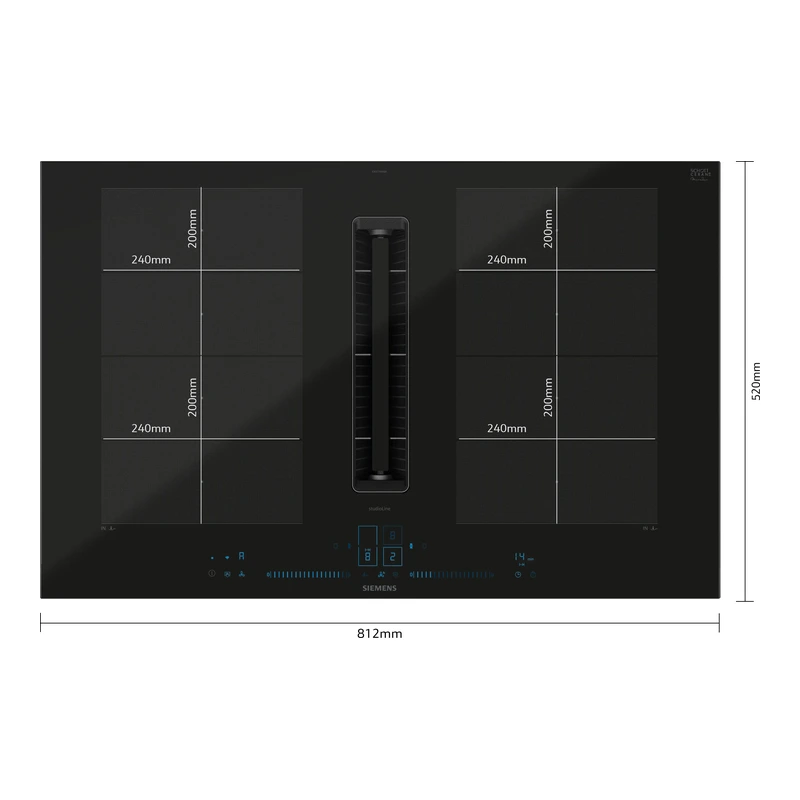

Cooktop dimensions (H × W × D)	223 × 812 × 520 mm

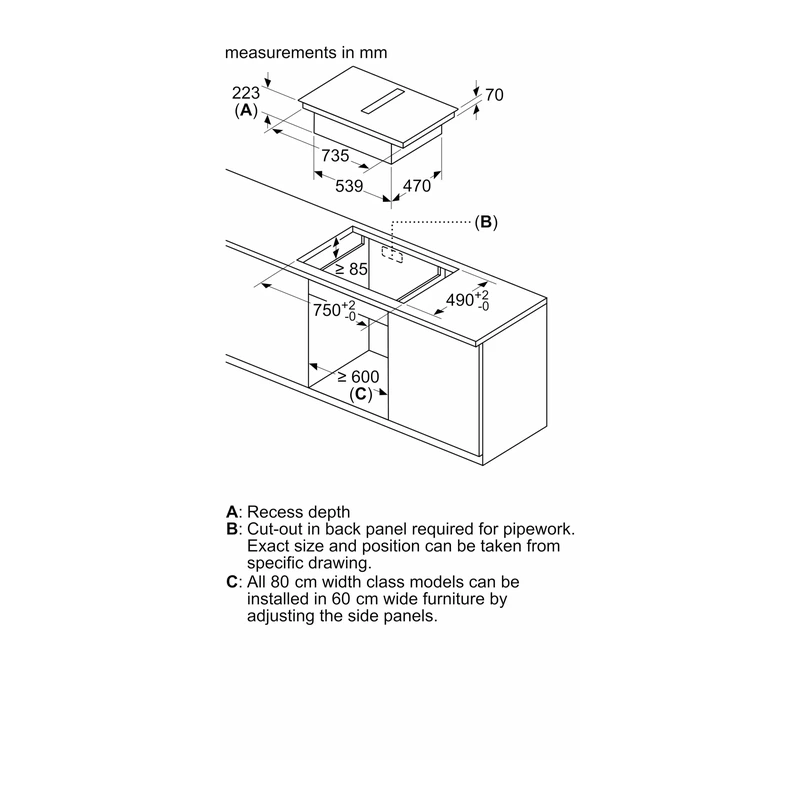

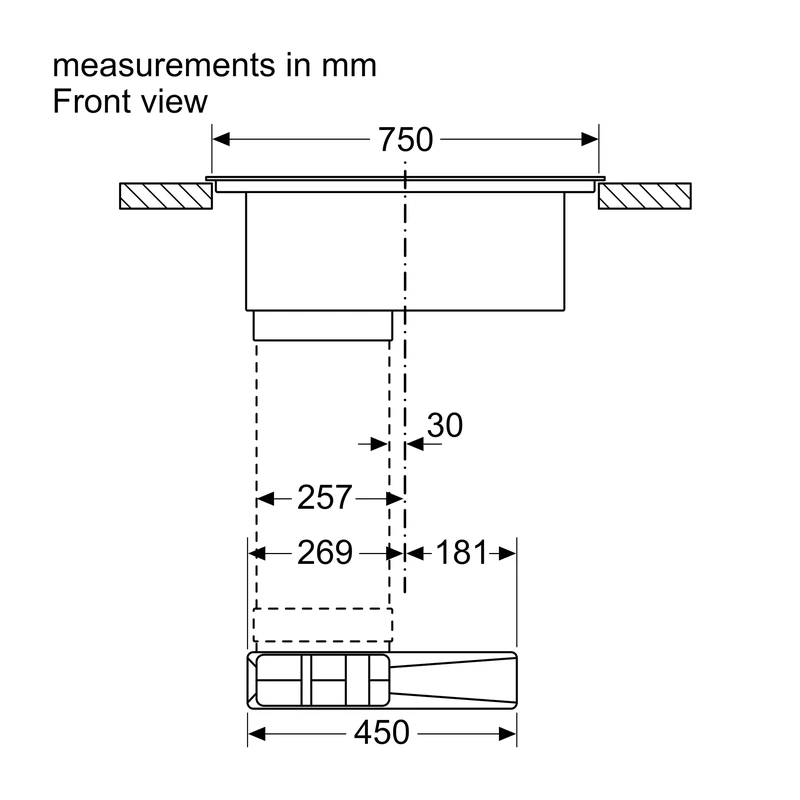

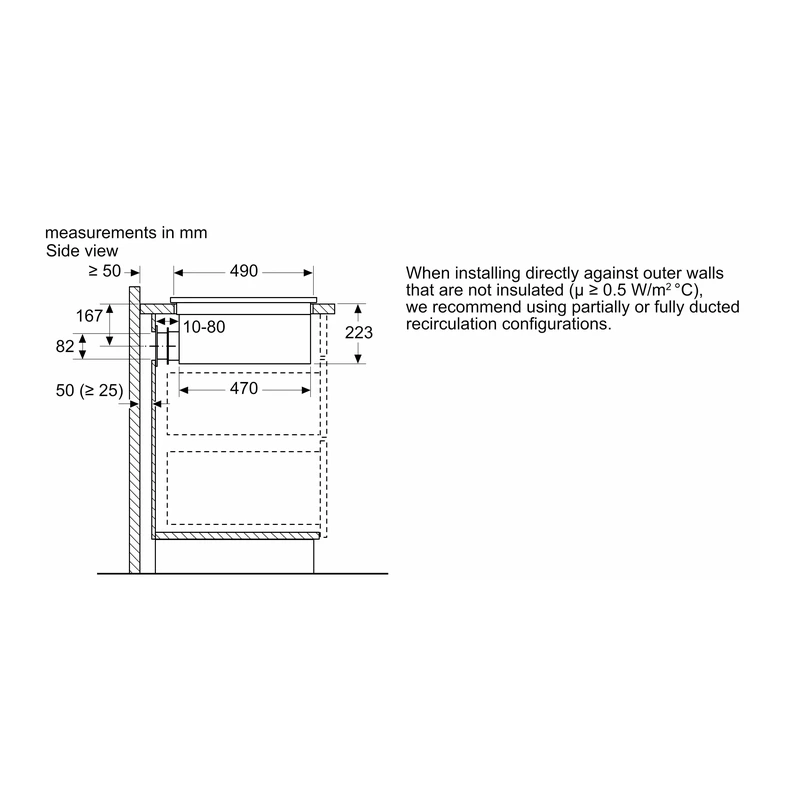

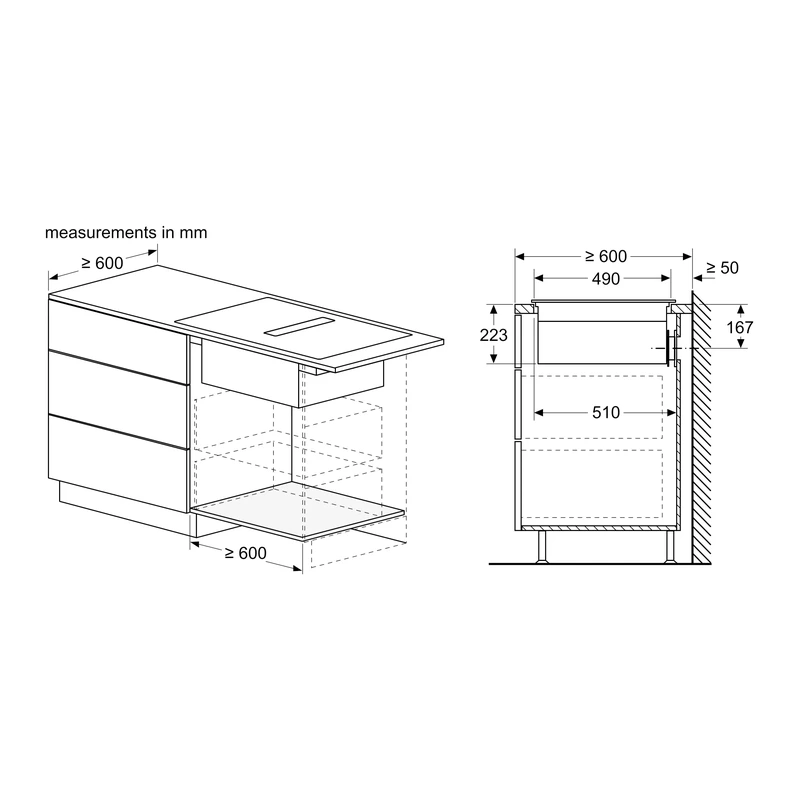

Required niche size (H × W × D)	223 × 750 × 490 mm
Minimum worktop thickness	16 mm
Width of appliance	812 mm
Packed dimensions (H × W × D)	430 × 950 × 660 mm
Weight / Gross weight	27.3 kg / 32.0 kg (overall appliance weight mentioned as 26 kg in planning notes)
Basic surface material	Ceramic (Helios LED Miradur glass ceramics)
Surface colour	Black

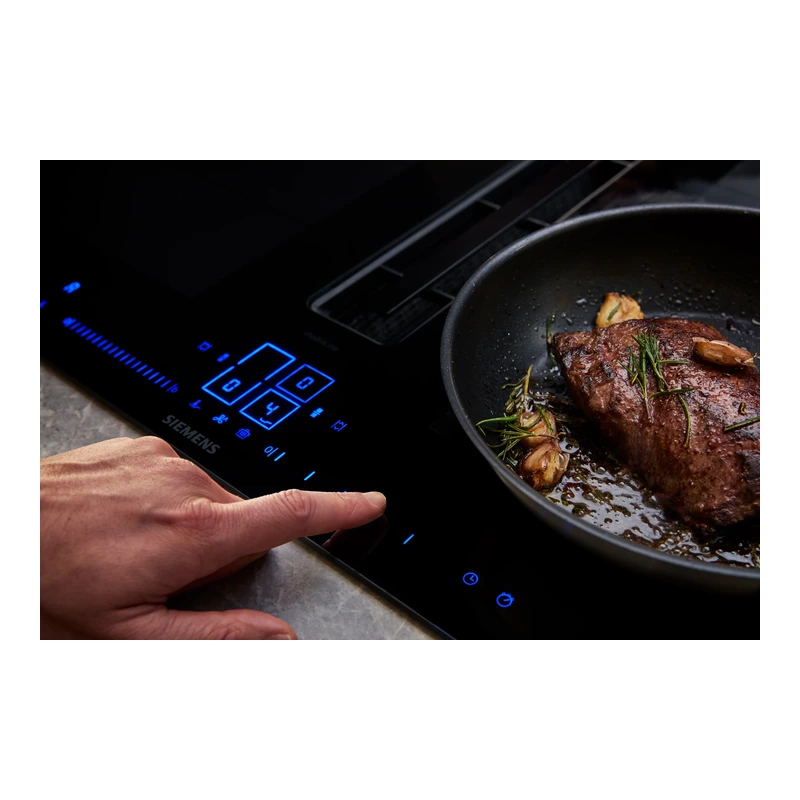

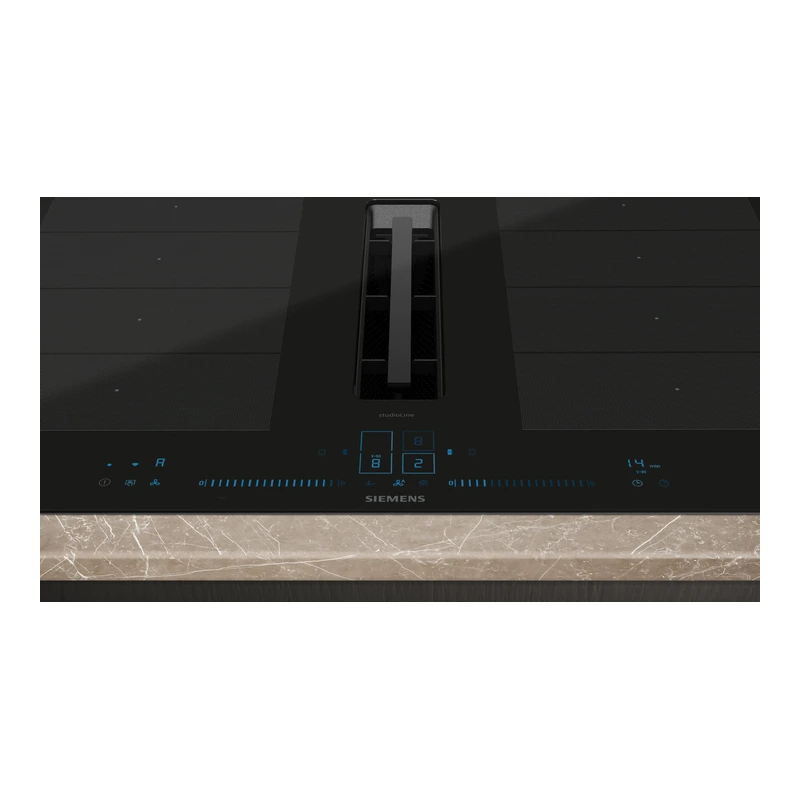

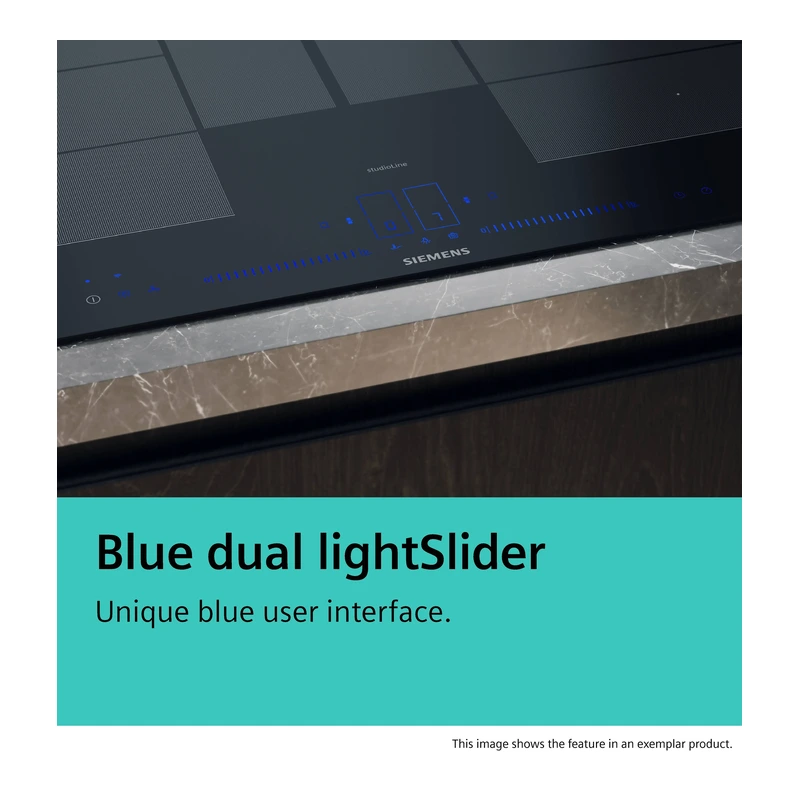

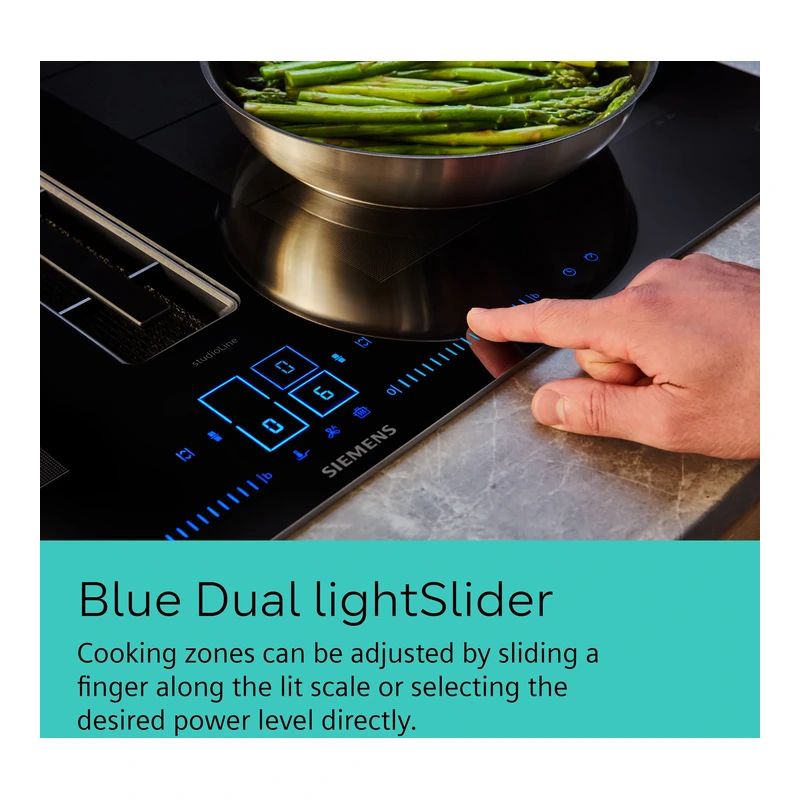

Control panel location	Front, dual lightSlider
Cooking zone front left	200 mm, 240 mm, 2.2 kW (max. 3.7 kW)
Cooking zone rear left	200 mm, 240 mm, 2.2 kW (max. 3.7 kW)
Cooking zone rear right	200 mm, 240 mm, 2.2 kW (max. 3.7 kW)
Cooking zone front right	200 mm, 240 mm, 2.2 kW (max. 3.7 kW)
Power levels	17-stage (9 main levels, 8 intermediate levels) with powerBoost and panBoost
Residual heat indicator	Separate, 2-stage residual heat indicators

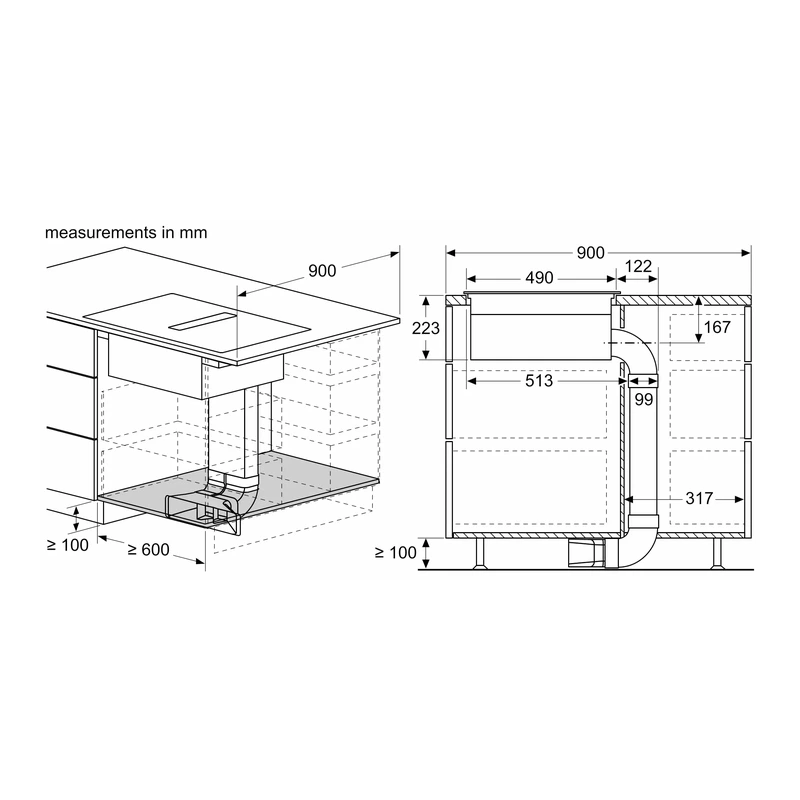

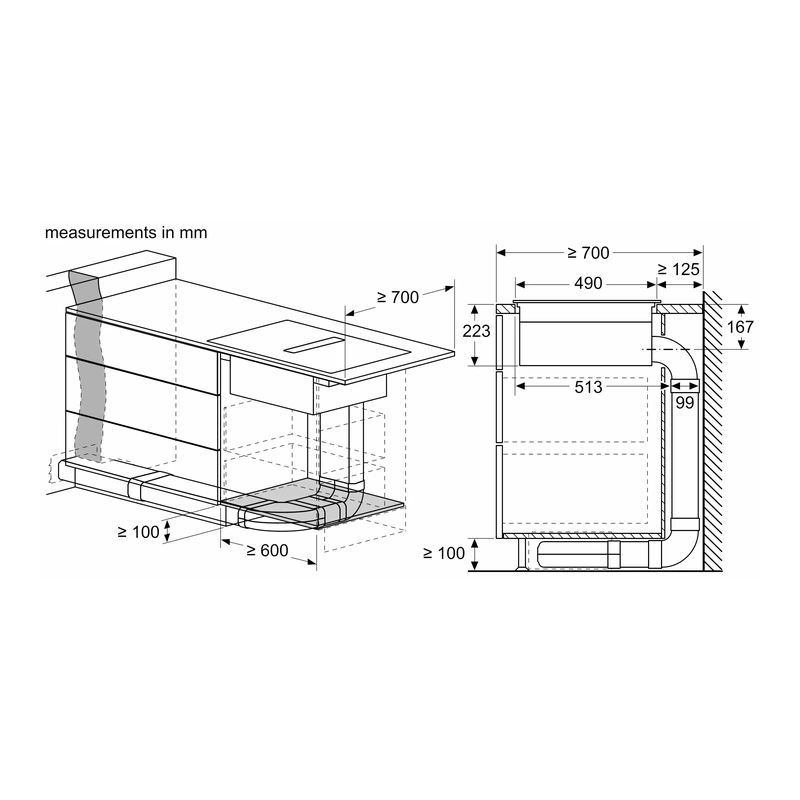

Ventilation type	Convertible (ducted or recirculated extraction)
Fan speed settings	17 electronically controlled fan levels + 2 Boost/Intensive levels
Max. air extraction (ducted)	500 m³/h (normal max), 622 m³/h (Boost/Intensive)
Air extraction range (ducted)	154 – 500 m³/h normal; up to 622 m³/h Boost (EN 61591)
Air extraction range (recirculation)	132 – 499 m³/h normal; up to 595 m³/h Boost (EN 61591)
Noise level (ducted)	42 dB re 1 pW (min normal), 69 dB re 1 pW (max normal), 74 dB re 1 pW (Boost/Intensive)
Noise level (recirculation)	41 dB re 1 pW (min normal), 68 dB re 1 pW (max normal), 72 dB re 1 pW (Boost/Intensive)
Maximum output air extraction	500 m³/h
Boost position air extraction	622 m³/h
Maximum output recirculating air	499 m³/h
Boost position output recirculating	595 m³/h
Grease filter efficiency	94 % (EN 61591), grease filtration efficiency class B
Energy efficiency class (ventilation)	B (range A+++ to D, Regulation (EU) No 65/2014)
Fluid dynamic efficiency	Class A
Average energy consumption	57 (unit not stated in source)
Noise (min & max normal)	42 dB & 69 dB (according to Regulation (EU) No 65/2014)
Nominal voltage / frequency	220–240 / 380–415 V, 50–60 Hz
Connected load	7.4 kW with connection current management (20, 16, 13, 10 A options)
Length of power cord	1.1 m, cable included in packaging

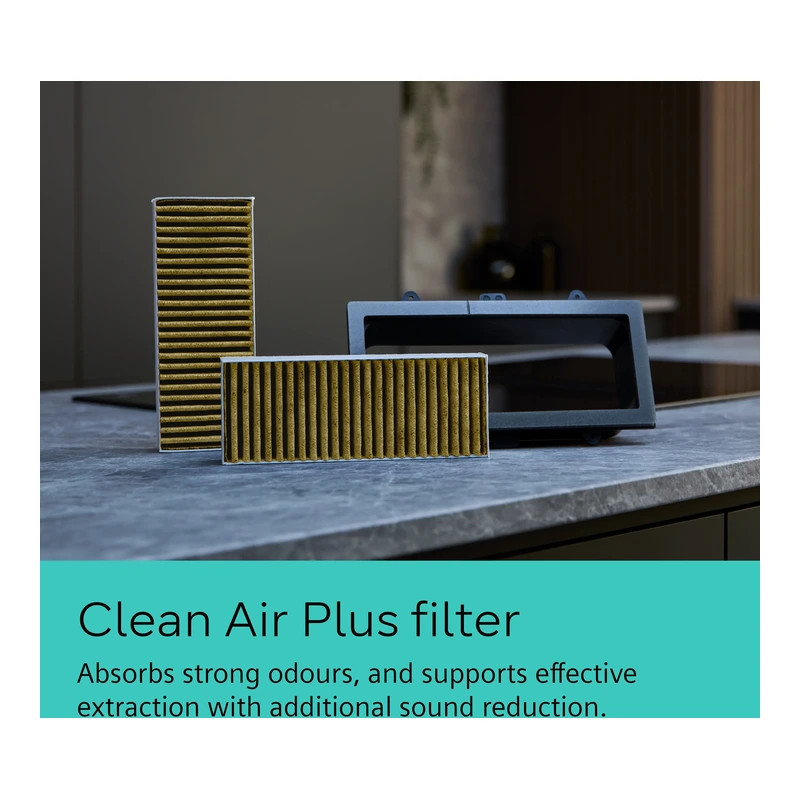

Odour filter	Clean Air Plus odour filters for recirculation; 1 Clean Air Plus odour filter included; odour filter lifetime 360 hours of cooking (non-regenerative)
Clean filter reminders	Yes, including saturation indications for cleanAir odour filter
Liquid collection capacity	Upper unit 200 ml + lower liquid safety collector 700 ml (total 900 ml)
Sealed burners	No (induction cooktop)
Energy consumption display	Shows electricity consumption of the last cooking process
Compliance	Needle Flame Test (IEC 60695-11-5), V2 flammability class (UL94)
