Is the iQ500 LB56NAC60B suitable for both ducted and recirculating operation?

Yes. The canopy hood is suitable for ducted and re–circulating operation. For recirculated extraction, various recirculation kits are available as optional accessories.

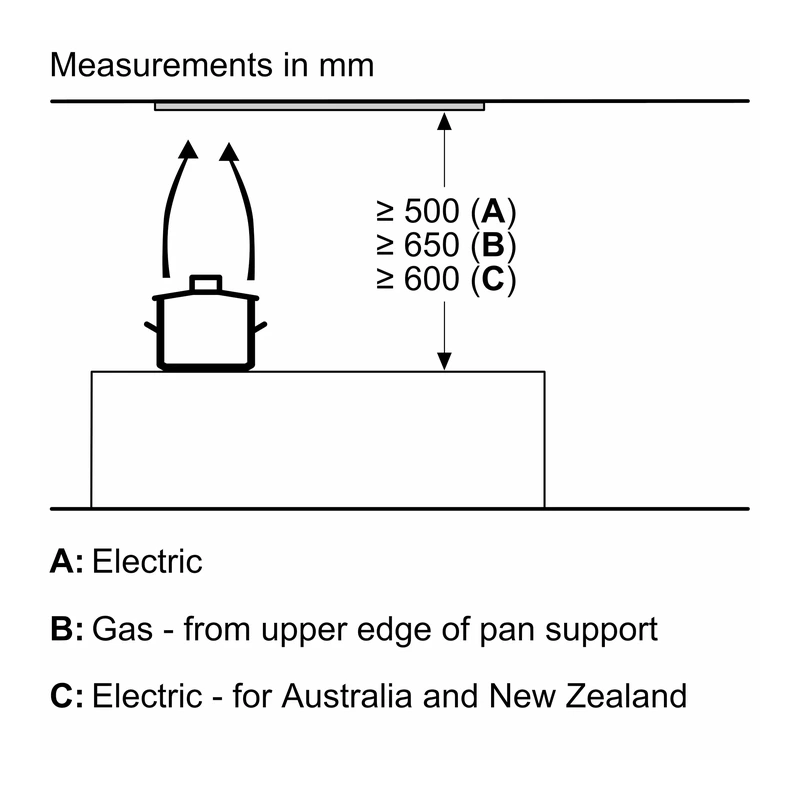

What are the minimum installation heights above electric and gas hobs?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

How many power levels does this cooker hood have?

It has 3 power levels plus an intensive setting. The intensive setting automatically resets to the normal setting after 6 minutes.

What type of lighting is used and what is the colour temperature?

The hood uses 2 × 1 W LED lights with a colour temperature of 4000 K and a light intensity of 400 lux.

Are the filters and filter cover easy to clean?

Yes. The grease filter is made of washable aluminium, and the steel filter cover is dishwasher–safe. The hood also features easy to clean smooth surfaces and materials.

What is the energy efficiency rating and annual energy consumption?

The hood has an Energy Efficiency Class B (on a scale from A+++ to D) with an average energy consumption of 75.2 kWh/year*.

Product Information Sheet

Siemens iQ500 Canopy Hood

SKU: LB56NAC60B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Siemens LB56NAC60B iQ500 Canopy Hood

SKU: LB56NAC60B · EAN: 4242003959862

Black

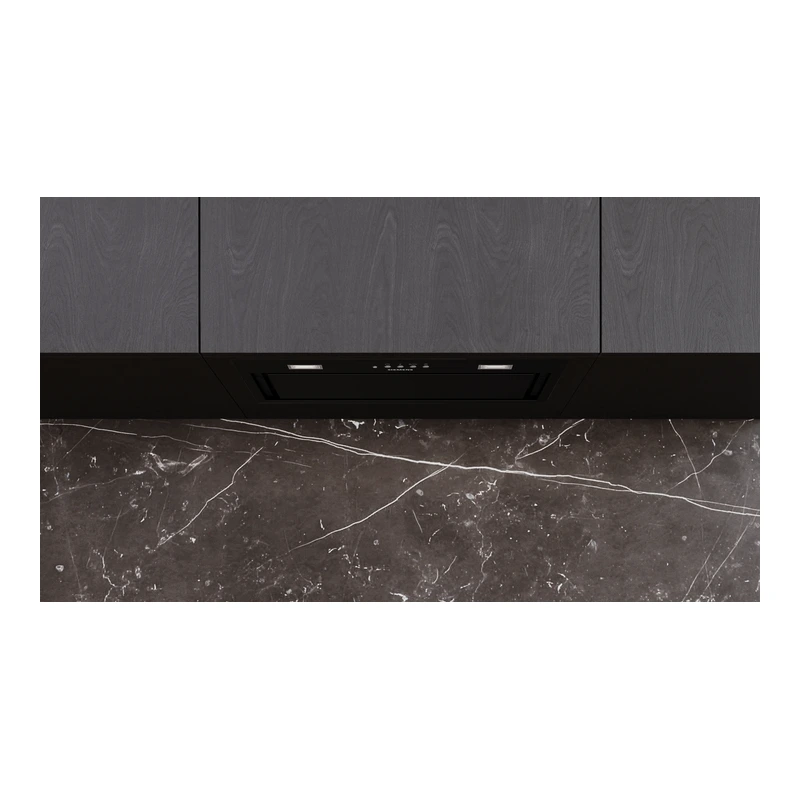

The iQ500 LB56NAC60B is a 52 cm black canopy cooker hood designed for flush, seamless installation in wall cupboards or brick chimneys. It is suitable for ducted or recirculating operation and offers 3 power levels plus an intensive setting for rapid steam extraction. With LED lighting, soft-touch electronic controls and washable aluminium grease filters, it provides effective extraction performance and easy cleaning in a discreet, built-in design.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	iQ500 Canopy cooker hood, 52 cm, Black
Model reference	LB56NAC60B
Typology	Built–in/Built–under canopy hood
Installation type	Built–in, cabinet installation, flush–fitted
Colour	Black

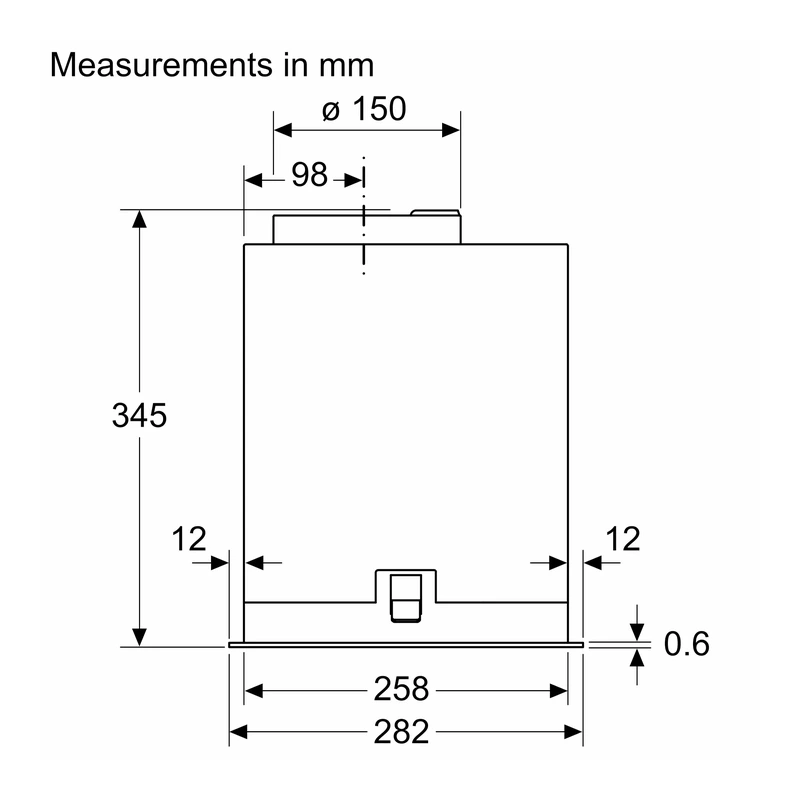

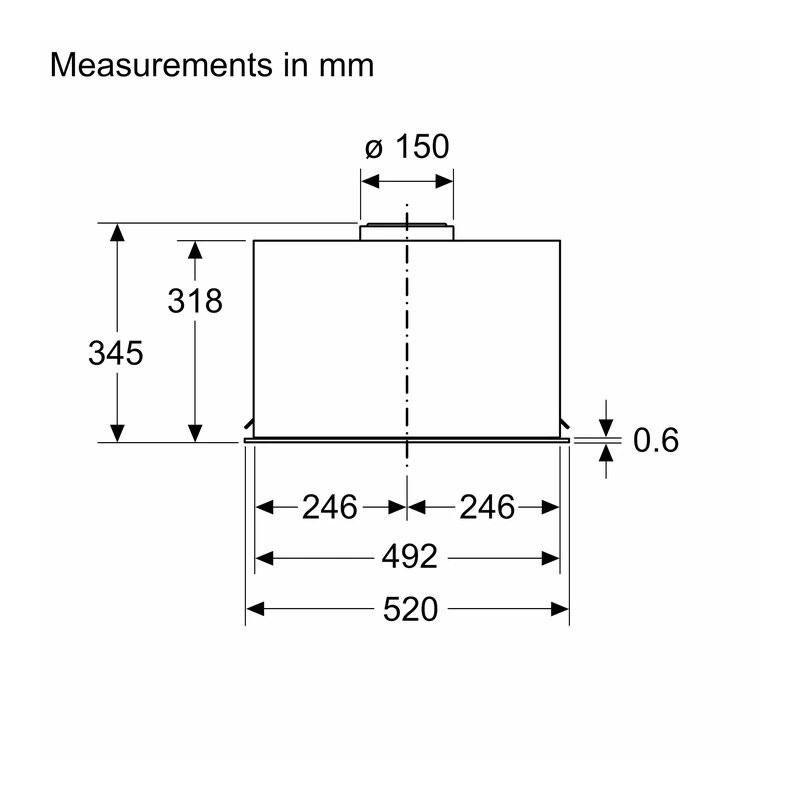

Dimensions (HxWxD)	345 x 520 x 282 mm

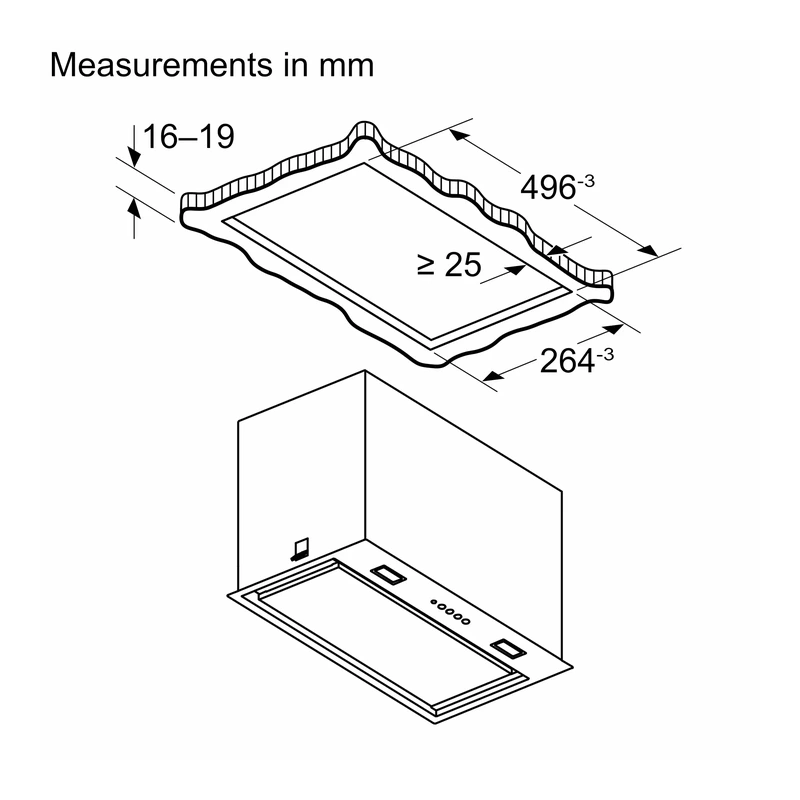

Built–in dimensions (HxWxD)	345 x 496 x 264 mm
Required niche size (HxWxD)	345 mm x 496.0 mm x 264 mm
Dimensions recirculating (HxWxD)	345–345 x 520 x 282 mm
Height of the appliance	345 mm
Width	52 cm (520 mm)
Weight	7.9 kg
Minimum distance above electric hob	500 mm
Minimum distance above gas hob	650 mm

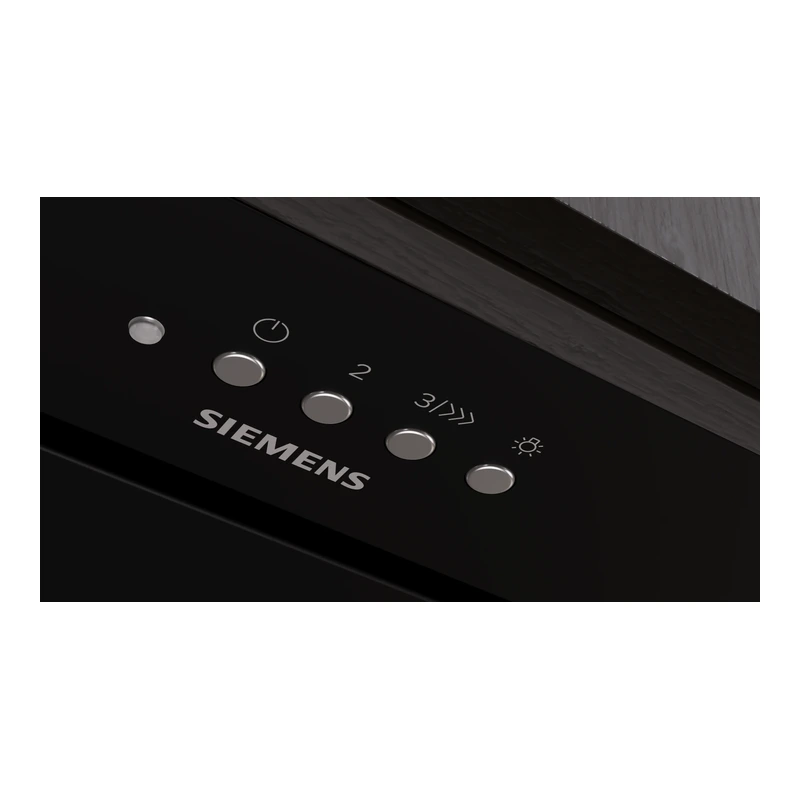

Control panel	Electronic, soft touch button control with electronic display
Number of speed settings	3–stages + intensive setting
Automatic intensive reset	Automatic reset from intensive to normal setting after 6 min
Maximum output air extraction	570 m³/h
Boost position air extraction	645 m³/h
Maximum air flow	570 m³/h
Maximum output recirculating air	560 m³/h
Boost position output recirculating	628 m³/h
Noise level (max exhaust)	66 dB(A) re 1pW

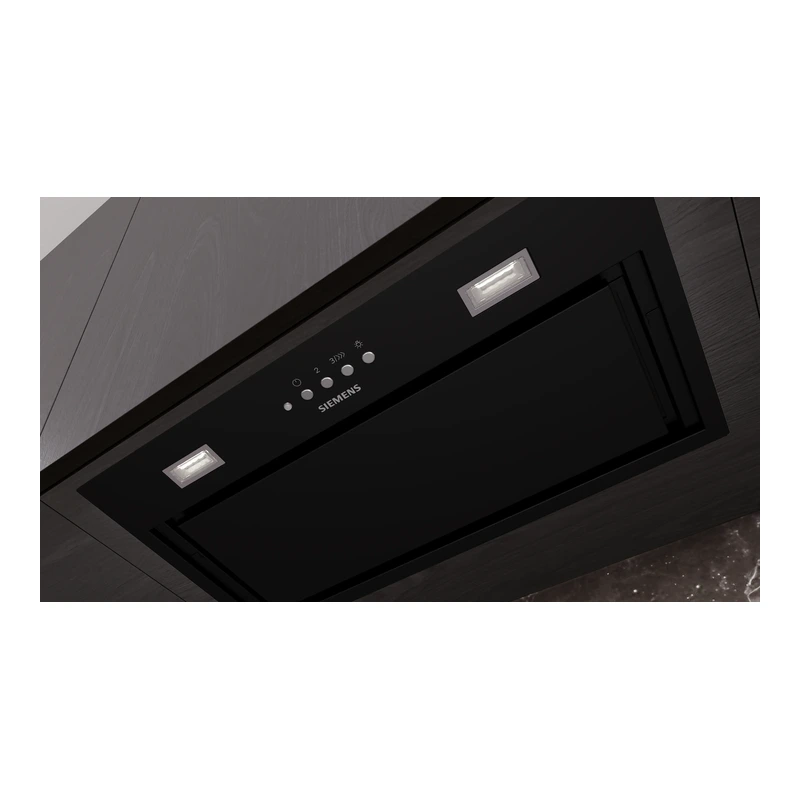

Number of lights	2 × 1 W LED
Light colour temperature	4000 K
Light intensity	400 lux
Motor type	Capacitor motor

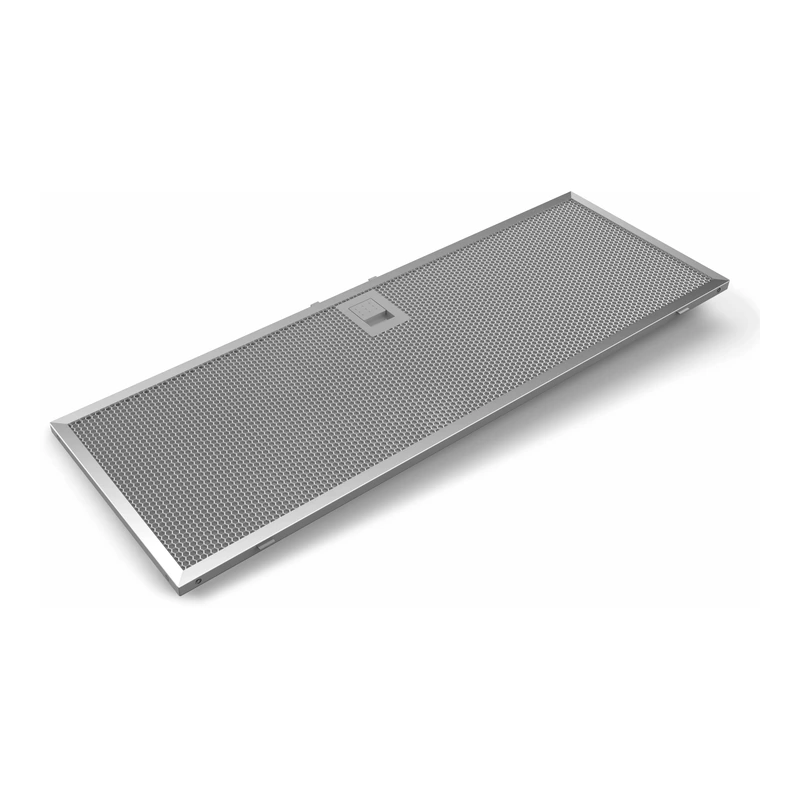

Grease filter material	Washable aluminium, 1 metal grease filter
Steel filter cover	Dishwasher–safe
Diameter of air outlet	150 mm (120 mm enclosed)
Back–pressure flap	Yes
Energy Efficiency Class	B (range A+++ to D)
Average Energy Consumption	75.2 kWh/year*
Blower Efficiency Class	C*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	D*
Connection rating	252 W
Nominal power / Voltage	220–240 V
Frequency	60; 50 Hz
Fuse protection	3 A
Plug type	GB plug
Length of electrical supply cord	150 cm (1.5 m)
EAN code	4242003959862
Suitable operation modes	Ducted and recirculating operation
Sustainability features	Environmentally friendly packaging; regenerative Long Life odour filter with 10 years lifetime (optional)
