Is the LB87NAC60B suitable for both ducted and recirculating operation?

Yes. The hood is suitable for ducted and recirculating operation. For recirculated extraction, various recirculation kits are available as optional accessories, including standard and Clean Air Plus options.

What is the maximum extraction rate of this cooker hood?

In exhaust mode, the hood achieves a maximum extraction rate of 600 m³/h on speed 3 and up to 745 m³/h on the intensive setting, according to EN 61591 and EN/IEC 60704-2-13.

How loud is the iQ500 LB87NAC60B during operation?

In exhaust mode, noise levels range from 45 dB(A) re 1pW on speed 1 to 61 dB(A) re 1pW on speed 3, and 65 dB(A) re 1pW on the intensive setting. In recirculation mode, noise levels depend on the selected kit and speed, from 51 dB(A) to 74 dB(A) re 1pW.

How is the intensive setting managed?

The intensive setting provides increased power when steam escapes. It automatically resets from intensive to the normal setting after 6 minutes, so the hood returns to standard operation without manual intervention.

What filters are used and how are they cleaned?

The hood uses washable aluminium metal grease filters and a steel filter cover that is dishwasher-safe. Optional odour filters are available, including a regenerative Long Life filter with up to 10 years lifetime and Clean Air Plus odour filters.

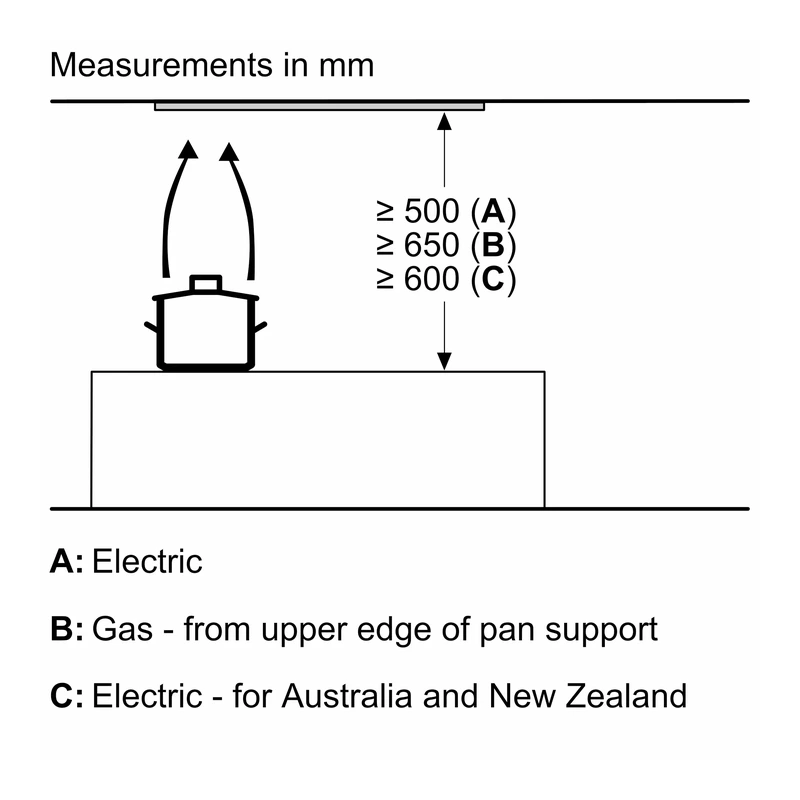

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 500 mm, and above a gas hob it is 650 mm.

Product Information Sheet

Siemens iQ500 Canopy Hood

SKU: LB87NAC60B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Siemens LB87NAC60B iQ500 Canopy Hood

SKU: LB87NAC60B · EAN: 4242003975268

Black

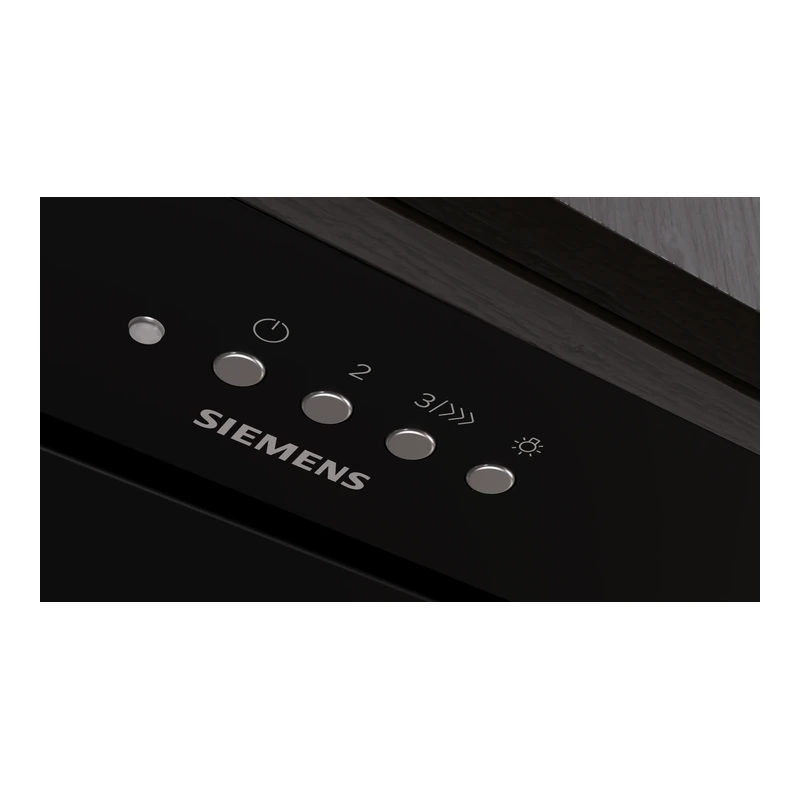

The iQ500 LB87NAC60B is a powerful 86 cm black canopy cooker hood designed for seamless, flush-fitted installation in wall cupboards or a brick chimney. Suitable for both ducted and recirculating operation, it offers three power levels plus an intensive setting with automatic reset, bright LED lighting and soft touch electronic controls. Washable metal grease filters, a dishwasher-safe steel filter cover and optional odour filters support effective, convenient kitchen ventilation.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	iQ500 Canopy cooker hood, 86 cm, Black
Model reference	LB87NAC60B
Typology	Built-in/Built-under canopy hood
Installation type	Built-in, cabinet installation, flush-fitted
Colour	Black

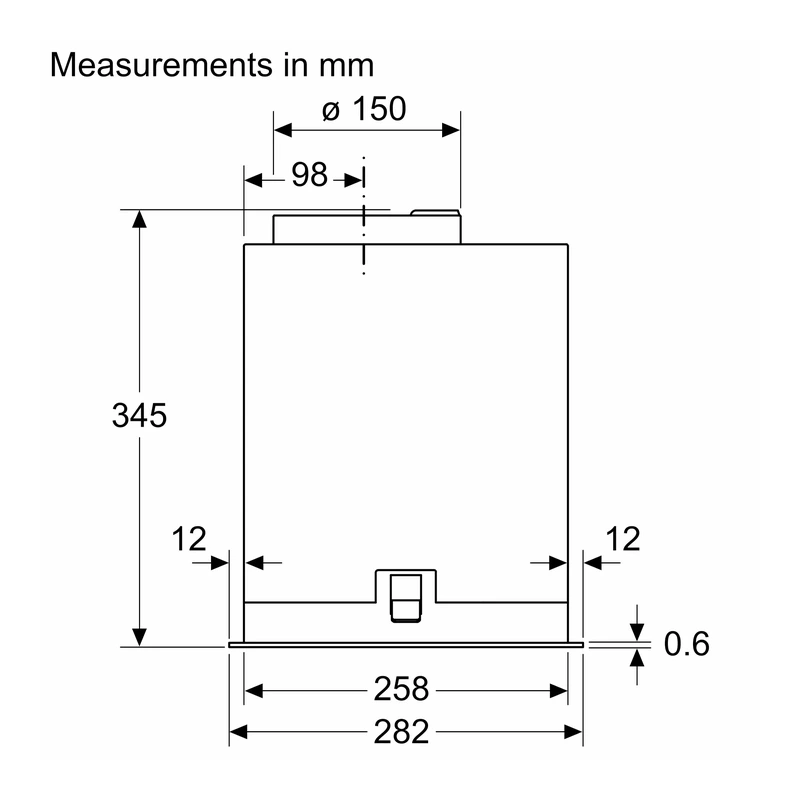

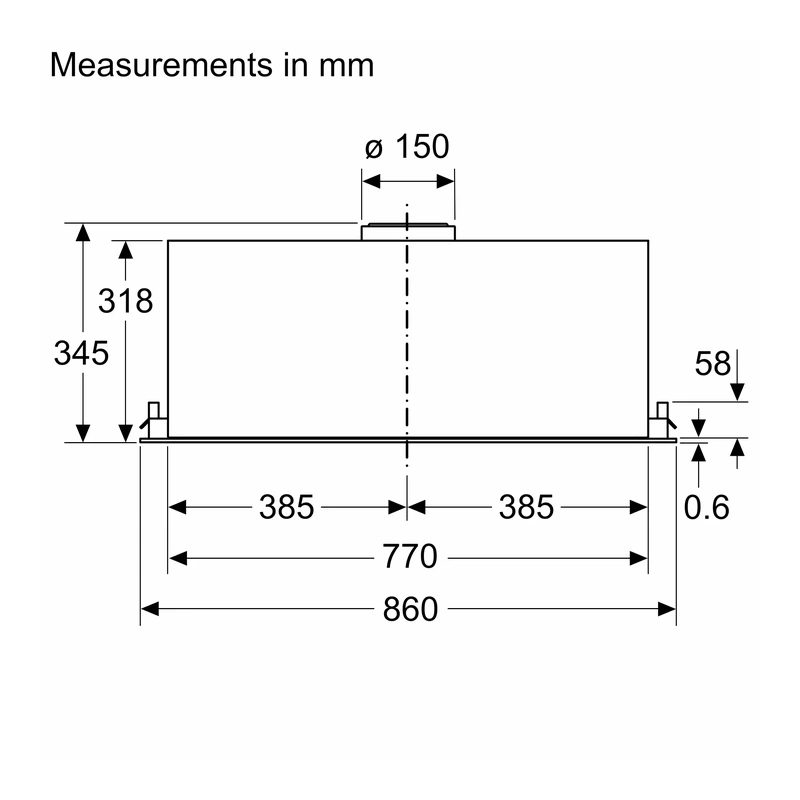

Dimensions (HxWxD)	345 x 860 x 282 mm

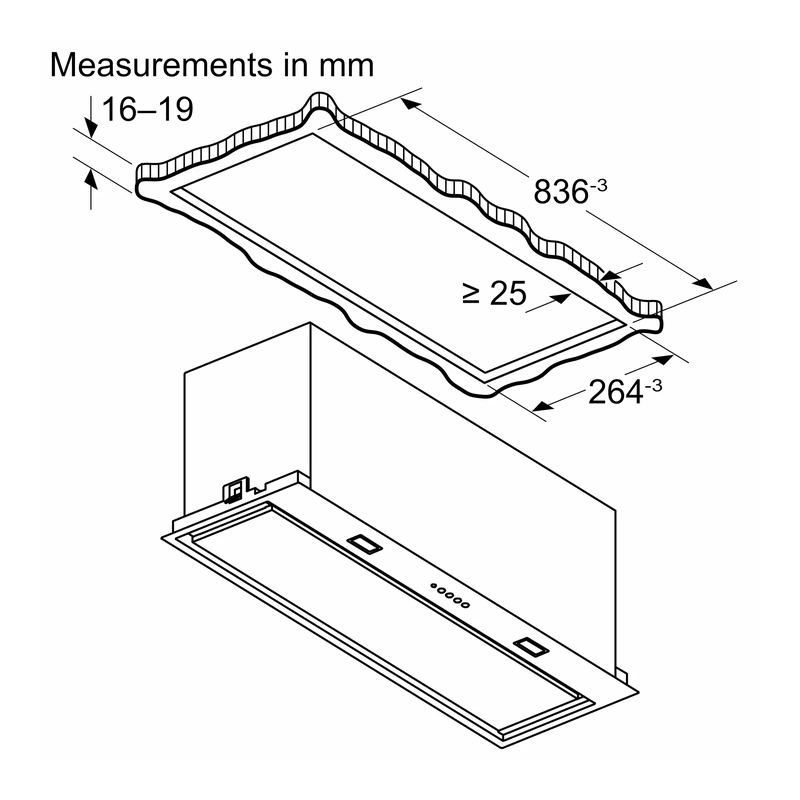

Built-in dimensions (HxWxD)	345 x 676 x 264 mm
Recirculating dimensions (HxWxD)	345–345 x 860 x 282 mm
Required niche size (HxWxD)	345 mm x 676.0 mm x 264 mm
Height of appliance	345 mm
Minimum distance above electric hob	500 mm
Minimum distance above gas hob	650 mm
Weight	10.0 kg

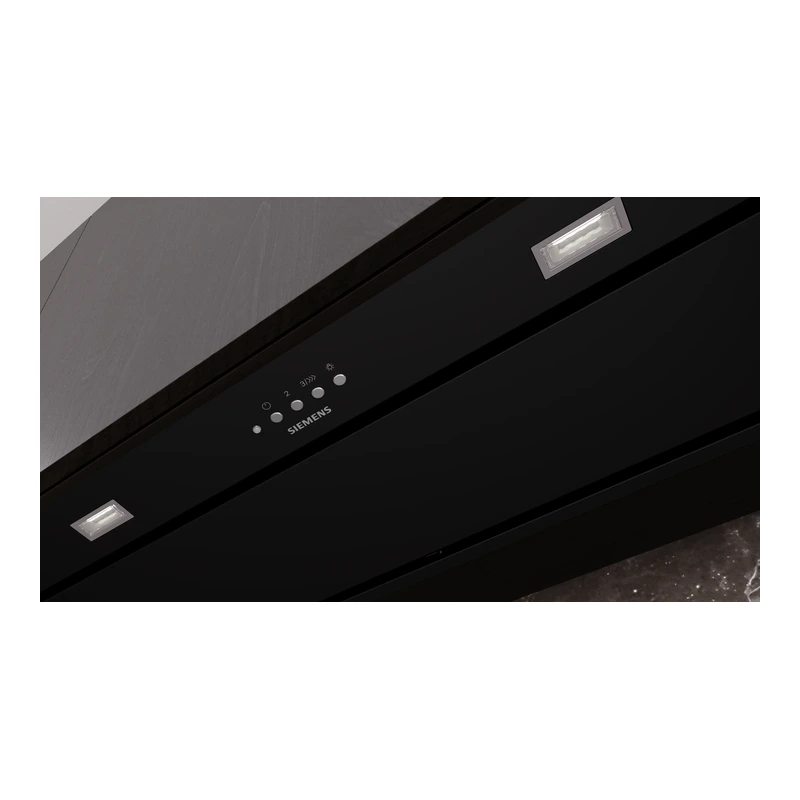

Control panel	Electronic soft touch button control with display
Speed settings	3 stages + intensive setting
Maximum air extraction (exhaust)	600 m³/h
Boost extraction (exhaust)	745 m³/h
Maximum air flow (stated)	600 m³/h
Maximum recirculating air flow	580 m³/h
Boost output recirculating	700 m³/h
Noise level (exhaust, max speed)	61 dB(A) re 1pW
Lights	2 LED lights, 2 × 1 W
Light intensity	400 lux
Light colour temperature	4000 K

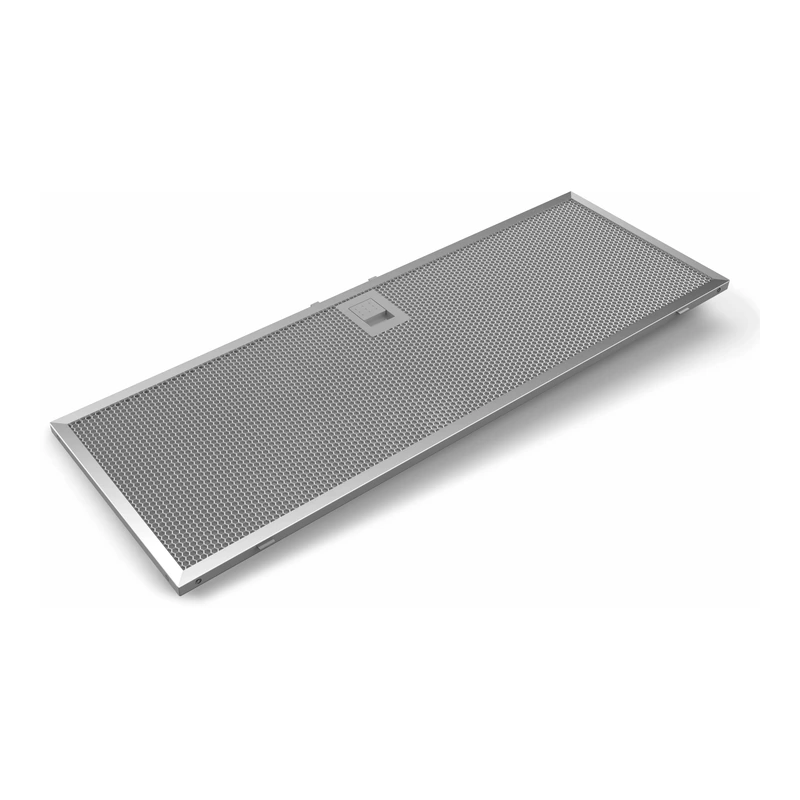

Grease filter material	Washable aluminium, 2 metal grease filters
Energy efficiency class	A (range A+++ to D)
Average energy consumption*	50.1 kWh/year*
Blower efficiency class*	A*
Lighting efficiency class*	A*
Grease filtering efficiency class*	D*
Energy standards	Performance values according to EN 61591 and EN/IEC 60704-2-13
Connection rating	252 W
Nominal voltage	220–240 V
Frequency	50; 60 Hz
Fuse protection	3 A
Plug type	GB plug
Length of electrical supply cord	150 cm (electrical cable length 1.5 m)
Air outlet diameter	150 mm (120 mm enclosed)
Motor type	Capacitor motor
Back-pressure flap	Yes
Operation modes	Ducted and recirculating operation
EAN code	4242003975268

*As stated in manufacturer performance and efficiency data.
