Siemens LB75566GB iQ300 Canopy Hood

SKU: LB75566GB · EAN: 4242003979273

Metallic Silver

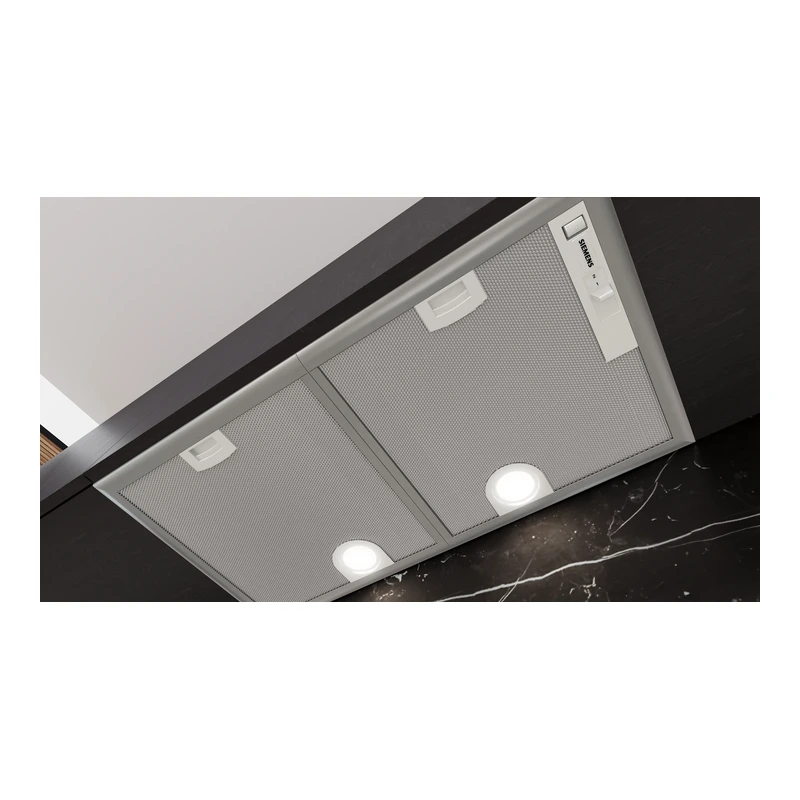

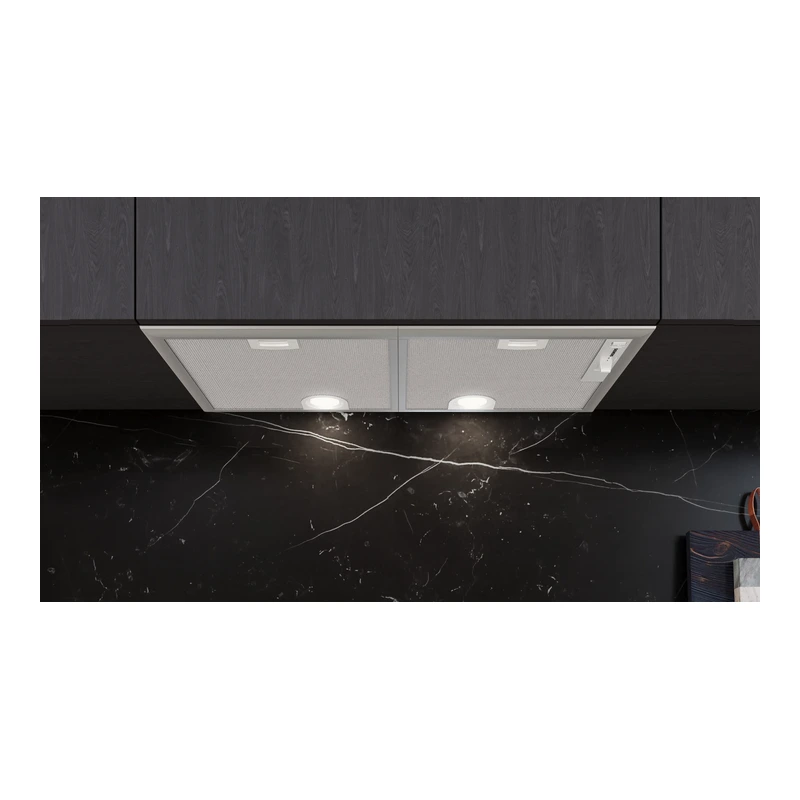

The iQ300 LB75566GB is a 75 cm silver metallic canopy cooker hood for installation under an overhead canopy kitchen unit. It offers ducted or recirculating operation, with a capacitor motor and slider switch control providing three power levels plus an intensive setting. Two LED spot lights illuminate the hob, while washable aluminium grease filters and a dishwasher-safe steel filter cover support easy cleaning. The hood achieves a maximum extraction rate of 614 m³/h in intensive exhaust mode.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	iQ300, Canopy cooker hood, 75 cm, Silver metallic, LB75566GB
Typology	Built-in/Built-under

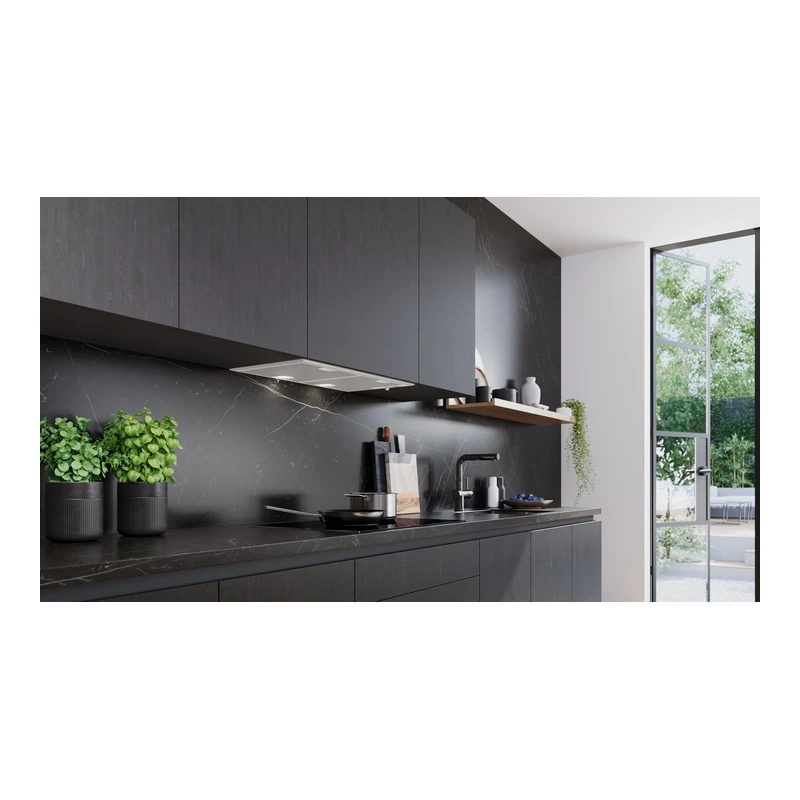

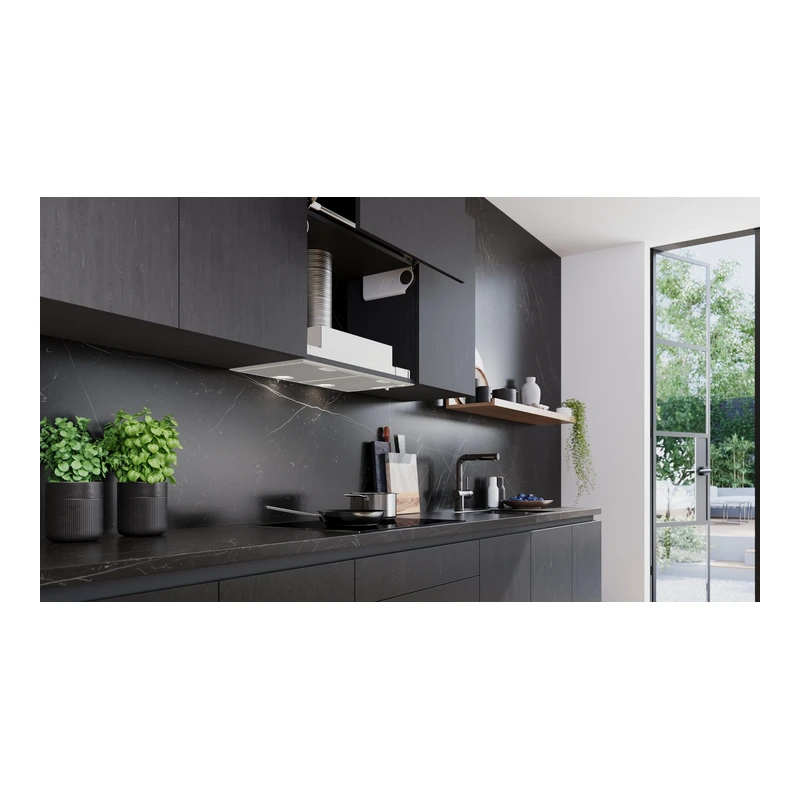

Installation type	Built-in; for installation under an overhead canopy kitchen unit

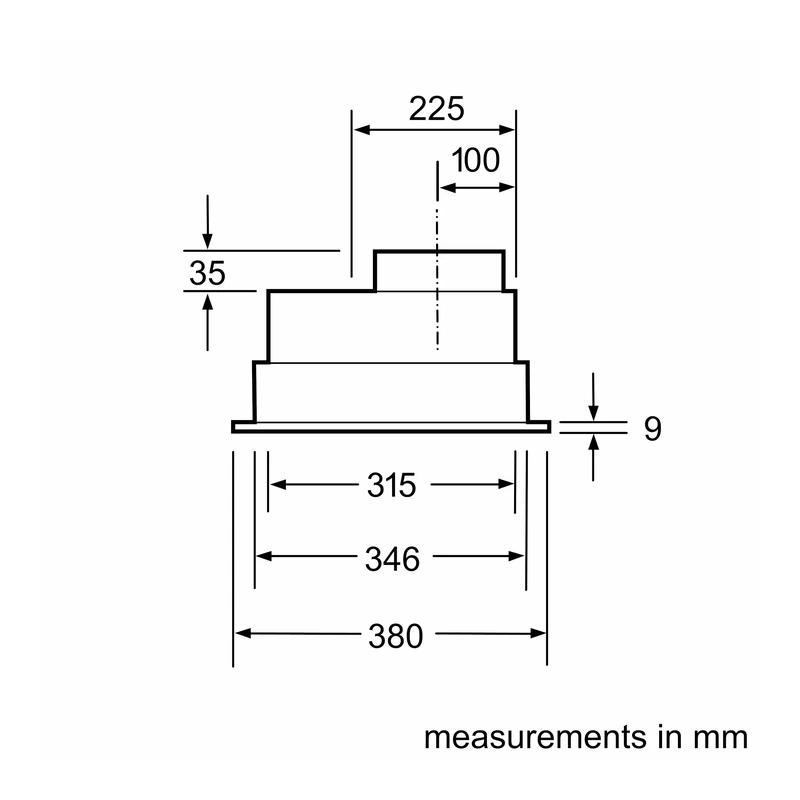

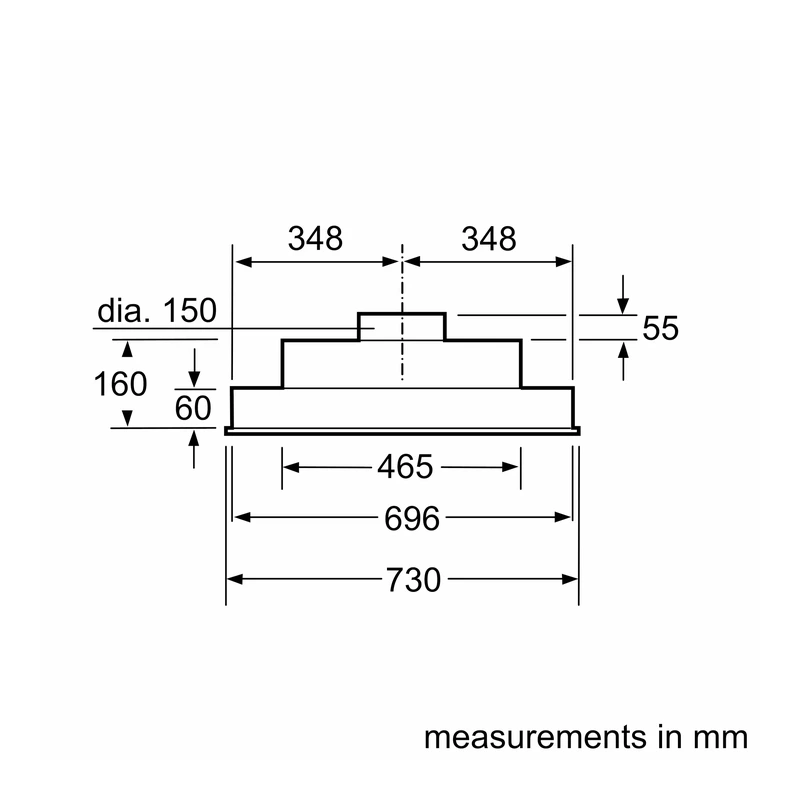

Dimensions (H×W×D)	215 × 730 × 380 mm

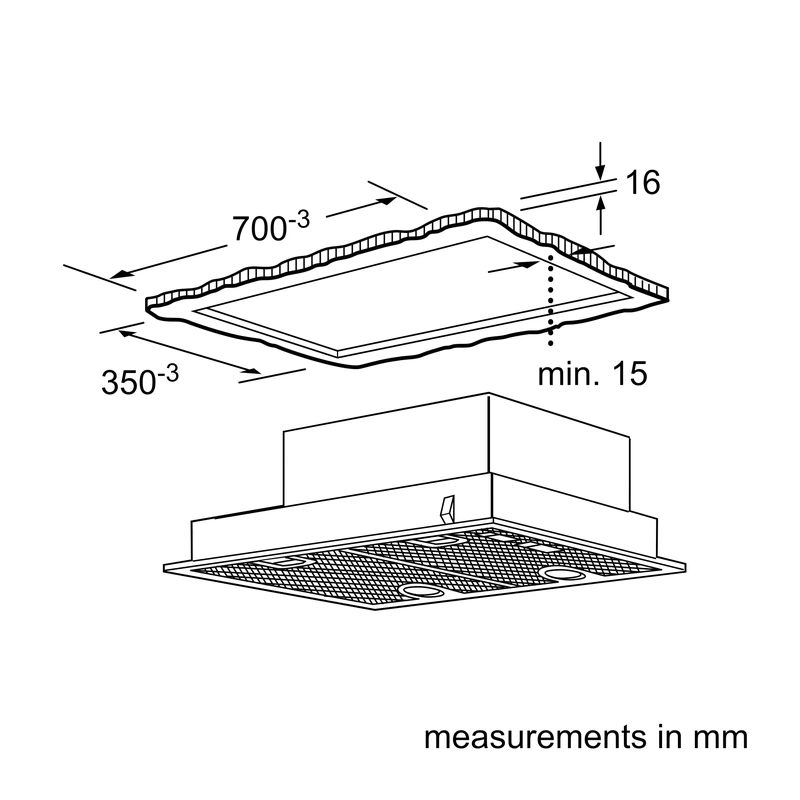

Built-in dimensions (H×W×D)	215 × 700 × 350 mm
Required niche size (H×W×D)	215 mm × 700.0 mm × 350 mm
Height of the appliance	215 mm
Width	75 cm (730 mm)

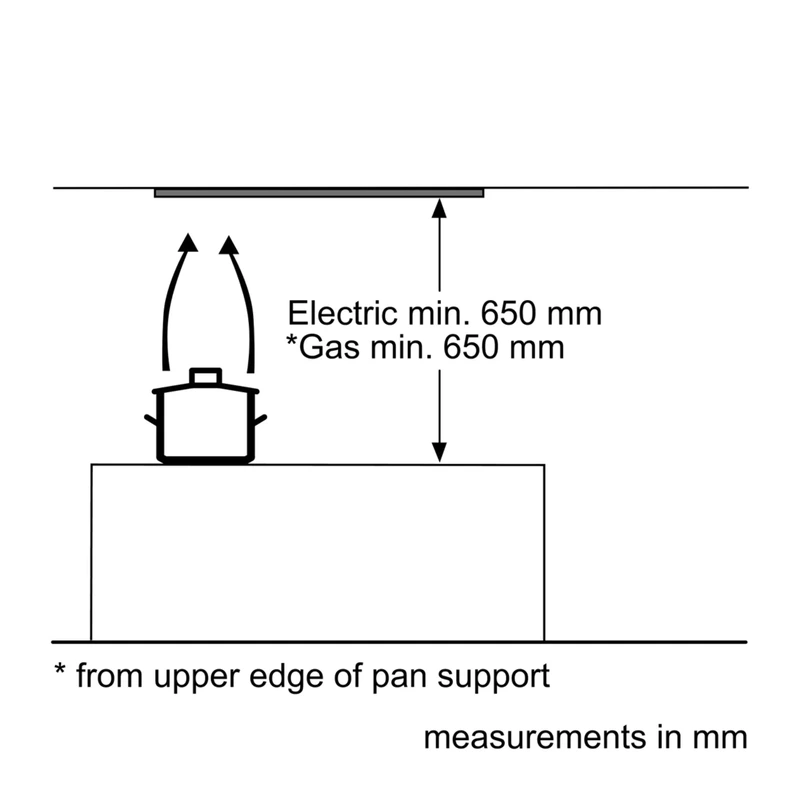

Minimum distance above electric hob	650 mm
Minimum distance above gas hob	650 mm
Weight	9.4 kg

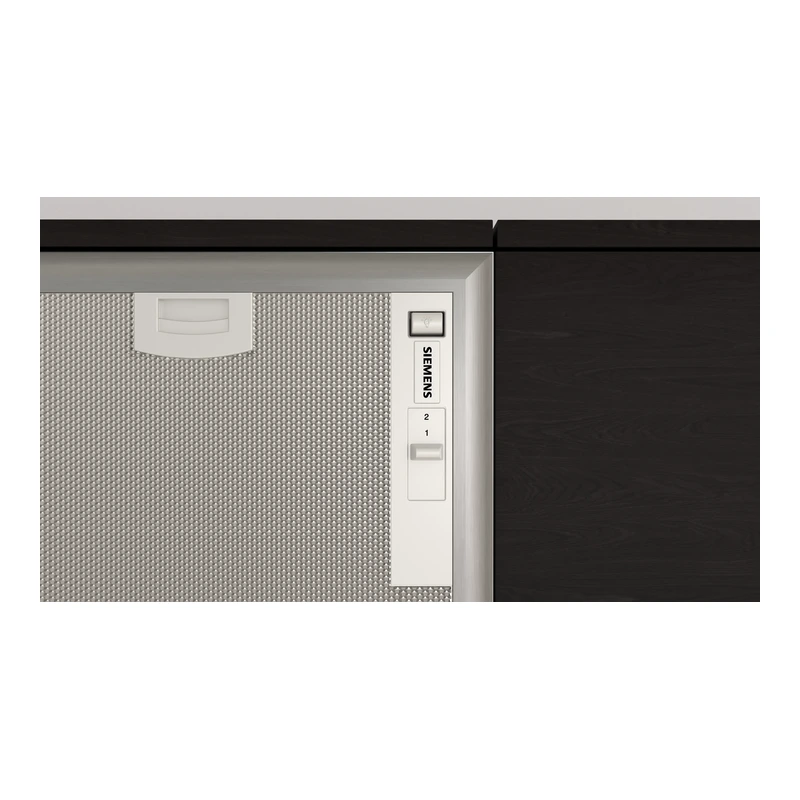

Control panel	Mechanical slider switch control
Number of speed settings	3-stages + intensive setting
Maximum output air extraction	468 m³/h
Boost position air extraction	614 m³/h
Maximum output recirculating air	281 m³/h
Boost position output recirculating	324.0 m³/h
Maximum air flow	468 m³/h
Noise level (general)	63 dB(A) re 1pW
Exhaust mode performance (EN 61591 / EN IEC 60704-2-13)	Speed 1: extraction rate 229 m³/h; noise level 46 dB(A) re1pW Speed 2: extraction rate 371 m³/h; noise level 57 dB(A) re1pW Speed 3: extraction rate 468 m³/h; noise level 63 dB(A) re1pW Intensive 1: extraction rate 614 m³/h; noise level 68 dB(A) re1pW
Recirculation performance (with standard kit)	Speed 1: extraction rate 140 m³/h; noise level 56 dB(A) re1pW Speed 2: extraction rate 231 m³/h; noise level 67 dB(A) re1pW Speed 3: extraction rate 281 m³/h; noise level 70 dB(A) re1pW Intensive speed 1: extraction rate 324 m³/h; noise level 73 dB(A) re1pW
Energy Efficiency Class	D (range A+++ to D)
Average energy consumption	88.1 kWh/year*
Blower Efficiency Class	D*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	B*
Number of lights	2
Light specification	2 × LED spot 2.15 W (low volt), 3500 K, 410 lux

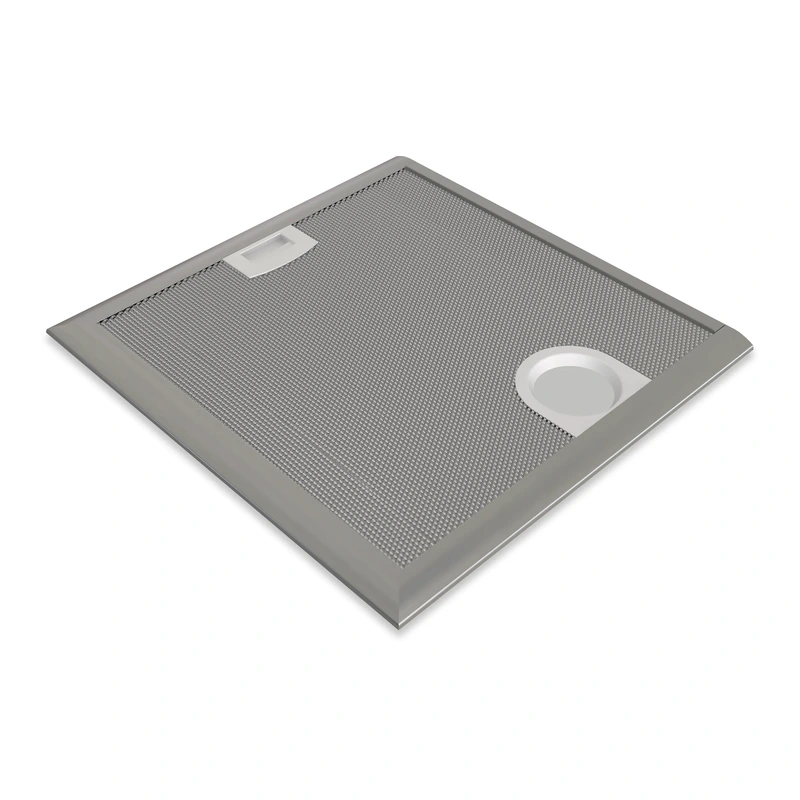

Grease filter material	Washable aluminium; 2 metal grease filter(s)
Filter cover cleaning	Steel filter cover dishwasher-safe
Diameter of air outlet / pipe	150 mm (diameter pipe Ø 150 mm)
Length of electrical supply cord	130 cm (electrical cable length 1.3 m)
Connection rating	206 W; power rating 206 W
Nominal voltage	220–240 V; 50 Hz
Plug type	GB plug
EAN code	4242003979273
Country of manufacture	Made in Germany (CO2 neutral production site)
Optional accessories	LZ73050 Standard odour filter; standard recirculation kit (for specified recirculation performance values)
