Can this hood be used in re–circulation mode?

Yes. The extraction type is ducted out or re–circulation, so the hood can operate either venting to the outside or re–circulating air through suitable charcoal filters.

What compatible charcoal filters are available?

Compatible accessories are the FLT6 round charcoal filters (kit 2 pieces) and the KITALLFC universal charcoal filter in stainless steel AISI 304.

How do I clean the KITALLFC charcoal filter?

The KITALLFC filter can be washed in a dishwasher at 50 °C using water and suitable detergent. To dry it, place the filter in an oven at 180 °C for 25 minutes.

What is the minimum distance above the hob?

The minimum distance from a gas hob is 650 mm, and the minimum distance from an electric hob is also 650 mm.

How loud is the hood during operation?

The airborne acoustical A–weighted sound power emission is 45 dBA at minimum speed, 60 dBA at maximum speed and 67 dBA at boost (intensive) speed.

What is the energy efficiency rating?

The hood has an energy efficiency class A with an annual efficiency consumption of 53 kWh/year. The lighting efficiency class is also A, and the fluid dynamic efficiency class is A.

Product Information Sheet

Smeg Canopy Hood

SKU: KSG9P4X

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

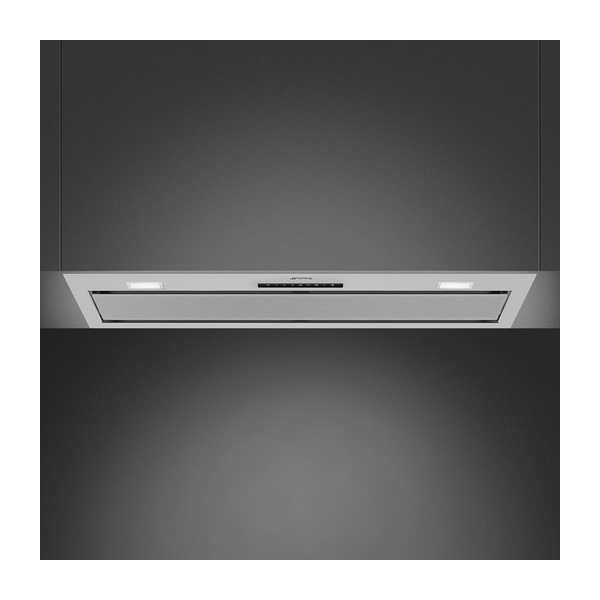

Smeg KSG9P4X Canopy Hood

SKU: KSG9P4X · EAN: 8017709319380

Stainless Steel

The SMEG KSG9P4X is a 90 cm fully integrated stainless steel canopy cooker hood with universal aesthetics and brushed finishing. Designed for ducted out or re–circulation operation, it features touch control with back–lit white LEDs, perimeter extraction and three speeds plus intensive mode. With an A energy efficiency class, aluminium anti–grease filters, LED lighting with dimmer mode and 24 hour air filter function, it offers efficient extraction and practical everyday use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Model	KSG9P4X
Product family	Hood
Hood type	Canopy cooker hoods
Design	Fully integrated
Aesthetics	Universal
Colour / material	Stainless steel, brushed – type of steel: Brushed
Finishing	Brushed
Logo	Silk screen
EAN code	8017709319380
Width	90 cm (hood width)
Extraction type	Ducted out or re–circulation possible
Control type	Electronic – touch control back–lighted white
Number of speeds	3 speeds + intensive speed
Perimeter extraction	Yes – perimeter extraction panels: very efficient and aid noise reduction
24 h air filter function	Yes – refreshes the air for c. 10 minutes every hour over a 24 hour period at minimum speed and an imperceptible noise level
Time–setting options	Yes – includes a setting to run after the end of cooking for a pre–set time and then switch off automatically
Auto–Vent 2.0	Yes (connection between hob and hood)
Number of lights	2
Light type	LED
Light power	2.3 W (each), normal power of the light system (Wl) 5 W
Led colour	White
Light colour temperature range	2700 – 4000 K
Dimmer mode	Yes
Free outlet maximum capacity	730 m³/h
Maximum extraction rate	481 m³/h
Intensive extraction rate	697 m³/h
Air flow at minimum speed (Qmin)	242 m³/h
Extraction rate IEC 61591	Speed 1: 243 m³/h; Speed 2: 362 m³/h; Speed 3: 481 m³/h; Intensive speed: 697 m³/h
Motor power	230 W
Nominal power	235 W
Number of filters	2
Filter type	Anti–grease filters in aluminium
Filter replacement indicator	Yes
Vent outlet	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	650 mm
Non return valve	Yes
Annual efficiency consumption (AEChood)	53 kWh/year
Energy efficiency class (EEC)	A
Fluid dynamic efficiency (FDE)	30.1
Fluid dynamic efficiency class (FDEC)	A
Lighting efficiency (LE)	31.1 lux/W
Lighting efficiency class (LEC)	A
Grease filtering efficiency (GFE)	77.9 %
Grease filtering efficiency class (GFEC)	C
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	45 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	60 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)	67 dBA
Sound power level at highest setting (Lwa)	60 dBA
Noise level IEC 60704–2–13 [dBA]	Speed 1: 45 dBA; Speed 2: 53 dBA; Speed 3: 59 dBA; Intensive speed: 67 dBA
Time increase factor (F)	0.9
Energy efficiency index per first cavity	52.6
Measured air flow rate at best efficiency point (Qbep)	369 m³/h
Measured air pressure at best efficiency point (Qbep)	446 Pa
Measured electric power input at best efficiency point (Wbep)	152 W
Average illumination on cooking surface (Emiddle)	143 lux
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
