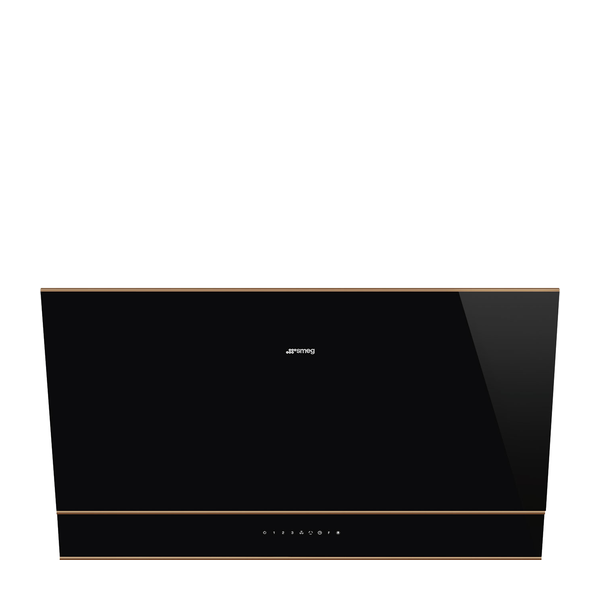

Smeg Dolce Stil Novo Angled Chimney Hood

Smeg KV694R Dolce Stil Novo Angled Chimney Hood

SKU: KV694R · EAN: 8017709305789

Black Glass & Copper

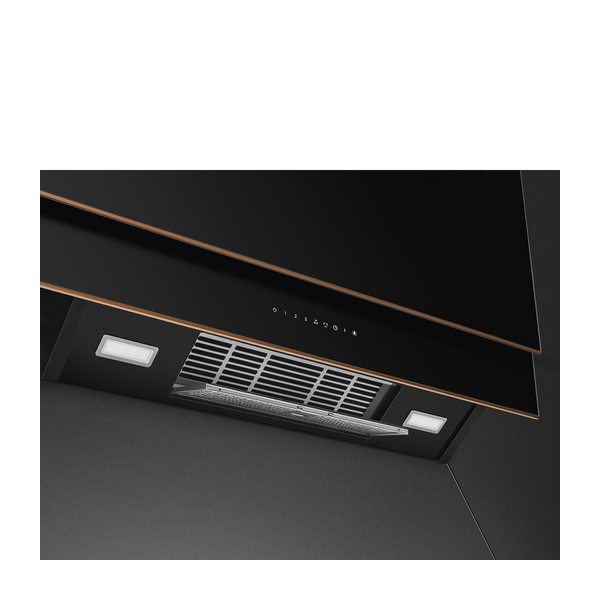

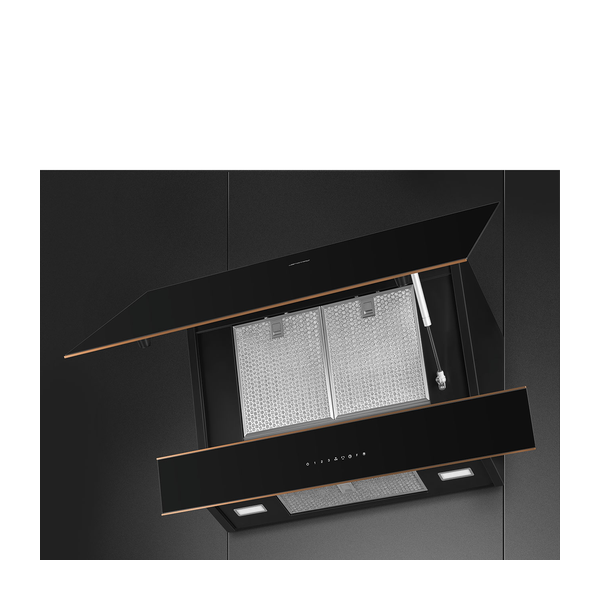

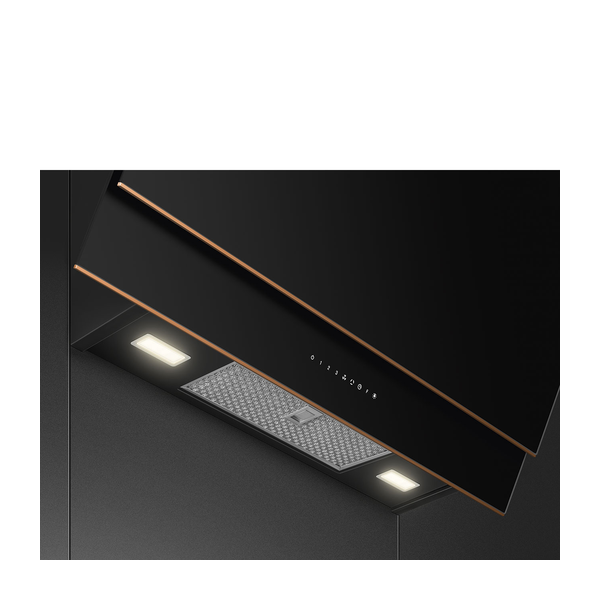

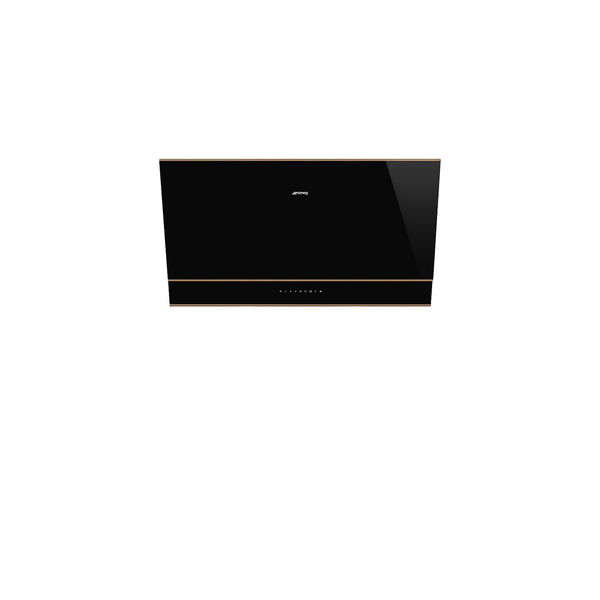

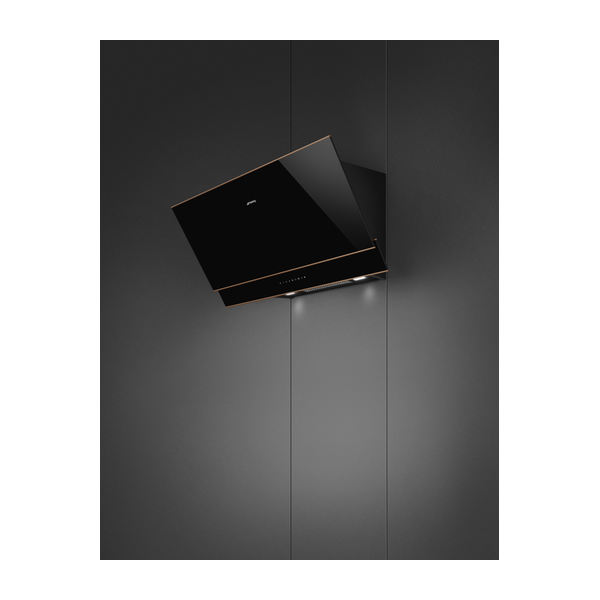

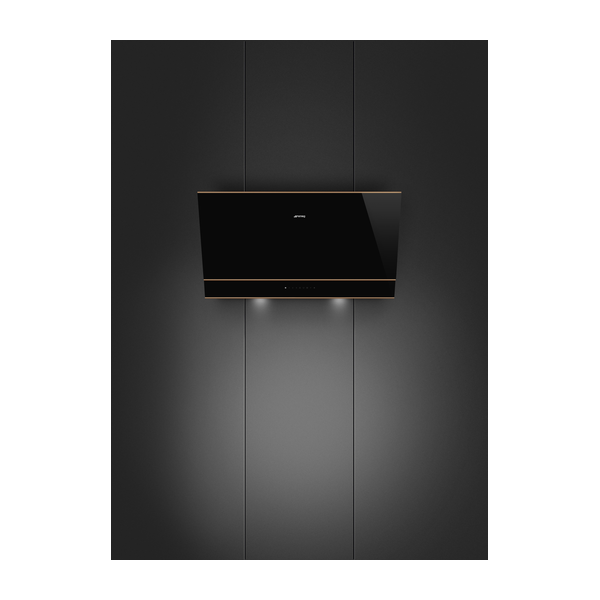

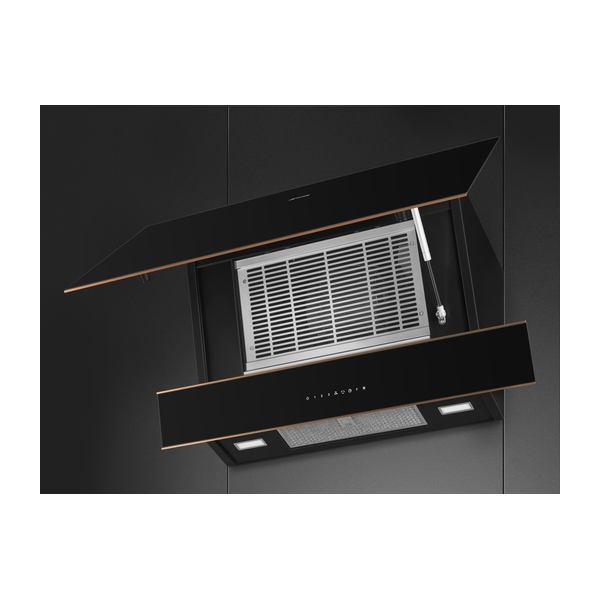

The SMEG KV694R is a 90 cm angled chimney cooker hood in black glass with copper finishing from the Dolce Stil Novo aesthetic line. It offers ducted out or re–circulation extraction, combining perimeter extraction with stainless steel anti–grease filters and included charcoal filters. Electronic touch controls, three speeds plus intensive, and adjustable white LED lighting support effective, flexible ventilation. This hood is designed for installation above gas or electric hobs within the stated minimum distances.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Angled
Extraction	Ducted out or re–circulation possible
Electronic control	Yes
Perimeter extraction	Yes
Material	Glass
EAN code	8017709305789
Hood width	90 cm
Aesthetics	Dolce Stil Novo
Colour	Black
Finishing	Copper
Glass type	Black
Serigraphy colour	Grey
Logo	Silk screen
Control setting	Touch control back–lighted
LED control colour	White
No. of speeds	3 + intensive speed
24h air filter function	Yes
Time–setting options	Yes
Auto–Vent 2.0	Yes
No. of lights	2
Light type	LED
Light power	2,1 W
Dimmer mode	Yes
Light colour temperature range	2700 – 4000 K
Free outlet maximum capacity	820 m³/h
Motor power	275 W
Anti–grease filters	Stainless steel
Charcoal filters included	Yes
Filter replacement indicator	Yes
Vent outlet	150 mm
No. of filters	2
Non return valve	Yes
Minimum distance from GAS hob	650 mm
Minimum distance from ELECTRIC hob	450 mm
Annual Efficiency Consumption (AEChood)	42 kWh/year
Energy efficiency class (EEC)	A+
Fluid Dynamic Efficiency (FDE)	35,6
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	35,5 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	64,2 %
Grease Filtering Efficiency Class (GFEC)	E
Air flow at minimum speed (Qmin)	265 m³/h
Maximum extraction rate	621 m³/h
Intensive extraction rate	777 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	47 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	67 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)	70 dBA
Time increase factor (F)	0,7
Energy Efficiency Index per first cavity	41,3
Measured air flow rate at best efficiency point (Qbep)	400 m³/h
Measured air pressure at best efficiency point (Qbep)	485 Pa
Measured electric power input at best efficiency point (Wbep)	151 W
Normal power of the light system (Wl)	4 W
Average illumination of the light on the cooking surface (Emiddle)	142 lux
Sound power level at highest setting (Lwa)	67 dBA
Nominal power	279 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Extraction rate IEC 61591 – Speed 1	265 m³/h
Extraction rate IEC 61591 – Speed 2	391 m³/h
Extraction rate IEC 61591 – Speed 3	621 m³/h
Extraction rate IEC 61591 – Intensive speed	777 m³/h
Noise level IEC 60704–2–13 – Speed 1	47 dBA
Noise level IEC 60704–2–13 – Speed 2	55 dBA
Noise level IEC 60704–2–13 – Speed 3	66 dBA
Noise level IEC 60704–2–13 – Intensive speed	70 dBA
