| Product name/family | Cooking zone ceramic |
|---|
| Model | EX875LX67E |
|---|
| Installation type | Built-in, surface mount with frame, suitable for installation into a 60 cm base cabinet |
|---|
| Source of energy | Electric induction |
|---|
| Number of cooking zones | 4 (including 2 flexInduction zones) |
|---|
| Cooking zone front left | 200 mm, 240 mm, 2.2 kW (max. power 3.7 kW) |
|---|
| Cooking zone rear left | 200 mm, 240 mm, 2.2 kW (max. power 3.7 kW) |
|---|
| Cooking zone rear right | 200 mm, 240 mm, 2.2 kW (max. power 3.7 kW) |
|---|
| Cooking zone front right | 200 mm, 240 mm, 2.2 kW (max. power 3.7 kW) |
|---|
| Width of appliance | 812 mm |
|---|
| Product dimensions (H × W × D) | 223 × 812 × 520 mm |
|---|

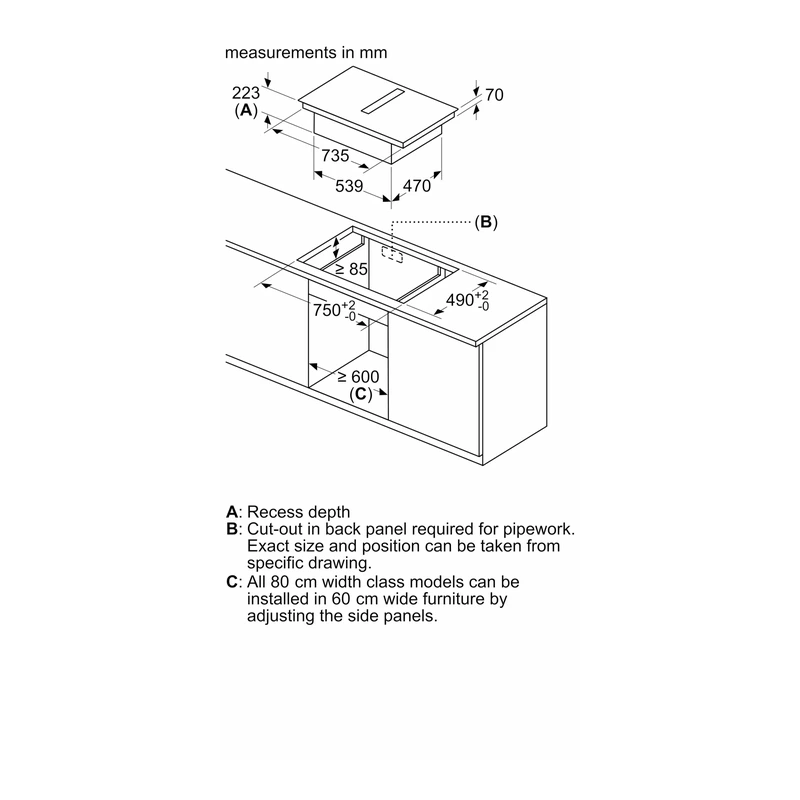

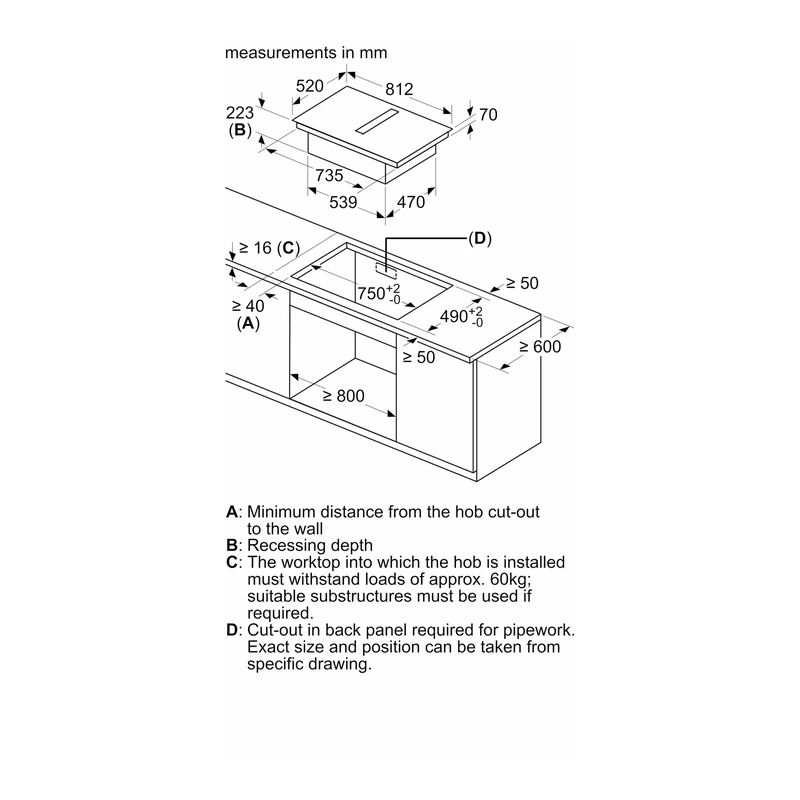

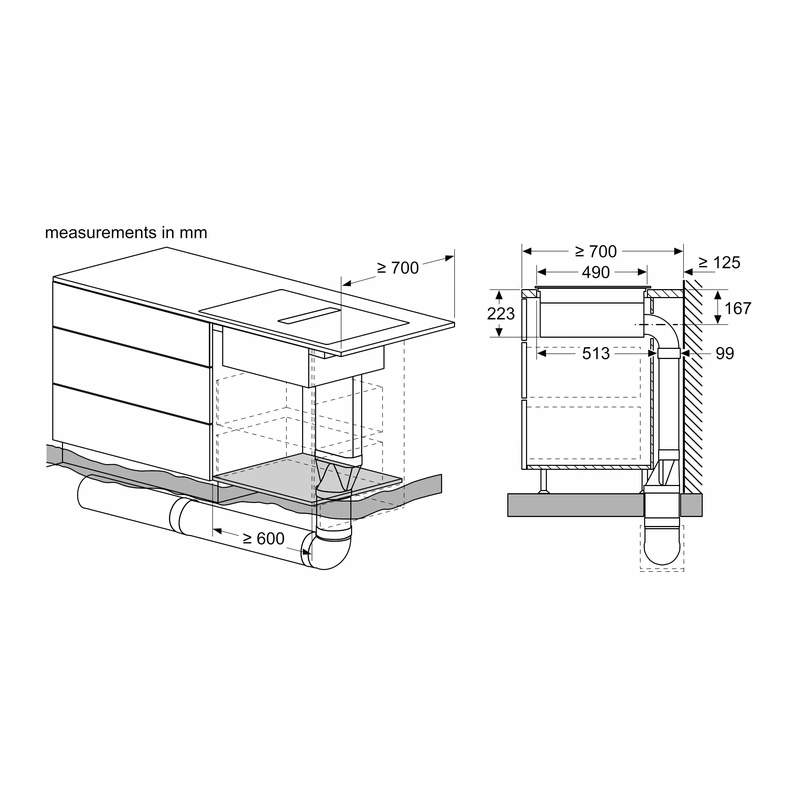

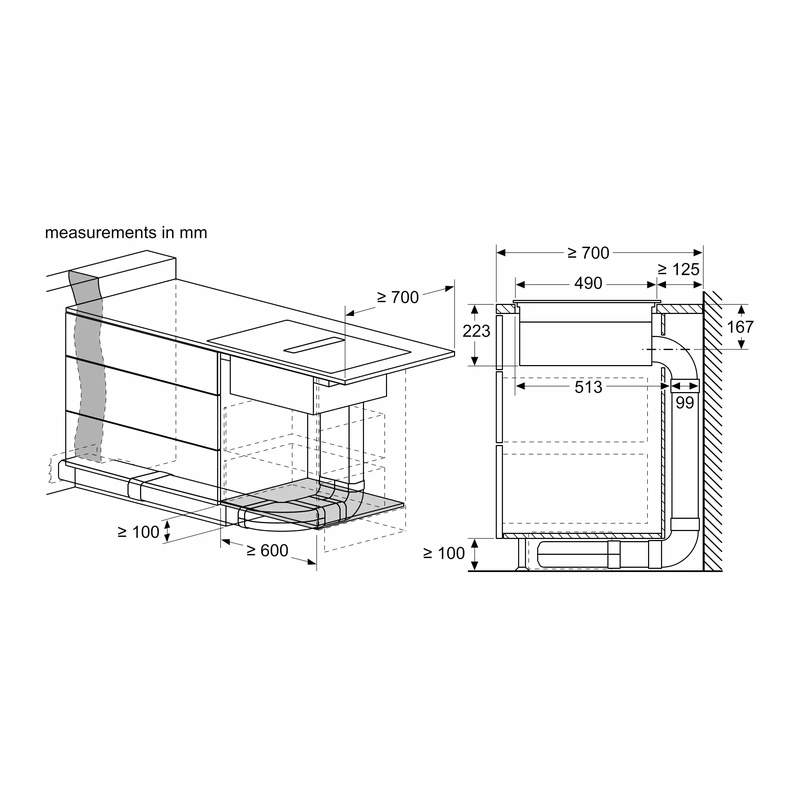

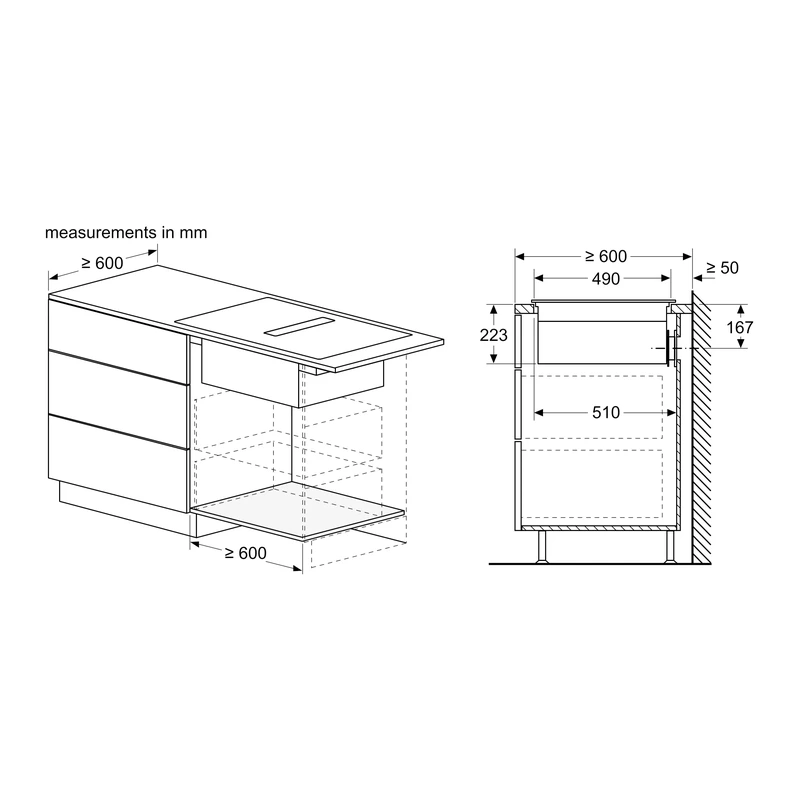

| Required niche size (H × W × D) | 223 × 750–750 × 490–490 mm |
|---|
| Min. worktop thickness | 16 mm |
|---|
| Max. immersion depth | 223 mm below worktop surface |
|---|
| Packed product dimensions (H × W × D) | 430 × 950 × 660 mm |
|---|
| Weight / Gross weight | 28.9 kg / 33.6 kg (overall appliance weight also stated as 26 kg in planning notes) |
|---|
| Basic surface material | Ceramic |
|---|
| Surface colour | Black, stainless steel |
|---|

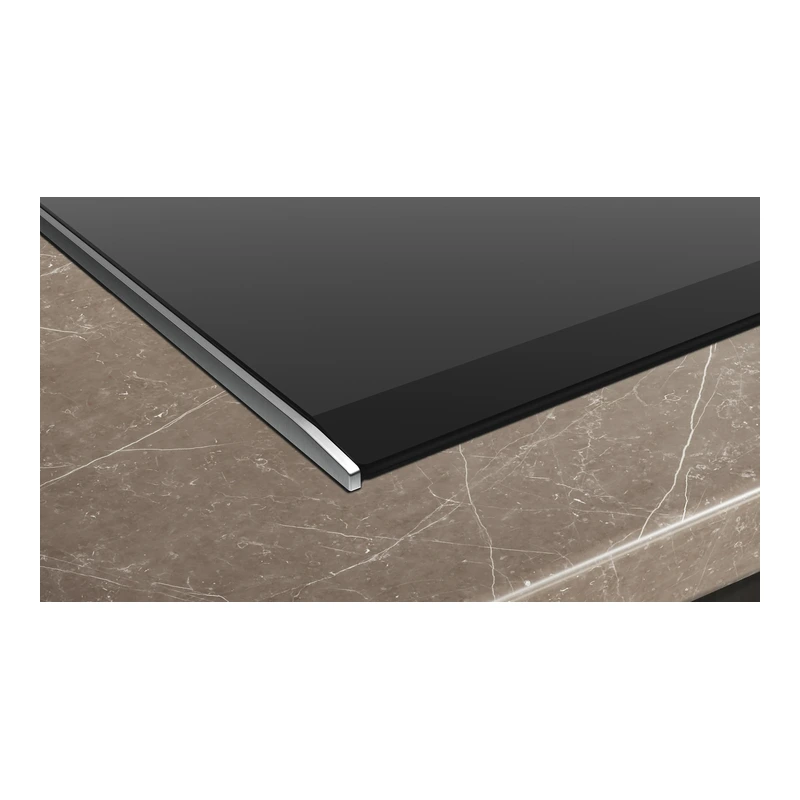

| Frame colour / design | Stainless steel side trim with bevelled front edge |
|---|
| Location of control panel | Front |
|---|
| Residual heat indicator | Separate, 2-stage residual heat indicators |
|---|
| Number of power levels | 17-stage (9 main and 8 intermediate) |
|---|
| Number of fan speed settings | 17 electronically controlled fan levels + 2 Boost/Intensive levels |
|---|

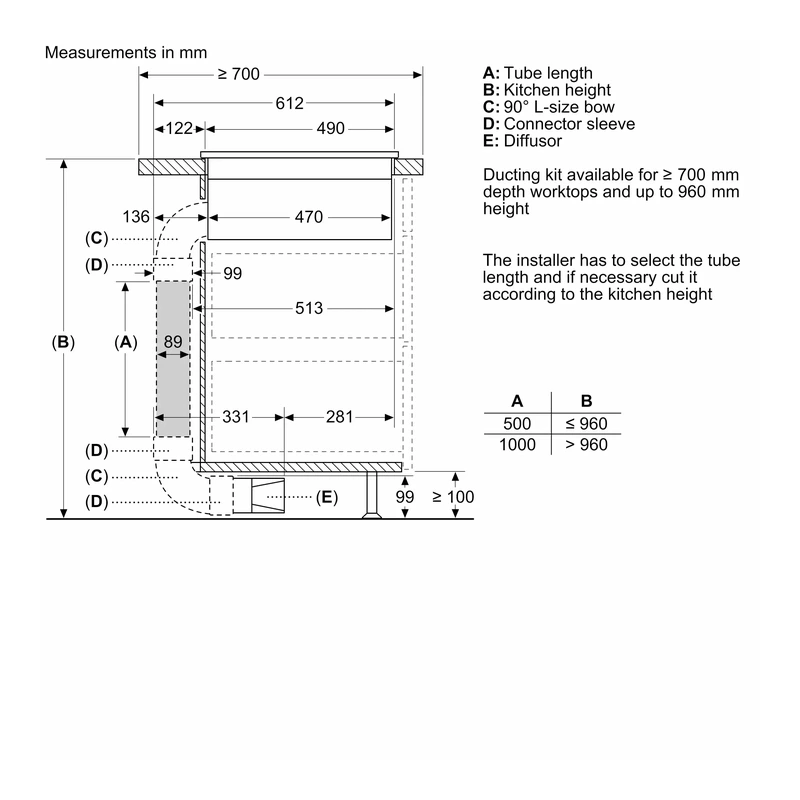

| Maximum extraction (ducted) | 500 m³/h (max. normal setting); 622 m³/h (max. Boost/Intensive) |
|---|
| Extraction range (ducted) | 154 m³/h min. normal – 500 m³/h max. normal – 622 m³/h Boost |
|---|
| Maximum recirculation | 499 m³/h (max. normal setting); 595 m³/h (max. Boost/Intensive) |
|---|
| Recirculation range | 132 m³/h min. normal – 499 m³/h max. normal – 595 m³/h Boost |
|---|
| Noise level (ducted) | 42 dB(A) re 1 pW min. normal; 69 dB(A) re 1 pW max. normal; 74 dB(A) re 1 pW Boost |
|---|
| Noise level (recirculation) | 41 dB(A) re 1 pW min. normal; 68 dB(A) re 1 pW max. normal; 72 dB(A) re 1 pW Boost |
|---|
| Grease filter efficiency | 94 % (according to EN 61591); grease filtration efficiency class B |
|---|
| Energy efficiency class (ventilation) | B (range A+++ to D) |
|---|
| Fluid Dynamic Efficiency | A |
|---|
| Average energy consumption (ventilation) | 57 (unit not stated in source) |
|---|
| Ventilation type | Convertible (suitable for ducted or recirculated extraction) |
|---|
| Odour filter | Clean Air Plus odour filters for recirculation; odour filter field in technical data states “No” |
|---|
| Clean filter reminders | Yes, including saturation indications and Home Connect notifications for cleanAir filter |
|---|
| Nominal voltage | 220–240 / 380–415 V |
|---|
| Frequency | 50–60 Hz |
|---|
| Connected load | 7.4 kW |
|---|
| Connection current management | Options for 20, 16, 13, 10 A to limit maximum power (depending on fuse protection) |
|---|
| Electrical supply cord length | 110 cm (1.1 m), cable included in packaging |
|---|
| Sealed burners | No (induction cooktop, not gas) |
|---|
| Energy Consumption Display | Yes, shows electricity consumption of last cooking process |
|---|
| Included accessories | 1 Slider for unducted recirculation, 1 Clean Air Plus odour filter |
|---|

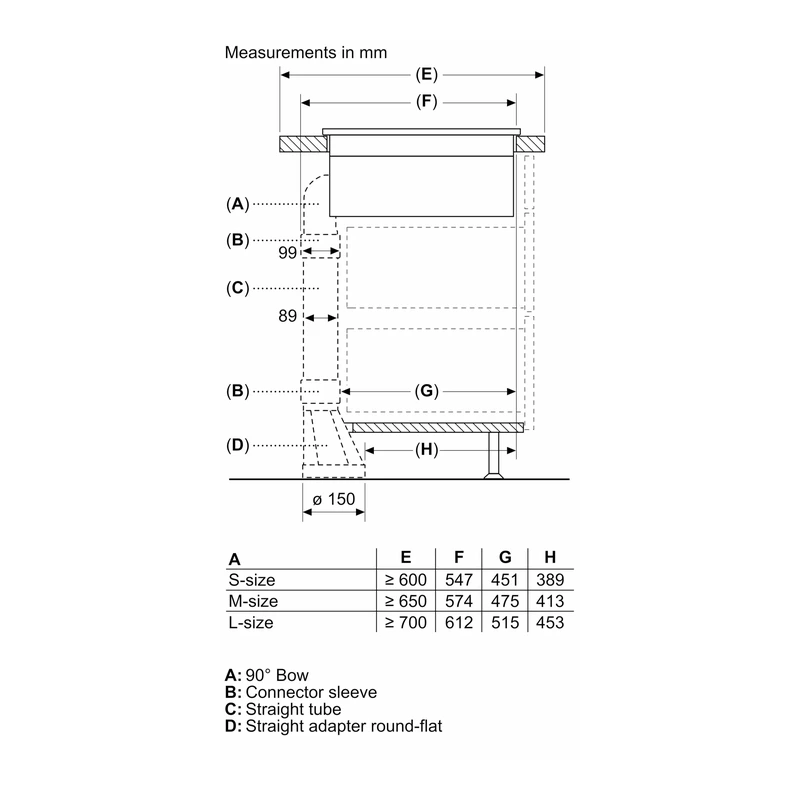

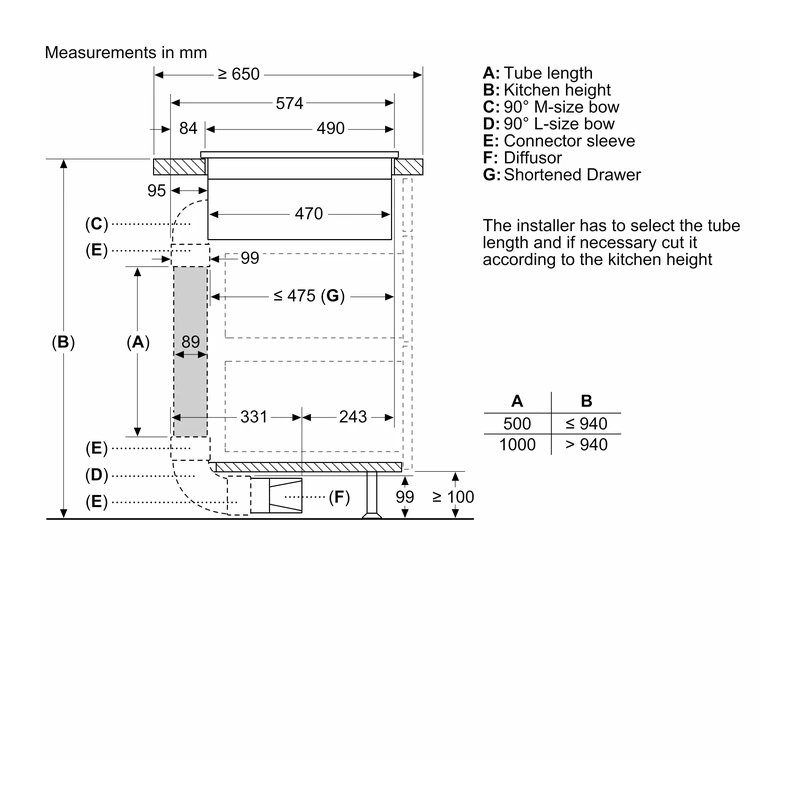

| Optional accessories | HZ32WA00 wireless roastingSensor; HZ390011 stainless steel roaster with glass lid; HZ390012 steaming rack; HZ390090 wok set (3 items); HZ390210, HZ390220, HZ390230 system pans (15, 19, 21 cm); HZ39050 wireless temperature sensor for cooktop; HZ390512 Teppan Yaki (large); HZ390522 griddle plate; HZ9CF240 and HZ9CF280 coated fry pans (24 cm Ø, 28 cm Ø); HZ9FE280 iron pan Ø 18 / 28 cm; HZ9FF010 Flex Pan large; HZ9FF030 Flex Pan set (3 pcs.); HZ9FF040 Flex Pan set (4 pcs.); HZ9SE030 set of 2 pots and 1 pan; HZ9SE040 4-piece set; HZ9SE060 6-piece set; HZ9TY010 Teppan Yaki; HZ9VDKE1 exhaust kit; HZ9VDKR0, HZ9VDKR1, HZ9VDKR2 recirculation kits; HZ9VDSB1–HZ9VDSB4 flat duct bends; HZ9VDSI0, HZ9VDSI1 round-flat adapters; HZ9VDSM1, HZ9VDSM2 straight tubes; HZ9VDSS1 connector sleeve; HZ9VDSS2 flexible connecting piece DN 150 flat; HZ9VEDU0 acoustics filter; HZ9VRCR1 Clean Air Plus odour filter (replacement); HZ9VRPD1 plinth diffusor. |
|---|
| Compliance | Product and accessories comply with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94). |
|---|
