Is the DBB63BC60B suitable for both ducted and recirculating use?

Yes. The hood is suitable for ducted or recirculating operation. For recirculation, a Long–life Clean Air recirculation kit is needed as an accessory.

What optional accessories are available?

Optional accessories include the DWZ1IB1B6 Long–life Clean Air odour filter (replacement), DWZ1IB1I6 Long–life Clean Air recirculation kit, DWZ1IB6K2 chimney extension 450–854 mm and DWZ1IB6N2 chimney extension 187–360 mm.

How loud is the hood during operation?

In exhaust mode the noise level ranges from 49 dB(A) re 1pW at speed 1 to 65 dB(A) re 1pW at speed 3. In recirculation mode with the Long–life Clean Air kit, the noise level ranges from 49 dB(A) re 1pW at speed 1 to 66 dB(A) re 1pW at speed 3.

How is the grease filtering handled?

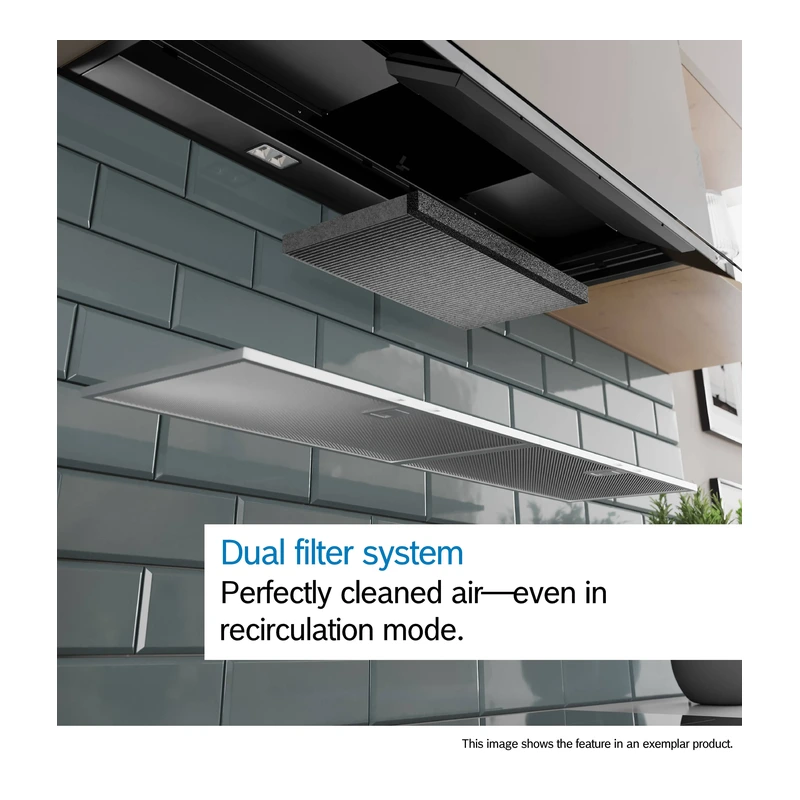

The hood uses two metal grease filters made from washable stainless steel. They are removable and dishwasher–safe, and the appliance has a Grease Filtering Efficiency Class of B*.

What lighting does the hood provide?

The hood is equipped with two 1.5 W LED lights, providing a colour temperature of 3500 K and light intensity of 316 lux, with a Lighting Efficiency Class of A*.

What are the key energy ratings?

The hood has an Energy Efficiency Class of D, Average Energy Consumption of 56.1 kWh/year*, Blower Efficiency Class E*, Lighting Efficiency Class A* and Grease Filtering Efficiency Class B*.

Product Information Sheet

Bosch Series 2 Canopy Hood

SKU: DBB63BC60B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch DBB63BC60B Series 2 Canopy Hood

SKU: DBB63BC60B · EAN: 4242005530212

Black

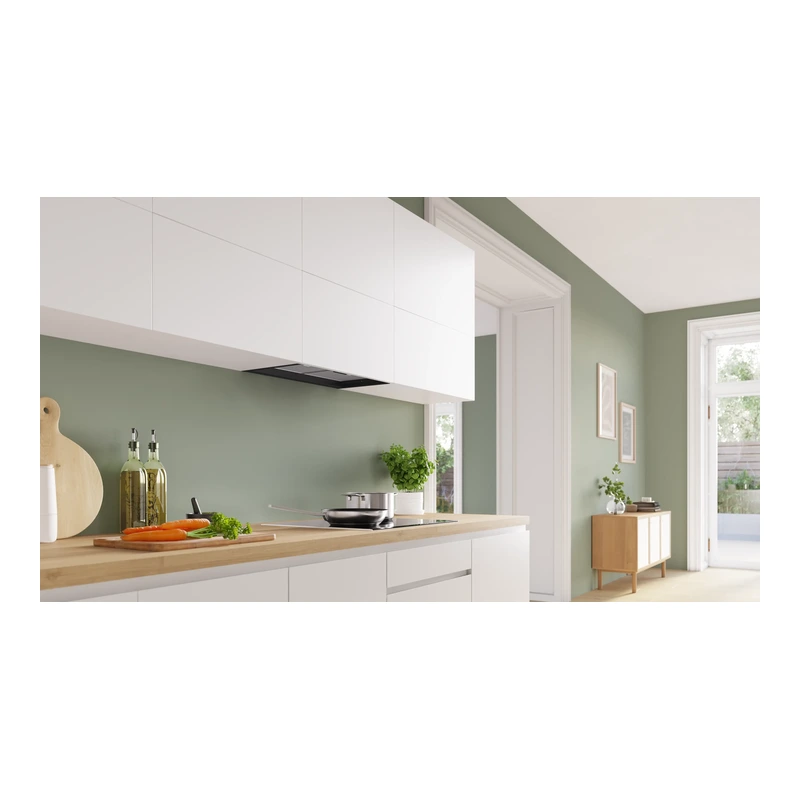

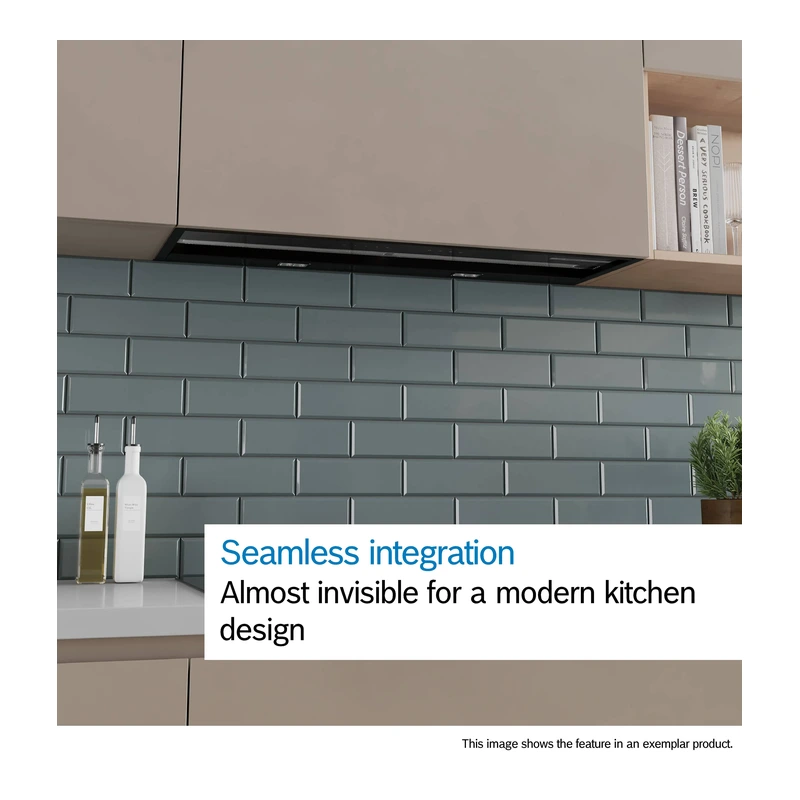

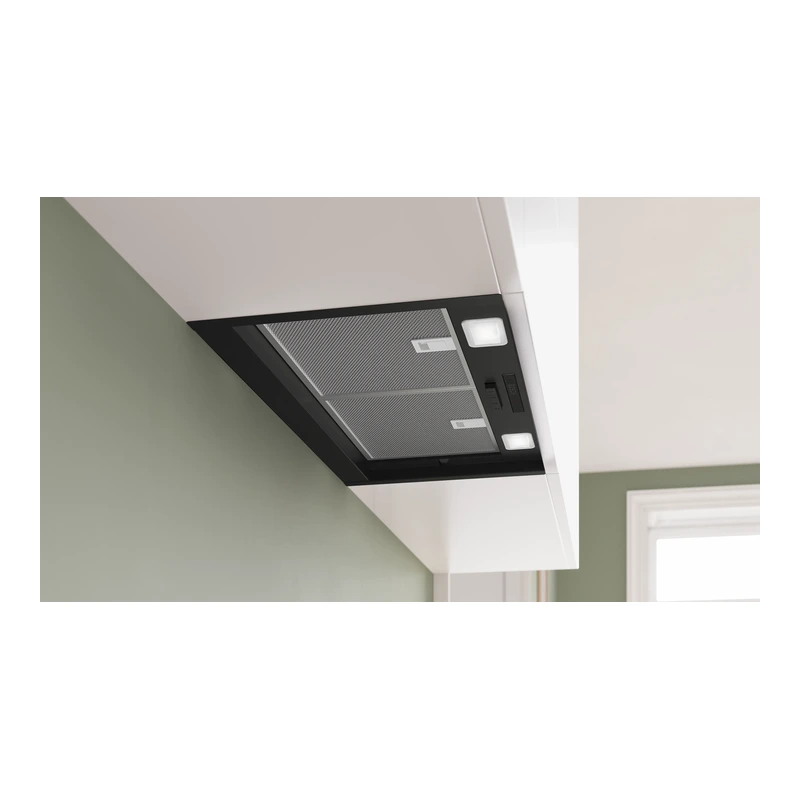

The DBB63BC60B is a Series 2 integrated design hood in matt black for installation in a 60 cm wall cupboard. Its flush–fitted, T–shaped design offers enlarged storage space with up to 20 kg load capacity, while providing quiet extraction for ducted or recirculating operation. Mechanical push button controls, three power levels and efficient LED lighting make everyday use simple. Washable stainless steel grease filters and coated, easy–clean surfaces support straightforward maintenance.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Brand / Series	Series 2 Integrated Design Hood
Model	DBB63BC60B

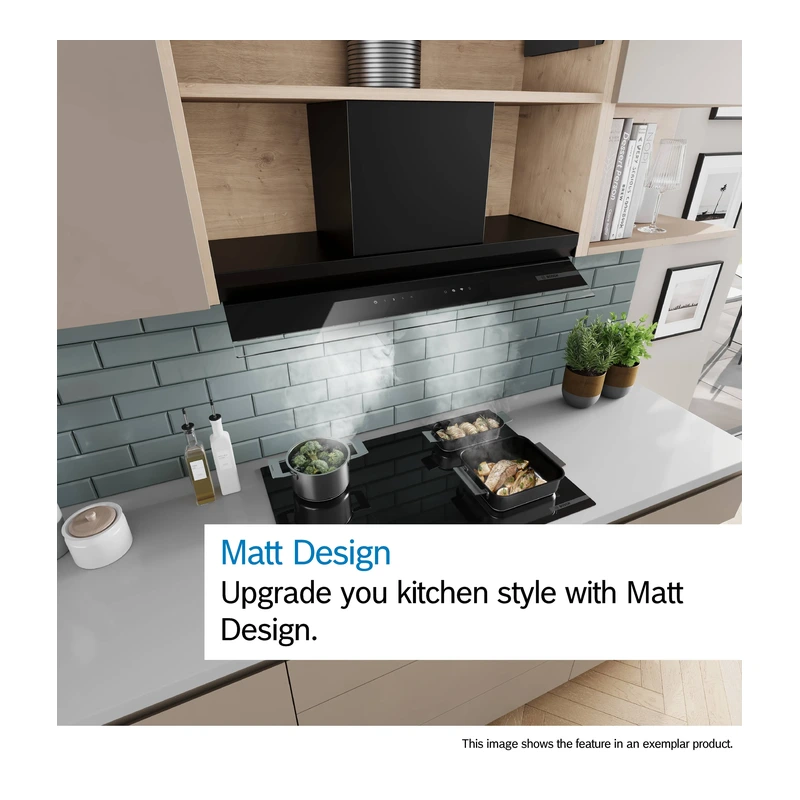

Colour / Finish	Matt Design, elegant carbon black matt finish
Typology	Built–in / Built–under

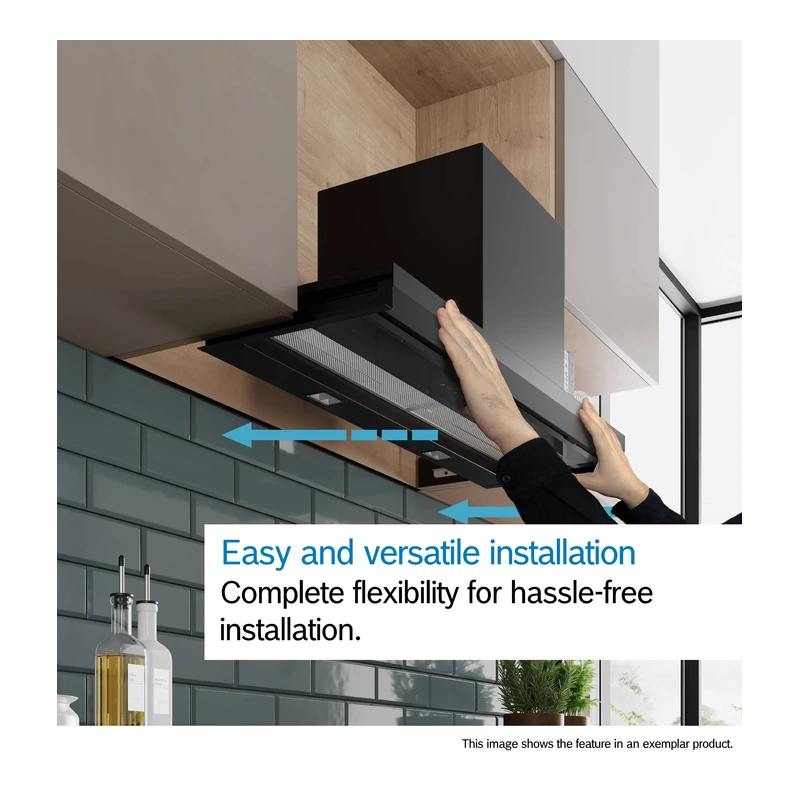

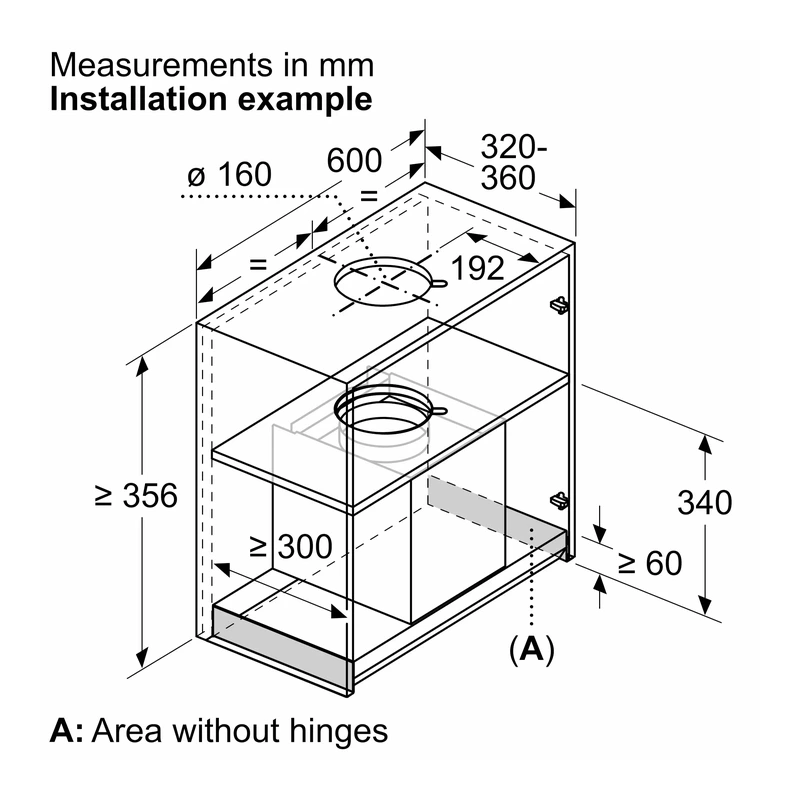

Installation	Installation in a wall cupboard, Installation: Cupboard 60 cm, Installation system: IDH comfort installation

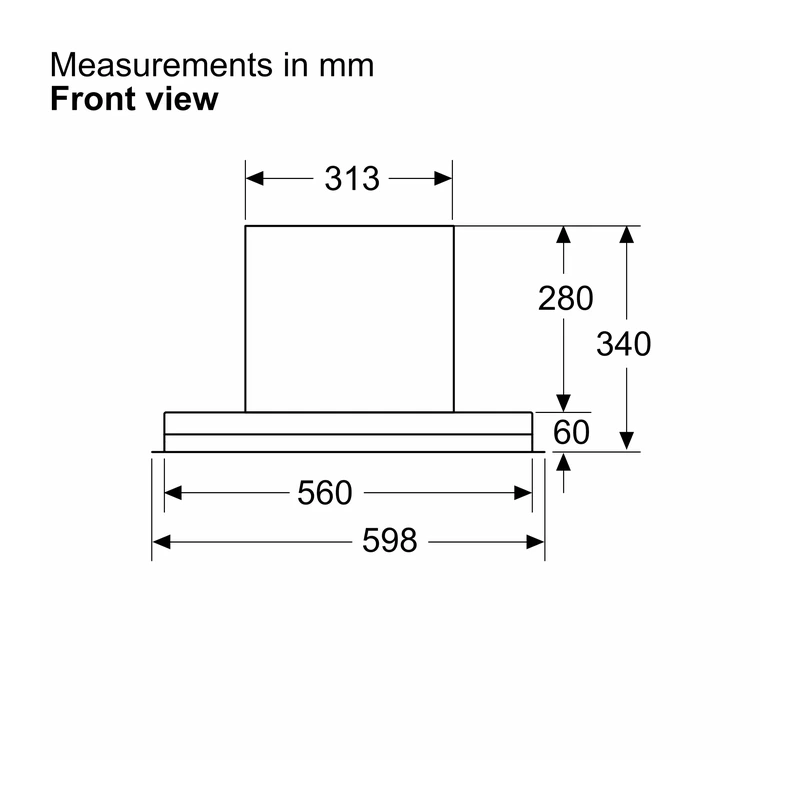

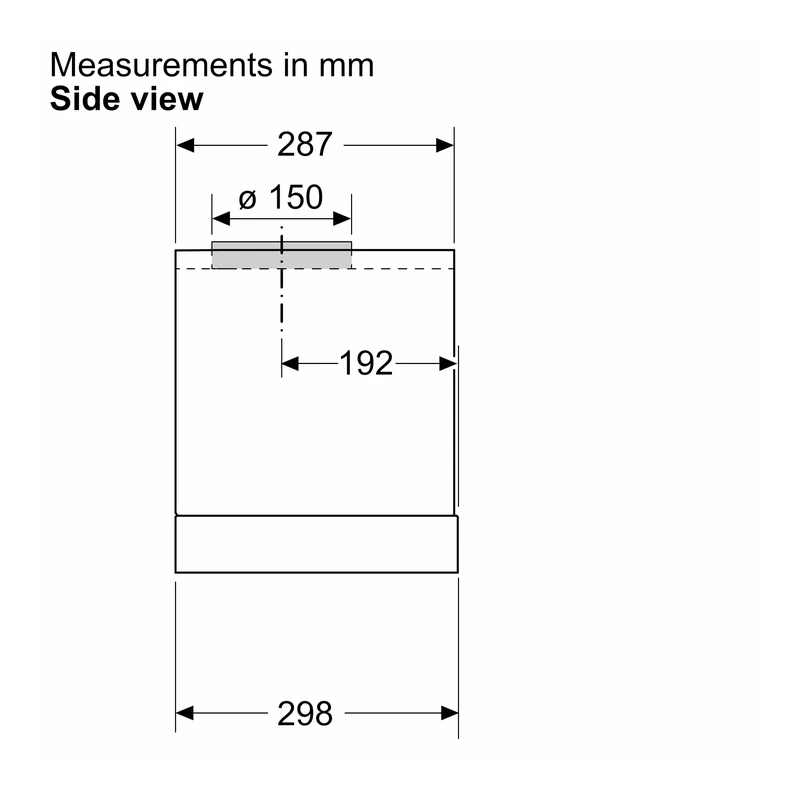

Appliance dimensions (HxWxD)	340 x 598 x 298 mm

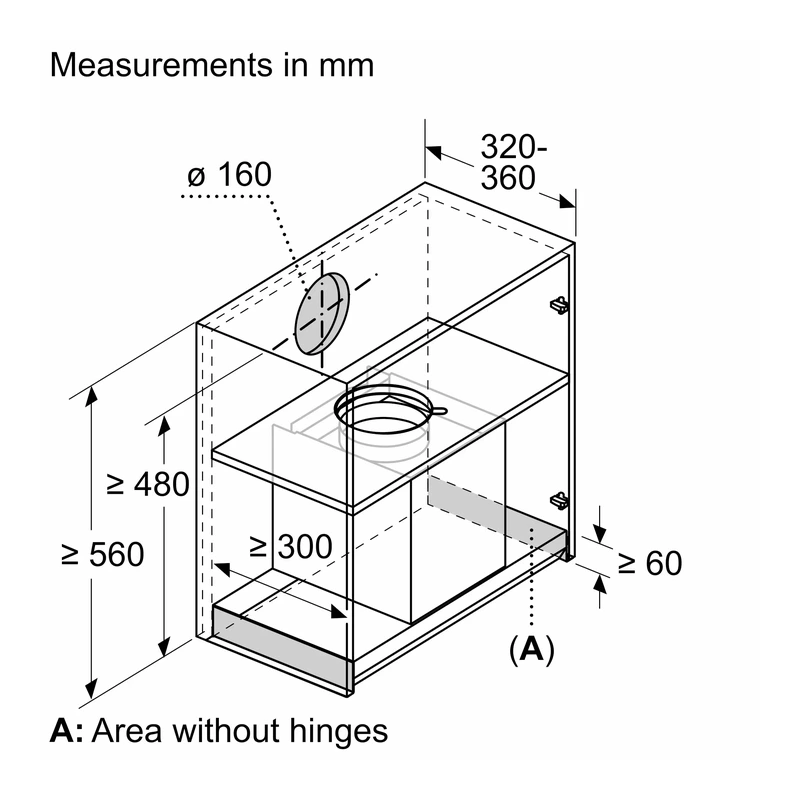

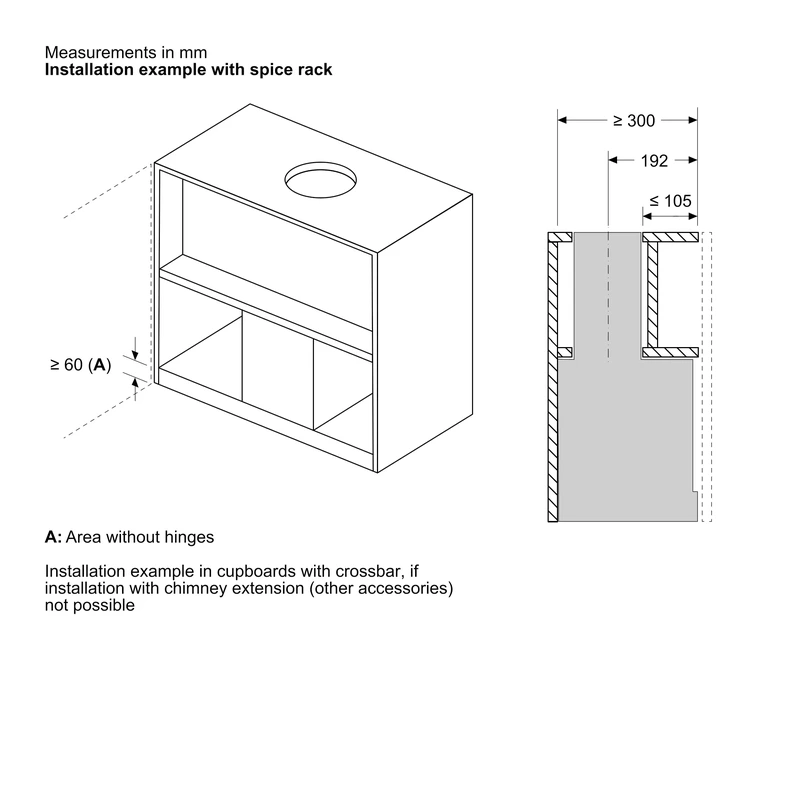

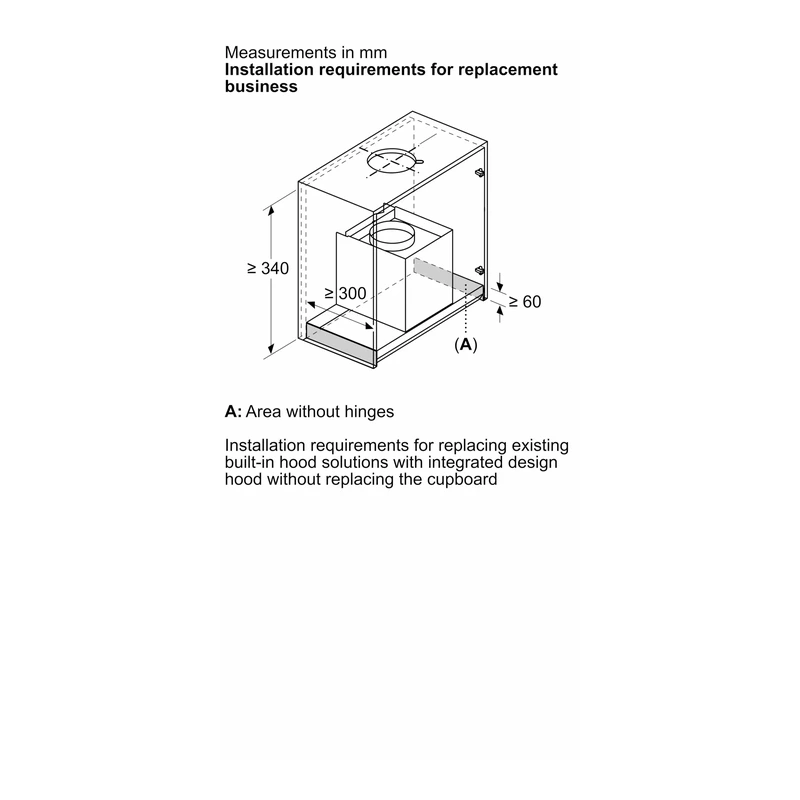

Built–in dimensions (HxWxD)	min. 340 mm x 560 mm x min. 300 mm

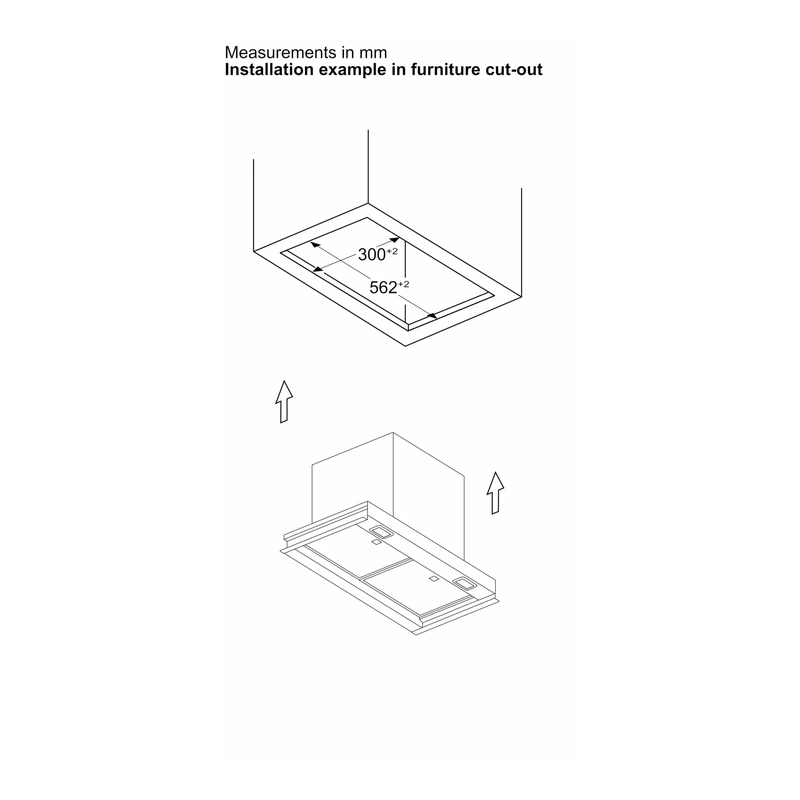

Required niche size (HxWxD)	340 mm x 560.0 mm x 300 mm
Height of the appliance	60 mm

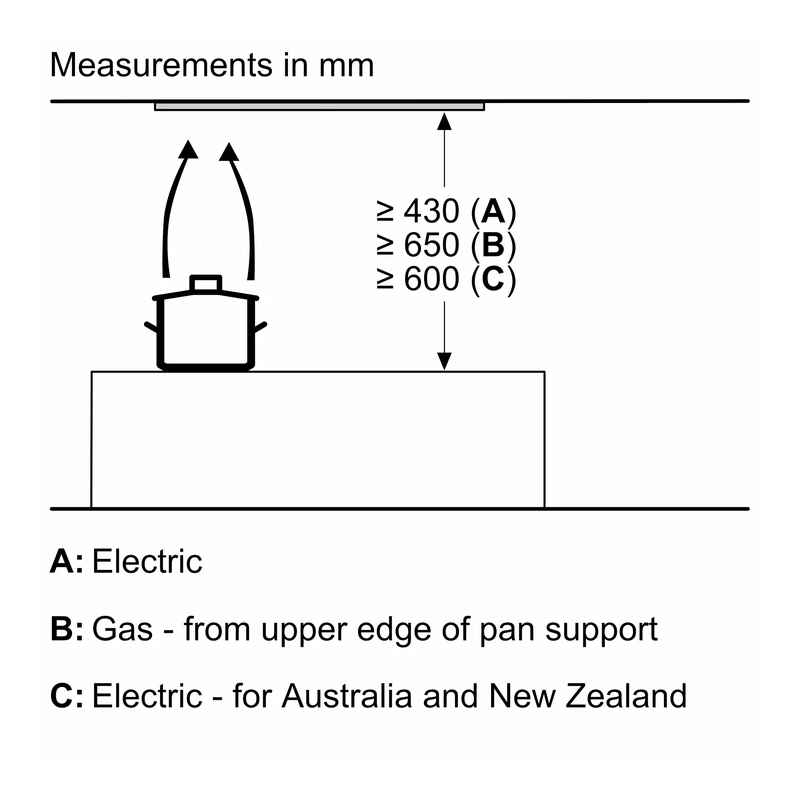

Minimum distance above electric hob	430 mm
Minimum distance above gas hob	650 mm
Net weight	7.2 kg

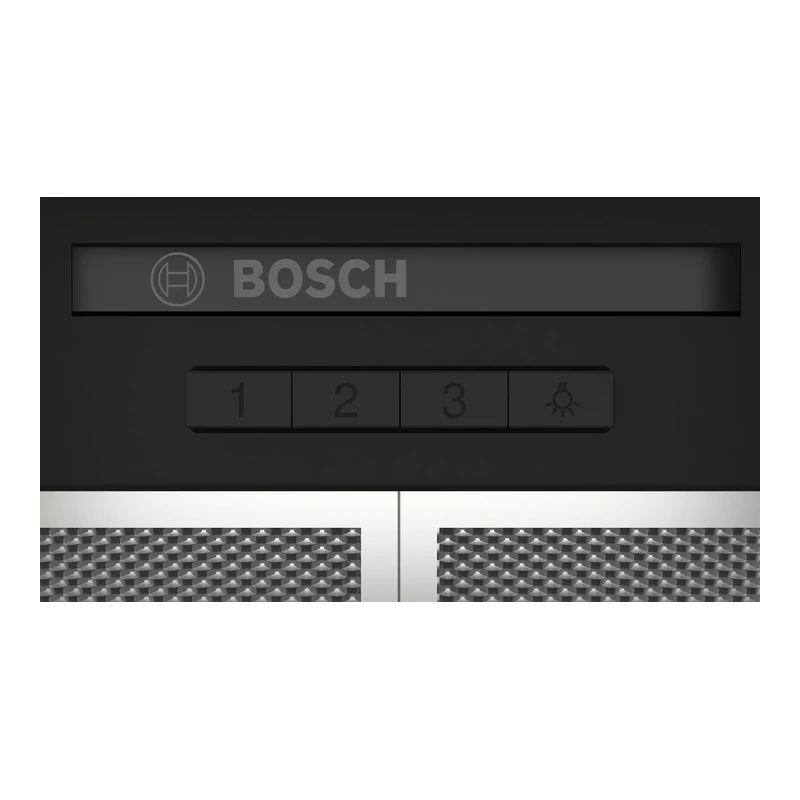

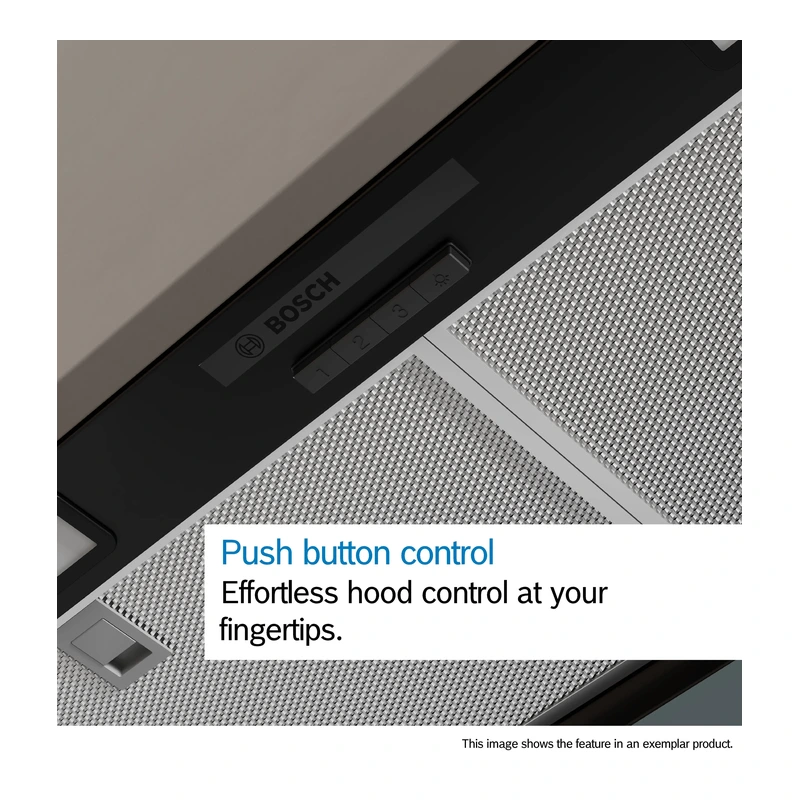

Control type	Mechanical, push button control
Number of speed settings	3 power levels
Max. air extraction (exhaust mode)	384 m³/h (Maximum Air flow 384 m³/h)
Exhaust mode performance	Speed 1: 174 m³/h; 49 dB(A) re 1pW – Speed 2: 246 m³/h; 57 dB(A) re 1pW – Speed 3: 384 m³/h; 65 dB(A) re 1pW
Max. air recirculation	291 m³/h
Recirculation mode performance	Speed 1: 140 m³/h; 49 dB(A) re 1pW – Speed 2: 212 m³/h; 59 dB(A) re 1pW – Speed 3: 291 m³/h; 66 dB(A) re 1pW (with Long–life Clean Air recirculation kit)
Noise level	65 dB(A) re 1pW (maximum)
Number of lights	2
Light specification	2 × LED 1.5 W, Colour Temperature 3500 K, Light Intensity 316 lux

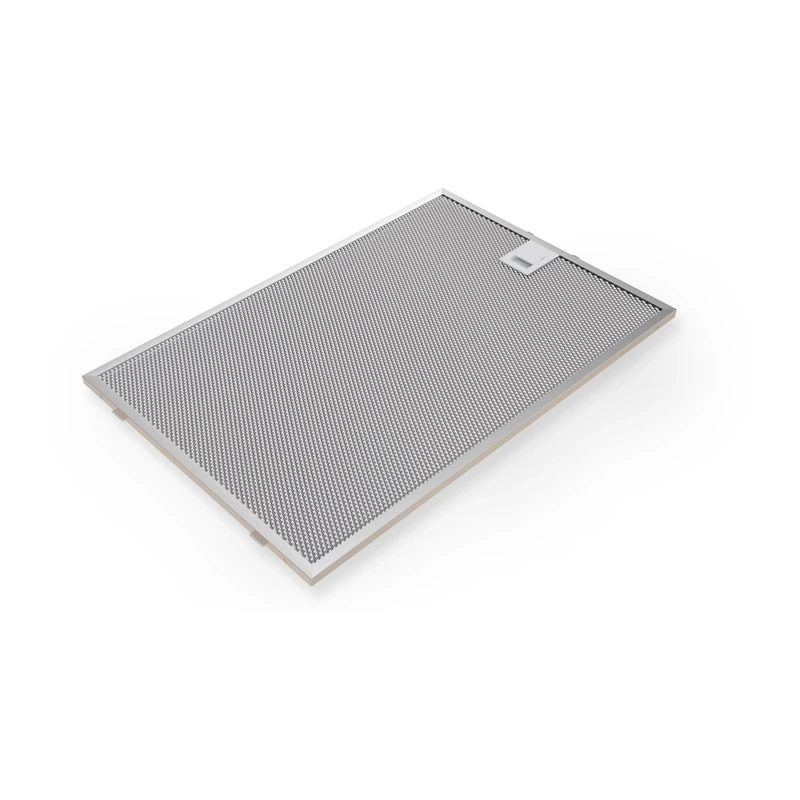

Grease filter material	Washable stainless steel, 2 metal grease filter(s)

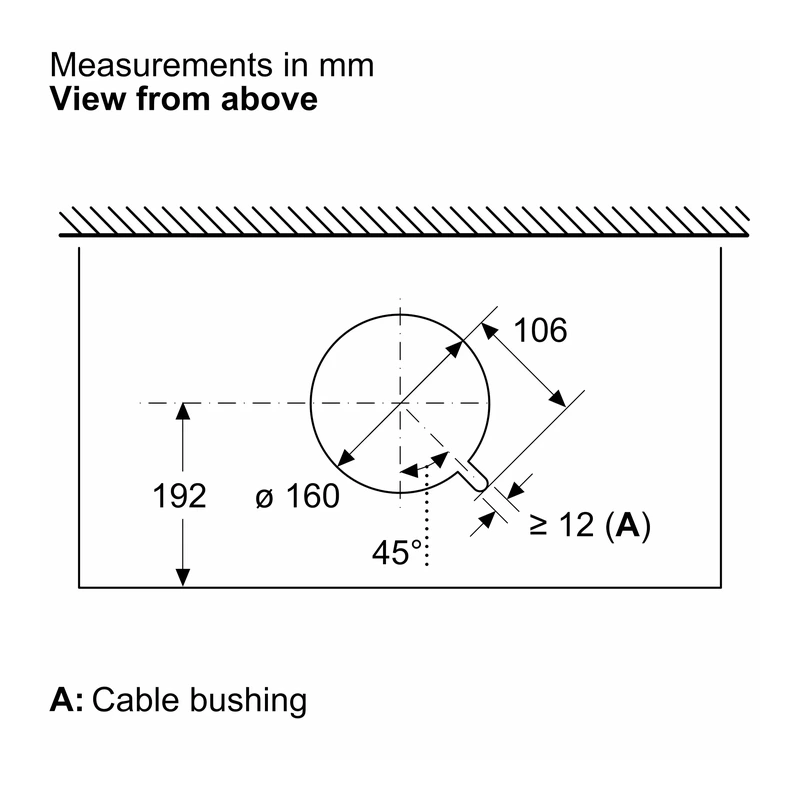

Diameter of air outlet / pipe	150 mm (Diameter pipe Ø 150 mm)
Length electrical supply cord	130 cm (Electrical cable length 1.3 m)
Connection rating / Power rating	100 W
Voltage	220–240 V (Nominal voltage: 220–240 V)
Frequency	50 Hz
Plug type	GB plug
Motor type	Shaded–pole motor
Energy Efficiency Class	D (range of energy efficiency classes from A+++ to D)
Average Energy Consumption	56.1 kWh/year*
Blower Efficiency Class	E*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	B*
Country of manufacture / sustainability	Made in Germany, produced at a CO² neutral production site; environmentally friendly packaging
EAN code	4242005530212

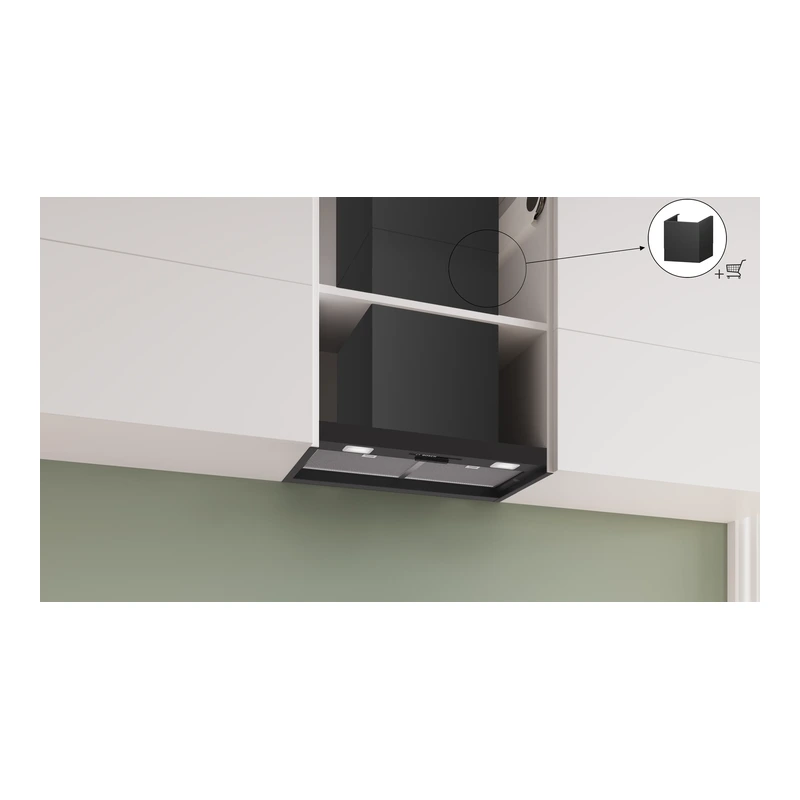

Optional accessories	DWZ1IB1B6 Long–life Clean Air odour filter (replacement); DWZ1IB1I6 Long–life Clean Air recirculation kit; DWZ1IB6K2 Chimney extension 450–854 mm; DWZ1IB6N2 Chimney extension 187–360 mm

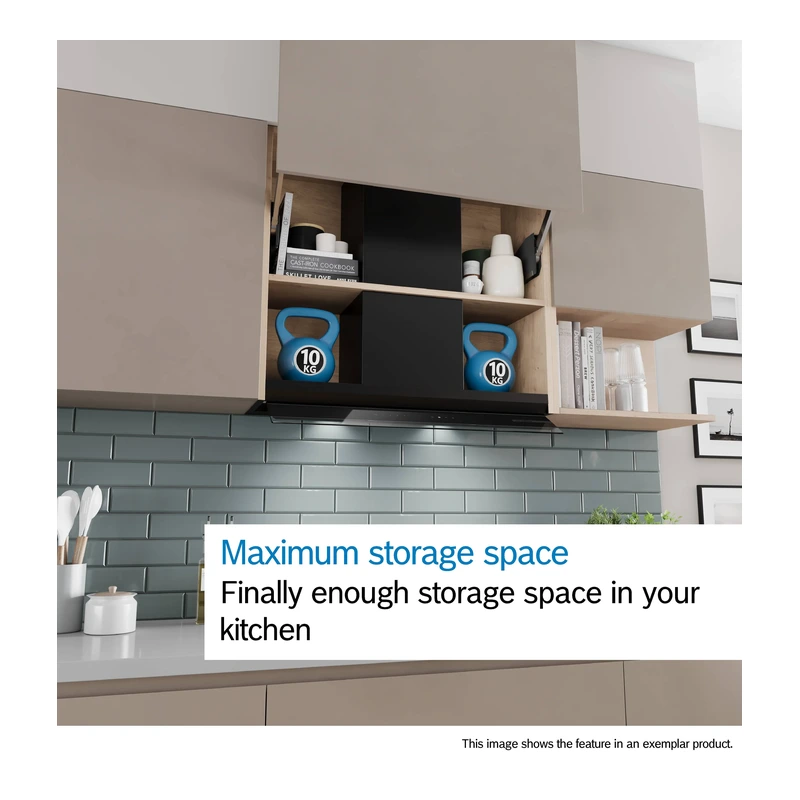

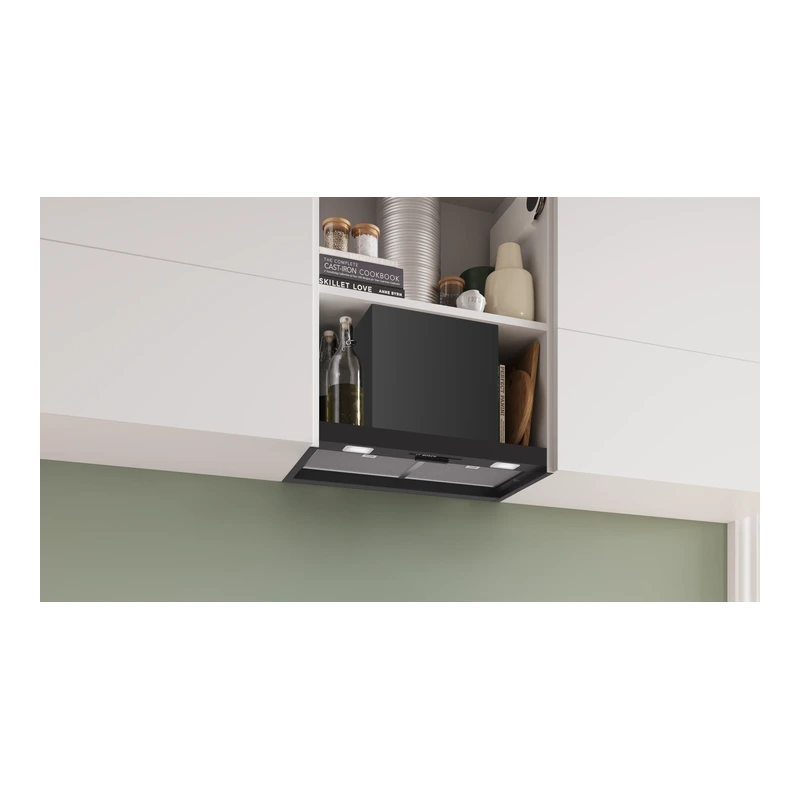

Load capacity in cupboard	Enlarged storage space: max. 10 kg capacity on each hood side
