Is this hood suitable for both ducted and recirculating operation?

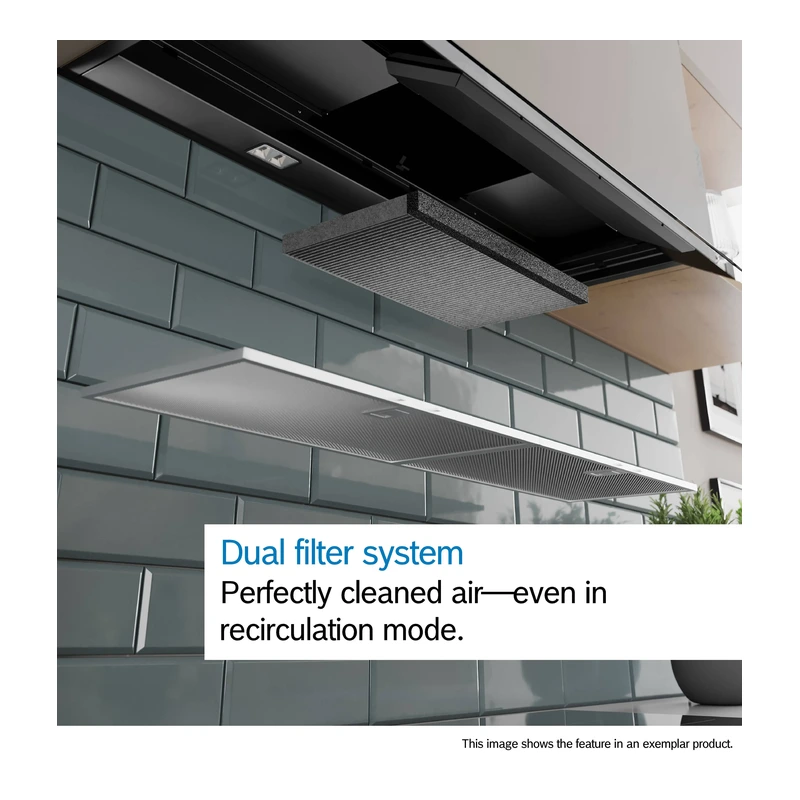

Yes. The hood is suitable for ducted or recirculating operation. For recirculation, a Long-life Clean Air recirculation kit is needed as an accessory.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 430 mm and the minimum distance above a gas hob is 650 mm.

How bright is the lighting and what colour is it?

The hood uses 2 x LED 1.5 W lights with a colour temperature of 3500 K and a light intensity of 290 lux.

How do I clean the grease filters?

The metal grease filters are removable and dishwasher-safe. The smooth, coated surfaces are also easy to wipe clean and are less sensitive to fingerprints.

What optional accessories are available?

Optional accessories include the DWZ1IB1I6 Long-life Clean Air recirculation kit, DWZ1IB6K2 chimney extension 450–854 mm and DWZ1IB6N2 chimney extension 187–360 mm.

What storage capacity does the cupboard have with this hood?

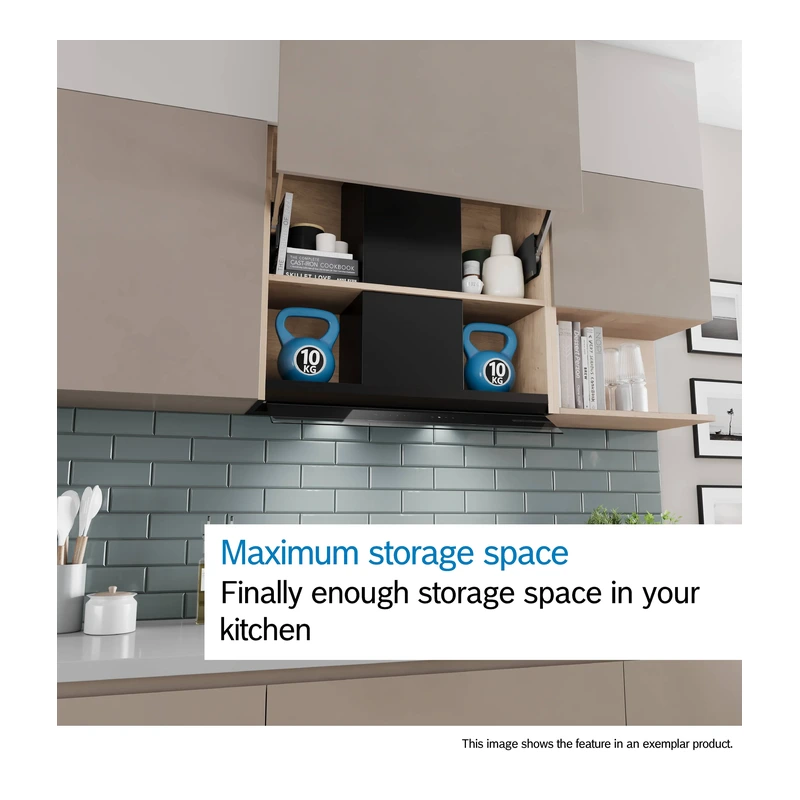

The T-shaped design offers enlarged storage space with a maximum 10 kg capacity on each hood side and up to 20 kg load capacity in total.

Product Information Sheet

Bosch Series 2 Canopy Hood

SKU: DBB83BC60B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch DBB83BC60B Series 2 Canopy Hood

SKU: DBB83BC60B · EAN: 4242005527359

Black

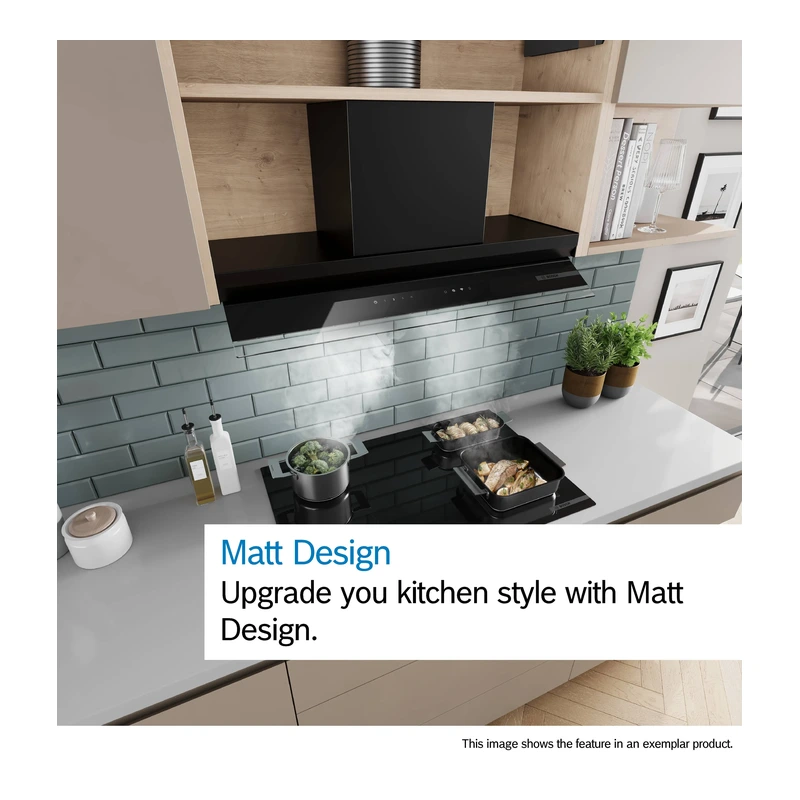

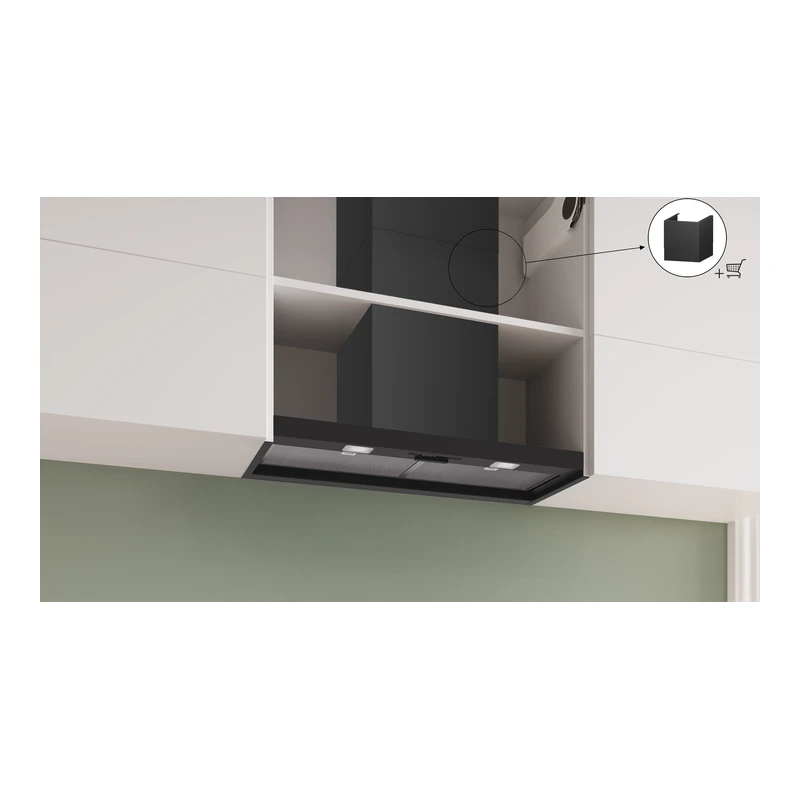

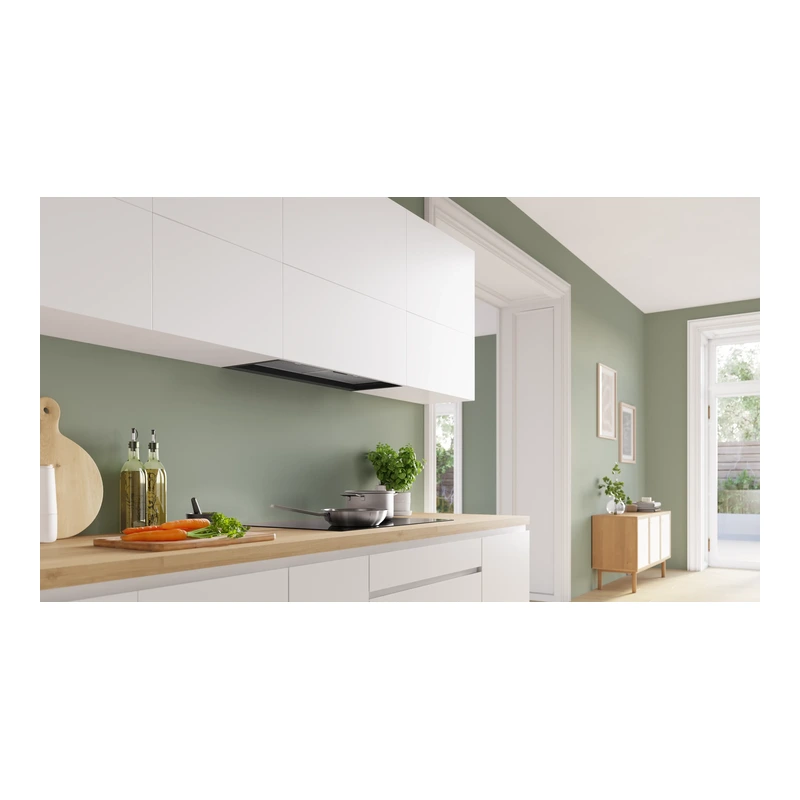

The Series 2 Integrated Design Hood DBB83BC60B is an 80 cm matt black built-in cooker hood for installation in a wall cupboard. It offers quiet extraction with powerful performance, three power levels and push button control. The flush-fitted T-shaped design provides enlarged cupboard storage space with up to 20 kg load capacity. With LED lighting, washable stainless steel grease filters and suitability for ducted or recirculating operation, it delivers seamless integration and everyday cooking comfort.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 2, Integrated Design Hood, 80 cm, Matt black, DBB83BC60B
Typology	Built-in/Built-under

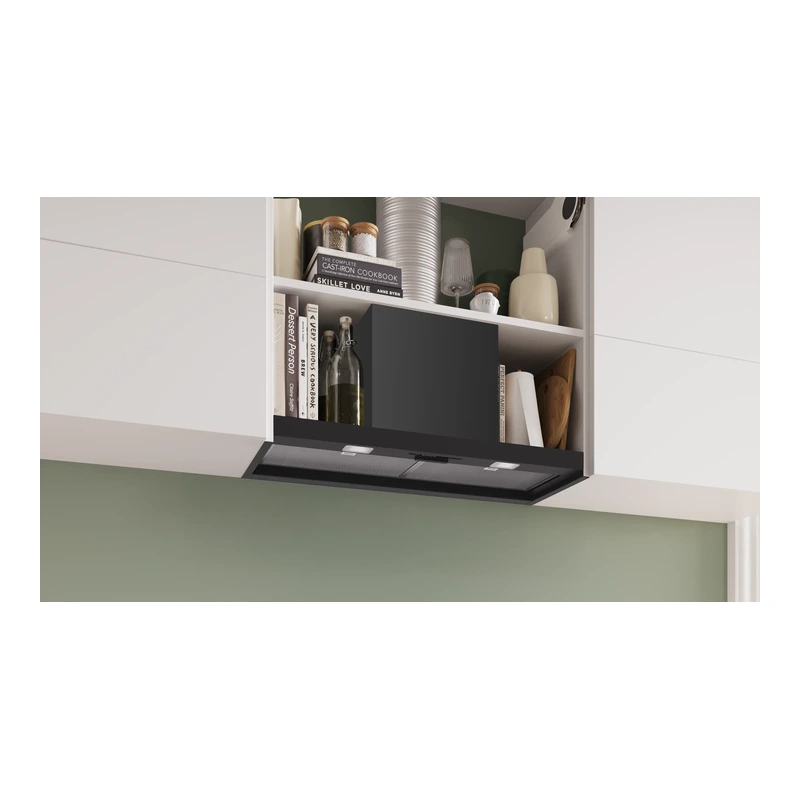

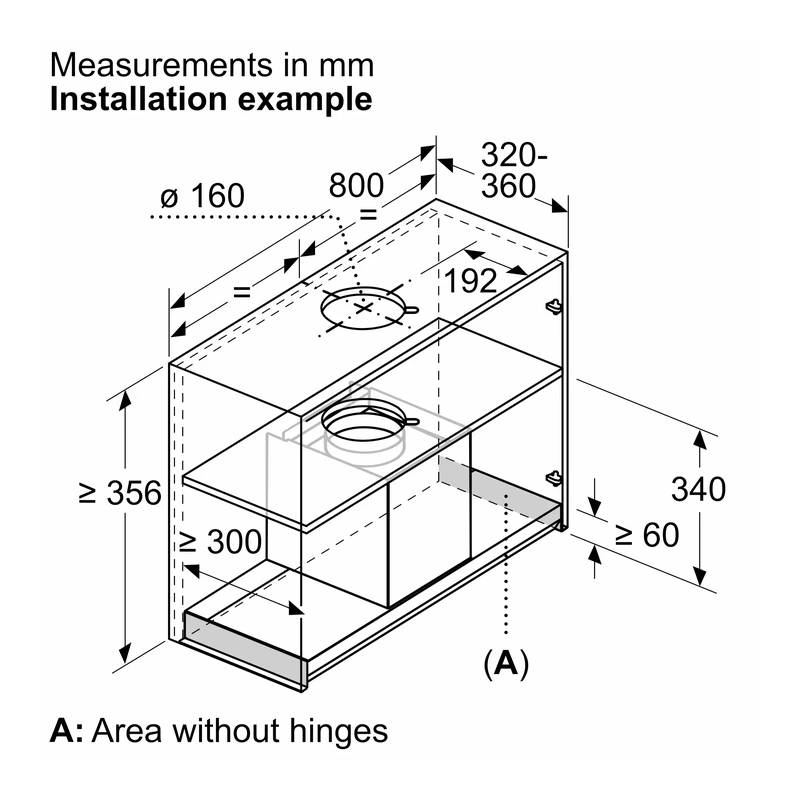

Installation location	Installation in a wall cupboard; Installation typology: Built-in; Installation: Cupboard 80 cm
Installation system	IDH comfort installation

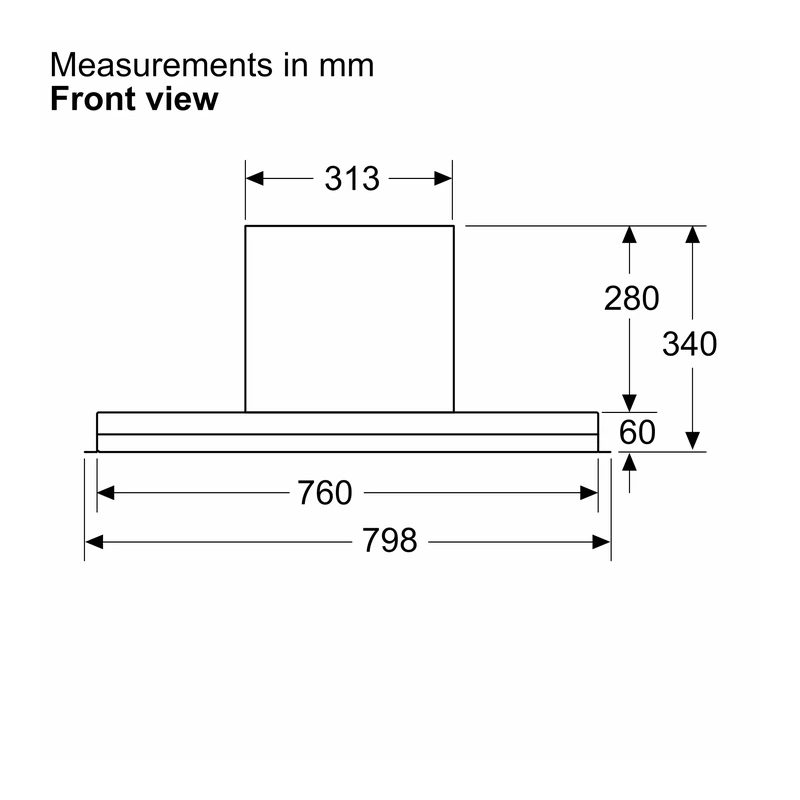

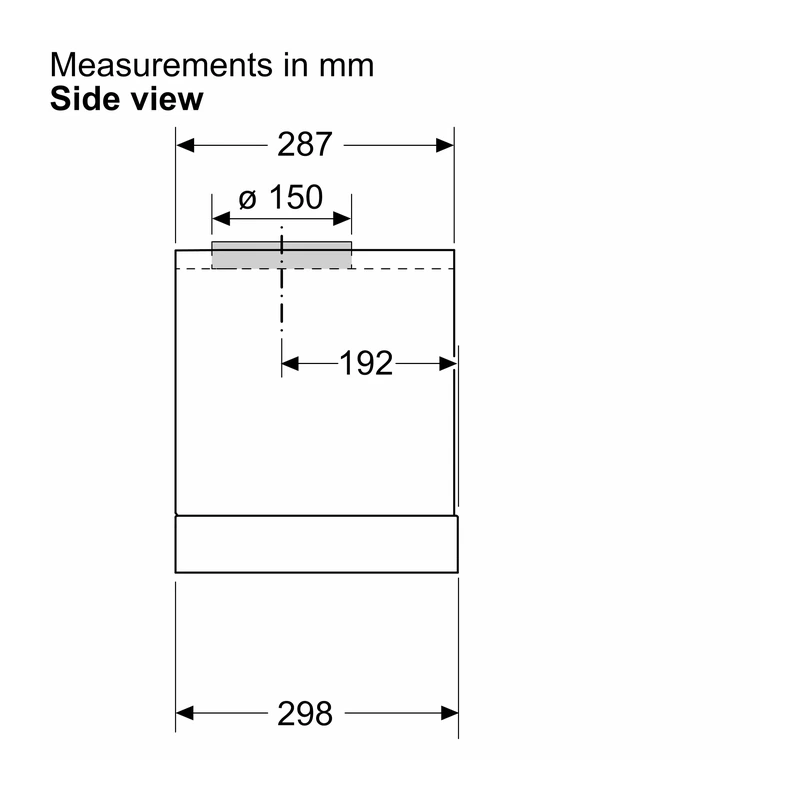

Appliance dimensions (HxWxD)	340 x 798 x 298 mm

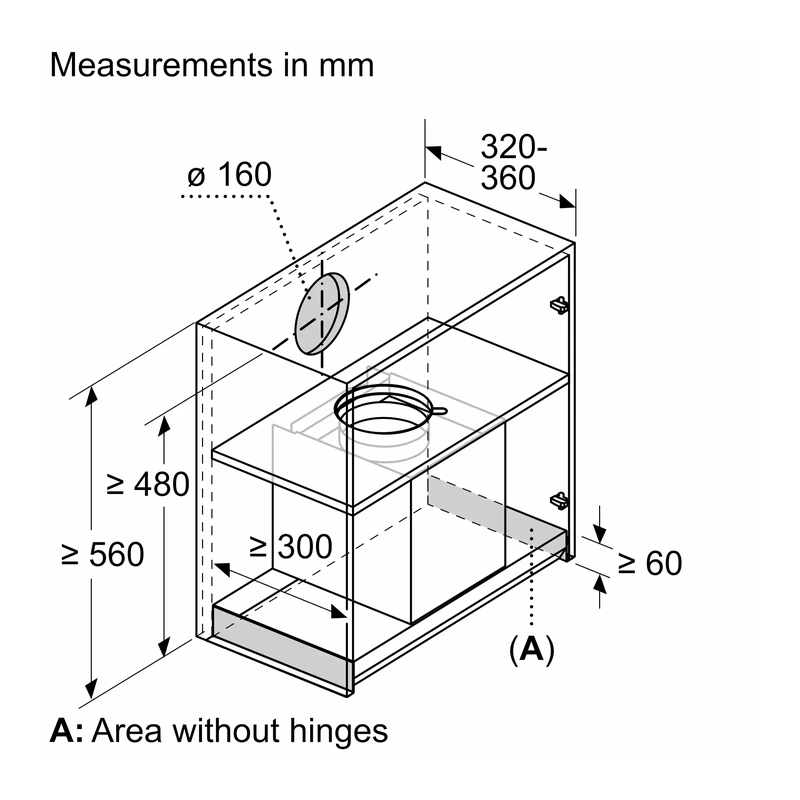

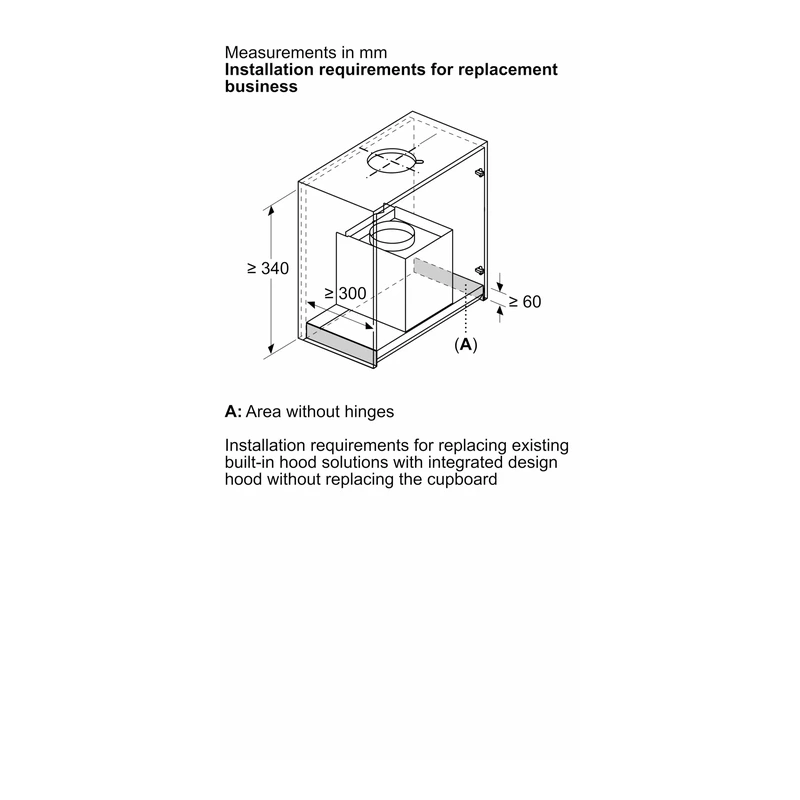

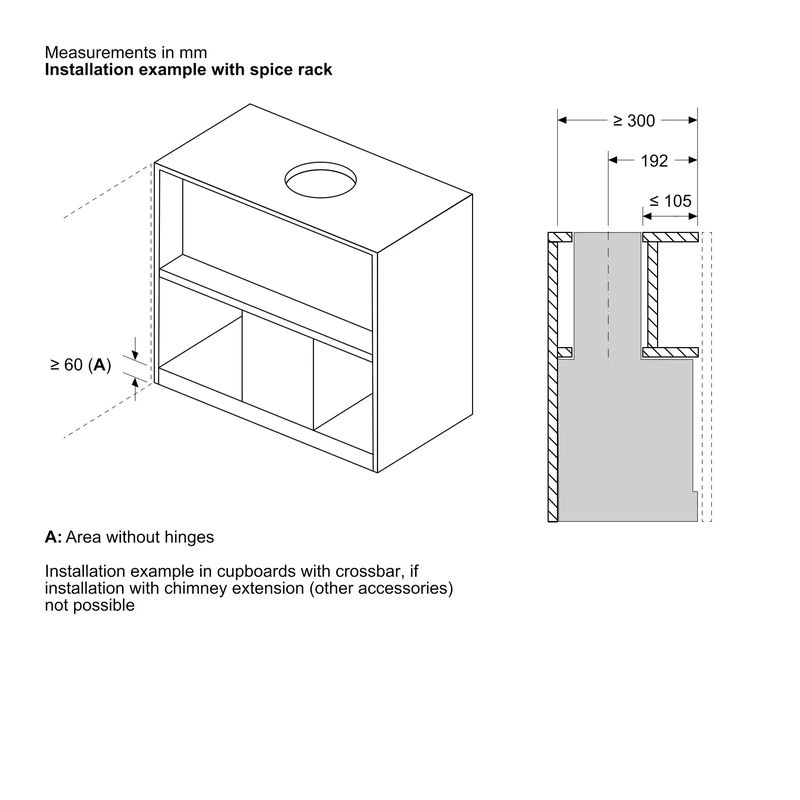

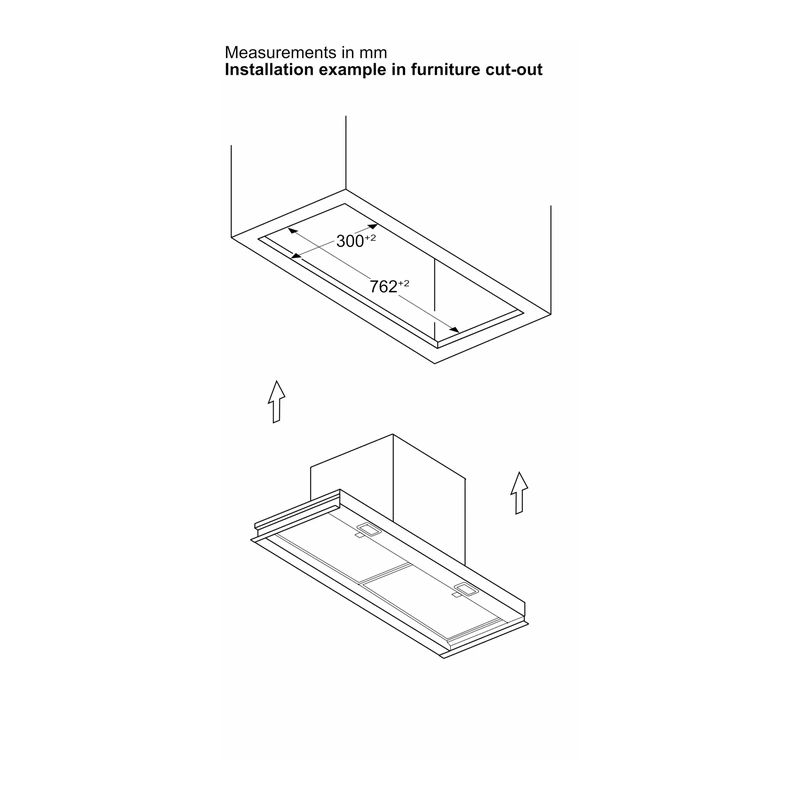

Built-in dimensions (HxWxD)	min. 340 mm x 760 mm x min. 300 mm
Required niche size (HxWxD)	340 mm x 760.0 mm x 300 mm
Height of the appliance	60 mm

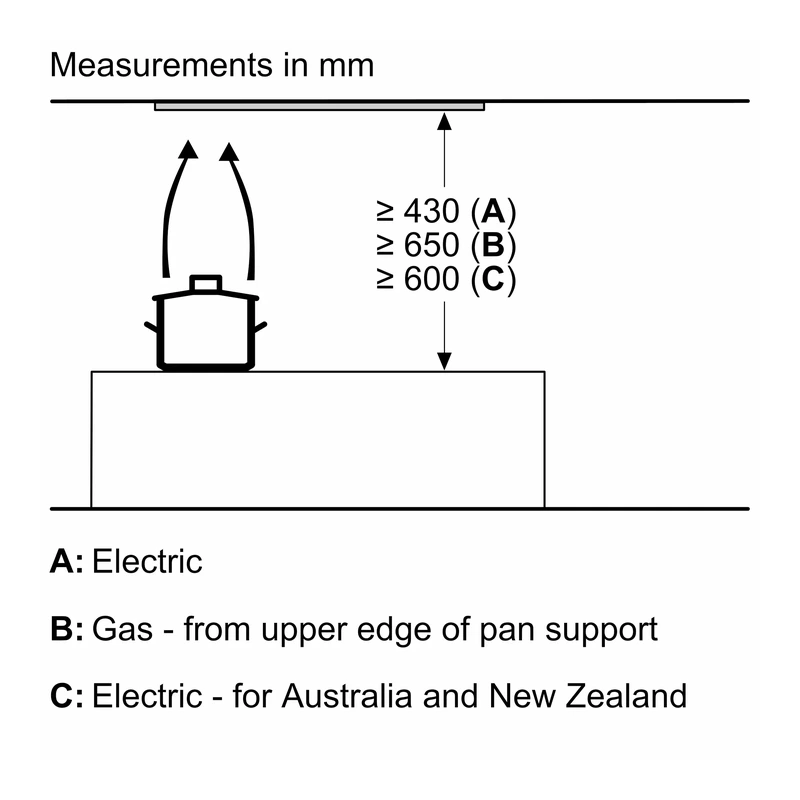

Minimum distance above an electric hob	430 mm
Minimum distance above a gas hob	650 mm
Net weight	7.9 kg
Length electrical supply cord	130 cm; Electrical cable length 1.3 m

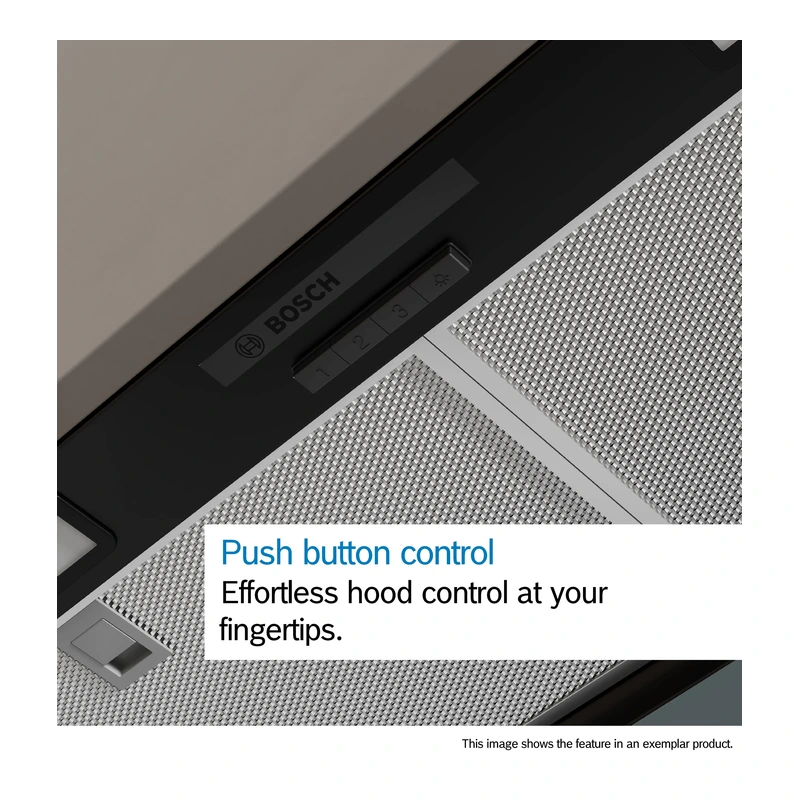

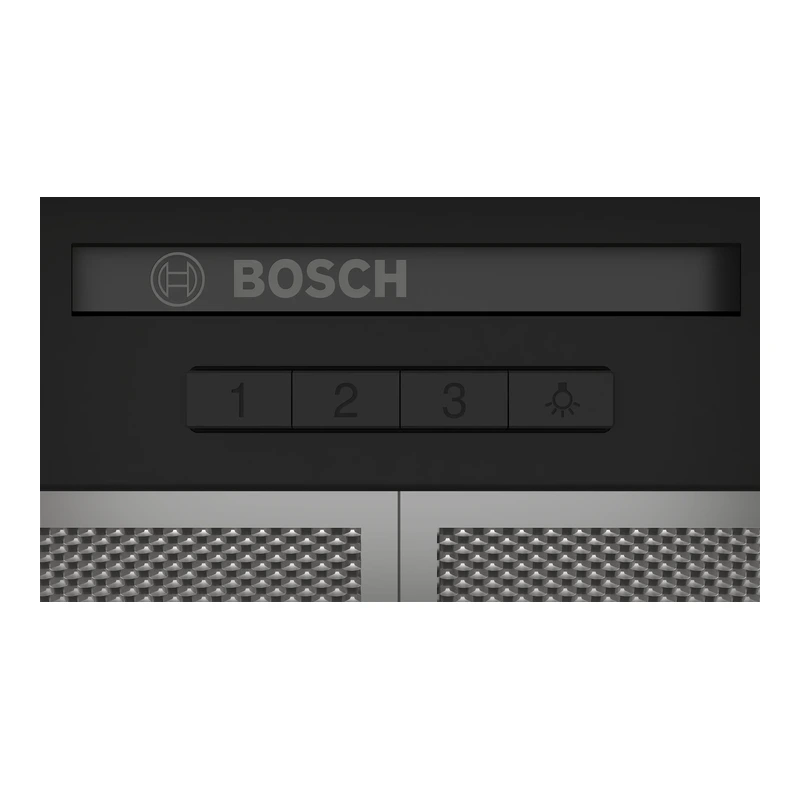

Type of control	Mechanical push button control
Number of speed settings	3 power levels
Max. air extraction	384 m³/h
Max. air recirculation	291 m³/h
Maximum air flow	384 m³/h
Noise level (max.)	65 dB(A) re 1pW
Motor type	Shaded-pole motor
Number of lights	2 x LED 1.5 W
Colour temperature	3500 K
Light intensity	290 lux

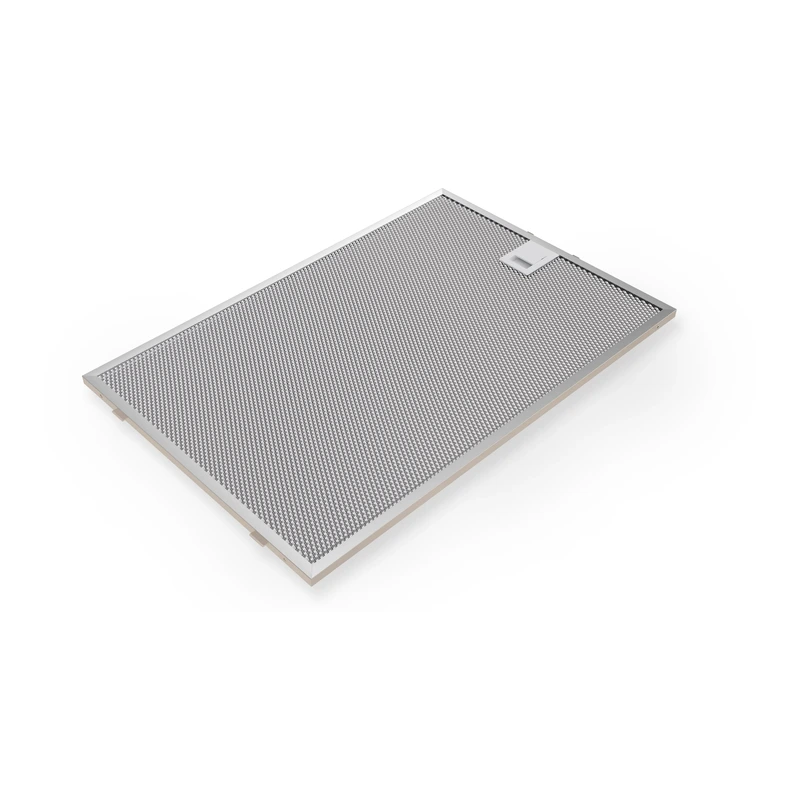

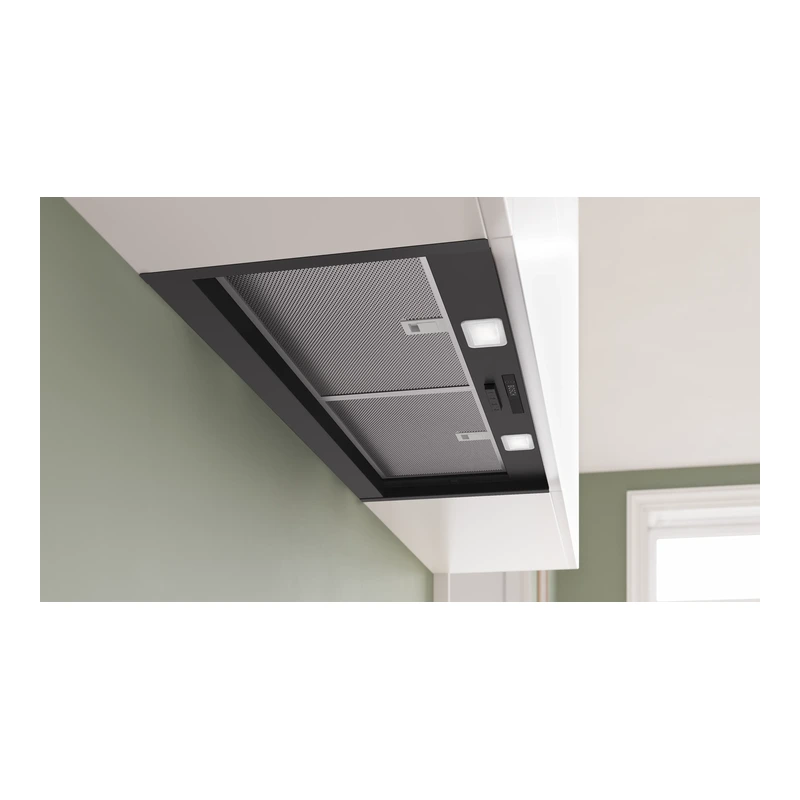

Grease filter material	Washable stainless steel; 2 metal grease filter(s)

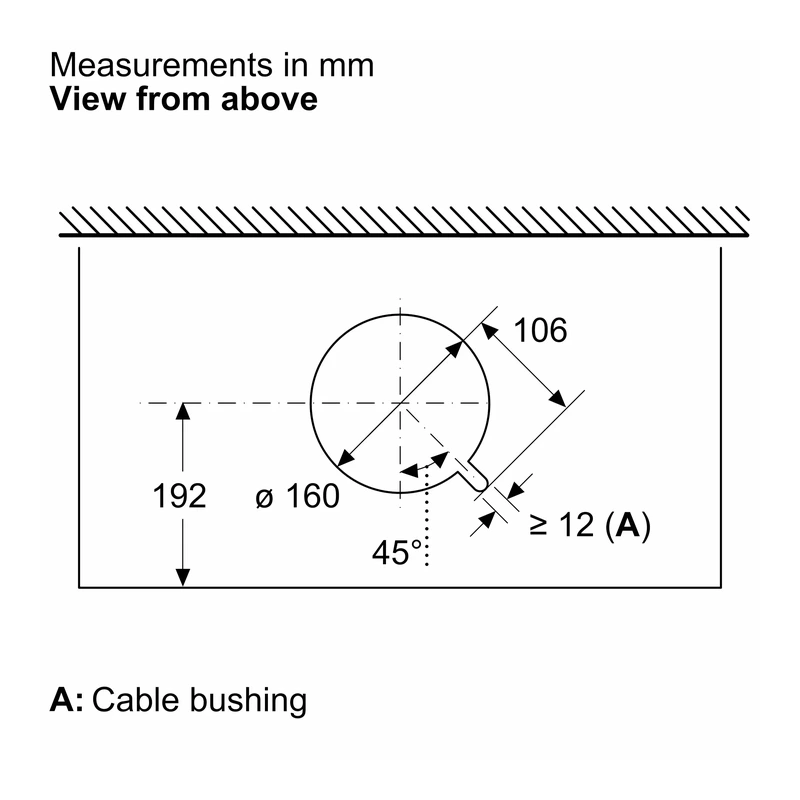

Diameter of air outlet / pipe	150 mm; Diameter pipe Ø 150 mm
Energy Efficiency Class	D (at a range of energy efficiency classes from A+++ to D)
Average energy consumption	56.1 kWh/year*
Blower Efficiency Class	E*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	B*
Connection rating	100 W; Power rating: 100 W
Voltage	220–240 V; Nominal voltage: 220–240 V
Frequency	50 Hz
Plug type	GB plug
EAN code	4242005527359
Country of manufacture	Made in Germany: produced at a CO2 neutral production site
Environmental information	Environmentally friendly packaging
Optional accessories	DWZ1IB1I6 Long-life Clean Air recirculation kit; DWZ1IB6K2 Chimney extension 450–854 mm; DWZ1IB6N2 Chimney extension 187–360 mm
