Can this hood be used in both ducted and recirculating modes?

Yes. The hood is suitable for ducted or recirculating operation. For recirculation, the optional Long–life Clean Air recirculation kit is needed.

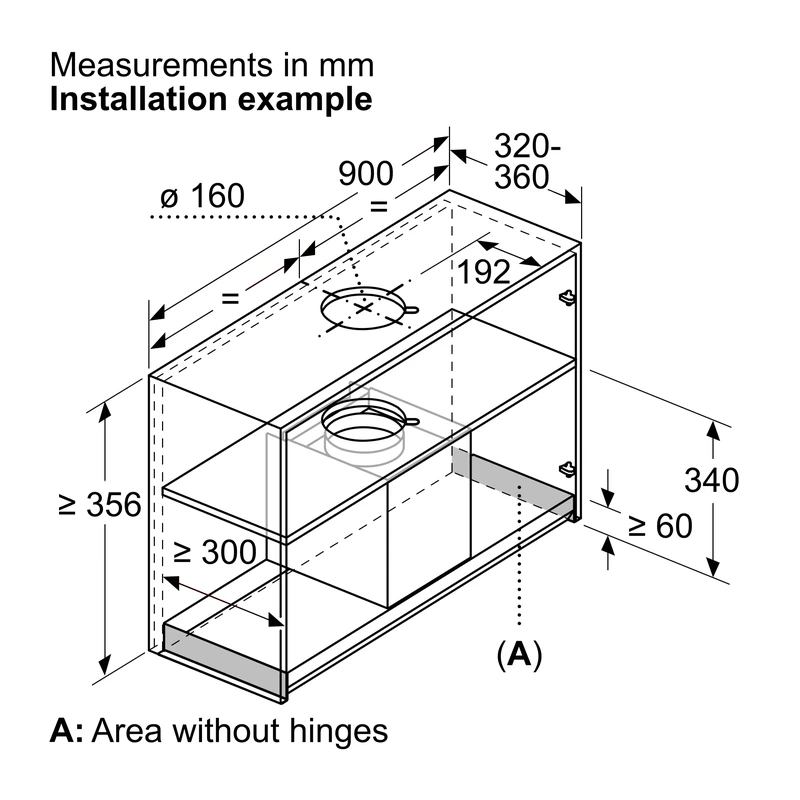

What are the dimensions required for installation in a cupboard?

The built–in dimensions are a minimum of 340 mm height, 860 mm width and 300 mm depth. Spacers are included for cupboards with depths up to 360 mm.

How loud is the hood during operation?

In exhaust mode, the noise level ranges from 42 dB(A) re1pW on Speed 1 to 57 dB(A) re1pW on Speed 3, and 68 dB(A) re1pW on Intensive 1, according to EN 61591 and EN/IEC 60704-2-13.

Does the hood include lighting and can it be adjusted?

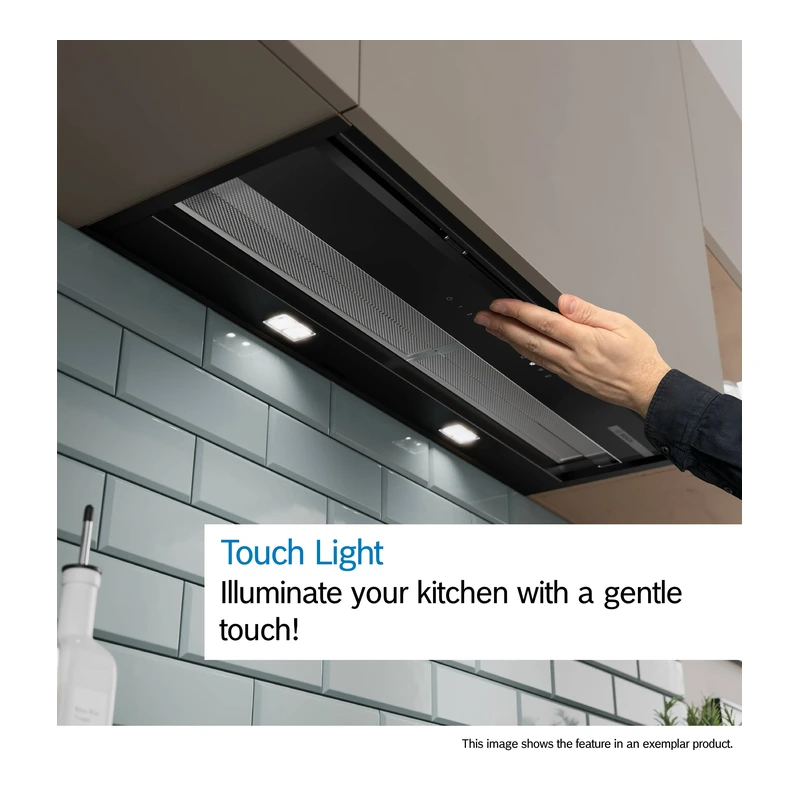

The hood has 2 × LED 3 W lights with a 3500 K colour temperature and 437 lux intensity. Softlight and dimmer functions allow smooth switching and adjustable brightness, and the light temperature can be adapted via the Home Connect app.

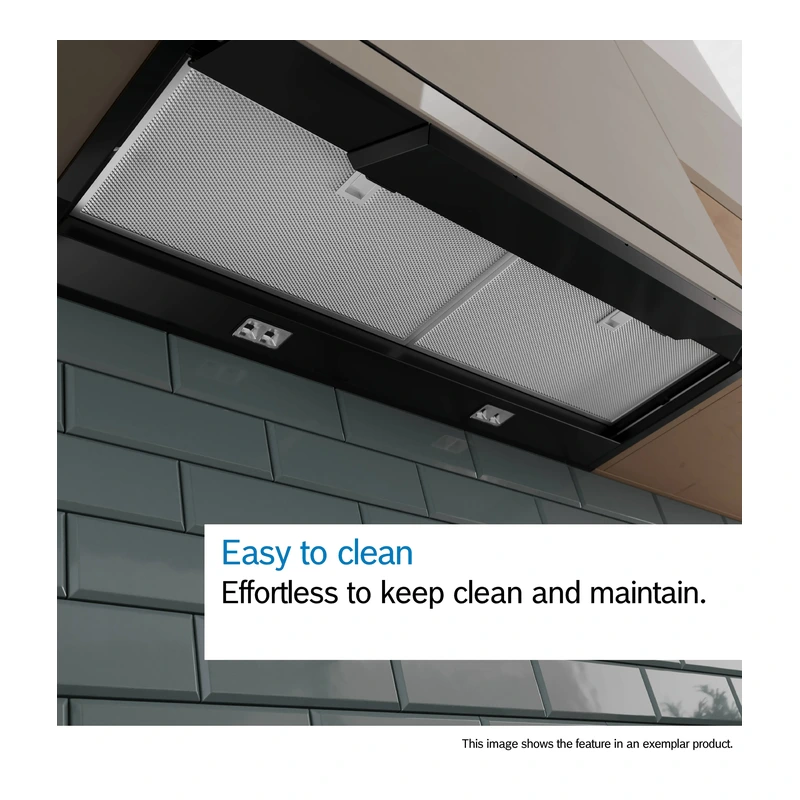

What maintenance is required for the filters?

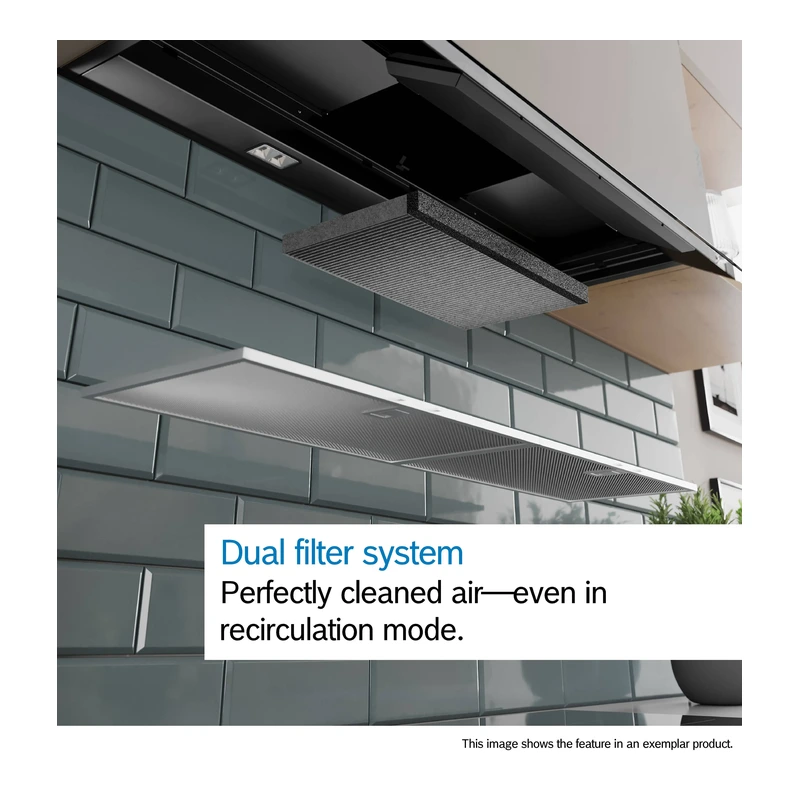

The metal grease filters are removable and dishwasher–safe. With the optional Long–life Clean Air odour filter, intense odours and pollen are absorbed and the filter lifetime can be extended up to four times by refreshing it in the oven. Saturation indicator and reset functions are available via the Home Connect app.

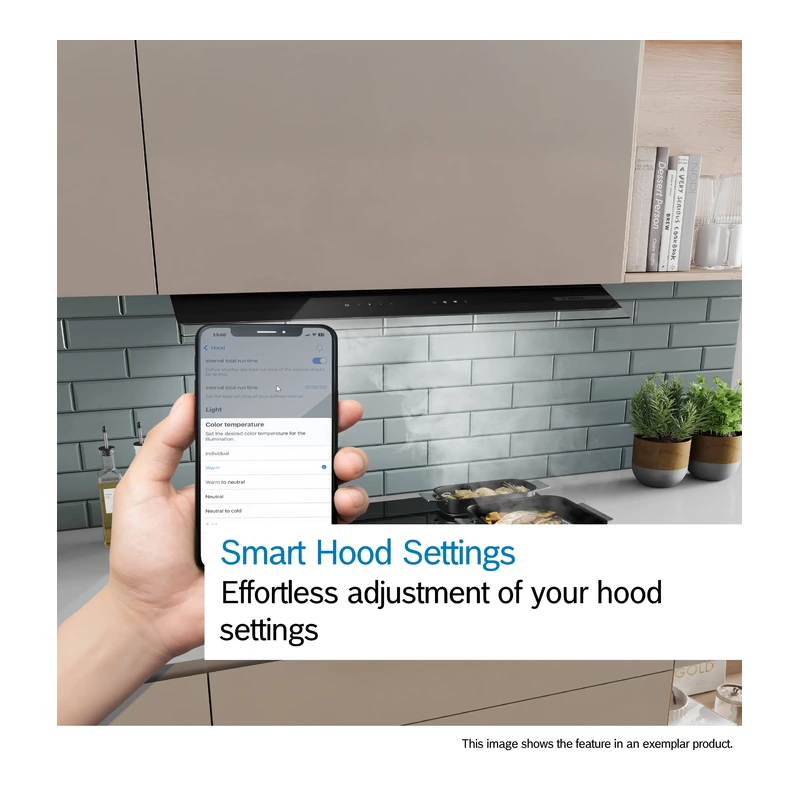

What smart features does the hood offer?

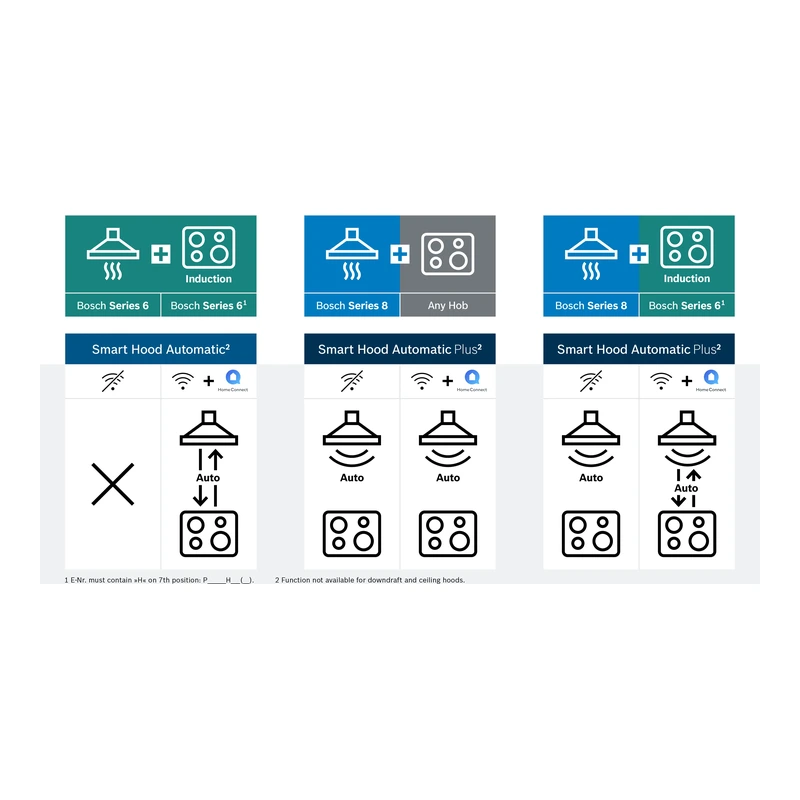

With a connected Home Connect account, you can control the hood via smartphone or tablet, use hob based hood control, Smart Hood Automatic, voice control, Performance Profiles, Favourite Button functions, smart home triggers, saturation indicators, after run and interval functions, adjustable light temperature and software updates.

Product Information Sheet

Bosch Series 6 Canopy Hood

SKU: DBB97DP60B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch DBB97DP60B Series 6 Canopy Hood

SKU: DBB97DP60B · EAN: 4242005530328

Black Body with Glass Panel

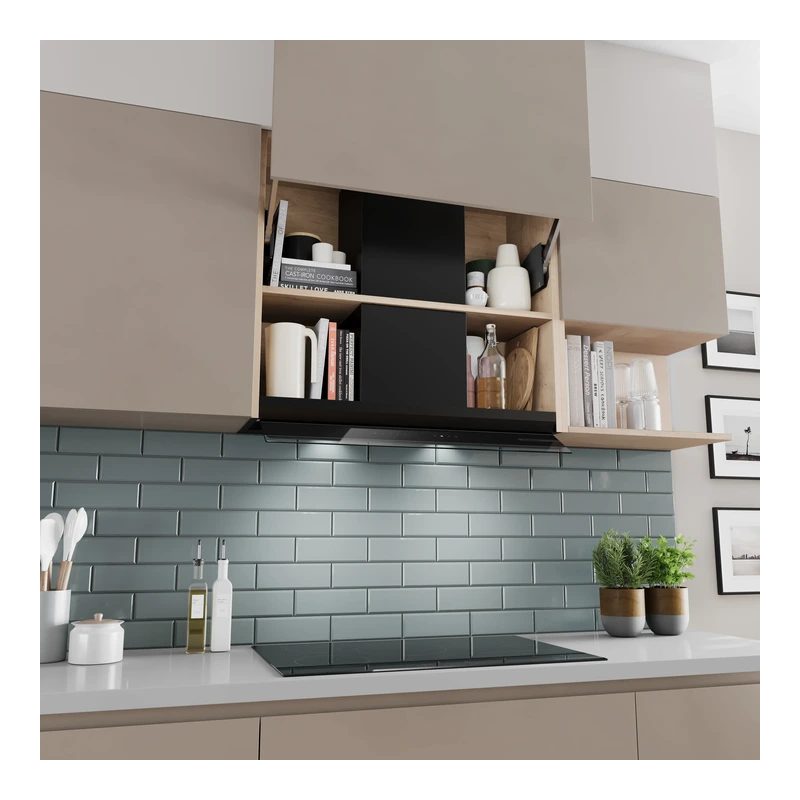

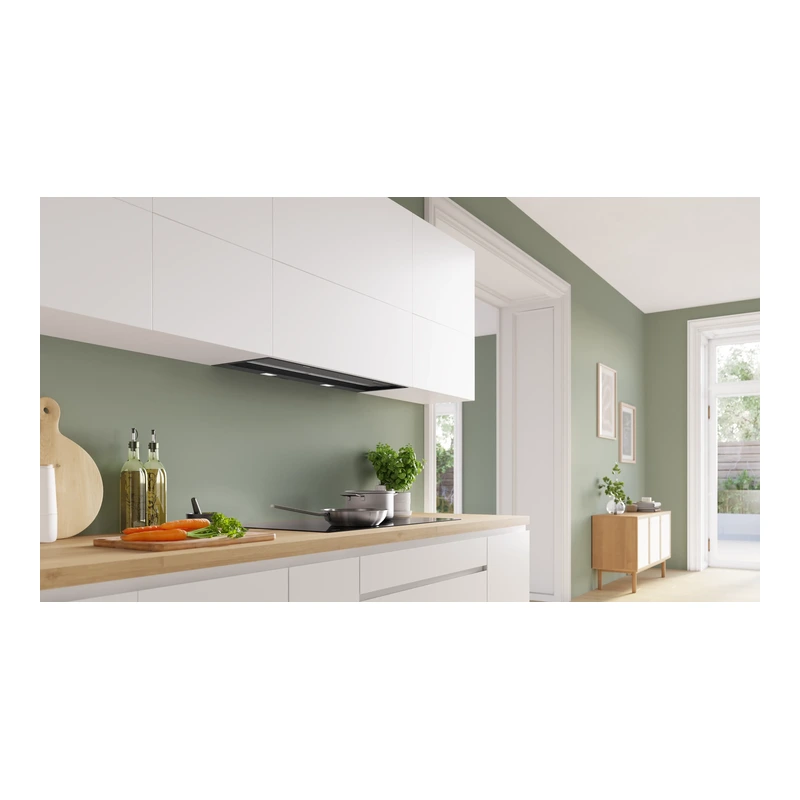

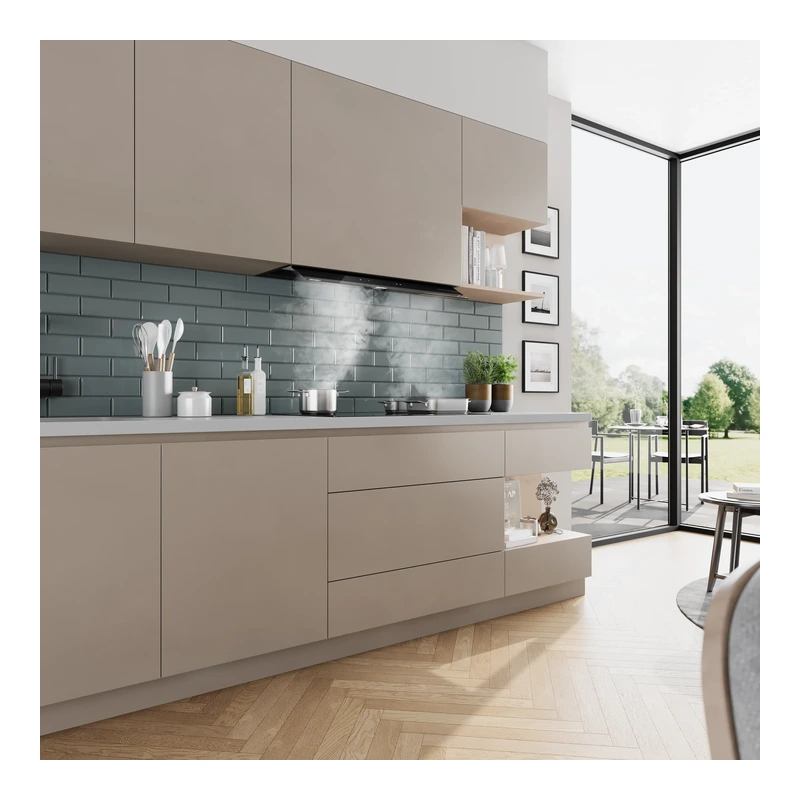

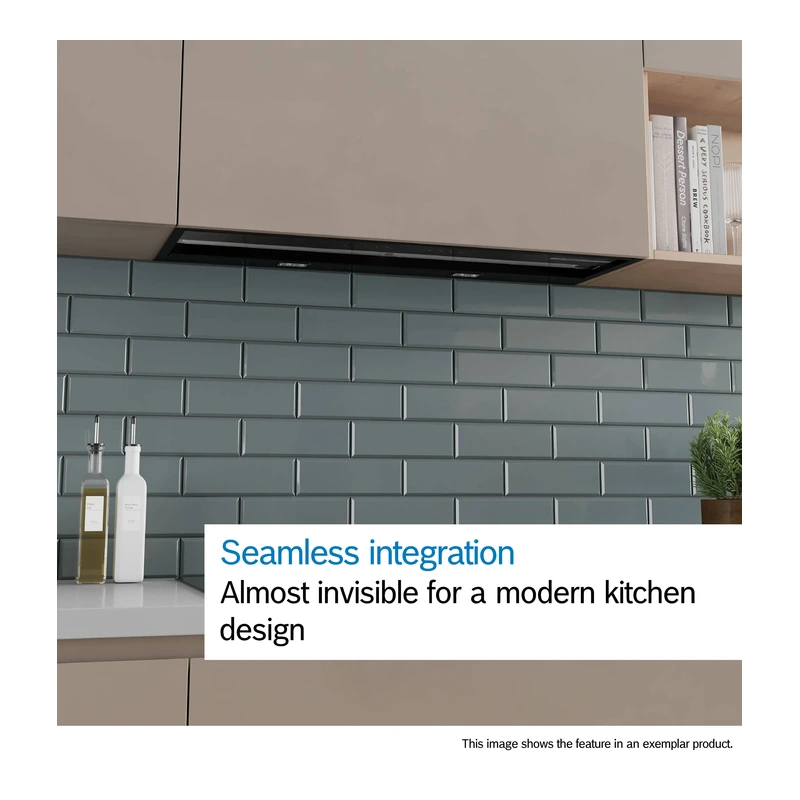

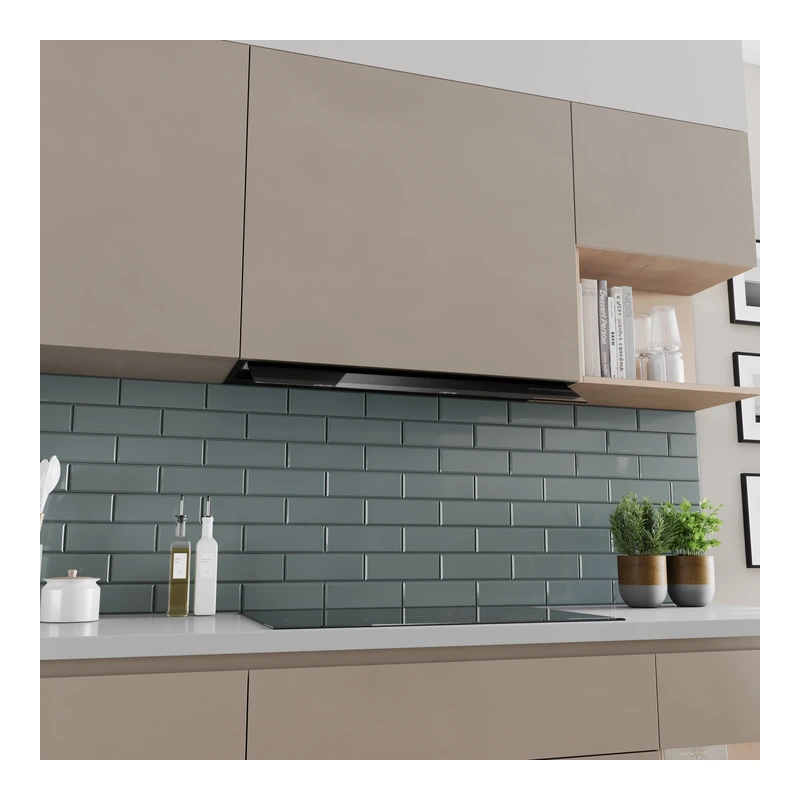

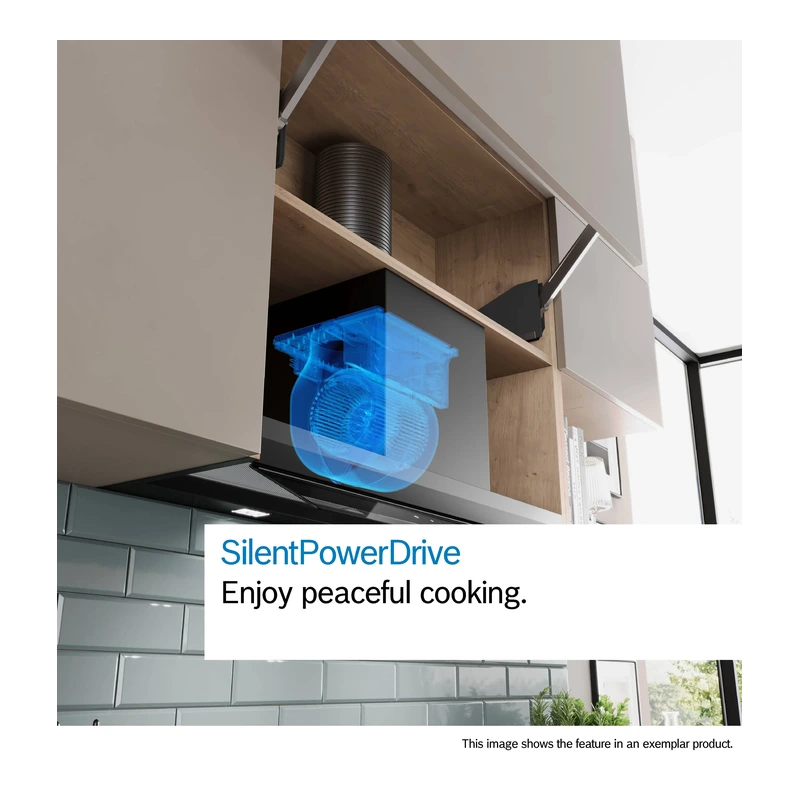

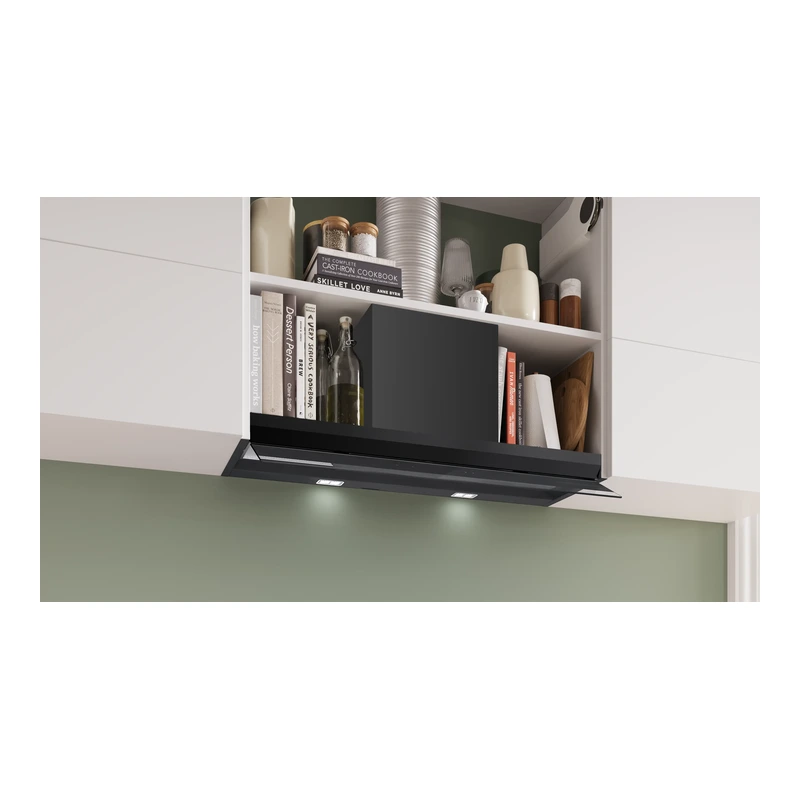

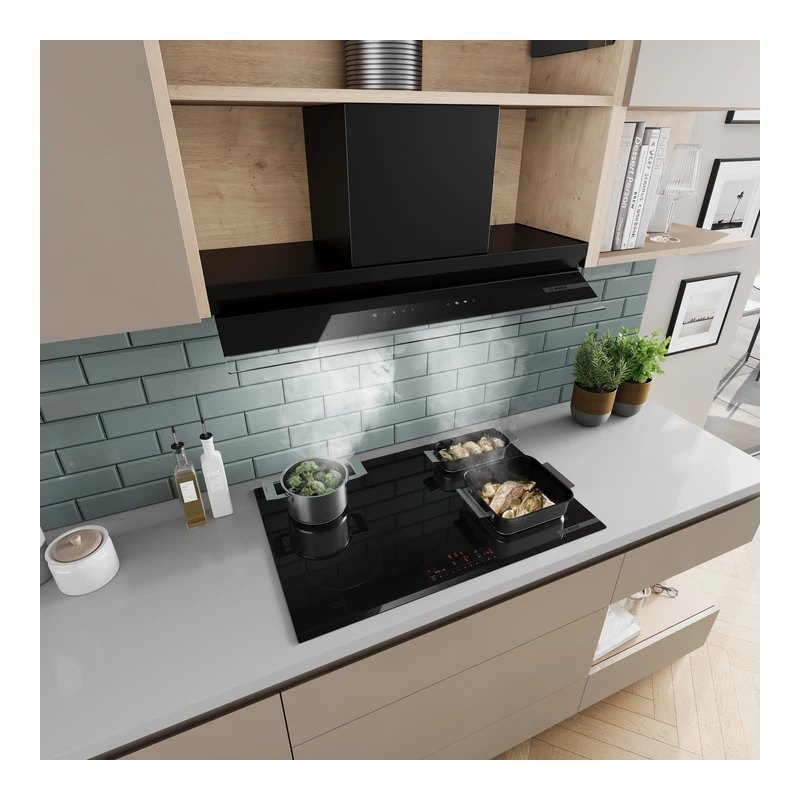

The Series 6 DBB97DP60B is a 90 cm built–in integrated design hood for installation in a wall cupboard. It features a matt carbon black finish with reduced fingerprint visibility and a clear glass black printed panel. Suitable for ducted or recirculating operation, it offers quiet, high–performance extraction with efficient BLDC technology, adjustable LED lighting and smart connectivity including Home Connect and hob based hood control.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Model	DBB97DP60B
Series	Series 6 Integrated Design Hood

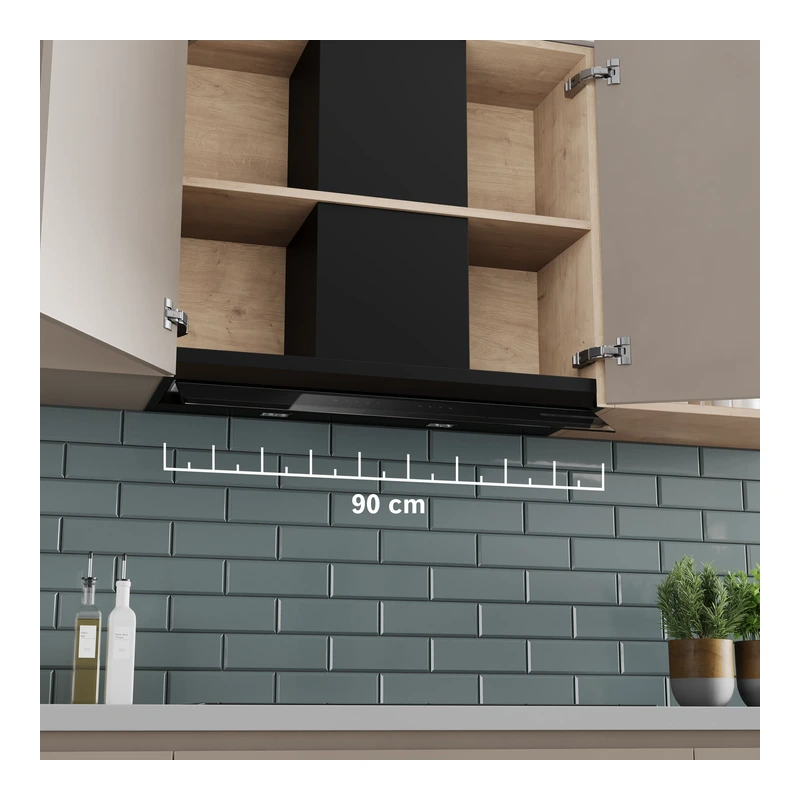

Product width	90 cm
Typology	Built–in/Built–under, installation in wall cupboard

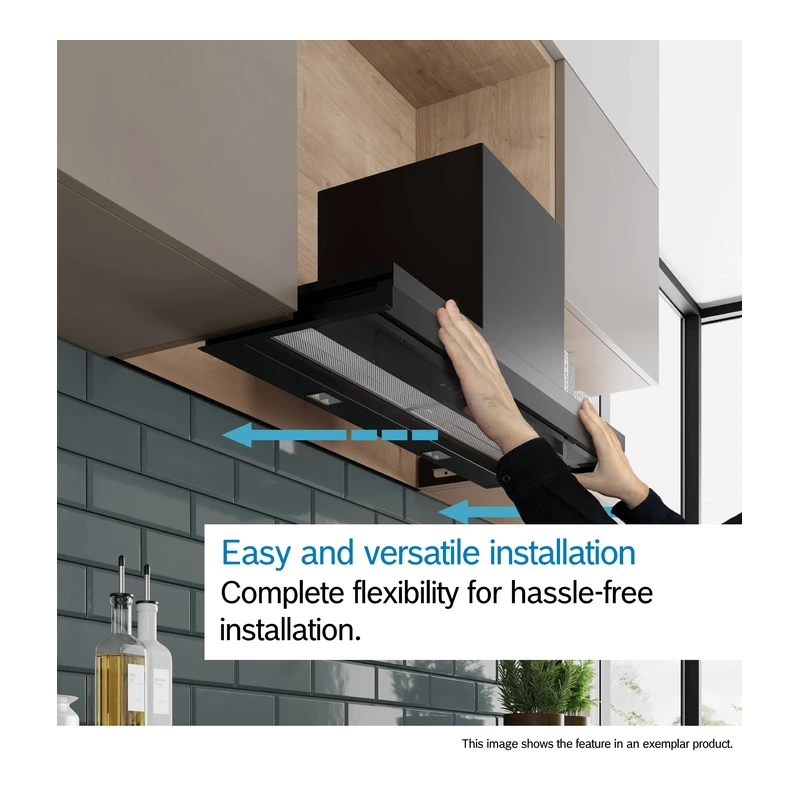

Installation typology	Built–in; installation system: IDH comfort installation

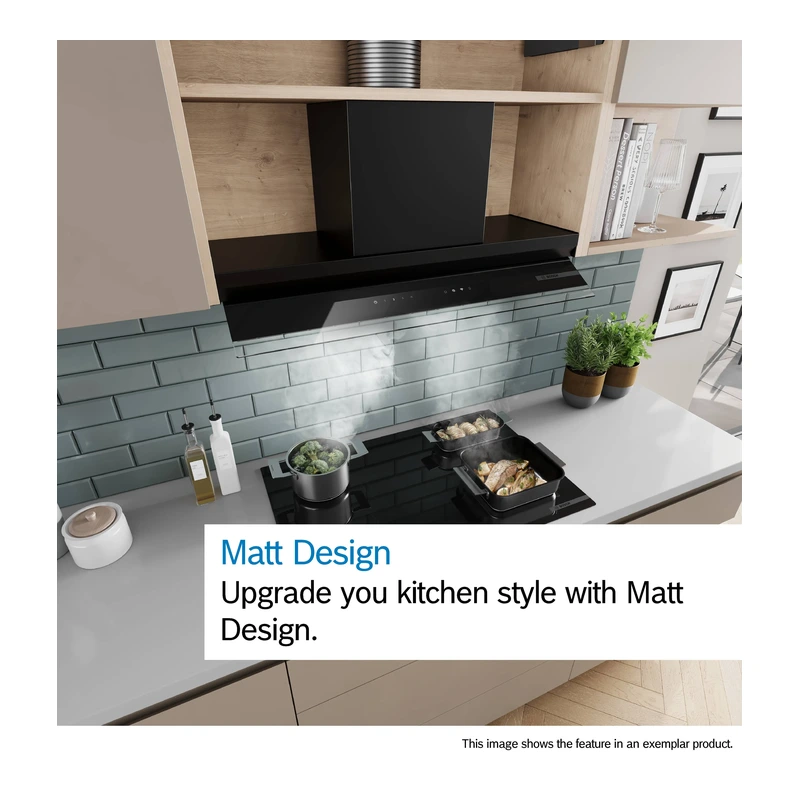

Finish and colour	Matt Design, elegant carbon black matt finish; clear glass black printed panel
Suitable operation modes	Ducted or recirculating operation

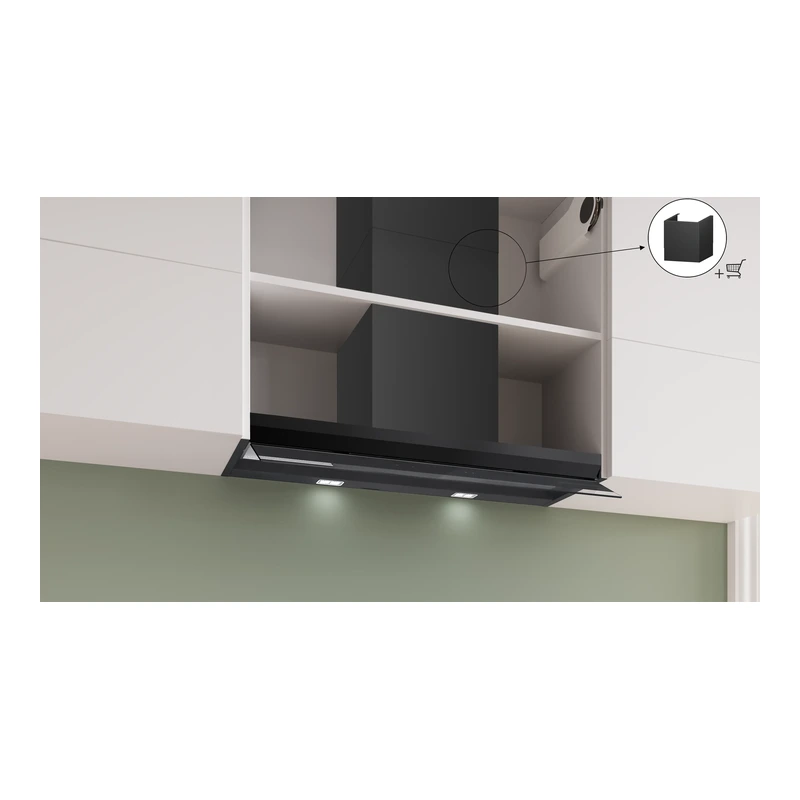

Optional accessories	DWZ1IB1J6 Long–life Clean Air recirculation kit; DWZ1IB6K2 Chimney extension 450–854 mm; DWZ1IB6N2 Chimney extension 187–360 mm

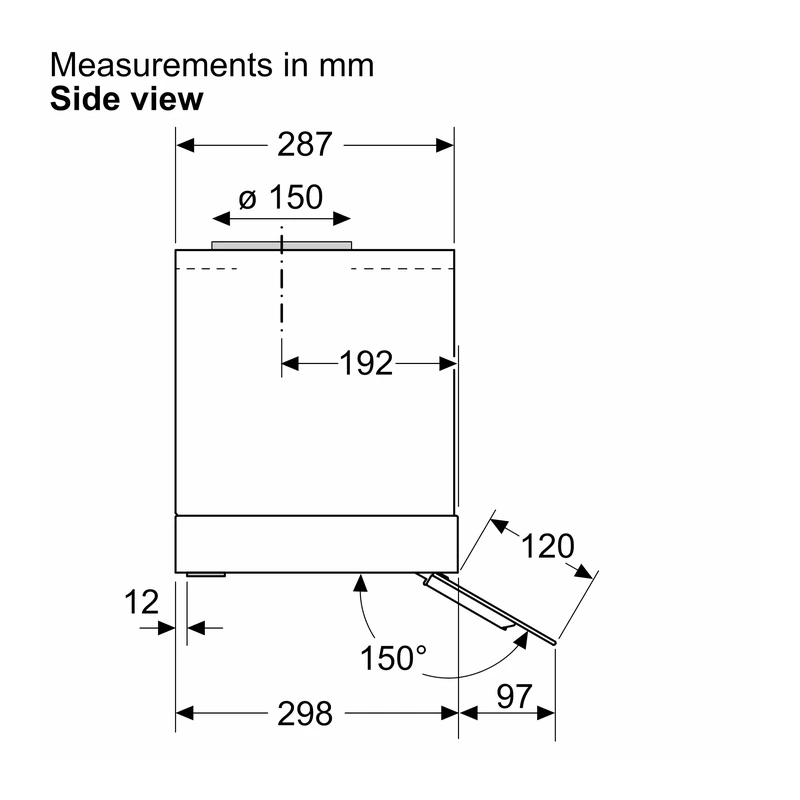

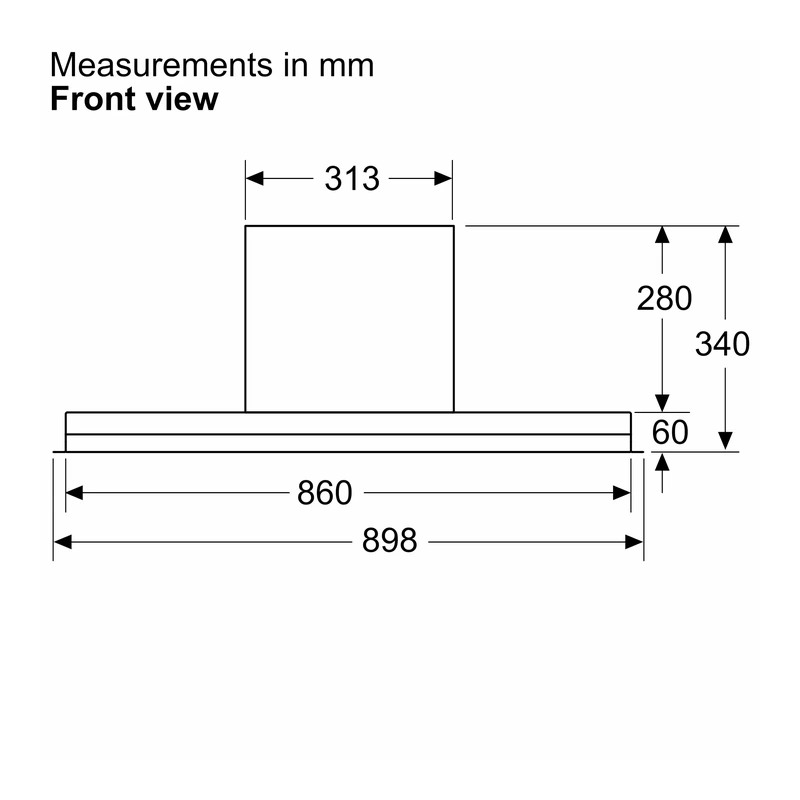

Appliance dimensions (HxWxD)	340 × 898 × 298 mm

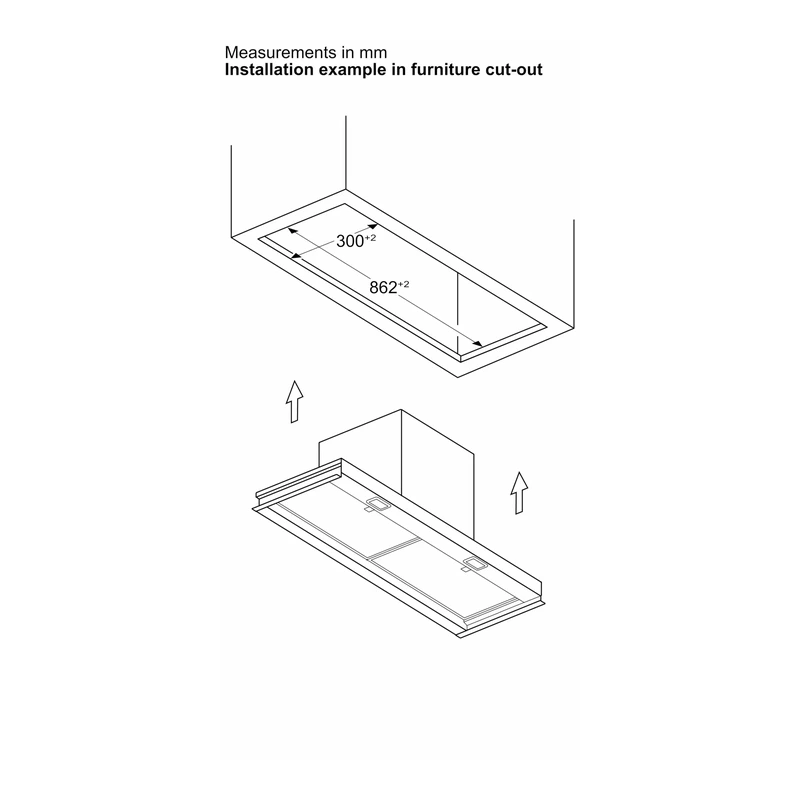

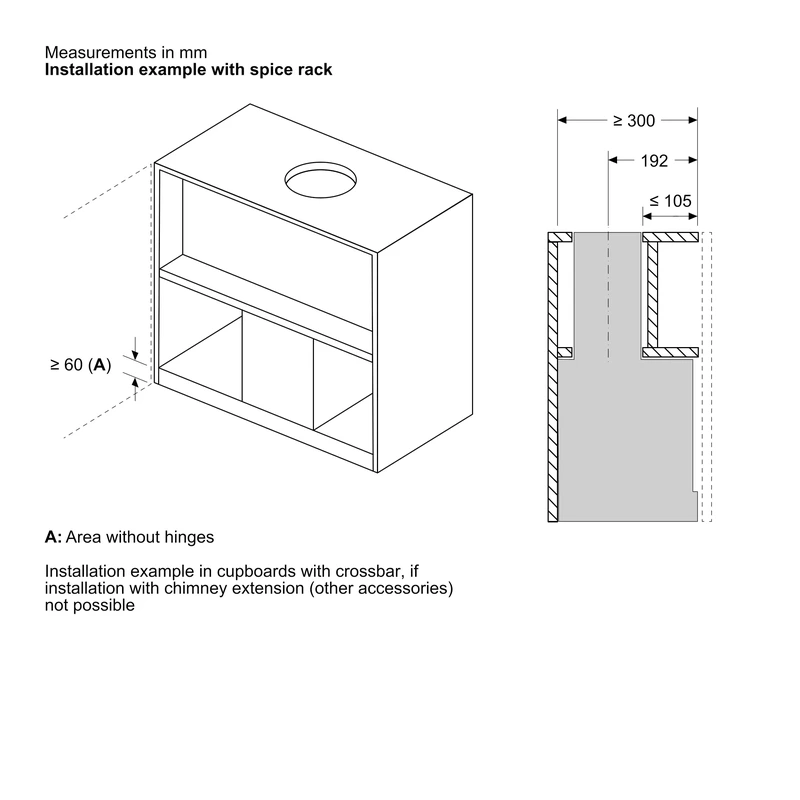

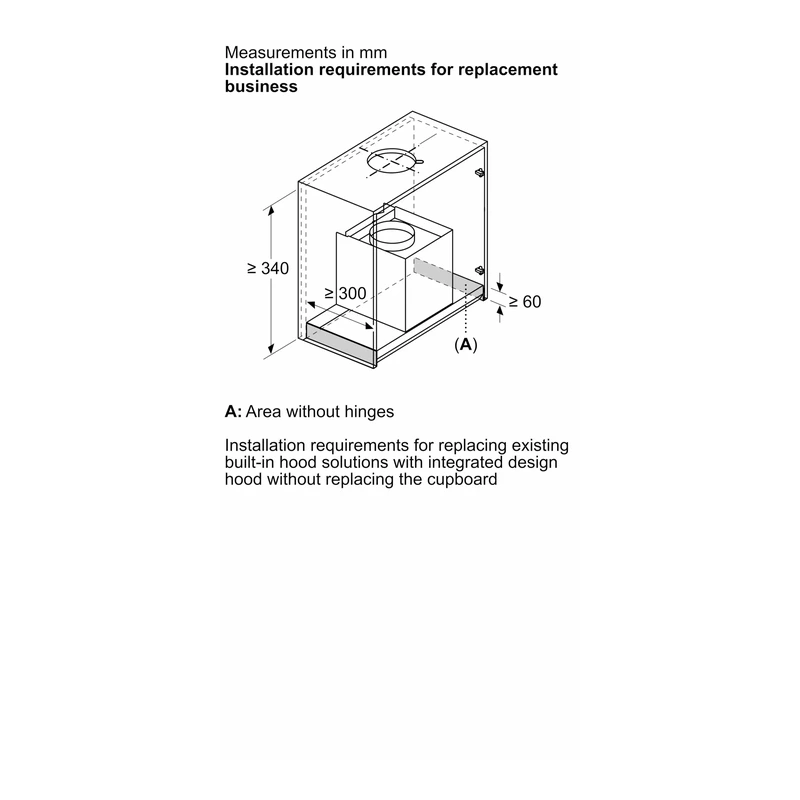

Built–in dimensions (HxWxD)	min. 340 mm × 860 mm × min. 300 mm
Required niche size (HxWxD)	340 mm × 860.0 mm × 300 mm
Height of appliance front section	60 mm

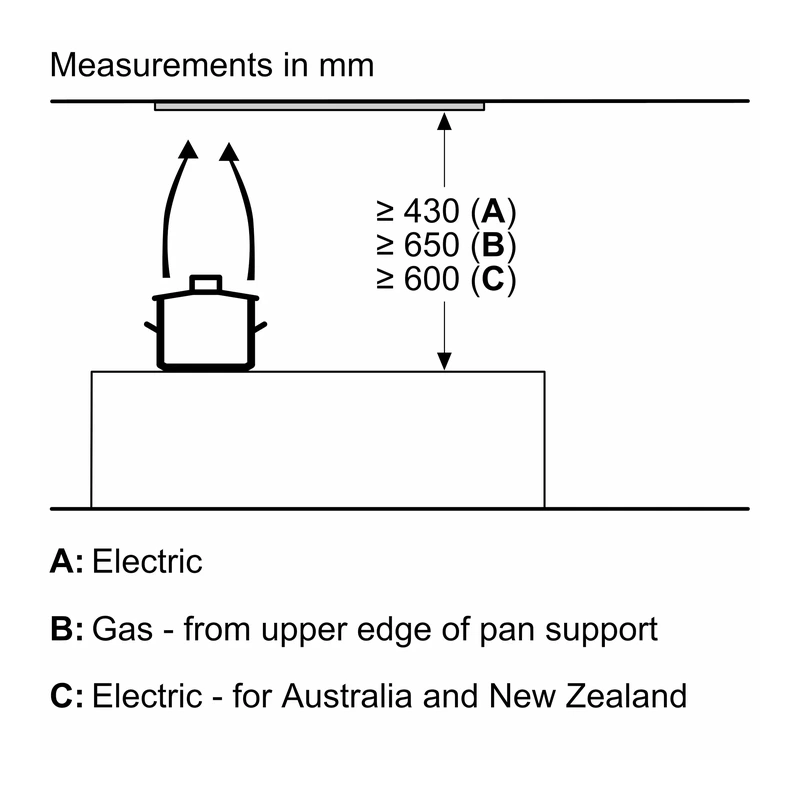

Minimum distance above electric hob	430 mm
Minimum distance above gas hob	650 mm
Net weight	12.0 kg

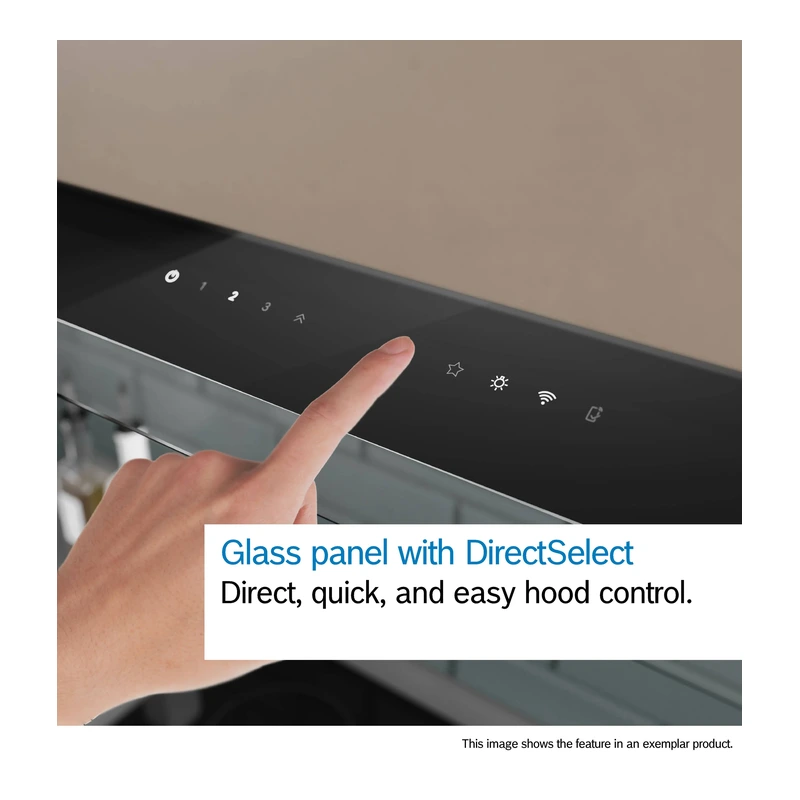

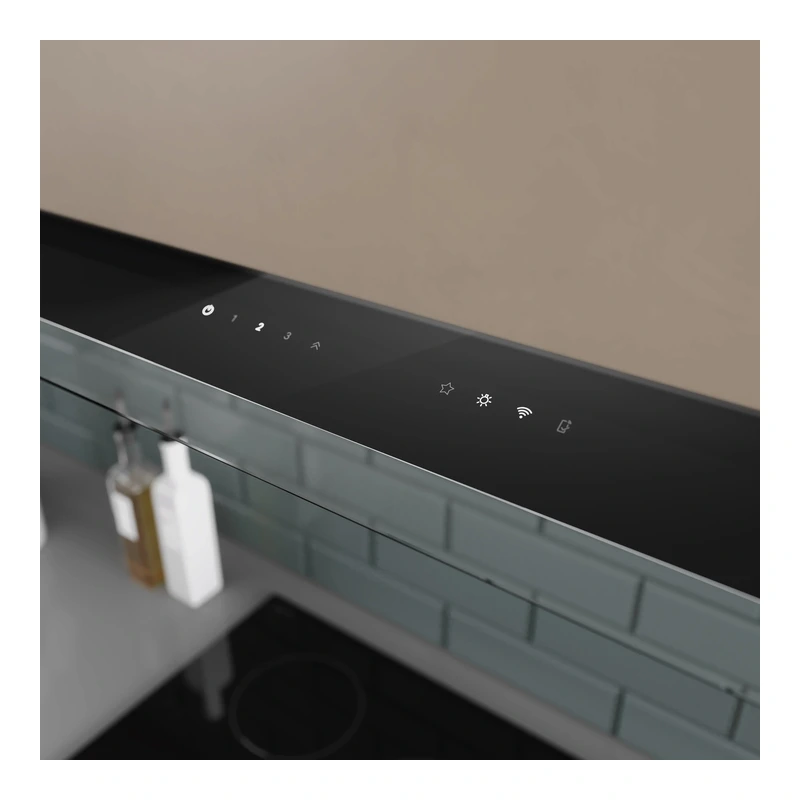

Control type	Electronic touch control with DirectSelect backlighted

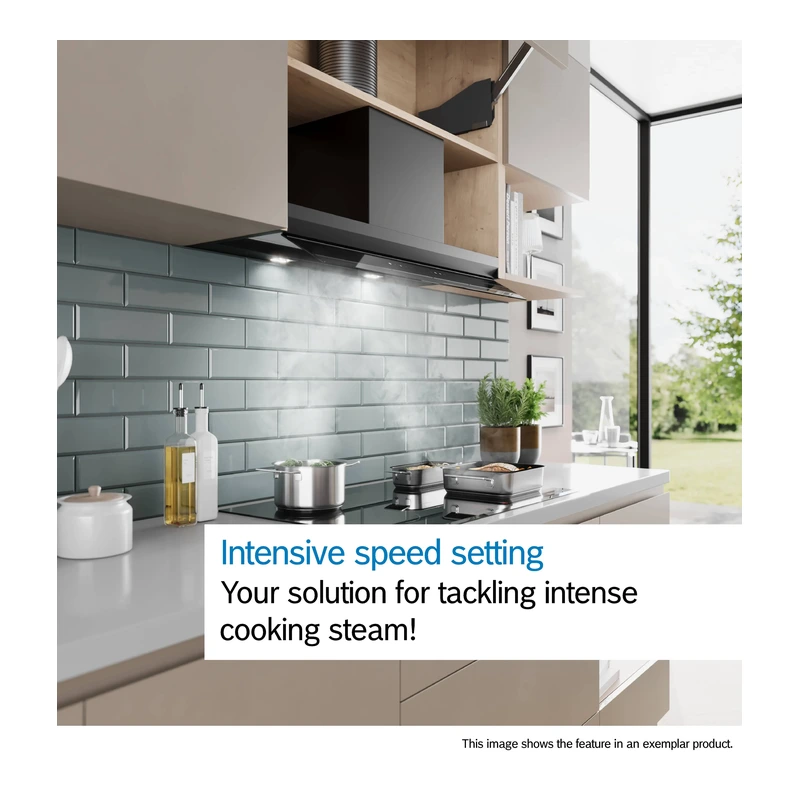

Power levels	3–stages plus intensive setting
Max. air extraction	433 m³/h
Boost position air extraction	699 m³/h
Max. air recirculation	413 m³/h (with recirculation kit)
Boost position output recirculating	556.0 m³/h (with recirculation kit)
Maximum airflow	433 m³/h
Noise level	57 dB(A) re 1pW (Speed 3, exhaust mode)
Exhaust mode performance	Speed 1: 244 m³/h, 42 dB(A) re1pW; Speed 2: 339 m³/h, 50 dB(A) re1pW; Speed 3: 433 m³/h, 57 dB(A) re1pW; Intensive 1: 699 m³/h, 68 dB(A) re1pW (according to EN 61591 and EN/IEC 60704-2-13)
Recirculation mode performance	Speed 1: 231 m³/h, 53 dB(A) re1pW; Speed 2: 329 m³/h, 61 dB(A) re1pW; Speed 3: 413 m³/h, 66 dB(A) re1pW; Intensive Speed 1: 556 m³/h, 72 dB(A) re1pW (with Long–life Clean Air kit; according to EN 61591 and EN/IEC 60704-2-13)

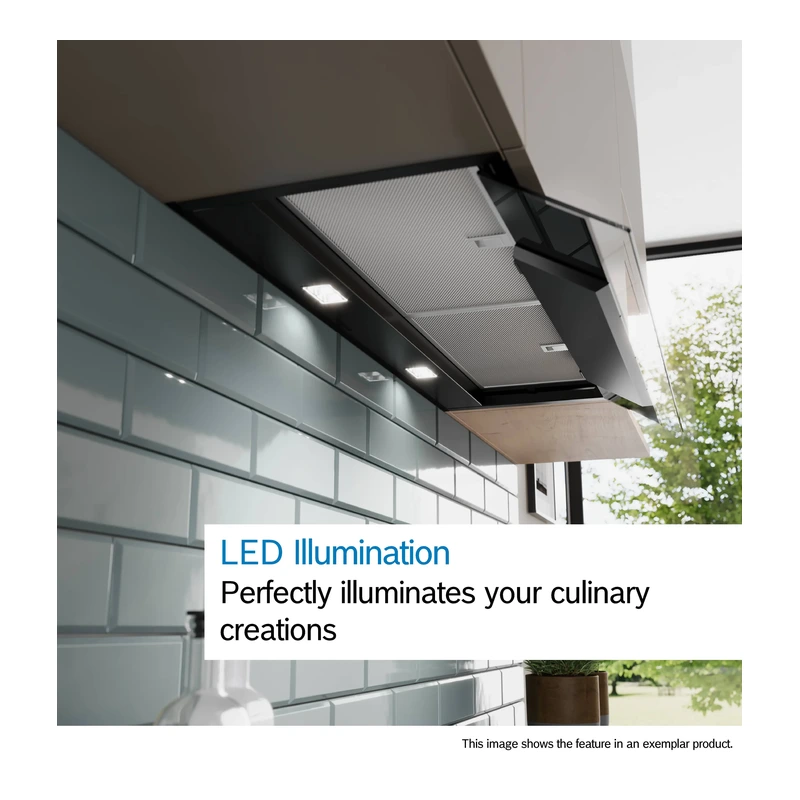

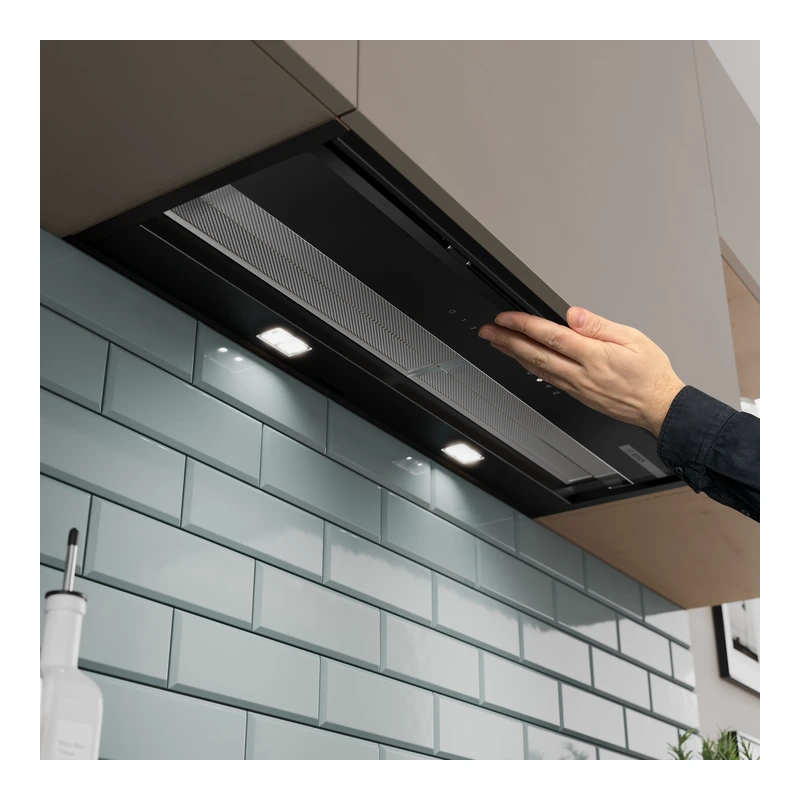

Number of lights	2 × LED 3 W, colour temperature adjustable, 3500 K
Light intensity	437 lux

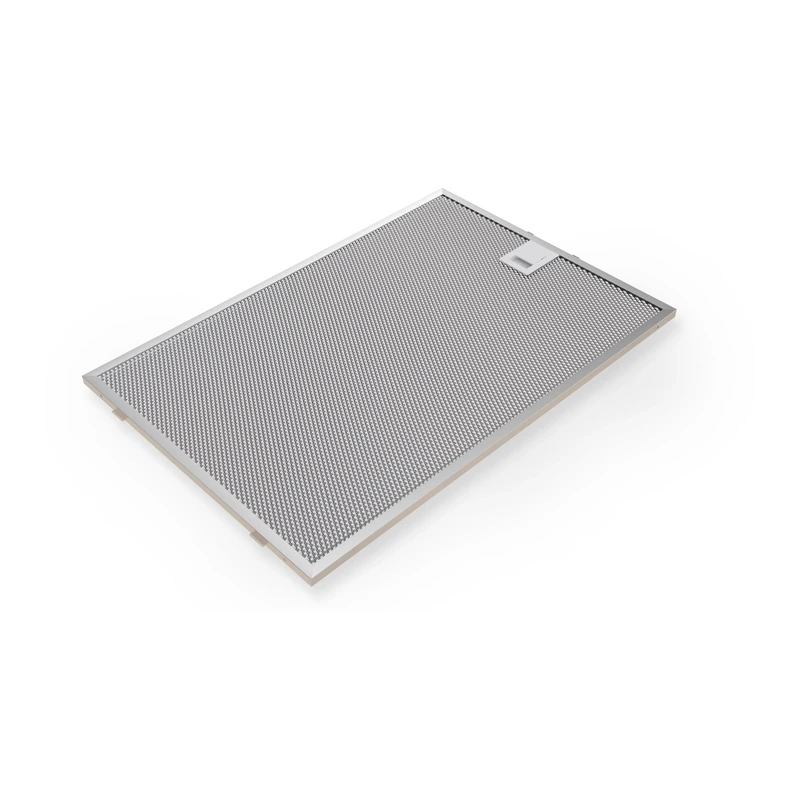

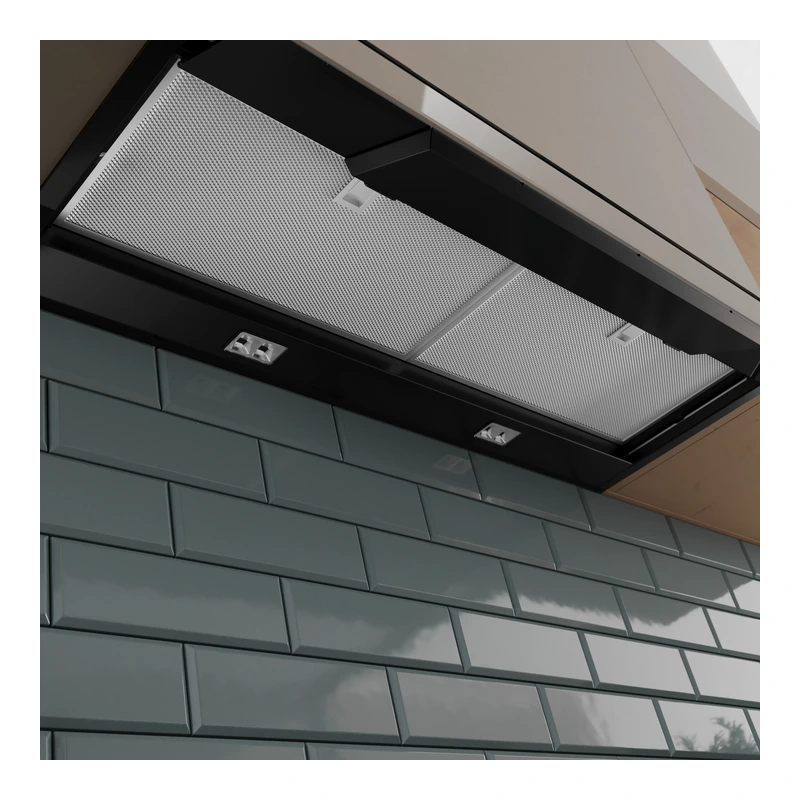

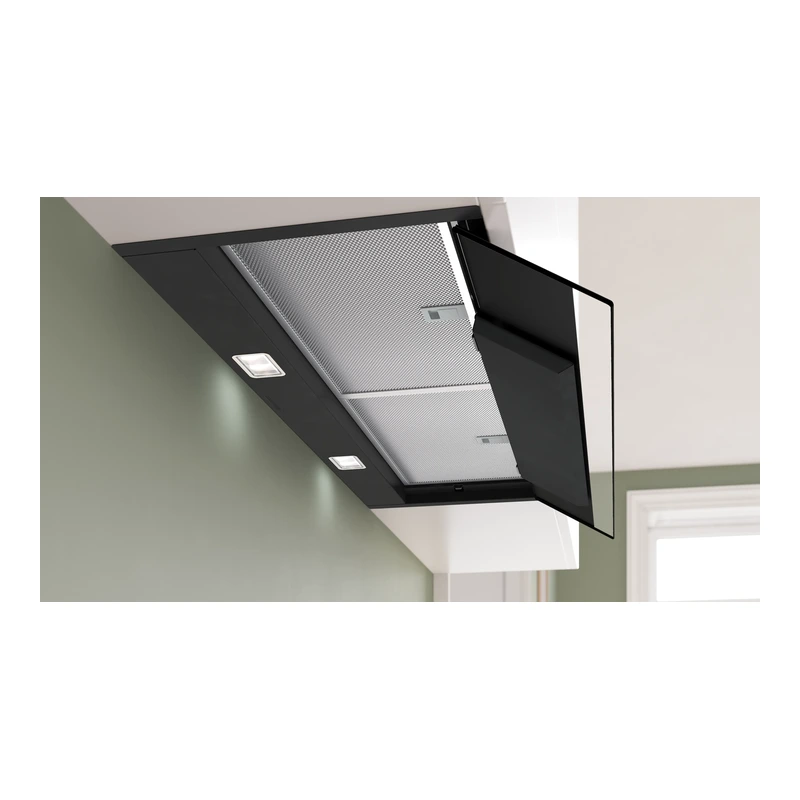

Grease filter material	Washable stainless steel; 2 metal grease filter(s), removable and dishwasher–safe

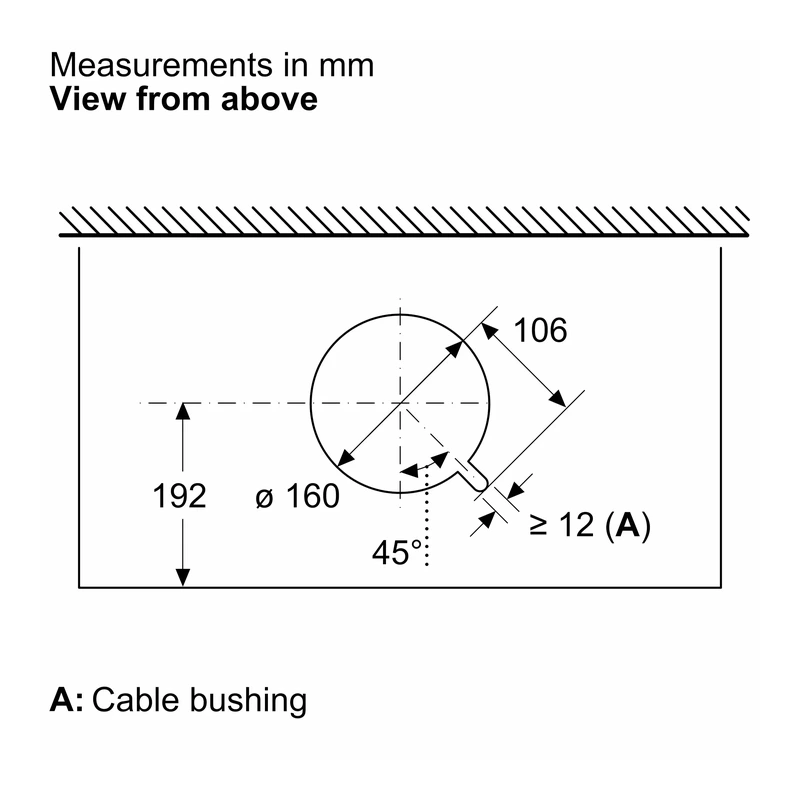

Diameter of air outlet	150 mm; diameter pipe Ø 150 mm
Electrical cable length	1.3 m (130 cm)
Connection rating	115 W
Voltage	220–240 V nominal
Frequency	50 Hz
Plug type	GB plug
Energy Efficiency Class	A+ (range A+++ to D)
Average energy consumption*	27.2 kWh/year*
Blower efficiency class*	A*
Lighting efficiency class*	A*
Grease filtering efficiency class*	B*
Country of manufacture	Made in Germany; CO₂ neutral production site
EAN code	4242005530328

*as stated in source.
