Bosch DBB85CC60B Series 4 Canopy Hood

SKU: DBB85CC60B · EAN: 4242005530298

Black Body with Glass Panel

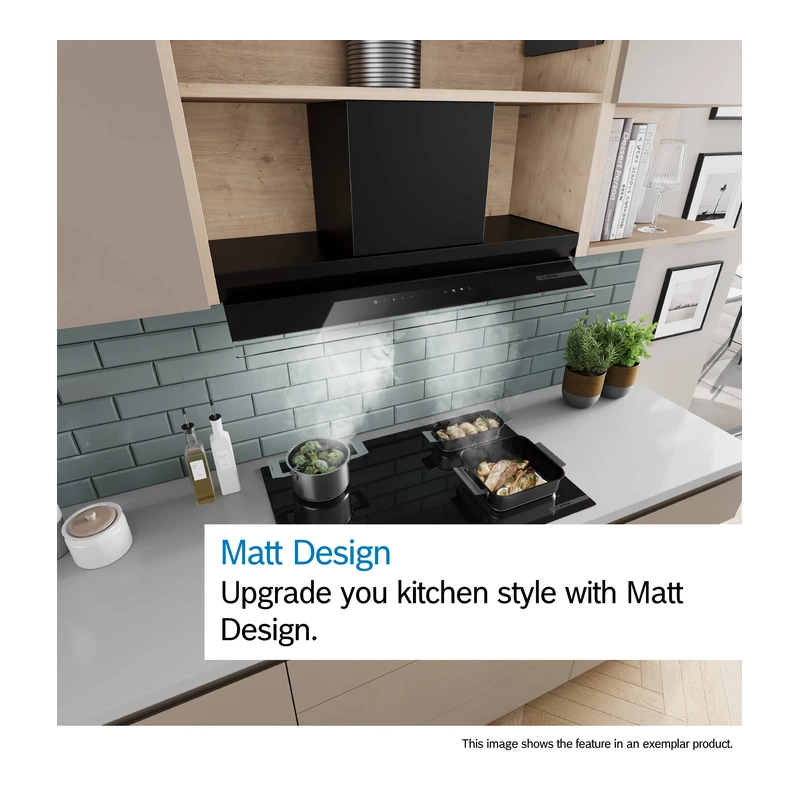

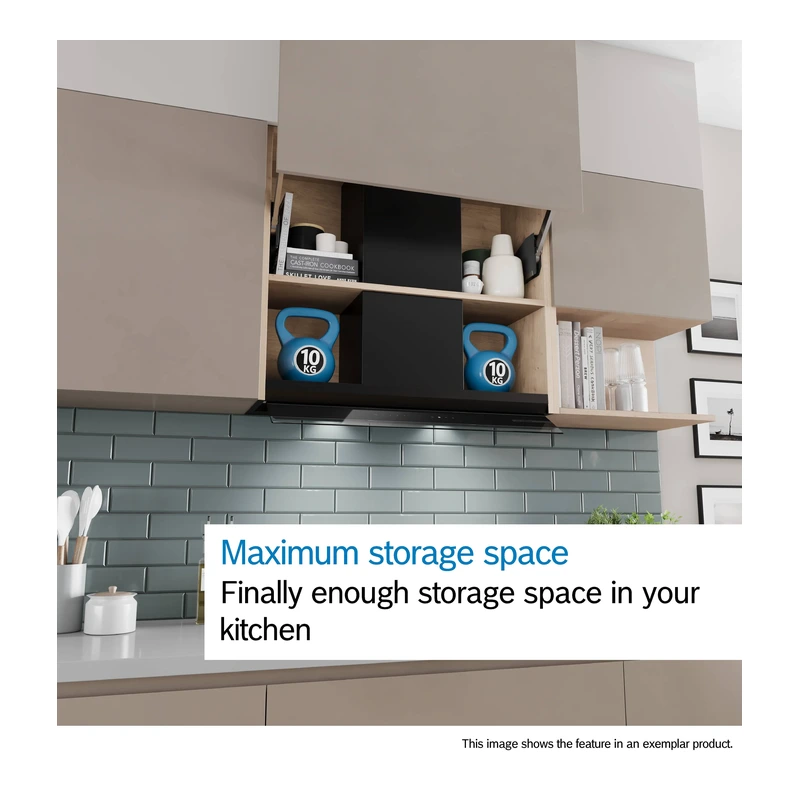

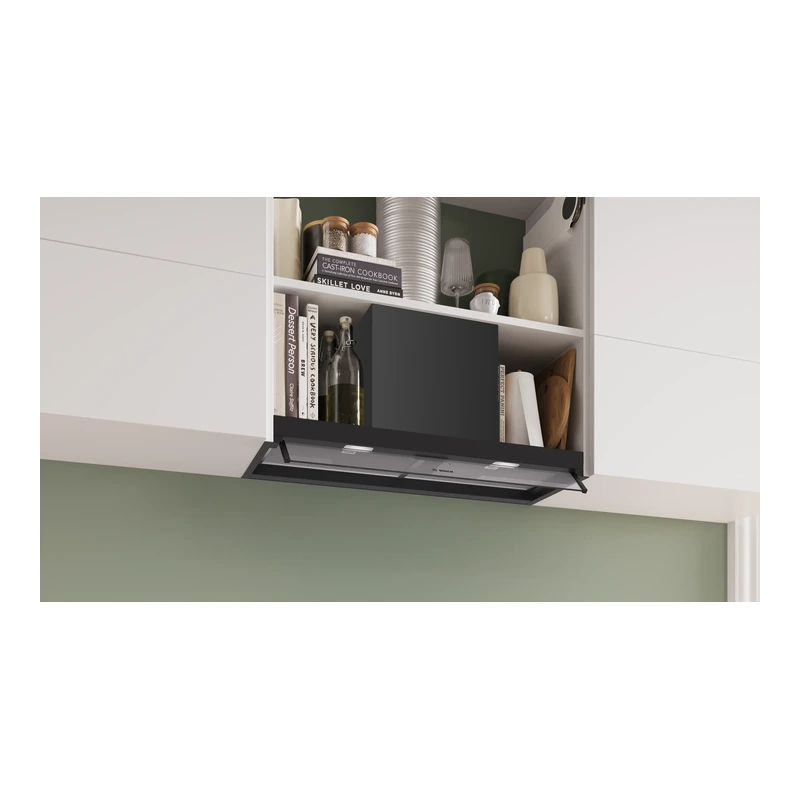

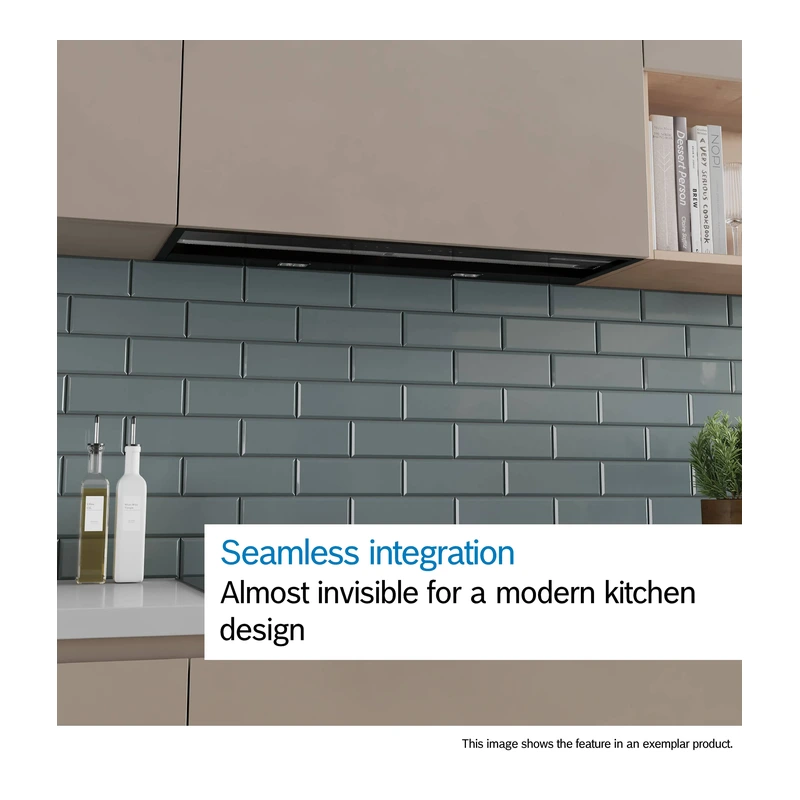

The Series 4 DBB85CC60B is an integrated design hood with clear glass and an elegant carbon black matt finish. Installed flush in an 80 cm wall cupboard, it offers enlarged storage space with a T–shaped design and up to 20 kg load capacity. With quiet extraction up to 582 m³/h, three power levels and energy–efficient LED lighting, it provides powerful performance for ducted or recirculating operation while keeping surfaces easy to clean and resistant to fingerprints.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Model	DBB85CC60B
Series	Series 4 Integrated Design Hood
Typology	Built–in / Built–under

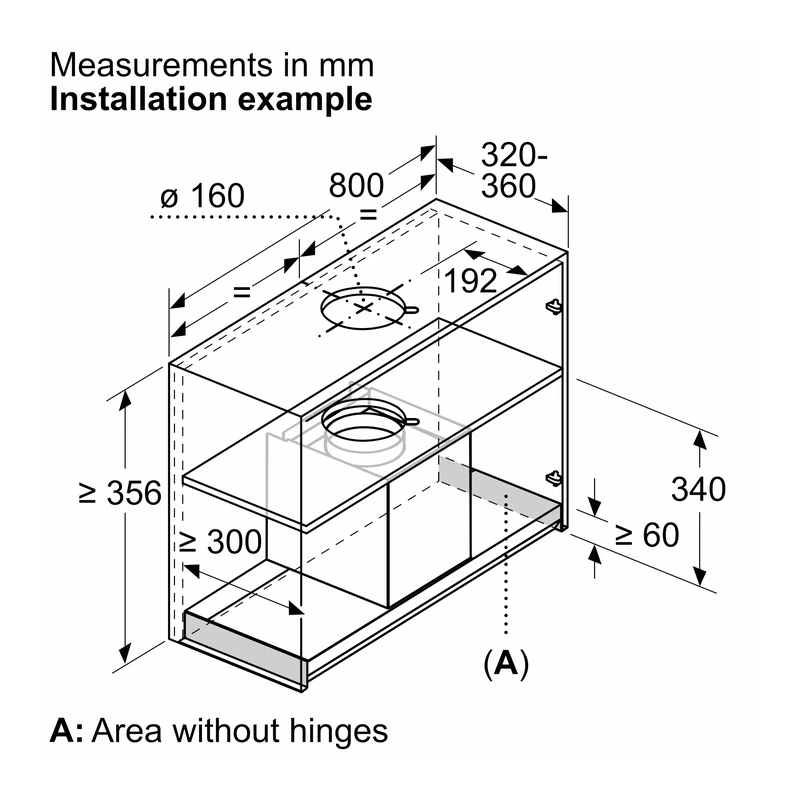

Installation	Installation in a wall cupboard (cupboard 80 cm)

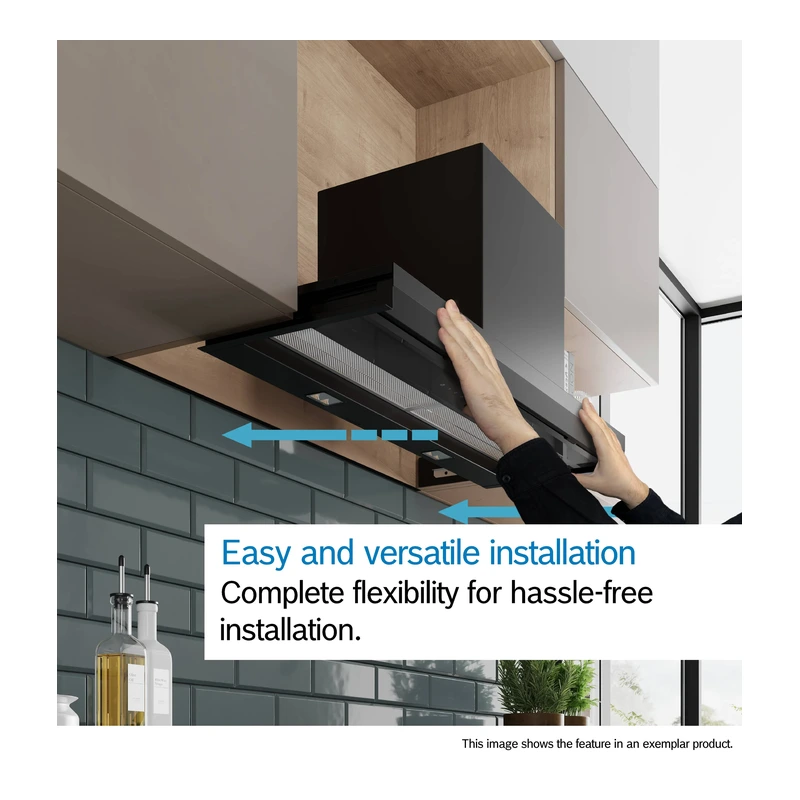

Installation system	IDH comfort installation

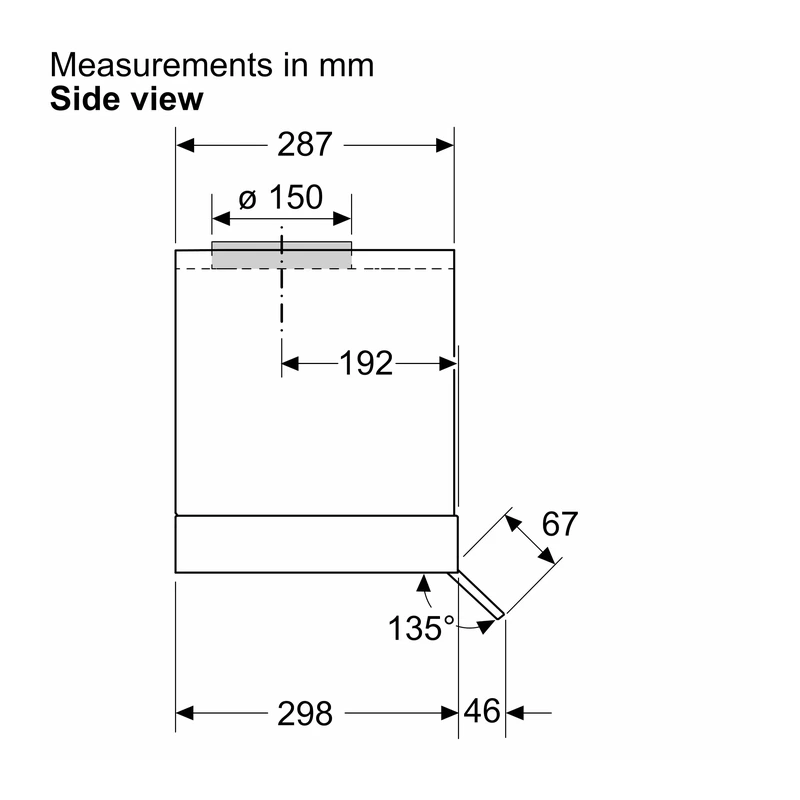

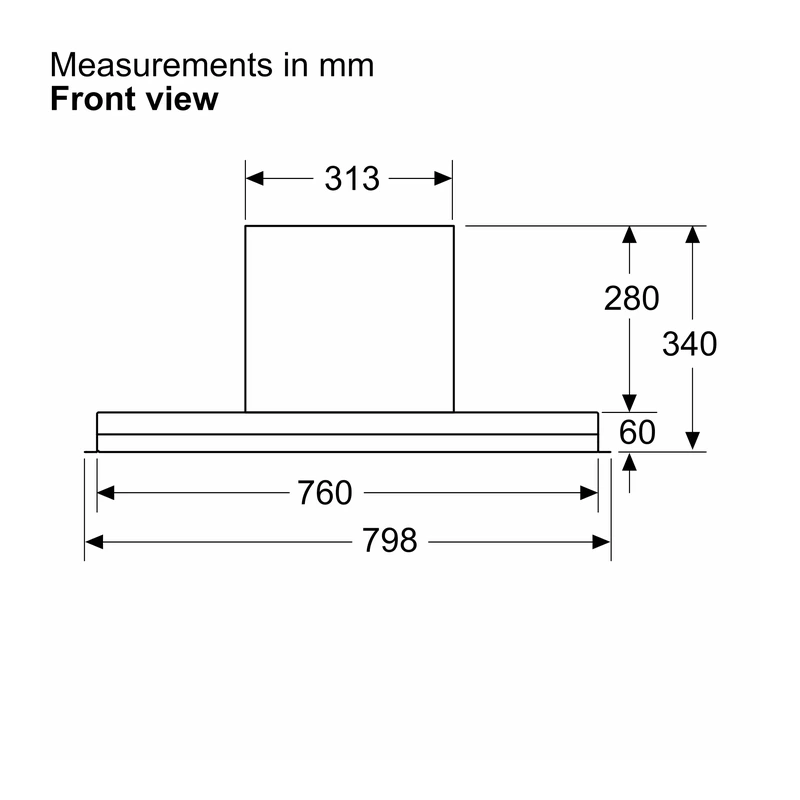

Appliance dimensions (HxWxD)	340 x 798 x 298 mm

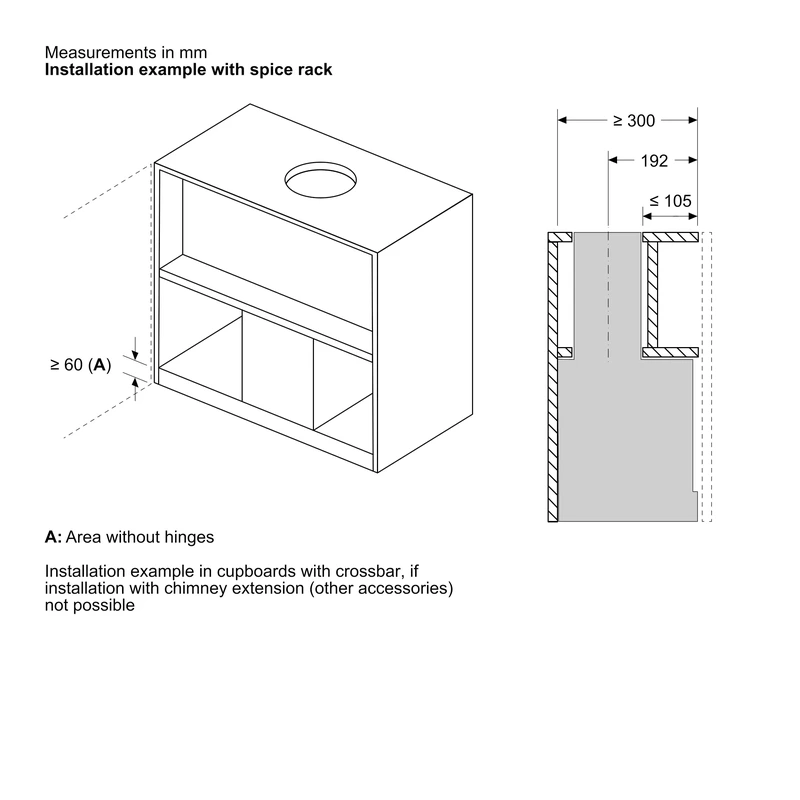

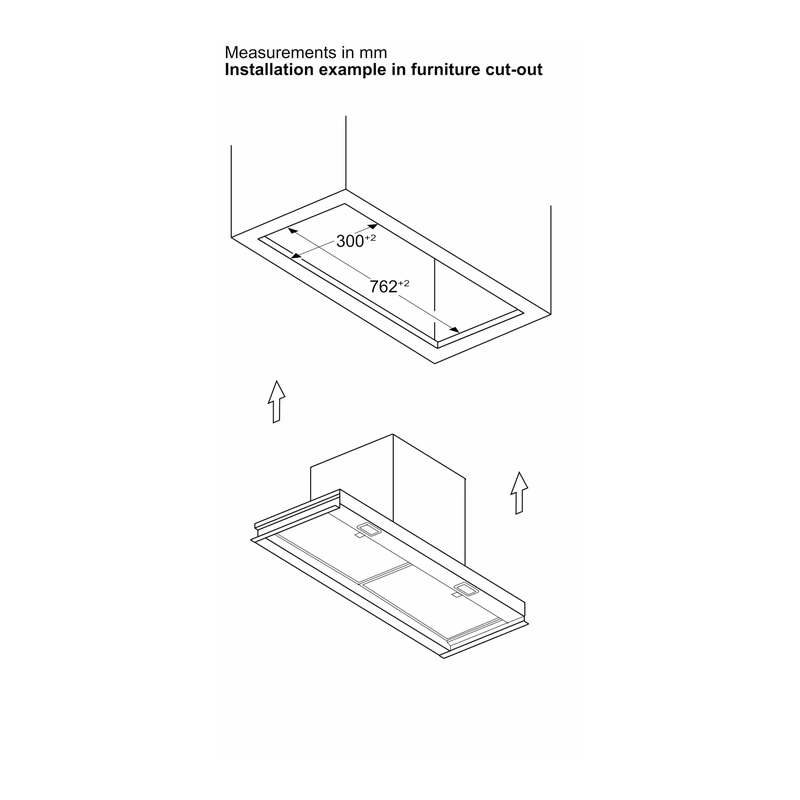

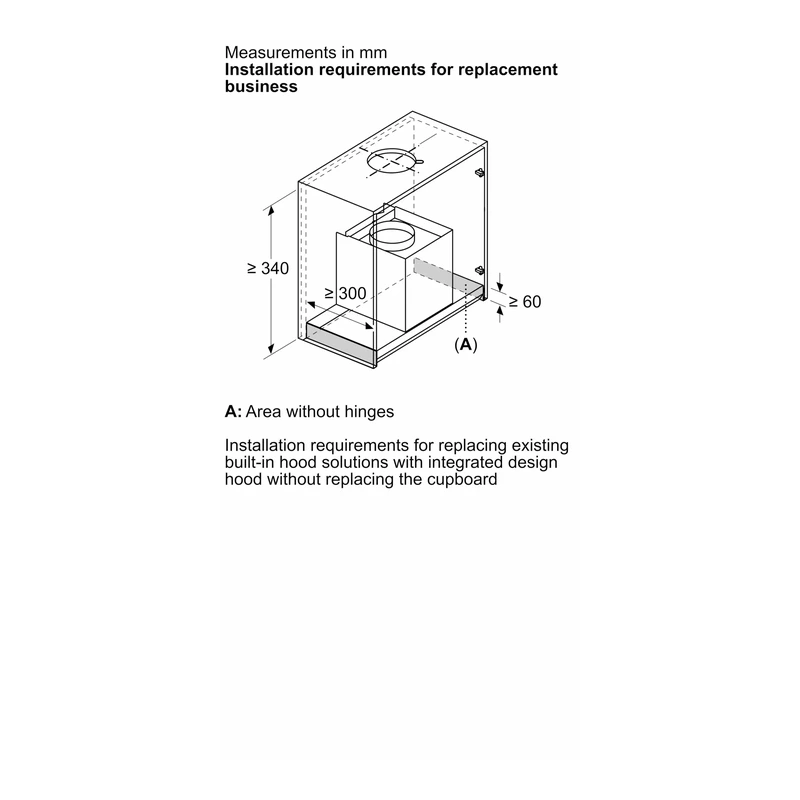

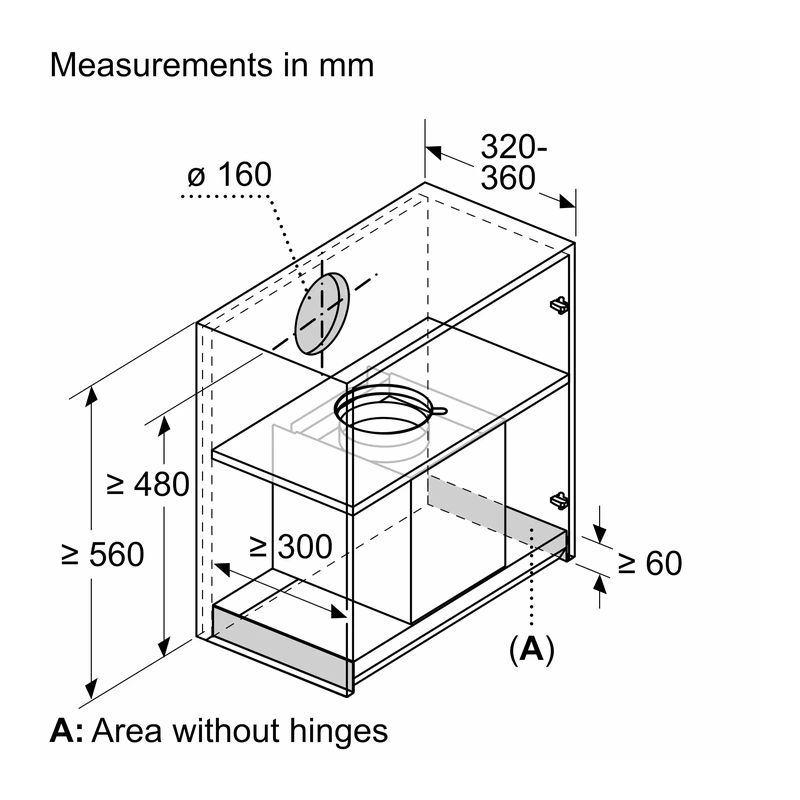

Required niche / Built–in dimensions (HxWxD)	min. 340 mm x 760 mm x min. 300 mm
Height of the appliance	60 mm
Length electrical supply cord	130 cm (electrical cable length 1.3 m)

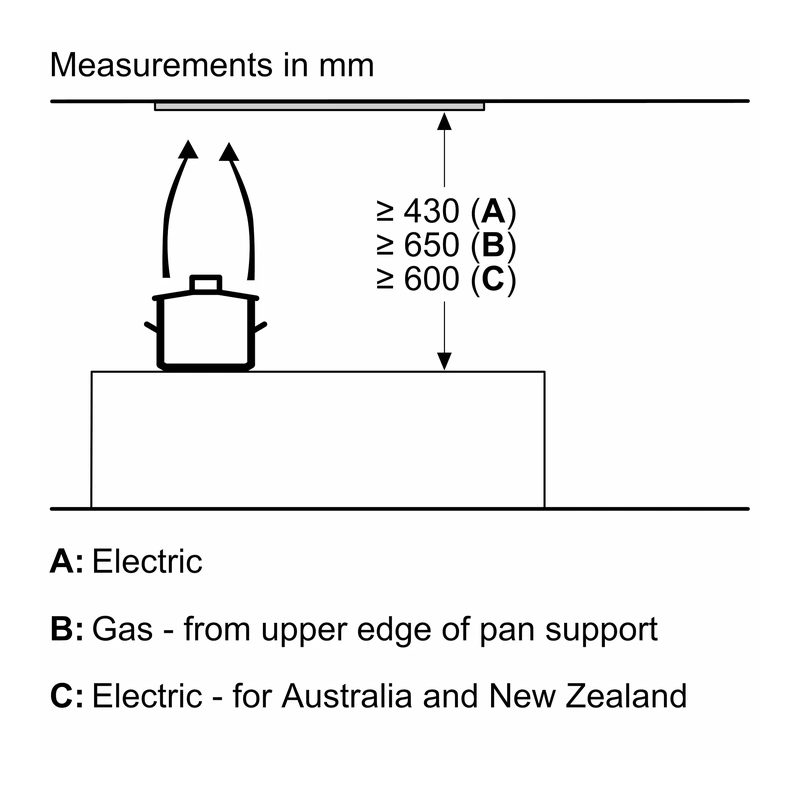

Minimum distance above an electric hob	430 mm
Minimum distance above a gas hob	650 mm
Net weight	8.8 kg

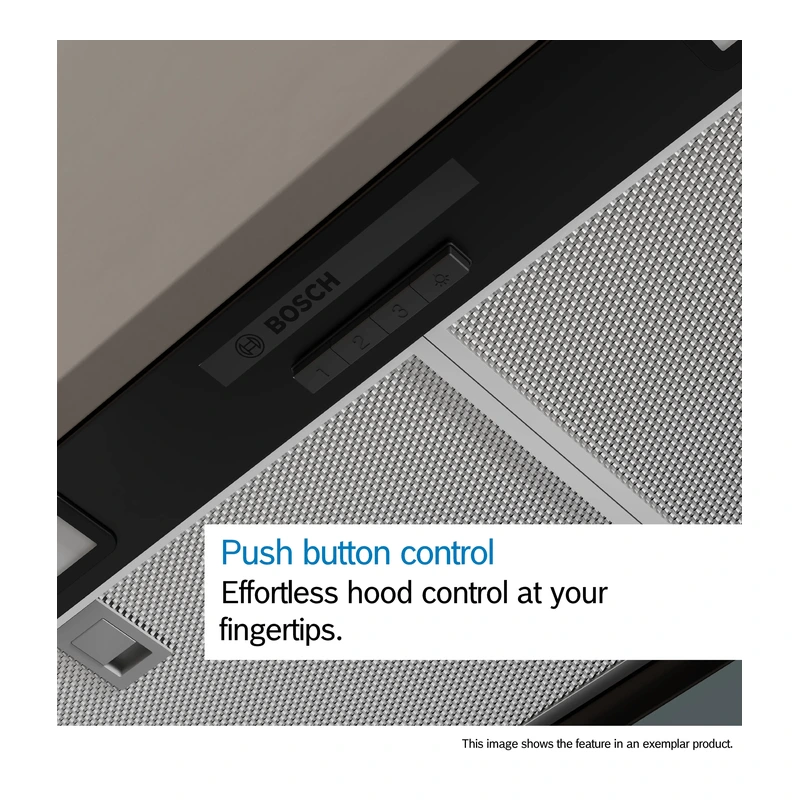

Type of control	Mechanical push button control
Number of speed settings	3 power levels
Max. air extraction	582 m³/h
Max. air recirculation	521 m³/h
Maximum air flow	582 m³/h
Noise level (max)	65 dB(A) re 1pW
Noise level – exhaust mode Speed 1	54 dB(A) re1pW at 349 m³/h
Noise level – exhaust mode Speed 2	60 dB(A) re1pW at 458 m³/h
Noise level – exhaust mode Speed 3	65 dB(A) re1pW at 583 m³/h

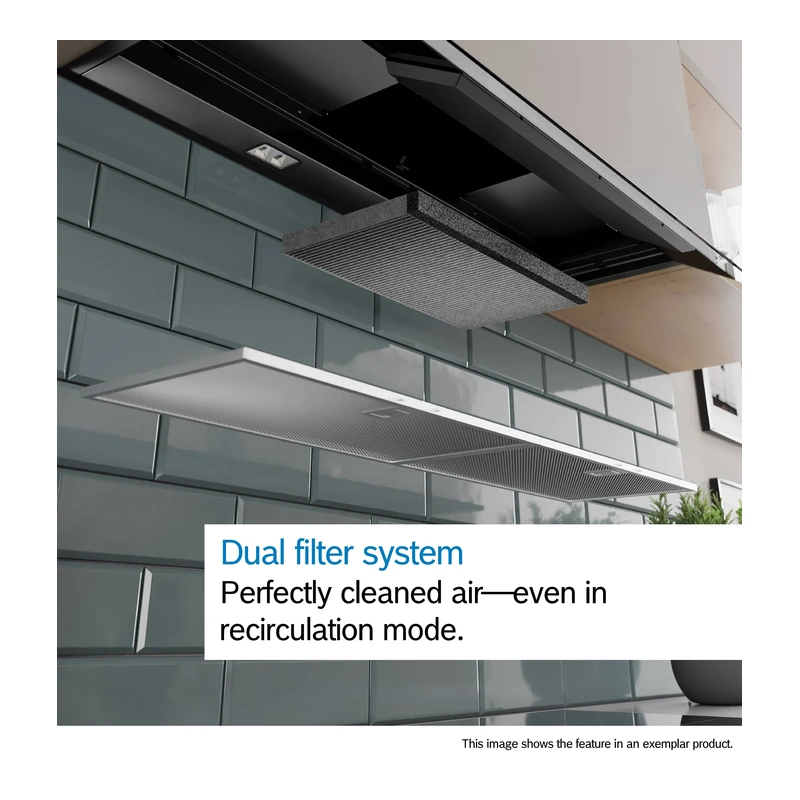

Noise level – recirculation Speed 1	61 dB(A) re1pW at 333 m³/h (with Long–life Clean Air recirculation kit)
Noise level – recirculation Speed 2	68 dB(A) re1pW at 441 m³/h (with Long–life Clean Air recirculation kit)
Noise level – recirculation Speed 3	72 dB(A) re1pW at 521 m³/h (with Long–life Clean Air recirculation kit)
Number of lights	2

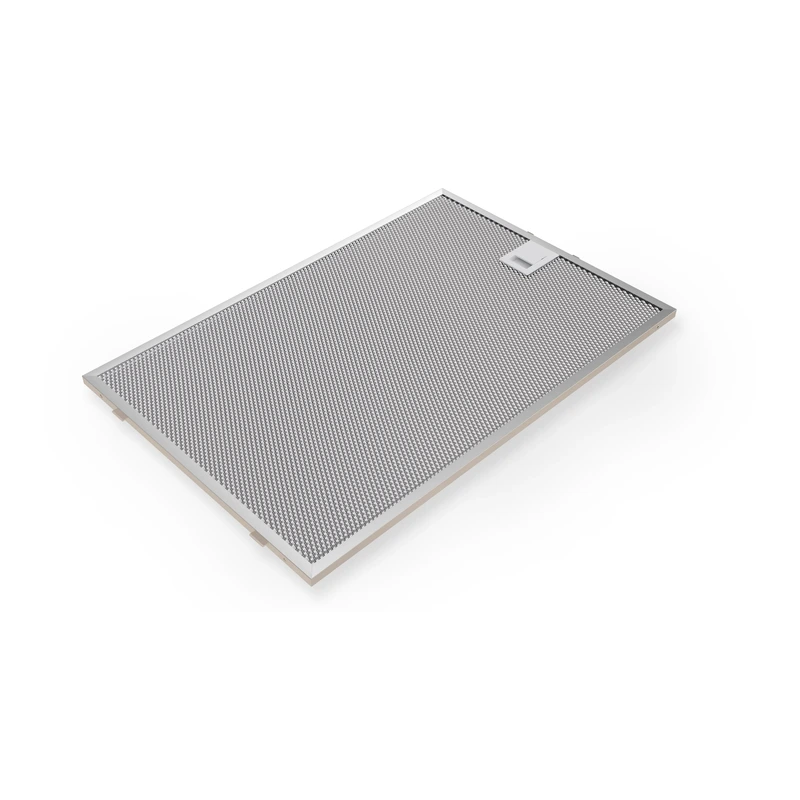

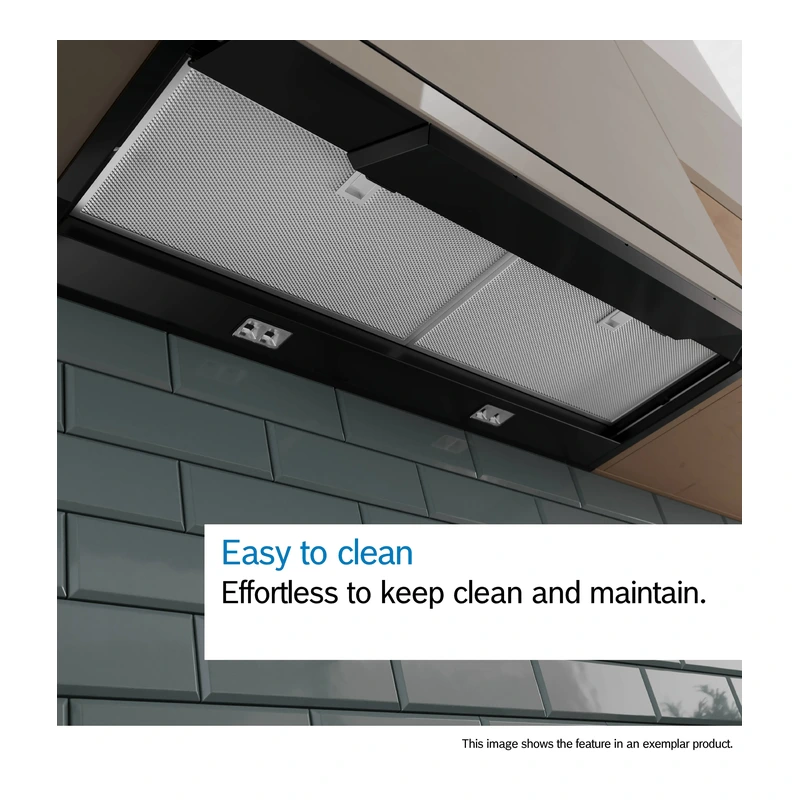

Grease filter material	Washable stainless steel / 2 metal grease filter(s)

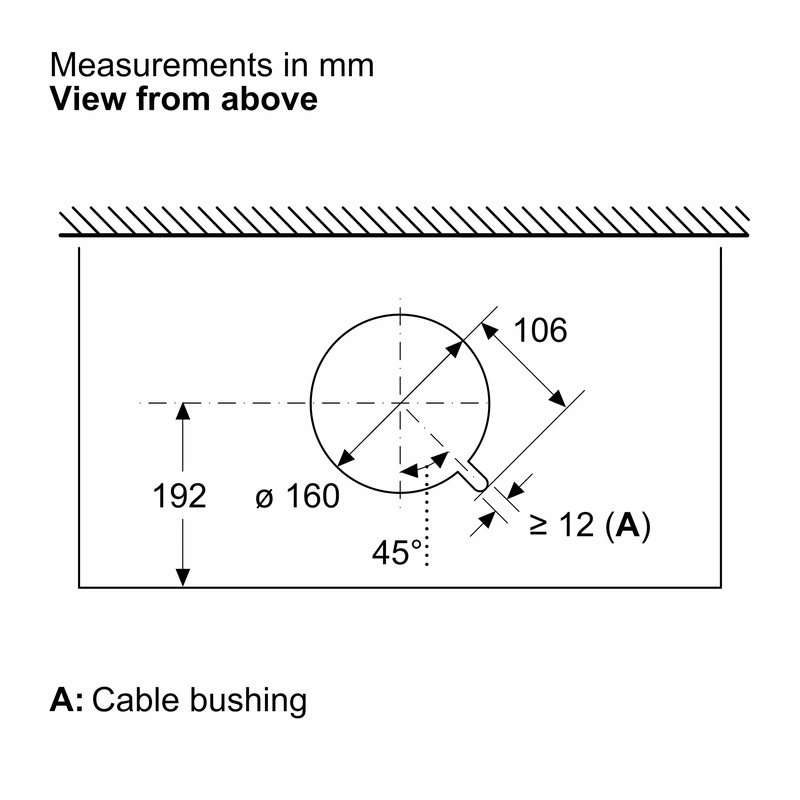

Diameter of air outlet / pipe	150 mm (Ø 150 mm)
Energy Efficiency Class	B (range A+++ to D)
Average Energy Consumption	70.5 kWh/year*
Blower Efficiency Class	B*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	B*
Connection rating / Power rating	200 W
Voltage	220–240 V nominal
Frequency	50 Hz
Plug type	GB plug
Core features	Capacitor energy efficient
Colour temperature	3500 K
Light intensity	290 lux
EAN code	4242005530298
Country of manufacture	Made in Germany at a CO₂ neutral production site
Packaging	Environmentally friendly packaging

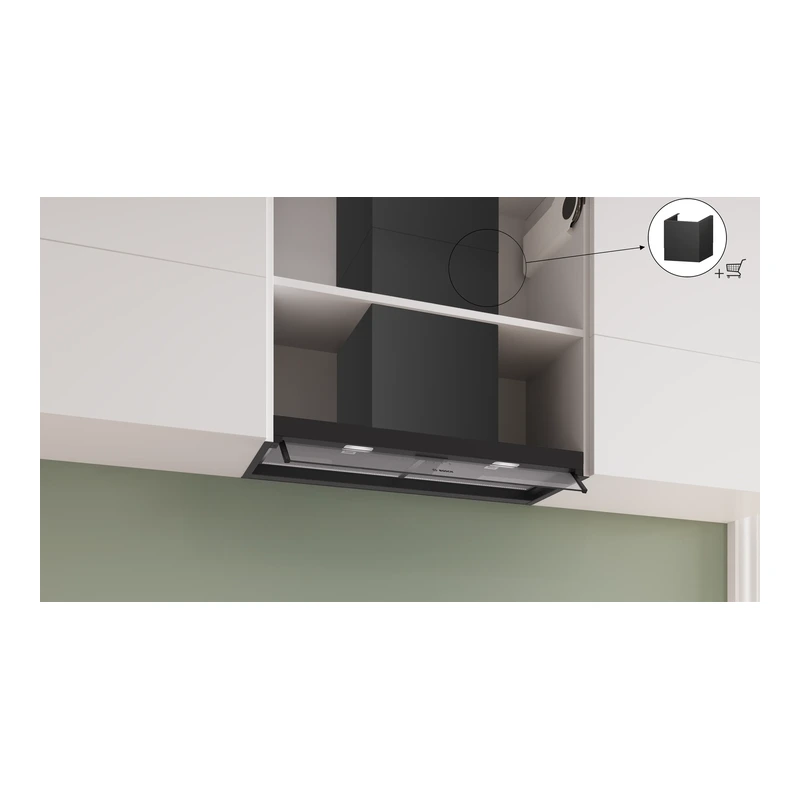

Optional accessories	DWZ1IB1I6 Long–life Clean Air recirculation kit; DWZ1IB6K2 chimney extension 450–854 mm; DWZ1IB6N2 chimney extension 187–360 mm
